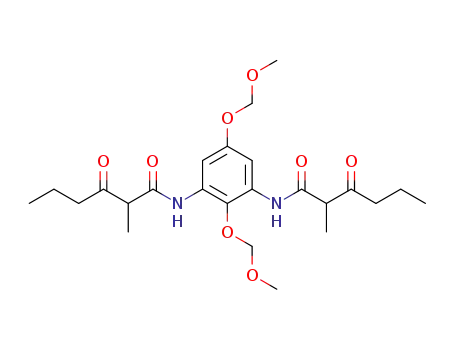

N,N'-[2,5-bis(methoxymethoxy)-1,3-phenylene]bis(2-methyl-3-oxohexanamide)

Base Information

• Chemical Name: N,N'-[2,5-bis(methoxymethoxy)-1,3-phenylene]bis(2-methyl-3-oxohexanamide)
• CAS No.: 120063-31-2
• Molecular Formula: C₂₄H₃₆N₂O₈
• Molecular Weight: 480.558
• Mol file: 120063-31-2.mol

Synonyms:N,N'-[2,5-bis(methoxymethoxy)-1,3-phenylene]bis(2-methyl-3-oxohexanamide)

Chemical Property of N,N'-[2,5-bis(methoxymethoxy)-1,3-phenylene]bis(2-methyl-3-oxohexanamide)

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of N,N'-[2,5-bis(methoxymethoxy)-1,3-phenylene]bis(2-methyl-3-oxohexanamide)

There total 3 articles about N,N'-[2,5-bis(methoxymethoxy)-1,3-phenylene]bis(2-methyl-3-oxohexanamide) which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 92.0%

methyl 2-methyl-3-oxohexanoate (120040-67-7) + 2,5-bis(methoxymethoxy)benzene-1,3-diamine (120063-30-1) → N,N'-[2,5-bis(methoxymethoxy)-1,3-phenylene]bis(2-methyl-3-oxohexanamide) (120063-31-2)

Guidance literature:

for 0.666667h; Heating;

DOI:10.1016/0040-4039(88)85288-2

Reference yield:

2,6-dinitrohydroquinone (13985-45-0) → N,N'-[2,5-bis(methoxymethoxy)-1,3-phenylene]bis(2-methyl-3-oxohexanamide) (120063-31-2)

Guidance literature:

Multi-step reaction with 3 steps

1: 82 percent / N,N-diisopropylethylamine / tetrahydrofuran / 1.) 0 deg C 30 min; 2.) reflux 12.5 h

2: 100 percent / H₂ / Raney Ni / ethyl acetate / 3.5 h / 20 °C / 912 Torr

3: 92 percent / 0.67 h / Heating

With hydrogen; N-ethyl-N,N-diisopropylamine; nickel; In tetrahydrofuran; ethyl acetate;

DOI:10.1016/0040-4039(88)85288-2

Reference yield:

2,5-bis(methoxymethoxy)-1,3-dinitrobenzene (120040-74-6) → N,N'-[2,5-bis(methoxymethoxy)-1,3-phenylene]bis(2-methyl-3-oxohexanamide) (120063-31-2)

Guidance literature:

Multi-step reaction with 2 steps

1: 100 percent / H₂ / Raney Ni / ethyl acetate / 3.5 h / 20 °C / 912 Torr

2: 92 percent / 0.67 h / Heating

With hydrogen; nickel; In ethyl acetate;

DOI:10.1016/0040-4039(88)85288-2

upstream raw materials:

methyl 2-methyl-3-oxohexanoate

2,5-bis(methoxymethoxy)benzene-1,3-diamine

2,6-dinitrohydroquinone

2,5-bis(methoxymethoxy)-1,3-dinitrobenzene

Downstream raw materials:

N,N'-(2,5-dihydroxy-1,3-phenylene)bis(2-methyl-3-oxohexanamide)

diazaquinomycin A
