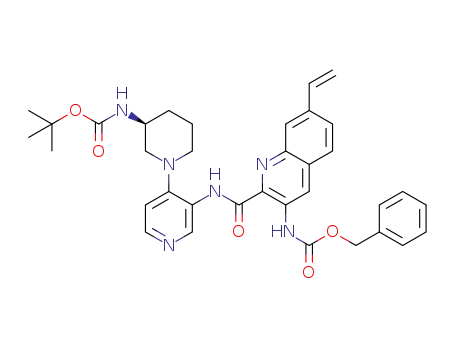

benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-vinylquinolin-3-yl)carbamate

Base Information

• Chemical Name: benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-vinylquinolin-3-yl)carbamate
• CAS No.: 1620239-38-4
• Molecular Formula: C₃₅H₃₈N₆O₅
• Molecular Weight: 622.724
• Mol file: 1620239-38-4.mol

Synonyms:benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-vinylquinolin-3-yl)carbamate

Chemical Property of benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-vinylquinolin-3-yl)carbamate

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-vinylquinolin-3-yl)carbamate

There total 9 articles about benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-vinylquinolin-3-yl)carbamate which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

ethyl 3-amino-7-bromoquinoline-2-carboxylate (1260807-99-5) → benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-vinylquinolin-3-yl)carbamate (1620239-38-4)

Guidance literature:

Multi-step reaction with 4 steps

1: pyridine / dichloromethane / -10 - 20 °C

2: chloro(2-dicyclohexylphosphino-2’,4’,6’-triisopropyl-1,1‘-biphenyl)[2-(2’-amino-1,1‘-biphenyl’)]palladium(II); potassium phosphate / 1,4-dioxane / 6 h / 90 °C / Inert atmosphere; Sealed tube

3: acetic acid; water / pH 5

4: N-ethyl-N,N-diisopropylamine; N-[(dimethylamino)-3-oxo-1H-1,2,3-triazolo[4,5-b]pyridin-1-yl-methylene]-N-methylmethanaminium hexafluorophosphate / N,N-dimethyl-formamide / 16 h / 20 °C

With pyridine; potassium phosphate; chloro(2-dicyclohexylphosphino-2’,4’,6’-triisopropyl-1,1‘-biphenyl)[2-(2’-amino-1,1‘-biphenyl’)]palladium(II); water; acetic acid; N-ethyl-N,N-diisopropylamine; N-[(dimethylamino)-3-oxo-1H-1,2,3-triazolo[4,5-b]pyridin-1-yl-methylene]-N-methylmethanaminium hexafluorophosphate; In 1,4-dioxane; dichloromethane; N,N-dimethyl-formamide;

Reference yield:

ethyl 3-{[(benzyloxy)carbonyl]amino}-7-bromoquinoline-2-carboxylate (1620239-11-3) → benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-vinylquinolin-3-yl)carbamate (1620239-38-4)

Guidance literature:

Multi-step reaction with 3 steps

1: chloro(2-dicyclohexylphosphino-2’,4’,6’-triisopropyl-1,1‘-biphenyl)[2-(2’-amino-1,1‘-biphenyl’)]palladium(II); potassium phosphate / 1,4-dioxane / 6 h / 90 °C / Inert atmosphere; Sealed tube

2: acetic acid; water / pH 5

3: N-ethyl-N,N-diisopropylamine; N-[(dimethylamino)-3-oxo-1H-1,2,3-triazolo[4,5-b]pyridin-1-yl-methylene]-N-methylmethanaminium hexafluorophosphate / N,N-dimethyl-formamide / 16 h / 20 °C

With potassium phosphate; chloro(2-dicyclohexylphosphino-2’,4’,6’-triisopropyl-1,1‘-biphenyl)[2-(2’-amino-1,1‘-biphenyl’)]palladium(II); water; acetic acid; N-ethyl-N,N-diisopropylamine; N-[(dimethylamino)-3-oxo-1H-1,2,3-triazolo[4,5-b]pyridin-1-yl-methylene]-N-methylmethanaminium hexafluorophosphate; In 1,4-dioxane; N,N-dimethyl-formamide;

Reference yield:

C22H20N2O4 → benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-vinylquinolin-3-yl)carbamate (1620239-38-4)

Guidance literature:

Multi-step reaction with 2 steps

1: acetic acid; water / pH 5

2: N-ethyl-N,N-diisopropylamine; N-[(dimethylamino)-3-oxo-1H-1,2,3-triazolo[4,5-b]pyridin-1-yl-methylene]-N-methylmethanaminium hexafluorophosphate / N,N-dimethyl-formamide / 16 h / 20 °C

With water; acetic acid; N-ethyl-N,N-diisopropylamine; N-[(dimethylamino)-3-oxo-1H-1,2,3-triazolo[4,5-b]pyridin-1-yl-methylene]-N-methylmethanaminium hexafluorophosphate; In N,N-dimethyl-formamide;

upstream raw materials:

3-amino-7-vinylquinoline-2-carboxylic acid

ethyl 3-amino-7-bromoquinoline-2-carboxylate

4-chloro-3-nitropyridine

benzyl chloroformate

Downstream raw materials:

benzyl (2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-formylquinolin-3-yl)carbamate

benzyl [2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-(1-hydroxyethyl)quinolin-3-yl]carbamate

tert-butyl [(3S)-1-(3-{[(7-acetyl-3-{[(benzyloxy)carbonyl]amino}quinolin-2-yl)carbonyl]amino}pyridin-4-yl)piperidin-3-yl]carbamate

benzyl [2-{[(4-{(3S)-3-[(tert-butoxycarbonyl)amino]piperidin-1-yl}pyridin-3-yl)amino]carbonyl}-7-(1-hydroxy-1-methylethyl)quinolin-3-yl]carbamate
