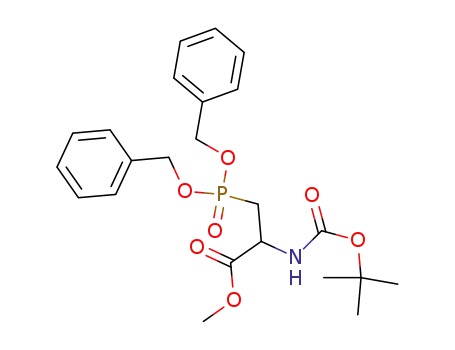

3-(bis-benzyloxy-phosphoryl)-2-tert-butoxycarbonylamino-propionic acid methyl ester

Base Information

• Chemical Name: 3-(bis-benzyloxy-phosphoryl)-2-tert-butoxycarbonylamino-propionic acid methyl ester
• CAS No.: 524940-50-9
• Molecular Formula: C₂₃H₃₀NO₇P
• Molecular Weight: 463.467
• Mol file: 524940-50-9.mol

Synonyms:3-(bis-benzyloxy-phosphoryl)-2-tert-butoxycarbonylamino-propionic acid methyl ester

Chemical Property of 3-(bis-benzyloxy-phosphoryl)-2-tert-butoxycarbonylamino-propionic acid methyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 3-(bis-benzyloxy-phosphoryl)-2-tert-butoxycarbonylamino-propionic acid methyl ester

There total 3 articles about 3-(bis-benzyloxy-phosphoryl)-2-tert-butoxycarbonylamino-propionic acid methyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 65.0%

dibenzyl hydrogen phosphite (538-60-3) + methyl 2-[(tert-butoxycarbonyl)amino]acrylate (55477-80-0) → 3-(bis-benzyloxy-phosphoryl)-2-tert-butoxycarbonylamino-propionic acid methyl ester (524940-50-9)

Guidance literature:

With 1,8-diazabicyclo[5.4.0]undec-7-ene;

DOI:10.1016/S0960-894X(02)00680-7

Reference yield:

N-tert-butoxycarbonylserine methyl ester (69942-12-7) → 3-(bis-benzyloxy-phosphoryl)-2-tert-butoxycarbonylamino-propionic acid methyl ester (524940-50-9)

Guidance literature:

Multi-step reaction with 2 steps

1: 85 percent / PPh₃; DEAD / toluene / 20 °C

2: 65 percent / DBU

With 1,8-diazabicyclo[5.4.0]undec-7-ene; triphenylphosphine; diethylazodicarboxylate; In toluene;

DOI:10.1016/S0960-894X(02)00680-7

Reference yield:

N-Boc-DL-serine (3850-40-6) → 3-(bis-benzyloxy-phosphoryl)-2-tert-butoxycarbonylamino-propionic acid methyl ester (524940-50-9)

Guidance literature:

Multi-step reaction with 3 steps

1: 95 percent / MeOH / benzene

2: 85 percent / PPh₃; DEAD / toluene / 20 °C

3: 65 percent / DBU

With methanol; 1,8-diazabicyclo[5.4.0]undec-7-ene; triphenylphosphine; diethylazodicarboxylate; In toluene; benzene;

DOI:10.1016/S0960-894X(02)00680-7

upstream raw materials:

dibenzyl hydrogen phosphite

methyl 2-[(tert-butoxycarbonyl)amino]acrylate

N-tert-butoxycarbonylserine methyl ester

N-Boc-DL-serine

Downstream raw materials:

3-(bis-benzyloxy-phosphoryl)-2-({2-[(6-{2-(bis-benzyloxy-phosphoryl)-1-[2-(bis-benzyloxy-phosphoryl)-1-carboxy-ethylcarbamoyl]-ethylcarbamoyl}-1-methyl-1H-benzoimidazol-2-yl)-difluoro-methyl]-3H-benzoimidazole-5-carbonyl}-amino)-propionic acid

C₇₁H₇₀F₂N₇O₁₆P₃

2-({6-[2-(bis-benzyloxy-phosphoryl)-1-methoxycarbonyl-ethylcarbamoyl]-1H-benzoimidazol-2-yl}-difluoro-methyl)-3-methyl-3H-benzoimidazole-5-carboxylic acid tert-butyl ester

2-({6-[2-(bis-benzyloxy-phosphoryl)-1-methoxycarbonyl-ethylcarbamoyl]-1H-benzoimidazol-2-yl}-difluoro-methyl)-3-methyl-3H-benzoimidazole-5-carboxylic acid
