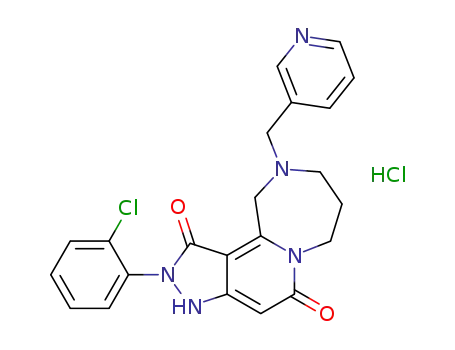

2-(2-chlorophenyl)-10-(pyridin-3-ylmethyl)-2,3,8,9,10,11-hexahydro-1H-pyrazolo[4',3':3,4]pyrido[1,2-a][1,4]diazepine-1,5(7H)-dione hydrochloride

Base Information

• Chemical Name: 2-(2-chlorophenyl)-10-(pyridin-3-ylmethyl)-2,3,8,9,10,11-hexahydro-1H-pyrazolo[4',3':3,4]pyrido[1,2-a][1,4]diazepine-1,5(7H)-dione hydrochloride
• CAS No.: 1350522-82-5
• Molecular Formula: C₂₂H₂₀ClN₅O₂*ClH
• Molecular Weight: 458.347
• Mol file: 1350522-82-5.mol

Synonyms:2-(2-chlorophenyl)-10-(pyridin-3-ylmethyl)-2,3,8,9,10,11-hexahydro-1H-pyrazolo[4',3':3,4]pyrido[1,2-a][1,4]diazepine-1,5(7H)-dione hydrochloride

Chemical Property of 2-(2-chlorophenyl)-10-(pyridin-3-ylmethyl)-2,3,8,9,10,11-hexahydro-1H-pyrazolo[4',3':3,4]pyrido[1,2-a][1,4]diazepine-1,5(7H)-dione hydrochloride

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 2-(2-chlorophenyl)-10-(pyridin-3-ylmethyl)-2,3,8,9,10,11-hexahydro-1H-pyrazolo[4',3':3,4]pyrido[1,2-a][1,4]diazepine-1,5(7H)-dione hydrochloride

There total 2 articles about 2-(2-chlorophenyl)-10-(pyridin-3-ylmethyl)-2,3,8,9,10,11-hexahydro-1H-pyrazolo[4',3':3,4]pyrido[1,2-a][1,4]diazepine-1,5(7H)-dione hydrochloride which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

C23H24ClN5O3 → 2-(2-chlorophenyl)-10-(pyridin-3-ylmethyl)-2,3,8,9,10,11-hexahydro-1H-pyrazolo[4',3':3,4]pyrido[1,2-a][1,4]diazepine-1,5(7H)-dione hydrochloride (1350522-82-5)

Guidance literature:

C₂₃H₂₄ClN₅O₃; With sodium methylate; In methanol; at 20 ℃; for 1h; Inert atmosphere;

With hydrogenchloride; In methanol;

DOI:10.1016/j.bmc.2011.10.016

Reference yield:

N-(3-pyridylmethyl)trimethylenediamine (100553-71-7) + methyl [4-(chloroacetyl)-1-(2-chlorophenyl)-5-hydroxy-1H-pyrazol-3-yl]acetate (1350522-88-1) → 2-(2-chlorophenyl)-10-(pyridin-3-ylmethyl)-2,3,8,9,10,11-hexahydro-1H-pyrazolo[4',3':3,4]pyrido[1,2-a][1,4]diazepine-1,5(7H)-dione hydrochloride (1350522-82-5)

Guidance literature:

Multi-step reaction with 2 steps

1.1: acetonitrile / 3 h / 0 °C / Inert atmosphere

1.2: 1 h / 20 °C / Inert atmosphere

2.1: sodium methylate / methanol / 1 h / 20 °C / Inert atmosphere

With sodium methylate; In methanol; acetonitrile;

DOI:10.1016/j.bmc.2011.10.016

upstream raw materials:

N-(3-pyridylmethyl)trimethylenediamine

methyl [4-(chloroacetyl)-1-(2-chlorophenyl)-5-hydroxy-1H-pyrazol-3-yl]acetate
