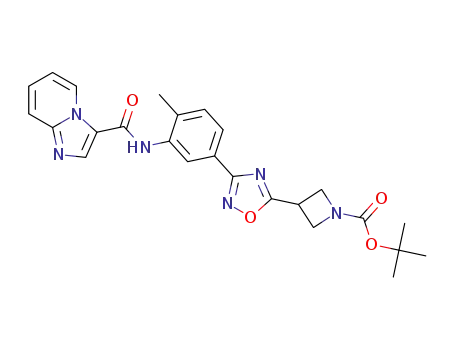

tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate

Base Information

• Chemical Name: tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate
• CAS No.: 1426132-77-5
• Molecular Formula: C₂₅H₂₆N₆O₄
• Molecular Weight: 474.519
• Mol file: 1426132-77-5.mol

Synonyms:tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate

Chemical Property of tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate

There total 5 articles about tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

N-(5-(N'-hydroxycarbamimidoyl)-2-methylphenyl)imidazo[1,2-a]pyridine-3-carboxamide (1426135-65-0) + 1-(t-butyloxycarbonyl)-azetidine-3-carboxylic acid (142253-55-2) → tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate (1426132-77-5)

Guidance literature:

With 1,1'-carbonyldiimidazole; In 1-methyl-pyrrolidin-2-one; at 120 ℃; for 0.25h;

Reference yield:

N-(5-cyano-2-methylphenyl)imidazo[1,2-a]pyridine-3-carboxamide (1426135-64-9) → tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate (1426132-77-5)

Guidance literature:

Multi-step reaction with 2 steps

1: hydroxylamine / water; ethanol / 4 h / 20 - 50 °C

2: 1,1'-carbonyldiimidazole / 1-methyl-pyrrolidin-2-one / 0.25 h / 120 °C

With hydroxylamine; 1,1'-carbonyldiimidazole; In 1-methyl-pyrrolidin-2-one; ethanol; water;

Reference yield:

imidazo[1,2-a]pyridine-3-carboxylic acid (6200-60-8) → tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate (1426132-77-5)

Guidance literature:

Multi-step reaction with 4 steps

1: oxalyl dichloride; N,N-dimethyl-formamide / dichloromethane / 0.5 h / 20 °C

2: N-ethyl-N,N-diisopropylamine / 1,2-dichloro-ethane / 3 h / 20 - 50 °C

3: hydroxylamine / water; ethanol / 4 h / 20 - 50 °C

4: 1,1'-carbonyldiimidazole / 1-methyl-pyrrolidin-2-one / 0.25 h / 120 °C

With oxalyl dichloride; hydroxylamine; N-ethyl-N,N-diisopropylamine; N,N-dimethyl-formamide; 1,1'-carbonyldiimidazole; In 1-methyl-pyrrolidin-2-one; ethanol; dichloromethane; water; 1,2-dichloro-ethane;

upstream raw materials:

5-cyano-2-methylaniline

N-(5-cyano-2-methylphenyl)imidazo[1,2-a]pyridine-3-carboxamide

imidazo[1,2-a]pyridine-3-carboxylic acid

N-(5-(N'-hydroxycarbamimidoyl)-2-methylphenyl)imidazo[1,2-a]pyridine-3-carboxamide

Downstream raw materials:

N-(5-(5-(azetidin-3-yl)-1,2,4-oxadiazol-3-yl)-2-methylphenyl)imidazo[1,2-a]pyridine-3-carboxamide

N-(2-methyl-5-(5-(1-sulfamoylazetidin-3-yl)-1,2,4-oxadiazol-3-yl)phenyl)imidazo[1,2-a]pyridine-3-carboxamide

methyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidine-1-carboxylate

tert-butyl 3-(3-(3-(imidazo[1,2-a]pyridine-3-carboxamido)-4-methylphenyl)-1,2,4-oxadiazol-5-yl)azetidin-1-ylsulfonylcarbamate
