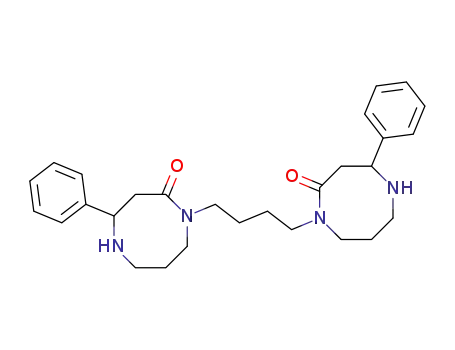

1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-1,5-diazocin-2(1H)-one]

Base Information

• Chemical Name: 1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-1,5-diazocin-2(1H)-one]
• CAS No.: 153257-86-4
• Molecular Formula: C₂₈H₃₈N₄O₂
• Molecular Weight: 462.635
• Mol file: 153257-86-4.mol

Synonyms:1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-1,5-diazocin-2(1H)-one]

Chemical Property of 1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-1,5-diazocin-2(1H)-one]

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-1,5-diazocin-2(1H)-one]

There total 14 articles about 1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-1,5-diazocin-2(1H)-one] which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 76.0%

1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-5-tosyl-1,5-diazocin-2(1H)-one] (467218-16-2) → 1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-1,5-diazocin-2(1H)-one] (153257-86-4)

Guidance literature:

With tetramethlyammonium chloride; In methanol; N,N-dimethyl-formamide; at 5 ℃; Electrolysis;

DOI:10.1002/1522-2675(200206)85:6<1659::AID-HLCA1659>3.0.CO;2-D

Reference yield: 75.0%

1,4-dibromo-butane (110-52-1) + 4-Phenyl-[1,5]diazocan-2-one → 1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-1,5-diazocin-2(1H)-one] (153257-86-4)

Guidance literature:

With potassium hydroxide; In dimethyl sulfoxide; at 20 ℃;

DOI:10.1039/c39830000960

Reference yield: 40.0%

(E)-1,4-bis-(5-benzyloxycarbonyl-2-oxo-4-phenyl-1,5-diazacyclooctanyl)but-2-ene (109742-19-0) → 1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-1,5-diazocin-2(1H)-one] (153257-86-4)

Guidance literature:

With hydrogenchloride; hydrogen; platinum(IV) oxide; In methanol; for 4.5h; Ambient temperature;

upstream raw materials:

1,4-dibromo-butane

(E)-1,4-bis-(5-benzyloxycarbonyl-2-oxo-4-phenyl-1,5-diazacyclooctanyl)but-2-ene

1,1'-(butane-1,4-diyl)bis[hexahydro-4-phenyl-5-tosyl-1,5-diazocin-2(1H)-one]

3-Amino-3-phenylpropionic acid

Downstream raw materials:

epi-Homaline

1,1'-(butane-1,4-diyl)bis[hexahydro-5-methyl-4-phenyl-1,5-diazocin-2(1H)-one]
