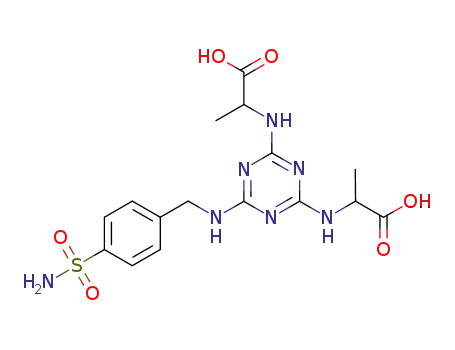

DL-2,2'-[6-(4-sulfamoylbenzylamino)-1,3,5-triazine-2,4-diyl]bis(azanediyl)dipropanoic acid

Base Information

• Chemical Name: DL-2,2'-[6-(4-sulfamoylbenzylamino)-1,3,5-triazine-2,4-diyl]bis(azanediyl)dipropanoic acid
• CAS No.: 1311200-29-9
• Molecular Formula: C₁₆H₂₁N₇O₆S
• Molecular Weight: 439.452
• Mol file: 1311200-29-9.mol

Synonyms:DL-2,2'-[6-(4-sulfamoylbenzylamino)-1,3,5-triazine-2,4-diyl]bis(azanediyl)dipropanoic acid

Chemical Property of DL-2,2'-[6-(4-sulfamoylbenzylamino)-1,3,5-triazine-2,4-diyl]bis(azanediyl)dipropanoic acid

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of DL-2,2'-[6-(4-sulfamoylbenzylamino)-1,3,5-triazine-2,4-diyl]bis(azanediyl)dipropanoic acid

There total 2 articles about DL-2,2'-[6-(4-sulfamoylbenzylamino)-1,3,5-triazine-2,4-diyl]bis(azanediyl)dipropanoic acid which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 34.0%

rac-Ala-OH (302-72-7,25191-17-7,18875-37-1) + 4-{[(4,6-dichloro-1,3,5-triazin-2-yl)amino]methyl}-benzene-1-sulfonamide (796871-26-6) → DL-2,2'-[6-(4-sulfamoylbenzylamino)-1,3,5-triazine-2,4-diyl]bis(azanediyl)dipropanoic acid (1311200-29-9)

Guidance literature:

With N-ethyl-N,N-diisopropylamine; In N,N-dimethyl-formamide; at 20 ℃; Inert atmosphere;

DOI:10.1016/j.bmc.2011.04.005

Reference yield:

mafenide hydrochloride (138-37-4) → DL-2,2'-[6-(4-sulfamoylbenzylamino)-1,3,5-triazine-2,4-diyl]bis(azanediyl)dipropanoic acid (1311200-29-9)

Guidance literature:

Multi-step reaction with 2 steps

1.1: acetone / 0 °C

1.2: 1.33 h

2.1: N-ethyl-N,N-diisopropylamine / N,N-dimethyl-formamide / 20 °C / Inert atmosphere

With N-ethyl-N,N-diisopropylamine; In N,N-dimethyl-formamide; acetone;

DOI:10.1016/j.bmc.2011.04.005

upstream raw materials:

mafenide hydrochloride

rac-Ala-OH

4-{[(4,6-dichloro-1,3,5-triazin-2-yl)amino]methyl}-benzene-1-sulfonamide
