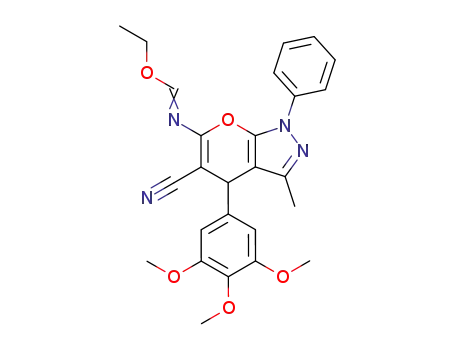

6-ethoxymethylideneamino-3-methyl-1-phenyl-4-(3,4,5-trimethoxyphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile

Base Information

• Chemical Name: 6-ethoxymethylideneamino-3-methyl-1-phenyl-4-(3,4,5-trimethoxyphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile
• CAS No.: 170030-58-7
• Molecular Formula: C₂₆H₂₆N₄O₅
• Molecular Weight: 474.516
• Mol file: 170030-58-7.mol

Synonyms:

Chemical Property of 6-ethoxymethylideneamino-3-methyl-1-phenyl-4-(3,4,5-trimethoxyphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 6-ethoxymethylideneamino-3-methyl-1-phenyl-4-(3,4,5-trimethoxyphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile

There total 3 articles about 6-ethoxymethylideneamino-3-methyl-1-phenyl-4-(3,4,5-trimethoxyphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 93.0%

orthoformic acid triethyl ester (122-51-0) + 6-amino-4-(3,4,5-trimethoxyphenyl)-3-methyl-1-phenyl-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (170030-57-6) → 6-ethoxymethylideneamino-3-methyl-1-phenyl-4-(3,4,5-trimethoxyphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (170030-58-7)

Guidance literature:

With acetic anhydride; for 5h; Heating;

Reference yield:

2-(3,4,5-trimethoxybenzylidene)malononitrile (5688-82-4) → 6-ethoxymethylideneamino-3-methyl-1-phenyl-4-(3,4,5-trimethoxyphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (170030-58-7)

Guidance literature:

Multi-step reaction with 2 steps

1: 80 percent / piperidine / ethanol / 1 h / Heating

2: 93 percent / Ac₂O / 5 h / Heating

With piperidine; acetic anhydride; In ethanol;

Reference yield:

edaravone (89-25-8) → 6-ethoxymethylideneamino-3-methyl-1-phenyl-4-(3,4,5-trimethoxyphenyl)-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile (170030-58-7)

Guidance literature:

Multi-step reaction with 2 steps

1: 80 percent / piperidine / ethanol / 1 h / Heating

2: 93 percent / Ac₂O / 5 h / Heating

With piperidine; acetic anhydride; In ethanol;

upstream raw materials:

orthoformic acid triethyl ester

6-amino-4-(3,4,5-trimethoxyphenyl)-3-methyl-1-phenyl-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile

2-(3,4,5-trimethoxybenzylidene)malononitrile

edaravone

Downstream raw materials:

5-imino-3-methyl-1-phenyl-4-(3,4,5-trimethoxyphenyl)-1,4,5,6-tetrahydropyrazolo[4',3':5,6]pyrano[2,3-d]pyrimidin-6-amine
