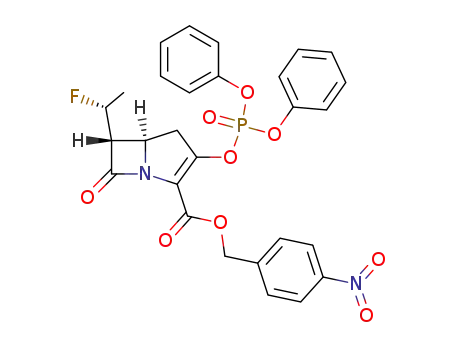

(5R,6R)-3-(Diphenoxy-phosphoryloxy)-6-((R)-1-fluoro-ethyl)-7-oxo-1-aza-bicyclo[3.2.0]hept-2-ene-2-carboxylic acid 4-nitro-benzyl ester

Base Information

• Chemical Name: (5R,6R)-3-(Diphenoxy-phosphoryloxy)-6-((R)-1-fluoro-ethyl)-7-oxo-1-aza-bicyclo[3.2.0]hept-2-ene-2-carboxylic acid 4-nitro-benzyl ester
• CAS No.: 97322-57-1
• Molecular Formula: C₂₈H₂₄FN₂O₉P
• Molecular Weight: 582.479
• Mol file: 97322-57-1.mol

Synonyms:

Chemical Property of (5R,6R)-3-(Diphenoxy-phosphoryloxy)-6-((R)-1-fluoro-ethyl)-7-oxo-1-aza-bicyclo[3.2.0]hept-2-ene-2-carboxylic acid 4-nitro-benzyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of (5R,6R)-3-(Diphenoxy-phosphoryloxy)-6-((R)-1-fluoro-ethyl)-7-oxo-1-aza-bicyclo[3.2.0]hept-2-ene-2-carboxylic acid 4-nitro-benzyl ester

There total 4 articles about (5R,6R)-3-(Diphenoxy-phosphoryloxy)-6-((R)-1-fluoro-ethyl)-7-oxo-1-aza-bicyclo[3.2.0]hept-2-ene-2-carboxylic acid 4-nitro-benzyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

p-nitrobenzyl 4-{(3R,4R)-3-[(R)-1-fluoroethyl]-2-oxoazetidin-4-yl}-2-diazo-3-oxobutyrate (112245-22-4) → (5R,6R)-3-(Diphenoxy-phosphoryloxy)-6-((R)-1-fluoro-ethyl)-7-oxo-1-aza-bicyclo[3.2.0]hept-2-ene-2-carboxylic acid 4-nitro-benzyl ester (97322-57-1)

Guidance literature:

Multi-step reaction with 2 steps

1: rhodium(II) acetate dimer / benzene / 1 h / 80 °C

2: diisopropylethylamine / dimethylformamide / -30 °C

With N-ethyl-N,N-diisopropylamine; dirhodium tetraacetate; In N,N-dimethyl-formamide; benzene;

DOI:10.1248/cpb.39.335

Reference yield:

p-nitrobenzyl 4-<(3RS,4RS)-3-<(RS)-1-fluoroethyl>-2-oxoazetidinin-4-yl>-2-diazo-3-oxobutyrate → 3-(Diphenoxy-phosphoryloxy)-6-(1-fluoro-ethyl)-7-oxo-1-aza-bicyclo[3.2.0]hept-2-ene-2-carboxylic acid 4-nitro-benzyl ester (97322-57-1)

Guidance literature:

Multi-step reaction with 2 steps

1: 100 percent / rhodium(II) acetate dimer / benzene / 1 h / 80 °C

2: diisopropylethylamine / dimethylformamide / 0.5 h / -30 °C

With N-ethyl-N,N-diisopropylamine; dirhodium tetraacetate; In N,N-dimethyl-formamide; benzene;

DOI:10.1248/cpb.39.335

Reference yield:

p-Nitrobenzyl (5RS,6RS)-3,7-Dioxo-6-<(RS)-1-fluoroethyl>-1-azabicyclo<3.2.0>heptane-2-carboxylate (118713-19-2) + chlorophosphoric acid diphenyl ester (2524-64-3) → 3-(Diphenoxy-phosphoryloxy)-6-(1-fluoro-ethyl)-7-oxo-1-aza-bicyclo[3.2.0]hept-2-ene-2-carboxylic acid 4-nitro-benzyl ester (97322-57-1)

Guidance literature:

With N-ethyl-N,N-diisopropylamine; In N,N-dimethyl-formamide; at -30 ℃; for 0.5h;

DOI:10.1248/cpb.39.335

upstream raw materials:

p-Nitrobenzyl (5RS,6RS)-3,7-Dioxo-6-<(RS)-1-fluoroethyl>-1-azabicyclo<3.2.0>heptane-2-carboxylate

chlorophosphoric acid diphenyl ester

(5R,6R)-6-((R)-1-Fluoro-ethyl)-3,7-dioxo-1-aza-bicyclo[3.2.0]heptane-2-carboxylic acid 4-nitro-benzyl ester

p-nitrobenzyl 4-{(3R,4R)-3-[(R)-1-fluoroethyl]-2-oxoazetidin-4-yl}-2-diazo-3-oxobutyrate

Downstream raw materials:

p-Nitrobenzyl (5RS,6RS)-6-<(RS)-1-Fluoroethyl>-3-<(2S)-2-p-nitrobenzyloxycarbonyl-2-p-nitrobenzyloxycarbonylamino>ethylthio-7-oxo-1-azabicyclo<3.2.0>hept-2-ene-2-carboxylate

(5R,6R)-6-((R)-1-Fluoro-ethyl)-3-[(3S,5S)-5-hydroxymethyl-1-(4-nitro-benzyloxycarbonyl)-pyrrolidin-3-ylsulfanyl]-7-oxo-1-aza-bicyclo[3.2.0]hept-2-ene-2-carboxylic acid 4-nitro-benzyl ester

p-Nitrobenzyl (5R,6R)-6-<(R)-1-Fluoroethyl>-3-<(2R,4S)-2-hydroxymethyl-1-p-nitrobenzyloxycarbonylpyrrolidin-4-yl>thio-7-oxo-1-azabicyclo<3.2.0>hept-2-ene-2-carboxylate

p-Nitrobenzyl (5R,6R)-6-<(R)-1-Fluoroethyl>-7-oxo-3-(pyridin-4-yl)thio-1-azabicyclo<3.2.0>hept-2-ene-2-carboxylate
