Chemoselective Formation of
8,9-Epoxy-limonene
Queli A. R. Almeida and Joel Jones Jr.
´
´ ˆ
Sıntese Organica Ambiental, Instituto de Quımica, Universidade Federal
do Rio de Janeiro, Rio de Janeiro, Brazil
Abstract: We present here a synthetic path to produce, exclusively, 8,9-epoxy-
limonene in 75% overall yields. We developed a three step synthetic route. First, the
1,2-double bond of limonene was protected by the formation of the bromo-methyl-
ether by cohalogenation with NBS in MeOH. Then, this product was oxidized by
m-chloro-perbenzoic acid to give the corresponding epoxides. Finally, the 1,2-double
bond was restored by a reaction with NH4Cl/Zn leading to 8,9-epoxy-limonene.
The great advantage of this methodology is that the intermediate purification steps
are not necessary.
Keywords: Epoxy, limonene, terpene
INTRODUCTION
8,9-Epoxy-limonene is an important synthetic intermediate that can be used to
synthesize natural compounds such as uroterpenol,[1] a-bisabolol,[1,2]
anymol,[1,2] and 9-hydroxycineoles.[3]
In the literature, we find different methodologies for 8,9-epoxy-limonene
preparation from limonene, such as oxidations with porphyrins metallic
complexes,[4] titanium complexes,[5] tungsten,[6] ruthenium,[7] hydroperoxide
and peroxides formed in situ,[8] photooxidation,[9] and microbiological
transformations.[10]
Received in the USA January 27, 2005
Address correspondence to Joel Jones Jr., Sıntese Organica Ambiental, Instituto de
´
ˆ
´
Quımica, Universidade Federal do Rio de Janeiro, Av. Brigadeiro Trompowsky s/no.,
´ ´
Predio do Centro de Tecnologia, Bloco A, sala 611, Cidade Universitaria, Rio de
Janeiro, CEP 21.941-590, Brazil. Fax: þ55-21-2562-7133; E-mail: soa@iq.ufrj.br
1285

1286
Q. A. R. Almeida and J. Jones Jr.
Until now, the reaction of limonene with nitriles-H2O2 has been the most
important methodology to prepare 8,9-epoxy-limonene.[11] However, it
produces a 1:1 mixture of 1,2-epoxy-limonene and 8,9-epoxy-limonene.
The isomers are separated by distillation.
A synthetic method to 8,9-epoxy-limonene at gram scale was described
by Carlson in 1971.[11e] This method uses limonene and a mixture of benzoni-
trile and hydrogen peroxide (35%), and produces a mixture of mono- and di-
epoxides (30% being 8,9-epoxy-limonene).
RESULTS
Here we present a specific synthetic route to 8,9-epoxy-limonenes (I) in a 75%
overall yield.
Recently, de Mattos and Sanseverino[12] published the cohalogenation of
.
limonene (II) with I2/Cu(OAc)2 H2O in aqueous dioxane to produce chemo-
and regiospecifically pure iodohydrin.
Based on this result, we developed a three-step synthetic route. First,
the 1,2-double bond of limonene was protected by the formation of the
bromo-methyl-ether (III) by cohalogenation with NBS in MeOH at 08C

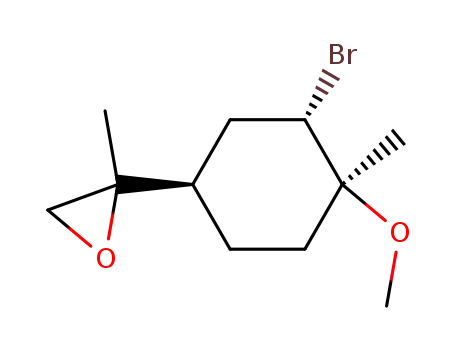

(Scheme 1). Then, this product was oxidized by m-chloro-perbenzoic acid
(m-CPBA) to give epoxides (IV). Finally, the 1,2-double bond was restored
Scheme 1.

Chemoselective Formation of 8,9-Epoxy-limonene
1287
by a reaction with NH4Cl/Zn. The great advantage of this methodology is that
the intermediate purification steps are not necessary. In this process,
we employed a 10 g scale of limonene to produce 8.4 g of 1:1 mixture of
(4R,8R)-8,9-epoxy-limonene and (4R,8S)-8,9-epoxy-limonene (I) in 75%
overall yield after purification (Scheme 1).
The analysis of the reaction was performed by high-resolution gaseous
chromatography (HRGC), and the product was characterized by spectroscopic
methods[13] and co-injection with the standard sample.
This synthetic route is a simple and efficient one for preparing a 1:1
mixture of (4R,8R)-8,9-epoxy-limonene and (4R,8S)-8,9-epoxy-limonene in
good yields and in .99% purity without any trace of 1,2-epoxide-limonenes.
EXPERIMENTAL
10 g (73.5 mmol) of limonene, 60 mL of methanol, and 13 g (73.5 mmol) of
N-bromo-succinimide (added slowly) were added to a 250-mL flask in an
ice bath. The solution was stirred for 24 h and filtered, and the solvent was
evaporated to obtain an oil. The oil was dissolved in 15 mL of CH2Cl2, the
solution was cooled in an ice bath, and 13 g of m-chloroperbenzoic acid in
50 mL of CH2Cl2 was added dropwise for 20 min. The reaction was stirred
for 72 h. Then, a solution of an aqueous 20% KI was added, producing a
violet solution. A saturated solution of sodium thiosulfate was added until
the violet color vanished completely. The phases were separated and
the organic phase was washed with an aqueous 20% NaHCO3 solution. The
organic combined extracts were dried over anhydrous Na2SO4 and the
solvent was evaporated. The oil was dissolved in 25 mL of EtOH, and 3 g
of Zn and 3 g of NH4Cl were added. The suspension was stirred vigorously
for 24 h at rt, filtered through celite, and fractionated by chromatography
on a silica column (hexano/ethyl acetate 9:1), producing 8.4 g (55.3 mmol)
of 1:1 mixture of (4R,8R)-8,9-epoxy-limonene and (4R,8S)-8,9-epoxy-
limonene (75% yield and .99% purity by HRGC).
Lit. data:[12] 1H NMR, d: 1.26 (3H, s), 1.64 (3H, bs), 1.75–2.05 (5H, m),
2.57, 2.64 (Abq 1H, J ¼ 5 Hz, 2H), 5.36 (1H, bs); 13C NMR, d: 18.16 (CH3),
23.42 (CH3), 25.05 (CH2), 27.57 (CH2), 30.14 (CH2), 40.21 (CH), 53.33
(CH2), 59.18 (C), 119.92 (CH), 134.12 (C); m/z (rel. int.%) 152 (M þ † 2),
121 (23), 119 (11), 105 (16), 95 (17), 94 (100), 93 (38), 91 (33), 79 (89), 77
(24), 67 (34), 55 (27), 53 (30), 43 (38), 41 (55).
(4R,8R)-8,9-epoxy-limonene and (4R,8S)-8,9-epoxy-limonene (I): 1H
NMR (TMS, CDCl3), d: 1.26 (3H, s), 1.50 (2H, m), 1.64 (3H, bs), 1.75–
2.05 (5H, m), 2.57 (1H, dd, J ¼ 4.5 Hz), 2.64 (1H, dd, J ¼ 4.5 Hz), 5.37
(1H, bs); 13C NMR (TMS, CDCl3), d: 18.51 (CH3), 23.37 (CH3), 24.95
(CH2), 27.51 (CH2), 30.05 (CH2), 40.12 (CH), 53.44 (CH2), 59.47 (C),
120.04 (CH), 134.12 (C); EIMS m/z (rel. int.%) 152 (M þ † 3), 137 (19),
121 (90), 119 (25), 109 (13), 105 (39), 93 (72), 91 (65), 84 (28), 79 (100),

1288
Q. A. R. Almeida and J. Jones Jr.
77 (42), 67 (48), 55 (25), 53 (30), 43 (48), 41 (40), and 39 (44). Lit. data:[11e]
1H NMR, d: 1.20 (3 H, s), 1.3–2.2 (10 H, m), 1.63 (3 H, s), 2.35–2.60 (2 H,
dd), 5.37 (1 H, bs).
ACKNOWLEDGMENT
We thank CNPq and CAPES for financial support, and Claudia Moraes de
Rezende for the mass analyses. We thank Flavia M. da Silva for helpful
discussions.
REFERENCES
1. (a) Kergomard, A.; Veschambre, H. Synthesis and absolute configuration of
natural terpenes: (þ)-Uroterpenol, (þ) and (2)-a-bisabolols, (2)-a-bisabololone.
Tetrahedron 1977, 33, 2215–2224; (b) Carman, R. M.; Greenfield, K. L.;
Robinson, W. T. Halogenated terpenoids. XXII. Uroterpenol. The C8 stereo-
chemistry. Aust. J. Chem. 1986, 39, 21–30; (c) Kergomard, A.; Veschambre, H.
Preparation of two (þ)-uroterpenol diastereomers. Their absolute configurations.
Tetrahedron Lett. 1975, 11, 835–838.
2. Carman, R. M.; Duffield, A. R. (þ)-a-Bisabolol and (þ)-anymol. A repetition of
the synthesis from the limonene 8,9-epoxides. Aust. J. Chem. 1989, 42,
2035–2039.
3. Carman, R. M.; Klika, K. D. Partially racemic compounds as brushtail possum
urinary metabolites. Aust. J. Chem. 1992, 45, 651–657.
4. (a) Groves, J. T.; Nemo, T. E. Epoxidation reactions catalyzed by iron porphyrins.
Oxygen transfer from iodosylbenzene. J. Am. Chem. Soc. 1983, 105 (18),
5786–5791; (b) Leduc, P.; Battioni, P.; Bartoli, J. F.; Mansuy, D. A biomimetic
electrochemical system for the oxidation of hydrocarbons by dioxygen catalyzed
by manganese porphyrins and imidazole. Tetrahedron Lett. 1988, 29 (2),
205–208; (c) Bhyrappa, P.; Young, J. K.; Moore, J. S.; Suslick, K. S. Shape
selective epoxidation of alkenes by metalloporphyrin-dendrimers. J. Mol. Catal.
A: Chemical 1996, 113 (1–2), 109–116; (d) Tangestaninejad, S.; Mirkhani, V.
Efficient and selective epoxidation of alkenes with sodium periodate using
supported manganese porphyrins under ultrasonic irradiation. Chem. Lett. 1998,
12, 1265–1266; (e) Tangestaninejad, S.; Moghadam, M. Alkene epoxidation
and alkane hydroxylation with periodate catalyzed by manganese(III) porphyrin
supported on poly(4-vinylpyridine). J. Chem. Research, Synop. 1998, 242–243;
(f) Battioni, P.; Renaud, J. P.; Bartoli, J. F.; Reina-Artiles, M.; Fort, M.;
Mansuy, D. Monooxygenase-like oxidation of hydrocarbons by hydrogen
peroxide catalyzed by manganese porphyrins and imidazole: Selection of the
best catalytic system and nature of the active oxygen species. J. Am. Chem. Soc.
1988, 110 (25), 8462–8470; (g) Tangestaninejad, S.; Mirkhani, V. Polystyrene-
bound manganese(III) porphyrin as a heterogeneous catalyst for alkene epoxida-
tion. J. Chem. Res., Synop. 1998, 12, 788–789; (h) Suslick, K. S.; Cook, B. R.
Regioselective epoxidations of dienes with manganese(III) porphyrin catalysts.
J. Chem. Soc., Chem. Commun. 1987, 3, 200–202; (i) Liu, C.; Yu, W.-Y.;
Li, S.-G.; Che, C.-M. Ruthenium meso-tetrakis(2,6-dichlorophenyl)porphyrin

Chemoselective Formation of 8,9-Epoxy-limonene
1289
complex immobilized in mesoporous MCM-41 as a heterogeneous catalyst for
selective alkene epoxidations. J. Org. Chem. 1998, 63 (21), 7364–7369;
(j) Nam, W.; Kim, H. J.; Kim, S. H.; Ho, R. Y. N.; Valentine, J. S. Metal
complex-catalyzed epoxidation of olefins by dioxygen with co-oxidation of
aldehydes. A mechanistic study. Inorg. Chem. 1996, 35 (4), 1045–1049.
´
`
5. (a) Fraile, J. M.; Garcıa, J. I.; Mayoral, J. A.; Menorval, L. C.; Rachdi, F. A new
titanium-silica catalyst for the epoxidation of nonfunctionalized alkenes and allylic
alcohols. J. Chem. Soc., Chem. Commun. 1995, 5, 539–540; (b) Cativiela, C.;
Fraile, J. M.; Garcia, J. I.; Mayoral, J. A. A new titanium-silica catalyst for the epox-
idation of alkenes. J. Mol. Catal. A: Chemical 1996, 112 (2), 259–267; (c) Van der
Waal, J. C.; Rigutto, M. S.; van Bekkum, H. Zeolite titanium beta as a selective
catalyst in the epoxidation of bulky alkenes. Appl. Catal., A 1998, 167 (2), 331–342.
6. Mizuno, N.; Tateishi, M.; Hirose, T.; Iwamoto, M. Regioselectivity in epoxidation
of dienes on PW11CoO395- by molecular oxygen in the presence of aldehyde.
Chem. Lett. 1993, 11, 1985–1986.
7. Cheng, W.-C.; Fung, W.-H.; Che, C.-M. tert-Butyl hydroperoxide epoxidation of
alkenes catalyzed by ruthenium complex of 1,4,7-trimethyl-1,4,7-triazacyclono-
nane. J. Mol. Catal. A: Chemical 1996, 113 (1–2), 311–319.
8. (a) Kulikova, V. S.; Gritsenko, O. N.; Shteinman, A. A. Molecular mechanism of
alkane oxidation involving binuclear iron complexes. Mendeleev Commun. 1996,
3, 119–120; (b) Schulz, M.; Kluge, R.; Lipke, M. Substitution of arylsulfonyl imi-
dazolides by hydrogen peroxide: Aryl sulfonic peracids as oxidants for olefins.
Synlett 1993, 12, 915–918; (c) Al-Ajlouni, A. M.; Espenson, J. H. Kinetics and
mechanism of the epoxidation of alkyl-substituted alkenes by hydrogen
peroxide, catalyzed by methylrhenium trioxide. J. Org. Chem. 1996, 61 (12),
3969–3976; (d) Villa, A. L.; Des Vos, D. E.; Montes, C.; Jacobs, P. A.
Selective epoxidation of monoterpenes with methyltrioxorhenium and H2O2.
Tetrahedron Lett. 1998, 39 (46), 8521–8524; (e) Neumann, R.; Juwiler, D. Oxi-
dations with hydrogen peroxide catalyzed by the [WZnMn(II)2(ZnW9O34)2]122
polyoxometalate. Tetrahedron 1996, 52 (26), 8781–8788; (f) Majetich, G.;
Hicks, R.; Sun, G.; McGill, P. Carbodiimide-promoted olefin epoxidation with
aqueous hydrogen peroxide. J. Org. Chem. 1998, 63 (8), 2564–2573;
(g) Gonsalves, A. M. A. R.; Johnstone, R. A.W.; Pereira, M. M. Dissociation of
hydrogen peroxide adducts in solution: The use of such adducts for epoxidation
of alkenes. J. Chem. Res., Synop. 1991, 8, 208–209.
9. Sato, T.; Murayama, E. Unsensitized photooxidation of (þ)-limonene, 1,2-
dimethylcyclohexene, and endo-dicyclopentadiene. Bull. Chem. Soc. Jpn. 1974,
47 (3), 715–719.
10. (a) Chen, X. J.; Archelas, A.; Furstoss, R. Microbiological transformations. 27. The
first examples for preparative-scale enantioselective or diastereoselective epoxide
hydrolyses using microorganisms. An unequivocal access to all four bisabolol
stereoisomers. J. Org. Chem. 1993, 58 (20), 5528–5532; (b) Van der
Werf, M. J.; Keijzer, P. M.; van der Schaft, P. H. Xanthobacter sp. C20 contains
a novel bioconversion pathway for limonene. J. Biotechnol. 2000, 84 (2), 133–143.
11. (a) Farges, G.; Kergomard, A. Preparation of 8,9-epoxy-1-p-menthene (mixture of
two diastereoisomers). Bull. Soc. Chim. Fr. 1969, 12, 4476–4477; (b) Payne, G. B.
A simplified procedure for epoxidation by benzonitrile–hydrogen peroxide.
Selective oxidation of 2-allylcyclohexanone. Tetrahedron 1962, 18 (6),
763–765; (c) Ogata, Y.; Sawaki, Y. The alkali phosphate-catalyzed epoxidation
and oxidation by a mixture of nitrile and hydrogen peroxide. Tetrahedron 1964,
20 (9), 2065–2068; (d) Bain, J. P.; Gary, W. Y.; Klein, E. A. Oxygenated

1290
Q. A. R. Almeida and J. Jones Jr.
monocyclic terpenes. E.A. U.S. Patent 3014047, 1961, Chem. Abstr. 1962, 57,
12556 I; (e) Carlson, R. G.; Behn, N. S.; Cowles, C. Epoxidation. III. Relative reac-
tivities of some representative olefins with peroxybenzimidic acid. J. Org. Chem.
1971, 36 (24), 3832–3833.
12. (a) de Mattos, M. C. S.; Sanseverino, A. M. An easy and efficient synthesis of
iodohydrins from alkenes. J. Chem. Res., Synop. 1994, 440–441; (b) de
Mattos, M. C. S.; Jones, J., Jr.; da Silva, F. M.; Sanseverino, A. M. Coiodac¸a˜o
´
de alquenos com nucleofilos oxigenados: Reac¸o˜es intermoleculares. Quim. Nova
2001, 24 (5), 637–645.
13. Carman, R. M.; De Voss, J. J.; Greenfield, K. L. The diastereomeric 8,9-epoxides
of limonene (the 8,9-epoxy-p-menth-1-enes). Aust. J. Chem. 1986, 441–446.
