24- and 26-membered macrocyclic diorganotin(IV) bis-dithiocarbamate complexes with N,N′-disubstituted 1,3- and 1,4-bis(aminomethyl)benzene and 1,1′-bis(aminomethyl)ferrocene as spacer groups

Article abstract of DOI:10.1021/ic801464s

The potassium bis-dithiocarbamate (bis-dtc) salts of 1,3- bis(benzylaminomethyl)benzene (1,3-Bn-ambdtc), 1,3-bis(iso-butylaminomethyl) benzene (1,3-ⁱBu-ambdtc), 1,4-bis(benzylaminomethyl)benzene (1,4-Bn-ambdtc), and 1,4-bis(iso-butylaminomethyl

Full text of DOI:10.1021/ic801464s

Inorg. Chem. 2008, 47, 9804-9812
24- and 26-Membered Macrocyclic Diorganotin(IV) Bis-Dithiocarbamate
Complexes with N,N′-Disubstituted 1,3- and
1,4-Bis(aminomethyl)benzene and 1,1′-Bis(aminomethyl)ferrocene as
Spacer Groups
Ericka Santacruz-Jua´rez, Jorge Cruz-Huerta, Ira´n Fernando Herna´ndez-Ahuactzi,
Reyna Reyes-Mart´ınez, Hugo Tlahuext, Hugo Morales-Rojas, and Herbert Ho¨pfl*
Centro de InVestigaciones Qu´ımicas, UniVersidad Auto´noma del Estado de Morelos, AV.
UniVersidad 1001, C.P. 62209 CuernaVaca, Me´xico
Received April 14, 2008
The potassium bis-dithiocarbamate (bis-dtc) salts of 1,3-bis(benzylaminomethyl)benzene (1,3-Bn-ambdtc), 1,3-
bis(iso-butylaminomethyl)benzene (1,3-iBu-ambdtc), 1,4-bis(benzylaminomethyl)benzene (1,4-Bn-ambdtc), and 1,4-
bis(iso-butylaminomethyl)benzene (1,4-iBu-ambdtc) were reacted with three different diorganotin dichlorides (R2SnCl2
with R ) Me, nBu, and Ph) in 1:1 stoichiometric ratios to give the corresponding diorganotin bis-dithiocarbamates.
Additionally, the dimethyltin bis-dithiocarbamate of 1,1′-bis(benzylaminomethyl)ferrocene (1,1′-Bn-amfdtc) was
prepared. The resulting complexes have been characterized as far as possible by elemental analysis, FAB+ mass
spectrometry, IR and NMR (1H, 13C, and 119Sn) spectroscopy, and single-crystal X-ray diffraction, showing that the

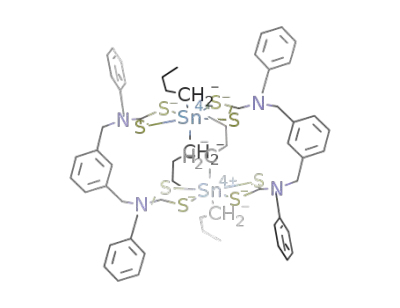

tin complexes are dinuclear 24- and 26-membered macrocyclic species of composition [{R2Sn(bis-dtc)}2]. As shown
by 119Sn NMR spectroscopy, the tin centers are hexa-coordinated in all cases; however, two different coordination
environments are possible, as detected by single-crystal X-ray diffraction. In the dimethyltin derivatives of 1,3-Bn-
ambdtc, 1,3-iBu-ambdtc, 1,4-Bn-ambdtc, and 1,1′-Bn-amfdtc and the di-n-butyltin derivative of 1,3-iBu-ambdtc, the
metal atoms are embedded in skewed-trapezoidal-bipyramidal coordination polyhedra with asymmetrically coordinating
trans-oriented dtc groups. In contrast, in the diphenyltin derivative 1,3-iBu-ambdtc, the metal centers have distorted
octahedral coordination with symmetrically coordinating cis-oriented dtc functions. Thus, for the complexes derived
from 1,3-Bn/iBu-ambdtc, two different macrocyclic structures were observed. In the dimethyl- and di-n-butyltin
derivatives, the bridging bis-dtc ligands adopt U-shaped conformations, while in the case of the diphenyltin derivative,
the conformation is L-shaped. Furthermore, two different macrocyclic ring conformations can occurr, which differ in
the spatial orientation of the substituents attached to the nitrogen atoms (Bn or iBu). The dimethyltin derivatives of
1,4-Bn-ambdtc and 1,1′-Bn-amfdtc have cavities, in which aromatic rings are accomodated in the solid state.
1. Introduction
creation of a large number of metallosupramolecular archi-
tectures having either macrocyclic, cagelike or polymeric
structures.1 A series of different applications such as selective
molecular and ion recognition, separation, storage, transport,
and catalysis are envisioned for these systems, and one of
the main targets is the generation of discrete or infinite
systems having cavities, channels, or pores.2 The evolution
of this chemistry is now getting to a point, at which the cavity
The past two decades have shown that the combination
of metal ions with di- or oligofunctional ligands allows the
* Author to whom correspondence should be addressed. Fax: (+52) 777
329 79 97. E-mail: hhopfl@ciq.uaem.mx.
(1) For recent reviews, see: (a) Rao, C. N. R.; Natarajan, S.; Vaidhy-
anathan, R. Angew. Chem., Int. Ed. 2004, 43, 1466. (b) Ferey, C.;
Mellot-Draznieks, C; Serre, C.; Millange, F. Acc. Chem. Res. 2005,
38, 217. (c) Hosseini, M. W. Acc. Chem. Res. 2005, 38, 313. (d)
Nitschke, J. R. Acc. Chem. Res. 2007, 40, 103. (e) Pitt, M. A.; Johnson,
D. W. Chem. Soc. ReV. 2007, 36, 1441. (f) Thomas, J. A. Chem. Soc.
ReV. 2007, 36, 856. (g) Ariga, K.; Hill, J. P.; Lee, M. V.; Vinu, A.;
Charvet, R.; Acharya, S. Sci. Technol. AdV. Mater. 2008, 9, 014109
(96 pp).
(2) For recent reviews, see: (a) Rowsell, J. L. C.; Yaghi, O. M. Angew.
Chem., Int. Ed. 2005, 44, 4670. (b) Sanchez, C.; Julia´n, B.; Belleville,
P.; Popall, M. J. Mater. Chem. 2005, 15, 3559. (c) Mueller, U.;
Schubert, M.; Teich, F.; Puetter, H.; Schierle-Arndt, K.; Pastre´, J. J.
Mater. Chem. 2006, 16, 626.
9804 Inorganic Chemistry, Vol. 47, No. 21, 2008
10.1021/ic801464s CCC: $40.75  2008 American Chemical Society
Published on Web 10/01/2008

Diorganotin(IV) Bis-Dithiocarbamate Complexes
propertiesssize, shape, and functionalityscan be tuned.3
Possible sites for modifications in this respect are the metal
centers, the metal-coordinating functions, the spacer groups
between the coordinating donor atoms, and additional
substituents located in the interior or at the periphery of the
cavity. To reduce the synthetic effort required for this purpose
to a minimum, it is important to develop metal-ligand
assemblies, in which as many as possible of the above-
mentioned parameters can be easily modified.
The vast majority of metallosupramolecular assemblies are
constructed from ligands having nitrogen or oxygen as metal-
coordinating donors.1 Recently, the research groups of
Tiekink and Beer have shown that architectures based on
sulphur-containing ligands, in particular bis- and tris-
dithiocarbamate ligands, are an excellent alternative choice
for this purpose that merit further exploration.4 Important
differences from conventional oxygen- and nitrogen-contain-
ing ligands, such as amines, carboxylates, sulfonates, and
phosphonates, arise from the formation of frequently strong,
but less polar metal-sulfur bonds, which enhances the
solubulity of the resulting metal complexes in organic
solvents and provides them with lipophilic cavities. Further-
more, using secondary amine precursors, it is possible to
introduce a variety of additional substituents in dithiocarba-
mates.
So far, little is known about assemblies derived from
organometallic building blocks, albeit they have the advan-
tage that the organic substituents provide a further, easily
accessible site for modifications of the molecular properties.
The number of feasible candidates for such an application
is quite reduced, first, because the building blocks should
have metal-carbon bonds of reasonable stability from a
kinetic and thermodynamic point of view and, second,
because the organometallic entities should have a metal
center large enough for combination with chelating ligand
functions, since these provide stronger metal-ligand interac-
tions.5 Organotin moieties fullfill both requirements and are
therefore ideal candidates.
assemblies obtained from R4-nSn(IV) groups and di- or
oligofunctional organic ligands are rare so far and deal
principally with ligands containing carboxylate functions.6,7
With diorganotin moieties, macrocycles with sulphur-
containing ligands have been explored previously mainly by
the research groups of Lockhart, Gielen, and Ma.8,9 Although
the chemistry of organotin dithiocarbamate complexes has
been widely explored,10 for macrocyclic organotin bis(dithio-
carbamates), there are only three reports.9 Two date from
1986 and describe the molecular structures of [R2Sn(endtc)]9a
and [R′2Sn(1,3-pdtc)]9b [with endtc ) 1,2-ethylenebis(dithio-
carbamate); 1,3-pdtc ) 1,3-phenylenebis(dithiocarbamate);
t
n
R ) Bu, Ph, and R′ ) Me, Cy, Bu]. The third dates from
2008 and describes the 26-membered macrocycles [R2Sn(1,6-
Bn-hmdtc)]9c (with 1,6-Bn-hmdtc ) N,N′-dibenzyl-1,6-
9c
n
hexamethylenebis(dithiocarbamate); R ) Me, Bu).
Herein, we report on the preparation and structural
characterization of a further 13 diorganotin(IV) bis(dithio-
carbamates) with 24- and 26-membered macrocyclic struc-
tures, which have been obtained from 1,3- and 1,4-
bis(aminomethyl)benzene and 1,1′-bis(aminomethyl)ferrocene
as spacer groups.
2. Experimental Section
Instrumental. NMR studies were carried out with Varian Gemini
200 and Varian Inova 400 instruments. Standard references were
used: TMS (δ1H ) 0 and δ13C ) 0) and SnMe4 (δ119Sn ) 0). IR
spectra have been recorded on a Bruker Vector 22 FT spectropho-
tometer. Mass spectra were obtained on a Jeol JMS 700 instrument.
Elemental analyses have been carried out on Perkin Elmer Series
