FULL PAPER
DOI: 10.1002/ejic.200700532
On the Mechanism of Palladium-Catalyzed Cross-Coupling of Diazonium
Salts with Aryltrifluoroborates: A Combined ESI-MS/NMR Study
Nicola Taccardi,[a] Rossella Paolillo,[a] Vito Gallo,[a] Piero Mastrorilli,*[a]
Cosimo F. Nobile,[a] Minna Räisänen,[b] and Timo Repo[b]
Keywords: Homogeneous catalysis / Metallacycles / Mass spectrometry / Cross-coupling / Diazo compounds
A combined ESI-MS/NMR mechanistic study on the palla-
dium-catalysed cross-coupling reaction between aryldiazon-

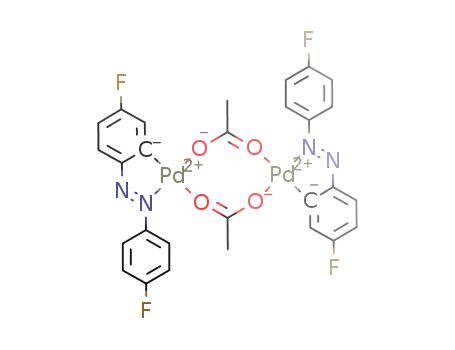

ium salts and aryltrifluoroborates with bis(µ-acetato)bis(4,4Ј-
difluoroazobenzene-C2,N)dipalladium(II) (4) as the precata-
lyst is reported. The reaction follows a Pd0/PdII cycle after
reduction of 4 to a molecular Pd0 species (I), which according
completed with a transmetallation between II and the
organoborate, which is followed by fast reductive elimination
of the cross-coupling product to restore the molecular Pd0
species I. A concurrent activation path was also observed
which consists of the formation of (4,4Ј-difluoroazobenzene-
C2,N)dipalladium(II) tetrafluoroborate (7) by the reaction of
to the combined ESI-MS and 19F NMR studies, bears an aryl- 4 with the diazonium salt and subsequent reduction by the
ated azobenzene ligand. Oxidative addition by the diazo- aryltrifluoroborate to give I.
nium salt generates the arylpalladium(II) intermediate (II),
which was also detected in solution. The catalytic cycle is
(© Wiley-VCH Verlag GmbH & Co. KGaA, 69451 Weinheim,
Germany, 2007)
acetato)bis(4,4Ј-difluoroazobenzene-C2,N)dipalladium(II)]
(4) as a precatalyst and methanol as solvent (Scheme 2).
The rationale for the use of the fluorinated substrate and
precatalyst resides in the possibility of monitoring the reac-
tion progress by 19F NMR spectroscopy, while methanol
was used instead of IL/MeOH mixtures in order to simplify
the experimental procedures.[4] ESI-MS, which is used here
as a complementary analytical method, is a rapidly emerg-
ing technique for mechanistic investigations due to the pos-
sibility of easily revealing all species present in an actual
catalyst solution.[5] The classical Suzuki cross-coupling[6]
and other palladium-catalyzed reactions,[7] for example,
have recently been studied by means of ESI-MS.[8]
Introduction
An innovative route to biaryls by palladium-catalysed
cross-coupling between diazonium salts and aryltrifluoro-
borates has been proposed recently.[1] This protocol, which
is an improved modification of the more popular Suzuki
cross-coupling reaction,[2] does not require either tempera-
tures higher than ambient or the addition of a base.
We have recently published a paper on the title reaction
carried out in IL/methanol (IL = ionic liquid) mixtures
where several (zero- and divalent) palladium complexes
were used as precatalysts.[3] In this framework it was found
that palladacycles of general formula [(CʝN)Pd(µ-OAc)]2
(see Scheme 1) were outstanding in terms of activity and
selectivity of the reaction.
In order to ascertain the effect of fluorine substitution of
the azobenzene moiety in complex 3 on the catalysis, we
Our preliminary mechanistic investigations of this reac-
tion demonstrated that the catalysis is molecular and is in-
fluenced by the ligand on palladium. Moreover, we found
that an excess of diazonium salt (but not of aryltrifluorob-
orate) allowed the catalytic solutions to be recycled.[3]
In this paper we report a combined ESI-MS and 19F
NMR mechanistic study on the title reaction using KPhBF3
and p-XC6H4N2BF4 (X = CH3 or F) as substrates, [bis(µ-
preliminarily checked the catalytic activity of
4 in
methanol using p-tolyldiazonium tetrafluoroborate (p-
CH3C6H4N2BF4) and KPhBF3. Precatalyst 4 (1% mol)
gave an 81% yield after 80 min while the non-fluorinated
analogue 3 gave a 55% yield after 15 min[3] (the reactions
were stopped when quantitative conversions were reached).
The effect of the fluorine substitution on the ligand further
confirms the molecular nature of the catalysis.
[a] Dipartimento di Ingegneria delle Acque e di Chimica del Po-
litecnico di Bari,
Results and Discussion
via Orabona 4, 70125 Bari, Italy
Fax: +39-080-596-3611
E-mail: p.mastrorilli@poliba.it
The commonly accepted catalytic cycle for a PdII-initi-
ated Suzuki cross-coupling is depicted in Scheme 3.[2] It
consists of a preliminary reduction of PdII to Pd0 followed
by the oxidative addition of the electrophile ArX (where X
is typically a halide or triflate), subsequent transmetallation
[b] Laboratory of Inorganic Chemistry, Department of Chemistry,
University of Helsinki,
P.O. Box 55, 00014 Helsinki, Finland
Supporting information for this article is available on the
WWW under http://www.eurjic.org or from the author.
Eur. J. Inorg. Chem. 2007, 4645–4652
© 2007 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
4645

P. Mastrorilli et al.
FULL PAPER
Scheme 1. Examples of highly active palladacycles for the cross-coupling reaction.[3] IL = 1-n-butyl-3-methylimidazolium tetrafluorobo-
rate.
Reaction of the Precatalyst with KPhBF3
The reaction mixture comprised of 4 and KPhBF3 in
methanol was monitored by 19F NMR spectroscopy at
room temperature (Figure 1). The lack of signals attribut-
able to 4 is due to its poor solubility in methanol.
Scheme 2. Cross-coupling reaction with a fluorinated substrate and
precatalyst 4.
of the organoborate and reductive elimination leading to
the cross-coupling product and regeneration of the Pd0 spe-
cies, which restarts the catalytic cycle.
Figure 1. 19F NMR spectroscopic monitoring of reaction mixtures
of 4 and KPhBF3 in methanol as a function of time (Pd:KPhBF3
= 1:15 mol/mol).
It is apparent that a new species I with 19F NMR reso-
nances at δ = –108.1 and –112.4 ppm forms immediately
upon mixing KPhBF3 with azapalladacycle 4. The signals
assigned to I progressively decrease in intensity over 5 h,
with concomitant appearance of two new signals at δ =
Scheme 3. General catalytic cycle for the Suzuki cross-coupling
leading to biaryls.
In order to verify whether such a cycle also holds when –111.7 and –111.9 ppm and formation of palladium black.
ArX is replaced by an aryldiazonium salt and the or- These latter signals belong to 4,4Ј-difluoro-2-phenylazoben-
ganoboron compound is changed to KPhBF3, every single zene (5), which was isolated and fully characterized. The
step shown in Scheme 3 was examined.
formation of Pd black and 5 indicates two possible struc-
4646
www.eurjic.org
© 2007 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Eur. J. Inorg. Chem. 2007, 4645–4652
