Exploring the scope of an α/β-aminomutase for the amination of cinnamate epoxides to arylserines and arylisoserines

Article abstract of DOI:10.1021/acscatal.9b01557

Biocatalytic process-development continues to advance toward discovering alternative transformation reactions to synthesize fine chemicals. Here, a 5-methylidene-3,5-dihydro-4H-imidazol-4-one (MIO)-dependent phenylalanine aminomutase from Taxus canadensis (TcPAM) was repurposed to irreversibly biocatalyze an intermolecular amine transfer reaction that converted ring-substituted trans-cinnamate epoxide racemates to their corresponding arylserines. From among 12 substrates, the aminomutase ring-opened 3′-Cl-cinnamate epoxide to 3′-Cl-phenylserine 140 times faster than it opened the 4′-Cl-isomer, which was turned over slowest among all epoxides tested. GC/MS analysis of chiral auxiliary derivatives of the biocatalyzed phenylserine analogues showed that the TcPAM-transamination reaction opened the epoxides enantio- A nd diastereoselectively. Each product mixture contained (2S)+(2R)-anti (erythro) and (2S)+(2R)-syn (threo) pairs with the anti-isomers predominating (-90:10 dr). Integrating the vicinal proton signals in the ¹H NMR spectrum of the enzyme-catalyzed phenylserines and calculating the chemical shift difference (?"?) between the anti and syn proton signals confirmed the diastereomeric ratios and relative stereochemistries. Application of a (2S)-threonine aldolase from E. coli further established the absolute stereochemistry of the chiral derivatives of the diastereomeric enzymatically derived products. The 2R:2S ratio for the biocatalyzed anti-isomers was highest (88:12) for 3′-NO₂-phenylserine and lowest (66:34) for 4′-F-phenylserine. This showed that the stereospecificity of TcPAM is in part directed by the substituent-type on the cinnamate epoxide analogue. The catalyst also converted each cinnamate epoxide analogue to its corresponding isoserine, highlighting a biocatalytic route to arylisoserines, which play a key role in building the pharmacophore seen in anticancer and protease inhibitor drugs.

Full text of DOI:10.1021/acscatal.9b01557

Subscriber access provided by Nottingham Trent University
Article
Exploring the Scope of an #/#-Aminomutase for the Amination
of Cinnamate Epoxides to Arylserines and Arylisoserines
Prakash Kumar Shee, Nishanka Dilini Ratnayake, Tyler
Walter, Olivia Goethe, Edith N Onyeozili, and Kevin D Walker
ACS Catal., Just Accepted Manuscript • DOI: 10.1021/acscatal.9b01557 • Publication Date (Web): 09 Jul 2019
Downloaded from pubs.acs.org on July 12, 2019
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 43
ACS Catalysis
1
2
3
4
Exploring the Scope of an α/β-Aminomutase for the Amination of Cinnamate Epoxides to
5
6
Arylserines and Arylisoserines
7
8
9
Prakash K. Shee,† Nishanka Dilini Ratnayake,† Tyler Walter,† Olivia Goethe,† Edith Ndubuaku
Onyeozili,§ and Kevin D. Walker*,†,‡
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
† Department of Chemistry, Michigan State University, East Lansing, Michigan 48824, United
States
‡ Department of Biochemistry and Molecular Biology, Michigan State University, East Lansing,
Michigan, 48824, United States
§ Department of Chemistry, Florida Agricultural & Mechanical University, Tallahassee, Florida
32307, United States
1
ACS Paragon Plus Environment

ACS Catalysis
Page 2 of 43
1
2
3
4
5
6
7
8
9
Abstract: Biocatalytic process-development continues to advance toward discovering alternative
transformation reactions to synthesize fine chemicals. Here, a 5-methylidene-3,5-dihydro-4H-
imidazol-4-one (MIO)-dependent phenylalanine aminomutase from Taxus canadensis (TcPAM)
was repurposed to irreversibly biocatalyze an intermolecular amine transfer reaction that converted

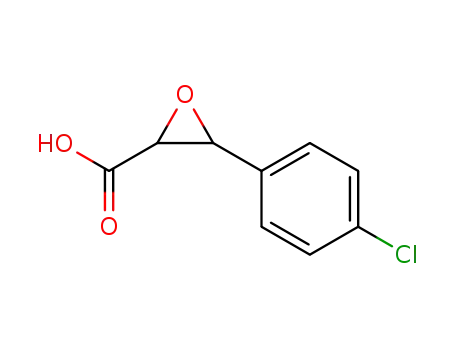

ring-substituted trans-cinnamate epoxide racemates to their corresponding arylserines. From
among twelve substrates, the aminomutase ring-opened 3'-Cl-cinnamate epoxide to 3'-Cl-
phenylserine 140 times faster than it opened the 4'-Cl-isomer, which was turned over slowest
among all epoxides tested. GC/MS analysis of chiral auxiliary derivatives of the biocatalyzed
phenylserine analogues showed that the TcPAM-transamination reaction opened the epoxides
enantio- and diastereoselectively. Each product mixture contained (2S)+(2R)-anti (erythro) and
(2S)+(2R)-syn (threo) pairs with the anti-isomers predominating (~90:10 dr). Integrating the
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1
vicinal proton signals in the H-NMR spectrum of the enzyme-catalyzed phenylserines and
calculating the chemical shift difference (Δδ) between the anti and syn proton signals confirmed
the diastereomeric ratios and relative stereochemistries. Application of a (2S)-threonine aldolase
from E. coli further established the absolute stereochemistry of the chiral derivatives of the
diastereomeric enzymatically derived products. The 2R:2S ratio for the biocatalyzed anti-isomers
was highest (88:12) for 3'-NO2-phenylserine and lowest (66:34) for 4'-F-phenylserine. This
showed that the stereospecificity of TcPAM is in part directed by the substituent-type on the
cinnamate epoxide analogue. The catalyst also converted each cinnamate epoxide analogue to its
corresponding isoserine, highlighting a biocatalytic route to arylisoserines, which play a key role
in building the pharmacophore seen in anticancer and protease inhibitor drugs.
Keywords: biocatalysis, MIO-aminomutase, phenylisoserine, phenylserine, cinnamate epoxides,
enzyme catalysis
2
ACS Paragon Plus Environment

Page 3 of 43
ACS Catalysis
1
2
3
4
INTRODUCTION
5
6
7
8
Nonproteinogenic amino acids are a specialized class of organic compounds that often have
intrinsic biological activity.1-4 More frequently, these vital amino acids are found in peptides with
antiviral,5 antitumor,6 anti-inflammatory,7 or immunosuppressive activities.8 β-Hydroxy-α-amino
acids reside in an important subclass of nonproteinogenic amino acids, including arylserines,
hydroxyaspartic acid, and hydroxyleucine. These bifunctional compounds introduce two chiral
centers when used as biomolecular building blocks. Incorporation of unique stereochemistry into
the residues of peptide chains can change their properties by, for example, increasing the stability
against peptidases and prolonging bioavailability.9-11 Further, β-hydroxy-α-amino acid scaffolds
(Figure 1) are found in clinically important antibiotics, including glycopeptide vancomycin and its
analogues, ristocetin from Amycolatopsis12-13 and teicoplanins from Actinoplanes,14 the
phenylpropanoid chloramphenicol from Streptomyces,15 and katanosin depsipeptides from
Cytophaga and Lysobacter bacteria.16-17 The pentapeptide gymnangiamide from marine hydroid
Gymnangium regae shows anticancer activity.18 (2S,3R)-3,4-Dihydroxyphenylserine (DOPS,
Droxidopa) is used for hypotension and as a Parkinsonian therapeutic,19-21 while N-arylsulfonyl
derivatives of phenylserine ethyl esters function as non-steroidal anti-inflammatory drugs.22
β‐Hydroxy‐α‐amino acids have also been used recently in protein synthesis by chemical ligation
at N-terminal serine and threonine sites, and this technique can likely be expanded to incorporate
other non‐proteinogenic β‐hydroxy amino acids.23 Additionally, an interesting subclass of non-
natural heterocyclic β-hydroxy-α-amino acid amides are drug leads for their analgesic and
immunostimulant activities.24-27
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3
ACS Paragon Plus Environment

ACS Catalysis
Page 4 of 43
1
2
3
4
5
6
7
8
9
HO
OH
H2N
H
NH
O
N
OH
Cl
O
NH
O
O
O
O
O
HN
O
O
O
HO
O
OH
HO
O
OH
O
Cl
O
O
HO
H
H
N
O
NH
O
N
O
N
N
N
HO
NH
O
O
O
O
H
H
H
H
H
HN
O
O
HN
COOH
H2N
N
N
N
H
N
N
H2N
HN
HO
O
NH
N
H
O
O
NH
O
H
OH
HN
NH
NH2
H2N
OH
OH
N
H
HO
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Gymnangiamide [(2S)-syn]
Vancomycin [(2R)-anti]
Katanosin [(2S)-syn]
(anticancer)
(antibiotic)
(antibiotic)
OH
O
OH OH
OH
O
Cl
O
HO
HO
O
O
HN
O
HN
N
O
Cl
N
O
S
O
Br
NH2
O
O
Dihydroxyphenylserine (DOPS)
[(2S)-syn]
Chloramphenicol [(2S)-syn]
N-(p-Br-Benzenesulfonyl)-syn-
4'-nitrophenylserine racemate
(analgesic)
(antibiotic)
(neurotransmitter prodrug)
Figure 1. Synthetic and biosynthetic β-phenyl-β-hydroxy-α-amino acid building blocks in bioactive
compounds. Stereochemical designations in brackets are described in Figure 2.
Given the beneficial pharmacological, chemical, and physical properties of a compound
containing β-hydroxy-α-amino acids, there is considerable interest to make these bifunctional
scaffolds by synthetic approaches or combined with biocatalytic routes.27-29 Various synthetic
strategies have been used to control the regio- and stereochemistry of β-hydroxy-α-amino acids,
including asymmetric aldol condensation, oxy-Michael addition, electrophilic amination,
aminohydroxylation of alkenes, and aza-Claisen rearrangement.19, 30-33 Several of these methods
incorporate protecting group manipulations to direct regiochemistry, add a functionalized chiral
auxiliary to incorporate stereogenic centers, or apply heavy-metal catalysts to promote the
reactions. These synthetic approaches are often highly efficient and stereoselective, but chemical
manufacturers observe that these routes often violate green chemistry principles through
generation of heavy-metal waste, poor atom economy built on the synthesis of intricate chiral-
ligand catalysts, and frequently fall short as sustainable methods.34-35
4
ACS Paragon Plus Environment

Page 5 of 43
ACS Catalysis
1
2
3
4
5
6
7
8
9
OH
O
OH
O
2

R
R
O
R
O
NH3
NH3
(2S)-syn
[L-threo]
(2R)-syn
[D-threo]
OH
O
OH
O
O
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
R
O
NH3
NH3
(2S)-anti
[L-erythro]
(2R)-anti
[D-erythro]
Figure 2. Stereoisomerism convention for β-
hydroxy-α-amino acids used herein. The
equivalent, archaic designations are listed in
brackets.
Biocatalysis is emerging as a valuable complementary tool for organic chemists to access regio- and
stereocontrolled chemical transformations that otherwise use complex synthetic chiral ligands and often
proceed through multiple steps in conventional methods.35-38 Biocatalytic routes towards (2S)+(2R)-
(syn/anti)-β-hydroxy-α-amino acids39 (Figure 2) mixtures regularly use threonine aldolases (TAs).
TAs are divided into two groups depending on the (R)- or (S)-stereochemistry at the α-carbon of
threonine where the amino group is attached. While the substrate specificity of TAs depends on
the glycine donor substrate, they have broad specificity for the aldehyde, including non-natural
aryl aldehydes when used to produce arylserines.40 TAs are divided further into four subgroups,
depending on the stereochemistry at the β-carbon of threonine, where the hydroxyl group is
attached. High-specificity (2S)-syn-TAs make only (2S)-syn-threonine analogues, (2S)-anti-TAs
are stereoselective for (2S)-anti-threonine analogues, while low-specificity (2S)-TAs make a
mixture of (2S)-syn- and (2S)-anti-threonine analogues. Only low-specificity (2R)-TAs are known
and make mixtures of (2R)-syn- and (2R)-anti-threonine analogues.29
TA specificity is also used in industrial chemical processes for enantiospecific enzyme
resolution to cleave (via a retro-aldol reaction) one enantiomer of a syn- or anti-β-hydroxy-α-
amino acid pair.29 This process stereospecifically enriches one stereoisomer over the other in a
5
ACS Paragon Plus Environment

ACS Catalysis
Page 6 of 43
1
2
3
4
5
6
7
8
9
mixture. For example, a low specificity (2R)-TA stereospecifically catalyzed the retro-aldol
cleavage of the (2R)-isomer in a (2S)+(2R)-syn-racemate to resolve the intact (2S)-syn-(3',4'-
methylenedioxy)phenylserine enantiomer, a precursor of the therapeutic drug (2S)-syn-DOPS (L-
DOPS).41
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Here, we used an irreversible, TA-independent biocatalytic method employing a repurposed 5-
methylidene-3,5-dihydro-4H-imidazol-4-one (MIO)-dependent phenylalanine aminomutase
(TcPAM) from Taxus canadensis plants42-44 to make various ring-substituted phenylserines. In
Taxus plants, TcPAM isomerizes (2S)-α-phenylalanine to (3R)-β-phenylalanine on the
biosynthetic pathway of the anticancer therapeutic paclitaxel (Taxol®) (Scheme 1).42-43 The MIO
moiety is formed post-translationally by active site residues within TcPAM, and this electrophilic
unit transiently becomes N-alkylated by the (2S)-α-phenylalanine substrate. The resulting alkyl
ammonium group is displaced as an NH2-MIO adduct with simultaneous removal of Hβ.45 The
cinnamate intermediate accepts the amino group from the NH2-MIO adduct at Cβ, and Cα is
reprotonated to complete the α- to β-isomerization (Scheme 1).
6
ACS Paragon Plus Environment

Page 7 of 43
ACS Catalysis
1
2
3
4
5
6
7
8
Enz
Tyr
Enz
Tyr
H
H
O
O
H
O
H
N
H
H
O
O
H
O
H
NH2
O
O
NH2
O
NH2
H-Enz
OH
OH
N
Enz
MIO
Enz
N
N
N
N
9
α-Phenylalanine
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
rotation
Enz
Tyr
H
Enz
Tyr
O
O
H
O
H
O
H
O
O
O
H
H
O
3R
H
H
NH2
NH2
NH2
O
OH
O
H
H-Enz
Enz
Enz
N
N
N
N
N
N
β-Phenylalanine
(99.9% ee)
O
Ser
Ala
O
O
OH
OH
O
H
N
N
O
H
O
O
NH
O
N
N
HN
O
O
H
N
H
2 H2O
O
HO
O
O
O
OH
O
NH
O
NH
MIO
Gly
Paclitaxel (Taxol)
Scheme 1. Mechanism of β-phenylalanine formation
catalyzed by TcPAM. Inset left: Anticancer drug
paclitaxel (Taxol). Inset right: Formation of MIO from
the condensation of Ala175, Ser176, and Gly177 of
TcPAM.
An earlier study covalently trapped a cinnamate epoxide in the active site of an MIO tyrosine
aminomutase (SgTAM) crystal to help dissect its enzyme mechanism.46 The ability of SgTAM to
trap an epoxide hinted that the MIO chemistry would be aborted by covalent inhibition. It is
interesting to note that the crystal structures of a phenylalanine aminomutase from Pantoea
agglomerans (PaPAM) in our subsequent study showed dual occupancy of α- and β-
phenylalanines (substrate and product, respectively) covalently linked to the MIO moiety through
their amino groups.47 Thus, we reinterpreted the structures of the previous epoxide inhibition study
to represent β-hydroxy-α-amino adducts, rather than a dihydroxy ether intermediate attached
covalently to the MIO group.46
Later, in a burst phase kinetics study, TcPAM was shown to transfer the amino group from a
surrogate substrate (2S)-styryl-α-alanine to exogenously supplied cinnamates via an NH2-MIO
7
ACS Paragon Plus Environment

ACS Catalysis
Page 8 of 43
1
2
3
4
5
6
7
8
9
adduct.48 The transaminase function of TcPAM catalyzed efficient intermolecular exchange of the
amino group to make a mixture of α- and β-amino acids.49 Encouraged by the intermolecular
mechanism of TcPAM and our reinterpretation of the chemistry of MIO enzymes with epoxides,
here, we describe a new application for the catalyst to transfer an amino group to various ring-
substituted cinnamate epoxides to make phenylserine analogues. Michaelis-Menten constants of
TcPAM catalyzing the epoxide ring-opening chemistry were calculated, and the absolute
stereochemistry of each enzymatically derived phenylserine was assessed.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
MATERIALS AND METHODS
General Procedure for Syntheses of Cinnamate Epoxides (2a–2l). The cinnamate epoxides
were synthesized according to a procedure described previously.50 In a 50-mL single-necked round-
bottomed flask, a stirred slurry of a trans-cinnamic acid analogue (1a–1l) (0.75 mmol) in acetone
(515 µL, 7.5 mmol) was treated first with sodium bicarbonate (3.3 mmol) and then with dropwise
addition of water (515 µL). To the resulting thick mixture, a solution of oxone monopersulfate (1.4
mmol, contains 1.8 equiv of KHSO5) in 0.4 mM Na2EDTA solution (1.6 mL) was added dropwise
for 1 h while the temperature was kept at ~25 °C and the pH at 7.5. The mixture was then stirred
an additional 6 h and cooled to –5 °C. The reaction was acidified to pH 2 (12 M HCl) and mixed
with ethyl acetate (5 mL) with rapid stirring. The mixture was then filtered and extracted with
ethyl acetate (3 × 50 mL). The combined organic fractions were washed with saturated NaCl, dried
over anhydrous MgSO4, filtered, and concentrated under vacuum. After all the solvent was
removed, each trans-cinnamic acid epoxide analogue was isolated as an oily residue. The oily
residue was dissolved in ethanol (EtOH) (1 mL), cooled on ice, and treated with a solution of KOH
(3.6 mmol) dissolved in EtOH (1 mL). The resulting thick slurry was filtered, and the residue was
8
ACS Paragon Plus Environment

Page 9 of 43
ACS Catalysis
1
2
3
4
5
6
washed with EtOH and then dried under vacuum to provide the potassium salts of the cinnamate
epoxides as a racemic mixture (Table S1, Figures S1 and S2 of the Supporting Information).
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Expression and Purification of TcPAM. The tcpam cDNA (codon-optimized for expression in
bacteria) was ligated into the expression vector pET28a(+),42 and the recombinant plasmid
encoded an N-terminal His6 tag. Escherichia coli BL21(DE3) cells, transformed to express
TcPAM, were grown at 37 °C for 12 h in 150 mL of Lysogeny broth (LB). Separate aliquots (25
mL) of this inoculum culture were then added to each of six 1-L cultures of LB supplemented with
kanamycin (50 μg/mL). The cells were incubated at 37 °C until OD600 = 0.7. Isopropyl-D-
thiogalactopyranoside (500 μM) was added to the cultures with expression conducted at 16 °C for
16 h. The cells were harvested by centrifugation at 4,650g (15 min), and the pellets were diluted
in resuspension buffer (100 mL of 50 mM sodium phosphate containing 5% (v/v) glycerol and 300
mM NaCl, pH 8.0). The cells were then lysed by brief sonication [one 10-s burst at 60% power
with a 20-s rest interval for 20 cycles on a Misonix Sonicator (Danbury, CT)]. The cellular debris
was removed by centrifugation at 27,200g (20 min) followed by high-speed centrifugation at
142,000g (90 min) to remove light membrane debris. The resultant crude aminomutase in the
soluble fraction was purified by nickel-nitrilotriacetic acid affinity chromatography according to
the protocol described by the manufacturer (Invitrogen, Carlsbad, CA); TcPAM eluted in 50 mL
of 250 mM imidazole dissolved in resuspension buffer. Fractions containing active soluble TcPAM
(76.5 kDa) were combined and loaded onto a size-selective centrifugal filtration unit (30,000
NMWL, Millipore Sigma, Burlington, MA). The protein solution was concentrated and diluted
over several cycles until the imidazole and salt concentrations were <1 µM, and the final volume
was 1 mL, containing ~14 mg of TcPAM. The quantity of TcPAM was measured using a Nanodrop
9
ACS Paragon Plus Environment

ACS Catalysis
Page 10 of 43
1
2
3
4
5
6
7
8
9
spectrophotometer (ThermoFisher Scientific, Waltham, MA) and the purity (82%) was assessed
by SDS-PAGE with Coomassie Blue staining using Kodak Gel Logic 100 Imaging System
(version 3.6.3) to integrate the relative intensities of the scanned protein bands (Figure S5 of the
Supporting Information).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Expression and Purification of (2S)-Threonine Aldolase (ltaE). A cDNA (from E. coli,
accession number: P75823) encoding a low specificity (2S)-threonine aldolase (ltaE) was ligated
into a pET28a(+) vector, encoding an appended N-terminal His6-tag, to make a recombinant
plasmid (designated as pKDW014_lsTA) was purchased from GenScript (Piscataway, NJ).
Escherichia coli BL21(DE3) cells were then transformed with pKDW014_lsTA to overexpress
the ltae gene by standard protocols (Millipore Sigma, Burlington, MA). Transformed bacteria were
used to inoculate LB (100 mL) and grown at 37 °C for 12 h. Separate aliquots (15 mL) of this
inoculum culture were added to each of three 1-L cultures of LB supplemented with kanamycin
(50 μg/mL). The cells were incubated at 37 °C until OD600= 0.6, and isopropyl-D-
thiogalactopyranoside (100 μM) was added to induce expression at 16 °C for 16 h. The cells were
harvested by centrifugation at 4,650g (15 min), and the pellets were diluted in resuspension buffer
(at pH 7.0) containing 10 µM PLP and 300 mM NaCl. The cells were then lysed by brief sonication
[one 10-s burst at 60% power with a 20-s rest interval for 20 cycles on a Misonix Sonicator], and
the cellular debris was removed by centrifugation at 27,200g (20 min) followed by high-speed
centrifugation at 142,000g (90 min) to remove light membrane debris. The clarified lysate
containing crude (2S)-TA in the soluble fraction was purified by nickel-nitrilotriacetic acid affinity
chromatography according to the protocol described by the manufacturer (Invitrogen, Carlsbad,
CA); (2S)-TA was eluted in 50 mL of 250 mM imidazole. Fractions containing active soluble (2S)-
10
ACS Paragon Plus Environment

Page 11 of 43
ACS Catalysis
1
2
3
4
5
6
7
8
9
TA (36.5 kDa) were combined and loaded onto a size-selective centrifugal filtration unit (15,000
NMWL, Millipore Sigma). The protein solution was concentrated and diluted over several cycles
until the imidazole and salt concentrations were <1 µM, and the final volume was 1 mL. The
concentration of (2S)-TA was measured (8.8 mg/mL) using a Nanodrop spectrophotometer
(ThermoFisher Scientific). The purity (99%) was assessed by SDS-PAGE with Coomassie Blue
staining using Kodak Gel Logic 100 Imaging System (version 3.6.3) to integrate the relative
intensities of the scanned protein bands (Figure S5 of the Supporting Information).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Biocatalysis of Phenylserine with TcPAM. A solution of (2S)-styryl-α-alanine (1 mM) in 50 mM
NaH2PO4/Na2HPO4 buffer (pH 8.0, 5% glycerol) was preincubated with TcPAM (100 µg/mL) for
2 min. Cinnamate epoxide (1 mM) was added to the solution, and the assay was mixed at 31 °C
on a rocking shaker for 2.5 h. The reaction was then stopped with 10% formic acid to adjust the
pH to 3.0, and 3'-bromo-α-phenylalanine (50 nM) was added as an internal standard. This reaction
mixture was analyzed using a liquid chromatography-electrospray ionization-multiple reaction
monitoring (LC/ESI-MRM) method.
Kinetic Analysis. To calculate the steady-state enzyme kinetic constants, each epoxide substrate
was varied at intervals from 25 μM up to 1000 μM in triplicate assays containing TcPAM (100
µg/mL). The reactions were terminated with 10% formic acid (pH 3.0) and the resultant ring-
opened biocatalyzed products, without derivatization, were quantified by LC/ESI-MRM. The
apparent kinetic parameters (KM and kcat) were calculated by non-linear regression with Origin Pro
9.0 software (Northampton, MA) (Figures S6 and S7 of the Supporting Information), using the
11
ACS Paragon Plus Environment

ACS Catalysis
Page 12 of 43
1
2
3
4
5
6
7
8
9
Michaelis-Menten equation: vo = [Eo]kcat/(KM + [S]). Control assays contained all the
necessary components for an operational assay except either the amine group donor
(2S)-styryl-α-alanine or the enzyme was omitted (Table S3 of the Supporting Information).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
General Procedure for the Syntheses of Phenylserines (4a–4l). The phenylserine analogues
were synthesized according to a procedure described previously.51 Triethylamine (22 mmol) was
added to a solution of glycine (5 mmol) in water (4 mL). To this solution, a benzaldehyde (10
mmol) analogue was added dropwise over 15 min, and the mixture was stirred for 12 h at ~25 °C.
The color of the reaction mixture gradually changed from clear and colorless to yellow-brown. n-
Butanol (3 mL) was added, and the triethylamine was evaporated under vacuum. The butanolic
solution was diluted with water (3 mL), and the mixture was acidified to pH 2 with HCl (6 M).
The acidified solution was stirred at ~25 °C for 3 h and partitioned against ethyl acetate (2 × 5 mL)
to remove the unreacted benzaldehyde. The aqueous layer was separated and neutralized to pH 6.0
with a saturated NaHCO3 solution to precipitate the phenylserine. The mixture was stirred for 1 h
at 0 °C, and the phenylserine product was washed with water (3 mL) and dried under vacuum to
yield the corresponding mixture of phenylserine diastereomers.
General Method for Derivatizing Phenylserines with a Chiral Auxiliary. A mixture of all four
stereoisomers of phenylserine (0.21 mmol) was dissolved in 50 mM NaH2PO4 /Na2HPO4 buffer
(pH 8.0) containing 5% glycerol (1 mL). To this solution were added pyridine (50 µL, 0.62 mmol)
and (2S)-2-methylbutyric anhydride (60 µL, 0.30 mmol), and the reaction mixture was stirred for
20 min at ~25 °C. The solution was adjusted to pH 2 (6 M HCl) to quench the reaction, and the N-
12
ACS Paragon Plus Environment

Page 13 of 43
ACS Catalysis
1
2
3
4
5
6
7
8
9
protected phenylserine was extracted with ethyl acetate (2 mL). The organic layer was separated
and evaporated under a stream of nitrogen gas, and the resultant residue was dissolved in 3:1
EtOAc/MeOH (v/v) (1 mL). Diazomethane in diethyl ether was added dropwise to obtain the
methyl ester, and the solvent was removed under a stream of nitrogen gas. The resulting methyl
ester was dissolved in dichloromethane (1 mL) to which pyridine (100 µL, 1.24 mmol) and
chlorotrimethylsilane (150 µL, 1.18 mmol) were added, and the solution was stirred for 15 min at
~25 °C. The reaction was quenched with water (1 mL) and the organic fraction was separated and
analyzed by gas chromatography coupled with electron-impact mass spectrometry (GC/EI-MS).
