Highly active iminopyridyl iron-based catalysts for the polymerization of isoprene

Article abstract of DOI:10.3390/molecules24173024

A series of iminopyridyl-based ligands, 6-[(Ar)N=C(R)]-2-C₆H₅N [(Ar = 2,6-Me2-C₆H₃, R = Me (L1); Ar = 2,6-iPr₂-C₆H₃, R = Me (L2); Ar = 2,6-Me2-C₆H₃, R = H (

Full text of DOI:10.3390/molecules24173024

molecules
Article
Highly Active Iminopyridyl Iron-Based Catalysts for
the Polymerization of Isoprene
Obaid H. Hashmi , Yohan Champouret * and Marc Visseaux *
UMR 8181–UCCS–Unité de Catalyse et de Chimie du Solide, ENSCL, Centrale Lille, University of Artois,
University of Lille, CNRS, F-59000 Lille, France
* Correspondence: yohan.champouret@univ-lille.fr (Y.C.); marc.visseaux@univ-lille.fr (M.V.)
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Academic Editor: Giovanni Ricci
Received: 5 July 2019; Accepted: 7 August 2019; Published: 21 August 2019
Abstract: A series of iminopyridyl-based ligands, 6-[(Ar)N=C(R)]-2-C6H5N [(Ar = 2,6-Me2-C6H3,
R = Me (L1); Ar = 2,6-iPr2-C6H3, R = Me (L2); Ar = 2,6-Me2-C6H3, R = H (L3); Ar = 2,6-iPr2-C6H3
,
R = H (L4); Ar = 3,5-(CF3)2-C6H3, R = Me (L5); Ar = C6F5, R = Me (L6)], and their
corresponding iron (II) complexes were developed to investigate their application in the controlled
coordinative polymerization of isoprene. The modulation of steric and electronic properties
within this family of ligands/pre-catalysts has shown to influence the stereo-selectivity and
activity of the polymerization of isoprene after activation. Upon activation with various
co-catalysts such as AliBu3/[Ph3C][B(C6F5)4], AlEt3/[Ph3C][B(C6F5)4] or MAO, the resulting catalysts
produced polyisoprenes with an excellent conversion (>99% of 500–5000 equiv.) within less
than 1 h (TOF > 500 h−1) and having a variety of stereo-/regio-regularities. The presence
of electron-donating and withdrawing groups drastically impacted the activity and the
stereoselectivity of the catalysts during the course of the polymerization of isoprene. When activated
with AliBu3/[Ph3C][B(C6F5)4], the complexes {6-[(2,6-Me2-C6H3)N=C(Me)]-2-C6H5N}FeCl2
(
C1) and {6-[(2,6-iPr2-C6H3)N=C(Me)]-2-C6H5N}FeCl2
(C2) exhibited moderate trans-1,4
selectivity (>67%) while the iron-based systems bearing related aldiminopyridyl ligands
{6-[(2,6-Me2-C6H3)N=C(H)]-2-C6H5N}FeCl2 (C3) and {6-[(2,6-iPr2-C6H3)N=C(H)]-2-C6H5N}FeCl2
(
−
C4) ◦ were found to afford significant cis-1,4 selectivity at low temperature (>86% at
40 C). On the other hand, the ternary {6-[(3,5-(CF3)2-C6H3)N=C(Me)]-2-C6H5N}FeCl2 (C5) or
{6-[(C6F5)N=C(Me)]-2-C6H5N}FeCl2 (C6)/AliBu3/[Ph3C][B(C6F5)4] catalytic combinations showed
exceptional activity for the polymerization of isoprene (TOF > 1,000,000 h−1), albeit providing
less stereoselectivity.
Keywords: iminopyridyl ligand; iron (II)-based catalyst; coordination-insertion polymerization;
isoprene polymerization
1. Introduction
Since the initial report twenty years ago on the high catalytic activity of the bis(imino)pyridyl-iron/
MAO system for the polymerization of ethylene [
reactions has seen a substantial surge of interest for the preparation of a variety of polymeric
materials [ ]. Particular attention has been paid to the development of homogeneous single-site
1,2], the field of iron-catalyzed polymerization
3,4
polymerization catalysts, as these systems have, to some extent, provided precise control over molecular
weights, molecular weight distribution and stereo-regularity of the polymer chains in comparison
with heterogeneous catalysts [5–7]. In this context, the research community has been motivated to
ingeniously design discrete iron-based pre-catalysts for the coordination-insertion polymerization of
not only olefins and related monomers, but also vinyl and cyclic polar monomers [8].
Molecules 2019, 24, 3024; doi:10.3390/molecules24173024
www.mdpi.com/journal/molecules

Molecules 2019, 24, 3024
2 of 17
Among the family of synthetic polymers, polyisoprene is currently receiving special attention for
its use in a wide range of applications in the rubber industry, e.g., tire manufacturing, medical devices
and others [9–13]. The coordination-insertion polymerization of isoprene produces four types of unit
distributions such as cis-1,4, trans-1,4, 3,4 and 1,2-vinyl arrangements (Figure 1), the amount and type of
sequences dictating the resulting thermal, mechanical and physical properties of the polymer. To date,
single-site catalysts for the polymerization of 1,3-dienes are mainly based on transition (Ti, Co, Ni) and
rare earth (Nd) metal-based systems, producing concomitantly, to a certain degree, high molecular
mass polymers with controlled microstructures [14–19]. On the other hand, single-site iron-based
catalysis for isoprene polymerization has received less attention, whereas this metal is easily accessible,
inexpensive and essentially non-toxic compared to its counterparts [20].
Figure 1. Microstructure contents of polyisoprene.
Most iron-active systems are mainly supported by bidentate and tridentate aromatic nitrogen
ligands [
selectivity as it offers an additional coordination site to accommodate the isoprene monomer when
compared to the latter [
]. In 2002, Ricci et al. showed that the (2,20-bipyridyl)FeEt2/MAO catalytic
3,18] the former system displaying the most promising performances in terms of activity and
8
combination [21], or a mixture of 2,20-bipyridine, FeCl2 and MAO [22] (Figure 2(A)), was able to produce
polyisoprene with an exceptionally high efficiency (TOF = 800,000 h−1) and poor 3,4-regio-selectivity
(cis-1,4/3,4 = 33/67). Density functional calculation of the insertion pathway confirmed that the
3,4-regio-selectivity was preferred over the 1,4-insertion [23].
Later, the Ritter’s group reported the quasi selective polymerization of isoprene using
the (aldiminopyridyl)FeCl2 complexes (Figure 2(B)) associated with trialkyl aluminum and
[Ph3C][B(C6F5)4] [24]. A reversal of the selectivity was achieved by modifying the nature of the
substituent on the imino group, the N-aryl group (aryl = supermesityl) favoring the cis-1,4-selectivity
while the trans-1,4-selectivity was promoted with an N-alkyl substituent (alkyl = tert-octyl). On the
other hand, the same sets of complexes were independently evaluated for the polymerization of isoprene
by the group of Chen [25] and the group of Wang [26] in the presence of MAO. Surprisingly, the system
bearing N-alkyl substituent afforded opposite microstructures, respectively, whereas the complex
with N-aryl group exhibited a slight cis-1,4 selectivity with a moderate amount of 3,4 units, relatively,
similar to that found upon activation with trialkyl aluminum and [Ph3C][B(C6F5)4]. Moreover, for the
same catalytic systems and under the same experimental conditions, different activities were found by
these two research groups, enabling almost complete conversion of the isoprene in one case, while in the
other, only 10 to 20% conversion was reached. In addition, Wang studied the polymerization of isoprene
with aldiminopyridyl iron-based system bearing fluorinated N-aryl substituent (Figure 2(B)) [26],
which was activated either by MAO alone or by a combination of MAO and [Ph3C][B(C6F5)4].
The obtained polyisoprene exhibited an equal content mixture of cis-1,4 and 3,4 units for the former
while high trans-1,4 selectivity (>95%) was found in the presence of MAO/[Ph3C][B(C6F5)4].
Subsequently, Wang and collaborators described the effect of the auxiliary ligand in the
iron-based iminopyridyl complexes by replacing both chloride anions by two acetylacetonato
(acac) groups (Figure 2(C)) [27]. In the presence of an excess of MAO, the polyisoprene prepared
with the (iminopyridyl)Fe(acac)2 system bearing N-tert-octyl substituents showed a good trans-1,4
stereo-regularity (>87%) with an activity five times higher than that of the related chlorinated iron
complex. Furthermore, the N-aryl counterpart displayed high catalytic activity (TOF > 12,000 h−1) but
poor selectivity, emphasizing the influence of the resulting counter anion.

Molecules 2019, 24, 3024
3 of 17
In the past few months, the same research group disclosed the polymerization of isoprene using a
series of iron-based complexes supported by aminopyridine ligands (Figure 2(D)) [28]. Upon activation
with an excess of MAO, these pre-catalysts provided a wide range of polyisoprene microstructures
with, in most cases, high content of 3,4 units. The performance of the catalytic systems was shown to
depend on the nature of the substituent carried by the pyridine ring and the N-amine group of the
aminopyridyl ligand, with the complex bearing R = CH(Ph)2 and R1 = H showing a very high activity
of TOF > 28,000 h−1. In parallel, it is worth mentioning that related iron-based pre-catalysts supported
by iminoimidazole [29] or 2-(N-arylcarboximidoylchloride)-quinoline [30] were also assessed for the
polymerization of isoprene.
Overall, these results highlight the importance of the structure/properties of the iron pre-catalyst
systems bearing iminopyridyl or aminopyridyl ligand as well as their mode of activation for controlling
the polymerization of isoprene. At this stage, it is difficult to draw any rational conclusions regarding
the influence of the electronic and steric properties of the ancillary ligand along with the nature of the
cocatalyst on the selectivity and activity of the polymerization process.
Herein, we wish to contribute to this field by reporting the polymerization of isoprene with iron
complexes supported by various iminopyridyl ligands with a methyl substituent on the carbon of the
imino group (Figure 2(E)). To our knowledge, the use of ketiminopyridyl-iron pre-catalysts for the
polymerization of isoprene was only studied for the embedment of iron nanoparticles in polyisoprene
within the cavity of carbon nanotubes [31]. In any case, no details on the selectivity and activity of the
polymerization were described. In the present article, the iron-catalyzed polymerization of isoprene
was investigated through the modification of the iminopyridyl ligand framework using two complexes
bearing N-aryl substituted ketiminopyridyl, which were compared with their aldiminopyridyl
counterparts, as well as fluorinated N-aryl substituted ketiminopyridyl ligands. The control of
the polymerization of isoprene using these complexes was explored under different experimental
conditions, in particular by changing the nature of the co-catalyst, the temperature of polymerization
and the isoprene/catalyst ratio.
Figure 2. Iron-based complexes bearing bidentate pyridyl-based ligands for the polymerization of
isoprene. (A). Ref [22]; (B). Ref [24–26]; (C). Ref [27], (D). Ref [28].
2. Results and Discussion
2.1. Synthesis of Pro-Ligands (L1–L6) and Their Corresponding Iron-Based Complexes (C1–C6)
All the iminopyridyl pro-ligands and their corresponding iron complexes have been prepared
following the synthetic strategy as shown in Scheme 1. The known L1–L5 pro-ligands were synthesized
via acid-catalyzed condensation reaction between 2-acetylpyridine (for the ketiminopyridyl proligands
L1, L2 and L5) or 2-pyridinecarboxaldehyde (for the aldiminopyridyl proligands L3 and L4) with their
corresponding anilines in methanol/toluene, and their respective 1H-NMR spectra were consistent
1
with the reported data [32
–
36] (details are given in the Experimental section, H-NMR spectra are
displayed in Figures S4–S8). Following a similar synthetic methodology, the new L6 pro-ligand was
obtained in poor yield (ca 10%) from reaction of 2-acetylpyridine and 2,3,4,5,6-pentafluoroaniline in
1
toluene at high temperature. L6 was characterized by H-, 13C-, 19F-NMR and elemental analysis

Molecules 2019, 24, 3024
4 of 17
(see Experimental section and Supplementary Materials, Figures S1–S3). The IR spectra of all ligands
revealed the characteristic C=N vibration band in the range of 1633–1649 cm−1, with L5 and L6 showing
the highest stretching frequency, as expected, due to the presence of fluorinated groups.
Subsequently, the complexation of pro-ligands L1
afforded their related iminopyridyl-based iron complexes C1
as previously described in the literature [34 35 37 39]. The new iron complexes C5 and C6 were
–L4 with anhydrous FeCl2 in THF or CH2Cl2
–
C4 in moderate to good yields (53–82%)
,
, –
synthesized in the same way as their congeners in good yields (79–83%). All complexes were
characterized by 1H-NMR (the spectra are displayed in the Supplementary Materials, Figures S9–S15)
and elemental analyses were also performed to confirm the molecular formula of the new iron complexes
C5 and C6 (Experimental section). The IR spectra of the resulting complexes displayed a C=N stretching
frequency between 1589–1597 cm−1; values lower than those identified for their related free pro-ligand
due to the coordination of the N atom of the imino group on the metal center. Furthermore, the highest
wavenumber differences between pro-ligands and complexes were predictably observed for those
bearing electron withdrawing fluorinated substituents (∆υ(C=N) = 52 cm−1 for L5
∆υ(C=N) = 40–46 cm−1 for L1
C1 L4 C4), indicating, as expected, a more important decrease in electron
density of the iron center for C5–C6 compared to C1–C4.
/C5 and L6/C6 vs.
/
–
/
Scheme 1. Synthesis of the ligands and iron (II) complexes.
2.2. Polymerization of Isoprene with Iron-Based Complexes C1–C6
The polymerization of isoprene was assessed at room temperature using pre-catalysts C1–C6
under different modes of activation. Various reagents such as triisobutylaluminium (AliBu3) or
triethylaluminium (AlEt3) combined with trityltetrakis(pentafluorophenyl)borate [CPh3][B(C6F5)4]
or an excess of MAO were employed as co-catalysts. The results of the polymerization of isoprene
using the ternary C1
be discussed here. The polymerization results using C1
–
C6/AliBu3/[Ph3C][B(C6F5)4] catalytic systems are presented in Table 1 and will
C6/AlEt3/[Ph3C][B(C6F5)4] and C1 C6/MAO,
–
–
which are marginally different from the results presented in Table 1, are depicted in the supporting
materials (Tables S1 and S2, respectively) and will be mentioned at the end of this section.
Table 1. Polymerization of isoprene using C1–C6/AliBu3/[Ph3C][B(C6F5)4] catalytic systems a.
Microstructure c (%)
Đ b
Entry a Complex
b
Mn(exp) (g/mol)
Conv. (%)
1,4 (trans/cis)
3,4
1
2
3
4
5
6
C1
C2
C3
C4
C5
C6
>99
>99
>99
>99
>99
>99
44,000
44,000
101,000
84,000
513,000
382,000
1.5
1.7
2.7
1.5
2.4
1.8
90 (67/22)
90 (74/16)
79 (24/55)
76 (30/46)
59 (0/59)
54 (0/54)
11
10
21
24
41
46
a
Polymerization conditions: 10
µ
mol of Fe(II) complex; isoprene/Fe/AliBu3/[Ph3C][B(C6F5)4] = 500/1/10/1;
toluene = 5 mL; time = 1 h; temperature = 25 ◦C; determined by size exclusion chromatography (SEC);
b
c
determined by 1H-NMR and 13C-NMR; Mn(th) = 33,700 g/mol (considering one growing chain per metal
center); Activity = 34 kg(PI)·mol(cat) ·h−1 or TOF = 500 h−1 for all.
−1

Molecules 2019, 24, 3024
5 of 17
Regardless of the nature of the co-catalysts {AliBu3/[Ph3C][B(C6F5)4], AlEt3/[Ph3C][B(C6F5)4]
or MAO}, all the C1
– C6 complexes proved to be highly active for the polymerization of isoprene
with complete conversion of 500 equiv. of monomer per iron catalyst within 1 h (TOF > 500 h−1).
These results compare well with related iron-based catalysts available in the literature [8].
Analysis of the resulting polyisoprenes (PIs) by size-exclusion chromatography (SEC) revealed
that the ternary C1 and C2/AliBu3/[Ph3C][B(C6F5)4] catalytic systems (ratio of 1/10/1, respectively) gave
Mn slightly higher than the theoretical value with monomodal curves displaying narrow dispersity
(Table 1, entries 1 and 2, respectively). In turn, catalysts resulting from complexes C3 and C4 afford Mn
values up to three times higher than expected, which speaks in favor of a slow initiation process under
these conditions. The polymerization of isoprene was even less controlled with complex C5 and C6 but,
interestingly, very high Mn polyisoprenes could be produced (Mn > 380 kg/mol). Nevertheless, all the
SEC plots of the polyisoprenes obtained from C1–
C6/AliBu3/[Ph3C][B(C6F5)4] exhibited a monomodal
molar mass distribution, which argues in favor of the presence, in each case, of a single-site catalyst.
All the polyisoprenes were analyzed via NMR spectroscopy studies to determine their
1
microstructure content (see supplementary materials, Figures S17–S22). The corresponding H
and 13C-NMR spectra for the polyisoprene obtained in Table 1, entry 1 are displayed in Figure 3.
The microstructure content of all the polyisoprenes prepared from Table 1 (entries 1 to 6) are presented
in Figure 4.
Figure 3. NMR spectra (in CDCl3) of the PI obtained from C1/AliBu3/[Ph3C][B(C6F5)4] (Table 1, entry 1)
showing the characteristic resonances of 1,4- and 3,4-units (1H-NMR, left) and trans/cis configuration
(
13C-NMR, right).
Figure 4. Microstructure content of the polyisoprene obtained from C1–C6/AliBu3/[Ph3C][B(C6F5)4].
The polyisoprene acquired from the ternary C1/AliBu3/[Ph3C][B(C6F5)4] catalytic system consists
mainly of 90% of 1,4-units with a majority of trans- arrangements (ratio trans-1,4/cis-1,4 = 66/24) and a

Molecules 2019, 24, 3024
6 of 17
small amount (10%) of 3,4 content (Table 1, entry 1; Figures 3 and 4), which reflects the moderate trans-1,4
selectivity of catalyst C1 under these experimental conditions. On the other hand, catalyst issued from
C2 was found to be relatively more selective for trans-1,4 polymerization with microstructural content
being trans-1,4/cis-1,4/3,4 = 74/16/10 (Table 1, entry 2). Replacement of the methyl group (C1
, C2) by
an hydrogen atom on the carbon of the imino substituent of the ligand (C3 C4) resulted in a slight
,
decrease of the 1,4-stereoregularity with corresponding increase of 3,4 content (1,4/3,4 = 76–79/21–24,
Table 1, entries 3 and 4 with complexes C3 and C4, respectively). In addition, an important increment
of the cis-1,4 fraction, with respect to the trans-1,4 content, was found with these systems, cis being
predominant now compared to trans, unlike what was observed previously with pre-catalysts C1
and C2 (C3: trans/cis = 24/55 and C4: trans/cis = 30/46). It is also worth to mention that a decrease in
the AliBu3/Fe ratio from 10 to 3 did not affect the stereo- and regio-selectivity of the polymerization,
affording polymers with identical yields and microstructural properties (see Supplementary Materials
Table S3 and Figures S35–S40).
From these data, it appears that the ketimino-pyridyl-based iron pre-catalysts (C1 and C2),
in comparison with the aldimino-pyridyl-based iron complexes counterparts (C3 and C4), preferentially
favor the trans-1,4-stereoregularity, which is also slightly enhanced, but not significantly, by the presence
of sterically hindered N-aryl group (C1 2,6-di-Me2Ph vs. C2 2,6-di-iPr2Ph: 1,4-trans = 67 % vs. 74%,
respectively). In addition, this trans-1,4-selectivity could be due to an increase in electron density
at the iron center, as previously observed with a related electron-rich iron complex bearing an
octyl-substituted aldimino-pyridyl ligand [24,26]. Interestingly, the fluorinated pre-catalysts C5 and
C6 lead to polyisoprenes having a significant fraction of 3,4-motives (41 and 46%, Table 1 entries 5
and 6, respectively) while the 1,4 units exhibit a cis configuration only. This is clearly the result of a
polymerization process that is governed by kinetic rather than thermodynamic parameters, as already
reported with parent iron complexes supported by electron withdrawing fluorinated-aryl-substituted
aldimino-pyridyl ligands in combination with an excess of MAO [26].
Substitution of the alkylating agent AliBu3 by AlEt3, which has been scarcely used in iron-based
polymerization catalysis of conjugated dienes [24], had little effect on the results of the polymerization
(see Supplementary Materials Table S1 and Figures S23–S28). One can note however that the
polymerizations were less controlled in terms of molar masses for C1 and C2 with the presence of
a very small amount of polyisoprene displaying high Mn (Supplementary Materials, Figure S54).
In contrast, the ternary C3 and C4/AlEt3/[Ph3C][B(C6F5)4] catalytic systems resulted in a better
control of the polymerization, affording Mn and Ð similar to those obtained with the C1 and
C2/AliBu3/[Ph3C][B(C6F5)4] systems. With regard to the polymerization of isoprene with complexes
C5 and C6, very high Mn values were obtained as previously found for AliBu3, which again argues for
a much higher propagation rate compared to the initiation steps. However, no changes were noticed
regarding the selectivity of the polymerization with all complexes by comparison with the results
obtained with AliBu3 as alkylating agent (Table 1 vs. Table S1).
The same polymerization reactions were then studied in the presence of an excess of MAO as
co-catalyst (500 equiv. of MAO per Fe) (see supplementary materials Table S2 and Figures S29–S34).
The Mn values of the polyisoprene obtained from C1–C4/MAO were found to be lower than those
produced with AliBu3 or AlEt3/[Ph3C][B(C6F5)4] as co-reagents, likely due, in some extent, to reversible
chain transfer with aluminum. Moreover, a small amount of polyisoprene displaying high Mn was
found for polymerization reactions conducted with complexes C2, C3 and C4 (see Supplementary
Materials, Figure S54). As indicated previously, in the case of the C5 and C6 complexes, the same
tendency to obtain high molar masses was observed, with the polymer obtained from C6 exhibiting
a bimodal distribution of the molar masses. One can conclude that whatever the nature of the
co-catalyst, faster propagation than initiation occurs with the fluorinated pre-catalysts C5 and C6
The microstructures of the obtained polymers were found to be quite comparable to those prepared
with C1–C6/AliBu3 or AlEt3/[Ph3C][B(C6F5)4] catalytic systems.
.

Molecules 2019, 24, 3024
7 of 17
The polymerization of isoprene using the C4/MAO catalytic systems has already been studied
by Chen and coworkers (isoprene/C4/MAO = 2500/1/500) [25], which has led to the formation of
polyisoprenes in good yield (83% in 2 h at 25 ◦C) with a slight preference for 1,4-cis-stereoregularity
(trans-1,4/cis-1,4/3,4 = 5/70/25). In our case, for isoprene/C4/MAO = 500/1/500, the amount of trans-1,4
units proved to be higher than that reported previously, whereas the proportion of cis-1,4 contents was
lower with identical amount of 3,4-motives (trans-1,4/cis-1,4/3,4 = 30/46/24; Supplementary Materials
Table S2, entry 4 and Figure S32). In order to compare these different results, we performed the
polymerization of isoprene using the same experimental conditions as those described by Chen (2 h
◦
at 25 C), i.e., dissolution of the pre-catalyst C4 (8
µmol) in 2 mL of dichloromethane followed by
the addition of 7 mL of toluene with isoprene/C4/MAO = 2500/1/500. Again, a significant amount of
polyisoprene containing trans-1,4 units was isolated (trans-1,4/cis-1,4/3,4 = 21/52/27, see Supplementary
Materials, Table S4 and Figure S41). The reason for this difference in result is unknown at this
stage, but we can confirm that it does not originate from the use of a chlorinated solvent to dissolve
the pre-catalyst.
2.3. Kinetic Studies of the Polymerization of Isoprene with the Iron-Based Complexes C1–C6
Thereafter, the polymerization processes were optimized by conducting the kinetics of the
polymerization with C1–
C6/AliBu3/[Ph3C][B(C6F5)4] (1/3/1) catalytic combinations at 23 ◦C. The studies
were carried out with 5000 equiv. isoprene to ensure better reliability, as the too highly active systems
prevented us from correctly evaluating the kinetics at 500, 1000 and 2000 equiv. of isoprene/Fe.
Aliquots were taken at different times during the course of the polymerization to determine the
conversions via 1H-NMR (see Supplementary Materials, Table S5). The molecular characteristics of the
last sample of polyisoprene for each polymerization run are presented in Table 2 and the Supplementary
Materials (Figures S42–S47).
Table 2. Polymerization of 5000 equiv. of isoprene/Fe using C1
–
C6/AliBu3 /[Ph3C][B(C6F5)4] catalytic
systems a.
Microstructure c (%)
b
Conv.
(%)
Time
(min)
TOF
Mn(exp)
Đ b
Entry
Complex
(h−1
)
(g/mol)
1,4 (trans/cis)
3,4
1
2
3
4
5
6
C1
C2
C3
C4
C5
C6
83
25
89
82
>99
>99
20
60
10
10
<1
<1
12,450
1250
26,700
23,400
>300,000
>300,000
142,000
87,000
105,000
163,000
323,000
213,000
1.9
1.4
1.8
1.6
1.7
1.6
90 (60/30)
84 (69/18)
79 (25/54)
74 (26/48)
58 (0/58)
54 (0/54)
10
13
21
26
42
46
a
Polymerization conditions:
5 µ
mol of Fe(II) complex; Isoprene/AliBu3/[Ph3C][B(C6F5)4]/Fe = 5,000/3/1/1;
toluene = 25 mL; temperature = 25 ◦C; b determined by SEC; c determined by 1H-NMR and 13C-NMR; considering
one growing chain per metal center Mn(th)
Mn(th) = 303,100 g/mol for C3, Mn(th) = 337,200 g/mol for C5 and C6.
≈
282,700 g/mol for C1 and C4, Mn(th) = 85,150 g/mol for C2
,
Figure 5 shows the plot of conversion vs. time for complexes C1
–
C4 as pre-catalysts. The kinetic
assessments of complexes C5 and C6 could not be obtained because of their extremely high reactivity:
full conversion was obtained in less than 1 min (even in 15 s, full conversion was observed), along with
notable exothermicity for both pre-catalysts.
From the profile of the curves, the activity of the complexes in the catalytic combinations is in
the order of C6 ≈ C5 (TOF > 1,000,000 h−1) >> C3 (TOF = 26,700 h−1) > C4 (TOF = 23,400 h−1) > C1
(TOF = 12,450 h−1) > C2 (TOF = 1,250 h−1). For pre-catalysts C2
–C4, 80 % conversion was reached
within less than 20 min. Thus, the various pre-catalysts when employed for isoprene polymerization
were found to be highly active by comparison with data from the literature [ ]. The catalyst based on
8
complex C1 displayed the lowest activity, although showing the highest trans-selectivity amongst this
series of complexes. Conversely, the fluorinated complexes C6 and C5 have proved to be the most

Molecules 2019, 24, 3024
8 of 17
active complexes and, to our knowledge, they display the highest activities reported to date for an
iron-catalyzed polymerization of isoprene [8].
Figure 5. Monomer conversion (%) in function of time (min) for pre-catalysts C1
(Isoprene/AliBu3/[Ph3C][B(C6F5)4]/Fe = 5,000/3/1/1).
–C4
It appears that the polymerization is quite controlled for complexes C1–C4, displaying a nearly
first order kinetic profile for all (see Supplementary Materials, Figure S16), which speaks in favor
of minimal loss of active species along the polymerization process. These results prompted us to
investigate the living character of the polymerization, using pre-catalysts C1 and C2, by sequential
addition of isoprene (vide infra).
2.4. Sequential Polymerization of Isoprene with C1–C2/AliBu3/[Ph3C][B(C6F5)4]
The living polymerization tests were carried out with the ternary C1 and
C2/AliBu3/[Ph3C][B(C6F5)4] (1/3/1) catalytic systems by sequential addition of monomer in
three steps. The polymerization was preliminary conducted with 500 equiv. of isoprene/Fe at room
temperature. After completion of this first stage of the polymerization (15 min for C1 and 30 min
for C2), an aliquot was withdrawn from the reaction medium to determine the conversion and for
SEC analysis, then an additional amount of isoprene (500 equiv./Fe) was added. The last step of the
sequential polymerization was achieved by adding 1,000 equiv. of isoprene (after a total time of 30 min
for C1 and 60 min for C2) before withdrawing an aliquot; the results are displayed in Table 3, with the
SEC traces obtained for each fraction of converted monomer illustrated in Figure 6.
Table 3. Sequential polymerization of isoprene using C1, C2/AliBu3 /[Ph3C][B(C6F5)4] catalytic
systems a.
Total Monomer
(intermediate addition of
monomer) (equiv./Fe)
b
Time
(min)
Conv.
(%)
Mn(exp)
Đ b
Entry Complex
(g/mol)
500 (500)
1000 (+500)
2000 (+1000)
15
30 (+15)
60 (+30)
>99
>99
>99
36,500
69,000
102,000
1.6
1.5
1.3
1
2
C1
C2
500 (500)
1000 (+500)
2000 (+1000)
30
>99
>99
>99
23,000
32,000
62,000
2.4
2.0
1.3
60 (+30)
120 (+60)
a
Polymerization conditions: 10 µ
mol of Fe(II) complex; Fe/AliBu3/[Ph3C][B(C6F5)4] = 1/3/1; [C]isoprene = 1 mol/L in
toluene; temperature = 25 ◦C; b determined by SEC; c determined by 1H-NMR and 13C-NMR; Mn(th) = 135,000 g/mol
for the last sample (considering one growing chain per metal center).

Molecules 2019, 24, 3024
9 of 17
Figure 6. SEC traces of sequential polymerization using pre-catalysts (a, left) C1 and (b, right) C2.
Analyses of all withdrawn aliquots reveal a continuously increase in isoprene conversion for
both pre-catalysts (Table 3, entries 1 and 2). In addition, the SEC traces of the three fractions
of the growing polyisoprene chains prepared from the ternary C1/AliBu3/[Ph3C][B(C6F5)4] and
C2/AliBu3/[Ph3C][B(C6F5)4] catalytic systems show for each a monomodal curve (Figure 6a,b,
respectively) with a steady growth of Mn and a continuous decrease of the dispersity throughout the
progression of the polymerization.
For both pre-catalysts, the Mn resulting from all the aliquots was lower than expected and
indicates that the polymerization is not completely controlled, probably due to the presence of chain
transfer with aluminum, which was more pronounced for C2 than for C1. Nevertheless, for both runs,
the gradual increment of Mn from the three-stage sequential addition of monomer suggests that the
polymerization of isoprene with C1/AliBu3/[Ph3C][B(C6F5)4] and C2/AliBu3/[Ph3C][B(C6F5)4] display
a quasi-living character.
2.5. Polymerization of Isoprene with Complexes C3–C6 at Lower Temperatures
When conducting isoprene polymerization experiments at room temperature using the complexes
C5 and C6, we observed an instantaneous increase in the viscosity of the reaction medium. Consequently,
the polymerization of isoprene was assessed at low temperature using C5 and C6 in presence of
AliBu3/[Ph3C][B(C6F5)4] for a sake of better control and improvement of the selectivity. This was
also performed with fairly cis selective C3 and C4 pre-catalysts under the same conditions (Table 4,
Figures S48–S53 and Figure S54).
Table 4. Polymerization of isoprene at lower temperatures with pre-catalysts C3–C6 a.
Microstructure c (%)
b
T
Time
(min)
Conv.
(%)
TOF
Mn(exp)
Đ b
Entry
Complex
(◦C)
(h−1
)
(g/mol)
1,4 (trans/cis)
3,4
1
2
3
4
0
10
10
10
>99
>99
>99
294,000
251,000
173,000
-
1.2
1.3
1.3
-
58 (0/58)
58 (0/58)
58 (0/58)
-
42
42
42
-
3000
3000
3000
-
–20
–40
–78
C5
C6
480
traces
5
6
–40
–78
10
180
>99
traces
274,500
-
1.2
-
54 (0/54)
46
-
3000
-
-
7
C3
C4
–40
300
>99
169,000
1.3
89 (0/89)
11
100
8
–40
300
>99
216,000
1.6
88 (0/88)
12
100
a Polymerization conditions: 10
µ ;
mol of Fe(II) complex; Isoprene/AliBu3/[Ph3C][B(C6F5)4]/Fe = 500/1; toluene = 5 mL
reaction times have not been optimized; b determined by SEC; c determined by 1H-NMR and 13C-NMR.
As a result, all the catalytic systems displayed in Table 4 were found active at temperatures as
low as
40 ◦C (Table 4). In contrast, traces of polymer were isolated from the polymerization carried
−

Molecules 2019, 24, 3024
10 of 17
out at
probable lack of initiation at this temperature. The ternary C5 and C6/AliBu3/[Ph3C][B(C6F5)4] systems
displayed high catalytic activity at
40 ◦C (TOF = 3000 h−1) however, the selectivity for 1,4 and 3,4
−
78 ◦C for the two complexes C5 and C6 (Table 4, entries 4 and 6, respectively), reflecting a
−
motives was maintained throughout all the experiments (Table 4, entries 1–3 and 5). This observation
reflects an absence of selectivity dependence as a function of temperature, with a similar cis/3,4 ratio
for the polymerization conducted from room temperature to −40 ◦C.
On the other hand, the ternary C3 and C4/AliBu3/[Ph3C][B(C6F5)4] catalytic systems exhibit
moderate activity at
40 ◦C (TOF = 100 h−1), with the obtained polymers showing narrow dispersity
−
but very high Mn values compared to the expected Mn, presumably due to a rate of propagation
being higher than the initiation step at low temperature. In addition, a slight increase of 1,4-selectivity,
at the expense of 3,4 selectivity was observed at
40 ◦C for C3 (1,4/3,4 = 89/11) and C4 (1,4/3,4 = 88/12)
−
complexes when compared to those at 25 ◦C (Table S3, 1,4/3,4 = 78/22 for C3 and 1,4/3,4 = 75/25 for
C4). More interestingly, the polyisoprene obtained from the catalytic systems based on C3 and C4 at
−
40 ◦C shows a unique cis configuration for the 1,4-selectivity (trans/cis = 0/89 for C3 and 0/88 for C4).
Clearly, the propagation takes place via an anti (kinetic) active species conformer that is not prone to
isomerize into the syn (thermodynamic) conformer under these low temperature conditions (Scheme 2,
vide infra) [40,41].
3. Concluding Remarks
In this study, we observed that the activity of the catalytic system based on iminopyridyl-iron
complexes is clearly related to the electron density on iron and, to a lesser extent, to the environment of
the coordination sphere of the metal center. Indeed, an increase of the electrophilicity on the metal
center leads to stronger monomer coordination and presumably faster chain propagation, while an
increase in steric hindrance, conferred by the presence of bulky N-aryl substituent, results in a decrease
of activity that could be attributed to the difficulty of the incoming monomer to coordinate with the
active species. As such, the ketiminopyridyl complexes C1
metal center, were found to be less active (Figure 7a; TOF = 12,450 and 1250 h−1, respectively) than their
homolog C3
C4 aldiminopyridyl complexes (Figure 7b; TOF = 26,700 and 23,400 h−1, respectively).
/C2, which comprise a more electron-rich
/
This is attributable to the more inductive donor effect of the methyl group on the carbon of the imino
substituent of the ligands L1 and L2, when compared to L3 and L4. Moreover, an increase of the steric
hindrance around the iron metal center, for the same set of complexes with N-aryl group = 2,6-iPr2
for C2 and C4 vs. 2,6-Me2 for C1 and C3, resulted in a decrease of activity (in the order C2
and C4 C3), which could be connected to a restricted coordination of the isoprene to the metal
center. In contrast, in the case of the ketiminopyridyl complexes C1 C2 and C5 C6, the lower reactivity
in C1 C2 is largely compensated for the remarkable electron-withdrawing effect of the fluorinated
N-aryl substituent in C5
C6 (Figure 7c), which leads to extremely active catalysts (TOF > 1,000,000 h−1),
the most effective among the families of iron-catalyzed polymerization of isoprene described to date [ ].
> C1
>
/
/
/
/
8
(a)
C1 & C2
(b)
C3 & C4
(c)
C5 & C6
Very high
Extremely high
Activity
Moderate – High
Poorly cis-1,4-selective (R.T)
Highly cis-1,4-selective (lowT)
Selectivity
Moderately trans-1,4-selective
Not selective at R.T and low T
Figure 7. Structure-properties relationships in iminopyridyl iron-based catalysts issued from (
ketiminopyridyl C1–C2, (b) aldiminopyridyl C3–C4 and (c) fluoroaryl-ketiminopyridyl C5–C6.
a)

Molecules 2019, 24, 3024
11 of 17
Regarding the selectivity, the concomitant presence of methyl group on the carbon of the
imino substituent and N-aryl group with alkyl substituent on the ortho position in C1 C2 favor
trans-1,4 selectivity (Figure 7a) up to 74% under our conditions. Although, the electronic effect of
fluorinated N-aryl substituent in C5 C6 leads to cis-1,4 selectivity, presumably due to a preferential
4-cis coordination of the incoming monomer, but combined with the presence of methyl group on the
/
/
η
carbon of the imino substituent, this results in a substantial amount of 3,4 arrangement (Figure 7c).
These results are in line with previous experiments done by the group of Wang with fluorinated
N-aryl substituted aldiminopyridine iron complexes activated with MAO [26]. Interestingly, the iron
catalyst systems based on C5
Regarding the high cis-1,4 rate (89%) observed with C3
/
C6 are not temperature dependent in term of regio- and stereo-selectivity.
C4 at low temperature, it reveals the importance
/
of the anti/syn isomerization (Scheme 2) of the propagating species in the stereoselective iron-catalyzed
1,3-dienes polymerization (Figure 7b).
Scheme 2. Elementary coordination and insertion steps in isoprene polymerization.
4. Experimental
4.1. General Information
An inert atmosphere by using Schlenk techniques or in a dry/inert glovebox (O2 < 1 ppm,
H2O < 1 ppm, Jacomex, Dagneux, France) were used to implement all manipulations. Toluene was
passed through an alumina column from an Mbraun SPS (MBraun France, Mérignac, France),
distilled over sodium/benzophenone and stored on 4 Å molecular sieves in a glove box before used.
Isoprene (Sigma-Aldrich, St Quentin Fallavie, France) was dried over calcium hydride, distilled once
◦
over 4 Å molecular sieves, and stored at
−
20 C in the glove box before used. All the organic
reagents (2-acetylpyridine, pyridine-2-carboxaldehyde and aniline derivatives) were acquired from
Sigma-Aldrich or Fisher Scientic S.A.S. (Illkrich, France), and used as received. Triisobutylaluminum
[Al(iBu)3, Sigma-Aldrich], triethylaluminum [Al(Et)3, Sigma-Aldrich], methylaluminoxane (MAO,
10 wt% in toluene, Sigma-Aldrich) and trityl tetrakis(pentaflurophenyl)borate {[Ph3C][B(C6F5)4]} (TCI
Europe N.V., Zwijndrecht, Belgium) were stored in the glove box and used as received. 1H-, 13C-
and 19F-NMR spectra were recorded on an Avance 300 instrument (Bruker France, Palaiseau France)
1
at 300 K. All H chemical shifts (reported in [ppm]) were referenced by using residual signals of
the deuterated solvents. Elemental analyses were performed by Céline Delabre on an Micro Cube
apparatus Elementar Vario (Elementar France SARL, Lyon, France) at UCCS, University Lille Nord de
France. In the case of polymers analyses, the conversion as well as the composition of the polymers
and the microstructural contents were calculated by mean of 1H- and 13C-NMR spectroscopy analysis

Molecules 2019, 24, 3024
12 of 17
using Topspin or MestreNova softwares. Size◦exclusion chromatography (SEC) analysis of the samples
were performed in THF as an eluent at 40 C (1 mL/min) with a SIS HPLC pump (Waters S.A.S,
Saint-Quentin-en-Yvelines, France), a Waters 410 refractometer, and Waters Styragel columns (HR2,
HR3, HR4, and HR5E) calibrated with polystyrene standards. FTIR analyses were performed on an
ATR spectrometer (Shimadzu France, Marne-la-Vallée, France).
4.2. General Procedure for the Synthesis of Ligands L1–L4
A solution of corresponding substituted aniline (8 mmol) and pyridine-2-carboxaldehyde/2-acetyl
pyridine (10 mmol) in methanol (15 mL) was prepared in a round-bottomed flask equipped with a
magnetic stirrer. Catalytic amount of formic acid (3–4 drops) was added subsequently before the
mixture was refluxed overnight at 90 ◦C.
N-(2,6-Dimethylphenyl)-1-(pyridin-2-yl)ethan-1-imine (L1): the reaction mixture was concentrated under
reduced pressure which was further dissolved in pentane, dried over sodium sulfate and filtered.
The mixture was concentrated again under reduced pressure to obtain a crude product which was
further recrystallized in methanol at
(300 MHz, CDCl3, 25 ◦C)
−
20 ◦C to obtain light-yellow crystals. Yield: 46%. 1H-NMR
(ppm) = 8.71 (d broad, 1H, Ha), 8.40 (dd broad, 1H, Hb), 7.82 (dd broad, 1H,
δ
Hc), 7.39 (dd broad, 1H, Hd), 7.09–6.98 (m, 3H, He,f,), 2.20 (s, 3H, Hg), 2.05 (s, 6H, Hh). IR/cm−1 = 1637
ν(C=N). The data are similar to those found in the literature [33,34]
N-(2,6-Diisopropylphenyl)-1-(pyridin-2-yl)ethan-1-imine (L2): similar to L1. The crude product obtained
was purified over silica column with ethyl acetate/petroleum ether (1/10) as an eluent to yield a yellow
1
oil. Yield: 15%. H-NMR (300 MHz, CDCl3, 25 ◦C)
δ ,
(ppm) = 8.70 (ddd, 3JHH = 4.8 Hz, 4JHH = 1.7 Hz
5JHH = 0.8 Hz, 1H, Ha), 8.41 (d, 3JHH = 8.1 Hz, 1H, Hb), 7.85 (ddd, 3JHH = 8.1, 8.1 Hz, 4JHH = 1.7 Hz,
1H, Hc), 7.42 (ddd, 3JHH = 8.1 Hz, 4JHH = 4.8 Hz, 5JHH = 0.8 Hz, 1H, Hd), 7.21–7.03 (m, 3H, He,f), 2.74
(sept, 3JHH = 6.9 Hz, 2H, Hg), 2.24 (s, 3H, Hh), 1.15 (d, 3JHH = 6.9 Hz, 12H, Hi). The data are similar to
those found in the literature [32–34].
N-(2,6-Dimethylphenyl)-1-(pyridin-2-yl)methanimine (L3): similar to L1. The crude product obtained is a
yellow-viscous oil, which crystallizes slowly in methanol to yield a yellow solid. Yield: 89%.1H-NMR
(300 MHz, CDCl3, 25 ◦C) (ppm) = 8.76 (d, 3JHH = 4.7 Hz, 1H, Ha), 8.42 (s, 1H, Hb), 8.34 (d, 3JHH = 7.9 Hz
δ ,
1H, Hc), 7.85 (dd, 3JHH = 7.9, 7.9 Hz, 1H, Hd), 7.46–7.37 (m, 1H, He), 7.14–6.96 (m, 3H, Hf,g), 2.23 (s, 6H,
Hh). IR/cm−1 = 1637 ν(C=N). The data are similar to those found in the literature [33].
N-(2,6-Diisopropylphenyl)-1-(pyridin-2-yl)methanimine (L4): similar to L3. The crude product was
1
recrystallized in ethanol to afford the product as yellow crystals. Yield: 29 %. H-NMR (300 MHz, C6D6,
25 ◦C) (ppm) = 8.59 (s, 1H, Ha), 8.46 (dd, 3JHH = 4.8 Hz, 4JHH = 1.7 Hz, 1H, Hb), 8.27 (d, 3JHH = 7.9 Hz
δ ,
1H, Hc), 7.13–7.04 (m, 3H, He,f,g), 6.65 (dd, 3JHH =7.5, 4.8 Hz, 1H, Hd), 3.15 (sept, 3JHH = 6.8 Hz, 2H,
Hh), 1.15 (d, 3JHH = 6.8 Hz, 12H, Hi). IR/cm−1 = 1633
ν(C=N). The data are similar to those found in
the literature [33,35].
N-(3,5-bis(Trifluoromethyl)phenyl)-1-(pyridin-2-yl)ethan-1-imine (L5): a mixture of 2-acetyl pyridine
(0.69 mL, 6.2 mmol) and 3,5-bis(trifluoromethyl)aniline (0.97 mL, 6.2 mmol) in toluene (25 mL) was
prepared in a round-bottomed flask equipped with a magnetic stirrer and Dean-Stark apparatus.
Catalytic amount of p-toluenesulfonic acid (2–3 mg) was added to the reaction mixture and the solution
was refluxed overnight. The obtained mixture was concentrated under reduced pressure to obtain a
1
yellow crude oil. Yield: 43%. H-NMR of L5 (300 MHz, CD2Cl2, 25 ◦C)
δ
(ppm) 8.67 (dd, 3JHH = 4.8 Hz,
4JHH = 1.7 Hz, 1H, Ha), 8.25 (d, 3JHH = 7.8 Hz, 1H, Hc), 7.83 (dd, J = 7.8, 7.8 Hz, 1H, Hd), 7.65 (s, 1H, Hb),
7.42 (dd, 3JHH = 7.8, 4.8 Hz, 1H, He), 7.30 (s, 2H, Hf), 2.37 (s, 3H, Hg). 19F-NMR (282 MHz, C6D6, 25 ◦C,
δ): -63.32 (s, 6F). IR/cm−1 = 1649 ν(C=N). The data are similar to those found in the literature [36].
N-(Perfluorophenyl)-1-(pyridin-2-yl)ethan-1-imine (L6): a mixture of 2-acetyl pyridine (0.93 mL, 8.3 mmol)
and 2,3,4,5,6-pentafluoroaniline (1.49 g, 8.1 mmol) with catalytic amounts of p-toluenesulfonic acid and

Molecules 2019, 24, 3024
13 of 17
sodium sulfate (10 mg) in toluene (14 mL) was refluxed overnight in an Ace pressure tube at 110 ◦C.
The mixture obtained was filtered over cotton, extracted with dichloromethane and concentrated
under reduced pressure to obtain a brown solid. The product was extracted with pentane, filtered and
concentrated under vacuum. The crude compound was further recrystallized in pentane to obtain
1
orange-brown crystals. Yield: 10%. H-NMR (300 MHz, C6D6)
δ δ
(ppm) = 1H-NMR (300 MHz, C6D6)
(ppm) = 8.35 (dd, 3JHH = 4.8 Hz, 4JHH = 1.7 Hz, 1H, Ha), 8.25 (d, 3JHH = 7.8 Hz, 1H, Hb), 7.03 (ddd,
3JHH = 7.8 Hz, 7.8 Hz, 4JHH = 1.7 Hz, 1H, Hc), 6.63 (dd, 3JHH = 7.8 Hz, 3JHH = 4.8 Hz, 1H, Hd), 2.20
(s, 3H, He). 19F-NMR (282 MHz, C6D6, 25 ◦C)
J = 21.7 Hz, 1F, Fpara),
δ
(ppm) =
−
152.5 (d, J = 23.8 Hz, 2F, Fmeta),
−
163.1 (t,
◦
−
163.6 (dd, J = 23.8, 21.7 Hz, 2F, Fortho). 13C-NMR (75 MHz, C6D6, 25 C)
δ
(ppm) = 175.1, 154.9, 148.5, 139.7, 139.3, 139.1, 138.7, 135.9, 125.4, 121.8, 17.5. At this stage, we could not
unambiguously assign the 13C NMR spectrum. IR/cm−1 = 1647
ν(C=N). Anal. Calcd. for C13H7N2F5:
C 54.56, H 2.47, N 9.79; found C 54.57, H 2.48, N 9.72.
4.3. General Procedure for the Synthesis of Complexes C1–C6
The corresponding ligand (3.5 mmol), anhydrous FeCl2 (3.5 mmol) and dry THF (32 mL) were
added to a Schlenk inside the glove box. The mixture was stirred overnight under argon atmosphere.
The excess solvent was evaporated under reduced pressure and the product was washed with dry
pentane (3 × 30 mL), further dried under high vacuum to obtain a powder.
[N-(2,6-Dimethylphenyl)-1-(pyridin-2-yl)ethan-1-imine]FeCl2 (C1): purple solid. Yield: 82%. 1H-NMR
(300 MHz, CD2Cl2, 25 ◦C,
δ
): 99.0 (∆ν1/2 = 134 Hz, 1H), 75.1 (∆ν1/2 = 55 Hz, 1H), 51.0 (∆ν1/2 = 48 Hz,
1H), 3.1 (∆ν1/2 = 34 Hz, 3H), 2.4 (∆ν1/2 = 28 Hz, 12H), 0.4 (∆ν1/2 = 39 Hz, 1H), 5.6 (∆ν1/2 = 94 Hz, 2H),
17.8 (∆ν1/2 = 29 Hz, 2H), (C=N). The data are similar to
19.3 (∆ν1/2 = 42 Hz, 1H). IR/cm−1 = 1591
those found in the literature [34].
−
−
−
ν
[N-(2,6-Diisopropylphenyl)-1-(pyridin-2-yl)ethan-1-imine]FeCl2 (C2): dark purple powder. Yield: 57%.
1H-NMR (300 MHz, CD2Cl2, 25 ◦C,
): 102.7 (∆ν1/2 = 80 Hz, 3H), 72.6 (∆ν1/2 = 54 Hz, 1H),
65.5 (∆ν1/2 = 1089 Hz, 1H), 49.1 (∆ν1/2 = 61 Hz, 1H), 10.6 (∆ν1/2 = 194 Hz, 6H), 3.0 (∆ν1/2 = 28 Hz, 2H),
18.4 & (C=N). The data are similar to those found in the literature [34 37].
18.5 (2H). IR/cm−1 = 1589
δ
−
−
ν
,
[N-(2,6-Dimethylphenyl)-1-(pyridin◦-2-yl)methanimine]FeCl2
(C3): violet powder. Yield: 61%.
δ): 85.9 (∆ν1/2 = 183 Hz, 1H), 64.4 (∆ν1/2 = 1526 Hz 1H),
1H-NMR (300 MHz, CD2Cl2, 25 C,
54.2 (∆ν1/2 = 62 Hz, 1H), 50.5 (∆ν1/2 = 77 Hz, 1H), 11.3 (∆ν1/2 = 228 Hz, 6H), 5.1 (1H),
∆ν1/2 = 31 Hz, 2H) (C=N). The data are similar to
17.3 (∆ν1/2 = 47 Hz, 1H). IR/cm−1 = 1593
those found in the literature [34].
−
13.5
(
,
−
ν
1

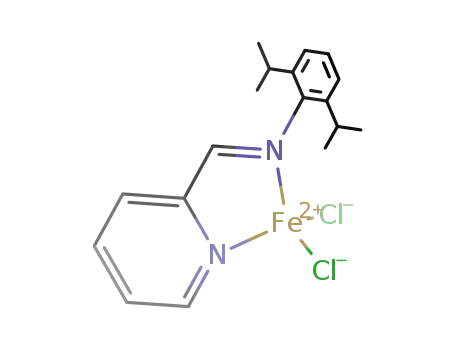

[N-(2,6-Diisopropylphenyl)-1-(pyridin-2-yl)methanimine]FeCl2 (C4): violet powder. Yield: 75%. H-NMR
(300 MHz, CD2Cl2, 25 ◦C,
): 85.6 (∆ν1/2 = 156 Hz, 1H), 62.5 (∆ν1/2 = 2300 Hz, 1H),
54.8 (∆ν1/2 = 61 Hz, 1H), 51.1 (∆ν1/2 = 75 Hz, 1H), 3.8 (∆ν1/2 = 50 Hz, 12H), 2.2 (∆ν1/2 = 447 Hz,
1H), 3.1 (∆ν1/2 = 95 Hz, 2H),
13.0 (∆ν1/2 = 34 Hz, 2H), -18.0 (∆ν1/2 = 48 Hz, 1H). IR/cm−1 = 1593
δ
−
−
ν(C=N). The data are similar to those found in the literature [38,39].
[N-(3,5-bis(trifluoromethyl)phenyl)-1-(pyridin-2-yl)ethan-1-imine]FeCl2 (C5): azure blue powder. Yield:
1
79%. H-NMR (300 MHz, CD2Cl2, 25 ◦C,
δ
): 72.7 (∆ν1/2 = 496 Hz, 1H), 67.1 (∆ν1/2 = 611 Hz, 1H), 53.2
7.5 (∆ν1/2 = 215 Hz, 3H), -11.6 (∆ν1/2 = 162 Hz, 1H), 16.6
& 50.65 (1H), 12.4 (∆ν1/2 = 1146 Hz, 1H),
∆ν1/2 = 1711 Hz, 1H). IR/cm−1 = 1597
−
−
(
ν
(C=N). Anal. Calcd. for C15H10N2F6FeCl2: C 39.25, H 2.20,
N 6.10; found C 40.10, H 2.43, N 6.07.
1
[N-(Perfluorophenyl)-1-(pyridin-2-yl)ethan-1-imine]FeCl2 (C6): navy blue powder. Yield: 83%. H-NMR
(300MHz, CD2Cl2, 25◦C,
19.4 (∆ν1/2 = 487 Hz, 3H). IR/cm−1 = 1595
of THF (C4H8O): C 42.09, H 3.06, N 5.72; found C 42.10, H 3.12, N 5.78.
δ
): 70.1(∆ν1/2 =809Hz, 2H), 53.6(∆ν1/2 =555Hz, 1H), 48.8 (∆ν1/2 = 304 Hz, 1H)
,
−
ν(C=N). Anal. Calcd. for C13H7N2F5FeCl2 + one molecule

Molecules 2019, 24, 3024
14 of 17
4.4. General Procedure for Isoprene Polymerization
In a typical polymerization experiment, a Schlenk reactor (20 mL) was heated, dried in a vacuum
and purged with argon three times before introducing it to the glove box. Iron (II) chloride complex
(10 µmol, 1 eq.) and toluene (3 mL) were added to the reactor followed by the addition of an aluminum
co-catalyst at 23 ◦C.
Activation with AlR3 (100 µmol, 10 eq.)/[Ph3C][B(C6F5)4] (10 µmol, 1 eq.): the reaction mixture was
stirred for 2-3 min and trityltetrakis(pentafluorophenyl)borate was added as a solution in 2 mL of
toluene at 23 ◦C. The mixture was stirred for 2 min and isoprene (0.346 g, 0.5 mL, 500 eq.) was added.
The reaction mixture was stirred for the desired time before being quenched with 2–3 drops of HCl
followed by dilution in toluene. The polymer was precipitated in ethanol (150 mL) containing the
stabilizing agent BHT (tert-butylhydroxytoluene), isolated and dried in vacuum for at least 4 h to yield
a gummy solid.
Activation with MAO (5 mmol, 500 eq.): the mixture was stirred for 2–3 min and isoprene (0.346 g,
0.5 mL, 500 eq.) was added. The reaction mixture was stirred for the desired time before being
quenched with 2–3 drops of HCl followed by dilution in toluene. The polymer was precipitated in
ethanol (150 mL) containing the stabilizing agent BHT, isolated and dried in vacuum for at least 4 h to
yield a gummy solid.
For a given aliquot, the conversion was determined using the chemical shifts of the olefinic
protons of polyisoprene (5.11 and 4–4.6 ppm) and isoprene (6.5–6.42 ppm). The aliquots that were
taken at several intervals were quenched with isopropanol present inside the NMR tubes containing
the benzene-d6 capillaries. The percentage conversion was calculated according to the equation:
Area normalised for polymer
[% Conversion] =
Area normalised for polymer + Area normalised for monomer ∗
I(4.72−4.67 ppm)
I(5.14 − 5.10 ppm) +
2
=
I(4.72−4.67 ppm)
I(5.14 − 5.10 ppm) +
+ (I(6.5 − 6.42 ppm) or I(5.22 − 5 ppm))
2
* Can be chosen between the two olefinic regions of isoprene depending on the better resolution of
peaks (see Supporting Materials).
4.5. Calculation of Microstructure Contents
1
As previously known [42], the characteristic signals of polyisoprene in a H-NMR spectrum
were found at 5.14–5.10 ppm and 4.72–4.67 ppm corresponding to 1,4 and 3,4 units respectively.
The percentage content of 1,4 and 3,4 units was determined according to the equations:
I(5.14 − 5.10 ppm)
I(5.14 − 5.10 ppm) +
[%1, 4 content] =
I(4.72−4.67 ppm)
2
I(4.72−4.67 ppm)
2
[%3, 4 content] =
I(4.72−4.67 ppm)
I(5.14 − 5.10 ppm) +
2
The characteristic signals at 16.2 and 23.8 ppm in the 13C-NMR spectra correspond to the methyl
carbon of cis-1,4 and trans-1,4 polyisoprene motifs, respectively [43]. Therefore, the percentage cis-1,4
and trans-1,4 content is given by the equations:
I(16.2 ppm)
[%trans − 1, 4 content] =
I(16.2 ppm) + I (23.8 ppm)
I(23.8 ppm)
[%cis − 1, 4 content] =
I(16.2 ppm) + I (23.8 ppm)

Molecules 2019, 24, 3024
15 of 17
Supplementary Materials: The following are available online. Figures S1–S3: 1H-NMR, 13C-NMR and 19F-NMR
of the ligand L6; Figures S4–S8: 1H-NMR of the ligands L1-L5; Figures S9–S14: 1H-NMR of the complexes C1
C6
Figure S15
1H-NMR spectra of stacked of all iron-based complexes; Table S1: Polymerization of isoprene using
C1 C6/AlEt3/[Ph3C][B(C6F5)4] (1/10/1) catalytic systems; Table S2: Polymerization of isoprene using C1 C6/MAO
(1/500) catalytic systems; Table S3: Polymerization of isoprene using C1
C6/AliBu3/[Ph3C][B(C6F5)4] (1/3/1)
catalytic systems; Table S4: Polymerization of isoprene (2500 eq.) using C4/MAO (1/500) catalytic systems;
Figure S16: Kinetic Profile of Polymerization with complexes C1 C4; Table S5: Polymerization of 5,000 equiv. of
–
;
:
–
–
–
–
isoprene/Fe using C1–
C4/AliBu3 /[Ph3C][B(C6F5)4] catalytic systems; Figures S17–S53: 1H- and 13C-NMR spectra
of the polymers obtained; Figure S54: SEC traces of the polymers obtained.
Author Contributions: Y.C. and M.V. developed the original idea and wrote the manuscript; O.H.H. did the
experiments and contributed to the writing of the experimental part.
Funding: This research received no external funding.
Acknowledgments: We gratefully acknowledge the University of Lille for the financial support of Obaid H.
Hashmi, and CNRS for donation. Aurélie Malfait and Jonathan Potier are acknowledged for SEC analyses.
We would also like to thank Céline Delabre for performing the elemental analysis as well as Patrick Daubias and
Eric Buisine for the availability for NMR experiments.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
Britovsek, G.J.; Gibson, V.C.; McTavish, S.J.; Solan, G.A.; White, A.J.; Williams, D.J.; Kimberley, B.S.;
Maddox, P.J. Novel Olefin Polymerization Catalysts Based on Iron and Cobalt. Chem. Commun. 1998, 849–850.
[CrossRef]
2.
3.
4.
Small, B.L.; Brookhart, M.; Bennett, A.M. Highly Active Iron and Cobalt Catalysts for the Polymerization of
Ethylene. J. Am. Chem. Soc. 1998, 120, 4049–4050. [CrossRef]
Burcher, B.; Breuil, P.-A.R.; Magna, L.; Olivier-Bourbigou, H. Iron-Catalyzed Oligomerization and
Polymerization Reactions. Top. Organomet. Chem. 2015, 50, 217–257.
Li, L.; Gomes, P.T.; Bianchini, C.; Cole-Hamilton, D.J.; van Leeuwen, P.W.N.M. Olefin upgrading catalysis by
nitrogen-based metal complexes II, Catalysis by metal complexes; Springer: Dordrecht, The Netherlands, 2012;
Volume 36, pp. 77–197.
5.
6.
7.
Coates, G.W. Precise Control of Polyolefin Stereochemistry Using Single-Site Metal Catalysts. Chem. Rev.
2000, 100, 1223–1252. [CrossRef] [PubMed]
Coates, G.W. Polymerization catalysis at the millennium: Frontiers in stereoselective, metal-catalyzed
polymerization. J. Chem. Soc. Dalton Trans. 2002, 467–475. [CrossRef]
Breuil, P.-A.; Magna, L.; Olivier-Bourbigou, H. Role of Homogeneous Catalysis in Oligomerization of Olefins:
Focus on Selected Examples Based on Group 4 to Group 10 Transition Metal Complexes. Catal. Lett. 2015
145, 173–192. [CrossRef]
,
8.
9.
Champouret, Y.; Hashmi, O.H.; Visseaux, M. Discrete Iron-Based Complexes: Applications in Homogeneous
Coordination-Insertion Polymerization Catalysis. Coord. Chem. Rev. 2019, 390, 127–170. [CrossRef]
Kwag, G.; Kim, P.; Han, S.; Choi, H. Ultra high cis polybutadiene by monomeric neodymium catalyst and its
tensile and dynamic properties. Polymer 2005, 46, 3782–3788. [CrossRef]
10. Zhao, J.; Ghebremeskel, G.N. A review of some of the factors affecting fracture and fatigue in SBR and BR
vulcanizates. Rubber Chem. Technol. 2001, 74, 409–427. [CrossRef]
11. Khodzhaeva, I.D.; Kislinovskaja, N.V.; Smurova, E.V. Stability of cis-1,4-Polyisoprene and Its Vulcanizates in
Aqueous and Biologically Active Media. Int. J. Polym. Mater. Polym. Biomater. 1994, 25, 107–115. [CrossRef]
12. Song, J.S.; Huang, B.C.; Yu, D.S. Progress of Synthesis and Application of trans-1,4-Polyisoprene. J. Appl.
Polym. Sci. 2001, 82, 81–89. [CrossRef]
13. Zhang, J.; Xue, Z. A comparative study on the properties of Eucommia ulmoides gum and synthetic
trans-1,4-polyisoprene. Polym. Test. 2011, 30, 753–759. [CrossRef]
14. Huang, J.; Liu, Z.; Cui, D.; Liu, X. Precisely Controlled Polymerization of Styrene and Conjugated Dienes by
Group 3 Single-Site Catalysts. ChemCatChem 2018, 10, 42–61. [CrossRef]
15. Jothieswaran, J.; Fadlallah, S.; Bonnet, F.; Visseaux, M. Recent Advances in Rare Earth Complexes Bearing
Allyl Ligands and Their Reactivity towards Conjugated Dienes and Styrene Polymerization. Catalysts 2017
,
7, 378. [CrossRef]

Molecules 2019, 24, 3024
16 of 17
16. Srivastava, V.K.; Maiti, M.; Basak, G.C.; Jasra, R.V. Role of catalysis in sustainable production of synthetic
elastomers. J. Chem. Sci. 2014, 126, 415–427. [CrossRef]
17. Zhang, Z.; Cui, C.; Bo, L.; Liu, D.; Yang, Y. Polymerization of 1,3-Conjugated Dienes with Rare-Earth Metal
Precursors. Struct. Bond. 2010, 137, 49–108.
18. Ricci, G.; Sommazzi, A.; Masi, F.; Ricci, M.; Boglia, A.; Leone, G. Well-Defined Transition Metal Complexes
with Phosphorus and Nitrogen Ligands for 1,3-Dienes Polymerization. Coord. Chem. Rev. 2010, 254, 661–676.
[CrossRef]
19. Friebe, L.; Nuyken, O.; Obrecht, W. Neodymium-Based Ziegler/Natta Catalysts and Their Application in
Diene Polymerization. In Neodymium Based Ziegler Catalysts – Fundamental Chemistry; Nuyken, O., Ed.;
Springer: Berlin/Heidelberg, Germany, 2006; Volume 204, pp. 1–154.
20. Egorova, K.S.; Ananikov, V.P. Toxicity of Metal Compounds: Knowledge and Myths. Organometallics 2017
36, 4071–4090. [CrossRef]
,
21. Bazzini, C.; Giarrusso, A.; Porri, L. Diethylbis (2, 20-Bipyridine) Iron/MAO. A Very Active and Stereospecific
Catalyst for 1, 3-Diene Polymerization. Macromol. Rapid Commun. 2002, 23, 922–927. [CrossRef]
22. Ricci, G. Polymerization of 1,3-Dienes with Iron Complexes Based Catalysts Influence of the Ligand on
Catalyst Activity and Stereospecificity. J. Mol. Cat. A: Chem. 2003, 204–205, 287–293. [CrossRef]
23. Luo, L.; Kang, X.; Zhou, G.; Chen, S.; Luo, G.; Qu, J.; Luo, Y. Mechanistic Insights into Regioselective
Polymerization of 1,3-Dienes Catalyzed by a Bipyridine-Ligated Iron Complex: A DFT Study. Int. J. Quant.
Chem. 2016, 116, 1274–1280.
24. Raynaud, J.; Wu, J.Y.; Ritter, T. Iron-Catalyzed Polymerization of Isoprene and Other 1,3-Dienes. Angew.
Chem. Int. Ed. 2012, 51, 11805–11808. [CrossRef] [PubMed]
25. Guo, L.; Jing, X.; Xiong, S.; Liu, W.; Liu, Y.; Liu, Z.; Chen, C. Influences of Alkyl and Aryl Substituents
on Iminopyridine Fe(II)- and Co(II)-Catalyzed Isoprene Polymerization. Polymers 2016, 8, 389. [CrossRef]
[PubMed]
26. Zhu, G.; Zhang, X.; Zhao, M.; Wang, L.; Jing, C.; Wang, P.; Wang, X.; Wang, Q. Influences of Fluorine
Substituents on Iminopyridine Fe(II)- and Co(II)-Catalyzed Isoprene Polymerization. Polymers 2018, 10, 934.
[CrossRef] [PubMed]
27. Zhao, M.; Wang, L.; Mahmood, Q.; Jing, C.; Zhu, G.; Zhang, X.; Wang, X.; Wang, Q. Controlled Isoprene
Polymerization Mediated by Iminopyridine-Iron (II) Acetylacetonate Pre-Catalysts. Appl. Organomet. Chem.
2019, e4836. [CrossRef]
28. Jing, C.; Wang, L.; Mahmood, Q.; Zhao, M.; Zhu, G.; Zhang, X.; Wang, X.; Wang, Q. Synthesis and
characterization of aminopyridine iron(II) chloride catalysts for isoprene polymerization: Sterically controlled
monomer enchainment. Dalton Trans. 2019, 48, 7862–7874. [CrossRef] [PubMed]
29. Zhang, X.; Zhu, G.; Mahmood, Q.; Zhao, M.; Wang, L.; Jing, C.; Wang, X.; Wang, Q. Iminoimidazole-Based
Co(II) and Fe(II) Complexes: Syntheses, Characterization, and Catalytic Behaviors for Isoprene
Polymerization. J. Polym. Sci., Part A: Polym. Chem. 2019, 57, 767–775. [CrossRef]
30. Liu, H.; Wang, F.; Jia, X.-Y.; Liu, L.; Bi, J.-F.; Zhang, C.-Y.; Zhao, L.-P.; Bai, C.-X.; Hu, Y.-M.; Zhang, X.-Q.
Synthesis, Characterization, and 1,3-Butadiene Polymerization Studies of Co(II), Ni(II), and Fe(II) Complexes
Bearing 2-(N-Arylcarboximidoylchloride)Quinoline Ligand. J. Mol. Cat. A: Chem. 2014, 391, 25–35. [CrossRef]
31. Li, X.; Zhang, L.; Tan, P.T.; Fazzini, P.-F.; Hungria, T.; Durand, J.; Lachaize, S.; Sun, W.-H.; Respaud, M.;
Soulantica, K.; et al. Isoprene Polymerization on Iron Nanoparticles Confined in Carbon Nanotubes.
Chem. Eur. J. 2015, 21, 17437–17444. [CrossRef] [PubMed]
32. Laine, T.V.; Piironen, U.; Lappalainen, K.; Klinga, M.; Aitola, E.; Leskelä, M. Pyridinylimine-Based Nickel (II)
and Palladium (II) Complexes: Preparation, Structural Characterization and Use as Alkene Polymerization
Catalysts. J. Organomet. Chem. 2000, 606, 112–124. [CrossRef]
33. Bianchini, C.; Man Lee, H.; Mantovani, G.; Meli, A.; Oberhauser, W. Bis-Alkoxycarbonylation of Styrene by
Pyridinimine Palladium Catalysts. New J. Chem. 2002, 26, 387–397. [CrossRef]
34. Cao, Y.; Zhang, Y.; Zhang, L.; Zhang, D.; Leng, X.; Huang, Z. Selective Synthesis of Secondary Benzylic
(Z)-Allylboronates by Fe-Catalyzed 1,4-Hydroboration of 1-Aryl-Substituted 1,3-Dienes. Org. Chem. Front.
2014, 1, 1101–1106. [CrossRef]
35. Laine, T.V.; Klinga, M.; Leskelä, M. Synthesis and X-Ray Structures of New Mononuclear and Dinuclear
Diimine Complexes of Late Transition Metals. Eur. J. Inorg. Chem. 1999, 959–964. [CrossRef]

Molecules 2019, 24, 3024
17 of 17
36. Zhou, Q.; Meng, W.; Yang, J.; Du, H. A Continuously Regenerable Chiral Ammonia Borane for Asymmetric
Transfer Hydrogenations. Angew. Chem. Int. Ed. 2018, 57, 12111–12115. [CrossRef] [PubMed]
37. Nienkemper, K.; Kotov, V.V.; Kehr, G.; Erker, G.; Fröhlich, R. Chelate [2-(Iminoethyl)PyridineN-Oxide]Metal
Complexes - Synthesis and Structural Comparison with Their Chemically Related 2-(Iminoethyl)
Pyridine-Derived Systems. Eur. J. Inorg. Chem. 2006, 2006, 366–379. [CrossRef]
38. Wu, J.Y.; Moreau, B.; Ritter, T. Iron-Catalyzed 1,4-Hydroboration of 1,3-Dienes. J. Am. Chem. Soc. 2009, 131,
12915–12917. [CrossRef] [PubMed]
39. Gibson, V.C.; O’Reilly, R.K.; Wass, D.F.; White, A.J.; Williams, D.J. Iron Complexes Bearing Iminopyridine
and Aminopyridine Ligands as Catalysts for Atom Transfer Radical Polymerisation. Dalton Trans. 2003, 14,
2824–2830. [CrossRef]
40. Tobisch, S. The Stereospecific Polymerization of 1,3-Butadiene Mediated by Early and Late Transition-Metal
Catalysts. Towards a Deeper Understanding of the Catalytic Structure–reactivity Relationships from
Computational-Mechanistic Studies. J. Mol. Struct. THEOCHEM 2006, 771, 171–179. [CrossRef]
41. Tobisch, S. Mechanistic Insight into the Selective Trans.-1,4-Polymerization of Butadiene by Terpyridine–iron(II)
Complexes—A Computational Study. Can. J. Chem. 2009, 87, 1392–1405. [CrossRef]
42. Beebe, D.H. Structure of 3,4-(Cis-1,4-)Trans-1,4-Polyisoprene by NMR. Polymer 1978, 19, 231–233. [CrossRef]
43. Tanaka, Y.; Sato, H.; Seimiya, T. 13C-NMR of Polyisoprenes: Sequence Distribution of Cis-1,4 and Trans.-1,4
Units. Polymer J. 1975, 7, 264–266. [CrossRef]
Sample Availability: Not available.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
