Tetraphenylpyrene-Bridged Periodic Mesostructured Organosilica Films
with Efficient Visible-Light Emission
Norihiro Mizoshita,†,‡ Yasutomo Goto,†,‡ Yoshifumi Maegawa,†,‡ Takao Tani,†,‡ and
Shinji Inagaki*,†,‡
†Toyota Central R&D Laboratories, Inc., Nagakute, Aichi 480-1192, Japan, and ‡Core Research for
Evolutional Science and Technology (CREST), Japan Science and Technology Agency (JST), Kawaguchi,
Saitama 332-0012, Japan
Received November 15, 2009
Mesostructured organosilica films with strong blue fluorescence emission were synthesized by
surfactant-templated sol-gel polycondensation using a 1,3,6,8-tetraphenylpyrene (TPPy)-containing
organosilane precursor. The TPPy precursor, which contained four polymerizable silyl groups, was
suitable for the preparation of mesostructured films with high TPPy content in the framework. The
fluorescence quantum yields of the TPPy-bridged mesostructured organosilica films reached more than
0.7, despite the dense accumulation of TPPy units within the framework. Doping of the mesostructured
films with fluorescence dyes enabled fine-tuning of the emission colors over a wide range of the visible
spectrum. Such mesostructured organosilica films, in which different chromophores can be distributed
into the framework and mesopores, have significant potential for luminescence applications.
Introduction
into the pore walls of PMOs as the R bridging group.5-18
The density, distribution, and molecular-scale ordering of
the bridging groups within pore walls can be controlled by
the molecular design of the precursors, optimization of
the synthesis conditions, and appropriate selection of the
co-condensation technique.19-30 Expansion of the varia-
tion of organic bridges has broadened the potential
applications of PMOs to optical materials, solid catalysts,
sensing systems, and electronic devices.31-35
Periodic mesoporous organosilica (PMO) is a versatile
inorganic/organic hybrid with mesoscale porous struc-
tures and molecular-scale functionalities.1-4 PMOs are
synthesized by surfactant-templated sol-gel polyconden-
sation of organic-bridged alkoxysilane precursor com-
pounds, generally represented as R[Si(OR’)3]n (n g 2).
Various organic species ranging from hydrocarbons and
heteroaromatics to metal complexes have been introduced
*Corresponding author. E-mail: inagaki@mosk.tytlabs.co.jp.
€
(1) Hoffmann, F.; Cornelius, M.; Morell, J.; Froba, M. Angew. Chem.,
(18) Wahab, M. A.; Hussian, H.; He, C. Langmuir 2009, 25, 4743–4750.
ꢀ
(19) Alvaro, M.; Benı
´
tez, M.; Cabeza, J. F.; Garcı
´
a, H.; Leyva, L.
Int. Ed. 2006, 45, 3216–3251.
J. Phys. Chem. C 2007, 111, 7532–7538.
(20) Wahab, M. A.; Sudhakar, S.; Yeo, E.; Sellinger, A. Chem. Mater.
2008, 20, 1855–1861.
(21) Yang, Y.; Sayari, A. Chem. Mater. 2008, 20, 2980–2984.
(22) Goto, Y.; Nakajima, K.; Mizoshita, N.; Suda, M.; Tanaka, N.;
Hasegawa, T.; Shimada, T.; Tani, T.; Inagaki, S. Microporous
Mesoporous Mater. 2009, 117, 535–540.
(23) Mizoshita, N.; Goto, Y.; Tani, T.; Inagaki, S. Adv. Funct. Mater.
2008, 18, 3699–3705.
(24) Inagaki, S.; Guan, S.; Ohsuna, T.; Terasaki, O. Nature 2002, 416,
304–307.
(25) Kapoor, M. P.; Yang, Q.; Inagaki, S. J. Am. Chem. Soc. 2002, 124,
15176–15177.
ꢀ~
ꢀ
(2) Descalzo, A. B.; Martı
´
nez-Manez, R.; Sancenon, F.; Hoffmann,
K.; Rurack, K. Angew. Chem., Int. Ed. 2006, 45, 5924–5948.
(3) Fujita, S.; Inagaki, S. Chem. Mater. 2008, 20, 891–908.
(4) Sayari, A.; Hamoudi, S. Chem. Mater. 2001, 13, 3151–3168.
(5) Inagaki, S.; Guan, S.; Fukushima, Y.; Ohsuna, T.; Terasaki, O.
J. Am. Chem. Soc. 1999, 121, 9611–9614.
(6) Melde, B. J.; Holland, B. T.; Blanford, C. F.; Stein, A. Chem.
Mater. 1999, 11, 3302–3308.
(7) Asefa, T.; MacLachlan, M. J.; Coombs, N.; Ozin, G. A. Nature
1999, 402, 867–871.
(8) Yoshina-Ishii, C.; Asefa, T.; Coombs, N.; MacLachlan, M. J.;
Ozin, G. A. Chem. Commun. 1999, 2539–2540.
(9) Kuroki, M.; Asefa, T.; Whitnal, W.; Kruk, M.; Yoshina-Ishii, C.;
Jaroniec, M.; Ozin, G. A. J. Am. Chem. Soc. 2002, 124, 13886–13895.
(10) Olkhovyk, O.; Jaroniec, M. J. Am. Chem. Soc. 2005, 127, 60–61.
(11) Peng, H.; Tang, J.; Yang, L.; Pang, J.; Ashbaugh, H. S.; Brinker,
C. J.; Yang, Z.; Lu, Y. J. Am. Chem. Soc. 2006, 128, 5304–5305.
(12) Maegawa, Y.; Goto, Y.; Inagaki, S.; Shimada, T. Tetrahedron Lett.
2006, 47, 6957–6960.
(13) Minoofar, P. N.; Dunn, B. S.; Zink, J. I. J. Am. Chem. Soc. 2005,
127, 2656–2665.
(14) Johansson, E.; Zink, J. I. J. Am. Chem. Soc. 2007, 129, 14437–
14443.
€
(15) Cornelius, M.; Hoffmann, F.; Ufer, B.; Behrens, P.; Froba, M.
J. Mater. Chem. 2008, 18, 2587–2592.
(16) Nguyen, T. P.; Hesemann, P.; Gaveau, P.; Moreau, J. J. E.
J. Mater. Chem. 2009, 19, 4164–4171.
(17) Takeda, H.; Goto, Y.; Maegawa, Y.; Ohsuna, T.; Tani, T.;
Matsumoto, K.; Shimada, T.; Inagaki, S. Chem. Commun. 2009,
6032–6034.
(26) Kapoor, M. P.; Yang, Q.; Inagaki, S. Chem. Mater. 2004, 16, 1209–
1213.
(27) Sayari, A.; Wang, W. J. Am. Chem. Soc. 2005, 127, 12194–12195.
€
(28) Cornelius, M.; Hoffmann, F.; Froba, M. Chem. Mater. 2005, 17,
6674–6678.
(29) Xia, Y.; Wang, W.; Mokaya, R. J. Am. Chem. Soc. 2005, 127, 790–
798.
(30) Mizoshita, N.; Goto, Y.; Kapoor, M. P.; Shimada, T.; Tani, T.;
Inagaki, S. Chem.-Eur. J. 2009, 15, 219–226.
(31) Hunks, W. J.; Ozin, G. A. J. Mater. Chem. 2005, 15, 3716–3724.
(32) Yang, Q.; Liu, J.; Zhang, L.; Li, C. J. Mater. Chem. 2009, 19, 1945–
1955.
(33) Angelos, S.; Johansson, E.; Stoddart, J. F.; Zink, J. I. Adv. Funct.
Mater. 2007, 17, 2261–2271.
(34) Liong, M.; Angelos, S.; Choi, E.; Patel, K.; Stoddart, J. F.; Zink,
J. I. J. Mater. Chem. 2009, 19, 6251–6257.
(35) Mizoshita, N.; Ikai, M.; Tani, T.; Inagaki, S. J. Am. Chem. Soc.
2009, 131, 14225–14227.
r
2010 American Chemical Society
pubs.acs.org/cm
Published on Web 03/23/2010

Article
Among these applications, organosilica hybrids with
Chem. Mater., Vol. 22, No. 8, 2010 2549
periodic mesostructures have significant potential for
luminescence applications.36,37 Acidic sol-gel polycon-
densation of organosilane precursors in the presence of
organic solvents yields highly transparent films favorable
for optical materials.36-38 Different fluorescent chromo-
phores can then be distributed into both the framework
(as a bridging group) and mesopores (as a dye dopant) of
PMO.13,14,39 In addition, PMOs have been found to
exhibit light-harvesting antenna properties, i.e., the
funneling of light energy absorbed by the framework
organics into dyes placed in the mesochannels through
efficient nonradiative energy transfer; therefore, flexible
tuning of the fluorescence emission intensities of the
framework and the dyes can be realized with almost no
energy transfer loss.39 These advantages of mesostruc-
tured organosilicas can lead the way to high-performance
luminescence applications.
Recently, we reported the construction of highly fluore-
scent periodic mesostructured organosilica films.23,40 We
focused on alkoxy-substituted oligo(phenylenevinyl-
ene) (OPV) precursors23 as visible-light-absorptive chromo-
phores and achieved efficient visible light emission in
dye-doped mesostructured OPV-silica hybrid films.40
The emission colors were successfully tuned from blue
to white and yellow by combining the blue emission of
the organosilica framework and the yellow emission
of a doped dye, which was excited by fluorescence reso-
nance energy transfer from the organosilica framework
(Figure 1). However, the preparation of mesostructured
films from 100% OPV precursors could not be achieved,
probably because of weak interactions between the tem-
plate surfactant micelles and the hydrolyzed precursors
with only two silyl groups on both ends of the large OPV
precursors. In addition, organosilica films with high OPV
contents exhibited relatively low fluorescence quantum
yields, because the hydrophobic OPV moieties tended to
form nonemissive side-by-side aggregates in the pore
walls.23 Therefore, the addition of a large amount of pure
silica precursors (67-80 wt % of tetraethyl orthosilicate
(TEOS)) was required to form periodic mesostructures
and achieve high fluorescence quantum yields, even
though the strong absorption of excitation light with a
high chromophore content is desirable for photolumines-
cent materials.36,37 Furthermore, vinylenes and acenes
used as highly fluorescent components in our previous
works22,23,40 are known to be photochemically reactive
Figure 1. Schematic illustration of color-tunable fluorescence emission
from dye-doped mesostructured organosilica film and photograph of a
transparent organosilica film spin-coated on a glass substrate.
and unstable,41-45 which is problematic in practical
applications. For the preparation of luminescent PMOs,
it is desirable to introduce a high density of visible-light-
absorptive, highly fluorescent, and photochemically
stable chromophores into the mesostructured framework
without strong quenching of fluorescence.

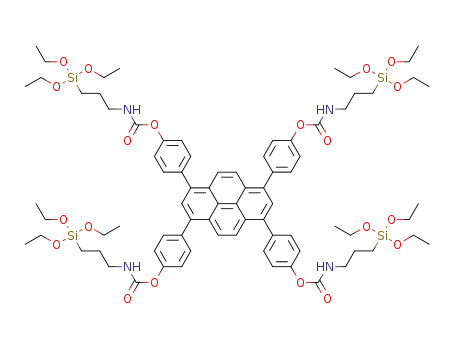

The aim of the present study was to introduce 1,3,6,8-
