Synthesis and Molecular and Electronic Structures of
Reduced Bis(imino)pyridine Cobalt Dinitrogen Complexes:
Ligand versus Metal Reduction
Amanda C. Bowman,† Carsten Milsmann,‡ Crisita Carmen Hojilla Atienza,†
Emil Lobkovsky,† Karl Wieghardt,*,‡ and Paul J. Chirik*,†
Department of Chemistry and Chemical Biology, Baker Laboratory, Cornell UniVersity,
Ithaca, New York 14853, and Max-Planck Institute for Bioinorganic Chemistry, Stiftstrasse
34-36, D-45470 Mu¨lheim an der Ruhr, Germany
Received October 20, 2009; E-mail: pc92@cornell.edu

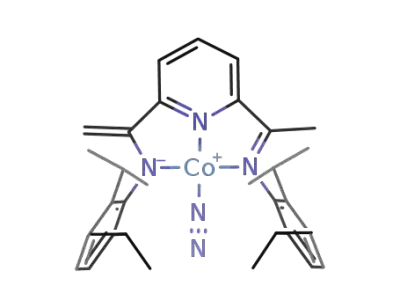

Abstract: Sodium amalgam reduction of the aryl-substituted bis(imino)pyridine cobalt dihalide complexes
i
(ArPDI)CoCl2 and (iPrBPDI)CoCl2 (ArPDI ) 2,6-(2,6-R2-C6H3NdCMe)2C5H3N (R ) Pr, Et, Me); iPrBPDI )
2,6-(2,6-iPr2-C6H3NdCPh)2C5H3N) in the presence of an N2 atmosphere furnished the corresponding neutral
cobalt dinitrogen complexes (ArPDI)CoN2 and (iPrBPDI)CoN2. Magnetic measurements on these compounds
establish doublet ground states. Two examples, (iPrPDI)CoN2 and (iPrBPDI)CoN2, were characterized by
X-ray diffraction and exhibit metrical parameters consistent with one-electron chelate reduction and a Co(I)
oxidation state. Accordingly, the toluene solution EPR spectrum of (iPrPDI)CoN2 at 23 °C exhibits an isotropic
signal with a g value of 2.003 and hyperfine coupling constant of 8 × 10-4 cm-1 to the I ) 7/2 59Co center,
suggesting a principally bis(imino)pyridine-based SOMO. Additional one-electron reduction of (iPrPDI)CoN2
was accomplished by treatment with Na[C10H8] in THF and yielded the cobalt dinitrogen anion [(iPrPDI)CoN2]-.
DFT calculations on the series of cationic, neutral, and anionic bis(imino)pyridine cobalt dinitrogen
compounds establish Co(I) centers in each case and a chelate-centered reduction in each of the sequential
one-electron reduction steps. Frequency calculations successfully reproduce the experimentally determined
NtN infrared stretching frequencies and validate the computational methods. The electronic structures of
the reduced cobalt dinitrogen complexes are evaluated in the broader context of bis(imino)pyridine base
metal chemistry and the influence of the metal d electron configuration on the preference for closed-shell
versus triplet diradical dianions.
Introduction
to small-molecule organic methods. Gal and co-workers have
reported that square planar, aryl-substituted bis(imino)pyridine
In base metal catalysis, aryl-substituted bis(imino)pyridines
are a privileged class of ligands.1,2 Brookhart and Gibson’s
independent discoveries of ethylene and R-olefin polymerization
(oligomerization) upon treatment of [(ArPDI)MX2] (ArPDI ) 2,6-
(2,6-R2-C6H3NdCMe)2C5H3N (R ) iPr, Et, Me, H, etc.); M )
Fe, Co; X ) Cl, Br) derivatives with excess methylaluminoxane
(MAO) renewed interest in exploring the utility of classical,
Werner-type coordination compounds of iron and cobalt as
catalyst precursors.3-6 Bis(imino)pyridines have also found
application as supporting ligands in catalytic reactions relevant
cobalt alkyl complexes (iPrPDI)CoR1 (R1 ) Me, CH2Ph,
CH2SiMe3) are precatalysts for the hydrogenation of mono- and
disubstituted olefins.7 In iron chemistry, the bis(imino)pyridine
iron bis(dinitrogen) complexes (iPrPDI)Fe(N2)2 and (iPrBPDI)-
Fe(N2)2 exhibit high activity for the hydrogenation and hydrosi-
lylation of unactivated alkenes.8 In addition, (iPrPDI)Fe(N2)2
serves as a precatalyst for the hydrogenation of functionalized
olefins,9 diene [2π + 2π] cycloisomerization,10 and hydrogen-
mediated enyne and diyne cyclization.11
One distinguishing feature of bis(imino)pyridine ligands is
their redox activity12,13sthe ability to accept one to three
electrons from the metal and stabilize reduced compounds whose
low formal oxidation state assignment may be deceiving.14
† Cornell University.
‡ Max-Planck Institute for Bioinorganic Chemistry.
(1) Gibson, V. C.; Redshaw, C.; Solan, G. A. Chem. ReV. 2007, 107, 1745.
(2) Matsugi, T.; Fujita, T. Chem. Soc. ReV. 2008, 37, 1264.
(3) Bianchini, C.; Giambastiani, G.; Rios, I. G.; Mantovani, G.; Meli, A.;
Segarra, A. M. Coord. Chem. ReV. 2006, 250, 1391.
(4) Britovsek, G. J. P.; Gibson, V. C.; Kimberley, B. S.; Maddox, S. J.;
Solan, G. A.; White, A. J. P.; Williams, D. J. Chem. Commun. 1998,
849.
(7) Kooistra, T. M.; Knijnenburg, Q.; Smits, J. M. M.; Horton, A. D.;
Budzelaar, P. H. M.; Gal, A. W. Angew. Chem., Int. Ed. 2001, 40,
4719.
(8) (a) Bart, S. C.; Lobkovsky, E.; Chirik, P. J. J. Am. Chem. Soc. 2004,
126, 13794. (b) Archer, A. M.; Bouwkamp, M. W.; Cortez, M.-P.;
Lobkovsky, E.; Chirik, P. J. Organometallics 2006, 25, 4269.
(9) Trovitch, R. J.; Lobkovsky, E.; Bill, E.; Chirik, P. J. Organometallics
2008, 27, 1470.
(5) (a) Small, B. M.; Brookhart, M. J. Am. Chem. Soc. 1998, 120, 7143.
(b) Small, B. L.; Brookhart, M.; Bennett, A. M. A. J. Am. Chem. Soc.
1998, 120, 4049.
(6) Britovsek, G. J. P.; Bruce, M.; Gibson, V. C.; Kimberely, B. S.;
Maddox, P. J.; Mastroianni, S.; McTavish, S. J.; Redshaw, C.; Solan,
G. A.; Stro¨mberg, S.; White, A. J. P.; Williams, D. J. J. Am. Chem.
Soc. 1999, 121, 8728.
(10) Bouwkamp, M. W.; Bowman, A. C.; Lobkovsky, E.; Chirik, P. J.
J. Am. Chem. Soc. 2006, 128, 13340.
(11) Sylvester, K. T.; Chirik, P. J. J. Am. Chem. Soc. 2009, 131, 8772.
9
1676 J. AM. CHEM. SOC. 2010, 132, 1676–1684
10.1021/ja908955t  2010 American Chemical Society

Bis(imino)pyridine Cobalt Dinitrogen Complexes
A R T I C L E S
Scheme 1
Seminal electrochemical studies by Toma on bis(chelate)
complexes of bis(imino)pyridine iron established the participa-
tion of these ligands in the electronic structures of reduced metal
complexes.15,16 In preparative scale chemistry, Wieghardt and
co-workers synthesized bis(imino)pyridine bis(chelate) com-
plexes of a series of first-row ions and demonstrated that redox
processes occur at the ligand rather than the metal.17,18 These
studies also established many of the metrical and spectroscopic
features that signal chelate participation. It is likely that the
ability of the bis(imino)pyridine ligands to smoothly adjust to
the electronic demands of the metal center is the reason why
these ligands enable such a broad and rich catalytic chemistry.19
reagents,7 Grignard reagents,23,24 or zinc metal23 resulted in one-
electron reduction to yield the square planar, diamagnetic cobalt
monochloride (iPrPDI)CoCl. Subsequent alkylation of this spe-
cies furnished a family of the desired cobalt alkyls (iPrPDI)CoR
25,26
n
n
(R ) Me, Et, Pr, Bu) (Scheme 1).
Analogous cobalt
chloride and alkyl compounds with the phenylated bis(imi-
no)pyridines, (ArBPDI)CoCl and (ArBPDI)CoR, have also been
reported.27
Computational studies by Budzelaar and co-workers28 estab-
lished that diamagnetic (ArPDI)CoCl, (ArPDI)CoR, and
(R′PDI)CoR are best described as low-spin Co(II) complexes
(SCo ) 1/2) antiferromagnetically coupled to a bis(imino)pyri-
dine radical anion (SPDI ) 1/2). In many cases, low-lying triplet
states were found to be only a few kilocalories per mole higher
in energy than the ground states. This view of the electronic
structure has been corroborated by the observation of bis(imi-
no)pyridine chelate distortions in the solid-state structures as
well as the unusual upfield chemical shifts of the in-plane imine
methyl groups observed by solution NMR spectroscopy.7,23,29
While bis(imino)pyridine cobalt chloride and alkyl com-
pounds with one-electron-reduced chelates have been synthe-
sized and well-studied, formal two- and three-electron reduction
products of (ArPDI)CoCl2 and (iPrBPDI)CoCl2 have not been
prepared or characterized. In addition to their potential role in
catalysis, these complexes were of interest to determine the
degree of chelate participation in the electronic structure and
further explore the fundamental concept of redox-active ligands
in base metal complexes relevant to catalysis. In addition, these
synthetic targets, as in iron chemistry, may also be useful
platforms to assemble reactive cobalt-ligand multiple bonds.30-36
In this paper, we report the results of a combined experimental
Irreversible carbon-oxygen bond cleavage has been identified
as a significant catalyst deactivation pathway in alkene hydro-
genation and [2π + 2π] cycloisomerization reactions promoted
by (iPrPDI)Fe(N2)2.20 Because of this limitation and for com-
parison to established bis(imino)pyridine iron catalysts, we
sought to prepare analogous reduced bis(imino)pyridine cobalt
dinitrogen compounds. In addition to answering questions
relevant to electronic structure, catalytically active cobalt
compounds are also of interest because they offer many of the
same cost and environmental advantages of iron.
Bis(imino)pyridine cobalt complexes date to Busch’s21 and
Sacconi’s22 initial reports of the synthesis and spectroscopic
characterization of a variety of halide, nitrate, and thiocyanate
derivatives. These classical, Werner-type coordination com-
pounds have received renewed interest following Brookhart’s
and Gibson’s independent discoveries of highly active olefin
polymerization catalysts.4,5 To date, investigations into reduced
bis(imino)pyridine cobalt chemistry have been motivated by
elucidating the identity of the propagating species during olefin
polymerization. Treatment of (iPrPDI)CoCl2 with alkyllithium
