Phosphorescent Blue OLEDs with New Bipolar Host Materials
Yu et al.
power efficiency at a high current density. In a reference
device, we have poor charge balance leading to low effi-
ciency and steep efficiency roll-off. It clearly reveals that

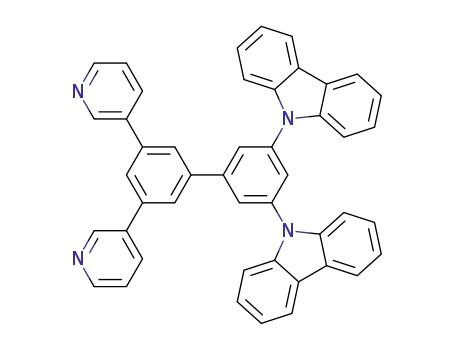

external quantum efficiency (EQE) for CbPr-3 and Bim-4
devices were 13.0% and 14.1% higher than mCP based
device exhibiting EQE of about 9.6%.
4. CONCLUSION
In summary, we have demonstrated superior performance
of CbPr-3 and Bim-4 as the bipolar narrow band gap hosts
for blue PHOLED application. The minimized charge trap-
ping by a dopant molecule and a low injection barrier to
emitting layer were resulting into significant reductions
in driving voltage and improvement of efficiencies. For
CbPr-3 and Bim-4 hosts, the driving voltage was reduced
about 1.6 and 2.4 V while their power efficiency at con-
stant luminance of 1000 cd/m2 was enhanced 2.5 times
with low roll-off.
Fig. 3. J–V and L–V characteristics of the devices.
Acknowledgment: This work was supported by a grant
from the Human Resources Development of the Korea
Institute of Energy Technology Evaluation and Planning
(KETEP) funded by the Korea government Ministry of
Knowledge Economy.
Fig. 4. Current and Power efficiencies of the devices.
enhance the possibility of triplet–triplet annihilation also.
Thus the mCP host device exhibits poor performance as
well as shows high driving voltage. Inset of Figure 3 also
shows the EL spectra of all the three devices exhibit-
ing emissions in the blue regions. It indicates complete
energy transfer from the host materials to the guest due
to confinement of triplet excitons at the Firpic dopant
molecule. The EL spectral peaks and CIExy coordinates of
all devices are summarized in Table II. At 1000 cd/m2,
the EL spectral peaks and CIExy coordinates of CbPr-3
and Bim-4 host devices are at 472 nm/(0.17, 0.29) which
is found similar to mCP based device exhibiting a peak at
469 nm/(0.17, 0.28). The EL spectrum of each device does
not change significantly with the applied voltage.
