S. Ghosh et al.
hibits intermolecular hydrogen bonding between the amide
functionalities of the donor and acceptor chromophores
(each 2.08 ꢁ), along with a CT interaction. For assembly of
NDI-2 alone, similar hydrogen-bonding interactions were
observed but with significantly shorter bond lengths(1.99
and 1.96 ꢁ). These results clearly suggest that the strength
of the hydrogen-bonding interaction is greater in case of A–
A homoaggregates compared to the D–A alternate stack-
ing.[16]
smaller number of methylene units.[10b] Of course the dis-
tance between the two amide groups in this D–A pair also
was found to be comparable. The CGC and Tg (at 20 mm
concentration) of DAN-3 in TCE were found to be 3.2 mm
and 598C, respectively, which indeed proved superior self-
assembly of DAN-3 compared to DAN-4 in TCE. As ex-
pected NDI-2+DAN-3 (1:1) produced red CT gel in TCE
(total concentration 10 mm), but unlike previous case (NDI-
2+DAN-4 in TCE) after 4 h the color completely disap-
peared suggesting reorganization from CT state to the self-
sorted state (Figure S5 in the Supporting Information).[19]
This observation provides further evidence that if the indi-
vidual self-assembly of both the donor and acceptor chro-
mophores are reasonably strong, eventually the self-sorted
state is achieved even though the kinetically controlled CT
state is initially formed.
We assume that it is just a coincidence that the strength
of (stronger hydrogen bonding+ A–A p-stacking) becomes
comparable to that of (weaker hydrogen bonding+D–A CT
interaction) and thus the thermal stability of the two types
of gels (pure NDI-2 and NDI-2+DAN-4) are found to be
almost identical (Table 1). However, it is the poor self-as-
sembly of the donor gel that favours the formation of pure
CT gel[17] instead of acceptor gel, because in that case maxi-
mum number of amide functionalities linked to both D and
A chromophores can be engaged in hydrogen bonding. As
we used 1:1 mixture of D and A chromophores, if a mixture
of CT and A gels is formed, then many of the D molecules
will not take part in aggregate formation, because they
cannot form a stable self-assembled structure on their own
in TCE, as evident from its poor gelation ability (Table 1).
Next we examined the gelation data in MCH, in which re-
organization was observed.[18] The CGC value for DAN-4
was found to be 2 mm (Table 1), which is almost four times
lower than that in TCE (Table 1), and the Tg (20 mm) was
found to be 658C, which is more than twice as much as that
in TCE (Table 1). Similarly for NDI-2 also the gelation data
indicates stronger self-assembly compared to that in TCE;
this fact can be attributed to stronger hydrogen-bonding in-
teraction in hydrocarbon solvent. However, in case of D–A
alternate co-stacking we do not anticipate strengthening of
hydrogen bonding to such extent, because solvent polarity
can only alter the electronic parameters but not the geomet-
rical constraint that was observed in their energy minimized
geometry (Figure 6).
This is evident from the observed Tg of the CT gel in
MCH (Table 1, and Table S1 in the Supporting Informa-
tion). It is interesting to note that soon after the formation
of the CT gel, the Tg was found to be 398C, which is even
lower than that in TCE (728C). This can be attributed to
the dynamic nature of the system, which inhibits precisely
defined self-assembly with long-range order at the early
stage of gelation. However, gradually as the gel switched
over to the stable self-sorted state, the Tg increased signifi-
cantly (Table S1 in the Supporting Information).
It is evident from the forgone discussion that self-sorted
state is prefered over the alternate co-assembly if the stabili-
ty of the individual self-assembled structure is higher, as is
the case in MCH. To examine whether this can also be es-
tablished by structural variation of the chromophores in-
stead of solvent variation we examined gelation of NDI-2

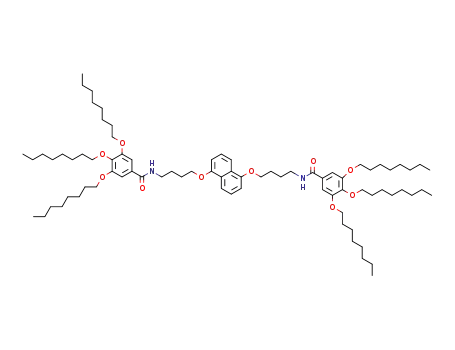

with a different donor DAN-3[10c] (Scheme 1). The rationale
behind choosing the new donor is that we anticipated homo-
aggregates of DAN-3 to be stronger than DAN-4, due to
In conclusion, we have demonstrated spontaneous self-as-
sembly and gelation in a bisACTHNURGTNE(NUG amide)-functionalized donor–
acceptor chromophore mixture by the synergistic effect of
hydrogen bonding and CT interactions/p-stacking. Two dis-
tinctly different modes of assembly (alternate D–A co-as-
sembly versus self-sorting) could be observed depending on
marginal variation in structure of the chromophores and/or
solvent polarity. When the structure of the chromophore
and nature of the solvent provided opportunity for stronger
hydrogen bonding, the system adopted the particular mode
of assembly in which the effect of hydrogen bonding could
be fully realized. Thus the initially formed, kinetically con-
trolled, CT-state (NDI-2+DAN-4 in MCH, NDI-2+DAN-3
in both MCH and TCE) re-organized to more stable self-
sorted state, as there was no geometrical constraint for hy-
drogen bonding. On the other hand, in a moderately non-
AHCTUNGTRENNUNG
polar chlorinated solvent like TCE,[20] as the strength of the
hydrogen-bonding interaction was inherently reduced com-
pared to that in MCH, the CT interaction plays a significant
role in deciding the mode of self-assembly and thus long-
lived CT state was achieved. Of course none of these possi-
bilities arose when the distance between two amide func-
tionalities were very different for the D and A chromophore
and in that case (NDI-2+DAN-2) self-sorting was always
observed.
Acknowledgements
We thank Department of Science and Technology (DST), New Delhi,
India, for financial support (Project No: SR/FT/CS-039/2008). A.D.
thanks CSIR (India) for a research fellowship.
Keywords: charge transfer · organogels · self-assembly ·
self-sorting · supramolecular chemistry
[1] For recent reviews on organogel see: a) S. Banerjee, R. K. Das, U.
6064
ꢀ 2011 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Chem. Eur. J. 2011, 17, 6061 – 6066
