The 1H-NMR spectra were determined by a JEOL JNM-GSX 270 spectrometer using tetramethylsilane as
the internal standard. The IR spectra were recorded by a JASCO FT/IR-7000 spectrophotometer. The
high MS were recorded using a JEOL JMS-HX100 spectrometer. Column chromatography was
performed on E. Merck silica gel 60 (70-230 mesh or 230-400 mesh).

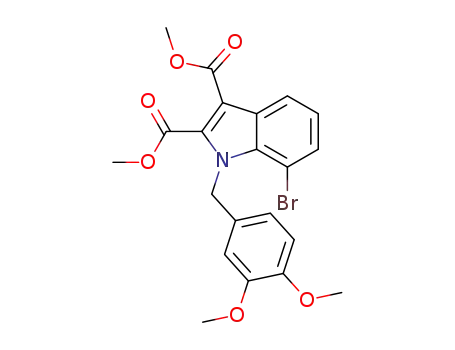

Dimethyl 7-Bromo-1-(4,5-dimethoxybenzyl)indole-2,3-dicarboxylate (2)
A mixture of dimethyl 7-bromoindole-2,3-dicarboxylate (1)10 (281 mg, 0.9 mmol), 4,5-dimethoxybenzyl
chloride (202 mg, 1.1 mmol), and potassium carbonate (186 mg, 1.35 mmol) in acetone (3.6 mL) was
refluxed for 22 h. Water was added to the mixture and the aqueous mixture was extracted with CH2Cl2.
The extracts were washed with water, dried over Na2SO4, and concentrated under reduced pressure to
afford a residue, which was purified by column chromatography (n-hexane : AcOEt = 7 : 1) to give
dimethyl 7-bromo-1-(4,5-dimethoxybenzyl)indole-2,3-dicarboxylate (2) (245 mg, 59%).
Mp. 110.5-111 °C (Et2O). IR (CHCl3) cm-1: 1710, 1735. 1H-NMR (CDCl3) !: 3.76 (3H, s, OMe), 3.82 (3H,
s, OMe), 3.87 (3H, s, OMe), 3.92 (3H, s, OMe), 5.88 (2H, s, NCH2), 6.48 (1H, dd, J = 8.5, 2 Hz, H-6'),
6.60 (1H, d, J = 2 Hz, H-2'), 6.74 (1H, d, J = 8.5 Hz, H-5'), 7.14 (1H, t, J = 8 Hz, H-5), 7.50 (1H, dd, J =
8, 1 Hz, H-6), 8.19 (1H, dd, J = 8, 1 Hz, H-4). Anal. Calcd for C21H20BrNO6: C, 54.56; H, 4.36; N, 3.03.
Found: C, 54.80; H, 4.44; N, 2.99.
Intramolecular Cyclization of Dimethyl 7-Bromo-1-(4,5-dimethoxybenzyl)indole-2,3-dicarboxylate
(2): Dimethyl 7H-9,10-Dimethoxypyrrolo[3,2,1-de]phenanthridine-4,5-dicarboxylate (3) and
7H-10,11-Dimethoxypyrrolo[3,2,1-de]phenanthridine-4,5-dicarboxylate (4)
To a mixture of dimethyl 7-bromo-1-(4,5-dimethoxybenzyl)indole-2,3-dicarboxylate (2) (46 mg, 0.1
mmol) and potassium acetate (10 mg, 0.1 mmol) in dioxane (1.5 mL) was added Pd(PPh3)4 (6 mg, 0.05
mmol). The mixture was refluxed for 10 h under argon in the dark. Water was added to the reaction
mixture and the aqueous mixture was extracted with CH2Cl2. The extracts were washed with water,
dried over Na2SO4, and concentrated under reduced pressure to afford a residue, which was purified by
column chromatography (n-hexane : AcOEt = 3 : 1) to give dimethyl 7H-9,10-dimethoxypyrrolo[3,2,1-de]-
phenanthridine-4,5-dicarboxylate (3) (13 mg, 35%) and 7H-10,11-dimethoxypyrrolo[3,2,1-de]-
phenanthridine-4,5-dicarboxylate (4) (1 mg, 3%).
Dimethyl 7H-9,10-Dimethoxypyrrolo[3,2,1-de]phenanthridine-4,5-dicarboxylate (3): Mp 123-124 °C
(AcOEt). IR (CHCl3) cm-1: 1709. 1H-NMR (CDCl3) !: 3.91 (3H, s, OMe), 3.96 (3H, s, OMe), 3.99 (3H, s,
OMe), 4.02 (3H, s, OMe), 5.60 (2H, s, H-7), 6.66 (1H, s, H-8), 7.22 (1H, dd, J = 8, 7.5 Hz, H-2), 7.32
(1H, s, H-11), 7.47 (1H, dd, J = 7.5, 1 Hz, H-1), 7.78 (1H, dd, J = 8, 1 Hz, H-3). MS m/z: 381. HRMS
m/z: Calcd for C21H19NO6: 381.1212. Found: 381.1239. Anal. Calcd for C21H19NO6: C, 66.14; H, 5.02; N,
3.67. Found: C, 65.92; H, 5.08; N, 3.51.
7H-10,11-Dimethoxypyrrolo[3,2,1-de]phenanthridine-4,5-dicarboxylate (4): IR (Nujol) cm-1: 1710.
1H-NMR (CDCl3) !: 3.93 (6H, s, OMe), 3.96 (3H, s, OMe), 4.02 (3H, s, OMe), 5.61 (2H, s, H-7), 6.90
