Structural, theoretical and multinuclear NMR study of mercury(II) and silver(I)
complexes with two new ambidentate phosphorus ylides
a
a
Seyyed Javad Sabounchei a, , Mehdi Sarlakifar , Sadegh Salehzadeh , Mehdi Bayat a,b, Mahbubeh
⇑
Pourshahbaz a, Hamid Reza Khavasi c
a Faculty of Chemistry, Bu-Ali Sina University, Hamedan 65174, Iran
b Department of Chemistry, Faculty of Science, Malayer University, Malayer 65174, Iran
c Department of Chemistry, Shahid Beheshti University, G.C., Evin, Tehran 1983963113, Iran
a r t i c l e i n f o
a b s t r a c t
Article history:
Reactions of new a-ketostabilized phosphorus ylides of the type Ph3P = CHC(O)R (R = 2,4-dichlorophenyl
(L1) and 4-isopropylphenyl (L2)) with AgNO3and Hg(NO3)2.H2O, using methanol as a solvent, are reported.
The crystal structures of L2 and [Ag(L2)2(NO3)] (2) have been determined. Characterization of the obtained
compounds was also performed by elemental analysis, IR, 1H, 31P and 13C NMR. Theoretical studies were
carried out on the silver(I) complexes. It was shown that the nitrate ion shows a bonding interaction with
the silver ion.
Received 20 December 2011
Accepted 23 February 2012
Available online 20 March 2012
Keywords:
Phosphorus ylide
Mercury(II) complexes
Silver(I) complexes
X-ray crystal structure
Theoretical studies
Ó 2012 Elsevier Ltd. All rights reserved.
1. Introduction
2. Experimental
The utility of metallated phosphorus ylides in synthetic chemis-
try has been well documented [1,2]. The synthesis of complexes
derived from ylides and Ag(I) began in 1975 by Yamamoto et al.
[3]. Other types of ylide complexes of silver(I) have been reported
[4–9]. In 1987 and 1983, Vicente et al. [10,11] reported the crystal
structures of Ag(I) complexes of phosphorus ylides. The synthesis
of complexes derived from phosphorus ylides and Hg(II) salts
was limited to Hg(II) halides and was started in 1965 by Nesmeya-
nov et al. [12]. Weleski et al. [13] in 1975 proposed a symmetric
halide-bridged dimeric structure for Hg(II) halide complexes, while
Kalyanasundari et al. [14] in 1995 reported an asymmetric halide-
bridged structure. In 2007 we reported the first Hg(II) nitrate poly-
meric complexes with these ylides [15], wherein the nitrate anions
are bridging, confirming the general belief that seven-coordinated
complexes would be formed. In this study, we describe the prepa-
ration and spectroscopic characterization of Ag(I) and Hg(II) com-
plexes with the title ylides. The single crystal X-ray diffraction
study of L2 and 2 demonstrates the C-coordination of the ylides
to the metals (Scheme 1).
2.1. Physical measurements and materials
All reactions were performed in air. Methanol was distilled over
magnesium powder and diethyl ether over a mixture of sodium
and benzophenone just before use. All other solvents were reagent
grade and were used without further purification. The ligands were
synthesized by the reaction of triphenylphosphine with 2- chloro
and 2-bromoactophenones to produce the related phosphonium
salts. Further treatment with aqueous NaOH solution led to elimi-
nation of HCl and HBr, giving the free ligands [16]. Melting points
were measured on a Stuart SMP3 apparatus. Elemental analysis for
C, H and N were performed using a Perkin-Elmer 2400 series ana-
lyzer. Fourier transform IR spectra were recorded on a Shimadzu
435-U-04 spectrophotometer and samples were prepared as KBr
pellets. 1H, 31P and 13C NMR spectra were recorded on 90 MHz Jeol
and 300 MHz Bruker spectrometers in CDCl3 or DMSO-d6 as the
solvent at 25 °C. Chemical shifts (ppm) are reported according to
internal TMS and external 85% phosphoric acid.
2.2. X-ray crystallography
The single crystal X-ray diffraction data of suitable crystals of L2
and 2 were collected on a STOE IPDS-II diffractometer at 298 K,
using graphite monochromated Mo Ka radiation (k = 0.71073 Å).
⇑
Corresponding author. Tel.: +98 8118272072; fax: +98 8118380709.
E-mail address: jsabounchei@yahoo.co.uk (S.J. Sabounchei).
0277-5387/$ - see front matter Ó 2012 Elsevier Ltd. All rights reserved.
http://dx.doi.org/10.1016/j.poly.2012.02.034

132
S.J. Sabounchei et al. / Polyhedron 38 (2012) 131–136
Table 1
IR (cmꢀ1), 1H and 31P NMR [d (ppm), J (Hz)] spectral data.
a
m(C@O)
dPCH
2JPH(y)
2JPH(Ps)
d
2JHgP
PPh3
L1,b
L2,b
1b
1576
1579
1609
1600
1667
1652
4.0(d)
23.66
24.37
14.06
9.67
12.09
5.55
12.36
11.92
–
–
–
–
12.40(s)
14.05(s)
19.96(s)
23.11(s)
27.13(s)
28.48(s)
–
–
–
–
4.38(d)
4.42 (d)
4.92(d)
6.28(d)
6.45(d)
2c
3c
285.31
287.19
4c
y, ylide; Ps, phosphonium salt; s, singlet; d, doublet; br, broad.
a
T = 298 K; TMS d = 0.00 ppm; shifts relative to internal TMS and external 85%
phosphoric acid.
b
Recorded in CDCl3.
Recorded in DMSO-d6.
c
Turbomole 5 [24] energies and gradients. Single-point energies of
both [Ag(Ylide)2]+ and NO3 fragments in the complexes at the
ꢀ
BP86/SVP optimized geometries were calculated with BP86 and
the def 2-SVP[21] basis set. The geometry of the metal complex
2, as determined by the X-ray crystal structure analysis (see
Fig. 1), was fully optimized at above mentioned level of theory.
The observed geometry of compound 2 was used as a basis for
the DFT calculations of compound 1.
2.4. Sample preparation
2.4.1. Synthesis of [2,4-Cl2C6H3C(O)CHPPh3] (L1)
To an acetone solution (10 mL) of triphenylphosphine (0.262 g,
1 mmol) was added 2,20,40-trichloroacetophenone (0.223 g,
1 mmol), and the mixture was stirred for 24 h. The solid product
(phosphonium salt) was filtered off, washed with Et2O and dried.
Further treatment with aqueous NaOH solution led to elimination
of HCl, giving the free ligand. Yield: 84%, M.p. 114–116 °C. Anal.
Calc. for C26H19OPCl2: C, 69.50; H, 4.26. Found: C, 69.61; H, 4.34%.

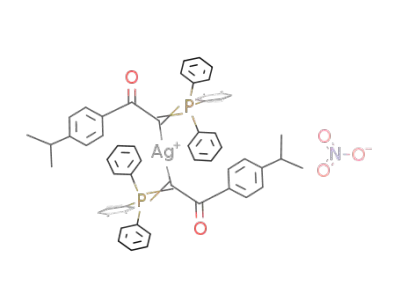

Scheme 1. Schematic illustration of the complexes under study.
The data collection was performed using the
x-scan technique and
using the STOE X-AREA software package [17], while data reduc-
tion was carried out using the program X-RED [17]. The crystal
structures were solved by direct methods and refined by full-ma-
trix least-squares on F2 using the programs SHELX and SHELXL,
respectively [18], and using the X-STEP32 crystallographic soft-
ware package [19]. The H atoms were included in calculated posi-
tions and treated as riding atoms using SHELXL [18] default
parameters. Numerical absorption corrections were applied for
both L2 and 2.
IR (KBr disk, cmꢀ1 : 1576 (CO), 878 (P+-Cꢀ). 1H NMR (CDCl3,
) m
2
ppm) dH: 3.98 (d, JPH = 23.21 Hz, 1H, CHP), 7.12–7.34 (m, 18H,
arom.). 31P NMR (CDCl3, ppm) dP: 12.43. 13C{1H} NMR (CDCl3,
1
ppm) dC: 53.44 (d, JPC = 94.05 Hz, CHP), [122.72 (d), 125.43 (s),
127.68 (d), 129.26 (s), 130.71 (s), 131.70 (d), 139.98 (s), 140.61
(d) (Ph)], 182.31 (s, CO).
2.4.2. Synthesis of [4-(CH3)2CHC6H4C(O)CHPPh3] (L2)
To
a chloroform solution (10 mL) of triphenylphosphine
2.3. Computational methods
(0.262 g, 1 mmol) was added 2-bromo-4-isopropylacetophenone
(0.241 g, 1 mmol), and the mixture was stirred for 24 h. The solid
product (phosphonium salt) was filtered off, washed with Et2O
and dried under reduced pressure. Further treatment with aqueous
NaOH solution led to elimination of HBr, giving the free ligand.
Yield: 81%, M.p. 217–219 °C. Anal. Calc. for C29H27OP: C, 82.44; H,
The geometries of the compounds have been optimized without
symmetry constraints at the BP86 [20]/def2-SVP [21] level of the-
ory using the Gaussian 03 [22] optimizer [23] in conjunction with
6.44. Found: C, 82.71; H, 6.57%. IR (KBr disk, cmꢀ1
)
m
: 1579 (CO),
3
887 (P+–Cꢀ). 1H NMR (CDCl3, ppm) dH: 1.23 (d, JHH = 6.76 Hz, 6H,
2
CH3), 2.90 (m, 1H, CH(CH3)2), 4.38 (d, JPH = 24.37, 1H, CHP), 7.23–
7.92 (m, 19H, arom.). 31P NMR (CDCl3, ppm) dP: 14.05. 13C{1H}
NMR (CDCl3, ppm) dC: 23.23 (s, CH3), 33.15 (s, CH(CH3)2), 47.03
1
(d, JPC = 112.39 Hz, CHP), [124.62 (d), 125.03 (s), 126.38 (s),
127.89 (d), 131.31 (s), 132.18 (d), 138.18 (d), 149.44 (s) (Ph)],
184.13 (s, CO).
2.4.3. Synthesis of the Ag(I) complexes
2.4.3.1. General procedure. To AgNO3 (0.5 mmol) dissolved in 10 mL
of dried methanol was added the ylide L1 (0.450 g, 1 mmol). The
mixture was stirred for ꢁ4 h, during which time it was protected
from light. The white solid product was filtered, washed with
Et2O and dried under reduced pressure.
Fig. 1. X-ray crystal structure of L2.
