Colorimetric chemosensor and test kit for detection copper(II) cations in aqueous solution with specific selectivity and high sensitivity

Article abstract of DOI:10.1016/j.dyepig.2013.01.024

The specific colorimetric detection of Cu²⁺ in the context of interference from coexisting metal ions in aqueous solution is a challenge. Therefore, a series of Cu²⁺ colorimetric chemosensors CS1～CS3, bearing acylthiosemicarbazide moiety as binding site and nitrophenyl moiety as signal group, were designed and synthesized. Among these sensors, CS3 showed excellent colorimetric specific selectivity and high sensitivity for Cu ²⁺in DMSO/H₂O binary solutions. When Cu²⁺ was added to the solution of CS3, a dramatic color change from brown to green was observed, while the cations Fe³⁺, Hg²⁺, Ag, Ca ²⁺, Zn²⁺, Pb²⁺, Cd²⁺, Ni2 , Co ²⁺, Cr³⁺ and Mg²⁺ did not interfere with the recognition process for Cu²⁺. The detection limits were 5.0 × 10^-6 and 1.0 × 10^-7 M of Cu²⁺ using the visual color changes and UVevis changes respectively. Test strips based on CS3 were fabricated, which could act as a convenient and efficient Cu²⁺ test kit.

Full text of DOI:10.1016/j.dyepig.2013.01.024

Dyes and Pigments 98 (2013) 100e105
Contents lists available at SciVerse ScienceDirect
Dyes and Pigments
journal homepage: www.elsevier.com/locate/dyepig
Colorimetric chemosensor and test kit for detection copper(II) cations
in aqueous solution with specific selectivity and high sensitivity
,
a
b
a
a
a,
Qi Lin a , Pei Chen , Juan Liu , Yong-Peng Fu , You-Ming Zhang , Tai-Bao Wei
*
*
a Key Laboratory of Eco-Environment-Related Polymer Materials, Ministry of Education of China, Key Laboratory of Polymer Materials of Gansu Province,
College of Chemistry and Chemical Engineering, Northwest Normal University, Lanzhou, Gansu 730070, PR China
b College of Chemical Engineering, Northwest University of Nationality, Lanzhou, Gansu 730030, PR China
a r t i c l e i n f o
a b s t r a c t
The specific colorimetric detection of Cu2þ in the context of interference from coexisting metal ions in
aqueous solution is a challenge. Therefore, a series of Cu2þ colorimetric chemosensors CS1wCS3, bearing
acylthiosemicarbazide moiety as binding site and nitrophenyl moiety as signal group, were designed and
synthesized. Among these sensors, CS3 showed excellent colorimetric specific selectivity and high
sensitivity for Cu2þ in DMSO/H2O binary solutions. When Cu2þ was added to the solution of CS3, a
Article history:
Received 24 September 2012
Received in revised form
5 January 2013
Accepted 30 January 2013
Available online 16 February 2013
dramatic color change from brown to green was observed, while the cations Fe3þ, Hg2þ, Agþ, Ca2þ, Zn2þ
,
Pb2þ, Cd2þ, Ni2þ, Co2þ, Cr3þ and Mg2þ did not interfere with the recognition process for Cu2þ. The
detection limits were 5.0 ꢀ 10ꢁ6 and 1.0 ꢀ 10ꢁ7 M of Cu2þ using the visual color changes and UVevis
changes respectively. Test strips based on CS3 were fabricated, which could act as a convenient and
efficient Cu2þ test kit.
Keywords:
Copper(II) cations
Colorimetric sensor
Test strips
Ó 2013 Elsevier Ltd. All rights reserved.
Specific selectivity
High sensitivity
Acylthiosemicarbazide
1. Introduction
carried out only by trained professionals, which significantly
restricting the practical application of these Cu2þ sensors. For
Copper is an essential trace element, the third most abundant in
humans, which is fundamental in many metabolic processes [1e5].
Excess copper, however, can cause various intoxications. For
example, the increasing concentration of copper cations in body
causes imbalance in cellular processes resulting in pathogenesis
such as Wilson’s disease [1,6,7], amyotrophic lateral sclerosis [8],
Menkes syndrome [9,10], Alzheimer’s disease [11] and Parkinson’s
disease [12]. According to the U.S. Environmental Protection Agency
(EPA), the maximum acceptable level of Cu2þ in drinking water is
w2 ꢀ 10ꢁ5 M [13]. Therefore, the rational design and synthesis of
efficient sensors to selectively recognize copper cations is an
important topic in supramolecular chemistry [14e19]. Although
previous work has involved the development of a wide variety of
chemical [20e52] and physical [53e55] sensors for the detection of
Cu2þ, so far, improving the detection selectivity in the context of
interference from coexisting metal ions has been challenging.
Moreover, most of these methods require expensive equipment and
involve time-consuming and laborious procedures that can be
simplicity, convenience and low cost, easily-prepared Cu2þ colori-
metric sensors [27e33] are needed. On the other hand, in biological
and environmental systems, copperesensor interactions commonly
occur in aqueous solution [15,16,28,29,34e44], therefore, much
attention has been paid to developing copper sensors that work in
the aqueous phase [34e44].
In view of this requirement and as part of our research effort
devoted to ion recognition [56e60], an attempt was made to obtain
efficient colorimetric sensors which could sense Cu2þ with specific
selectivity and high sensitivity in aqueous solutions. This paper
details the design and synthesis of a series of Cu2þ colorimetric
sensors CS1wCS3 bearing acylthiosemicarbazide and nitrophenyl
groups (Scheme 1). The strategies for the design of these sensors
were as follows. Firstly, a acylthiosemicarbazide group was intro-
duced as the binding site. The C]S and C]O moiety on the
acylthiosemicarbazide group possesses a high affinity with Cu2þ
.
Secondly, in order to achieve “naked-eye” colorimetric recognition,
we introduced nitrophenyl group as the signal group. Finally, the
sensor was designed to be easy to synthesize. In order to establish
the signal group’s contribution to the sensor’s colorimetric sensing
abilities for Cu2þ, compound CS1 which without containing the
nitro-group was also synthesized.
* Corresponding authors.
E-mail addresses: linqi2004@126.com (Q. Lin), weitaibao@126.com (T.-B. Wei).
0143-7208/$ e see front matter Ó 2013 Elsevier Ltd. All rights reserved.
http://dx.doi.org/10.1016/j.dyepig.2013.01.024

Q. Lin et al. / Dyes and Pigments 98 (2013) 100e105
101

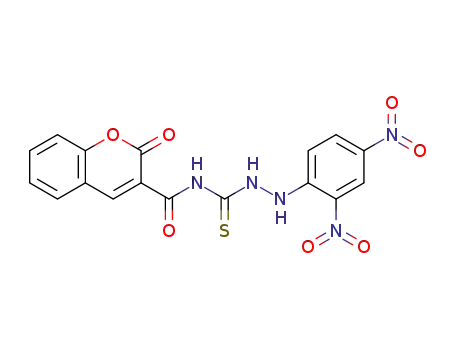

Scheme 1. Synthetic procedures for sensors CS1wCS3.
2. Experimental section
precipitate was filtered, washed with 75% ethanol three times, and
recrystallized with ethanol to get white crystal of CS1. The other
compounds CS2 and CS3 were prepared by similar procedures.
CS1: yield: 81%; m.p. 256e259 ꢂC; 1H NMR (DMSO-d6, 400 MHz)
2.1. Materials and physical methods
1H NMR spectra were recorded with a Mercury-400BB spec-
trometer at 400 MHz. 1H chemical shifts are reported in ppm
d
11.36 (s, 1H, NH), 8.64 (s, 2H, NH, ArH), 8.37 (s, 1H, ArH), 7.83e7.30
(m, 9H, ArH); 13C NMR (DMSO-d6, 100 MHz)
d
162.40, 158.89,
downfield from tetramethylsilane (TMS,
d
scale with the solvent
153.95, 147.57, 143.10, 134.50, 133.20, 130.21, 129.35, 128.94, 125.21,
124.96, 124.32, 118.84, 118.01, 116.37, 116.25; IR (KBr, cmꢁ1) v: 3215
(NeH), 1717, 1668 (C]O), 1152 (C]S); Anal. Calcd. for C17H13N3O3S:
C, 60.17; H, 3.86; N, 12.38; Found: C, 60.15; H, 3.84; N, 12.41.
CS2: yield: 85%; m.p. 265e268 ꢂC; 1H NMR (DMSO-d6, 400 MHz)
resonances as internal standards). Ultravioletevisible (UVevis)
spectra were recorded on a Shimadzu UV-2550 spectrometer.
Melting points were measured on an X-4 digital melting-point
apparatus (uncorrected). The infrared spectra were performed on
a Digilab FTS-3000 Fourier transform-infrared spectrophotometer.
The inorganic salts Ca(ClO4)2$6H2O, Mg(ClO4)2$6H2O,
Cd(ClO4)2$6H2O, Fe(ClO4)3$6H2O, Co(ClO4)2$6H2O, Ni(ClO4)2$6H2O,
Cu(ClO4)2$6H2O, Zn(ClO4)2$6H2O, Pb(ClO4)2$3H2O, AgClO4$H2O
and Cr(ClO4)3$6H2O were purchased from Alfa Aesar Chemical
Reagent Co. (Tianjin, China). All solvents and other reagents were of
analytical grade.
d
10.41 (s, 1H, NH), 9.34 (s, 1H, NH), 8.82 (s, 2H, NH, ArH), 8.12e8.09
(d, J ¼ 12, 1H, ArH), 8.00e7.97 (d, J ¼ 12, 1H, ArH), 7.81e7.76 (m, 1H,
ArH), 7.56e7.44 (m, 2H, ArH), 6.92e6.88 (m, 2H, ArH); 13C NMR
(DMSO-d6, 100 MHz) d 162.06, 159.32, 154.41, 153.98, 147.46, 138.44,
134.35, 130.25, 125.87, 125.26, 119.44, 118.27, 116.30, 111.01; IR (KBr,
cmꢁ1) v: 3227 (NeH),1719,1681 (C]O),1154 (C]S); Anal. Calcd. for
C17H12N4O5S: C, 53.12; H, 3.15; N, 14.58; Found: C, 53.09; H, 3.17; N,
14.56.
CS3: yield: 80%; m.p. 273e276 ꢂC; 1H NMR (DMSO-d6, 400 MHz)
2.2. General procedure for UVevis spectroscopy
d
10.79 (s,1H, NH),10.33(s,1H, NH), 8.91 (s, 2H, NH, ArH), 8.36e8.32
(d, J ¼ 16, 1H, ArH), 8.05e8.03 (d, J ¼ 8, 1H, ArH), 7.83e7.79 (m, 1H,
All the UVevis experiments were carried out in DMSO solution
on a Shimadzu UV-2550 spectrometer. Any changes in the UVevis
spectra of the synthesized compound were recorded on the addi-
tion of perchlorate metal salts while the ligand concentration was
kept constant in all experiments.
ArH), 7.58e7.35 (m, 4H, ArH); 13C NMR (DMSO-d6, 100 MHz)
d
161.64,159.34,154.07,148.24,148.11,137.04,134.64,130.43,130.00,
125.34, 123.09, 118.69, 118.21, 116.32, 115.89; IR (KBr, cmꢁ1) v: 3235
(NeH), 1708,1617 (C]O), 1159 (C]S); Anal. Calcd. for C17H11N5O7S:
C, 47.55; H, 2.58; N, 16.31; Found: C, 47.58; H, 2.56; N, 16.33.
2.3. General procedure for 1H NMR
3. Results and discussion
For 1H NMR titrations, two stock solutions were prepared in
DMSO-d6: one of them contained the host only and the second one
contained an appropriate concentration of guest. Aliquots of the
two solutions were mixed directly in NMR tubes.
In order to investigate the Cu2þ recognition abilities of the
sensors CS1w3 in aqueous solution, we carried out a series of
HosteGuest recognition experiments in DMSO/H2O (9:1/v:v)
HEPES buffered solution at pH 7.0. The colorimetric sensing abilities
were primarily investigated by adding various cations (Ca2þ, Mg2þ
,
2.4. Synthesis and characterization of sensors CS1wCS3
Cd2þ, Fe3þ, Co2þ, Ni2þ, Cu2þ, Hg2þ, Zn2þ, Pb2þ, Agþ and Cr3þ) to the
DMSO/H2O (9:1/v:v, pH 7.0) solutions of sensor CS3. When 5
equivalent (equiv.) of Cu2þ was added to the solution of CS3
Coumarin-3-carboxylic acid (3 mmol) and bis(trichlormethyl)
carbonate (BTC, 1.5 mmol) were added into dry dichloromethane
(15 mL). Then the reaction mixture was stirred at 40 ꢂC for 3 h under
reflux. In this process, the coumarin-3-carboxylic acid has been
converted to the coumarin-3-carbonyl chloride, which did not need
separating. Then, dry and powdered KSCN (4 mmol) and PEG-400
(0.1 mL, as phase transfer catalyst) were added to the reaction so-
lution and stirred it at room temperature for 2 h, and the inorganic
salts were filtered out. The filtrate was a solution of the corre-
sponding coumarin-3-carbonyl isothiocyanate, which did not need
separating also. Then 2.8 mmol of phenylhydrazine was added tothe
filtrate solution and stirred at room temperature for 3 h, yielding the
precipitate of CS1. After evaporating the solvent in a vacuum, the
Fig. 1. Color changes observed upon the addition of various cations (5 equiv.) to the
solutions of sensor CS3 (2 ꢀ 10ꢁ5 M) in DMSO/H2O (9:1, v:v; HEPES buffered, pH 7.0)
solutions. Left to right: free CS3, Fe3þ, Hg2þ, Agþ Ca2þ, Cu2þ, Mg2þ, Cd2þ, Co2þ, Ni2þ
,
Zn2þ, Pb2þ, and Cr3þ. (For interpretation of the references to color in this figure legend,
the reader is referred to the web version of this article.)

102
Q. Lin et al. / Dyes and Pigments 98 (2013) 100e105
Hg2+
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0.9
0.8
0.7
Cu2+
Fe3+
Cu2+
Sensor CS3, other cations
Fe3+
are Ag+, Ca2+, Zn2+, Cd2+,
0.6
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
Pb2+
Co2+, and Mg2+
host CS1, other cations
2+ 2+
Ni2+
+
2+
are Ag , Ca , Cu , Zn
,
Pb2+
2+ 2+
2+
3+
Cd , Ni , Co , Cr
2+
Cr3+
and Mg
Cu2+blank
Hg2+
250
300
350
400
450
500
250
300
350
400
450
500
550
600
650
700
750
Wavelength/nm
Wavelength/nm
Fig. 4. UVevis absorption spectra of CS1 in the presence of 5 equiv. of various cations
in DMSO/H2O (9:1, v:v; HEPES buffered, pH 7.0) solution at room temperature.
Fig. 2. UVevis absorption spectra of CS3 in the presence of 5 equiv. of various cations
in DMSO/H2O (9:1, v:v; HEPES buffered, pH 7.0) solution at room temperature.
(2.0 ꢀ 10ꢁ5 M), the sensor responded with dramatic color changes
from brown to green (Fig. 1). In the corresponding UVevis spec-
trum (Fig. 2), the absorption peak at 475 nm took place a 25 nm
blue shift to 450 nm. Meanwhile, a new peak appeared at 650 nm,
which attributed to the color change from brown to green. How-
0.30
0.25
0.20
0.15
0.10
0.05
0.00
ever, when adding 5 equiv. of other cations Ca2þ, Mg2þ, Cd2þ, Fe3þ
,
Co2þ, Ni2þ, Hg2þ, Zn2þ, Pb2þ, Agþ and Cr3þ into the DMSO/H2O (9:1/
v:v, pH 7.0) solution of sensor CS3 respectively, no significant color
changes were observed. Meanwhile, in the corresponding UVevis
spectra (Fig. 2), only a slight absorption changes were induced by
adding Fe3þ, Ni2þ, Hg2þ, Pb2þ, and Cr3þ. Other cations couldn’t
induce any UVevis changes. Therefore, in DMSO/H2O solution, CS3
showed specific colorimetric selectivity to Cu2þ
.
In order to exclude the possibility of these results being due to
Cu2þ self absorption, a blank test were carried out via adding the
same amount of Cu2þ to blank DMSO/H2O solution (without con-
taining CS3), as a result, no color change was observed. In corre-
sponding UVevis spectra, there is no absorption peak appeared at
0.0
0.2
0.4
0.6
0.8
1.0
2+
[CS3]/[Cu ]+[CS3]
Fig. 5. (a) A Job plot of CS3 and Cu2þ, which indicated that the stoichiometry of CS3-
Cu2þ complex was 2:1.
0.9
Pb2+
0.8
0.7
host CS2, other cations
Fe3+
are Ag+, Ca2+, Zn2+, Pb2+,
Cd2+, Ni2+, Co2+, Cr3+
and Mg2+
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Hg2+
Cu2+
250
300
350
400
450
500
550
600
650
Wavelength/nm
Fig. 3. UVevis absorption spectra of CS2 in the presence of 5 equiv. of various cations
in DMSO/H2O (9:1, v:v; HEPES buffered, pH 7.0) solution at room temperature.
Fig. 6. UVevis spectral titration of sensor CS3 with Cu2þ in DMSO solution.

Q. Lin et al. / Dyes and Pigments 98 (2013) 100e105
103
Fig. 7. The proposed reaction mechanism of the sensor CS3 with Cu2þ
.
the visible region (Fig. 2). Which confirmed that CS3 could colori-
metrically detect Cu2þ in DMSO/H2O binary solution.
absorption peaks at ultraviolet region took place slight shifts,
however, at the visible region of these spectra, there is no ab-
sorption peak appeared. Which indicated that CS2 or CS1 couldn’t
colorimetric sense any cations under these conditions.
The same tests were applied to CS2 and CS1. In this case, when
various cations were added to the DMSO/H2O (9:1/v:v, pH 7.0) so-
lutions of CS2 or CS1 respectively, no obvious color changes were
observed. In corresponding UVevis spectra of CS2 or CS1 (Figs. 3
Therefore, according to these results we can find that the
nitrophenyl moiety acted as a signal group and played a crucial role
in the process of colorimetric recognition. The sensor CS3 employ
2,4-dinitrophenyl as signal groups, which possess colorimetric
response abilities for Cu2þ cations. Because the CS1 doesn’t employ
nitrophenyl as signal group, it could not colorimetric sense any
cations. Although CS2 employ a nitrophenyl as single group, owing
to CS2 only has one nitrophenyl group, the chromogenic capability
of CS2 is too weak to colorimetric recognize any cations also.
As CS3 showed specific selectivity for Cu2þ, a series of experi-
ments was carried out to investigate the Cu2þ recognition capa-
bility and mechanism of CS3. To gain an insight into the
stoichiometry of the CS3-Cu2þ complex, the method of continuous
variations (Job’s method) was used (Fig. 5). When the molar frac-
tion of sensor CS3 was 0.67, the absorbance value approached a
maximum, which demonstrated the formation of a 2:1 complex
between the sensor CS3 and Cu2þ [61].
and 4), although Cu2þ
, ,
Hg2þ Pb2þ and Fe3þ induced the
The binding properties of sensor CS3 with Cu2þ were further
studied by UVevis titration experiments (Fig. 6). It turned out that
in DMSO solution of CS3, with an increasing amount of Cu2þ, the
absorption peak at 480 nm gradually shifted to 454 nm. Meanwhile,
at 650 nm, a new peak gradually appeared. Three clear isosbestic
points were observed at 311, 387 and 530 nm, which indicated the
formation of an CS3-Cu2þ complex. The binding constant Ks of the
metal complex was determined by Equation (1) [61], assuming that
the concentration of free metal is about equal to its total concen-
tration ([M] z [M]t), where A0, Ae, and Am are the corrected UVeVis
absorbances of the complex at initial, interval, and the final states at
which the complex was fully formed upon addition of metal ion,
Fig. 8. (a) UVevis absorption spectra sensor CS3 (2.0 ꢀ 10ꢁ5 M) in DMSO/H2O solu-
tions in the presence of Cu2þ (5 equiv.) and the miscellaneous cations Ca2þ, Mg2þ
,
Fig. 9. Color changes observed upon the addition of varying quantities of Cu2þ (from
left to right: free CS3, 1 ꢀ 10ꢁ4 M, 1 ꢀ 10ꢁ5 M, 1 ꢀ 10ꢁ6 M, 1 ꢀ 10ꢁ7 M) to the solutions
of sensor CS3 (1 ꢀ 10ꢁ5 M; DMSO/H2O, 9:1, v:v; HEPES buffered, pH 7.0). (For inter-
pretation of the references to color in this figure legend, the reader is referred to the
web version of this article.)
Cd2þ, Fe3þ, Co2þ, Ni2þ, Hg2þ, Zn2þ, Pb2þ, Agþ and Cr3þ (5 equiv., respectively). (b) UVe
vis absorption at 475 nm of sensor CS3 (2.0 ꢀ 10ꢁ5 M) in DMSO solutions in the
presence of Cu2þ (5 equiv.) and the miscellaneous cations Ca2þ, Mg2þ, Cd2þ, Fe3þ, Co2þ
Ni2þ, Cu2þ, Zn2þ, Pb2þ, Agþ and Cr3þ (5 equiv., respectively).
,

104
Q. Lin et al. / Dyes and Pigments 98 (2013) 100e105
Fig. 10. Photographs of the CS3 based test strips colorimetric detect Cu2þ. (a) Left to right: free test strip, test strip þ DMSO, test strip þ DMSO solution of Cu2þ. (b) After addition the
DMSO solutions of various metal cations respectively and dried them under room temperature. Left to right: free, Cu2þ, Ca2þ, Mg2þ, Cd2þ, Fe3þ, Co2þ, Ni2þ, Hg2þ, Zn2þ, Pb2þ, Agþ
and Cr3þ
.
respectively. The binding constant Ks was determined from the plot
of the linear regression of ln[(A0 ꢁ Ae)/(Ae ꢁ Am)] versus ln[M] in
Equation (1), to obtain the intercept as ln Ks and the slope as n. The
association constant Ks of the chemosensors CS3 toward Cu2þ was
detection limit of the UVevis changes calculated on the basis of 3sB/
S [62] is 1.0 ꢀ 10ꢁ7 M for Cu2þ cation, which pointing to the high
detection sensitivity.
To investigate the practical application of chemosensor CS3, test
strips were prepared by immersing filter papers into a DMSO so-
lution of CS3 (0.1 M) and then drying in air. The test strips con-
taining CS3 were utilized to sense different cations. As shown in
Fig. 10, when different cation solutions were added on the test kits
respectively, the obvious color change was observed only with Cu2þ
solution. Therefore, the test strips could directly detect Cu2þ in
DMSO or DMSO/H2O binary solutions. In addition, the test strips
could detect Cu2þ in pure water also, before adding the pure water
solution of Cu2þ to the test strip, one drop of DMSO has been added
to the test strip and the test strip was moistened by DMSO. Then the
pure water solution of Cu2þ was added to the DMSO moistened test
strip, the test strip carried out similar color changes just like the
DMSO/H2O solution of Cu2þ added to the dry test strip. Therefore,
the DMSO moistened test strip could conveniently detect the Cu2þ
in pure water.
calculated as 1.5 ꢀ 104 Mꢁ1
.
ln½ðA0 ꢁ AeÞ=ðAe ꢁ AmÞꢃ ¼ ln Ks þ nln½Mꢃ
(1)
The recognition mechanism of the sensor CS3 with Cu2þ were
investigated by IR spectra and 1H NMR titration methods. In the IR
spectra (Fig. S-1 in Supplementary data) of CS3, the stretching vi-
bration absorption peaks of coumarin C]O, acyl C]O and thio-
semicarbazide C]S appeared at 1709, 1616 and 1184 cmꢁ1
respectively. However, when CS3 coordinated with Cu2þ, the
stretching vibration absorption peaks of thiosemicarbazide C]S
shifted to 1143 cmꢁ1, while, other absorption peaks such as the
stretching vibration absorption peaks of NeH, coumarin C]O and
acyl C]O didn’t take place any shift, which indicated that CS3
complexed with Cu2þ via Cu2þ-S coordination bond as shown in
Fig. 7.
The results of 1H NMR titration experiments also support this
presumption. As shown in Fig. 7, before addition of Cu2þ, there were
two intramolecular hydrogen bonds in the molecular structure of
CS3: one was NeHa.O]C, and the other was NeHb.O]C. Owing
to the fact that NeHa.O]C and NeHb.O]C are very strong
intramolecular hydrogen bonds, as shown in Fig. S-2 in Supple-
mentary data, the 1H NMR chemical shift of NeHa and NeHb
4. Conclusion
An easy-to-make Cu2þ colorimetric sensor CS3, bearing thiourea
moiety as the binding site and nitrophenyl moiety as the signal
group, was designed and synthesized. This sensor showed specific
selectivity for Cu2þ in DMSO/H2O binary solutions. Comparison
with sensor CS1 indicated that the nitrophenyl moiety acted as a
signal group and played a crucial role in the process of colorimetric
recognition. Investigation of the recognition mechanism indicated
that the sensor CS3 recognized Cu2þ by forming a stable 2:1 CS3-
Cu2þ complex. The coexistence of other cations did not interfere
with the Cu2þ recognition process. Moreover, the detection limit of
the sensor CS3 toward Cu2þ was 1.0 ꢀ 10ꢁ7 M, which indicated that
the sensor CS3 may be useful as a colorimetric sensor for moni-
toring Cu2þ levels in physiological and environmental systems. In
addition, test strips based on CS3 were fabricated, which also ex-
hibits a good selectivity to Cu2þ as in solution. We believe the test
strips could act as a convenient and efficient Cu2þ test kit.
appeared at the low field of the molecular CS3 at
d 10.79 and
10.33 ppm respectively. The NeHc appeared at 8.91 ppm. After the
addition of 0.2e2.5 equivalent of Cu2þ into the DMSO-d6 solution of
CS3 gradually, the corresponding 1H NMR spectra didn’t take place
any changes. Which indicated that due to the shackle of strong
hydrogen bonds NeHa.O]C and NeHb.O]C, the coumarin C]
O and acyl C]O didn’t coordinate with Cu2þ. Therefore, the CS3
coordinated with Cu2þ only though C]S and form a CS3-Cu2þ
complex.
An important feature of the sensor is its high selectivity toward
the analyte over other competitive species. The variations of UVe
vis spectral and visual color changes of sensor CS3 in DMSO/H2O
binary solutions caused by the metal ions Ca2þ, Mg2þ, Cd2þ, Fe3þ
,
Acknowledgment
Co2þ, Ni2þ, Hg2þ, Zn2þ, Pb2þ, Agþ and Cr3þ were recorded in Fig. 8. It
is noticeable that the miscellaneous competitive metal ions did not
lead to any significant interference. In the presence of these ions,
the Cu2þ still produced similar color and absorption changes
(Fig. 8). These results shown that the selectivity of sensor CS3 to-
ward Cu2þ was not affected by the presence of other cations and
suggested that it could be used as a colorimetric chemosensor for
This work was supported by the National Natural Science
Foundation of china (NSFC) (Nos. 21064006, 21161018 and
21262032), the Natural Science Foundation of Gansu Province
(1010RJZA018) and the Program for Changjian Scholars and Inno-
vative Research Team in University of Ministry of Education of
China (IRT1177).
Cu2þ
.
The colorimetric and UVevis limits of sensor CS3 for Cu2þ cation
were also tested. As presented in Fig. 9, the detection limit using
visual color changes is a concentration of 1.0 ꢀ 10ꢁ6 M of Cu2þ
cation in 1.0 ꢀ 10ꢁ5 M solution of sensor CS3. While, as shown in
Fig. 6, with the gradual addition of Cu2þ, a sharp increase in the
absorbance at 480 nm and an obvious decrease in the absorbance at
344 nm are observed. Simultaneously, the ratio of A480/A344 in-
crease with the increasing in Cu2þ concentrations, which allowing
the Cu2þ concentration to be determined ratiometrically. The
Appendix A. Supplementary data
Supplementary data related to this article can be found at http://
dx.doi.org/10.1016/j.dyepig.2013.01.024.
References
[1] Angelova M, Asenova S, Nedkova V, Koleva-Kolarova R. Copper in the human
organism. Trakia J Sci 2011;9:88e98.

Q. Lin et al. / Dyes and Pigments 98 (2013) 100e105
105
[2] Uauy R, Olivares M, Gonzalez M. Essentiality of copper in humans. Am J Clin
Nutr 1998;67:952Se9S.
[3] Robinson NJ, Winge DR. Copper metallochaperones. Annu Rev Biochem 2010;
79:537e62.
[4] Thiele DJ, Gitlin JD. Assembling the pieces. Nat Chem Biol 2008;4:145e7.
[5] Mathie A, Sutton GL, Clarke CE, Veale EL. Zinc and copper: pharmacological
probes and endogenous modulators of neuronal excitability. Pharmacol Ther
2006;111:567e83.
[6] Madsen E, Gitlin JD. Copper and iron disorders of the brain. Annu Rev Neurosci
2007;30:317e37.
[7] Hirayama T, Van de Bittnera GC, Gray LW, Lutsenko S, Chang CJ. Near-infrared
fluorescent sensor for in vivo copper imaging in a murine Wilson disease
model. Proc Natl Acad Sci U S A 2012;109:2228e33.
[8] Valentine JS, Hart PJ. Misfolded CuZnSOD and amyotrophic lateral sclerosis.
Proc Natl Acad Sci U S A 2003;100:3617e22.
[34] Yang X, Wang EK. A nanoparticle autocatalytic sensor for Agþ and Cu2þ ions in
aqueous solution with high sensitivity and selectivity and its application in
test paper. Anal Chem 2011;83:5005e11.
[35] Wang WD, Fu AF, You JS, Gao G, Lan JB. Squaraine-based colorimetric and
fluorescent sensors for Cu2þ-specific detection and fluorescence imaging in
living cells. Tetrahedron 2010;66:3695e701.
[36] Ballesteros E, Moreno D, Gómez T, Rodríguez T, Rojo J, García-Valverde M,
et al. A new selective chromogenic and turn-on fluorogenic probe for cop-
per(II) in water-acetonitrile 1:1 solution. Org Lett 2009;11:1269e72.
[37] Hu Z-Q, Wang X-M, Feng Y-C, Ding L, Lu H-Y. Sulfonyl rhodamine hydrazide: a
sensitive and selective chromogenic and fluorescent chemodosimeter for
copper ion in aqueous media. Dye Pigment 2011;88:257e61.
[38] Zhang J, Yu CW, Qian SY, Lu G, Chen JL. A selective fluorescent chemosensor
with 1, 2, 4-triazole as subunit for Cu(II) and its application in imaging Cu(II)
in living cells. Dye Pigment 2012;92:1370e5.
[9] Vulpe C, Levinson B, Whitney S, Packman S, Gitschier J. Isolation of a candidate
gene for Menkes disease and evidence that it encodes a copper-transporting
ATPase. Nat Genet 1993;3:7e13.
[39] Yuan L, Lin WY, Chen B, Xie YN. Development of FRET-based ratiometric
fluorescent Cu2þ chemodosimeters and the applications for living cell imag-
ing. Org Lett 2012;14:432e5.
[10] Kaler SG. ATP7A-related copper transport diseases-emerging concepts and
future trends. Nat Rev Neurol 2011;7:15e29.
[11] Hung YH, Bush AI, Cherny RA. Copper in the brain and Alzheimer’s disease.
J Biol Inorg Chem 2010;15:61e76.
[40] Wang LN, Yan JX, Qin WW, Liu WS, Wang R. A new rhodamine-based single
molecule multianalyte (Cu2þ, Hg2þ) sensor and its application in the biological
system. Dye Pigment 2012;92:1083e90.
[41] Qi JJ, Han MS, Tung C. A benzothiazole alkyne fluorescent sensor for Cu
detection in living cell. Bioorg Med Chem Lett 2012;22:1747e9.
[42] Zeng L, Miller EW, Pralle A, Isacoff EY, Chang CJ. A selective turn-on fluores-
cent sensor for imaging copper in living cells. J Am Chem Soc 2006;128:10e1.
[43] Domaille DW, Zeng L, Chang CJ. Visualizing ascorbate-triggered release of
labile copper within living cells using a ratiometric fluorescent sensor. J Am
Chem Soc 2010;132:1194e5.
[12] Lee JC, Gray HB, Winkler JR. Copper(II) binding to
a-synuclein, the Parkinson’s
protein. J Am Chem Soc 2008;130:6898e9.
[13] Guidelines for drinking-water quality. Geneva: World Health Organization;
1996.
[14] Aragay G, Pons J, Merkoçi A. Recent trends in macro-, micro-, and
nanomaterial-based tools and strategies for heavy-metal detection. Chem Rev
2011;111:3433e58.
[15] Quang DT, Kim JS. Fluoro- and chromogenic chemodosimeters for heavy metal
ion detection in solution and biospecimens. Chem Rev 2010;110:6280e301.
[16] Formica M, Fusi V, Giorgi L, Micheloni M. New fluorescent chemosensors for
metal ions in solution. Coord Chem Rev 2012;256:170e92.
[17] Kim HN, Guo Z, Zhu W, Yoon J, Tian H. Recent progress on polymer-based
fluorescent and colorimetric chemosensors. Chem Soc Rev 2011;40:79e93.
[18] Yang YM, Zhao Q, Feng W, Li FY. Luminescent chemodosimeters for bio-
imaging. Chem Rev 2012. http://dx.doi.org/10.1021/cr2004103.
[19] Vendrell M, Zhai D, Er JC, Chang Y-T. Combinatorial strategies in fluorescent
probe development. Chem Rev 2012;112:4391e420.
[20] Zhang XL, Liu T, Han G, Li HQ, Duan CY. Dual-functional gadolinium-based
copper(II) probe for selective magnetic resonance imaging and fluorescence
sensing. Inorg Chem 2012;51:2325e31.
[21] Basa PN, Sykes AG. Differential sensing of Zn(II) and Cu(II) via two indepen-
dent mechanisms. J Org Chem 2012. http://dx.doi.org/10.1021/jo301193n.
[22] Zhang JJ, Riskin M, Tel-Vered R, Tian H, Willner I. Optically activated uptake
and release of Cu2þ or Agþ ions by or from a photoisomerizable monolayer-
modified electrode. Langmuir 2011;27:1380e6.
[23] Guo ZQ, Zhu WH, Xiong YY, Tian H. Multiple logic fluorescent thermometer
system based on N-isopropylmethacrylamide copolymer bearing
dicyanomethylene-4H-pyran moiety. Macromolecules 2009;42:1448e53.
[24] Guo ZQ, Zhu WH, Tian H. Hydrophilic copolymer bearing dicyanomethylene-
4H-pyran moiety as fluorescent film sensor for Cu2þ and pyrophosphate
anion. Macromolecules 2010;43:739e44.
[44] Liu J, Lu Y. A DNAzyme catalytic beacon sensor for paramagnetic Cu2þ Ions in
aqueous solution with high sensitivity and selectivity. J Am Chem Soc 2007;
129:9838e9.
[45] Liu ZP, Zhang CL, Wang XQ, He WJ, Guo ZJ. Design and synthesis of a ratio-
metric fluorescent chemosensor for Cu(II) with a fluorophore hybridization
approach. Org Lett 2012;14:4378e81.
[46] Yu CW, Wang T, Xu K, Zhao J, Li MH, Weng SX, et al. Characterization of a
highly Cu2þ-selective fluorescent probe derived from rhodamine B. Dye
Pigment 2013;96:38e44.
[47] Aksuner N, Henden E, Yilmaz I, Cukurovali A. A highly sensitive and selective
fluorescent sensor for the determination of copper(II) based on a schiff base.
Dye Pigment 2009;83:211e7.
[48] Wang JZ, Zhou XP, Ma HB, Tao GH. Diethyldithiocarbamate functionalized
CdSe/CdS quantum dots as a fluorescent probe for copper ion detection.
Spectrochim Acta A 2011;81:178e83.
[49] Koneswaran M, Narayanaswamy R. l-Cysteine-capped ZnS quantum dots
based fluorescence sensor for Cu2þ ion. Sens Actuator B 2009;139:104e9.
[50] Strasser CE, Catalano VJ. “On-Off” Au(I).Cu(I) interactions in a Au(NHC)2
luminescent vapochromic sensor. J Am Chem Soc 2010;132:10009e11.
[51] Viswanathan K. Utilizing a tripeptide conjugated fluorescent hybrid nano-
particles as a fluorescence sensor for the determination of copper ions. Sens
Actuator A 2012;175:15e8.
[52] Barja BC, Bari SE, Marchi MC, Iglesias FL, Bernardi M. Luminescent Eu(III)
hybrid sensors for in situ copper detection. Sens Actuator
B 2011;158:
214e22.
[25] Chen SJ, Yang YH, Wu Y, Tian H, Zhu WH. Multi-addressable photochromic
terarylene containing benzo[b]thiophene-1,1-dioxide unit as ethene bridge:
multifunctional molecular logic gates on unimolecular platform. J Mater Chem
2012;22:5486e94.
[53] Meuccia V, Laschib S, Minunnib M, Prettic C, Intorrea L, Soldania G, et al. An
optimized digestion method coupled to electrochemical sensor for the
determination of Cd, Cu, Pb and Hg in fish by square wave anodic stripping
voltammetry. Talanta 2009;77:1143e8.
[26] Chamjangali MA, Soltanpanah S, Goudarzi N. Development and character-
ization of a copper optical sensor based on immobilization of synthesized 1-
phenyl-1,2-propanedione-2-oxime thiosemicarbazone on a triacetylcellulose
membrane. Sens Actuator B 2009;138:251e6.
[54] Oztekin Y, Ramanaviciene A, Ramanavicius A. Electrochemical copper (II)
sensor based on self-assembled 4-amino-6-hydroxy-2-mercaptopyrimidine
monohydrate. Sens Actuator B 2011;155:612e7.
[55] Shirmardi-Dezaki A, Shamsipur M, Akhond M, Sharghi H, Doroodmand MM.
Array of potentiometric sensors for simultaneous determination of copper,
silver, and cadmium ions in complex mixtures. Electrochim Acta 2012;62:
84e90.
[56] Zhang Y-M, Lin Q, Wei T-B, Wang D-D, Yao H, Wang Y-L. Simple colorimetric
sensors with high selectivity for acetate and chloride in aqueous solution.
Sens Actuator B 2009;137:447e55.
[57] Zhang Y-M, Lin Q, Wei T-B, Qin X-P, Li Y. A novel smart organogel which could
allow a two channel anion response by proton controlled reversible solegel
transition and color changes. Chem Commun 2009:6074e6.
[27] Narayanaswamy N, Govindaraju T. Aldazine-based colorimetric sensors for
Cu2þ and Fe3þ. Sens Actuator B 2012;161:304e10.
[28] Chereddy NR, Thennarasu S. Synthesis of a highly selective bis-rhodamine
chemosensor for naked-eye detection of Cu2þ ions and its application in
bio-imaging. Dye Pigment 2011;91:378e82.
[29] Chandrasekhar V, Das S, Yadav R, Hossain S, Parihar R, Subramaniam G, et al.
Novel chemosensor for the visual detection of copper(II) in aqueous solution
at the ppm level. Inorg Chem 2012;51:8664e6.
[30] Tang LJ, Li FF, Liu MH, Nandhakumar R. Single sensor for two metal ions:
colorimetric recognition of Cu2þ and fluorescent recognition of Hg2þ. Spec-
trochim Acta A 2011;78:1168e72.
[58] Liu M-X, Wei T-B, Lin Q, Zhang Y-M. A novel 5-mercapto triazole schiff base as
a selective chromogenic chemosensor for Cu2þ. Spectrochim Acta A 2011;79:
1837e42.
[31] Mahapatra AK, Hazra G, Das NK, Goswami S.
A highly selective
triphenylamine-based indolylmethane derivatives as colorimetric and turn-
off fluorimetric sensor toward Cu2þ detection by deprotonation of second-
ary amines. Sens Actuator B 2011;156:456e62.
[59] Li J-Q, Wei T-B, Lin Q, Li P, Zhang Y-M. Mercapto thiadiazole-based sensor
with colorimetric specific selectivity for AcOꢁ in aqueous solution. Spec-
trochim Acta A 2011;83:187e93.
[32] Wang HX, Yang L, Zhang WB, Zhou Y, Zhao B, Li XY. A colorimetric probe for
copper(II) ion based on 4-amino-1,8-naphthalimide. Inorg Chim Acta 2012;
381:111e6.
[60] Lin Q, Fu Y-P, Chen P, Wei T-B, Zhang Y-M. Colorimetric chemosensors
designed to provide high sensitivity for Hg2þ in aqueous solutions. Dye
Pigment 2013;96:1e6.
[33] Shao N, Jin JY, Wang H, Zhang Y, Yang RH, Chan WH. Tunable photochromism
of spirobenzopyran via selective metal ion coordination: an efficient visual
and ratioing fluorescent probe for divalent copper ion. Anal Chem 2008;80:
3466e75.
[61] Liu Y, You C, Zhang H. Supramolecular chemistry, molecular recognition and
assembly of synthetic receptors. Tianjin: Nankai University Press; 2001.
[62] Analytical Methods Committee. Recommendations for the definition, esti-
mation and use of the detection limit. Analyst 1987;112:199e204.
