Copper-mediated nitrosation: 2-nitrosophenolato complexes and their use in the synthesis of heterocycles

Article abstract of DOI:10.3390/molecules24224154

A simple protocol yielding ortho-substituted nitrosophenols from phenols is demonstrated, in the form of copper(II) bis(nitrosophenolato) complexes. The developed methodology was applied to a range of substrates, confirming the role of the copper in both the formation and protection of the challenging 1, 2-substitution pattern. Using polymer supported thiourea, the Cu could be stripped from the complexes and thus enabled the isolation or identification of the uncoordinated ligands and their decomposition products, in yields generally low in line with the intrinsic high reactivity of 2-nitrosophenols. The product complexes are useful intermediates as demonstrated in revisiting a formal [4 + 2] cycloaddition with dimethylacetylene dicarboxylate to synthesise bicyclic products in variable yields, revealing the product has a novel structure different from those previously reported in the literature.

Full text of DOI:10.3390/molecules24224154

molecules
Article
Copper-Mediated Nitrosation: 2-Nitrosophenolato
Complexes and Their Use in the Synthesis
of Heterocycles
Alexander J. Nicholls , Andrei S. Batsanov and Ian R. Baxendale *
Department of Chemistry, University of Durham, South Road, Durham DH1 3LE, UK;
alexander.j.nicholls@durham.ac.uk (A.J.N.); a.s.batsanov@durham.ac.uk (A.S.B.)
* Correspondence: i.r.baxendale@durham.ac.uk
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 14 October 2019; Accepted: 14 November 2019; Published: 16 November 2019
Abstract: A simple protocol yielding ortho-substituted nitrosophenols from phenols is demonstrated,
in the form of copper(II) bis(nitrosophenolato) complexes. The developed methodology was applied
to a range of substrates, confirming the role of the copper in both the formation and protection of the
challenging 1, 2-substitution pattern. Using polymer supported thiourea, the Cu could be stripped
from the complexes and thus enabled the isolation or identification of the uncoordinated ligands
and their decomposition products, in yields generally low in line with the intrinsic high reactivity of
2-nitrosophenols. The product complexes are useful intermediates as demonstrated in revisiting a
formal [4 + 2] cycloaddition with dimethylacetylene dicarboxylate to synthesise bicyclic products in
variable yields, revealing the product has a novel structure different from those previously reported
in the literature.
Keywords: copper-nitrosophenolato complex; phenols; C-nitrosation; sodium nitrite; copper;
cycloaddition; heterocyclic; ambient conditions
1. Introduction
Due to challenges in the synthesis and issues with stability including oxidation, dimerisation and
condensation, ortho-substituted-nitrosophenol compounds are seldom reported in the literature [
There are limited reports of other regioisomers having found application, often due to their ease of
oxidation to the corresponding nitro moiety [ ]. Interestingly, C-aromatic nitrosation procedures have
superior regioselectivity to their nitration counterparts, with nitrosation occurring almost exclusively
at the para position of phenols, where possible [ ]. This strength however becomes a weakness
1].
2
3
if the ortho-isomer is the desired product. While substrates with particular directing or blocking
substituents can be used to force ortho- nitrosation to dominate, additional issues pertaining to the
fact that 2-nitrosophenol compounds are generally unstable, and that highly functionalised substrates
are often not reactive enough to undergo nitrosation [4], inhibit further investigation into this class
of compounds. Alternatively, metals such as copper can be used to not only lower the activation
barrier of the nitrosation process via generation of a more powerful nitrosating agent, but also
act to protect the 2-nitrosophenol products from unwanted oxidation or decomposition pathways
through complexation. Having recently reviewed the literature surrounding the preparation of
metal-nitrosophenolato complexes [1] and having noted the high potential synthetic value of such
chemical approaches, we herein address some literature inconsistencies and clarify the identity of both
complexes and further derivatisation products.
Our specific contribution to the field starts with the synthesis and characterisation of a selection of
copper complexes including isolating the free ligands from them, we also address some confusion
Molecules 2019, 24, 4154; doi:10.3390/molecules24224154
www.mdpi.com/journal/molecules

Molecules 2019, 24, 4154
2 of 19
regarding substrate reactivity and finally, verify the products of a particularly intriguing [4 + 2] addition
process of the copper complexed ligands with dimethylacetylene dicarboxylate [1,5–7].
The atom-efficient, one-pot nitrosophenolato complex formations are performed by reacting
substituted phenols in acidic-aqueous conditions, at ambient temperatures. While numerous metals
can form 2-nitrosophenolato complexes [1,8], copper salts were the focus of this initial study because
they are cheap, readily available and have relatively low toxicity. Many of the 2-nitrosophenolato
ligands observed in the complexes would not survive as free compounds under standard atmospheric
conditions, however they can be preserved as the complexes long-term (three years of stability
demonstrated in this study). Consequently, while the free 2-nitrosophenols are readily released from
their parent copper complexes by the action of a suitable copper scavenger, such as thiourea, only some
were sufficiently stable to be fully characterised in their free non-complexed form.
One of the first examples of metal-nitrosophenolato complexes is associated with the historic
process known as the Baudisch reaction [
substrates, the simplified copper-mediated nitrosation described presently has advantages over this
historic method, as it is higher-yielding and requires fewer reagents. As apparent from the literature [ ],
there is a disagreement as to whether the use of metals in the nitrosation of phenols significantly affects
9–11]. Although limited to only electron-rich phenolic
1
the regioselectivity of the process [
appears very complicated.
1,10,12–14]. Our results address this disagreement, but the answer
2. Results and Discussion
After a series of basic scoping reactions, with the specific aim of creating simple and direct
conditions for the formation of the copper-nitrosophenolato complexes and their isolation, we settled
on the following protocol. Our approach was to dissolve the phenol in a mixture of water and acetic
acid, buffered with sodium acetate (Table 1). The copper salt (CuSO4) was dissolved in water containing
the sodium nitrite, before addition to the phenolic solution dropwise, performing a C-nitrosation
(Table 1). It was determined under these conditions that the product precipitates and is readily collected
by direct filtration. These copper(II) bis(2-nitrosophenolato) products are characterised, confirming
proposals in the older literature, where proof of structure was not possible at the time [8,9,14]. The
crude, filtered product was washed with water, followed by toluene, which was successful in purifying
the complexes to a high level in most cases. Upon drying at reduced pressure, the solid compounds
were mostly anhydrous (indicated in the experimental); however the complexes can support a variety
of coordinating ligands, including water and alcohols, by simply mixing with these solvents or
reagents [
1]. These complexes with an additional solvate were crystalline, hence allowed single-crystal
XRD analysis in several cases, but this was not necessary to purify the compounds.

Molecules 2019, 24, 4154
3 of 19
Table 1. Copper-mediated nitrosation of substituted phenols.
Yields refer to pure isolated, anhydrous compounds. 2n could not be separated from some inorganic impurities,
hence a pure isolated yield cannot be given. 2k was obtained after recrystallisation from acetonitrile-chloroform.
The structures shown for 2f, 2l, 2m, 2n and 2o are a best estimate based on the data collected (see Section 3, Materials
and Methods).
Most of the substrates tested formed the target complex in yields ranging from acceptable (41%)
to good (86%), as supported by mass spectrometry, C, H, N, elemental analysis, IR spectroscopy and
where possible, XRD characterisation (2a, 2c, 2d, 2k); these were generated from the substrates with
either a para-substituent or a meta-,
π-donating substituent on the phenol. Other phenols (1f, 1l, 1m,
1n 1o) also formed a copper adduct (2f, 2l, 2m, 2o) that upon first inspection appeared similar to
,
the target complexes, again in generally good yields, initially leading to the belief that the target
structure had formed. However, upon detailed characterisation, the data set obtained for these
compounds was different to that of the confirmed copper bis(2-nitrosophenolato) complexes (e.g.,
copper bis(2-nitroso-4-methylphenolato) 2a, which was confirmed by XRD analysis). While the IR
data and melting (decomposition) temperatures were comparable, the molecular ion could not be

Molecules 2019, 24, 4154
4 of 19
identified by mass spectrometry (instead an intense peak relating to the free ligand was observed) and
the elemental analysis result suggested the presence of one (or more) additional NO moieties in the
molecular formula. Furthermore, the organic compounds isolated following copper scavenging with

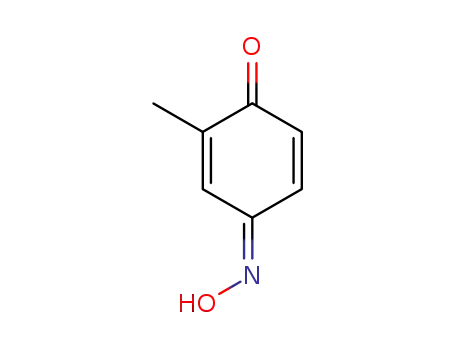

thiourea had not the 2-nitroso/nitrophenol regiochemistry, but were 4-nitrosophenols. We considered
the possibility that the target complex had indeed formed with 2-nitrosophenol ligands, but that the
ligands had, upon decomplexation, spontaneously rearranged to the 4-nitrosophenol isomer which
was the isolation product, but this would not explain the absence of a molecular peak in the mass
spectra or the elemental analysis results. As these compounds failed to form any crystals of X-ray
quality, it was not possible to confirm the connectivity of these complexes, but the components present
are determined with the data available. There are various donor groups on the nitrosophenol product
that could coordinate with the metal centre; one possibility is that the N and O atoms of the nitroso
moiety both bond to the metal, as in uranium-nitrosophenolato complexes [15], allowing complexes to
form without the need for the nitroso- and phenolic OH groups to be ortho to each other, though again
the data are inconclusive at this stage. A possibility was that these products are simply a mixture of
4-nitrosophenol alongside inorganic species, but in this case, it would have been possible to separate
the organic component by washing the residue with toluene. This was not the case, with the toluene
wash removing just small amounts of other organic impurities, suggesting there is some form of
interaction between the nitrosophenol and copper component.
Some of the 4-substituted substrates, specifically 4-bromophenol and 4-chlorophenol, proceeded
in lower isolated yields to the target product because a side product, the 4-halogeno-2-nitrophenol
was produced in significant amounts (e.g., 28% for 4-chlorophenol). An excess of sodium nitrite in the
scheme increased the conversion of the starting material and the final yields, however it also increased
the chance of over-oxidation of the substrate to the corresponding nitro compound. During the reaction
some nitrite is wasted via de-gassing of nitric oxide from the reaction mixture, as can be evidenced by
its oxidation in air to brown nitrogen dioxide gas. This can be accounted for by the known propensity
of copper to reduce nitrite to nitric oxide [16], as well as the action of phenol on the nitrosonium
ion formed, followed by hydrolysis [17]. Poly-nitrosation was prevented in every case without the
need for further reaction design, owing to the substantial reduction in aromatic nucleophilicity that
accompanies the addition of a nitroso group [2], this is much greater than for the corresponding nitro
group addition.
A further scientific endeavour of this work was to investigate the role of copper in terms
of catalysing the nitrosation, protecting the products and improving the regioselectivity for
ortho-nitrosation instead of para. This was tested by attempting to perform the C-nitrosation of
phenols such as 3-chlorophenol (1i) in the presence and absence of copper under the same matched
conditions. As demonstrated, phenol 1i was largely inert to direct nitrosation without copper, with
only small quantities of a polymeric-type product observed alongside unreacted starting materials.
In contrast, under copper-mediated conditions, 3-chlorophenol formed the target complex in high
yield (Table 1, 73%), suggesting the copper is indeed a catalyst, this is consistent with indicated results
from previous sources [2]. However, both principal product regioisomers: 3-chloro-6-nitrosophenol
and 3-chloro-4-nitrosophenol, have never been isolated and thus no supporting proof of structure
exists. Our attempts to isolate the free ligand product(s) of this reaction were also unsuccessful. Hence
although it has been confirmed that the use of copper does catalyse the reaction and protects the
ortho-product (with formation of 2i), it still remains uncertain whether the regioselectivity (ortho:para
selectivity) of the catalysed process is improved. This result for 1i contrasts with that of the similar
3-methylphenol (1j) which formed 4-nitroso-3-methylphenol (3j(i) 76%, accompanied by a side product
of 4-nitro-3-methylphenol, 12%) in the absence of copper, but in the presence of copper again free
4-nitroso-3-methylphenol 3j(i) was the major product (~60%), with only a small amount (~9%) of the
target copper bis(2-nitroso-5-methylphenolato), 2j Although the chloro atom is weakly
and the methyl is a -donor, there are additionally steric factors. This is still somewhat confusing
because although the chloro substituent could be more demanding than the methyl and thus reducing
π-donating
σ

Molecules 2019, 24, 4154
5 of 19
the likelihood of para-nitrosophenol formation by hindrance, the opposite could be argued given the
effective radius (2.0 Å) [18] of the methyl substituent is actually a little more than the chloro (van der
Waal’s radius of 1.8 Å) [18].
In conclusion, it appears that the presence of copper has little or no effect on the ortho-regioselectivity,
but nevertheless is valuable because it allows access to the challenging 2-nitrosophenols by protecting
them as they form and allows more efficient formation of nitrosophenols from substrates that are
not very reactive, provided the substrate’s substituents ensure ortho-nitrosation is more favourable
than para.
2.1. Substrate Scope
The substrate scope includes a range of phenols. Alkyl, ether and halo substituents are tolerated,
with the highest yields achieved for phenols with activating, electron-donating substituents. The scheme
was attempted with catechol and a black powder was isolated, but the product could not be identified.
Typically electron-rich aromatics are reactive to C-nitrosation processes [2], hence the formation of a
copper-nitrosophenolato compound (of either type) is successful for these substrates. The reaction was
attempted with 4-cyanophenol and 4-nitrophenol, but no reaction occurred (starting materials were
recovered unchanged). 3-hydroxybenzoic acid did form a red solution, as if to suggest some form
of C-nitrosation was taking place, but after two weeks of reaction time the only solid recovered was
unreacted starting material.
As discussed, the natural position for nitrosation of phenol remains the para position, so copper
bis(2-nitrosophenolato) complexes will form if the substrate has substituents that improve the
favourability of ortho-nitrosation, by hindering the para site or by overriding electronic selectivity.
This would include all 4-substituted phenols and many 4-unsubstituted-3-substituted, provided the
3-substituent is either sufficiently large (as to cause hindrance of the para-position) or a strong π-donor
(as to activate the ortho-position to the phenol). For other phenols, the reaction will produce not a copper
(2-nitrosophenolato) complex, but instead a compound derived from a 4-nitrosophenolato ligand. An
anomalous result is that from 4-hydroxybenzoic acid; this substrate could be expected to form copper
bis(2-nitroso-4-carboxylphenolato), but instead yielded a compound that seemingly resembled the
other non 2-nitroso compounds. There is one further outlying result, this is associated with the product
from 2,4-dichlorophenol, which upon crystallisation had oxidised to the nitro compound (2k, Figure 1).
This was the only case where the copper failed to protect the nitrosophenol ligand from oxidation to
the corresponding nitro derivative; this is a remarkable compound and appears to be the first of its
type to be characterised.
Figure 1. The molecular structure of copper bis(2,4-dichloro-6-nitrophenolato) di(acetonitrile) (2k),
shown both with (left) the hydrogen atoms simulated using riding models and without (right).
Symmetry transformations: (i) 1–x, –y, 1–z; (ii) x, –y, 1–z. Bond distances (Å): Cu-O(1) 1.91(1), Cu-O(2)
2.16(1), Cu-N(1) 2.199(6). The alternative positions of nitrosophenol ligands, generated by a 2-fold
axis (transformation ii) are omitted for clarity (Figure S3). Thermal ellipsoids are drawn at the 50%
probability level.

Molecules 2019, 24, 4154
6 of 19
2.2. Properties of Copper-2-Nitrosophenolato Complexes
All of the isolated copper-nitrosophenolato compounds are coloured amorphous powders when
obtained directly from the reaction mixture by filtration, and after washing. The complexes decompose
(usually turning colourless), rather than providing a melting point, at fairly high temperatures and
are all somewhat soluble in polar, organic, coordinating solvents. Most of these complexes could
be crystallised, although the addition of a coordinating solvent (e.g., ethanol) was usually required
to improve the solubility and grow suitably large crystals. Of the three copper-nitrosophenolato
complexes where structures were obtained (2a, c, d) all were monoclinic and were of space group
P21/c (2a and 2d) or P21/n (Table S1). The solved structures of 2a and 2c (Figure 2) show that ethanol
coordinates the copper atom at the apical position, complementing the trans-square-planar coordination
by two nitrosophenolato ligands to square-pyramidal, thus forming a new complex, very intensely
coloured in solution. In the solid, the coordination sites trans to the ethanol, are occupied by the
phenolic O atoms of adjacent molecules, but the Cu . . . O distances (3.243(2) Å in 2a, 3.196(6) Å in
2c) are only slightly shorter than the sum of van der Waals radii [18], while the Cu atom deviates
from the N2O2 basal plane by 0.13 Å towards the ethanol ligand. Only the complex 2d synthesised
from vanillin crystallised without the inclusion of a solvent; here the Cu coordination is completed to
a centrosymmetric tetragonal-bipyramidal (a typical tetragonal distortion) by the aldehyde groups
of two adjacent molecules (Cu-O 2.578(3) Å) The N-O bond lengths (1.248(2) Å in 2a, 1.239(8) in 2c
1.236(2) in 2d) are between what would be expected for a N-O single and double bond, suggesting
the structure is intermediate between a nitrosophenol and a benzoquinone-monoxime in terms of
,
molecular π-orbitals [19]. Attempts were made to characterise the complexes by NMR spectroscopy.
The complexes were soluble in d5-pyridine (due to the ability of the pyridine to solubilise the complexes
by coordinating to form an extended complex [20]). Unfortunately, no peaks are observed that could be
assigned to the product; it’s likely the broadening due to Cu(II) reduces the resolution to baseline levels.
However, for some of the
were instead visible in the NMR experiments with d6-DMSO, but these resonances correlated with the
compounds 3a 3d, the oxidised free ligands. Further investigation of the behaviour of the complexes in
2 series, (for example, 2a–d) peaks that were within the ppm ranges expected
–
DMSO revealed that over time, some oxidised ligands were extracted from the complex, with inorganic
copper species as a side-product, confirming that the peaks observed by NMR spectroscopy were due
to the oxidised ligands and not the product complexes.
Figure 2. The intermolecular interactions of copper bis(4-bromo-2-nitrosophenolato), 2c crystallised
from ethanol-chloroform, shown both with (left) the hydrogen atoms simulated using riding models
and without (right). Mean bond distances Cu-O(phenol) 1.939(5), Cu-N 1.981(6), Cu-O(Et) 2.239(6)
Å (cf. in 2a, 1.954(2), 1.988(2) and 2.236(2) Å, respectively). There is a weak intermolecular Cu-O
interaction opposite the ethanol ligand (3.196(6) Å in 2c, 3.243(2) in 2a). Primed atoms are generated by
an inversion centre.

Molecules 2019, 24, 4154
7 of 19
2.3. Isolation of Organic Ligands from Copper Complexes
For most complexes, the free ligand (or a species to which the free ligand is the reasoned precursor)
has been isolated. 2-nitrosophenol compounds are also known to exist in the tautomeric forms;
namely, as either the nitrosophenol or the benzoquinone-monoxime (favouring the benzoquinone).
The displacement of the nitrosophenols from the complexes presented a range of difficulties because
of the strength of the chelated complexes and poor stability of the individual free ligands. In older
literature, it is stated that the free nitrosophenols are ‘easily recovered’ by reaction with hydrochloric
acid [8], followed by extraction into petroleum ether; this was not found to be a viable method, with
only very low yields of mixed aromatic products obtained in most cases. Our preferred approach was
to therefore avoid the harsh acidic conditions, by instead displacing the nitrosophenol ligands with a
more effective copper-chelator (a polymer-supported thiourea PS-TU, Table 2). In order to confirm the
regiochemistry of the organic nitrosophenol product obtained from mixture 2j, the single crystal XRD
structure 3j(i) was obtained in two different forms, one monoclinic, the other triclinic (Table S1) and no
trace of the expected regioisomer (3j) was detected by any methods.
Table 2. Organic ligand isolation from copper(nitrosophenolato) compounds.
OMe
OMe
OH
NO
OH
OH
OH
OH
H
Br
NO2
NO2
Cl
NO2
Me
NO2
O
3b, 5% yield
3a, 14% yield
3c, 9% yield
3d, 21% yield
3e, not detected
OH Et2N
NO
O
MeO
O
O
Cl
O
HO
NOH
NOH
NOH
NOH
O
3j, not detected
3g, 84% yield
3f, not detected
3i, not detected
3h, 79% yield
Cl
OH
N
O
OH
NO2
O
O
O
HON
Cl
HON
3l, 48% yield
HON
Cl
O
OH
3o, 55% isolated mixture.
3k, 39% yield
3n, not detected
3m, 34% yield
Yields refer to pure isolated compounds.
The identity and properties of the aromatic compounds isolated varied substantially.
For 4-substituted-2-nitrosophenolato complexes, free nitrosophenols were not detected. It is predicted
that the free 4-substituted-2-nitrosophenols are unstable and decompose according to a previously
proposed literature pathway [3,4], once they are no longer supported by the copper. A publication
claimed that these compounds are stable, albeit at very low temperatures [21], although this work has
since been retracted. A potential work-around involves deliberately oxidising the nitrosophenol to its
related nitrophenol as soon as it is disassociated, by performing the ligand isolation in THF that had been
saturated with oxygen gas. Applying this method, low yields of 4-substituted-2-nitrophenols, alongside
polymeric tars (containing complex mixtures), were obtained from the 4-substituted-2-nitrosophenolato

Molecules 2019, 24, 4154
8 of 19
complexes, suggesting that 4-substituted-2-nitrosophenols were indeed the precursor species (i.e., the
original ligands). Indeed, 4-nitrosophenol (or more correctly, 1, 4-benzoquinone monoxime) was also
found as the equivalent nitro product, although was inert in a nitrogen atmosphere. The nitrosation
agent itself is known to oxidise aromatic nitroso to nitro derivatives in some cases [2], but these results
show that this process also occurs for these 4-substituted-2-nitrosophenols with O2 as the oxidant.
While the 4-substitued-2-nitrosophenols could not be isolated as stable free compounds, their existence
as ligands is confirmed via the characterisation of their parent complexes. The crystal structures of three
different Cu(II) bis(2-nitrosophenolato) compounds (2a, 2c and 2d) confirm the identity of the ligands,
where the ligands themselves could not be identified. The IR bands observed in all of the complexes
(N-O stretch: 1550–1625 cm−1 and 1400–1500 cm−1), also indicate the presence of nitroso bonding.
Even for the stable nitrosophenol compounds, the isolated yields were often relatively low. It might
be that only one of the two organic ligands can be successfully displaced by the polymer-supported
thiourea for some complexes, giving a maximum yield of 50%. For the ortho-benzoquinone-monoxime
structures, only one set of resonances is observed by NMR spectroscopy despite the possibility of
E/Z isomerism about the C=N double bond. This is because the formation of an intramolecular
H-bond ensures that only one diastereomer is found (Figure 3). This was not the case for
the para-benzoquinone-monoximes such as 2-methyl-1, 4-benzoquione-monoxime (3l), for which
both stereoisomers were observed; there was even a third structure observed for 2-chloro-1,
4-benzoquinone-monoxime (3m), believed to be the nitrosophenol tautomer albeit in small quantities.
The reason that no second (nitrosophenol) tautomer is observed for the ortho-ligands could be that the
H atom is in the same place whichever tautomer and hence the structures are related by resonance
(Figure 4).
Figure 3. The E/Z isomerism in benzoquinones, with approximate product ratios.
Figure 4. The consideration that the quinone and nitroso structures may be related by resonance if
the nitroso is ortho to the phenol. Otherwise, a hydrogen atom is in a different position depending on
the tautomer.
The nitrosophenols can be divided into three categories (Table 3) based upon their structure
and stability. Aromatics without a para-activating substituent at the 4-position relative to the nitroso,
are unstable. This is logical, because the nitroso group is electron withdrawing and the carbon it is
bonded to becomes electron deficient. By having an electron-donating group para to the nitroso, the
electron deficient carbon is stabilised and the free compounds are thus much easier to isolate. Others
oxidise in aerobic conditions (second category) or additionally decompose to a complex, polymeric
mixture (third category) at room temperature.

Molecules 2019, 24, 4154
9 of 19
Table 3. The categorisation of nitrosophenol compounds identified in this study according to
their stability.
Stable
Oxidises in Air
Decomposes or Oxidises
‘Stable’ compounds did not deteriorate noticeably under aerobic, room-temperature conditions. One compound
alternatively ‘oxidises in air’ to a stable product. Finally, several compounds ‘decompose or oxidise’, forming a
stable nitro-derivative alongside a complex mixture.
2.4. Cycloadditions of Dimethylacetylene Dicarboxylate with the 2-Nitrosophenols (Starting with the Cu
bis(nitrosophenolato) Complexes)
An intriguing use of the copper nitrosophenolato complexes is as diene substrates in cycloadditions
with powerful dienophiles, i.e., dimethylacetylene dicarboxylate and was first reported by McKillop
and Sayer [22]. In this current study, full characterisation of six such cycloaddition products
has been provided for the first time, including new compounds synthesised from copper(II)
bis(5-methyl-2-nitrosophenol) and copper(II) bis(2-methoxy-6-nitroso-4-formylphenol). These bicyclic
products have unique functionality that may have interesting biological activity. The successful
synthesis of such heterocycles both helps confirm the identity of the parent complexes as well as
providing useful cycloaddition products. The products were crystalline although preferred to form
clusters of very small shapes, making single-crystal XRD analysis challenging. Nevertheless, structures
were solved for 4a, 4b and 4d, each having a different space group (Table S1).
The yields (Table 4) were variable; copper(II) bis(4-methyl-2-nitrosophenolato) was synthesised
from greater dilution, discouraging decomposition of the copper starting material. The Scheme of Table 4
was attempted using the compounds synthesised from 2-substituted phenols and that from phenol itself
(
2l
,
2m
,
2n, 2o), but the result was a complex mixture, with no individual compounds identified, further
2m 2n, 2o) are not copper-2-nitrosophenolato
supporting the assignment that these compounds (2l
,
,
complexes. The previously reported literature yields are much higher than measured in this study [22],
however, as the quoted melting points are lower than found in this study and because no further
characterisation data was provided, it is uncertain that these literature yields refer to compounds of
high purity, as in this publication. As well as the yields, the structure reported is different (Figure 5).
We note the logic in the original assignment and conclude that without the use of XRD analysis,
distinguishing the structures would be challenging by other means. Having isolated the product
4 we
were also careful to re-evaluate the reaction mixture and to identify that at no stage was the alternative
hydroxyl regioisomer detectable in solution. We also note that the material isolated upon completion
of the reaction matches that following crystallisation structure meaning no rearrangement takes place
during preparation of the crystals. Therefore, herein, we wish to correctly identify the sole products of
the cycloaddition process as the compound based upon the connectivity depicted in structure 4.

Molecules 2019, 24, 4154
10 of 19
Table 4.
2,4-Cycloaddition reactions of copper-nitrosophenolato compounds to unique
bicyclic structures.
Yields refer to pure isolated compounds.
Figure 5. The assigned structure of 4a obtained in this study compared to the literature assigned
structure for the same reaction.
3. Materials and Methods
3.1. Synthesis of Copper-Nitrosophenolato Compounds
The phenolic starting material (1a–1o, 50 mmol) was dissolved in 25 mL of water and 15 mL acetic
acid. To this mixture was added solid sodium acetate trihydrate, gradually, until the pH was 4. Copper
sulfate pentahydrate (25 mmol, 6.25 g) and sodium nitrite (125 mmol, 8.65 g) were dissolved in water
(250 mL) and this solution was introduced dropwise to the solution of phenolic starting material. The
mixture was stirred at ambient temperature for at least 3 days and left to stand without mixing for
a further 24 h. The product was collected by filtration and washed with water (3
(2 50 mL) and finally a portion of ethyl acetate (20 mL), then dried under reduced pressure. The
copper complexes (2a 2o) were of acceptable purity at this stage and characterised by ASAP MS, IR
×
50 mL), toluene
×
–
spectroscopy and elemental analysis. For the purpose of growing crystals suitable for XRD analysis,
the powder obtained was dissolved in a 1:1 mixture of boiling alcoholic and polar-organic solvents
(specified), then left to cool to room temperature. The resulting crystals were collected by filtration
and washed with hexane (10 mL), giving crystalline copper complexes (2a–2o). Yields refer to pure,

Molecules 2019, 24, 4154
11 of 19
washed, amorphous products, not recrystallised adducts. The spectral data is shown below and the
graphical spectra and data (NMR, IR, MS and XRD) can be found in the supplementary information.
Copper(II) bis(4-methyl-2-nitrosophenolato) (2a) [23]: Recrystallised from chloroform-ethanol to
yield a deep purple solid. Yield: 82%, 7.2 g. C14H12O4N2Cu. ASAP-MS: m/z 336.0 ([M + H]+,
100%), 138.1 ([C7H7O2N + H]+, 2) HR-MS calculated for C14H13N2O4 63Cu 336.0171, found: 336.0167.
(
−
1.2 ppm,
−
0.4 mDa). IR (neat) υ
max/cm−1 2971 (m, C-H), 1739 (s, C=O), 1365 (s, N=O), 1218 (m).
Elemental (C, H, N) analysis found: C 49.75% (50.07), H 3.60% (3.66), N 8.42% (8.34). Crystal data:
1957008; C14H12O4N2Cu C2H6O, f.w. 381.86, T = 120 K, monoclinic, a = 10.1875(8), b = 6.9915(5),
·
c = 22.2994(17) Å β = 91.781(3)◦, V = 1587.5(2) Å3, space group P21/c (no. 14), Z = 4, 22237 reflections
(3840 unique, Rint = 0.050), R1 = 0.034, wR2 = 0.081 The structure is essentially identical with the earlier
room-temperature determination [22]. M.p. 218.1–218.8 ◦C (decomposition).
Copper(II) bis(4-Chloro-2-nitrosophenolato) (2b) [24]: Recrystallised from chloroform-ethanol to
yield a purple solid. Yield: 55%, 5.4 g. C12H6N2O4Cl2Cu. ASAP-MS: m/z 377.9 ([M + H]+, 95%),
158.1 ([C6H3O2NCl H]+, 25). HR-MS calculated for C12H6N2O435Cl263Cu 374.9012, found: 374.9001.
(
−
2.9 ppm, 1.1 mDa). IR (neat) υ
max/cm−1 3017 (br, C-H). 1521 (s, N=O), 1489 (s, N=O), 1332 (m,
−
N=O), 1181 (m, C-O). Elemental (C, H, N) analysis found: C 38.37% (38.25), H 1.65% (1.61), N 7.41%
(7.44). M.p. 219.3–220.5 ◦C (decomposition).
Copper(II) bis(4-Bromo-2-nitrosophenolato) (2c) [8]: Recrystallised from chloroform-ethanol to yield
a purple solid. Yield: 41%, 4.8 g. C12H7N2O4Br2Cu ASAP-MS: m/z 463.8 ([M + H (79Br)]+ 100%) 203.9
([(C6H4O2N179Br) + H]+, 8). HR-MS calculated for C12H7N2O479Br263Cu 463.8069, found: 463.8076.
(+1.5 ppm, +0.7 mDa). IR (neat)
(m, N=O), 1166 (m, C-O). Elemental (C, H, N) analysis found: 29.57% (30.06), 1.27% (1.30), 5.67%
(6.02). Crystal data: CCDC 1957005; C12H6O4N2CuBr2 C2H6O, f.w. 511.62, T = 100 K, monoclinic, a
υ
max/cm−1 3087 (m, C-H), 1601 (m, N=O), 1491 (s, N=O), 1315
·
= 7.0128(16), b = 10.020(2), c = 23.311(5) Å,
β
= 93.502(5)◦, V = 1635.0(6) Å3, space group P21/n (no.
14), Z = 4, 19075 reflections (4121 unique, Rint = 0.081), R1 = 0.084, wR2 = 0.240. M.p. 241–255 ◦C
(decomposition).
Copper(II)
bis(2-methoxy-6-nitroso-4-formylphenolato)
(2d):
Recrystallised
from
chloroform-methanol to yield a dark purple solid. Yield: 63%, 7.0 g. C16H12O8N2Cu ASAP-MS:
m/z 424.0 ([M + H]+, 100%) 203.9 ([(C8H7O4N1) + H]+, 8). HR-MS calculated for C16H12N2O863Cu
423.9968, found: 423.9965. (
−
0.7 ppm, 0.3 mDa). IR (neat) υ
max/cm−1 3463 (w, br), 3062 (w, C-H),
−
1687 (s, C=O), 1607 (w, N=O), 1519 (s, N=O), 1388 (m, N=O), 1273 (s, N=O), 1141 (s), 1091 (m), 654
(m). Elemental (C, H, N) Analysis found: 42.86% (43.30), 3.34% (3.63), 6.31% (6.45) (compound
observed was the monohydrate). Crystal data: CCDC 1957006; C16H12O8N2Cu, f.w. 423.82, T = 120 K,
monoclinic, a = 6.4741(5), b = 12.0560(9), c = 10.1090(7) Å,
β
= 103.595(3)◦, V = 766.9(1) Å3, space group
P21/c (no. 14), Z = 2, 16527 reflections (2239 unique, Rint = 0.047), R1 = 0.037, wR2 = 0.101. M.p. =
269.2–271.7 ◦C (decomposition).
Copper(II) bis(2-methoxy-6-nitroso-4-ethenylphenolato) (2e): Dark-green solid that failed to
crystallise from various solvent mixtures. Yield: 72%, 7.7 g. CuC18H16N2O8. IR (neat) υ
max/cm−1 3397
(w, br), 2754 (w, C-H), 1596 (m, N=O), 1535 (m, N=O), 1380 (s, N=O), 1227 (s, N=O), 1112 (m, C-O), 800
(s), 693 (m), 504 (m). Elemental (C, H, N) Analysis found: 53.17% (53.39), 4.64% (4.93), 6.46% (6.23).
M.p. 161–172 ◦C (decomposition).
Copper(II) bis(2-nitroso-4-carboxylphenolato)(NOH)2 (2f): Pale-purple solid that failed to crystallise
from various solvent mixtures. Yield: 71%, 8.4 g. CuC14H8N4O10. IR (neat) υ
max/cm−1 3247 (m, br,
O-H), 1598 (s, N=O), 1474 (m, N=O), 1294 (m, N=O), 1148 (s, C-O), 993 (s), 836 (s), 648 (m), 416 (s).
Elemental (C, H, N) Analysis found: 37.28% (36.73), 2.69% (2.20), 12.67% (12.24). m.p. 161–172 ◦C
(decomposition).

Molecules 2019, 24, 4154
12 of 19
Copper(II) bis(2-nitroso-5-(diethylamino)phenolato) (2g)
[
25
]
:
Purple solid that failed to crystallise
in a range of solvent mixtures. Yield: 40%, 4.1 g. CuC20H26N4O4. ASAP-MS: m/z 195.1 ([C10H14O2N2]+
100%). IR (neat)
υ
max/cm−1 3057 (w, C-H), 1588 (m, N=O), 1442 (m, N=O), 1372 (s, N=O), 1227 (s,
N=O), 1217 (s, N=O), 1100 (m, C-O), 1014 (m), 925 (m), 653 (m), 500 (m). M.p. > 300 ◦C.
Copper(II) bis(3-methoxy-6-nitrosophenolato) (2h) 26 Orange solid that failed to crystallise in
[ ]:
various solvent mixtures. Yield: 86%, 8.3 g. CuC14H12N2O6 IR (neat)
υ
max/cm−1 3405 (m, br), 3072 (w,
C-H), 1595 (m, N=O), 1421 (m, N=O), 1379 (s, N=O), 1227 (s, N=O), 1206 (s, N=O), 1112 (m, C-O),
1029 (m), 856 (m), 693 (m), 503 (m). ASAP-MS: m/z 368.0 ([M + H]+, 100%), 154.0 ([C7H7O3N + H]+, 8).
HR-MS calculated for C14H13N2O663Cu 367.0009, found: 366.9991. (
−
4.9 ppm, mDa 1.8). Elemental
−
Analysis found: C 43.46% (43.57), H 3.75% (3.66), 7.34% (7.26). M.p. 137–141 ◦C (decomposition).
Copper(II) bis(3-chloro-6-nitrosophenolato) (2i): Red solid that failed to crystallise in various solvent
mixtures. Yield: 73%, 7.2 g. C12H7N2O4Cl2Cu. ASAP-MS: m/z 377.9 ([M + H]+, 100), 158.0
([C6H3O2NCl + H]+, 91). HR-MS calculated for C12H7N2O435Cl263Cu 375.9076, found: 375.9081 (+1.3
ppm, mDa +0.5). IR (neat) υ
max/cm−1 3351 (br, C-H), 1624 (m, N=O), 1394 (s, N=O), 1248 (m, N=O),
1112 (m, C-O). Elemental (C, H, N) Analysis found: C 39.91% (38.25), H 2.36% (1.61), N 7.48% (7.44).
M.p. 153.2–154.0 ◦C (decomposition).
Copper(II) bis(5-methyl-2-nitrosophenolato) (2j):
Isolated mixture with 3-methyl-1,4-
benzoquinone monoxime (3j). Brown solid that failed to crystallise. Conversion >% estimated
by derivatisation to the heterocyclic product (4j). C14H12O4N2Cu. ASAP-MS: m/z 334.99 ([M]+, 100%).
IR (neat) υmax/cm−1 2773 (m, C-H), 1632 (m, N=O), 1401 (s, N=O), 1116 (m, C-O).
Copper(II) bis(2,4-dichloro-6-nitrophenolato) (2k): Recrystallised from chloroform-acetonitrile to
yield a black solid. Yield: 55%, 6.56 g. IR (neat)
N=O), 1447 (m, N=O), 1336 (m, N=O), 1243 (s, N=O), 1151 (s, O-H), 890 (m), 773 (m), 682 (s). Crystal
υ
max/cm−1 3082 (w, C-H), 1607 (m, N=O), 1536 (s,
data: CCDC 1957007; C12H4O4N2Cl4Cu 2C2H3N, f.w. 559.62, T = 120 K, orthorhombic, a = 20.491(2), b
·
= 7.5407(7), c = 13.2872(14) Å, V = 2053.1(4) Å3, space group Cmce (no. 64), Z = 4, 8029 reflections (922
unique, Rint = 0.073), R1 = 0.045, wR2 = 0.118. M.p. = 223.3–225.0 ◦C (decomposition).
Copper(II) bis(2-nitroso-6-methylphenolato)(nitroso) (2l): Brown solid that failed to crystallise from
various solvent mixtures. Yield: 57%, 5.3 g. CuC14H12O5N3. ASAP-MS: m/z 124.0 ([C6H5O2N +
H]+, 100%). IR max/cm−1 3264 (m, br, C-H), 1595 (m, N=O), 1429 (s, N=O), 1282 (s), 1111 (m, C-O).
υ
Elemental (C, H, N) analysis found: C 45.16% (45.96), H 3.67% (3.31), N 12.28% (11.49). M.p. =
161.5–163.8 ◦C (decomposition).
Copper(II) bis(2-chloro-4-nitrosophenolato)di(nitroso) (2m): Brown solid that failed to crystallise
from various solvent mixtures. Yield: 72%, 7.3 g. CuC12Cl2H6O5N3. ASAP-MS: m/z 158.0 ([C6H3O2NCl
+ H]+, 94). IR (neat) max/cm−1 2817 (m, C-H). 1623 (m, N=O), 1448 (s, N=O), 1302 (m, N=O), 1116
υ
(m, C-O). d.p. 154–158 ◦C. Elemental (C, H, N) analysis found: C 33.16 (32.86), H 1.84 (1.83), N 11.29
(12.77). M.p. = 154.7–156.2 ◦C (decomposition).
Copper(II) bis(4-nitroso-2-carboxylphenolato)(nitroso) isolated mixture (2n): Beige solid that failed
to crystallise. Yield: 9.6 g. Formula not assigned. ASAP-MS: m/z 168.0 ([C7H5O3N + H]+, 29). IR
υ
max/cm−1 3382 (w, br, O-H), 1601 (m, N=O), 1455 (s, N=O), 1151 (s, C-O), 828 (m), 644 (s) 575 (s).
Elemental (C, H, N) analysis found: C 37.78%, H 2.93%, N 15.59%. M.p. = 243–251 ◦C (decomposition).
Copper(II) bis(4-nitrosophenolato)di(nitroso) (2o): Red solid that failed to crystallise in various
solvent mixtures. Yield: 72%, 6.1g. CuC12H8O6N4. ASAP-MS: m/z 124.0 ([C6H5O2N + H]+, 100%).
IR (neat) υ
max/cm−1 3248 (s, br, O-H). 1598 (m, N=O), 1506 (m, N=O), 1293 (m, N=O), 1147 (m, br,
C-O). Elemental (C, H, N) analysis found: C 37.94% (39.19), H 2.72% (2.19), N 13.52% (15.23). M.p. =
163–170 ◦C (decomposition).

Molecules 2019, 24, 4154
13 of 19
3.2. Isolation of Organic Ligands from Complexes
The copper-nitrosophenolato starting material (2a–2i) (1.0 g) was dissolved in acetone (40 mL)
and the resulting mixture was stirred with polymer-supported thiourea (10 g) and 4 Å molecular sieve
(0.5 g) under a nitrogen atmosphere at ambient temperature for 24 h. The solid polymer-supports
were removed by filtration and the filtrate passed-through a bed of silica (1 cm depth), to remove any
dissolved copper-containing species. The resultant filtrate solution was evaporated to dryness. Pure
nitroso products were obtained in the case of 3h, 3i, 3j and 3o (with a 10% 4-nitrophenol impurity),
for others, the organic residue was purified by column chromatography (hexane-ethyl acetate mixtures,
various ratios), giving low yields of stated aromatic products. For nitroso products that were too
unstable for characterisation after attempting the procedure, the isolation was instead performed in
THF (40 mL) saturated with O2 gas, rather than acetone, to give low yields of oxidised nitro products
(3a, 3b, 3c, 3d) and decomposition products.
4-Methyl-2-nitrophenol (3a) [27]: Eluent: hexane-ethyl acetate (4:1) to yield a brown solid. Yield: 14%,
6.1 g. 1H NMR (400 MHz; CDCl3) 10.46 (1H, s, OH), 7.92 (1H, m, Aryl-H), 7.42 (1H, dd, J 8.0, 2.0,
Aryl-H), 7.08 (1H, d, J 8.8, Aryl-H), 2.37 (3H, s, CH3). δC(400 MHz; DMSO) 150.6 (C1), 136.7 (C2), 136.5
(C4), 129.1 (C5), 125.0 (C3), 119.5 (C6), 19.7 (CH3). ASAP-MS: m/z 153.1 (M•+, 100%). HR-MS calculated
for C7H7NO3 153.0405, found: 153.0400. (−3.3 ppm, −0.5 mDa).
4-Chloro-2-nitrophenol (3b) [27]: Eluent: hexane-ethyl acetate (4:1) to yield a beige solid. Yield: 5%, g.
1H NMR (400 MHz; CDCl3) 10.49 (1H, s, OH) 8.11 (1H, d, J 2.8, Aryl-H), 7.54 (1H, dd, J 8.8, 2.8, Aryl-H),
7.15 (1H, d, J 8.8, Aryl-H). 13C NMR (100 MHz; DMSO) 153.7 (C1), 137.7 (C2), 135.8 (C4), 125.5 (C5),
124.4 (C3), 121.5 (C6). LC-MS: m/z 172.0 ([M − H]−, 100%).
4-Bromo-2-nitrophenol (3c)
[
27
]
:
Eluent: hexane-ethyl acetate (4:1) to yield an orange solid. Yield: 9%,
1
g. H NMR (400 MHz; DMSO) 8.27 (1H, d, J 2.4, Aryl-H), 7.67 (1H, dd, J 8.8 2.4, Aryl-H) 7.10 (1H, d, J
8.8, Aryl-H). 13C NMR (100 MHz; CDCl3) 154.1 (C1), 140.4 (C2), 134.1 (C4), 127.3 (C5), 121.8 (C3), 111.7
(C6). LC-MS m/z 216.3 ([M − H]−, 100%).
2-Nitro-6-methoxy-4-formylphenol (3d)
[
28
]
δ
:
Recrystallised from ethanol to yield an orange solid.
9.87 (s, 1H, HCO), 8.10 (d, J = 1.8 Hz, 1H, Aryl-H), 7.62
1
Yield: 21%, g. H NMR (400 MHz, DMSO-d6)
(d, J = 1.8 Hz, 1H, Aryl-H), 3.96 (s, 3H, OCH3). 13C NMR (101 MHz, DMSO-d6)
δ 190.91, 150.54, 148.23,
137.54, 127.28, 121.33, 113.03, 57.26.
3-(Diethylamino)-6-nitrosophenol (3g)
Yield: %, g. H NMR (400 MHz, DMSO-d6)
Aryl-H), 5.74 (s, 1H, OH), 3.74–3.50 (m, 4H, CH2), 1.27–1.02 (m, 6H, CH3). 13C NMR (101 MHz, DMSO)
[
29
]
δ
:
Brown crystals that required no further purification.
7.30 (d, J = 9.8 Hz, 2H, Aryl-H), 6.89 (d, J = 9.8 Hz, 1H,
1
δ
169.25, 157.58, 149.61, 134.89, 115.81, 95.52, 46.08, 30.05. LC-MS m/z 195.1 ([M
−
H]−, 100%). HR-MS
calculated for C10H14O2N2 195.1134, found: 195.1152 (9.2 ppm, 1.8 mDa).
3-Methoxy-6-nitrosophenol (3h)
[
30
]
:
Eluent: hexane-ethyl acetate (4:1) to yield a green solid. Yield:
1
49%, g. LC-MS m/z 154.7 ([M + H]+, 100%), 152.4 ([M
−
H]−, 100). H NMR (400 MHz; CDCl3) 7.66
(1H, d, J 10.0, Aryl-H), 6.59 (1H, dd, J 10.4, 2.0, Aryl-H), 6.09 (1H, s, Aryl-H) 3.94 (3H, s, O-CH3). 13C
NMR (100 MHz; CDCl3) 171.3 (C6), 170.1 (C1), 150.7 (C3), 135.3 (C4), 117.93 (C2), 100.56 (C5), 56.66
(CH3). HR-MS calculated for C7H8N1O3 154.0504, found: 154.0504. (0.0 ppm, 0.0 mDa).
3-Nitroso-4-methylphenol (3j): Eluent: hexane-ethyl acetate (4:1) to yield an orange solid. Yield: %
1
not applicable as starting material was an isolated mixture, 715 mg. H NMR (400 MHz; DMSO) 8.27
(1H, d, J 2.4, Aryl-H), 7.67 (1H, dd, J 8.8 2.4, Aryl-H) 7.10 (1H, d, J 8.8, Aryl-H). 13C NMR (100 MHz;
CDCl3) 154.1 (C1), 140.4 (C2), 134.1 (C4), 127.3 (C5), 121.8 (C3), 111.7 (C6). LC-MS m/z 138.1 ([M +
H]+, 100%). HR-MS: calculated for C7H8NO2 138.0555, found: 138.0555 (0.0 ppm, 0.0 mDa). Crystal
data: C7H7O2N, f.w. 137.14, studied as two polymorphs, viz.
1957003, T = 100 K, triclinic, a = 7.2648(8), b = 7.3201(8), c = 12.8572(14) Å,
= 84.279(2)◦, V = 667.1(1) Å3, space group P
(no. 2), Z = 4, 9388 reflections (3893 unique, Rint = 0.050),
α
-
3j (from hexane/ethylacetate), CCDC
α
= 88.333(2), = 78.713(2),
β
γ
1

Molecules 2019, 24, 4154
14 of 19
R1 = 0.056, wR2 = 0.159;
12.8007(13), b = 7.7538(8), c = 13.8767(14) Å,
14), Z = 8, 16949 reflections (3000 unique, Rint = 0.036), R1 = 0.037, wR2 = 0.102.
β
-
3j (from chloroform/methanol), CCDC 1957009, T = 120 K, monoclinic, a =
β
= 107.805(4)◦, V = 1311.4(2) Å3, space group P21/c (no.
3-Nitro-4-methylphenol (3j(i)) 27 Eluent: hexane-ethyl acetate (9:1) to yield a brown solid. Yield:
[ ]:
9%, g. 1H NMR (400 MHz; CDCl3) 9.45 (1H, s, OH) 8.08 (1H, d, J 2.8, Aryl-H), 8.02 (1H, dd, J 8.8,
2.8, Aryl-H), 6.88 (1H, d, J 8.8, HC). LC-MS m/z 153.1 (M•+, 100%). HR-MS calculated for C7H7NO3
153.0405, found: 153.0400. (−3.3 ppm, mDa −0.5).
2,4-Dichloro-6-nitrophenol (3k)
[
31
]
:
Recrystallised from ethanol to yield an orange solid. Yield: 49%,
1
g. H NMR (400 MHz; CDCl3) 10.96 (1H, s, OH), 7.92 (1H, s, Aryl-H), 7.62 (1H, s, Aryl-H), 13C NMR
(100 MHz, CDCl3) 150.1, 137.7, 125.7, 124.5, 123.1. LC-MS m/z 207.9 ([M + H]+, 100%).
4-Nitroso-2-methylphenol (2-methyl-1,4-benzoquinone, E and Z isomers (9:4)) (3l) [32]: Eluent:
hexane-ethyl acetate (9:1) to yield a brown solid. Yield: 48%, 147 mg. LC-MS m/z 154.7 ([M + H]+,
1
100%), 152.4 ([M
−
H]−, 100). H NMR (400 MHz; CDCl3) 7.66 (1H, d, J 10.0, Aryl-H), 6.59 (1H, dd, J
10.0, 2.0, Aryl-H), 6.09 (1H, s, Aryl-H) 3.94 (3H, s, O-CH3). 13C NMR (100 MHz; CDCl3) 171.3 (C6),
170.1 (C1), 150.7 (C3), 135.3 (C4), 117.93 (C2), 100.56 (C5), 56.66 (CH3). HR-MS calculated for C7H8NO3
154.0504, found: 154.0504. (0.0 ppm, 0.0 mDa).
2-Chloro-4-nitrosophenol in equilibrium with 2-chloro-1,4-benzoquinone monoxime, E and Z
isomers (4:3) (3m): Eluent: hexane-ethyl acetate (4:1) to yield an orange solid. Yield: 34%, 289
mg. 1H NMR (400 MHz, Chloroform-d)
δ 9.77 (s, 1H, O-H), 8.33 (d, J = 2.7 Hz, 1H, Aryl-H), 8.15
(dd, J = 9.0, 2.7 Hz, 1H), 8.01 (d, J = 2.4 Hz, 1H), 7.83 (dd, J = 10.2, 2.4 Hz, 1H), 7.48 (d, J = 2.5 Hz,
1H), 7.36–7.23 (m, 1H), 7.16 (d, J = 9.0 Hz, 1H), 6.67 (dd, J = 10.1, 3.8 Hz, 1H), 6.49 (s, 1H). 13C NMR
(101 MHz, CDCl3)
δ 180.46, 180.10, 156.96, 149.95, 149.25, 138.84, 137.69, 134.97, 134.65, 131.43, 129.78,
125.39, 124.63, 124.17, 122.05, 120.37, 116.30, 77.36, 77.04, 76.73. LC-MS: m/z = 158.0 ([M + H]+, 100%).
HR-MS calculated for C6H8NO235Cl 158.0009, found: 158.0024 (+9.5 ppm, +1.5 mDa).
1
1,4-Benzoquinone monoxime (3o)
[
33
]
:
Isolated mixture, green solid. Yield: up to 55%, 135 mg. H
NMR (400 MHz; CDCl3) 7.81 (1H, m, Aryl-H), 7.28 (1H, m, Aryl-H), 6.55 (2H, d, J 10.0, Aryl-H). 13
C
NMR (100 MHz; CDCl3) 160.5 (C1), 143.1 (C2), 136.0 (C5), 134.0 (C6), 129.2 (C4), 120.5 (C5). LC-MS: m/z
124.1 ([M + H]+, 100%). HR-MS calculated for C6H6NO2 124.0401, found: 124.0399 (+1.6 ppm, +0.2
mDa). IR (neat)
1127 (s, C-O).
υ
max/cm−1 3316 (br, OH), 1553 (s, N=O), 1442 (s, N=O), 1330 (s, N=O), 1284 (s, N=O),
1
4-Nitrophenol (3o(i))
[34
]:
Brown solid. Yield: 55%, 154 mg. H NMR (400 MHz; d6-DMSO) 8.12 (2H,
m, Aryl-H), 6.92 (2H, m, Aryl-H). 13C NMR (100 MHz; d6-DMSO) 164.6 (C), 139.9 (C1), 128.3 (C4) 126.7
(C3 and C5), 116.3 (C2 and C6). LC-MS m/z 138.1 ([M
H]−, 100%). IR (neat) max/cm−1 3316 (br, OH),
1558 (s, N=O), 1496 (s, N=O), 1329 (s, N=O), 1284 (s, N=O), 1110 (s, C-O).
−
υ
Cycloadditions of copper(II) bis(2-nitrosophenolato) complexes. As adapted from McKillop and
Sayer [22], the copper complex (2a–2h) is purified using a Soxhlett procedure with hot ethanol-water,
then the purified, solid material (1.25 mmol) dissolved in dimethoxyethane (40 mL) and water (5 mL).
To this solution, dimethylacetylene dicarboxylate (5 mmol) in dimethoxyethane (2.5 mL) is added
dropwise and the mixture stirred and heated (90 ◦C) under reflux for 4 h. After ambient cooling to
room temperature, the remaining copper substances are removed by filtration through a bed of silica
(2 cm depth) and then the filtrate is evaporated to dryness. The resulting solid is recrystallised into
hexane-ethyl acetate (1:1) to give a crystalline solid (4b, 4c, 4e, 4h). 4b was instead given using an
improved procedure that used identical conditions but 0.25 mmol starting complex (2b) instead of
1.25 mmol and 1 mmol of DMAD instead of 5 mmol.

Molecules 2019, 24, 4154
15 of 19
Dimethyl 2-hydroxy-6-methyl-2H-benzo[b][1,4]oxazine-2,3-dicarboxylate (4a): Recrystallised from
1
hexane-ethyl acetate (1:1) to yield an orange solid. Yield: 59%, 154 mg. H NMR (400 MHz; d6-DMSO)
8.66 (1H, s, OH) 7.43 (1H, m, Aryl-H), 7.27 (1H, dd, J 8.0, 2.0 Aryl-H), 7.00 (1H, d, J 8.34, Aryl-H),
3.80 (6H, d, J 11.2, O-CH3), 2.32 (3H, s, O-CH3). 13C NMR (100 MHz; d6-DMSO) 167.4 (C=O), 162.3
(C=O), 148.9 (q-C), 142.5 (q-C), 132.6 (Aryl-CH), 130.8 (Aryl-C), 128.8 (Aryl-CH), 127.0 (Aryl-C), 119.0
(Aryl-CH), 89.7 (Aryl-C), 53.7 (O-CH3), 53.5 (O-CH3). LC-MS m/z 278.8 ([M
+ H]+, 78). HR-MS calculated for C13H14NO6 280.0816, found 280.0820 (
0.4 ppm, mDa
(neat)
max/cm−1 3164 (br, w, O-H), 2963 (w, C-H) 1764 (s, C=O), 1723 (s, C=O), 1439 (m, N-O), 1229 (s,
N-O) 1129 (s, N-O), 1056 (s, C-O). Crystal data: CCDC 1957010, C13H13O6N, f.w. 279.24, T = 100 K,
−
H]−, 100%), 280.8 ([M
0.4). IR
−
−
υ
monoclinic, a = 5.861(6), b = 14.109(15), c = 7.528(8) Å,
β
= 90.70(3)◦, V = 622.5(11) Å3, space group Pc
(no. 7), Z = 2, pseudo-merohedral twinning by a 180◦ rotation around z axis, 3986 reflections (2028
unique, Rint = 0.111), R1 = 0.147, wR2 = 0.390. M.p = 207.2–207.8 ◦C.
Dimethyl 6-chloro-2-hydroxy-2H-benzo[b] [1,4]oxazine-2,3-dicarboxylate (4b): Recrystallised from
1
hexane-ethyl acetate (1:1) to yield a yellow solid. Yield 19%, 142 mg. H NMR (400 MHz; CDCl3) 7.51
(1H, m, Aryl-H), 7.22 (1H, dd, J 8.0, 2.0, Aryl-H), 6.94 (1H, d, J 8.34, Aryl-H), 5.13 (1H, s, O-H), 3.97 (6H,
d, J 11.2, O-CH3). 13C NMR (100 MHz; DMSO) 167.0 (C=O), 162.3 (C=O), 148.9 (q-C), 142.5 (q-C), 132.6
(Aryl-CH), 130.8 (Aryl-C), 128.8 (Aryl-CH), 127.0 (Aryl-C), 119.0 (Aryl-CH), 89.7 (Aryl-C), 53.7 (O-CH3),
53.5 (O-CH3). LC-MS m/z (300.3 [M + H]+, 100%), 302.3 ([M + H]+ (37Cl), 25). HR-MS calculated
for C12H11NO635Cl 300.0273 found: 300.0274 (
−
0.3 ppm, mDa 0.1). IR (neat) υ
max/cm−1 3189 (w, br,
−
O-H), 2963 (w, C-H) 1768 (s, C=O), 1725 (s, C=O), 1439 (m, N-O), 1152 (s, N-O), 1000 (s, C-O). Crystal
data: CCDC 1957004, C12H10O6NCl, f.w. 299.66, T = 120 K, monoclinic, a = 5.8201(12), b = 7.5030(15),
c = 14.348(3) Å,
β
= 90.784(8)◦, V = 626.5(2) Å3, space group P21 (no. 4), Z = 2, pseudo-merohedral
twinning by a 180◦ rotation around x axis, 7346 reflections (2831 unique, Rint = 0.043), R1 = 0.085, wR2
= 0.224. M.p = 217.4–219.0 ◦C.
Dimethyl 6-bromo-2-hydroxy-2H-benzo[b] [1,4]oxazine-2,3-dicarboxylate (4c): Recrystallised from
1
hexane-ethyl acetate (1:1) to yield a cream solid. Yield 10%, 86 mg. H NMR (400 MHz; d6-DMSO)
8.79 (1H, s, O-H), 7.86 (1H, d, J 2.4, Aryl-H), 7.64 (1H, dd, J 8.8, 2.4 Aryl-H), 7.13 (1H, d, J 8.8, Aryl-H),
3.86 (3H, s, J 11.2, O-CH3), 3.77 (3H, s, O-CH3). 13C NMR (100 MHz; d6-DMSO) 167.0 (C=O), 162.3
(C=O), 148.9 (q-C), 142.9 (q-C), 135.4 (Aryl-CH), 131.7 (Aryl-C-H), 131.2 (Aryl-C), 119.5 (Aryl-C-H),
114.5 (Aryl-C), 89.7 (Aryl-C), 53.8 (O-CH3), 53.6 (O-CH3). LC-MS: m/z 346.3 ([M + H]+ (81Br), 52%),
344.6 ([M
ppm, mDa
1439 (m, N-O), 1152 (s, N-O), 1000 (s, C-O). M.p, = 220.9–222.7 ◦C.
−
H]− (81Br), 100). HR-MS calculated for C12H11NO679Br 343.9770, found 343.9757. (
1.3). IR (neat)
max/cm−1 3189 (w, br, O-H), 2963 (w, C-H) 1768 (s, C=O), 1725 (s, C=O),
−
3.8
−
υ
Dimethyl 6-formyl-2-hydroxy-8-methoxy-2H-benzo[b] [1,4]oxazine-2,3-dicarboxylate
Recrystallised from hexane-ethyl acetate (7:3) to yield a cream solid. Yield 45%, 190 mg. 1H
NMR (400 MHz, DMSO-d6) 9.96 (s, 1H, ROC-H), 9.19 (s, 1H, O-H), 7.86 (d, J = 1.8 Hz, 1H, Aryl-H),
7.61 (d, J = 1.8 Hz, 1H, Aryl-H), 3.93 (s, 3H, O-CH3), 3.87 (s, 3H, O-CH3), 3.79 (s, 3H, O-CH3). 13C NMR
(101 MHz, DMSO-d6) 191.68 (CHO), 166.76 (C=O), 162.31 (C=O), 149.1, 148.5, 138.4, 131.2 (2C), 130.1,
125.2 (Aryl-CH), 112.8 (Aryl-CH), 56.6 (O-CH3), 53.9 (O-CH3), 53.7 (O-CH3). LC-MS: m/z 324.4 ([M +
H]+, 100%), 322.2 ([M H]−, 100). HR-MS calculated for C14H11NO679Br 322.0563, found 322.0569.
(+1.9 ppm, mDa +0.6). IR (neat)
max/cm−1 2964 (w, C-H), 1765 (s, C=O), 1724 (s, C=O), 1601 (w, N-H),
1485 (m), 1284 (s) 1132 (s, C-O), 975 (s), 799 (s) 584 (m). Crystal data: CCDC 1963155, C14H13O8N, f.w.
323.25, T = 100 K, monoclinic, a = 5.8339(14), b = 10.095(3), c = 12.653(3) Å, = 103.773(5), = 91.131(5),
= 96.467(5)◦, V = 718.4(3) Å3, space group P
(no. 2), Z = 2, 6906 reflections (2896 unique, Rint
0.057), R1 = 0.064, wR2 = 0.195. M.p, = 212.0–213.8 ◦C.
(4d):
δ
δ
−
υ
α
β
γ
1
=
Dimethyl 7-methoxy-2-hydroxy-2H-benzo[b][1,4]oxazine-2,3-dicarboxylate (4i): Recrystallised from
1
hexane-ethyl acetate (3:2) to yield a white solid. Yield 30%, 109 mg. H NMR (400 MHz, DMSO)
δ 8.68
(s, 1H, O-H), 7.53 (s, 1H, Ar-H), 6.76 (Aryl-H), 6.69 (Aryl-H), 3.81 (s, 3H, O-CH3), 3.76 (s, 3H, O-CH3),

Molecules 2019, 24, 4154
16 of 19
3.74(s, 3H, O-CH3). 13C NMR (101 MHz, DMSO-d6)
δ
167.45, 163.26, 162.84, 145.06, 144.12, 130.91,
123.95, 110.41, 101.87, 89.72, 56.38, 53.57, 53.15. IR (neat)
(s, C=O), 1596 (w, N-H), 1438 (m), 1273 (s) 1159 (s, C-O), 1110 (s), 822 (s) 457 (m). LC-MS: m/z 296.3 ([M
υ
max/cm−1 2970 (w, C-H), 1761 (s, C=O), 1719
+ H]+, 100%), 294.1 ([M
−
H]−, 100). HR-MS calculated for C13H14NO7 296.0770, found: 296.0790 (+6.8
ppm, +2.0 mDa). M.p, = 217.4–219.1 ◦C.
Dimethyl 2-hydroxy-7-methyl-2H-benzo[b][1,4]oxazine-2,3-dicarboxylate (4k): Recrystallised from
1
hexane-ethyl acetate (1:1) to yield a yellow solid. Yield 9%, 62.8 mg. H NMR (400 MHz; d6-DMSO)
8.66 (1H, s, O-H) 7.43 (1H, m, Aryl-H), 7.27 (1H, dd, J 8.0, 2.0 Aryl-H), 7.00 (1H, d, J 8.34, Aryl-H),
3.80 (6H, d, J 11.2, O-CH3), 2.32 (3H, s, O-CH3). 13C NMR (100 MHz; d6-DMSO) 167.4 (C=O), 162.7
(C=O), 146.4 (q-C), 143.9 (q-C), 143.3 (Aryl-C), 129.4 (Aryl-CH), 127.8 (Aryl-C), 124.4 (Aryl-CH), 117.4
(Aryl-CH), 89.7 (Aryl-C), 53.7 (O-CH3), 53.5 (O-CH3), 21.7 (CH3). LC-MS: m/z 278.8 ([M
−
H]−, 100%)
0.4
280.8 ([M + ]+, 100). HR-MS calculated for C13H14NO6 280.0824, found: 280.0820. (
−
0.4 ppm,
−
mDa). IR (neat) υ
max/cm−1 3164 (w, br, O-H), 2963 (w, C-H) 1764 (s, C=O), 1723 (s, C=O), 1439 (m,
N-O), 1229 (s, N-O) 1129 (s, N-O), 1056 (s, C-O). M.p. = 211.8–213.4 ◦C.
3.3. X-ray Crystallography
X-ray diffraction experiments for 2a
D8 Venture diffractometer with a PHOTON 100 CMOS area detector, using Mo-K
radiation from Incoatec I S microsources with focusing mirrors ( = 0.71073 and 1.54184 Å, respectively).
,
2d
,
2k
,
β-
3j and 4b and were carried out on a Bruker 3-circle
α
or (for 2k) Cu-K
α
µ
λ
Crystals were cooled to 120 K using a Cryostream (Oxford Cryosystems) open-flow N2 gas cryostat. The
data were processed using APEX3 v.2016.1-0 and reflection intensities integrated using SAINT v8.38A
software (Bruker AXS, 2016). 2c
(RAL) on a dual air-bearing fixed-
2M detector [35], using undulator radiation monochromated with double-crystal Si(111) (λ = 0.6889 Å
,
α
-
3j, 4a and 4d were studied at Beamline I19 of Diamond Light Source
χ
diffractometer with pixel-array photon-counting Dectris Pilatus
,
for 4d, 0.9098 Å). The crystal was cryo-mounted using remote-controlled BART robot [35] and cooled
to 100 K using a Cryostream cryostat. The diffraction images were converted to Bruker format using
cbf_to_sfrm.py program [35] and further processed with APEX3 and SAINT software (vide supra). The
data were corrected for absorption by semi-empirical method based on Laue equivalents and multiple
scans using SADABS 2016/2 program (2014/4 for 2a) [36]. The data from twinned crystals of 4a and 4b
were deconvoluted using PLATON TwinRotMat program [37]. The structures 2a and 2k were solved
by direct methods using SHELXS 2013/1 software [38], the rest by dual-space intrinsic phasing method
using SHELXT 2018/2 program [39], and refined by full-matrix least squares using SHELXL 2018/3
software [40] on OLEX2 platform [41].
4. Conclusions
Copper bis(2-nitrosophenolato) complexes, including several new structures, have been generated
in fair-to-high yields using a simple copper-mediated nitrosation procedure, starting from sufficiently
reactive phenolic substrates. The target complex was generated when the substituents of the
substrate encourage ortho-nitrosation or discourage para-nitrosation, with a different type of copper
compound being formed from other substrates. This confirms that the latter substrates cannot form
2-nitrosophenolato complexes in this way and instead the more complicated ‘Baudisch reaction’ [9]
conditions must be used; hence addressing some confusion across the existing literature. Where
possible, the organic ligands, or their products of oxidation, have been isolated from the complexes and
understanding of the stability of certain 2-nitrosophenol compounds has improved. The complexes
have undergone cycloadditions in low-to-high yields to a unique bicyclic structure that is different to
the literature proposition and the scope includes two new compounds.

Molecules 2019, 24, 4154
17 of 19
Supplementary Materials: The following are available online, 1H and 13C-NMR spectra, mass spectra,
infrared spectra and XRD crystallographic data of compounds. Crystallographic data in CIF format have
been deposited with Cambridge Structural Database (CCDC-1957003 to 1957010, 1963155) and are available online.
Author Contributions: The investigation, practical work, analysis and preparation of the draft was performed by
A.J.N.; The XRD analysis and published crystal structures were obtained by A.S.B., who also assisted with the
editing of the paper. The supervision, conceptualization, funding acquisition, further analysis, review and editing
of the script and project administration were conducted by I.R.B.
Funding: The authors would gratefully like to acknowledge financial support from Thomas Swan & Co. Ltd.
(AJN, RF030507).
Acknowledgments: We would like to gratefully acknowledge Dmitry S. Yufit (Durham University) for solving
the structures of compound 2a and 4d. The Diamond Light Source is thanked for the award of instrument time on
Station I19 (CY-22240) and the instrument scientists for their kind support.
Conflicts of Interest: The authors declare no conflict of interest. The funders had no role in the design of the
study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to
publish the results.
References
1.
Nicholls, A.J.; Barber, T.; Baxendale, I.R. The Synthesis and Utility of Metal-Nitrosophenolato
Compounds—Highlighting the Baudisch Reaction. Molecules 2019, 24, 4018. [CrossRef]
Williams, D.L.H. Nitrosation Reactions and the Chemistry of Nitric Oxide, 1st ed.; Elsevier B.V.: Bodmin, UK, 2004.
Atherton, J.H.; Moodie, R.B.; Noble, D.R. Kinetics and mechanism of nitrosation of toluene, o-xylene, and
m-xylene in trifluoroacetic acid, or in acetic–sulfuric acid mixtures, under nitric oxide. J. Chem. Soc. Perkin
Trans. 2 1999, 699–706. [CrossRef]
2.
3.
4.
5.
Atherton, J.H.; Moodie, R.B.; Noble, D.R.; O’Sullivan, B. Nitrosation of m-xylene, anisole, 4-nitrophenyl
phenyl ether and toluene in trifluoroacetic acid or in acetic–sulfuric acid mixtures under nitric oxide. J. Chem.
Soc. Perkin Trans. 2 1997, 2, 663–664. [CrossRef]
Buckley, R.G.; Charalambous, J.; Kensett, M.J.; McPartlin, M.; Mukerjee, D.; Brain, E.G.; Jenkins, J.M. Reaction
of triphenylphosphine with copper complexes derived from 2-nitrosophenols (1,2-quinone mono-oximes). J.
Chem. Soc. Perkin Trans. 1 1983, 693. [CrossRef]
6.
7.
Buckley, R.G.; Charalambous, J.; Brain, E.G. Interaction of copper complexes derived from 1,2-quinone
monooximes (2-nitroso-phenols) with amines. J. Chem. Soc. Perkin Trans. 1 1982, 1075. [CrossRef]
Castellani, C.B.; Millini, R. Notes: Studies on copper(II) complexes of ortho-quinone mono-oximes: Reaction
of bis(4-chloro-1,2-benzoquinone 2-oximato)copper(II) with dimethyl acetylenedicarboxylate under various
experimental conditions. J. Chem. Soc. Dalton Trans. 1984, 1461–1462. [CrossRef]
8.
9.
Cronheim, G. O-Nitrosophenols. J. Org. Chem. 1947, 12, 1–29. [CrossRef] [PubMed]
Baudisch, O. A New Chemical Reaction with the Nitrosyl Radical NOH. Science 1940, 92, 336–337. [CrossRef]
10. Konecny, J.O. Hydroxylation of Benzene in Aqueous Solution in the Presence of Hydroxylamine
Hydrochloride. J. Am. Chem. Soc. 1955, 77, 5748–5750. [CrossRef]
11. Maruyama, K.; Goto, R.; Tanimoto, I. Studies on the Baudisch Reaction. I. The Synthesis of O-Nitrosophenols.
J. Org. Chem. 1967, 32, 2516–2520. [CrossRef]
12. Maruyama, K.; Tanimoto, I. Studies on the Baudisch Reaction. IV. The Reaction Mechanism. Bull. Chem. Soc.
Jpn. 1971, 44, 3120–3123. [CrossRef]
13. Dessouky, Y.M.; Gal El Rub, L.N. Colorimetric determination of procaine hydrochloride in pharmaceutical
preparations. Analyst 1976, 101, 717–719. [CrossRef] [PubMed]
14. Charalambous, J.; Frazer, M.J.; Taylor, F.B. Complexes of copper(II) with o-nitrosophenols (monoximes of
ortho-benzoquinones). J. Chem. Soc. A 1969, 2787–2791. [CrossRef]
15. Graziani, R.; Casellato, U.; Vigato, P.A.; Tamburini, S.; Vidali, M. Preparation and crystal
structure of diaquabis(1,2-naphthoquinone-2-oximato-ON)dioxouranium(VI)–trichloromethane (1/2) and
aquabis(1,2-naphthoquinone-1-oximato-ON)(triphenylphosphine oxide)dioxouranium(VI). J. Chem. Soc.
Dalton Trans. 1983, 697–701. [CrossRef]
16. Kundu, S.; Kim, W.Y.; Bertke, J.A.; Warren, T.H. Copper(II) activation of nitrite: Nitrosation of nucleophiles
and generation of NO by thiols. J. Am. Chem. Soc. 2017, 139, 1045–1048. [CrossRef]

Molecules 2019, 24, 4154
18 of 19
17. Al-Obaidi, U.; Moodie, R.B. The nitrous acid-catalysed nitration of phenol. J. Chem. Soc. Perkin Trans. 2 1985
467–472. [CrossRef]
,
18. Batsanov, S.S. Van der Waals radii of elements. Inorg. Mater. 2001, 37, 871–885. [CrossRef]
19. Hayton, T.W.; Legzdins, P.; Sharp, W.B. Coordination and Organometallic Chemistry of Metal NO Complexes.
−
Chem. Rev. 2002, 102, 935–991. [CrossRef]
20. Castellani, C.B.; Carugo, O. Studies on copper(II) complexes of o-quinone monooximes. 8. Penta and
hexacoordinated adducts of bis(4-chloro-1,2-benzaquinone 2-oximato)copper(II), [Cu(Clqo)2], with imidazole
and N-methylimidazole. Inorg. Chim. Acta 1988, 150, 119–123. [CrossRef]
21. Ramozzi, R.; Chéron, N.; El Kaïm, L.; Grimaud, L.; Fleurat-Lessard, P. Predicting new ugi-smiles couplings:
A combined experimental and theoretical study. Chem.-Eur. J. 2014, 20, 9094–9099. [CrossRef]
22. McKillop, A.; Sayer, T.S.B. Metal complexes in organic synthesis. I. Cycloaddition of dimethyl
acetylenedicarboxylate with the bis copper(II) complexes formed from o-nitrosophenols. Synthesis of
2,3-dicarbomethoxy-4-hydroxy-1,4-benzoxazines. J. Org. Chem. 1976, 41, 1079–1080. [CrossRef]
23. Zhang, W.; Ren, S.; Zhang, J.; Liu, Y.; Ren, S.; Liu, Y. Palladium-Catalyzed sp(3 )C-H Nitration of
8-Methylquinolines. J. Org. Chem. 2014, 79, 11508–11516. [CrossRef] [PubMed]
24. Castellani, C.B.; Calligaris, M.; Carugo, O. Studies on copper(II) complexes of o-quinone monooximes. 7.
Cyanato adducts of bis(4-chloro-1,2-benzoquinone 2-oximato)copper(II), Cu(Clqo)2. Inorg. Chim. Acta 1988
,
150, 203–205. [CrossRef]
25. Adatia, T.; Chakrabarti, J.; Charalambous, J.; Carugo, O.; Castellani, C.B. Synthesis and structural
characterization of lithium and sodium complexes of 5-ethylamino-4-methyl-1,2-benzoquinone 2-oxime.
Polyhedron 1996, 15, 1331–1338. [CrossRef]
26. Charalambous, J.; Kensett, M.J.; Jenkins, J.M. Deoxygenation of 2-nitrosophenols and of
their metal complexes with triphenylphosphine.
Synthesis of phenazines, dihydrophenazines,
triphenyl(o-hydroxyphenylimino)phosphoranes and their metal complexes. J. Chem. Soc. Chem. Commun.
1977, 12, 400–401. [CrossRef]
27. Meris¸or, E.; Conrad, J.; Klaiber, I.; Mika, S.; Beifuss, U. Triethyl Phosphite Mediated Domino Reaction: Direct
Conversion of ω-Nitroalkenes Into N-Heterocycles. Angew. Chem. Int. Ed. 2007, 46, 3353–3355. [CrossRef]
28. Kiss, L.E.; Ferreira, H.S.; Torrão, L.; Bonifácio, M.J.; Palma, P.N.; Soares-da-Silva, P.; Learmonth, D.A.
Discovery of a Long-Acting, Peripherally Selective Inhibitor of Catechol-O-methyltransferase. J. Med. Chem.
2010, 53, 3396–3411. [CrossRef]
29. Ramm, J.H.; Gartmann, N.; Brühwiler, D. Direct synthesis and fluorescent imaging of bifunctionalized
mesoporous iodopropyl-silica. J. Colloid Interface Sci. 2010, 345, 200–205. [CrossRef]
30. Maleski, R.J.; Kluge, M.; Sicker, D. A facile access to substituted 2-nitrosophenols and 2-nitrophenols via
regioselective nitrosation of resorcinol monoethers. Synth. Commun. 1995, 25, 2327–2335. [CrossRef]
31. Clewley, R.G.; Cross, G.G.; Fischer, A.; Henderson, G.N. Formation of 4-Halo-4-nitrocyclohexa-2,5-dienones
on nitration of p-halophenols and p-halophenyl acetates. Tetrahedron 1989, 45, 1299–1310. [CrossRef]
32. Defoin, A.; Geffroy, G.; Le Nouen, D.; Spileers, D.; Streith, J. Cascade Reactions. A Simple One-pot Synthesis
of the Mitomycin Skeleton. Helv. Chim. Acta 1989, 72, 1199–1215. [CrossRef]
33. Norris, R.; Sternhell, S.N.M.R. spectra of “p-nitrosophenol” and its methyl derivatives. Aust. J. Chem. 1966
19, 841. [CrossRef]
,
34. Karimi Zarchi, M.A.; Rahmani, F. Regioselective and green synthesis of nitro aromatic compounds using
polymer-supported sodium nitrite/KHSO4. J. Appl. Polym. Sci. 2011, 120, 2830–2834. [CrossRef]
35. Johnson, N.T.; Waddell, P.G.; Clegg, W.; Probert, M.R. Remote Access Revolution: Chemical Crystallographers
Enter a New Era at Diamond Light Source Beamline I19. Crystals 2017, 7, 360. [CrossRef]
36. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of silver and molybdenum microfocus
X-ray sources for single-crystal structure determination. J. Appl. Crystallogr. 2015, 48, 3–10. [CrossRef]
[PubMed]
37. Spek, A.L. PLATON: A Multipurpose Crystallographic Tool. Available online: http://www.cryst.chem.uu.nl/
spek/platon/ (accessed on 6 November 2019).
38. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A Found. Crystallogr. 2008, 64, 112–122.
[CrossRef]
39. Sheldrick, G.M. SHELXT–Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect.
A Found. Adv. 2015, 71, 3–8. [CrossRef]

Molecules 2019, 24, 4154
19 of 19
40. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71,
3–8. [CrossRef]
41. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure
solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
