Oxidative addition of carbon-chloride bonds to rhodium(I) complexes containing terdentate nitrogen ligands. X-ray analyses of rhodium(I) chloride and rhodium(III) chloromethyl complexes

Article abstract of DOI:10.1021/om9607614

Potentially terdentate hemilabile 2,6-bis(R²-carbaldimino)pyridine and 2,6-bis(R²-ethylidyneimino)pyridine ligands (2,6-(C(R¹)=NR²)₂C₅H₃N; R¹ = H, R² = i-Pr

Full text of DOI:10.1021/om9607614

Organometallics 1997, 16, 887-900
887
Oxid a tive Ad d ition of Ca r bon -Ch lor id e Bon d s to
Rh od iu m (I) Com p lexes Con ta in in g Ter d en ta te Nitr ogen
Liga n d s. X-r a y An a lyses of Rh od iu m (I) Ch lor id e a n d
Rh od iu m (III) Ch lor om eth yl Com p lexes
Hendrikus F. Haarman,† J an M. Ernsting,† Mirko Kranenburg,†
Huub Kooijman,‡ Nora Veldman,‡ Anthony L. Spek,‡
Piet W. N. M. van Leeuwen,† and Kees Vrieze*,†
J . H. van’t Hoff Research Instituut, Laboratorium voor Anorganische Chemie, Universiteit van
Amsterdam, Nieuwe Achtergracht 166, 1018 WV Amsterdam, The Netherlands, and Bijvoet
Centre for Biomolecular Research, Vakgroep Kristal- en Structuurchemie, Universiteit Utrecht,
Padualaan 8, 3584 CH Utrecht, The Netherlands
Received September 3, 1996X
Potentially terdentate hemilabile 2,6-bis(R2-carbaldimino)pyridine and 2,6-bis(R2-ethyli-
dyneimino)pyridine ligands (2,6-(C(R1)dNR2)2C5H3N; R1 ) H, R2 ) i-Pr (1), t-Bu (2),
cyclohexyl (3), p-anisyl (4); R1 ) Me, R2 ) p-anisyl (5), i-Pr (6)) have been used to prepare
in high yields the novel and highly nucleophilic complexes [RhCl(2,6-(C(R1)dNR2)2C5H3N)]
(R1 ) H, R2 ) i-Pr (7), t-Bu (8), cyclohexyl (9), p-anisyl (10); R1 ) Me, R2 ) p-anisyl (11),
i-Pr (12)) with [RhCl(alkene)2]2 (alkene ) ethene, cyclooctene) as starting material. X-ray
analyses of 7, 8, and 12 show severe steric interactions between the R2 group and the
equatorial chloride atom, leading to out-of-plane bending of the chloride atom. The angle
between the NsNsN plane and the RhsCl axis is 5.34(16)° for 7, 11.73(11)° for 8, and
10.04(11)° for 12. Reaction of the Rh(I) complexes with CH2Cl2, CHCl3, benzyl chloride,
and R,R-dichlorotoluene led to Rh(III) complexes by CsCl bond rupture. The RhsC bonds
of the chloromethyl complexes [RhCl2(CH2Cl)(2,6-(C(R1)dNR2)2C5H3N)] (R1 ) H, R2 ) i-Pr
(13), cyclohexyl (15)) are all short (2.052(5)-2.059(3) Å), while the CsCl bonds (range 1.728-
(4)-1.790(5) Å) are rather long, which indicates the contribution of a RhdCH2+Cl- resonance
form. In solution all Rh(III) complexes exist as one isomer with the ligand bonded in a
terdentate fashion (both H and 13C NMR), except for the complexes [RhCl2(R3)(2,6-(C(Me)dN-
1
i-Pr)2C5H3N)] (R3 ) CH2Cl (18), CH2Ph (24), CHClPh (27), Cl (33)), which all contain two
interconverting isomers; one five-coordinate Rh(III) isomer has a ligand which coordinates
in a bidentate manner, while the other six-coordinate isomer has a ligand which coordinates
in a terdentate fashion, as evidenced by low-temperature NMR measurements. Molecular
modeling has shown that the formation of the five-coordinate Rh(III) species is caused by
the axial ligands, which force the equatorial Cl atom into the NsNsN plane, resulting in
an increased steric interaction of R2 and R1. Reaction of the chloromethyl and dichloromethyl
complexes 13-21 in boiling water with oxygen gave the trichloride complexes [RhCl3(2,6-
(C(R1)dNR2)2C5H3N)] (R1 ) H, R2 ) i-Pr (28), t-Bu (29), cyclohexyl (30), p-anisyl (31); R1 )
Me, R2 ) p-anisyl (32), i-Pr (33)), while the chlorotolyl complex [RhCl2(CHClPh)(2,6-
(C(Me)dN-i-Pr)2C5H3N)] 27 gave the complex 33, benzaldehyde, and H2O2.
In tr od u ction
bonylation reactions homogeneously catalyzed by pal-
ladium and platinum complexes.7-14 Oxidative addition
is also a general synthetic method for formation of
carbon-metal σ-bonds.15
The oxidative addition of carbon halides to low-valent
metal complexes is of paramount interest. It is a key
step in a number of industrially important catalytic
processes, such as the carbonylation of methanol to
acetic acid1,2 catalyzed by rhodium and HI, for which
the kinetics have been elucidated largely by the work
of Maitlis et. al.3-6 Another example is the oxidative
addition of aryl halides in the cross-coupling and car-
To elucidate the mechanism of the oxidative addition
of carbon-halide bonds, a considerable amount of work
(5) Haynes, A.; Mann, B. E.; Gulliver, D. J .; Morris, G. E.; Maitlis,
P. M. J . Am. Chem. Soc. 1991, 113, 8567.
(6) Hickey, C. E.; Maitlis, P. M. J . Chem. Soc., Chem. Commun.
1984, 1609.
(7) Huser, M.; Youinou, M.-T.; Osborn, J . A. Angew. Chem., Int. Ed.
Engl. 1989, 28, 1386.
(8) Herrmann, W. A.; Brossmer, C.; Priermeier, T.; O¨ fele, K. J .
Organomet. Chem. 1994, 481, 97.
* To whom correspondence should be adressed.
† Universiteit van Amsterdam.
‡ Universiteit Utrecht.
X Abstract published in Advance ACS Abstracts, February 1, 1997.
(1) Forster, D.; Singleton, T. C. J . Mol. Catal. 1982, 17, 299.
(2) Forster, D. Adv. Organomet. Chem. 1979, 17, 255.
(3) Ellis, P. R.; Pearson, J . M.; Haynes, A.; Adams, H.; Bailey, N.
A.; Maitlis, P. M. Organometallics 1994, 13, 3215.
(4) Fulford, A.; Hickey, C. E.; Maitlis, P. M. J . Organomet. Chem.
1990, 398, 311.
(9) van Asselt, R.; Elsevier, C. J . Organometallics 1992, 11, 1999.
(10) Portnoy, M.; Milstein, D. Organometallics 1993, 12, 1665.
(11) Grushin, V. V.; Alper, H. Chem. Rev. 1994, 94, 1047.
(12) Brown, J . M.; Cooley, N. A. Chem. Rev. 1988, 88, 1301.
(13) Stille, J . K. Angew. Chem., Int. Ed. Engl. 1986, 25, 508.
(14) Trost, B. M. Acc. Chem. Res. 1980, 13, 385.
(15) Stille, J . K.; Lau, K. S. Y. Acc. Chem. Res. 1977, 10, 434.
S0276-7333(96)00761-3 CCC: $14.00 © 1997 American Chemical Society

888 Organometallics, Vol. 16, No. 5, 1997
Haarman et al.
has been focused on zerovalent palladium and platinum
complexes.16-23 Many kinetic studies have been carried
out on Ir(I) complexes, e.g. trans-[IrX(CO)L2] (X )
halide, L ) phosphine).17 It has become clear that no
single mechanism holds for oxidative-addition reactions.
In general three different mechanisms (oxidative inser-
tion, backside nucleophilic SN2 substitution, and radical
pathways) have been observed, depending on the reac-
tants and the conditions of the reaction.15-23 A recent
article on oxidative-addition reactions involving [IrCl-
(CO)L2], MeI, H2, and O2 illustrates the difficulty of
obtaining clear insight into the mechanisms of these
reactions.24
When we restrict ourselves to oxidative additions of
carbon halide substrates to complexes of Rh(I) and Ir-
(I), it has been found that, for example, additions of
CH2X2 (X ) Cl, Br, I) are generally enhanced by
increasing the electron density on the metal atom. This
is evidenced by the oxidative addition of CH2I2 to
[RhCp*(CO)2] (Cp* ) pentamethylcyclopentadiene), af-
fording [RhI(CH2I)Cp*(CO)], while [RhCp(CO)2] (Cp )
cyclopentadiene) in contrast does not react, owing to the
smaller electron donor capacity of Cp compared to Cp*.25
The activation of dichloromethane requires even stron-
ger donor ligands.26-38 For example, reaction of [Rh-
(dmpe)2]Cl containing the strongly electron donating
Me2P(CH2)2PMe2 (ddmpe) ligands with CH2Cl2 afforded
the complex [RhCl(CH2Cl)(dmpe)2]Cl‚CH2Cl2.39 Coor-
dination of ligands with three or four nitrogen donor
atoms to Rh(I) gives also strongly nucleophilic species
that can activate dichloromethane. For example, reac-
tion of a rhodium(I) complex with a tetradentate cyclic
dioxime ligand with CH2Cl2 afforded a chloromethyl
complex.36 Reaction of [RhCl(cyclooctene)2] with the
terdentate nitrogen ligand bis(4,4-dimethyloxazolin-2-
yl)pyridine (pybox) in dichloromethane gave the corre-

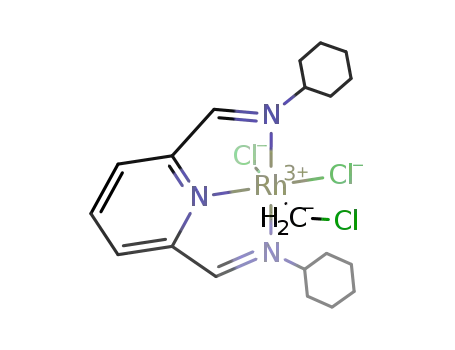

sponding (chloromethyl)rhodium(III) complex [RhCl2(CH2-
Cl)(pybox)], but attempts to isolate the intermediate
nucleophilic Rh(I) complexes failed.40
Recently, articles on the stability of a series of chloro-
(chloromethyl)palladium(II) and -platinum complexes in
CDCl3 solution (both in the absence and presence of air)
were published by McCrindle et al.41 In the case of
trans-mono(chloromethyl)platinum(II) complexes it was
found that they decompose in the presence of moisture
to formaldehyde and platinum hydrides, which undergo
subsequent conversion into dichlorides.42 It was sug-
gested, in analogy to the work of van Leeuwen et al.,43
that metal-carbene intermediates may be involved.
In our laboratory we are investigating the influence
of steric and electronic properties of bi- and terdentate
nitrogen ligands on the course of a number of carbon-
carbon coupling reactions mediated by palladium
complexes.44-48 In the course of these studies we have
designed bidentate nitrogen ligands which are able to
stabilize Pd(0), Pd(II), and Pd(IV) complexes.44-48 These
results prompted us to extend our investigations to
complexes of Rh with the aim of stabilizing both Rh(I)
and Rh(III) complexes and creating very nucleophilic
Rh(I) species. In this article we describe the employ-
ment of the trinitrogen species 2,6-bis(R2-carbaldimino)-
pyridine and 2,6-bis(R2-ethylidyneimino)pyridine (2,6-
(C(R1)dNR2)2C5H3N: R1 ) H, R2 ) i-Pr (1), t-Bu (2),
cyclohexyl (3), p-anisyl (4); R1 ) Me, R2 ) p-anisyl (5),
i-Pr (6)) for the isolation of novel, very reactive Rh(I)
complexes. The use of these trinitrogen ligands makes
it possible to form stable, strongly nucleophilic Rh(I)
complexes, which undergo a fast oxidative addition of
a number of substrates containing CsCl bonds. In
addition we have studied from a structural point of view
the alkylidene character of the chloromethyl moieties
of the Rh(III) complexes.
