3440 J ournal of Medicinal Chemistry, 2003, Vol. 46, No. 16
Letters
(6) You-Ten, K. E.; Muise, E. S.; Itie´, A.; Michaliszyn, E.; Wagner,
J .; J othy, S.; Lapp, W. S.; Tremblay, M. L. Impaired Bone
Marrow Microenvironment and Immune Function in T Cell
Protein Tyrosine Phosphatase-Deficient Mice. J . Exp. Med. 1997,
186, 683-693.
(7) For recent reviews on structure-based design of PTP1B inhibi-
tors, see (a) J ohnson, T. O.; Ermolieff, J .; J irousek, M. R. Protein
Tyrosine Phosphatase 1B Inhibitors for Diabetes. Nat. Rev. Drug
Discovery 2002, 1, 696-709; (b) Liu, G.; Trevillyan, J . M. Protein
Tyrosine Phosphatase 1B as a Target for the Treatment of
Impaired Glucose Tolerance and Type 2 Diabetes. Curr. Opin.
Invest. Drugs 2002, 3, 1608-1616.
(8) Puius, Y. A.; Zhao, Y.; Sullivan, M.; Lawrence, D. S.; Almo, S.
C.; Zhang, Z.-Y. Identification of a Second Aryl Phosphate-
Binding Site in Protein-Tyrosine Phosphatase 1B: A Paradigm
for Inhibitor Design. Proc. Natl. Acad. Sci. U.S.A. 1997, 94,
13420-13425.
(9) Szczepankiewicz, B. G.; Liu, G.; Pei, Z.; Xin, Z.; Lubben, T.;
Trevillyan, J . M.; Stashko, M. A.; Ballaron, B. J .; Hajduk, P. J .;
Liang, H.; Huang, F.; Hutchins, C. W.; Abad-Zapatero, C.;
J irousek, M. R.; Fesik, S. W. Discovery of a Potent, Selective
Protein Tyrosine Phosphatase 1B Inhibitor Using a Linked-
Fragment Based Strategy. J . Am. Chem. Soc. 2003, 125, 4087-
4096.
(10) Xin, Z.; Oost, T.; Abad-Zapatero, C.; Hajduk, P. J .; Pei, Z.;
Szczepankiewicz, B. G.; Hutchins, C. W.; Ballaron, S. J .; Stashko,
M. A.; Lubben, T.; Trevillyan, J . M.; J irousek, M. R.; Liu, G.
Potent, Selective Inhibitors of Protein Tyrosine Phosphatase 1B.
Bioorg. Med. Chem. Lett. 2003, 13, 1887-1890.
(11) Shen, K.; Keng, Y. F.; Wu, L.; Guo, X.-L.; Lawrence, D. S.; Zhang,
Z.-Y. Acquisition of a Specific and Potent PTP1B Inhibitor from
a Novel Combinatorial Library and Screening Procedure. J . Biol.
Chem. 2001, 276, 47311-47319.
(12) Sun, J .-P.; Fedorov, A. A.; Lee, S.-Y.; Guo, X.-L.; Shen, K.;
Lawrence, D. S.; Almo, S. C.; Zhang, Z.-Y. Crystal Structure of
no augmenting effect was observed, possibly as the
result of low permeability of 10 via passive diffusion.
To circumvent this problem, a prodrug approach using
the diester of 10 was explored. The ester prodrug 18
(Scheme 1) exhibited significantly increased penetration
of Caco-2 cell monolayers (Papp > 1 × 10-6 cm/s). More
importantly, 18 showed augmentation of submaximal
insulin (0.025 nM)-stimulated PKB phosphorylation in
a dose dependent manner at concentrations of 100 µM
(65% increase) and 300 µM (150% increase), respec-
tively, when compared to the level of PKB phosphory-
lation in vehicle treated cells (see Supporting Informa-
tion). The conversion of ester 18 to the parent compound
10 was confirmed by LC-MS when 18 was incubated
with lysate of FAO cells (see Supporting Information).
Similar prodrug strategies for improving cellular per-
meability of PTP1B inhibitors have been reported by
Bleasdale et al.21 and Andersen et al.,22 respectively.

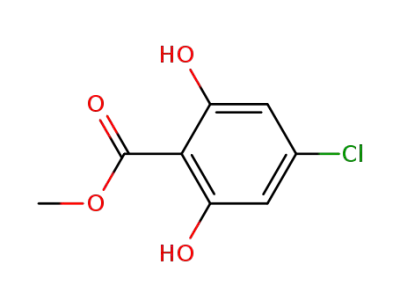

In summary, a novel series of salicylate-based ligands
for the second phosphotyrosine binding site of PTP1B
was discovered through NMR-based fragment screening
and structure-based assembly strategy. Linking with
the oxalylarylaminobenzoic acid-based catalytic site
pharmacophore resulted in a series of highly potent
PTP1B inhibitors with selectivity over TCPTP. The
unique binding mode of this series of PTP1B inhibitors
was determined by X-ray crystallography. The identi-
fication of the salicylate-based site 2 ligands offers
opportunities for linking with other novel, less charged,
active site-directed pTyr mimetics to yield highly potent,
selective, and cell permeable PTP1B inhibitors.
PTP1B Complexed with
a Potent and Selective Bidentate
Inhibitor. J . Biol. Chem. 2003, 278, 12406-12414.
(13) Hajduk, P. J .; Augeri, D. J .; Mack, J .; Mendoza, R.; Yang, J .;
Betz, S. F.; Fesik, S. W. NMR-Based Screening of Proteins
Containing 13C-Labeled Methyl Groups. J . Am. Chem. Soc. 2000,
122, 7898-7904.
(14) Shuker, S. B.; Hajduk, P. J .; Meadows, R. P.; Fesik, S. W.
Discovering High-Affinity Ligands for Proteins: SAR By NMR.
Science 1996, 274, 1531-1534.
Ack n ow led gm en t. We thank Drs. Elizabeth Everitt
and Mark Schurdak for determining the Caco-2 perme-
ability of 10 and 18.
(15) Refined crystallographic coordinates for the structure of PTP1B
complexed with compound 6 have been deposited with the
(16) Iversen, L. F.; Møller, K. B.; Pedersen, A. K.; Peters, G. H.;
Petersen, A. S.; Andersen, H. S.; Branner, S.; Mortensen, S. B.;
Møller, N. P. H. Structure Determination of T Cell Protein-
Tyrosine Phosphatase. J . Biol. Chem. 2002, 277, 19982-19990.
(17) Liu, G.; Szczepankiewicz, B. G.; Pei, Z.; J anowick, D.; Xin, Z.;
Liang, H.; Hadjuk, P. J .; Abad-Zapatero, C.; Hutchins, C. W.;
Fesik, S. W.; Ballaron, S. J .; Stashko, M. A.; Lubben, T.; Mika,
A. K.; Zinker, B. A.; Trevillyan, J . M.; J irousek, M. R. Discovery
and SAR of Oxalyl-Aryl-Amino Benzoic Acids as Inhibitors of
Protein Tyrosine Phosphatase 1B. J . Med. Chem. 2003, 46, 2093-
2103.
(18) The actual selectivity would be substantially higher than 75-
fold since 3 µM is the highest concentration tested.
(19) Yee, S. In Vitro Permeability Across Caco-2 Cells (Colonic) Can
Predict In Vivo (Small Intestinal) Absorption in MansFact or
Myth. Pharm Res. 1997, 14, 763-766.
(20) Galetic, I.; Andjelkovic, M.; Meier, R.; Brodbeck, D.; Park. J .;
Hemmings, B. A. Mechanism of Protein Kinase B Activation by
Insulin/Insulin-Like Growth Factor-1 Revealed by Specific In-
hibitors of Phosphoinositide 3-Kinase- -Significance for Diabetes
and Cancer. Pharmacol. Ther. 1999, 82, 409-425.
(21) Bleasdale, J . E.; Ogg, D.; Palazuk, B. J .; J acob, C. S.; Swanson,
M. L.; Wang, X.-Y.; Thompson, D. P.; Conradi, R. A.; Mathews,
W. R.; Laborde, A. L.; Stuchly, C. W.; Heijbel, A.; Bergdahl, K.;
Bannow, C. A.; Smith, C. W.; Svensson, C.; Liljebris, C.;
Schostarez, H. J .; May, P. D.; Stevens, F. C.; Larsen, S. D. Small
Molecule Peptidomimetics Containing a Novel Phosphotyrosine
Bioisostere Inhibit Protein Tyrosine Phosphatase 1B and Aug-
ment Insulin Action. Biochemistry 2001, 40, 5642-5654.
(22) Andersen, H. S.; Olsen, O. H.; Iversen, L. F.; Sørensen, A. L. P.;
Mortensen, S. B.; Christensen, M. S.; Branner, S.; Hansen, T.
K.; Lau, J . F.; J eppesen, L.; Moran, E. J .; Su, J .; Bakir, F.; J udge,
L.; Shahbaz, M.; Collins, T.; Vo, T.; Newman, M. J .; Ripka, W.
C.; Møller, N. P. H. Discovery and SAR of a Novel Selective and
Orally Bioavailable Nonpeptide Classical Competitive Inhibitor
Class of Protein-Tyrosine Phosphatase 1B. J . Med. Chem. 2002,
45, 4443-4459.
Su p p or tin g In for m a tion Ava ila ble: Experimental de-
tails and analytical and spectral characterization data of key
compounds. This material is available free of charge via the
Internet at http://pubs.acs.org.
Refer en ces
(1) For reviews on PTP1B target validation, see: (a) Goldstein, B.
J . Protein-Tyrosine Phosphate 1B (PTP1B): A Novel Therapeu-
tic Target for Type 2 Diabetes Mellitus, Obesity and Related
States of Insulin Resistance. Curr. Drug Targets-Immune En-
docr. Metab. Disorders 2001, 1, 265-276. (b) Ukkola, O.;
Santaniemi, M. Protein Tyrosine Phosphatase 1B: A New Target
for the Treatment of Obesity and Associated Co-Morbidities.
J . Intern. Med. 2002, 251, 467-475.
(2) Elchebly, M.; Payette, P.; Michaliszyn, E.; Cromlish, W.; Collins,
S.; Loy, A. L.; Normandin, D.; Cheng, A.; Himms-Hagen, J .;
Chan, C. C.; Ramachandran, C.; Gresser, M. J .; Tremblay, M.
L.; Kennedy, B. P. Increased Insulin Sensitivity and Obesity
Resistance in Mice Lacking the Protein-Tyrosine Phosphatase-
1B Gene. Science 1999, 283, 1544-1548.
(3) Klaman, L. D.; Boss, O.; Peroni, O. D.; Kim, J . K.; Martino, J .
L.; Zabotny, J . M.; Moghal, N.; Lubkin, M.; Kim, Y.-B.; Sharpe,
A. H.; Stricker-Krongrad, A.; Shulman, G. I.; Neel, B. G.; Kahn,
B. B. Increased Energy Expenditure, Decreased Adiposity, and
Tissue-Specific Insulin Sensitivity in Protein-Tyrosine Phos-
phatase 1B-Deficient Mice. Mol. Cell. Biol. 2000, 20, 5479-5489.
(4) Cheng, A.; Uetani, N.; Simoncic, P. D.; Chaubey, V. P.; Lee-Loy,
A.; McGlade, C. J .; Kennedy, B. P.; Tremblay, M. L. Attenuation
of Leptin Action and Regulation of Obesity by Protein Tyrosine
Phosphatase 1B. Dev. Cell. 2002, 2, 497-503.
(5) Zabolotny, J . M.; Bence-Hanulec, K. K.; Stricker-Krongrad, A.;
Haj, F.; Wang, Y.; Minokoshi, Y.; Kim, Y. B.; Elmquist, J . K.;
Tartaglia, L. A.; Kahn, B. B.; Neel, B. G. PTP1B Regulates
Leptin Signal Transduction In Vivo. Dev. Cell. 2002, 2, 489-
495.
J M034088D
