Polymorphic Forms of a Gold(I) Arylacetylide Complex with
Contrasting Phosphorescent Characteristics
Wei Lu, Nianyong Zhu, and Chi-Ming Che*
Contribution from Department of Chemistry and HKU-CAS Joint Laboratory on New
Materials, The UniVersity of Hong Kong, Pokfulam Road, Hong Kong SAR, China
Received August 31, 2003; E-mail: cmche@hku.hk
Abstract: The spectroscopic properties and crystal structures of the gold(I) arylacetylide complexes [(R3P)-
Au(CtCAr)] (R ) Cy, Ar ) 4-nitrophenyl, 1; 4-trifluoromethylphenyl, 2; pentafluorophenyl, 3; R ) Ph, Ar
) 4-nitrophenyl, 4) have been examined. The dipole-allowed and -forbidden transitions of 1 (4 in
parentheses) at λmax 340 (336) and ca. 485 (470) nm in CH2Cl2 solution at 298 K are assigned to the
singlet and triplet intraligand charge transfer (ILCT) transitions of the 4-nitrophenylacetylide moiety, whereas
2 (3 in parentheses) shows localized singlet and triplet acetylenic ππ* transitions at λmax 287 (276) and 426
nm, respectively. Two polymorphs of 1 with contrasting phosphorescent characteristics have been identified.
At 298 K, the emissive form of 1, as well as 2-4, are highly phosphorescent with peak maximum at 504,
425, 521, and 495 nm, respectively; the other polymorph of 1 is nonemissive at 298 K but emission is
detected at 77 K with peak maximum at 486 nm. Crystallographic studies reveal that the major differences
between the emissive and nonemissive forms of 1 are the orientations of the molecular dipoles and the
dihedral angles between neighboring 4-nitrophenyl moieties. Crystal 2 is isostructural to the nonemissive
form of 1, but does not display polymorphism. The molecular planes of two neighboring lumophores are
coplanar in the emissive form of 1, parallel in 4, and nearly perpendicular (78.6°) to each other in the
nonemissive form of 1. Both the nature of the excited state and the dihedral angle between adjacent [Au-
(CtCAr)] moieties determine the phosphorescent properties of these molecular crystals.
Introduction
the yellow form. The solid-state luminescent behavior of these
polymorphs are reported to be dependent on the nature and
The spontaneous aggregation of two-coordinate gold(I)
complexes in the solid state and in fluid and glassy solutions
has generated considerable interest in recent years.1 Numerous
studies have revealed that aurophilic interactions, which are
observed to be sensitive to the presence and nature of counte-
rions and solvent molecules in the crystal lattice, play a key
role in the structural and luminescent properties of gold(I) solids.
There are several reports in the literature on the polymorphism
(the occurrence of different crystalline forms with the same
chemical components) of luminescent gold(I) complexes with
or without close Au‚‚‚Au contacts (shorter than 3.6 Å). For the
two polymorphs of [(CyNC)2Au]PF6 (Cy ) cyclohexyl) isolated
by Balch and co-workers,2 one is colorless and emits at λmax
424 nm while the other is yellow and emits at λmax 480 nm.
The crystallographical findings revealed that the colorless form
contains linear chains of Au‚‚‚Au interactions (ca. 3.18 Å),
whereas shorter Au‚‚‚Au contacts (ca. 2.97 Å) are evident in
configuration of the infinite gold(I) chains arising from attractive
aurophilic interactions in the crystal lattices. Regarding the two
colorless polymorphic forms of crystalline [(Ph3As)AuCl],3
which are needle- and prism-shaped, both emit with peak
maxima at ca. 360 nm at ambient temperature, and a phenyl-
localized 3ππ* excited state has been assigned. Crystallographic
studies on these two crystal forms showed that they exist in the
same orthorhombic P212121 space group but differ slightly in
the intramolecular orientation of the phenyl groups and the
intermolecular crystal packing. Interestingly, appreciable Au‚‚‚Au
interactions were absent from these two polymorphs.
Excitonic coupling4 between nonconjugated organic chro-
mophores is normally encountered in the condensed phase,5 and
is cited to account for aggregation-induced fluorescence en-
hancement in organic lumophores.6 Such phenomenon, however,
has not been reported for phosphorescent metal-organic com-
pounds, which have been intensely studied as potential elec-
(1) (a) Schmidbaur, H., Ed.; Gold: Progress in Chemistry, Biochemistry and
Technology; John Wiley & Sons: Chichester, 1999. Schmidbaur, H. Chem.
Soc. ReV. 1995, 24, 391-400. (b) Pathaneni, S. S.; Desiraju, G. R. J. Chem.
Soc., Dalton Trans. 1993, 319-322. (c) Yam, V. W. W.; Li, C. K.; Chan,
C. L. Angew. Chem., Int. Ed. 1998, 37, 2857-2859. (d) Fu, W. F.; Chan,
K. C.; Miskowski, V. M.; Che, C. M. Angew. Chem., Int. Ed. 1999, 38,
2783-2785. (e) Vickery, J. C.; Olmstead, M. M.; Fung, E. Y.; Balch, A.
L. Angew. Chem., Int. Ed. Engl. 1997, 36, 1179-1181. (f) Lee, Y.;
McGarrah, J. E.; Lachicotte, R. J.; Eisenberg. R. J. Am. Chem. Soc. 2002,
124, 10 662-10 663.
(3) (a) Weissbart, B.; Larson, L. J.; Olmstead, M. M.; Nash, C. P.; Tinti, D.
S. Inorg. Chem. 1995, 34, 393-395. (b) Larson, L. J.; McClauley, E. M.;
Weissbart, B.; Tinti, D. S. J. Phys. Chem. 1995, 99, 7218-7226.
(4) (a) McRae, E. G.; Kasha, M. J. Chem. Phys. 1958, 28, 721-722. (b) Kasha,
M.; Rawls, H. R.; El-Bayoumi, M. A. Pure Appl. Chem. 1965, 11, 371-392.
(5) Recent examples: (a) Liang, K.; Farahat, M. S.; Perlstein, J.; Law, K. Y.;
Whitten, D. G. J. Am. Chem. Soc. 1997, 119, 830-831. (b) Piet, J. J.;
Taylor, P. N.; Anderson, H. L.; Osuka, A.; Warman, J. M. J. Am. Chem.
Soc. 2000, 122, 1749-1757. (c) Wu¨rthner, F.; Yao, S. Angew. Chem., Int.
Ed. 2000, 39, 1978-1980. (d) Zeena, S.; Thomas, K. G. J. Am. Chem.
Soc. 2001, 123, 7859-7865. (e) Ajayaghosh, A.; Arunkumar, E.; Daub, J.
Angew. Chem., Int. Ed. 2002, 41, 1766-1769 and references therein.
(2) White-Morris, R. L.; Olmstead, M. M.; Balch, A. L. J. Am. Chem. Soc.
2003, 125, 1033-1040.
9
10.1021/ja0382415 CCC: $25.00 © 2003 American Chemical Society
J. AM. CHEM. SOC. 2003, 125, 16081-16088
16081

A R T I C L E S
Lu et al.

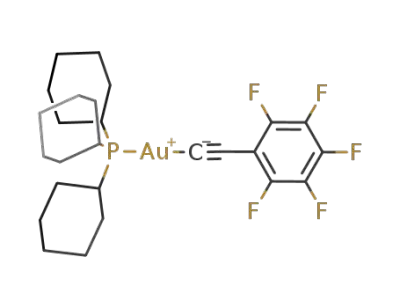

Chart 1
trophosphorescent dopants in high-performance organic light-
emitting devices.7 Excitonic coupling may provide a radiative
pathway for interacting triplet emitters, thereby obviating the
diminished efficiencies typically observed in devices with high
emitter doping levels thought to arise from triplet-triplet
annihilation.7 Hence, the geometry and consequences of interac-
tions between phosphorescent emitters in molecular crystals
merit closer scrutiny, and the polymorphic forms of a metal-
based lumophore with contrasting phosphorescent characteristics
would be an ideal candidate for this purpose.
Gold(I) alkynyl compounds are of particular interest owing
to their stability, ease of preparation, novel solid-state structures,8
and interesting physical properties, such as nonlinear optical
response,9 liquid crystallinity,10 and photoluminescence.11,12
Very recently, several heterobimetallic complexes based on
Au-CtC ligation have been reported for application as
potential optoelectronic materials.13 Here, we report the intrigu-
ing solid-state emissive and structural properties of a phospho-
rescent polymorphic gold(I) complex, namely [(Cy3P)-
AuCtCC6H4-4-NO2] (Cy ) cyclohexyl) (1) (Chart 1), where
the heavy [(Cy3P)Au]+ moiety is employed to enhance spin-
orbit coupling and the electron-withdrawing nitro group is
Figure 1. Absorption spectra of complexes 1-4 in CH2Cl2 at 298 K.
introduced to increase the transition dipole moment of this
lumophore. To the best of our knowledge, this is the first report
of a polymorphic Au(I) complex without short Au‚‚‚Au contacts
in the crystal lattices that exhibits contrasting luminescent
properties. Furthermore, the present study offers a rare op-
portunity to study excitonic coupling in a phosphorescent metal-
organic compound. The derivatives 2-4 were studied for
comparison and to probe the effects of the substituents on the
arylacetylide and phosphine auxiliaries.
