Communication
doi.org/10.1002/chem.202101056
Chemistry—A European Journal
obtained in the presence of methyl or methoxy groups (2a–e).
Interestingly steric hindrance was not deleterious to the
reaction outcome, since up to 80% yield were reached for ortho
substituted methoxyphenyl (2c). Furthermore, we investigated
the presence of halogen substituents on the arene ring. Taking
advantage of the metal-free catalytic procedures depicted
herein, we demonstrated that fluoro-, chloro-, bromo- and
iodoarenes could be converted to the desired sulfonyl fluoride
derivatives with synthetically useful yields (2g–j). Afterwards,
we decided to expand the reaction scope to electron poor
substituted arenes starting material. In particular, we demon-
strated that our reaction conditions tolerate the presence of
several electron withdrawing groups including, ester,
trifluoromethyl, cyano as well as nitro motifs. Herein also, ortho,
meta or para position were smoothly converted to the
corresponding products (2k–q). Interestingly, heterocyclic com-
pounds could also be converted to their corresponding sulfonyl
fluorides in moderate yields (2r–s). Finally, we demonstrated
that our protocol could be extended to complex molecular
architecture and compound 2t was obtained in a good yield of
50% demonstrating the potential application for late-stage
transformation.
Having illustrated the broad scope and the high functional
group tolerance of the developed metal-free procedure we
started investigating the reaction mechanism. Fluorescence
studies, EPR spectroscopy as well as DFT calculations were
combined to understand the role of the photocatalyst, and its
efficiency was assessed by measuring of the photoconversion
quantum efficiency. Assuming a photoinduced single electron
transfer (P-SET) as the initial stage of the reaction sequence, the
hypothetical catalytic cycle may either start by oxidation of
DABSO (or in situ generated DABCO) or by reduction of the
diazonium salt. In order to evaluate the occurrence of
(potentially concurrent) electron transfers between the photo-
catalyst and the different species, and to quantify the associated
kinetics, PC3 was involved in successive Stern-Volmer experi-
ments with the diazonium salt 1a, DABSO and DABCO (Figure 2,
I). In agreement with the facile reduction of diazonium salt, it
turns out that the luminescence of the exited photocatalyst is
efficiently quenched in his presence, with a Stern-Volmer
constant KSV =256 MÀ 1. We also confirmed efficient quenching
of the luminescence of the exited photocatalyst in the presence
of DABCO (KSV =229 MÀ 1), but also to a slightly lesser extent
with DABSO (KSV =164 MÀ 1). With a measured luminescence
lifetime τf =4.2 ns for PC3, it was possible to derive for the later
a quenching rate coefficient kq of 6.1×1010, 5.45×1010 and 3.9×
1010 MÀ 1sÀ 1 with 1a, DABCO and DABSO, respectively. These
three values appear in quantitative agreement with the
hypothesis of a dynamic, diffusion limited quenching process,
and suggest that multiple SET pathways may occur in solution.
It is however important to underline that, while quantita-
tively similar for DABCO and DABSO, the SET process results in
a markedly different evolution of the system. Thus, while PC3
remains relatively photostable for moderate irradiation times
(ca. 10 min) in the presence of DABCO and DABSO, fast
photobleaching occurs in the presence of 1a with a kinetic rate
that correlates well with the amount of added diazonium salt
(Figure 2, b). This is indicative of the formation of a reactive
radical intermediate which, in the condition used in our
spectroscopic measurements, evolves by addition onto PC3 and
ultimately clearance of the later. Such a behaviour agrees well
with the expected characteristics of a tolyl radical.
To further investigate the nature of the formed radical in
the reaction media we decided to undertake EPR experiments
under visible light irradiation (Figure 2, II). Attempts to perform
such experiments with mixtures either devoid of PC3 or [PhN2]
led to complex signatures with overall low intensities, suggest-
ing dead-end mechanisms. For the sake of clarity, description of
these spectra will not be discussed in the manuscript but is
nevertheless available in SI. Irradiation of a mixture of PC3 with
diazonium salt 1a with blue LED (λ=455 nm) in the presence
of α-phenyl-N-tert-butylnitrone (PBN) as radical trap results in
the clean formation of a single spin adduct A with a signature
typical of a C-centred tolyl radical (g=2.006, aN =14.8 G and
aH =2.8 G, Figure 2, II, top),[12] as already observed in some of
our previous works.[11]
When mixing PC3, DABSO and diazonium salt 1a, in the
presence of PBN, the obtained signature comprises, in addition
to a signal obtained in the previous irradiation experiment with
PC3 and 1a only and attributed to a tolyl adduct (g=2.006,
aN =14.8 G and aH =2.5 G), a secondary signal radical which
characteristic values (g=2.006, aN =13.6 G and aH =1.6 G) are
compatible with a O-centred radical species,[13] presumably on a

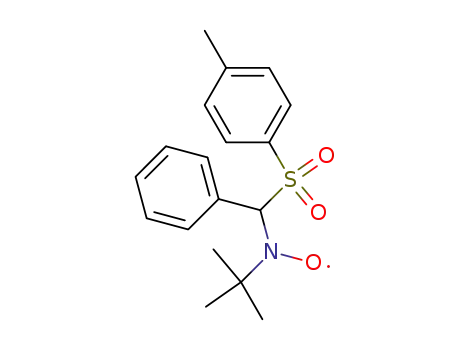

tosyl radical. Complementary experiments using DMPO as a
radical trap reveal, besides the presence of the abovementioned
tolyl (g=2.006, aN =14.5 G and aH =21.4 G) and O-centred tosyl
B (g=2.006, aN =12.8 G and aH =13.8 G) radical adducts a third
species compatible with a S-centred tosyl adduct (g=2.006,
aN =13.9 G and aH =15.0 G).[14] In the experiment with PBN, the
latter may overlap with that of the tolyl adduct. Note that the
formation of the tolyl radical was also observed by mixing
DABSO and 1a in the absence of photocatalyst (see the
Supporting Information for the complete description of these
experiments and associated DFT calculations). This radical is
formed due to SET between in situ generated DABCO and the
diazonium. However, under these conditions no tosyl radical
species could be detected and the formation of the tolyl radical
do not lead to the product.
Afterwards, the photochemical quantum yield of the
reaction was investigated (Figure S2). In this study, reactant 1g
was preferred to 1a, in order to facilitate monitoring of the
reaction through 19F NMR. In the optimised concentration
conditions (entry 7 in Table 1), following our previously re-
ported NMR actinometric protocol[15] (depicted in full in the
Supporting Information) and monitoring the real-time disap-
pearance of 1g, we were able to determine a photoconversion
quantum yield of the diazonium reactant Φ=0.43; this
indicated
a stepwise mechanism. Interestingly, while the
disappearance of 1g could be nicely fitted with a first order
kinetic model, a typical sigmoidal curve, with an induction
period of about 10 minutes was observed for the appearance of
2g, characteristic of a mechanism operating by successive
reactions. Note also that similar experiment performed in the
absence of DABSO but otherwise identical concentration
