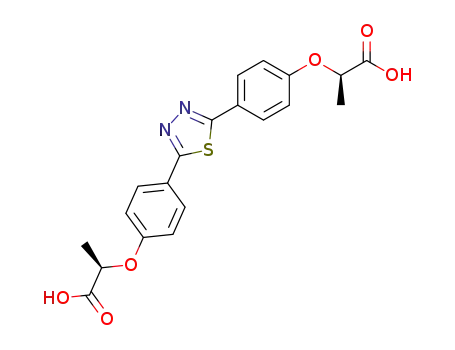

using two programmable dosage pumps. After complete
addition of both solutions, the reaction mixture was stirred
for an additional 48 h at 0 uC and 168 h (7 days) at room
temperature, washed with 50 ml portions of 5 M HCl,
saturated NHCO3, water and brine, and dried (Na2SO4). The
solvent was evaporated off under reduced pressure, and the
crude material purified by column and preparative thin layer
chromatography (silica gel, CH2Cl2–EtOH 5 10 : 0.5–2),
and finally crystallised from EtOH to afford 98 mg (38 %) of
(R,R)-G. Transition temperatures/uC: Cr 125 SmC* 157 N*
191 BP 192 Iso; HRMS m/z: C54H60N2O14S requires 993.3843
[M + 1]+; found: 993.3826; 1H-NMR (500 MHz, CDCl3):
d 5 1.61 (d, J 6.7 Hz, 6H, CH3–CH), 3.62–3.87 (m, 20H,
OCH2), 3.73–3.75 (m, 4H, OCH2), 3.87 (t, J 4.7 Hz, 4H,
OCH2), 4.16 (B of A,A9,B-spin system, J 4.4 Hz, 4H,
270 (12), 215 (8); ESIMS m/z (relative intensity, %): 735 [M +
K]+ (11), 719 [M + Na]+ (58), 697 [M + H]+ (100).
Acknowledgements
This
work
was
supported
by
the
Deutsche
Forschungsgemeinschaft (DFG) and the Fonds der
Chemischen Industrie.
Torsten Hegmann,{a Bernhard Neumann,§a Raik Wolf"b and
Carsten Tschierske*a
aInstitute of Organic Chemistry, Martin-Luther-University
Halle-Wittenberg, Kurt-Mothes-Str. 2, 06120 Halle, Germany.
E-mail: Carsten.tschierske@chemie.uni-halle.de; Fax: +49 345 5527346;
Tel: +49 345 5525664
bInstitute of Pharmaceutical Technology and Biopharmacy,
Martin-Luther-University Halle-Wittenberg,
Wolfgang Langenbeck Str. 4, 06108 Halle, Germany
C(O)OCH2–CH2), 4.33 (A,A9 of A,A9,B-spin system,
J
2.4 Hz, J 4.4 Hz, 4H, C(O)OCH2–CH2), 4.74 (q, J 6.7 Hz,
2H, CH3–CH), 6.83 (d, J 8.7 Hz, 8H, Ar–H), 6.94 (d, J 8.7 Hz,
8H, Ar–H), 7.44 (d, J 8.7 Hz, Ar–H), 7.46 (s, 2H, Ar–H), 7.75
(d, J 8.7 Hz, Ar–H); 13C-NMR (100 MHz, CDCl3): d 5 19.32
(CH3), 65.36, 68.75, 69.92, 70.84, 71.79, 71.90, 72.03, 73.43
(OCH2), 116.15, 116.66 (thda), 124.69 (thda), 127.90 (tph),
128.91 (tph), 130.52 (tph), 134.33 (tph), 139.90 (tph), 159.54
(tph), 160.78 (thda), 168.12 (thda), 172.62 (CLO); EIMS m/z
(relative intensity, %): 992 [M]+ (100), 960 (7), 787 (18),
705 (11), 661 (12), 614 (17), 314 (78), 288 (34), 262 (45),
218 (24), 146 (31), 119 (36), 100 (76); ESIMS m/z
(relative intensity, %): 1031 [M + K]+ (12), 1015 [M + Na]+
(76), 993 [M + H]+ (100).
References
1 (a) F. Vo¨gtle, Cyclophan-Chemie, Teubner Stuttgart, 1990; (b)
F. Diederich, Cyclophanes, Monographs in Supramolecular
Chemistry, ed. J. F. K. Stoddart, The Royal Society of
Chemistry, Cambridge, 1994.
2 C. J. Pedersen, J. Am. Chem. Soc., 1967, 89, 7017; C. J. Pedersen
and H. K. Frensdorf, Angew. Chem., Int. Ed. Engl., 1972, 11, 16.
3 (a) G. W. Gokel and H. D. Durst, Synthesis, 1976, 168; (b)
J. S. Bradshaw and P. Stott, Tetrahedron, 1980, 36, 461; (c) H. An,
J. S. Bradshaw, R. M. Izatt and Z. Yan, Chem. Rev., 1994, 94, 939.
4 (a) J.-M. Lehn, Science, 1985, 227, 849; (b) J.-M. Lehn, Angew.
Chem., Int. Ed. Engl., 1988, 27, 89.
5 D. J. Cram, Angew. Chem., Int. Ed. Engl., 1988, 27, 1009.
6 (a) J. R. Moran, S. Karbach and D. J. Cram, J. Chem. Soc., 1982,
104, 5826; (b) D. J. Cram, S. Karbach, Y. H. Kim, L. Baczynskyj
and G. W. Kalleymeyn, J. Am. Chem. Soc., 1985, 107, 2575.
7 (a) C. Seel and F. Vo¨gtle, Angew. Chem., 1992, 31, 528; (b)
F. Diederich, Angew. Chem., Int. Ed. Engl., 1988, 27, 362.
8 (a) W. F. van Straaten-Nijenhuis, F. de Jong and D. N. Reinhoudt,
Recl. Trav. Chim. Pays-Bas, 1993, 112, 317; (b) H. C. Visser,
D. N. Reinhoudt and F. de Jong, Chem. Soc. Rev., 1994, 75.
9 (a) C. Tschierske, Annu. Rep. Prog. Chem., Sect. C, 2001, 97, 191;
(b) C. Tschierske, Curr. Opin. Colloid Interface Sci., 2002, 7, 69.
10 C. Tschierske, J. Mater. Chem., 2001, 11, 2647.
10,13,16,19,22,29,32,35,38,41-Decaoxa-47-thia-3,4-diazate-
tracyclo[40.2.2.26,9.12,5]nonatetraconta-2,4,6,8,42,44(1),45,48-
octaen-24,26-diyne (I). Via Ullmann coupling. To a suspension
of CuCl (370 mg) and dry TMEDA (0.6 ml) in dry xylene
(50 ml) heated to 140 uC a solution of 2,5-bis{4-[12-(prop-2-
ynyl)-1,4,7,10-tetraoxadodecyl]phenyl}-1,3,4-thiadiazole
12
(0.28 mmol, 200 mg) in dry xylene (100 ml) was added under
vigorous stirring and a continuous air-flow was passed
through the solution over a period of 6 h. After complete
addition, the solution was allowed to stir for an additional 2 h.
After cooling to room temperature, the solvent was removed
under reduced pressure, and the residue was dissolved in
CH2Cl2 (100 ml). The organic layer was washed successively
with H2O, 5% HCl, brine and dried (Na2SO4). Thereafter, the
solvent was evaporated and the crude material purified by
chromatography (silica gel, CH2Cl2–EtOH 5 10 : 0–0.5) and
crystallisation from EtOH. Yield 84 mg (43%). Transition
temperatures/uC: Cr 76 (N 40) Iso; HRMS m/z: C36H44N2O10S
requires 697.2794 [M + 1]+; found: 697.2781; 1H-NMR
(500 MHz, CDCl3): d 5 3.56–3.62 (m, 8H, OCH2), 3.48–3.54
(m, 12H, OCH2), 3.67 (t, J 4.5 Hz, 4H, OCH2), 3.84 (t, J
4.5 Hz, 4H, OCH2CH2), 4.12 (s, 4H, CH2–CM), 4.24 (t,
J 4.5 Hz, 4H, OCH2), 7.05 (d, J 9.0 Hz, 4H, Ar–H), 7.92 (d, J
9.0 Hz, 4H, Ar–H); 13C-NMR (100 MHz, CDCl3): d 5 58.80
(OCH2CM), 67.95, 69.47, 69.80, 70, 21, 70.32 (CMC–CMC),
70.53, 70.60, 70.72, 71.02 (OCH2), 75.38 (CH2–CMC), 115.71,
123.23, 129.45, 161.36, 167.34 (thda). EIMS m/z (relative
intensity, %): 695 [M 2 H]+ (100), 667 (17), 640 (18), 623 (7),
579 (8), 549 (18), 520 (14), 459 (10), 446 (20), 402 (8), 358 (6),
11 W. Chen and B. Wunderlich, Macromol. Chem. Phys., 1999, 200,
283.
12 D. Demus, J. Goodby, G. W. Gray, H.-W. Spiess and V. Vill,
Handbook of Liquid Crystals, Wiley-VCH, Weinheim, 1998.
13 (a) T. Niori, T. Sekine, J. Watanabe, T. Furukawa and H. Takezoe,
J. Mater. Chem., 1996, 6, 1231; (b) G. Pelzl, S. Diele and
W. Weissflog, Adv. Mater., 1999, 11, 707; (c) D. R. Link, G. Natale,
R. Shao, J. E. Maclennan, N. A. Clark, E. Ko¨rblova and
D. M. Walba, Science, 1997, 278, 1924; (d) C. Tschierske and
G. Dantlgraber, Pramana, 2003, 61, 455.
14 C. T. Imrie, Structure and Bonding 95: Liquid Crystals II, ed.
D. M. P. Mingos, Springer, Berlin, 1999, p. 149.
15 Selected examples of LC oligomesogens: (a) A. T. M. Marcelis,
A. Koudijs and E. J. R. Sudho¨lter, Mol. Cryst. Liq. Cryst., 1999,
330, 45; (b) S.-M. Huh, J.-I. Jin, M.-F. Achard and F. Hardouin,
Liq. Cryst., 1999, 26, 919; (c) J. Andersch, S. Diele, C. P. Go¨ring,
J.-A. Schro¨ter and C. Tschierske, Chem. Commun., 1995, 107; (d)
R. Lunkwitz, C. Tschierske and S. Diele, J. Mater. Chem., 1997, 7,
2001; (e) H. Budig, S. Diele, R. Paschke, D. Stro¨hl and
C. Tschierske, J. Chem. Soc., Perkin Trans. 2, 1996, 1901; (f)
T. E. Mann, J. Haley and D. Lacey, J. Mater. Chem., 1999, 9, 353;
(g) B. Hirani, H. Kou-Shou and J. Watanabe, Liq. Cryst., 1997, 23,
59; (h) S. H. Chen, H. Shi, B. M. Conger, J. C. Mastrangelo and
T. Tsutsui, Adv. Mater., 1996, 8, 998; (i) J. W. Goodby, G. H. Mehl,
I. M. Saez, R. P. Tuffin, G. Mackenzie, R. Auzely-Velty,
T. Benvegnu and D. Plusquellec, Chem. Commun., 1998, 2057; (j)
I. M. Saez, J. W. Goodby and R. M. Richardson, Chem. Eur. J.,
2001, 7, 2758; (k) S. A. Ponomarenko, N. I. Boiko, V. P. Shibaev,
