Enhanced Photocatalytic H2 Production on CdS Nanorods with Simple
Molecular Bidentate Cobalt Complexes as Cocatalysts under Visible
Light
Rana Muhammad Irfan, Daochuan Jiang, Zijun Sun, Dapeng Lu, Pingwu Du*
Key Laboratory of Materials for Energy Conversion, Chinese Academy of Sciences, Department
of Materials Science and Engineering, iChEM (Collaborative Innovation Center of Chemistry for
Energy Materials), University of Science and Technology of China, 96 Jinzhai Road, Hefei,
Anhui Province, 230026, P. R. China
*To whom correspondence should be addressed
E-mail: dupingwu@ustc.edu.cn
Tel/Fax: 86-551-63606207
1

Dalton Transactions
Page 2 of 27
View Article Online
DOI: 10.1039/C6DT02148D
Abstract: Photocatalytic hydrogen production via water splitting has attracted much attention for
future clean energy application. Herein we report a noble-metal-free photocatalytic hydrogen
production system containing a simple bidentate cobalt Schiff base complex as the molecular
cocatalyst, CdS nanorods as the photosensitizer, and ascorbic acid as the electron donor. The
system shows highly enhanced photocatalytic activity compared to pure CdS NRs under visible
light (λ > 420 nm). Under optimal conditions, the turnover numbers (TONs) for hydrogen
production reached ~15,200 after 12 hours of irradiation and an apparent quantum yield of ~27%
was achieved at 420 nm monochromatic light. Steady-state photoluminescence (PL) spectra
indicated efficient charge transfer between the excited CdS NRs and the cobalt cocatalyst for
improved hydrogen production. Spectroscopic studies of the photocatalytic reaction revealed the
reduction of Co(II) complex to Co(I) species, which are probably active intermediates for
hydrogen evolution. On the basis of spectroscopic studies we propose a reaction mechanism for
hydrogen production in the present photocatalytic system.
2

Page 3 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
Introduction
Currently, the main energy resources for humankind are carbon-based fossil fuels such as oil,
coal, and natural gas.1 The combustion of fossil fuels always releases carbon dioxide, which is not
friendly to the environment.2 Scientists have made extensive efforts to develop renewable and
sustainable energy resources to meet the global energy demand.3-6 Hydrogen is one of the best
alternatives to the carboniferous fuels but industrial hydrogen production is mainly from methane
and other fossil fuels using processes that release carbon dioxide and carbon monoxide.7 It should
be obtained from appropriate sources in an eco-friendly manner.4, 8
In recent years, the development of inexpensive and efficient systems for photo- and/or
electrocatalytic hydrogen production has attracted great attention than other solar fuels.8-14 Many
homogeneous systems have been reported on photocatalytic hydrogen production since the late
1970s, which usually contain [Ru(bipy)3]2+ as the photosensitizer, amines as the electron donor,
and molecular cocatalysts (such as cobalt and nickel complexes,15,16 biomimetic hydrogenases,17
and bioinspired hydrogenase model complexes and clusters [Fe2S2].18,19 Besides ruthenium-based
photocatalytic systems, iridium- and platinum-based photosensitizers have also been studied.
Bernhard and coworkers investigated rhodium cocatalysts in combination with iridium
phenylpyridine sensitizers.20 Eisenberg and coworkers studied a series of cobalt dimethylglyoxime
catalysts with platinum terpyridyl sensitizers.21 In most studies, cocatalysts or photosensitizers
based on noble metals have been mainly employed. More interestingly from a practical application
point of view, noble-metal-free systems involving xanthene dyes or copper(I) complexes as the
photosensitizers have been studied for homogeneous H2 production catalysis.22-24
In all of the above-mentioned systems, the photosensitizers are organometallic complexes or
organic compounds which can only absorb a narrow band of light or light of particular wavelengths.
3

Dalton Transactions
Page 4 of 27
View Article Online
DOI: 10.1039/C6DT02148D
On the other hand, semiconductors have continuous and broad light absorption range, which is
efficient for solar energy collection.25-27 Heterogeneous photocatalytic systems using metal
oxides,26, 28 metal oxynitrides26, 29 and metal sulfides,27, 30 as photocatalysts have been extensively
studied in the past four decades. Photoactive CdS material has attracted much attention because of
its low cost, high photocatalytic activity, and low band gap (~2.4 eV).31, 32 Loading an efficient
heterogeneous cocatalyst on CdS can enhance the photocatalytic activity and protect the
semiconductor from photocorrosion to some extent.30, 33, 34 Although heterogeneous cocatalysts in
combination with CdS have been widely used, only a few studies have been reported on
photocatalytic systems comprising CdS in combination with molecular catalysts.33, 35, 36
In this present study, we report a noble-metal-free photocatalytic system containing a simple
cobalt Schiff base complex as the molecular catalyst, CdS nanorods (NRs) as the photosensitizer,
and ascorbic acid (AA) as the electron donor. This system can achieve an apparent quantum yield
of ~27% at 420 nm monochromatic light. The rate of hydrogen production from this system is
around 45 times higher than that of pure CdS NRs under the same conditions.
Experimental Details
Materials. Cobalt (II) acetate tetrahydrate (Co(OAc)24 H2O, 99.5%), p-hydroxybenzoic acid
(99.0%), salicylaldehyde (98.0%), p-aminophenylacetic acid (98.0%), p-iodoaniline (98.0%), p-
nitroaniline (99.0%), thiourea (CH4N2S, 99.0%), and cadmium chloride hemi(pentahydrate)
(CdCl22.5H2O, 99.0%) were purchased from Aldrich or Alfa and used without further purification.
Millipore water (Blue Water Industry, resistivity: ~18 MΩ·cm) was used for photocatalytic
experiments. CdS NRs were prepared according to a reported procedure.37, 38
4

Page 5 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
Synthesis of 3-formyl-4-hydroxybenzoic acid. 3-formyl-4-hydroxybenzoic acid was prepared
according to a reported procedure.39 In a 250 mL flask, p-hydroxybenzoic acid (7.5 g, 54 mmol)
was added into 20 mL trifluoroacetic acid (TFA). A solution of hexamethylenetetramine (7.65 g,
54.5 mmol) in 20 mL TFA was added dropwise to the flask under argon atmosphere. The resulting
solution was refluxed for 3 hours. A transparent yellowish solution was obtained which was cooled
to ambient temperature, after which 4 M HCl (150 mL) was added and the result stirred for 4 hours
to produce a yellow precipitate. The final product was filtered, washed with an excess of water
and dried in an oven under vacuum. Yield: 45%. 1H NMR (400 MHz, DMSO): δ = 11.52 (s, 1H),
10.29 (s, 1H), 8.23 (d, J = 2.3 Hz, 1H), 8.03 (dd, J1 = 8.7, J2= 2.3 Hz, 1H), 7.07 (d, J = 8.7 Hz, 1H)
ppm.
Synthesis of ligand L-1, 2-(4-((2-hydroxybenzylidene)amino)phenyl)acetic acid. p-
aminophenylacetic acid (1.5 g, 10 mmol) was dissolved in 15 mL mixture of methanol:water (2:1,
v/v). Methanolic solution (10 ml) of salicylaldehyde (10 mmol) was added dropwise to the solution
of p-aminophenylacetic acid. After its addition, the solution turned yellow and it was then heated
to reflux for 3 hours. The resulting solution was allowed to stand and evaporate slowly at room
temperature. After 24 hours, yellow crystals were collected, washed with cold ethanol, and dried
1
under vacuum. Yield: 85%. H NMR (400 MHz, DMSO): δ = 13.16 (s, 1H), 8.97 (s, 1H), 7.64
7.64 (dd, J1= 7.6, J2 = 1.7 Hz, 1H), 7.46-7.36 (m, 5H), 7.01-6.96 (m, 2H), 3.62 (s, 2H) ppm.
C15H13NO3: calculated C 70.58, H 5.13, N 5.49; found C 70.48, N 5.31, H 5.07.
Synthesis of complex 1, Co(L-1)2. Schiff base ligand L-1 (0.51 g, 2 mmol) was dissolved in
methanol. Then 0.24 g Co(OAc)24 H2O (1 mmol) was dissolved in methanol and the solution
was added dropwise to the above L-1 solution. The mixture was heated to reflux for 2 hours.
Precipitates were collected by filtration, washed with water then ethanol, and finally dried under
5

Dalton Transactions
Page 6 of 27
View Article Online
DOI: 10.1039/C6DT02148D
vacuum. Yield: 55%. C30H24N2CoO6: calculated C 63.52, H 4.26, N 4.94; found C 63.79, H 4.73,
N 4.49.
Synthesis of ligand L-2, 4-hydroxy-3-(((4-iodophenyl)imino)methyl)benzoic acid. 3-Formyl-
4-hydroxybenzoic acid (1.66 g, 10 mmol) was dissolved in 15 mL ethanol. 2.19 g p-iodoaniline
(10 mmol) was dissolved in 10 mL ethanol and the solution was added dropwise to the solution of
3-formyl-4-hydroxy-benzoic acid. The resulting solution turned to an orange color under reflux
and stirring was continued for 3 hours. When the solution was cooled to room temperature, a
yellow solid product was obtained by filtration, washed with cold ethanol, and dried under vacuum.
Yield: 80%.1H NMR (400 MHz, DMSO): δ= 13.51 (s, 1H), 9.08 (s, 1H), 8.33 (d, J = 2.2 Hz, 1H),
7.97 (dd, J1 = 8.6, J2= 2.2 Hz, 1H), 7.83 (d, J = 8.7 Hz, 2H), 7.28 (d, J = 8.7 Hz, 2H), 7.05 (d, J =
8.6 Hz, 1H) ppm. C14H10INO3: calculated C 45.80, H 2.75, N 3.82; found C 45.86, H 3.08, N 3.73.
Synthesis of complex 2, Co(L-2)2. 0.24 g Co(OAc)24 H2O (1 mmol) was dissolved in 10 ml
methanol and was added dropwise to a freshly prepared solution of Schiff base ligand L-2 (0.73g,
2 mmol) in methanol at room temperature. The yellowish green precipitate appeared rapidly. The
reaction mixture was stirred for 3 hours. The solid product was filtered, washed with cold ethanol
and water, and dried under vacuum. C28H18I2N2CoO6: calculated C 42.52 H 2.29, N 3.54; found C
42.10, H 2.64, N 3.78.

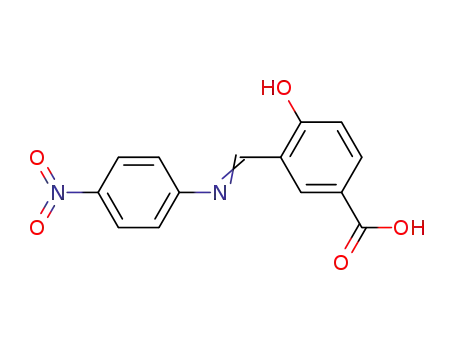

Synthesis of ligand L-3, 4-hydroxy-3-(((4-nitrophenyl)imino)methyl)benzoic acid. 1.38 g p-
nitroaniline (10 mmol) was dissolved in 10 mL ethanol in a 50 mL round bottom flask. 1.66 g 3-
formyl-4-hydroxy-benzoic acid (10 mmol) in ethanol (15 ml) was added dropwise to the flask. The
solution turned yellow rapidly and was heated to reflux for 2 hours. The reaction mixture was
cooled to room temperature for slow evaporation. The yellow solid product was filtered, washed
with cold ethanol, and dried in vacuum. Yield: 75%. 1H NMR (400 MHz, DMSO): δ = 12.87 (s,
6

Page 7 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
1H), 9.10 (s, 1H), 8.42 (d, J = 2.3 Hz, 1H), 8.33 (d, J = 9.1 Hz, 2H), 8.01 (d, J = 10.9 Hz, 1H),
7.64 (d, J = 9.1 Hz, 2H), 7.09 (d, J = 8.7 Hz, 1H) ppm. C14H10N2O5: calculated C 58.74, H 3.52,
N 9.79; found C 58.81, H 3.49, N 9.17.
Synthesis of complex 3, Co(L-3)2. 0.24 g Co(OAc)24 H2O (1 mmol) was dissolved in 10 mL
methanol and added dropwise to 20 mL solution of Schiff base ligand L-3 (0.57 g, 2 mmol) in
methanol. The solution became translucent after stirring for 3 hours. The volume of solution was
reduced to half under reduced pressure. The resulting precipitate was filtered, washed with
methanol and water, and dried under vacuum. Yield: 65%. C28H18N4CoO10: calculated C 53.48, H
2.88, N 8.91; found C 53.79, H 3.24, N 8.62.
Synthesis of ligand L-4, 3-(((4-(tert-butyl)phenyl)imino)methyl)-4-hydroxybenzoic acid. The
1
Schiff base ligand was prepared by the method as described above for L1-L3. Yield: 80%. H
NMR (400 MHz, DMSO): δ = 14.03 (s, 1H), 9.09 (s, 1H), 8.32 (d, J = 2.2 Hz, 1H), 7.96 (d, J =
10.9 Hz, 1H), 7.45 (dd, J1 = 39.1, J2 = 8.7 Hz, 4H), 7.04 (d, J = 8.6 Hz, 1H).
Synthesis of complex 4, Co(L-4)2. 0.58 g Schiff base ligand L-4 (2 mmol) was dissolved in 20
mL mixed solution of DMF:ethanol (1:1) and heated at 60 ºC for 30 min. 0.24 g Co(OAc)24 H2O
(1.0 mmol) solution was dissolved in ethanol and added slowly to the hot solution of L-4. The
resulting mixture was heated to reflux for 2 hours. Precipitates were filtered and washed with
ethanol and water. The solid product was dried under vacuum. Yield: 70%. C36H36CoN2O6:
calculated C 66.36, H 5.57, N 4.30; found C 66.78, H 5.32, N 4.63.
1
Characterization. H NMR measurements were recorded in DMSO with a 400 MHz Bruker
AV400 spectrometer at room temperature. Powder X-ray diffraction (XRD, D/max-TTR III) was
used to analyze the crystalline diffraction patterns of the CdS nanorods, using graphite
monochromatized Cu Kα radiation of 1.54178 Å, operating at 40 kV and 200 mA. The scanning
7

Dalton Transactions
Page 8 of 27
View Article Online
DOI: 10.1039/C6DT02148D
rate was 5° min−1 from 20° to 80° in 2θ. Elemental analyses were carried out on Elementar Vario
EL Cube. Electronic spectra were obtained with a UNICO SQ-3802 spectrometer. The steady-state
photoluminescence (PL) spectra were recorded using a Perkin-Elmer LS55 fluorescence
spectrometer. UV-Vis diffuse reflectance spectra were recorded using a Solid Spec-3700 UV−vis
spectrometer. Scanning electron microscopy (SEM) was performed on a JSM-6700F microscope.
TEM images were obtained with a transmission electron microscope JEM-2010. XPS spectra were
recorded on an ESCALAB 250 X-ray photoelectron spectrometer.
Photocatalytic hydrogen production. All the photocatalytic experiments were performed in a 50
mL flask using Xe lamp (300 W) with a longpass cut-off filter (λ > 420) at ambient temperature.
A gas chromatograph (SP-6890) equipped with a thermal conductivity detector was used for the
measurement of hydrogen gas. Nitrogen was used as the carrier gas. A typical sample for
photocatalytic experiment was prepared in a 50 ml round bottom flask sealed with rubber septum.
A suspension of the molecular cocatalyst, photosensitizer, and ascorbic acid was prepared in 20
mL water. The pH value of reaction mixture was adjusted with solution of NaOH or 2 M HCl. The
sample was ultrasonicated for 10 min and purged with nitrogen gas for 15 min to remove the air.
After that, 5 mL methane gas was added as the internal standard.21, 40
Apparent Quantum Yield (AQY). The apparent quantum efficiency was calculated using a 300
W Xe lamp with a band pass filter (λ = 420 nm). Calculations for AQY and TON were done by
using equations (1) and (2).33, 41
number of reacted electrons
( )
AQY % =
× 100
number of incident photons
number of evolved H2molecules × 2
=
× 100
(1)
number of incident photons
number of product molecules
number of cocatalyst molecules
TON =
8

Page 9 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
number of evolved H2 molecules
number of cocatalyst molecules
=
(2)
Results and discussion
All the cobalt Schiff base complexes were successfully prepared and their molecular
structures 1-4 are shown in Figure 1a. CdS NRs were synthesized by a modified solvothermal
process38 and characterized by TEM (Figure 1b) and powder XRD (Figure 1c). The TEM image
confirmed the nanorod morphology of CdS with diameters of 40-90 nm and lengths of 0.5-2 μm.
The powder XRD diffraction patterns showed that all the peaks were well indexed as hexagonal
CdS (JCPDS No. 77-2306).30, 42 The diffraction peaks at 24.81°, 26.51°, 28.18°, 36.62°, 43.7°,
47.84°, and 51.82° correspond to the (100), (002), (101), (102), (110), (103), and (112) faces,
respectively.43 After mixing with a molecular cobalt complex, the XRD diffraction patterns had
no significant changes, indicating that the complex did not change the crystalline structure of CdS.
Moreover, no obvious cobalt complex was observed in the TEM image when complex 1 was added,
probably due to low content of the cobalt complex in the composite (Figure S1).
Figure 2a shows the UV-Vis absorbance spectra (converted from UV-Vis diffuse reflectance
spectra) of CdS NRs, complex 1, and the mixture of CdS NRs and complex 1. Pure CdS NRs
exhibited good absorption in the visible region with a band gap at ~2.4 eV, which is consistent
with previous studies.34,44 The absorption region of CdS NRs remained unchanged when it is
mixed with complex 1, suggesting that there is no variation of the band gap in the presence of
complex 1 (Figure S2).
The photocatalytic activities of CdS NRs and CdS/complexes 1-4 for H2 production in
aqueous solution were examined under visible light irradiation (λ > 420 nm). The reaction mixture
9

Dalton Transactions
Page 10 of 27
View Article Online
DOI: 10.1039/C6DT02148D
contained 1.0 mg CdS NRs, 0.5 M ascorbic acid, and 0.02 mM cobalt complex in 20 mL water at
pH 4. Pure CdS NRs without a cocatalyst showed a low H2 evolution rate (~12 μmol h-1 mg-1).
Impressively, when complex 1 was added, the H2 evolution rate increased by a factor of 45 (~550
μmol h-1 mg-1). Photocatalytic experiments were also performed for other cobalt bidentate Schiff
base complexes. When cobalt complexes 2, 3, and 4 were used to replace complex 1, various
enhanced H2 evolution rates were observed, yielding evolution rates of 260, 390, and 240 μmol h-
1 mg-1 for complex 2, 3, and 4, respectively. These results show that the present system with CdS
NRs semiconductor as the photosensitizer and cobalt Schiff base cocatalysts is highly active for
photocatalytic H2 production in water (Figure 2b), further confirming the important role of these
molecular cocatalysts. Complexes 2 and 4 showed a relatively low rate of H2 production compared
with complexes 1 and 3, which can be attributed to their low solubility in water.35 The decreased
water solubility of complexes 2 and 4 probably causes aggregation of the complex and poor contact
with CdS NRs (Figure S3 and S4). Hence, less photogenerated electrons on CdS NRs would be
transferred to the molecular cocatalyst, resulting a lower H2 evolution rate.
Further experiments were performed to clarify the role of complex 1 in photocatalysis, as
shown in Table S1. In the absence of CdS NRs, H2 production was not detected, which indicates
the important role of CdS in light harvesting for photocatalysis. No appreciable H2 gas was
observed in the absence of ascorbic acid, indicating that the sacrificial reagent is compulsory for
reduction of protons. In the literature, various sacrificial reagents have been used to significantly
improve the photocatalytic activity of the photocatalytic system.45 Further experiments were
performed to investigate the effect of different sacrificial reagents on photocatalytic efficiency of
CdS/complex 1 (Table S3). It can be clearly seen that the highest H2 evolution rate of 540 μmolh-
1 mg-1 can be achieved when ascorbic acid was used as the electron donor while other sacrificial
10

Page 11 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
reagents showed lower H2 evolution rate, indicating that ascorbic acid is a suitable sacrificial
reagent in the present system.
The pH effect on photocatalytic activity was then carried out when other conditions were
fixed (Figure 2c). The highest rate of H2 production was achieved at pH 4, which is consistent with
the literature.46, 47 For a higher pH value, a sharp decrease in photocatalytic activity was observed,
which might be the result of unfavorable protonation of complex 1. On the other hand, the rate of
H2 production was less at a lower pH value, probably because the ability of ascorbic acid as the
electron donor decreases at a lower pH resulting from suppressed equilibrium from HA to A- and
H+.48
To optimize the reaction conditions for photocatalytic H2 production, more experiments were
performed using complex 1 as the cocatalyst. It has been previously observed that concentration
of the cocatalyst has a great influence on the rate of H2 evolution.35, 49 As shown in Figure 2d, at a
low concentration of the cocatalyst less than 0.02 mM, the rate of H2 evolution decreased. The
maximum rate of H2 evolution was achieved at 0.02 mM complex 1. A considerable decrease in
rate of H2 evolution was observed for further increases in the concentration of complex 1,
indicating that a higher concentration of the cocatalyst would be unfavorable in the photocatalytic
system.
Apparent quantum yields (AQYs) were calculated using monochromatic light with band pass
filter (λ = 420 nm ± 5 nm) for 6 hours (Figure 3a). Initially, the reaction system showed an AQY
at ~26%. After first hour, a slight enhancement in AQYs was observed. The highest AQY
achieved during 6 hours was ~28% and the average AQY was ~27%. The present AQY for
photocatalytic H2 production is among the best reported AQYs for molecular photocatalytic
systems consist of cobalt cocatalysts (see supporting information for details, Table S3).33
11

Dalton Transactions
Page 12 of 27
View Article Online
DOI: 10.1039/C6DT02148D
Under optimum conditions, the stability of the photocatalytic system was examined for long-
term photocatalysis, as shown in Figure 3b. The results show that the system has good stability
over 12 hours and only a slight decrease in the rate of H2 production was observed, which is
probably due to photocorrosion under acidic conditions. The highest TON of 15200 vs. cocatalyst
was achieved after 12 hours. For comparison, a controlled experiment was performed without
complex 1 while other conditions were maintained. As shown in Figure S5a, significant decrease
of H2 evolution rate was observed during 12 hours irradiation, indicating the key role of complex
1 for CdS to achieve efficient photocatalytic performance. Furthermore, time course of H2
production was done to confirm the reusability of the photocatalyst. As shown in Figure S5b, the
flask was purged with nitrogen to evacuate the produced H2 at the end of each cycle, and no
significant decrease in H2 evolution rate was observed after 4 cycles, suggesting that complex
1/CdS photocatalyst can efficiently catalyze H2 production with good durability.
After 10 hours of visible light irradiation, CdS NRs were separated from the reaction mixture
by centrifugation and thoroughly washed by ethanol and water. The separated photosensitizer was
examined again using XRD, TEM, and energy dispersive X-ray spectroscopy (EDX). XRD
patterns were well indexed to hexagonal CdS (JCPDS No. 77-2306), confirming that the
crystallinity of CdS is not changed and it is stable after photocatalysis under the present conditions
(Figure S6). The TEM results confirmed that the surface of the CdS NRs is smooth and no attached
particles can be observed (Figures S7a-S7b). EDX data proved the absence of Co0 species as no
signal of cobalt was detected in the spectrum (Figure S7c).
X-ray photoelectron spectroscopy (XPS) was used for further analysis before and after
photocatalytic H2 production. Figure 4a shows XPS spectra before (red plot) and after (black plot)
light irradiation. XPS peaks (red plot) confirm the presence of Cd, S, C, O, and Co elements. After
12

Page 13 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
irradiation (black plot), the Co peak was not observed after washing by ethanol and water. The
high resolution spectrum of S 2p shows two peaks at 161.32 eV and 162.51 eV, which can be
attributed to S 2p3/2 and S 2p1/2, respectively (Figure 4b).50 As shown in Figure 4c, the binding
energies of Cd 3d5/2 and Cd 3d3/2 appear at 404.73 eV and 411.25 eV, respectively, which are
similar to the reported values in CdS.30, 51, 52 The high resolution XPS spectrum of Co 2p exhibits
two peaks (red plot) at 780.62 eV and 796.45 eV (Figure 4d), corresponding to cobalt in the
complex.53, 54 After washing, the high resolution XPS spectrum of Co 2p (black plot) does not
show any significant peaks. Hence, the XPS results also confirm the absence of metallic cobalt
and suggest that the enhanced H2 evolution is due to complex 1 and no colloidal cobalt species are
involved in the present photocatalytic reaction, but this will not exclude that the cobalt complex
will be decomposed after long-time irradiation.
The photophysical properties were studied to understand the mechanism of this photocatalytic
reaction by using steady-state photoluminescence (PL) spectroscopy (Figure 5). CdS NRs shows
two PL bands, centered at ~506 nm and ~712 nm. The intense band at ~506 nm can be attributed
to near-band-edge emission and the weak band at ~712 nm can be assigned to defects of the surface
of CdS NRs.55 A decrease in luminescent intensity is observed for the mixed complex 1/CdS (red
plot), which probably indicates the efficient transfer of electrons from the excited CdS NRs to
complex 1. The results suggest that complex 1 can prevent rapid recombination of electron-hole
pairs in the excited CdS NRs and subsequently promote H2 production.
To obtain a more mechanistic insight of the present photocatalytic reaction using complex 1
as the cocatalyst, UV-Vis spectrum in aqueous solution was examined during the photocatalytic
reaction. Motivated by previous reports,21,35,56
a
Pt chromophore (platinum
terpyridylphenylacetylide complex) was chosen as the photosensitizer. The experiment was
13

Dalton Transactions
Page 14 of 27
View Article Online
DOI: 10.1039/C6DT02148D
performed using complex 1 (2 × 10-5 M) as the cocatalyst, Pt chromophore (1.11×10-5 M) as the
photosensitizer, and TEOA (1.6×10-2 M) as the electron donor in a mixed acetonitrile:water (1:1,
v/v) solution at pH 13. The results are shown in Figure 6a. Before visible light irradiation, the
absorption spectrum was simply the sum of the components of the reaction mixture. After 30 min
of irradiation, the solution color clearly turned from greenish yellow to brick red (Figure 6b),
indicating that a chemical reaction had occurred during irradiation. Accordingly, a new broad
absorption band appeared in the range of 550-820 nm in the absorption spectrum, which could be
assigned to Co(I) formation.22, 57
Based on the above results, we propose a mechanism for photocatalytic hydrogen production
in the complex 1/CdS catalytic system. The mechanisms involving monometallic and bimetallic
pathways have been reported in numerous studies for molecular cobalt complexes.56, 58 For
mononuclear mechanisms, the rate of hydrogen production shows a linear dependence on
concentration of cobalt catalyst. On the other hand, the H2 production rate is proportional to the
squared concentration of cobalt catalyst [Co]2 for binuclear mechanisms. A nearly linear
dependence of H2 production rate on cobalt concentration can be perceived in the present system,
as shown in Figure S8. Therefore, a mononuclear mechanism is suggested (Scheme 1). In detail,
the visible light photons excite CdS NRs to generate electrons and holes. The photogenerated holes
are filled by oxidation of ascorbic acid, which leads to dehydroascorbic acid, protons, and electrons.
The ascorbic acid can also serve as a buffer due to formation of a conjugate base, which maintains
the acidic pH even after the reduction of protons to H2.59 Complex 1 accepts the photogenerated
electrons and is reduced to Co(I) species. In the next step, a proton can bind to Co(I) and yield
Co(III)-H species. Further transfer of electrons will reduce the Co(III)-H species to Co(II)-H
species. Binding of another proton to Co(II)-H species results in the formation of hydrogen.
14

Page 15 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
Conclusions
In summary, we showed that simple cobalt bidentate Schiff base complexes are highly active
and noble-metal-free cocatalysts for photocatalytic H2 production in water without any other
organic solvents at ambient temperature. This efficient photocatalytic system uses CdS NRs as the
photosensitizer, ascorbic acid as the electron donor, and Co(II) complexes as the molecular
cocatalysts. Under optimum conditions, the system presented a TON of 15200 with good stability
after 12 hours under visible light irradiation. An average apparent quantum yield of ~27% was
achieved under irradiation with visible light (λ = 420 nm). The enhanced photocatalytic H2
production is probably due to efficient transfer of electrons from CdS NRs to the cobalt complex
cocatalyst. PL spectra and mechanistic studies suggested that the present cobalt molecular
cocatalyst can accept the photogenerated electrons from CdS NRs, which probably prevents the
recombination of photogenerated electrons and holes in the CdS NRs, thereby promoting the
photocatalytic H2 production.
Acknowledgement
This work was financially supported by the National Natural Science Foundation of China
(21271166, 21473170), the Fundamental Research Funds for the Central Universities
(WK2060140015, WK2060190026, WK3430000001), the Program for New Century Excellent
Talents in University (NCET), and the Young Thousand Talents Program.
15

Dalton Transactions
Page 16 of 27
View Article Online
DOI: 10.1039/C6DT02148D
Supporting Information Available. Experimental details are available including NMR spectra
of ligands, powder XRD patterns, UV-Vis spectra of complexes in water, and additional figures
detailing solubility. This material is available free of charge via the Internet at http://pubs.rsc.org.
References.
1.
2.
B. Probst, C. Kolano, P. Hamm and R. Alberto, Inorg. chem., 2009, 48, 1836-1843.
X. Li, H. Liu, D. Luo, J. Li, Y. Huang, H. Li, Y. Fang, Y. Xu and L. Zhu, Chem. Eng. J.,
2012, 180, 151-158.
3.
4.
5.
6.
7.
8.
9.
N. S. Lewis and D. G. Nocera, Proc. Natl. Acad. Sci. U.S.A., 2006, 103, 15729-15735.
H. B. Gray, Nat Chem, 2009, 1, 7.
H. Imahori, T. Umeyama and S. Ito, Acc. Chem. Res., 2009, 42, 1809-1818.
T. M. Clarke and J. R. Durrant, Chem. Rev., 2010, 110, 6736-6767.
T. L. Frölicher, M. Winton and J. L. Sarmiento, Nature Clim. Change., 2014, 4, 40-44.
P. Du and R. Eisenberg, Energy Environ. Sci., 2012, 5, 6012-6021.
M. G. Walter, E. L. Warren, J. R. McKone, S. W. Boettcher, Q. Mi, E. A. Santori and N.
S. Lewis, Chem. Rev., 2010, 110, 6446-6473.
10.
11.
12.
13.
14.
A. J. Esswein and D. G. Nocera, Chem. Rev., 2007, 107, 4022-4047.
R. D. M. and D. L. Dubois, Acc. Chem. Res., 2009, 42, 1974-1982.
M. Wang, L. Chen and L. Sun, Energy Environ. Sci., 2012, 5, 6763-6778.
D. Gust, T. A. Moore and A. L. Moore, Acc. Chem. Res., 2009, 42, 1890-1898.
K. J. Young, L. A. Martini, R. L. Milot, R. C. Snoeberger, V. S. Batista, C. A.
Schmuttenmaer, R. H. Crabtree and G. W. Brudvig, Coord. Chem. Rev., 2012, 256, 2503-
2520.
15.
16.
J. Hawecker, J. M. Lehn and R. Ziessel, Helv Chim Acta, 1986, 69, 1990-2012.
A. Fihri, V. Artero, M. Razavet, C. Baffert, W. Leibl and M. Fontecave, Angew Chem Int
Edit, 2008, 47, 564-567.
17.
X. Zong, Y. Na, F. Wen, G. Ma, J. Yang, D. Wang, Y. Ma, M. Wang, L. Sun and C. Li,
Chem. Commun., 2009, 4536-4538.
18.
19.
Y. Na, J. Pan, M. Wang and L. Sun, Inorg. Chem., 2007, 46, 3813-3815.
Y. Na, M. Wang, J. Pan, P. Zhang, B. Åkermark and L. Sun, Inorg. Chem., 2008, 47, 2805-
2810.
20.
21.
22.
E. D. Cline, S. E. Adamson and S. Bernhard, Inorg. Chem., 2008, 47, 10378-10388.
P. Du, K. Knowles and R. Eisenberg, J. Am. Chem. Soc., 2008, 130, 12576-12577.
T. Lazarides, T. McCormick, P. W. Du, G. G. Luo, B. Lindley and R. Eisenberg, J Am
Chem Soc, 2009, 131, 9192-9195.
23.
S. P. Luo, E. Mejia, A. Friedrich, A. Pazidis, H. Junge, A. E. Surkus, R. Jackstell, S.
Denurra, S. Gladiali, S. Lochbrunner and M. Beller, Angew. Chem. Int. Ed., 2013, 52, 419-
423.
16

Page 17 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
24.
Z. Y. Wang, H. Rao, M. F. Deng, Y. T. Fan and H. W. Hou, Phys. Chem. Chem. Phys.,
2013, 15, 16665-16671.
25.
26.
27.
A. Kudo and Y. Miseki, Chem. Soc. Rev., 2009, 38, 253-278.
K. Maeda and K. Domen, J Phys Chem C, 2007, 111, 7851-7861.
X. Zong, H. J. Yan, G. P. Wu, G. J. Ma, F. Y. Wen, L. Wang and C. Li, J. Am. Chem. Soc,
2008, 130, 7176-7177.
28.
29.
30.
A. Fujishima and K. Honda, Nature, 1972, 238, 37-38.
M. Hara, T. Takata, J. N. Kondo and K. Domen, Catal. Today, 2004, 90, 313-317.
Z. P. Yan, X. X. Yu, A. Han, P. Xu and P. W. Du, J Phys Chem C, 2014, 118, 22896-
22903.
31.
32.
33.
T. Y. Peng, K. Li, P. Zeng, Q. G. Zhang and X. G. Zhang, J. Phys. Chem. C, 2012, 116,
22720-22726.
L. J. Zhang, R. Zheng, S. Li, B. K. Liu, D. J. Wang, L. L. Wang and T. F. Xie, ACS Appl.
Mater. Interfaces, 2014, 6, 13406-13412.
F. Y. Wen, J. H. Yang, X. Zong, B. J. Ma, D. G. Wang and C. Li, J. Catal., 2011, 281,
318-324.
34.
35.
36.
37.
38.
39.
Z. Sun, H. Zheng, J. Li and P. Du, Energy Environ. Sci., 2015, 8, 2668-2676.
H. Chen, Z. Sun, S. Ye, D. Lu and P. Du, J. Mater. Chem. A, 2015, 3, 15729-15737.
C. M. Chang, K. L. Orchard, B. C. M. Martindale and E. Reisner, J. Mater. Chem. A, 2016.
A. Datta, S. Kar, J. Ghatak and S. Chaudhuri, J. Nanosci. Nanotechno., 2007, 7, 677-688.
Z. Sun, Q. Yue, J. Li, J. Xu, H. Zheng and P. Du, J. Mater. Chem. A, 2015, 3, 10243-10247.
V. Bereau, V. Jubera, P. Arnaud, A. Kaiba, P. Guionneau and J. P. Sutter, Dalton Trans.,
2010, 39, 2070-2077.
40. P. Du, J. Schneider, P. Jarosz, J. Zhang, W. W. Brennessel and R. Eisenberg, J. Phys. Chem.
B, 2007, 111, 6887-6894.
41.
42.
43.
44.
45.
46.
Z. Yan, Z. Sun, X. Liu, H. Jia and P. Du, Nanoscale, 2016.
C. Li, W. Fan, H. Lu, Y. Ge, H. Bai and W. Shi, New J. Chem., 2016.
D. Jiang, Z. Sun, H. Jia, D. Lu and P. Du, J. Mater. Chem. A, 2016, 4, 675-683.
J. Liu, J Phys Chem C, 2015, 119, 28417-28423.
A. Galinska and J. Walendziewski, Energy Fuels, 2005, 19, 1143-1147.
W. R. McNamara, Z. Han, P. J. Alperin, W. W. Brennessel, P. L. Holland and R. Eisenberg,
J. Am. Chem. Soc., 2011, 133, 15368-15371.
47.
48.
W. M. Singh, T. Baine, S. Kudo, S. Tian, X. A. N. Ma, H. Zhou, N. DeYonker, T. C. Pham,
J. C. Bollinger and D. L. Baker, Angew. Chem. Int. Ed., 2012, 124, 6043-6046.
W. N. Cao, F. Wang, H. Y. Wang, B. Chen, K. Feng, C. H. Tung and L. Z. Wu, Chem.
Commun., 2012, 48, 8081-8083.
49.
50.
51.
Y. Xu, X. Yin, Y. Huang, P. Du and B. Zhang, Chem. - Eur. J., 2015, 21, 4571-4575.
J. Yuan, J. Wen, Q. Gao, S. Chen, J. Li, X. Li and Y. Fang, Dalton T, 2015, 44, 1680-1689.
Y. T. Chen, J. B. Ding, Y. Guo, L. B. Kong and H. L. Li, Mater. Chem. Phys., 2003, 77,
734-737.
52.
53.
54.
L. Wu, C. Y. Jimmy and X. Fu, J. Mol. Catal. A: Chem., 2006, 244, 25-32.
J. H. Burness, J. G. Dillard and L. T. Taylor, J. Am. Chem. Soc., 1975, 97, 6080-6088.
A. R. Karam, E. L. Catarí, F. López-Linares, G. Agrifoglio, C. L. Albano, A. Díaz-Barrios,
T. E. Lehmann, S. V. Pekerar, L. A. Albornoz and R. Atencio, Appl. Catal., A., 2005, 280,
165-173.
55.
D. Xu, Z. P. Liu, J. B. Liang and Y. T. Qian, J. Phys. Chem. B, 2005, 109, 14344-14349.
17

Dalton Transactions
Page 18 of 27
View Article Online
DOI: 10.1039/C6DT02148D
56.
P. Du, J. Schneider, G. Luo, W. W. Brennessel and R. Eisenberg, Inorg. Chem., 2009, 48,
4952-4962.
57.
58.
59.
X. Hu, B. S. Brunschwig and J. C. Peters, J. Am. Chem. Soc., 2007, 129, 8988-8998.
C. A. Baffert, V.; Fontecave, M., Inorg. Chem., 2007, 46, 1817-1824.
Z. Han, F. Qiu, R. Eisenberg, P. L. Holland and T. D. Krauss, Science, 2012, 338, 1321-
1324.
18

Page 19 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
Figures
Figure 1. (a) Molecular structures of cobalt bidentate Schiff base complexes 1-4. (b) TEM image
of CdS NRs (c) Powder XRD pattern of CdS NRs and mixed complex 1/CdS. The bottom black
plot is the standard XRD pattern, CdS-PDF#77-2306.
19

Dalton Transactions
Page 20 of 27
View Article Online
DOI: 10.1039/C6DT02148D
Figure 2. (a) UV-Vis absorbance spectra (converted from diffuse reflectance spectra) of CdS NRs,
complex 1/CdS, and complex 1. (b) Comparison of H2 production rates of cobalt complexes 1-4
(0.02 mM) under visible light at pH 4 after 5 h of irradiation. Photocatalytic systems contained 1.0
mg CdS NRs and 0.5 M ascorbic acid as electron donor in 20 mL water. (c) Influence of pH on H2
evolution rate. (d) Effect of concentration of complex 1 on H2 evolution rate at pH 4. The system
contains 0.5 M ascorbic acid and 1.0 mg CdS NRs in 20 mL water.
20

Page 21 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
Figure 3. (a) H2 evolution of complex 1 under visible light (λ > 420 nm) and apparent Quantum
Yield using monochromatic light (λ = 420 nm) (b) Long-term H2 production under visible light
(λ > 420 nm) containing 0.02 mM complex 1, 0.5 M ascorbic acid, and 1.0 mg CdS NRs in 20
mL water.
21

Dalton Transactions
Page 22 of 27
View Article Online
DOI: 10.1039/C6DT02148D
Figure 4. (a) XPS survey spectra of mixture of Complex 1 and CdS NRs (red plot) and after 10 h
of photocatalytic reaction (washed by ethanol and water, black plot). (b) High resolution XPS
spectrum of S 2p. (c) High resolution XPS spectrum of Cd 3d. (d) High resolution XPS spectrum
of Co 2p.
22

Page 23 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
Figure 5. Photoluminescence spectra of CdS NRs (black plot) and complex 1/CdS (red plot)
excited at the wavelength of 405 nm.
23

Dalton Transactions
Page 24 of 27
View Article Online
DOI: 10.1039/C6DT02148D
Figure 6. (a) UV-Vis absorption spectra of system containing Pt chromophore (1.11 × 10-5 M),
TEOA (1.25% v/v), and complex 1 (2 × 10-5 M) in a mixture of acetonitrile and water (1:1) at pH
13 before and after irradiation (λ > 420 nm) under an inert atmosphere. (b) Color change under
visible light irradiation.
24

Page 25 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
Scheme 1. Mechanism of the photocatalytic system with complex 1/CdS NRs under visible light
(λ > 420 nm).
25

Dalton Transactions
Page 26 of 27
View Article Online
DOI: 10.1039/C6DT02148D
Scheme 2. The reaction process for photocatalytic H2 production.
26

Page 27 of 27
Dalton Transactions
View Article Online
DOI: 10.1039/C6DT02148D
TOC
A noble-metal-free photocatalytic hydrogen production system containing a simple bidentate
cobalt Schiff base complex as the molecular cocatalyst, CdS nanorods as the photosensitizer, and
ascorbic acid as the electron donor was reported.
27
