Communications
doi.org/10.1002/ejic.202001006
structures, with the presence of bimetallic PdPt and PdRh
nanoparticles on the SiNA surfaces confirmed by EDX images
Figure 4b, Figure 4c and Figure 4f, Figure 4g). The TEM images
of SiNA-Pd, -Pt, and -Rh reveal dispersed Pd, Pt, and Rh
nanoparticles with diameters of approximately 9–11 nm, 3–
spectrum of bimetallic SiNA-PdRh in R-space (Figure 5f) sug-
gests that the RhÀ metal bond is elongated compared to those
in Rh foil and monometallic SiNA-Rh, which indicates the
existence of PdÀ Rh solid-solution alloy nanoparticles. The fitted
data for the first coordination shell in R-space (1.9–2.8 Å) are
summarized in Table 1, which shows that the mean coordina-
tion number of each metal (Pd or Rh) in each catalyst sample
(SiNA-Pd, -Rh, or -PdRh) is lower than that of the face-centered
cubic-packed bulk metal (7.3–8.8 vs. 12). Most importantly, the
RhÀ M (M=Pd, Rh (3:1)) bond in SiNA-PdRh is clearly longer
(2.700 Å) than that in Rh foil (2.689 Å). XPS revealed that the Pt
4f7/2 binding energy of SiNA-PdPt (70.3 eV) is negatively shifted
compared to that of monometallic SiNA-Pt (70.5 eV), suggesting
charge transfer from Pd atoms to Pt atoms (Figure S1,
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
(
4
nm, and 4–5 nm, respectively (Figure 3c, Figure 3f, Figure 3i),
while the TEM images of bimetallic SiNA-PdPt and SiNA-PdRh
show dispersed nanoparticles with diameters of approximately
7
–9 nm and 9–11 nm, respectively (Figure 4d and Figure 4h).
To investigate the chemical states of the nanoparticles,
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
monometallic SiNA-Pd and SiNA-Rh, as well as bimetallic SiNA-
PdRh, were subjected to XAFS experiments at the Pd K-edge
(24.4 keV) and Rh K-edge (23.2 keV). By comparison with Pd and
Rh foil as reference materials, the XANES spectral features of the
catalyst samples on Pd (Figure 5a) and Rh (Figure 5d) clearly
reveal that both Pd and Rh are in their metallic zero-valence
oxidation states, while the catalyst samples show reduction in
extended X-Ray absorption fine structure (EXAFS) intensity in k-
space (Figure 5b (Pd) and Figure 5e (Rh)) and R-space (Figure 5c
[13]
Supporting Information).
Since distinguishing atomic species with close atomic
numbers ( Rh and 46Pd) is difficult by EXAFS, the structures and
4
5
phase information of the metallic nanoparticles were further
investigated by XRD (Figure 6). Pd nanoparticles on SiNA exhibit
diffraction peaks at around 40.1° and 46.6° that are assigned to
the (111) and (200) planes, respectively, of the face-centered
cubic structure (fcc) of Pd (Figure 6, deep-green trace; PDF
00-0046-1043). The diffraction peak at 41.1° of the Rh nano-
(Pd) and 5f (Rh)), which strongly suggests that metallic Pd and
Rh nanoparticles are formed on the surface of the silicon
nanowire array through chemical reduction by the hydrogen-
terminated silicon surface. Furthermore, the Rh K-edge EXAFS
particles are assigned to the (111) crystalline plane of metallic
Rh (Figure 6, green trace; PDF 00-005-0685). Similarly, the main
(111) reflection of the formed PdRh is shifted along the 2θ axis
to 40.2°, and lies between the limits of pure Pd and Rh,
consistent with the formation of the PdRh alloy (Figure 6, red
[14]
trace). The diffractin peaks of PdPt bimetallic nanoparticles
on SiNA are observed between the limits of pure Pd and Pt
[15]
(
Figure S3, Supporting Information) . In addition, the remain-
ing intense reflections are ascribed to the silicon nanowire array
and the silicon substrate, which is due to the introduction of
the silicon wafer as the catalyst support. These data provide
evidence for the formation of PdRh and PdPt alloys.
We used ICP-MS to determine the nanoparticle loading on
SiNA, which revealed contents of 14.0 μmol/g, 6.07 μmol/g, and
4
.32 μmol/g on SiNA-Pd, -Pt, and -Rh, respectively. The actual
ratio between metals contents in bimetallic SiNA-PdPt and

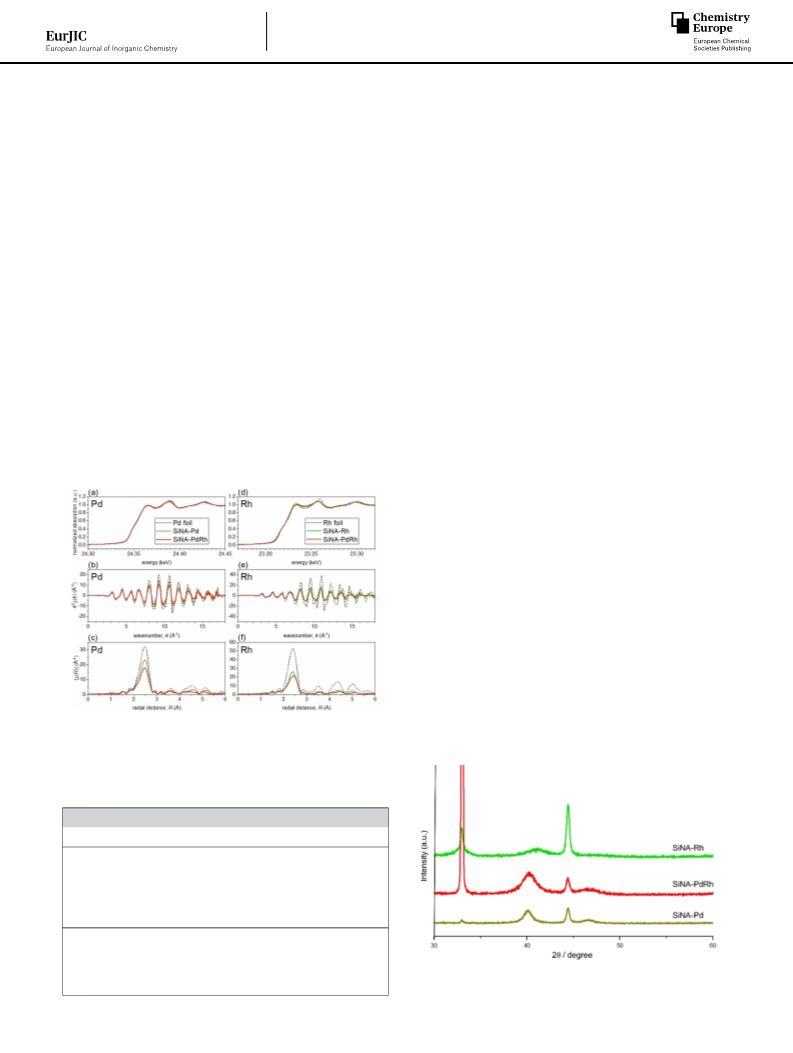

Figure 5. XAFS data for SiNA-Pd, SiNA-Rh, and SiNA-PdRh. (a) Pd K-edge
XANES, (b) Pd K-edge EXAFS in k-space, (c) Pd K-edge EXAFS in R-space,
(
d) Rh K-edge XANES, (e) Rh K-edge EXAFS in k-space, (f) Rh K-edge in R-
À 1
space (k-range: 3–15 Å ).
[a]
Table 1. EXAFS fitting data.
[b]
[c]
Sample
Edge
N
R [Å]
σ2 [Å2]
R factor
[d
Pd foil
SiNA-Pd
SiNA-PdRh
Rh foil
SiNA-Rh
Pd-K
Pd-K
Pd-K
Rh-K
Rh-K
Rh-K
12 ]
2.742(3)
2.740(2)
2.739(2)
2.689(2)
2.685(3)
2.700(4)
0.006
0.006
0.007
0.005
0.006
0.007
0.002
0.001
0.002
0.002
0.002
0.004
[
e]
8.8(4)
7.9(5)
[
[
e,f]
e,f]
[d]
12
[e]
7.3(5)
8.4(8)
SiNA-PdRh
À 1
2
[
a] k-Range: 3–15 Å , R-range: 1.9–2.8 Å. S
0
is assumed to be 1. All spectra
were acquired at room temperature. [b] Mean coordination number of the
first coordination shell. [c] Pd(Rh)À Pd(Rh) distance. [d] The coordination
number of the bulk-metal foil is assumed to be 12. [e] Acquired in
fluorescence mode. [f] The ratio of Rh:Pd is ~1:3, based on ICP-MS.
Figure 6. XRD patterns of monometallic Pd, Rh, and bimetallic PdRh on SiNA.
Eur. J. Inorg. Chem. 2021, 708–712
710
© 2021 Wiley-VCH GmbH
