Solvent assisted and solvent free orientation of growth of nanoscaled lanthanide sulfides: Tuning of morphology and manifestation of photocatalytic behavior

Article abstract of DOI:10.1039/c5ra19959j

A new class of precursor complexes Ln(acda)₃(phen), (where Ln = Nd, Sm, Eu, Tb and Yb, acda^- is the anion of 2-aminocyclopentene-1-dithiocarboxylic acid and phen stands for 1,10-phenanthroline) have been used to obtain phase pure lanthanide sulfide nanoparticles by solution-based as well as solution-free thermal treatments at inert conditions. During solution-phase thermolysis, long chain alkyl-amine solvents have been used to promote the reaction at much lower temperature (280 °C) than the solid-phase reaction (650 °C). A contrasting growth feature is observed for nano sulfides and consequently the shape of the material is varied from isotropic cube-like morphology to anisotropic short nanofibers according to the variation of surfactants. The study confirmed that the introduction of 1-dodecanethiol as a structure-modifying capping agent along with reacting amine significantly facilitates the anisotropic growth in a preferred direction. These have been characterized by XRD, TEM, FESEM, UV-vis spectroscopy and BET surface area measurements. The optical absorption data indicated a narrow band gap energy ranging from 1.71-1.97 eV for different EuS. The material emerged as a highly active visible light-driven photocatalyst among the lanthanide sulfides towards the degradation of organic dyes. A comparative catalytic study with morphologically different EuS revealed that the degradation rate changes with varying morphology and for all the dyes it strictly follows the decreasing order of sphere-like particles > cube-like particles > nanofibers.

Full text of DOI:10.1039/c5ra19959j

View Article Online
View Journal
RSC Advances
This article can be cited before page numbers have been issued, to do this please use: A. B. Ghosh, N.
Saha, A. Sarkar, D. N. Srivastava, P. Paul and B. Adhikary, RSC Adv., 2015, DOI: 10.1039/C5RA19959J.
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Accepted Manuscripts are published online shortly after
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. This Accepted Manuscript will be replaced by the edited,
formatted and paginated article as soon as this is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the Ethical guidelines still
apply. In no event shall the Royal Society of Chemistry be held
responsible for any errors or omissions in this Accepted Manuscript
or any consequences arising from the use of any information it
contains.
www.rsc.org/advances

Page 1 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
1
2
3
Solvent assisted and solvent free orientation of growth of nanoscaled
lanthanide sulfides: tuning of morphology and manifestation of photocatalytic
behavior †
4
5
6
Abhisek Brata Ghosh,a Namrata Saha,a Arpita Sarkar,a Divesh N. Srivastava,b Parimal
Paul,*b and Bibhutosh Adhikary*a
7
8
aDepartment of Chemistry, Indian Institute of Engineering Science and Technology, Shibpur,
Howrah 711 103, West Bengal, India
9
10
11
bDepartment of Analytical Science, Central Salt & Marine Chemicals Research Institute,
Gijubhai, Badheka Marg, Bhavnagar 364002, Gujarat, India
12
13
*Corresponding author Tel: +91-3326684561 Ext. 512, Fax: +91-3326682916,
E-mail: bibhutoshadhikary@yahoo.in
14
15
16
†Electronic supplementary information (ESI) available: Characterization data for
Ln(acda)3(phen) (Ln = Nd, Sm, Tb, Yb), Fig. S1-S16 and Table S1 and Table S2. See DOI:
10.1039/ ………
17
18
19
20
21
22
23
24
1

RSC Advances
Page 2 of 30
View Article Online
DOI: 10.1039/C5RA19959J
25 Abstract
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
A new class of precursor complexes Ln(acda)3(phen), (where Ln = Nd, Sm, Eu, Tb and Yb, acda‾
is the anion of 2-aminocyclopentene-1-dithiocarboxylic acid and phen stands for 1,10-
phenanthroline) have been used to obtain phase pure lanthanide sulfide nanoparticles by
solution-based as well as solution-free thermal treatment at inert condition. During solution-
phase thermolysis, long chain alkylamine solvents have been used to promote the reaction at
much lower temperature (280°C) than the solid-phase reaction (650°C). A contrasting growth
feature is observed for nano sulfides and consequently the shape of the material is varied from
isotropic cube-like morphology to anisotropic short nanofibers according to the variation of
surfactants. The study confirmed that the introduction of 1-dodecanethiol as a structure-
modifying capping agent along with reacting amine significantly facilitates the anisotropic
growth in a preferred direction. These have been characterized by XRD, TEM, FESEM, UV-
Vis spectroscopy and BET surface area measurements. The optical absorption data indicated a
narrow band gap energy ranging from 1.71 – 1.97 eV for different EuS. The material emerged as
a highly active visible light-driven photocatalyst among the lanthanide sulfides towards the
degradation of organic dyes. A comparative catalytic study with morphologically different EuS
revealed that the degradation rate changes with the varying morphology and for all the dyes it
strictly follows the decreasing order of sphere-like particles > cube-like particles > nanofibers.
47
2

Page 3 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
48 1. Introduction
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
In the last few decades, the field of nano-scaled semiconducting materials underwent a
significant expansion and became one of the most dominating research areas within the
nanoscience community. There is a growing need for highly efficient, low cost materials which
can be used in catalysis, electronics, photonics, energy conversion and storage, data storage and
drug delivery1-7. Due to these unique properties and promising applications in various domains,
many wet and non-wet synthetic procedures have been developed, including the high
temperature thermolysis by utilizing the single source precursors for the fabrication of
semiconducting materials, tuned into different morphology nanostructures, such as nanocubes,
nanoplates, nanowires, nanobelts etc8-14. Among these, the particular solvent assisted one
dimensional growth of the nanoparticles is an important domain of investigation as it selectively
affects the materials property in various ways15-19
.
Recently, a sincere efforts were involved towards the preparation of variety of lanthanide
based nanomaterials such as oxides20-21, fluorides22-25, sulfides26-37, oxy-sulfides38-42, phophates43,
molybdates44 and vanadates45 due to their fascinating application in the opto-electronic devices,
high performance magnets biological cell imaging, drug carriers and so on46-48. Among them,
lanthanide sulfides have drawn sufficient attraction to the researchers due to their several
interesting features. Although, the synthesis of LnS/Ln2S3 nanoparticles are still challenging for
the material scientists as Ln3+ are too hard to combine spontaneously with the potentially soft S2-.
On the other hand, as lanthanides are extremely sensitive towards the oxygen and always tend to
form the oxides; even the trapped water molecules in the precursor or the moisture can spoil it.
In the present study, we report an effective synthetic routes to produce lanthanide sulfides
with variable shape via thermal decomposition of a new class of precursor complex of
3

RSC Advances
Page 4 of 30
View Article Online
DOI: 10.1039/C5RA19959J
71
72
73
74
75
76
77
78
79
80
81
82
83
[Ln(acda)3(phen)] (phen
=
1,10-phenanthroline; Hacda
=
2
aminocyclopentene-1-
dithiocarboxylic acid) by simply managing the proper choice of surfactants. Both the precursor
complex and nanomaterials are thoroughly characterized by the common investigating tools (Uv-
vis spectroscopy, FT-IR study, ESI-MS analysis and HR-XRD, TEM, FESEM, EDX
respectively). Studies have shown that, all other lanthanides (Nd, Sm, Tb, Yb) except europium
form pure trivalent sulfides where as europium forms pure bivalent sulfide which have been
indicated by the high resolution X-ray diffraction peaks. A major finding obtained during the
course of studies of the nanomaterials is the observation of enhanced photocatalytic activity of
EuS compared to the other lanthanide sulfides under visible light irradiation towards the
degradation of rhodamine B, congo-red and methylene blue dyes. In order to address the
morphological effects on the catalytic activity of EuS, the same catalytic experiment has been
performed with EuS of three different shapes and finally a correlation is obtained.
84
85 2. Experimental
86
87
88
89
90
91
92
93
94
2.1. Materials
All chemicals were of reagent grade and used without further purification. Ln(NO3)3.xH2O (x =
6 for Ln = Nd, Sm, Tb and x = 5 for Ln = Eu, Yb), oleylamine (OAm), 1-dodecanethiol (DDT),
hexadecylamine (HDA), rhodamine-B (RhB), congo-red (CR) and methylene blue (MB) were
purchased from Sigma-Aldrich. Cyclopentanone, carbon disulfide, 1, 10 phenanthroline
monohydrate (phen), triethylamine, p-benzoquinone (BQ), tert-butyl alcohol (TBA) and
ammonium oxalate (AO) were purchased from Spectrochem Pvt. Ltd. (India). Nano-sized
titanium dioxide (Degussa-P25) was purchased from Degussa Company. Solvents were used as
received.
4

Page 5 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
95
96
2.2. Synthesis
97
The ligand 2-aminocyclopentene-1-dithiocarboxylic acid (Hacda) was prepared according to the
previously published procedure49.
98
99
100
101
102
103
104
105
106
2.2.1. Synthesis of the precursor complex [Eu(acda)3(phen)]
A solution of Hacda (0.48 g, 3 mmol) and 1,10 phenanthroline monohydrate (0.2 g, 1 mmol) in
dry methanol (20 ml) were added to a methanolic solution (10 ml) of europium(III) nitrate
pentahydrate (0.43 g, 1 mmol). To this was slowly added with stirring a methanol solution of
triethylamine (0.31 g, 3 mmol). The bright orange solid was separated immediately and the
stirring was continued for another 20 min. Then, the product was filtered, washed with cold
methanol and dried in vacuum; yield 0.548 g (68%). Anal. Calcd for C30H32N5EuS6: C, 44.66 ;
H, 3.97 ; N, 8.68. Found: C, 44.12 ; H, 4.16; N, 8.62. IR data (KBr pellet, cm-1): 3354 (m, br),
2941 (s, br), 1609 (s), 1465 (s), 1421 (s), 1385 (s), 1311 (s), 1219 (m), 1146 (m), 1102 (m), 1034
(m), 912 (m), 853 (m), 812 (m), 727 (m). ESI-MS (positive) in MeOH: m/z 807.97
[Eu(acda)3(phen)H]+ (35%). UV-vis [in N,N-dimethylformamide, λmax, nm (ε / M-1 cm-1)] 386
(38200), 332 (22400).
107
108
109
110
111
112
113
114
115
116
117
Mixed ligand complexes of Nd3+, Sm3+, Tb3+ and Yb3+ have been prepared in the same way
as stated above. Detailed characterization data for the remaining complexes were given in the
ESI†.
5

RSC Advances
Page 6 of 30
View Article Online
DOI: 10.1039/C5RA19959J
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
2.2.2. Syntheses of EuS nanoparticles.
2.2.2.1. Solid-State thermolysis (1)
The mixed ligand complex Eu(acda)3(phen) (0.5 g, 0.62 mmol) was taken on a graphite boat and
placed inside a quartz tube furnace horizontally. The system was degassed under vacuum for 30
min. Then the sample was heated to 120°C under vacuum for 30 min prior to strong heating.
Then the whole system was filled with argon gas and the temperature was raised to 650°C (with
a heating rate 20°C / min) under a gentle argon flow through the tube. The heating was continued
for 1 hr after reaching the desired temperature and then slowly cooled down to room temperature
under inert atmosphere. Highly crystalline black solid was obtained.
2.2.2.2. Solution Phase Thermolysis (2).
Synthesis of cube-like nanocrystals (2a). The precursor [Eu(acda)3(phen)] (0.4 g, 0.5 mmol)
was added to OAm ( 10 ml, 30 mmol) in a 100 ml two-necked flask at room temperature. The
slurry was heated to 100°C under vacuum to remove moisture and oxygen with vigorous
magnetic stirring for several minutes in a heating mantle and finally a clear solution is obtained.
Then, the mixture was heated to 280°C quickly under argon atmosphere and kept for 1 h. As
soon as it reached the temperature, the resulting solution became dark purple. After cooling to
room temperature, the nanoparticles were precipitated by adding excess amount of dry ethanol.
The product was collected by centrifugation (9000 rpm, 8 min) and dispersed in toluene and
again reprecipitated with ethanol. The process was repeated several times to make the product
free from reactants. It was then dried in vacuum.
6

Page 7 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
Synthesis of nanocrystals (2b). The synthesis was carried out under argon atmosphere. In a
typical procedure, HDA (7.2 g, 30 mmol), taken in clean two-necked flask was heated to 50°C.
To this 0.4 g of precursor complex [Eu(acda)3(phen)] was added under vigorous stirring. The
suspension was heated to 120°C under vacuum for 15 min to get a clear solution. The
temperature of the stirred solution was then rapidly raised to 280°C under argon protection and
maintained for 1 h. After cooling to room temperature, the product was isolated in the same way
as described for cube-like particles.
Synthesis of nanofiber (2c). To a stirred mixture of OAm (10 mL, 30 mmol) and DDT (2.4 mL,
10 mmol), 0.4 g of precursor complex was added. The temperature of the mixture was brought to
120°C under vacuum and kept so until a clear solution was obtained. The solution was then
heated to 280°C for 1h during which the color of the solution appeared as dark purple. After
cooling to room temperature excess ethanol was added to quench the reaction followed by
centrifugation (9000 rpm, 8 min). The washing procedure was identical as described in above
cases.
To study the effect of the [OAm]/[DDT] ratio, the above experiment was repeated by using 15
mmol (3.6 ml) (2d) and 30 mmol (7.2 mL) (2e) DDT respectively keeping all other factors fixed.
The role of amine was also studied by replacing OAm with HDA (7.2 g, 30 mmol) along with
DDT (2.4 ml, 10 mmol) (2f) and by performing the experiment in DDT (7.2 ml, 30 mmol) alone
(2g).
The nanoparticle synthesis were carried out with the other Ln(acda)3(phen) complexes (Ln = Nd,
Sm, Tb. Yb) following the same procedure stated above.
7

RSC Advances
Page 8 of 30
View Article Online
DOI: 10.1039/C5RA19959J
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
2.3. Physical mesurements
Powder XRD patterns were obtained by using Philips PW 1140 parallel beam X-ray
diffractometer with monochromatic CuKα radiation (λ=1.540598 Å). Surface morphologies were
studied using a JEOL JEM-2100 transmission electron microscope (TEM) working at 200 kV.
FE-SEM images were acquired with a Gemini Zeiss Supra 40VP field emission scanning
electron microscope (FE-SEM) with a 20 KV accelerating voltage. Energy dispersed X-ray
characterizations (EDX) were performed in JEOL JSM-7100F. FTIR spectra were obtained in
the range of 4000 - 400 cm-1 as pressed pellets in KBr on JASCO FT-IR-460 Plus. Positive-ion
electronspray ionization mass spectra (ESI-MS) were recorded on a Micromass Qtof YA 264
mass spectrometer. Thermogravimetric analysis (TGA) was carried out on Perkin-Elmer
Diamond TG/DTA analyzer. Absorption spectral measurment and photocatalytic experiment
were performed on a JASCO V-530 UV-vis spectrophotometer. C, H and N elemental analyses
were performed on a Perkin-Elmer model 2400 analyzer. The BET (Brunaur-Emmett-teller)
surface area of the samples were analysed on Quantachrome Autosorb-1 instrument.
2.4. Photocatalytic activity measurements
Photocatalytic performance of the prepared EuS was tested by the degradation of some common
hazardous organic dyes like RhB, CR, MB etc. The experiments were carried out in a double
necked round bottom flask kept in a thermostated bath at 27°C and the light source used in the
measurements was a 200W tungsten halogen lamp (≥400 nm) placed vertically on the reaction
vessel at a distance of ~10 cm. 1M NaNO2 solution was used as Uv cut-off filter6. The catalytic
experiments were carried out with 40 mL, 1×10−5 M aqueous solution of RhB, CR and MB
separately using 10 mg of the catalyst. Before light was turned on, the well dispersed
8

Page 9 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
suspensions were magnetically stirred in the dark for 30 min to confirm the establishment of the
adsorption-desorption equilibrium. During irradiation, 3 mL aliquot was withdrawn from the
system at a certain time intervals and centrifuged. The clear solutions of the respective dyes were
analyzed by recording the variation of absorption band maximum on a UV-vis
spectrophotometer. Commercial photocatalyst TiO2 (Degussa-P25) was also used as the
reference to compare the photo-catalytic efficiency under the same experimental conditions. The
photoactivity was also monitored in presence of different radical scavengers (ammonium oxalate
as photogenerated hole scavenger, tert-butyl alcohol as a hydroxyl radical scavenger and p-
benzoquinone as a superoxide radical scavenger) following the above similar procedure to
investigate the effect of reactive species in reaction mechanism.
The stability of the photocatalyst during photocatalytic process was also monitored by
repeated experiments of dye degradation. The catalysts were washed thoroughly by anhydrous
ethanol and then air dried to use it again for the second runs of catalytic efficiency testing. The
recyclability testing up to fifth run was performed to establish the catalytic stability of the
material.
202
203
204 3. Results and discussion
205
206
207
208
209
210
3.1. Synthesis and characterization
In the last few years, several dithiocarbamate complexes of lanthanides of the type
[Ln(S2CNR2)3L] (R = alkyl group; L = 2,2ˊ-bipyridine/ 1,10-phenanthroline), Q+[Ln((S2CNR2)4]ˉ
(Q = quaternary ammonium/trialkyphosphonium salt) are extensively used as model precursor
complexes for the preparation of different binary and ternary chalcogenide materials26-27,32-34. In
present work, we have designed a new class of molecular precursors Ln(acda)3(phen)] (Ln = Nd,
9

RSC Advances
Page 10 of 30
View Article Online
DOI: 10.1039/C5RA19959J
211
212
Sm, Eu, Tb and Yb) (Scheme 1) which have been successfully employed to synthesize
LnS/Ln2S3 by simple thermal treatment.
213
214
Scheme 1
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
The precursor Ln(acda)3(phen) compelxes have been obtained by reacting one equivalent
of corresponding lanthanide salts with three equivalents of Hacda, one equivalent of phen and
three equivalents of triethylamine. Because of its poor solubility in common organic solvents
(except DMF and DMSO), attempts to grow suitable single crystals for X-ray structure analysis
was unsuccessful even in DMF also. Nevertheless, it is evident from the chemical analysis that
the compound prepared was analytically pure and characterized by IR, Uv-vis spectra and ESI-
MS (Fig. S1, S2 and S3 respectively in the ESI†). FT- IR spectrum reveals the presence of
symmetric C-S band in the region of 1034 cm-1 and the characteristic C CH bend vibration of
phen at 727 cm-1. Uv-vis absorption spectrum exhibits two intra-ligand charge transfer bands at
386 and 332 nm. Similarly ESI-MS spectrum of Eu(acda)3(phen) shown in Fig. S3 indicates the
m/z value at 807.97 which is in excellent agreement with the monopositive charged species
[Eu(acda)3(phen)H]+, confirming the proposed composition of the complex.
10

Page 11 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
Scheme 2
3.1.1. Synthesis and structural characterization of nanoparticles
Nano-structured EuS has been successfully synthesized by simple one-pot approach employing
solid state thermal and solvothermal decomposition of as prepared mixed ligand complex
(scheme 2). In case of solution based reaction, the influence of synthetic conditions on the
growth and morphology of the product has been investigated by changing solvents and
surfactants at elevated temperature50-51. It was observed that the particular reagents used in this
synthesis play a decisive role in the growth of nanoparticles in a specific direction52-53
.
The crystalline phases of pure EuS were determined by powder X-ray diffraction (XRD)
analysis. Fig. 1 shows the powder X-ray diffractogram of europium sulfide where all diffraction
peaks were indexed to cubic phase of the material. As shown in Fig. 1, the diffraction pattern of
europium sulfide synthesized via solid state thermolysis exhibits distinct sharp peaks which are
11

RSC Advances
Page 12 of 30
View Article Online
DOI: 10.1039/C5RA19959J
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
in good agreement with the (111), (200), (220), (311), (222), (400), (331), (420), (422) lattice
planes (JCPDS No. 26-1419, a = 5.967, space group: Fm3m) respectively. No additional signals
from other phases or from impurities are identified. If we closely observe the peak pattern and
their relative intensities in all cases we will find that clear peak broadening occurs in case of
solvothermally decomposed products which might be due to the loss of crystallinity.
(a)
(b)
(c)

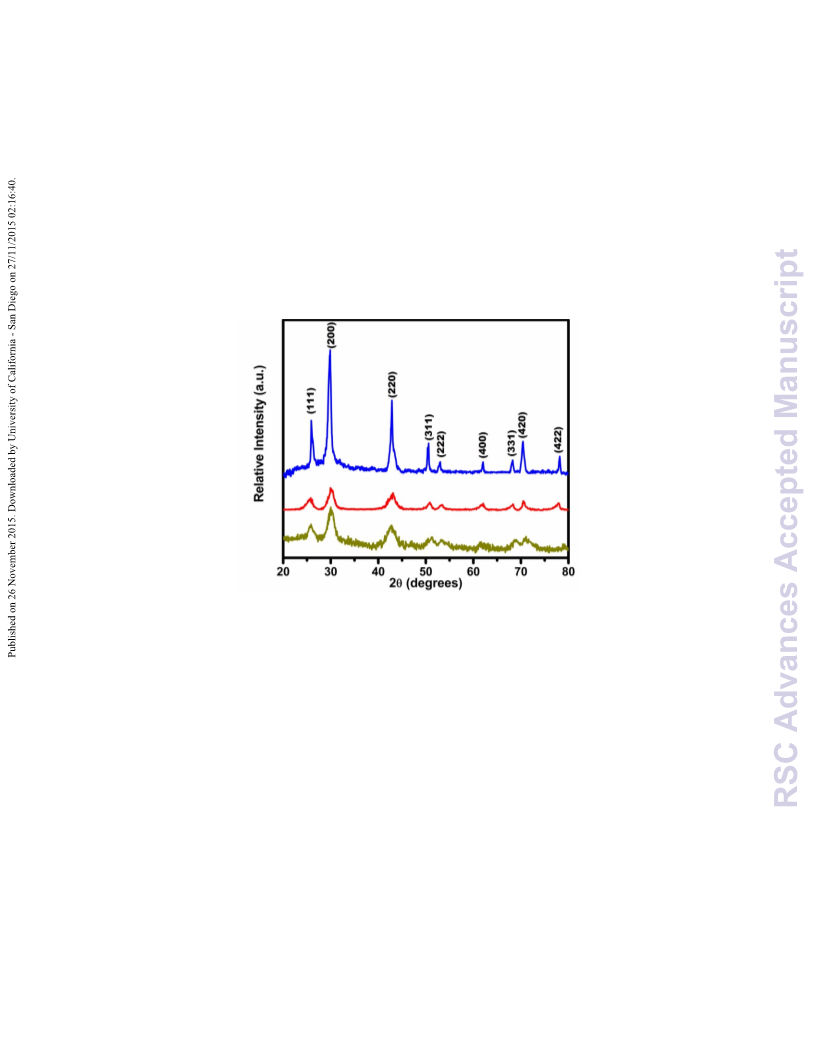

Fig. 1 XRD patterns of EuS. (a) nanoparticles synthesized by solid sate thermolysis EuS (1); (b)
cube-like EuS (2a) and (c) nanotubes EuS (2f) prepared by solvothermal decomposition.
It is also noted that the intensities of few diffraction peaks are not similar in some cases. If we
consider the peaks obtained for EuS nanofiber (Fig. S4 in ESI†), we found that the peaks
corresponding to (222), (331) and (422) lattice planes are not clearly distinguishable. Apart from
EuS, the other lanthanides form air stable trivalent sulfides of the type Ln2S3 (Ln = Nd, Sm, Tb,
Yb), as evidenced from the powder XRD patterns (Fig. S5 in ESI†). Distinct sharp peaks were
obtained in case of Nd2S3 and Sm2S3 synthesized by solid state thermal decomposition and they
12

Page 13 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
fit well with standard diffraction data. On the other hand, Tb2S3, Yb2S3 appears to be amorphous
by XRD analysis.
The morphology and the dimension of the product were examined by TEM analysis.
Typical TEM image of the product (1) are shown in Fig. 2A, indicating the formation of sphere-
like particles which are of 25-35 nm in diameter. The corresponding HRTEM images in Fig. 2E
reveals that the particles are composed of several layers where the interlayer distance is
calculated to be 0.211 nm (220) and 0.180 nm (311). The average crystal size estimated from
Scherrer equation i.e, D = 0.94λ/βcosθ, where β is the peak width at half maxima, is found to be
~38 nm. In case of other lanthanides also same sphere-like morphology was obtained (Fig. S6 in
ESI†) on solid state thermal treatment.
In solution based synthesis of EuS, we observed that the surface stabilizers and capping
agents play a serious role in determining the shape and the morphology of the product when
other factors remain fixed53-55. It has been well observed that the surfactant molecules generally
serve as structure modifying agents and easily modulate the growth of the nanoparticles in a
preferred direction by interacting with various crystal facets at different extent. The TEM and
HRTEM images of EuS prepared by using OAm are shown in Fig. 2B and Fig.2C respectively
indicating a cube-like morphology. Fig. 2G shows the clear lattice fringes with an average
spacing of d = 0.291 ± 0.005 nm corresponding to (200) lattice plane of cubical phase. Selected
area electron diffraction (SAED) patterns of these cube-like nanocrystals (Fig. 2F) exhibit
concentric rings that can be indexed to (111), (200), (220), (311), (222), (400), (420) diffraction
planes for face centred cubical phase of EuS. The purity of the cube-like EuS was further
verified by EDX analysis (Fig. S7 in ESI †) and it has been confirmed that other than Eu and S
no other elements are present. When HDA was used instead of OAm, the irregularly shaped
13

RSC Advances
Page 14 of 30
View Article Online
DOI: 10.1039/C5RA19959J
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
nanocrystals (2b) was the outcome which has been displayed in Fig. 2D. HRTEM pattern of EuS
(2b) (Fig. 2H) corresponds to the lattice spacing of 0.210 ± 0.002 nm (220).
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
0.211 nm
0.291 nm
(200)
0.210 nm
(220)
(220)
0.180 nm
(311)
Fig. 2 TEM (A, B, D) and HRTEM (C, E, G, H) images of as-synthesized EuS nanoparticles;
(A) and (E) EuS (1); (B), (C) and (G) EuS (2a); (D) and (H) EuS (2b); (F) represents SAED
pattern of EuS (2a).

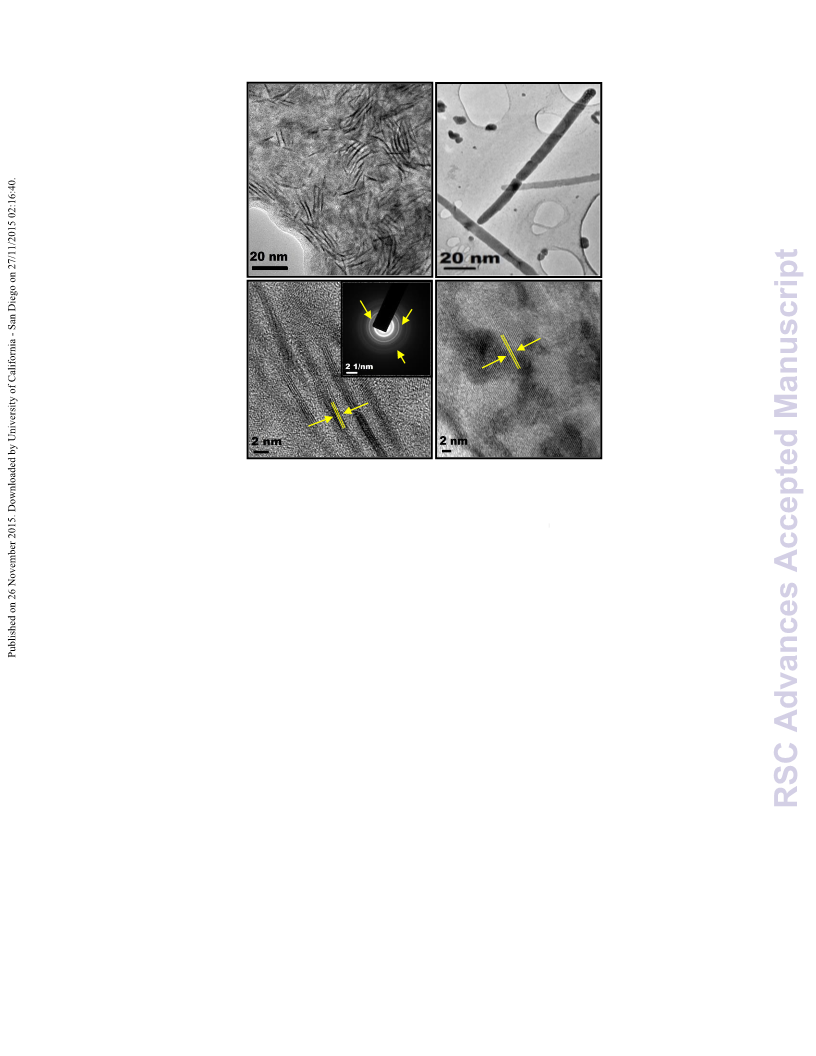

Significant differences in the growth kinetics and the overall nanocrystal shape
development can be observed when DDT was introduced along with reacting amine (OAm) in
the reaction medium. The growth of nanocrystal was anisotropic resulting the formation of short
nanofiber of length ~ 12 nm (Fig. 3A). In the recent past, Stoll and her group have synthesized
europium chalcogenide one dimensional nanowire in a drastic condition by allowing vapour
phase reaction35. Otherwise, no such anisotropic morphology has been reported for this material.
But, in the present case, a simple and selective solution based technique has been adopted for the
14

Page 15 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
synthesis of one dimensional lanthanide sulfide nanomaterials. Controlled experiments and
extensive TEM analysis were carried out to understand the solvent effect in the growth of the
nanostructures. It has been documented that DDT not only serves as an effective sulfur donor as
well as good reducing agents but also plays the unique role of surface active capping agents
during solvothemal synthesis of sulfide based nanomaterials55-57. As described before, we have
confirmed that DDT was neither served as sulfur source nor as reducing agent here because
starting from Eu (III) precursor complex EuS was obtained successfully in absence of DDT also.
Then, what roles did DDT really play here? To address this question we performed several
experiments by changing the reaction condition. When the mole ratio of DDT was increased (15
mmol) with respect to OAm keeping the amount of OAm fixed (30 mmol), the growth was again
anisotropic with the formation of slightly thicker nanofiber (Fig. S8A in ESI†). When
OAm/DDT ratio was made further high (1:1), network like arrangement of nanofiber was
obtained (Fig. S8B in ESI†). In a close view (HRTEM image shown in Figure S8D), the
arrangement of nets was clearly observed. If we change the combination of OAm and DDT by
replacing OAm with an equal amount of HDA along with DDT, the long nanotube (Fig. 3B) was
the outcome confirming the fact that the one dimensional growth was certainly governed by
DDT. On the other hand, when the choice of the solvent was constrained to DDT solely, the
resulting product was highly agglomerated and amorphous in nature (Figure S8C). In this case,
no nanofibers or nanorods were obtained. These results reveal that the use of either reacting
amine or DDT does not induce the anisotropic growth. It is a synergistic effect originating from
the combination of these two where DDT guides the nanocrystallites to grow in a one
dimensional manner in presence of reacting amine which are basically the activating agents. The
difference in shape between the two cases (presence of DDT and the absence of DDT) shows
15

RSC Advances
Page 16 of 30
View Article Online
DOI: 10.1039/C5RA19959J
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
that the binding affinity of DDT on different crystal facets is not uniform leading to unequal
growth rates in different directions which are responsible for the anisotropic morphologies. It
acts not only to regulate the nucleation but also behaves as passivating ligands, inducing the
preferential growth along certain facets. Alternately, when no DDT was present in the medium,
the reacting amine (OAm or HDA) show a strong ability to bind selectively to different growth
directions to instigate isotropic shape control. The results obtained for EuS holds good for other
lanthanide sulfides also where DDT successfully induces the anisotropic growth (Fig. S9 in
ESI†).
The effect of temperature on the nanoparticle growth has not been investigated here
because the precursor decomposition and consequently nanocparticle nucleation which was
evident from the sharp color change of the reaction mixture (Fig. S10 in ESI†) would not be
initiated at the temperature below 280°C.
FESEM images of EuS (2a) and EuS (2b) has been shown in Fig. S11A and B in ESI†.
The cube-like morphology of EuS has been confirmed from FESEM investigation also (Fig.
S11A inset in ESI†). Spherical shape of Yb2S3 synthesized in solution free method was also
evident from the FESEM study (Fig. S11C in ESI†).
16

Page 17 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
(A)
(C)
(B)
368
369
370
371
372
373
374
375
376
377
378
379
380
(111)
(200) (D)
(220)
0.293 nm
(200)
0.209 nm
(220)
Fig. 3 (A) and (C) TEM and HRTEM images of EuS nanofibre (2c); (B) and (D) TEM and
HRTEM images of EuS nanotube (2f). (C) Inset: SAED pattern of EuS nanofiber (2c).
381
382
3.2. Optical properties
383
384
385
386
387
388
389
390
391
Optical properties of EuS nanoparticles have great importance as it provides information for the
application of the material in fabrication of photo-active devices. The Uv-vis absorption spectra
of as synthesized europium (II) sulfides (shown in Fig. 4 and Fig. S12 in the ESI†) were
recorded using the sample solution in toluene. The absorption spectra of EuS exhibit a broad
maximum in the range of 520-550 nm and a sharp rise in the low wavelength region (shown in
Fig. 4 and Fig. S12 in the ESI†). The former one can be attributed to the 4f7(8S7/2) →
4f6(7FJ)5d(t2g)1 transition whereas the latter one is assigned to characteristic charge transfer from
S2- to Eu2+. From the recorded optical spectra, the band gap energies (Eg) of EuS have been
estimated using the Tauc’s relation,58
17

RSC Advances
Page 18 of 30
View Article Online
DOI: 10.1039/C5RA19959J
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
(1)
where parameters ,
and are the absorption coefficient, band gap, photonic energy and
,
a constant respectively. Band gap value has been calculated by extrapolating the linear region of
1/2
a plot of (
)
versus . In the previous study, the band gap of bulk EuS was found to be
1.65 ev, but there was an ambiguity in determining the actual band gap for EuS nanocrystallites.
The ambiguity arises due to the inconsistency in peak assignments during band gap
determination59. Guntherodt etal showed that at 300 K there were two major peaks, one was at
~517 nm (2.4 eV) and second one at ~270 nm (4.6 eV)60. However, most of the reports agreed
with the fact that the band in the visible region is attributed to the characteristic 4f7→ 4f65d1(t2g)
transition and actually responsible for band gap of EuS. In our study, we also observed that for
all cases the band gap values vary within the range of 1.71-1.97 eV (considering visible region
absorption edges) depending on the size and the morphology. The justification of this band gap
values lie on the fact of dependency of Eg on particle size and consequent confinement effect.
When the dimensions of the particles become comparable to the bulk exciton Bohr radius ( ),
quantum confinement effect predominates resulting the increase of the energy gap61-62. Bulk
exciton
Bohr
radius
was
calculated
using
the
relation,
408
409
410
411
412
413
414
(2)
where
is the hydrogen atom Bohr radius (~0.529 Å), ε is the optical dielectric constant of the
material,
is the mass of a free electron and the is the exciton reduced mass. The exciton
Bohr radius for EuS was obtained as 1.2 nm (diameter 2.4 nm). In our case, the dimensions of
the nanoparticles are much higher than that of . Hence, the confinement effect is practically
insignificant and it is consistent with the low energy gap values (<2.0 eV) obtained for EuS.
Although, a slight variation in the energy gap has been noticed with the change of size and
18

Page 19 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
morphology, may be attributed to the extremely weak effect of quantum confinement (Fig. 4 and
S12 in ESI†). The Uv-vis absorption spectra and the corresponding energy gap of other
lanthanides sulfides (Fig. S13 and S14 in ESI†) were also measured by using their toluene
solution (Fig. S15) and the values obtained shows good agreement with the previous literature
values63-64
.
Fig. 4 Room temperature Uv-vis spectra and corresponding band gap of EuS : (a) (1) and (b)
(2a) and (c) (2c) in toluene medium.
3.2. Photocatalytic activity
As we have seen that the band gap of the material lies in the range of 1.71-1.97 eV, hence it is a
quite appropriate material for the application in the visible light induced photocatalytic reactions.
Therefore, the photocatalytic performance of EuS nanomaterials was explored by the photo-
decomposition of some well known organic contaminants and dyes such as RhB, CR and MB in
aqueous solution under visible light irradiation at room temperature and ambient pressure. In this
19

RSC Advances
Page 20 of 30
View Article Online
DOI: 10.1039/C5RA19959J
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
article, we have studied the role of EuS in the photocatalytic mechanism in comparison with the
other lanthanides analogues. The comparative study was also extended with morphologically
different EuS synthesized by solution free as well as solution based technique. The temporal
changes in the concentration of the dyes were monitored by examining the variations in the
intensity of the absorption maxima in the UV-vis spectra of the respective dyes. The absorption
spectrum of tetraethylated RhB shows a absorption maxima at 553 nm, which decreases rapidly
and almost disappears after 100 min irradiation in presence of sphere-like EuS (1) (Fig. 5C).
Similarly, visible light irradiation of the aqueous CR/EuS (1) and MB/EuS (1) dispersion causes
an apparent decrease of the absorption maxima appeared at 335 and 498 nm (in case of CR) and
288 and 660 nm (in case of MB) respectively (Fig. 5A and 5E). The time dependent relative
concentration changes of the dyes in presence of catalyst, TiO2-P25 (used as the reference) and in
absence of catalyst are studied to establish the catalytic importance of the material (Fig. 5B, 5D
and 5F). The study ensures that, in the absence of catalyst, the self-degradation of all the dyes is
almost negligible. The decomposition kinetics have been modeled as a pseudo-first order
reaction expressed by the equation ln(C0/Ct) = k t, where C0 represents the initial concentration,
Ct denotes the concentration at a given reaction time ‘t’, and k is the reaction rate constant. The
apparent pseudo-first-order linear relationship is obtained by the plots of ln(C0/Ct) vs time (t)
following the Langmuir-Hinshelwood model (Fig. 5B, 5D and 5F insets). The reaction rate
constants and the half-life values have been calculated respectively and are given in Table S1
and Table S2 in ESI†. It is eventually striking to note that the catalytic activities of EuS
nanoparticles are significantly better than TiO2 (Table S2 in ESI). Moreover, It has also been
observed that EuS (1) synthesized by solid state thermolysis emerged as a better catalyst than the
cube-shaped variety (2a) as well as the short nanofiber (2c). The difference in the rate has been
20

Page 21 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
expected due to the change in BET surface area (given in Table S1 In ESI†) of the nanoparticles
that fluctuate the dye adsorption on the nanocatalyst surface and hence affect the carrier
transformation for the degradation.
(A)
(B)
(C)
(D)
(E)
(F)
21

RSC Advances
Page 22 of 30
View Article Online
DOI: 10.1039/C5RA19959J
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
Fig. 5 Photocatalytic degradation profile for (A) CR, (C) RhB, (E) MB; pseudo-first order
kinetics plot for (B) CR degradation, (D) RhB degradation, (F) MB degradation: (a) without
catalyst in dark, (b) without catalyst in light, (c) TiO2 (Digussa P25) in light, (d) EuS (1) in light.
Inset: the corresponding kinetic plots.
Another interesting fact we could notice that the degradation rate becomes remarkably
slow when EuS is replaced by other lanthanides analogues (Nd2S3, Sm2S3, Tb2S3, Yb2S3) (Table
S2 in ESI†). The enhanced photocatalytic activity of EuS is attributed to its stable bivalent state
_
and low standard reduction potential value [E0(Eu+3/Eu+2) = 0.36V]. So, in the case of
europium, photogenerated electrons are easily available to react with O2 to form reactive oxygen
•‾
species O2 and consequently Eu2+ is oxidized to Eu3+. During this redox process, more hydroxyl
radical is generated leading to enhanced catalytic efficiency and in due course Eu3+ is further
reduced back to Eu2+. But in the case of other lanthanides (where they are in trivalent state),
Ln4+/Ln3+ reduction potential value is extremely high which does not allow this redox
•‾
transformation and subsequently disfavors the formation of reactive oxygen species (O2 ).
Hence, the degradation rate becomes insignificant65.66. Controlled experiments using different
radical scavengers are performed with RhB to probe the influence of reactive species in the
reaction mechanism of dye degradation. As evidenced from Fig. S16 in ESI†, the addition of p-
•‾
benzoquinone (BQ) which has the ability to trap O2 significantly suppresses the photocatalytic
reaction rate67. On the other hand, the addition of ammonium oxalate (AO) as hole scavenger68
does not affect the decomposition rate at all. Although, the addition of tert-butyl alcohol (TBA)
as OH• radical scavenger68,69 provokes partial inhibition of photodegradation. To interpret the
above observations, it can be concluded that the oxidation of organic pollutants is triggered by
•‾
the participation of O2 mainly and to some extent by the contribution of OH• radical. The
22

Page 23 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
506
507
508
509
510
511
512
513
514
515
516
517
518
519
stability of the photocatalyst was also evaluated. As shown in Fig. 6, there is no significant loss
in degradation efficiency for all three dyes even after five successive cycles. It reflects that the
photocatalyst is of good stability and reusability.
Fig. 6 Recyclability testing of photocatalytic activity of EuS (1) towards the degradation of CR,
RhB, MB under ambient conditions.
520 4. Conclusion
521
522
523
524
525
526
527
528
In summary, we have developed a facile synthetic route for the preparation LnS/Ln2S3 of
nano dimension with controllable shape by solid state and solution-based thermal decomposition
of a potential single source precursor. On changing the reacting amines and the surfactants the
shape and the morphology of EuS has been changed from cube-like particles to short nanofiber
to nanotube selectively. The study revealed that the anisotropic growth of europium sulfide was
attained due to the combined effect of reacting amine and DDT where the later one was believed
to play the pivotal role in governing the nanoparticle growth. Moreover, this study successfully
opens up an avenue for the synthesis of one dimensional lanthanide sulfide nanomaterial in a
23

RSC Advances
Page 24 of 30
View Article Online
DOI: 10.1039/C5RA19959J
529
530
531
532
533
534
535
536
simple and selective way. In addition, EuS has emerged as highly active visible light driven
photocatalyst among all other lanthanide sulfides. Among the different EuS, the catalytic
efficiency of nanoparticles follows the order of sphere-like particles > cube-like particles > short-
nanofibers, which is in good agreement with the decreasing surface area of the nanoparticles. To
the best of our knowledge, it is the first report on photocatalytic activity of europium sulfide
which will encourage the material scientists to explore the other photo-generated properties of
the material as well as to apply it as a promising candidate in the design of photo-active devices.
.
537 Acknowledgements
538
539
540
541
542
543
544
545
546
Authors are thankful to Prof. K. Nag, Department of Inorganic Chemistry, IACS,
Kolkata, India, for helpful discussion. The authors also acknowledge CSIR (India) (scheme no.
01(2749)/13/EMR-II) for research funding. A. Sarkar is also thankful to UGC (BSR), India, for
research fellowship [F. No.F.7-223/2009 (BSR)]. Authors also thank Dr. Goutam Kumar Patra,
Professor, Dept. of Chemistry, Guru Ghasidas University, Bilaspur for the FESEM analysis. The
authors are also grateful to the MHRD (India) and the Department of Chemistry, IIEST, Shibpur
for providing instrumental facilities.
547
548
549
550
551
552
24

Page 25 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
553 References
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
(1) Y. Xia, P. Yang, Y. Sun, Y. Wu, B. Mayers, B. Gates, Y. Yin, F. Kim, H. Yan, Adv.
Mater., 2003, 15, 353-389.
(2) Y. He, D. Li, G. Xiao, W. Chen, Y. Chen, M. Sun, H. Huang, X, Fu, J. Phys. Chem. C.,
2009, 113, 5254-5262.
(3) H. Zhong, Z. Bai, B. Zou, J. Phys. Chem. Lett., 2012, 3, 3167-3175.
(4) S. K. Bhunia, N. R. Jana, ACS Appl. Mater. Interfaces., 2014, 6, 20085-20092.
(5) D. J. Sirbuly, M. Law, H. Q. Yan, P. D Yang, J. Phys. Chem. B., 2005, 109, 15190-
15213.
(6) S. Jana, A. Mondal, ACS Appl. Mater. Interfaces., 2014, 6, 15832-15840.
(7) H. Cheng, B. Huang, X. Cin, X. Zhang, Y. Dai, Chem.Coummun., 2012, 48, 97-99.
(8) L. Chen, Y. B. Chen, L. M. Yu, J. Am. Chem. Soc., 2004, 126, 16334-16335.
(9) T. H. Larsen, M. Sigman, A. Ghezelbash, R. C Doty, B. A. Korgel, J. Am. Chem. Soc.,
2003, 125, 5638-5639.
(10) J. Kim, E. J. Lee, J. Lee, H. J. Yu, C. B. Kim, K. An, Y. Hwang, H. C Shin, G. J Park, J.
Kim, T. Hyeon, J. Am. Chem. Soc., 2006, 128, 7130-7131.
(11) J. Yuan, W. N. Li, S. Gomez, S. L Suib, Chem. Mater., 2005, 127, 14184-14185.
(12) S. Shuling, Y. Zhang, L. Peng, B. Xu, Y. Du, M. Deng, H. Xu, Q. Wang,
Cryst.Eng.Comm., 2011, 13, 4572-4579.
(13) T. Lu, Y. O Ti, P. K Loh, J. J. Vittal, J. Mater. Chem., 2006, 16, 272-277.
(14) Z, Gu, T. Zhai, B. Gao, X. Sheng, Y. Wang, H. Fu, Y. Ma, J. Yao, J. Phys. Chem. B.,
2006, 110, 23829-23836.
25

RSC Advances
Page 26 of 30
View Article Online
DOI: 10.1039/C5RA19959J
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
(15) L. Carbone, C. Nobile, M. D. Giorgi, F. D. Sala, G. Morello, P. Pompa, M. Hytch, E.
Snoeck, A. Fiore, I. R. Franchini, M. Nadasan, A. F. Silvestre, L. Chiodo, S. Kudera, R.
Cingolani, R. Krahne, L. Manna, Nano Lett., 2007, 7, 2942-2950.
(16) C. Wang, D. Zhang, L. Xu, Y. Jiang, F. Dong, B. Yang, K. Yu, Q. Lin, Angew. Chem.
Int. Ed., 2011, 50, 7587-7591.
(17) X. Gou, F. Cheng, Y. Shi, L. Zhang, S. Peng, J. Chen, P. Shen, J. Am. Chem. Soc.,
2006, 128, 7222-7229.
(18) W. Wang, H. Cheng, B. Huang, X. Lin, X. Qin, X. Zhang, Y. Dai, J. Colloid Interface
Sci., 2013, 402, 34-39.
(19) C. Zou, L. Zhang, L. Zhai, D. Lin, J. Gao, Q. Li, Y. Yang, X. Chen, S. Huang, Chem
Commun., 2011, 47, 5256-5258.
(20) C. Y. Cao, J. Am. Chem. Soc., 2004, 126, 7456-7457.
(21) T. Yu, J. Joo, I. Y. Park, T. Hyeon, Angew. Chem. Int. Ed., 2005, 44, 7411-7414.
(22) H. J. Burns, Inorg. Chem. 1965, 4, 881-886.
(23) G, S. Yi, M. G. Chow, Chem. Mater., 2007, 19, 341-343.
(24) W. Y. Zhang, X. Sun, R. Si, P. L. You, H. C. Yan, J. Am. Chem. Soc., 2005, 127, 3260-
3261.
(25) C. J. Boyer, F. Vetrone, A. L. cuccia, A. J. Capobianco, J. Am. Chem. Soc., 2006, 128,
7444-7445.
(26) T. Mirkovic, M. A. Hines, P. S. Nair, G. D. Scholes, Chem. Mater., 2005, 17, 3451-
3456.
596
(27) M. D. Regulacio, N. Tomson, S. L. Stoll, Chem. Mater., 2005, 17, 3114-3121.
26

Page 27 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
(28) S. Thongchan, Y. Hasegawa, Y. wada, S. Yanagida, J. Phys. Chem. B., 2003, 107,
2193-2196.
(29) F. Zhao, H. L. Sun, S. Gao, G. Su, J. Mater. Chem., 2005, 15, 4209-4214.
(30) A. Tanaka, H. Kamikubo, M. Kataoka, Y. Hasegawa, T. Kawai, Langmuir., 2011, 27,
104-108.
(31) Y. Hasegawa, M. Kumagai, A. Kawashima, T. Nakanishi, K. Fujita, K. Tanaka, K.
Fushimi, J. Phys. Chem. C., 2012, 116, 19590-19596.
(32) F. Zhao, H. L. Sun, G. Su, S. Gao, Small., 2006, 2, 244-248.
(33) M. D. Regulacio, S. Kar, E. Zuniga, G. Wang, N. R Dollahon, G. T. Yee, S. L. Stoll,
Chem. Mater., 2008, 20, 3368-3376.
(34) Y. Hasegawa, Y. Okada, T. Kataoka, T. Sakata, H. Mori, Y. Wada, J. Phys. Chem. B.
2006, 110, 9008-9011.
(35) W. L. Boncher, N. Rosa, S. Kar, S. L. Stoll, Chem. Mater., 2014, 26, 3144-3150.
(36) W. Boncher, H. Dalafu, N. Rosa, S. Stoll, Coord. Chem. Rev., 2015, 289, 279-288.
(37) Y. Hasegawa, M. Maeda, T .Nakanishi, Y. Doi, Y. Hinatsu, K. Fujita, K. Tanaka, H.
Koizumi, K. Fushimi, J. Am. Chem. Soc., 2013, 135, 2659-2666.
(38) F. Zhao, M. Yuan, W. Zhang, S. Gao, J. Am. Chem. Soc., 2006, 128, 11758-11759.
(39) F. Zhao, S. Gao, J. Mater. Chem., 2008, 18, 949-953.
(40) W. He, M. E. Osmulski, J. Lin, D. S. Koktysh, J. R. Mcbride, J. H. Park, J. H.
Dickerson, J. Mater. Chem., 2012, 22, 16728-16731.
(41) H. Peng, S. Huang, F. You, J. Chang, S. Lu, L. Cao, J. Phys. Chem. B., 2005, 109,
5774-5778.
(42) M. Pokhrel, A. G. Kumar, D. K. Sardar, J. Mater. Chem. A., 2013, 1, 11595-11606.
27

RSC Advances
Page 28 of 30
View Article Online
DOI: 10.1039/C5RA19959J
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
(43) S. Heer, O. Lehman, M. Hasse, U. H. Gudel, Angew. Chem. Int. Ed., 2003, 42, 3179-
3182.
(44) N. Zhang. W. Bu, Y. Xu, D. Jiang, J. Shi, J. Phys. Chem. C., 2007, 111, 5014-5019.
(45) A. Huignard, V. Buissette, G. Laurent, T. Gacoin, P. J. Boilot, Chem. Mater., 2002, 14,
2264-2269.
(46) F. Wang, D. Banerjee, Y. Liu, X. Chen, X. Liu, Analyst., 2010, 135, 1839-1854.
(47) G. Wang, Q. Peng, Y. Li, Acc. Chem. Res., 2011, 44, 322-332.
(48) D. Yang, P. Ma, Z. Hou, Z. Cheng, C. Li, J. Lin, Chem. Soc. Rev., 2015, 44, 1416-
1448.
(49) K. Nag, D. S. Joardar, Inorg. Chim. Acta.. 1975, 14, 133-141.
(50) S. Mourdikoudis, L. M. L. Marzan,. Chem. Mater., 2013, 25, 1465-1476.
(51) B. L. Cushing, V. L. Kolesnichenko, C. J. O’Connor, Chem. Rev., 2004, 104, 3893-
3946.
(52) M. F. Sarac, W. C. Wu, J. B. Tracy, Chem. Mater., 2014, 26, 3057-3064.
(53) F. Gao, Q. Lu, S. Xie, D. Zhao, Adv. Mater., 2002, 14, 1537-1540.
(54) M. T. Ng, C. Boothroyd, J. J. Vittal, Chem Commun., 2012, 48, 7289-7291.
(55) X. Peng, L. Manna, W. Yang, A. Wickham, J. Biswas, E. Scher, A. Kadavanich, A. P.
Alivasatos, Nature., 2000, 404, 59-60.
(56) M. T. Ng, C. Boothroyd, J. J. Vittal, J. Am. Chem. Soc., 2006, 128, 7118-7119.
(57) Y. Zhu, T. Mei, Y. Wang, Y. Qian, J. Mater. Chem., 2011, 21, 11457-11463.
(58) J. Tauc, A. Menth, D. L. Wood, Phys. Rev. Lett., 1970, 25, 749.
(59) M. D. Regulacio, K. Bussmann, B. Lewis, S. L. Stoll, J. Am. Chem. Soc., 2006, 128,
11173-11179.
28

Page 29 of 30
RSC Advances
View Article Online
DOI: 10.1039/C5RA19959J
643
644
645
646
647
648
649
650
651
652
653
654
655
656
(60) G. Guntherodt, J. Schoenes, P. Wachter, J. Appl. Phys., 1970, 41, 1083-1084.
(61) B. C. Murray, J. D. Norris, G. M. Bawendi, J. Am. Chem. Soc., 1993, 115, 8706-8715.
(62) L. S. Cumberland, M, K. Hanif, A. Javier, A. G. Khitrov, F. G. Strouse, M. S.
Woessner, S. C. Yun, Chem. Mater., 2002, 14, 1576-1584.
(63) C. M. Forster, W. B. White, Mater. Res. Bull., 2006, 41, 448-454.
(64) C. M. Marine, L. Wang, J. R. Brewer, W, N. Mei, C. L. Cheung, J. Alloys. Compd.,
2013, 563, 293-299.
(65) H. Jia, W. He, W. G. Warmer, X. Han, B. Zhang, S. Zhang, Z. Zheng, Y. Xiang, J-J.
Yin, J. Phys. Chem. C., 2014, 118, 21447-21456.
(66) M. A. Fox, M. T. Dulay, Chem. Rev,. 1993, 93, 341-357.
(67) S. P. Rao, E. Hayon, Biochem. Biophys. Res. Commun., 1973, 51, 468-473.
(68) L. S. Zhang, K. H. Wong, H. Y. Yip, C. Hu, J. C. Yu, C. Y. Chan, P. K. Wong,
Environ. Sci. Technol., 2010, 44, 1392.
(69) A. A. Khodja, A. Boulkamh, C. Richard, Appl. Catal. B., 2005, 59, 147.
657
658
659
660
661
662
663
664
29
