capacities ranged from 495 to 439 Jꢀ(kgꢀK)ꢁ1 and thermal
conductivity decreased from 141 to 100 Wꢀ(mꢀK)ꢁ1 with
increasing Hf content. Not only do heat capacity and ther-
mal conductivity values of ZrB2 change systematically with
the Hf content, but most of the thermal properties
reported for ZrB2 ceramics to date are also impacted by
the presence of impurities such as Hf. Although the value
of 141 Wꢀ(mꢀK)ꢁ1 is the highest reported value for a poly-
crystalline ZrB2 ceramic to date, the intrinsic value is likely

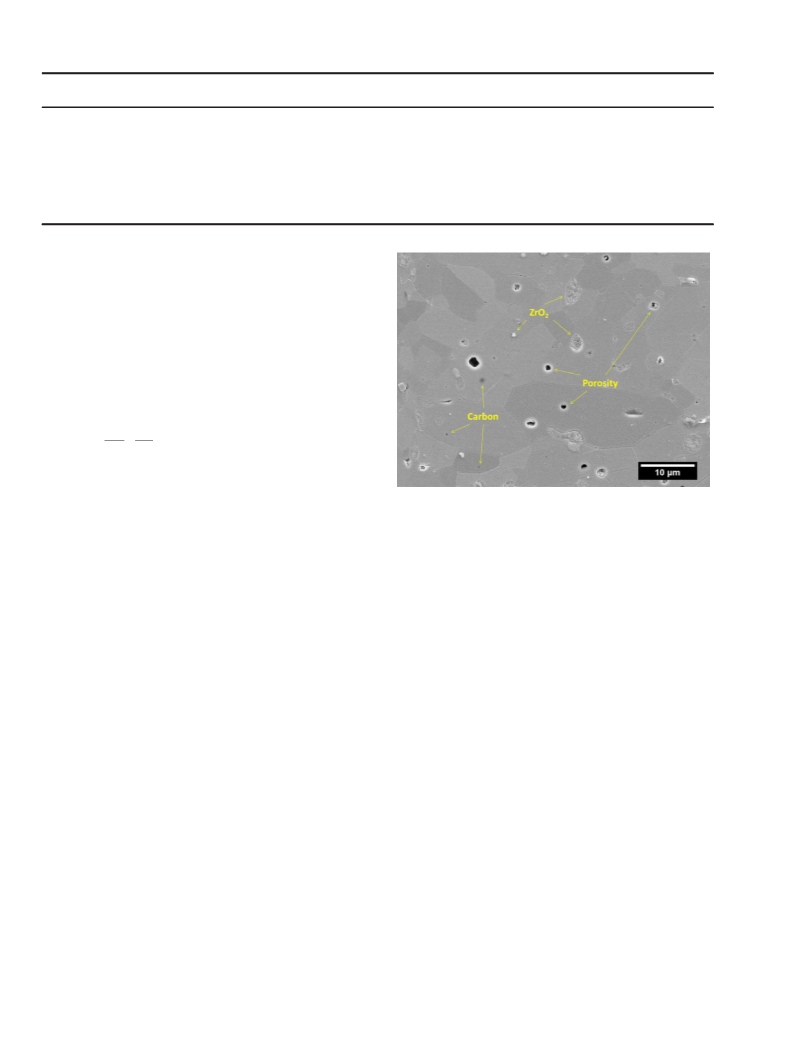

to be even higher based on the presence of small amounts
of ZrO2 and carbon impurities in the RHP (Zr,Hf)B2
ceramics.
Acknowledgments
This research was supported by the National Science Foundation through
grant number DMR 0906584.
References
1W. G. Fahrenholtz, G. E. Hilmas, I. G. Talmy, and J. A. Zaykoski,
“Refractory Diborides of Zirconium and Hafnium,” J. Am. Ceram. Soc., 90
[5] 1347–64 (2007).
Fig. 2. Heat capacity values at 298 K as a function of Hf content
for RHP ZrB2 (squares) compared to the value reported in the
NIST-JANAF tables (circle).22
2L. Zhang, D. A. Pejakovic, and J. Marschall, “Thermal and Electrical
Transport Properties of Spark Plasma-Sintered HfB2 and ZrB2 Ceramics,” J.
Am. Ceram. Soc., 94 [8] 2562–70 (2011).
3A. L. Chamberlain, W. G. Fahrenholtz, and G. E. Hilmas, “High-Strength
Zirconium Diboride-Based Ceramics,” J. Am. Ceram. Soc., 87 [6] 1170–2
(2004).
4M. M. Opeka, I. G. Talmy, and J. A. Zaykoski, “Oxidation-Based Materi-
als Selection Form 2000°C + Hypersonic Aerosurfaces: Theoretical Consider-
ations and Historical Experience,” J. Mater. Sci., 39, 5887–904 (2004).
5A. L. Chamberlain, W. G. Fahrenholtz, G. E. Himas, and D. Ellerby,
“Oxidation of ZrB2-SiC Ceramics Under Atmospheric and Re-entry Condi-
tions,” Refrac. Appl. Trans., 1 [2] 1–8 (2005).
6L. Kaufman and H. Nesor, “Stability Characterization of Refractory Mate-
rials Under High Velocity Atmospheric Flight Conditions”; in, Part III, Vol-
ume III, Experimental Results of High Velocity Hot Gas/Cold Wall Tests.
AFML-TR-69-84 (DTIC AD 867307). 1970.
7K. Upadhya, J. M. Yang, and W. Hoffman, “Advanced Materials for
Ultrahigh Temperature Structural Applications Above 2000°C.”; in AFRL-
PR-ED-TP-1998-007. 1997.
8G. A. Meerson and A. F. Gorbunov, “Activated Sintering of Zirconium
Boride,” Inorg. Matter, 4, 267–70 (1968).
9A. L. Chamberlain, W. G. Fahrenholtz, and G. E. Hilmas, “Reactive Hot
Pressing of Zirconium Diboride,” J. Eur. Ceram. Soc., 29, 3401–8 (2009).
10S.-Q. Guo, T. Nishimura, Y. Kagawa, and J.-M. Yang, “Spark Plasma
Sintering of Zirconium Diborides,” J. Am. Ceram. Soc., 91 [9] 2848–55 (2008).
11U. Anselmi-Tamburini, et al., “Synthesis and Characterization of Dense
Ultra-High Temperature Thermal Protection Materials Produced by Field
Activation Through Spark Plasma Sintering(SPS): 1.Hafnium Diboride,” J.
Mater. Sci., 41, 3097–104 (2006).
12S. Guo, T. Nishimura, and Y. Kagawa, “Preparation of Zirconium Dibo-
ride Ceramics by Reactive Spark Plasma Sintering of Zirconium Hydride-
Boron Powders,” Scripta Mater., 65, 1018–21 (2011).
Fig. 3. Thermal Conductivity values at 298 K as a function of Hf
content for RHP ZrB2 (squares) compared to HP ZrB2.14
13J. M. Lonergan, W. G. Fahrenholtz, and G. E. Hilmas, “Zirconium Dibo-
ride with High Thermal Conductivity,” J. Am. Ceram. Soc., 97 [6] 1689–91
(2014).
14D. L. McClane, W. G. Fahrenholtz, and G. E. Hilmas, “Thermal Proper-
ties of (Zr,TM)B2 Solid Solutions with TM=Hf, Nb,W, Ti, and Y,” J. Am.
Ceram. Soc., 97 [5] 1552–668 (2014).
110 Wꢀ(mꢀK)ꢁ1 at 298 K for a ceramic with a nominal Hf
content of 0.01 at.% and ~8% porosity, but used Cp values
from the NIST-JANAF tables. Using Cp values for ZrB2
with a similar Hf content from this study, Zhang’s thermal
conductivity increases from 110 to ~131 Wꢀ(mꢀK)ꢁ1 at
298 K, which is similar to ZH01 in this study. Hence, in the
absence of differences in relative density, grain size, second
phases, etc., thermal conductivity appears to change system-
atically with Hf content. In addition, the room-temperature
thermal conductivity of 141 Wꢀ(mꢀK)ꢁ1 for ZH01 is the high-
est value reported to date for a polycrystalline ZrB2 ceramic.
Hence, most previously reported values for k of ZrB2 appear
to reflect the extrinsic effects of impurities. For this study,
removing the small fraction of ZrO2 impurities may result in
even higher thermal conductivities.
15J. J. Bertin and R. M. Cummings, “Fifty Years of Hypersonics:Where
We’ve Been, Where We’re Going,” Prog. Aerosp. Sci., 39, 511–36 (2003).
16M. J. Thompson, W. G. Fahrenholtz, and G. E. Hilmas, “Elevated Tem-
perature Thermal Properties of ZrB2 with Carbon Additions,” J. Am. Ceram.
Soc., 95 [3] 1077–85 (2012).
17J. W. Zimmermann, G. E. Hilmas, and W. G. Fahrenholtz, “Thermophys-
ical Properties of ZrB2 and ZrB2-SiC Ceramics,” J. Am. Ceram. Soc., 91 [5]
1405–11 (2008).
18W. G. Fahrenholtz, G. E. Hilmas, S. C. Zhang, and S. Zhu, “Pressureless
Sintering of Zirconium Diboride: Particle Size and Additive Effects,” J. Am.
Ceram. Soc., 91 [5] 1398–404 (2008).
19S. C. Zhang, G. E. Hilmas, and W. G. Fahrenholtz, “Pressureless Densifi-
cation of Zirconium Diboride with Boron Carbide Additions,” J. Am. Ceram.
Soc., 89 [5] 1544–50 (2006).
20Y. Touloukian, C. Ho, and D. Dewitt, “Thermal Expansion: Nonmetallic
Solids”; pp. 74–9 in Thermophysical Properties of Matter, Vol. 13, Edited by
Y.S. Touloukian. IFI/Plenum, New York City, New York, 1977.
21R. G. Sharma, M. S. R. Chari, and D. K. Reddy, “The Electronic Lorenz
Number in Transition Metals at High Temperatures,” J. Phys. F: Met. Phys.,
16, 603–7 (1986).
IV. Conclusions
22M. W. Chase Jr., NIST-JANAF Thermochemical Tables, 4th edition.
American Institute of Physics for the National Institute of Standards and
Reactive hot pressing was used to produce ZrB2 ceramics
with Hf contents ranging from 0.01 to 0.33 at.%. Heat
Technology, Woodbury, New York, 1998.
h
