Alendronic acid as ionic liquid: New perspective on osteosarcoma

Article abstract of DOI:10.3390/pharmaceutics12030293

Herein the quantitative synthesis of eight new mono-and dianionic Organic Salts and Ionic Liquids (OSILs) from alendronic acid (ALN) is reported by following two distinct sustainable and straightforward methodologies, according to the type of cation. The prepared ALN-OSILs were characterized by spectroscopic techniques and their solubility in water and biological fluids was determined. An evaluation of the toxicity towards human healthy cells and also human breast, lung and bone (osteosarcoma) cell lines was performed. Globally, it was observed that the monoanionic OSILs showed lower toxicity than the corresponding dianionic structures to all cell types. The highest cytotoxic effect was observed in OSILs containing a [C₂OHMIM] cation, in particular [C₂OHMIM][ALN]. The latter showed an improvement in IC₅₀ values of ca. three orders of magnitude for the lung and bone cancer cell lines as well as fibroblasts in comparison with ALN. The development of OSILs with high cytotoxicity effect towards the tested cancer cell types, and containing an anti-resorbing molecule such as ALN may represent a promising strategy for the development of new pharmacological tools to be used in those pathological conditions.

Full text of DOI:10.3390/pharmaceutics12030293

pharmaceutics
Article
Alendronic Acid as Ionic Liquid: New Perspective
on Osteosarcoma
Sónia Teixeira 1 , Miguel M. Santos
,†
2,†
, Maria H. Fernandes 1,3 , João Costa-Rodrigues 1,4,5
2
,
and Luís C. Branco *
1
Faculdade de Medicina Dentária, U. Porto, Rua Dr. Manuel Pereira da Silva, 4200-393 Porto, Portugal;
soniateixeira.88@gmail.com (S.T.); mhfernandes@fmd.up.pt (M.H.F.); joao.m.rodrigues@gmail.com (J.C.-R.)
2
3
4
5
LAQV-REQUIMTE, Departamento de Qu
Lisboa, 2829-516 Caparica, Portugal; miguelmsantos@fct.unl.pt
UCIBIO-REQUIMTE, Departamento de Química, Faculdade de Ciências, Universidade do Porto,
169-007 Porto, Portugal
ESS—Escola Superior de Saúde, Instituto Politécnico do Porto, R. Dr. António Bernardino de Almeida 400,
200-072 Porto, Portugal
Instituto Politécnico de Viana do Castelo, Escola Superior de Saúde, Rua D. Moisés Alves Pinho 190,
900-314 Viana do Castelo, Portugal
ímica, Faculdade de Ciências e Tecnologia, Universidade Nova de
4
4
4
*
Correspondence: l.branco@fct.unl.pt
†
These authors contributed equally to the article.
ꢀ
ꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀ
ꢁꢂꢃꢄꢅꢆ
Received: 31 December 2019; Accepted: 16 March 2020; Published: 24 March 2020
Abstract: Herein the quantitative synthesis of eight new mono- and dianionic Organic Salts and
Ionic Liquids (OSILs) from alendronic acid (ALN) is reported by following two distinct sustainable
and straightforward methodologies, according to the type of cation. The prepared ALN-OSILs
were characterized by spectroscopic techniques and their solubility in water and biological fluids
was determined. An evaluation of the toxicity towards human healthy cells and also human
breast, lung and bone (osteosarcoma) cell lines was performed. Globally, it was observed that the
monoanionic OSILs showed lower toxicity than the corresponding dianionic structures to all cell
types. The highest cytotoxic effect was observed in OSILs containing a [C OHMIM] cation, in
2
particular [C OHMIM][ALN]. The latter showed an improvement in IC50 values of ca. three orders
2
of magnitude for the lung and bone cancer cell lines as well as fibroblasts in comparison with ALN.
The development of OSILs with high cytotoxicity effect towards the tested cancer cell types, and
containing an anti-resorbing molecule such as ALN may represent a promising strategy for the
development of new pharmacological tools to be used in those pathological conditions.
Keywords: alendronic acid; Active Pharmaceutical Ingredients; API-OSILs; anticancer drugs;
ionic liquids
1
. Introduction
Alendronic acid is an aminobisphosphonate derivative that has shown efficacy in postmenopausal
osteoporosis, malignant hypercalcemia and Paget’s disease [1]. Alendronate localizes preferentially
at active sites of bone resorption, which has been inhibited at doses that have no effect on bone
mineralization [2].
Bisphosphonates bind at the bone mineral surface, where they potently inhibit osteoclast-mediated
bone resorption and subsequently embed in the bone, being released only during subsequent
resorption [
3]. In contrast to other antiresorptive agents, bisphosphonates with the greatest binding
affinity to bone (zoledronic acid > alendronate > ibandronate > risedronate) may persist in bone,
Pharmaceutics 2020, 12, 293; doi:10.3390/pharmaceutics12030293
www.mdpi.com/journal/pharmaceutics

Pharmaceutics 2020, 12, 293
2 of 10
and patients continue to be exposed to the pharmacologic effects of these drugs several years
after discontinuation.
All bisphosphonates rapidly reduce bone resorption, which leads to decreased bone formation
because resorption and formation are coupled. Within three to six months, equilibrium is reached at a
lower rate of bone turnover [4].
It is described that alendronate in rats exhibited 200 to 1000 times more potency than etidronate
and approximately 100 times more in comparison with clodronate or tiludronate [5]. It is recognized
that the presence of amino group side-chain from alendronate chemical structure contributes to greater
potency and specificity [3–5].
The introduction of specific functional groups in the BPs structure can lead to modifications in
their physicochemical, biological, therapeutic and toxicological properties. In recent literature studies,
alendronic acid is reported as an FDA drug already approved for the prevention and treatment of
osteoporosis in men and women, either postmenopausal or glucocorticoid-induced [6]. However, BPs
present low bioavailability when administered orally and frequently require parenteral administration,
which is not the most convenient route in case of continuous treatment.
The combination of Active Pharmaceutical Ingredients (APIs) with biocompatible organic
counter-ions has rendered over the last decade an attractive class of materials entitled API–Organic
Salts and Ionic Liquids (API-OSILs) [
7
–
10]. Ionic Liquids (ILs) are defined as salts with a melting
◦
point below 100 C, which display peculiar properties such as negligible vapor pressure, high
thermal and chemical stability and tunable physicochemical properties according to the cation-anion
combinations. These novel API–OSILs can improve the drug performance in terms of stability,
solubility, permeability, biological activity and delivery [10
that the suitable combination between different families of pharmaceutical drugs such as NSAIDs
e.g., ibuprofen and naproxen [15 16]), -lactam (e.g., ampicillin, amoxicillin, penicillin [16 20])
and fluoroquinolone (ciprofloxacin, norfloxacin [16 21]) antibiotics and bone antiresorptive agents
zoledronic acid [22]) rendered novel pharmaceutical drug formulations based on OSILs. Elimination
–22]. Recent achievements showed
(
,
β
–
,
(
of original polymorphism, improvement of permeability and solubility in water and biological fluids
as well as increased therapeutic efficiency was observed for these innovative compounds.
Thus, considering the pharmaceutical importance of bisphosphonate drugs as antiresorptive and
potential antitumoral agents, it is of paramount importance that novel formulations of such drugs,
which render higher bioavailability and lower systemic toxicity than the latter are developed. Hence,
in this paper, we report our latest results on our research line regarding bisphosphonate-based OSILs.
In particular, we describe the synthesis of eight new Ionic Liquids and Organic Salts from alendronic
acid (ALN–OSILs) as mono- and dianion by combination with one or two units of biocompatible cations,
respectively. The desired compounds were prepared in quantitative yields by two distinct sustainable
and straightforward methodologies, according to the type of cation. All prepared ALN–OSILs were
characterized by spectroscopic techniques and their solubility in water and biological fluids was
determined. Finally, evaluation of the toxicity towards human healthy cells and lung, breast and bone
(osteosarcoma) cell lines was performed.
2
. Synthesis and Characterization of ALN–OSILs
Figure 1 depicts the structures of ALN and the selected cations, which were combined in 1:1 or 1:2
stoichiometric ratios, thereby deprotonating one or two phosphonate groups, respectively.
The selection of protonated organic superbases (1,1,3,3-tetramethylguanidinium [TMGH]
and 1,5-diazabicyclo(4.3.0)non-5-enium [DBNH]) and quaternary ammonium (cholinium [Ch] and
1
-(2-hydroxyethyl)-3-methyl-1H-imidazol-3-ium [C OHMIM]) cations relied on the known information
2
about their biocompatibility [15,23]. Despite their low toxicity, the combination of these cations
with other APIs has rendered highly active API–OSILs in the past, in particular antimicrobial and
anti-tumoral [19,20,22].

Pharmaceutics 2020, 12, 293
3 of 10
Figure 1. Structure of mono- and dianionic alendronate, protonated superbases and organic quaternary
cations used to prepare the alendronic acid (ALN)–Organic Salts and Ionic Liquids (OSILs).
Scheme 1 resumes the synthetic methodologies employed in the synthesis of the API–OSILs.
Scheme 1. Methodologies (A,B) for the preparation of ALN–OSILs.
The preparation of compounds 1–4 consisted of the addition of the diluted superbases to a
dispersion of ALN (pathway A). These particular compounds, termed Superionic Liquids of APIs,
were prepared according to a previous methodology reported by us for zoledronic acid [22] as well as
other APIs [16]. While both monoanionic ALN–OSILs were obtained as solids, the two dianionic were
isolated as pastes.
On the other hand, a combination of ALN with one and two equivalents of [Ch] and [C OHMIM]
2
cations yielded four more ALN-based OSILs (compounds
5–8) by following another methodology
already described by our group [15 22]. In this case, quaternary ammonium hydroxide cations are
,
previously prepared by the corresponding halide exchange with hydroxide exchange resins (e.g.,
Amberlyst A26-OH) in methanolic solution. The very basic solutions were then neutralized by addition
to an aqueous solution of bisphosphonate yielding the desired salts in quantitative yields. From the
four synthesized compounds, two are RTILs while the other two are solids (see below).
1
13
All products were characterized by NMR ( H and C) and FTIR spectroscopic techniques, as well
as elemental analysis. The thermal properties were evaluated by DSC and the solubility in water and

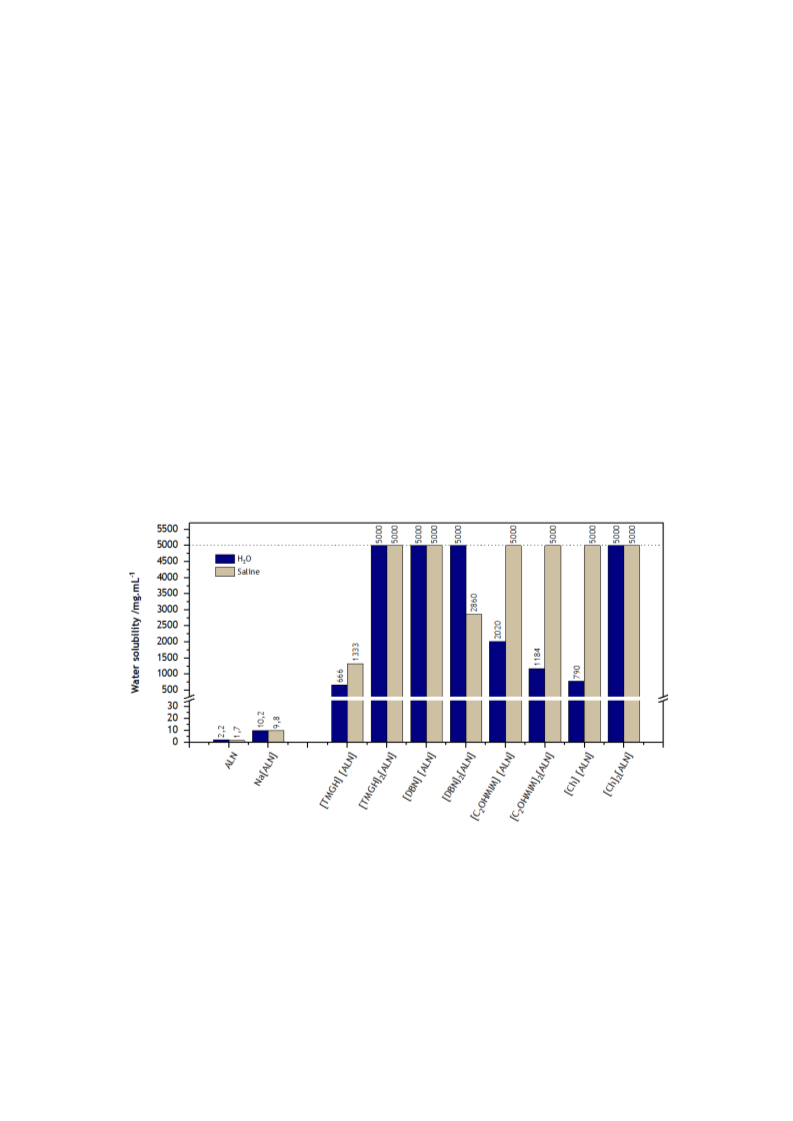

saline solution was determined for all compounds.
The NMR spectra of the ALN–OSILs were acquired in D O taking advantage of their high solubility
2
1
in water (see below). In all cases, the H NMR spectra showed that the cation/anion proportion is

Pharmaceutics 2020, 12, 293
4 of 10
strictly 1.0:1.0 or 2.0:1.0, in agreement with the intended stoichiometry (see Figures S1–S16). In addition,
only one set of signals was observed, meaning that the reactions were complete and only one product
was formed. No comparison with alendronic acid is achievable because of its lack of solubility in the
same solvents as the ALN–OSILs. In the 13C NMR spectra, the resonance of the quaternary carbon
atom of ALN appears at ca. 74 ppm, with no particular difference if only one or two neighboring
1
phosphonate groups are deprotonated. Similarly, the H NMR data is also irreflective of the ionic state
of the bisphosphonates and also of the cations. In contrast, the collected FTIR spectra (Figures S17–S25)
show pristine variations between the neutral bisphosphonates and the ALN–OSILs, as well as between
mono- and dianions. The FTIR spectrum of ALN shows two characteristic regions, namely a weak and
−
1
−1
undefined structure at 2400–2000 cm with maximum intensity at 2256 cm , and also very intense
−1
multiple peaks at 1250–900 cm (see Figure 2A). While the first one accounts for O–H stretches from
the O=P–OH groups, the second region contains peaks assignable to the stretch of both P=O and P–OH
bonds [24]. In the spectra of the synthesized ALN–OSILs (see Figure 2 for [TMGH]-based ALN–OSILs),
the peaks in the first region become sharper and much weaker, and two other sets of peaks appear
−
1
−1
in the vicinity (at ca. 2400–2300 cm and 2200–2100 cm ) which are more intense for the dianionic
ALN–OSILs than for the monoanionic. This is in complete agreement with changes in the vibrational
modes of the OH groups from the phosphonate moieties that are particularly enhanced when both
groups are deprotonated. This corollary is also sustained by the changes observed in the second region
−1
−1
of peaks, which in general displays two very intense broad peaks at ca. 1160 cm and 1060 cm , and
one or two of medium intensity between 960 and 900 cm .
−
1
Figure 2. FTIR spectra of (A) ALN, (B) [TMGH][ALN] and (C) [TMGH] [ALN].
2
3
. Thermal Analysis of ALN–OSILs

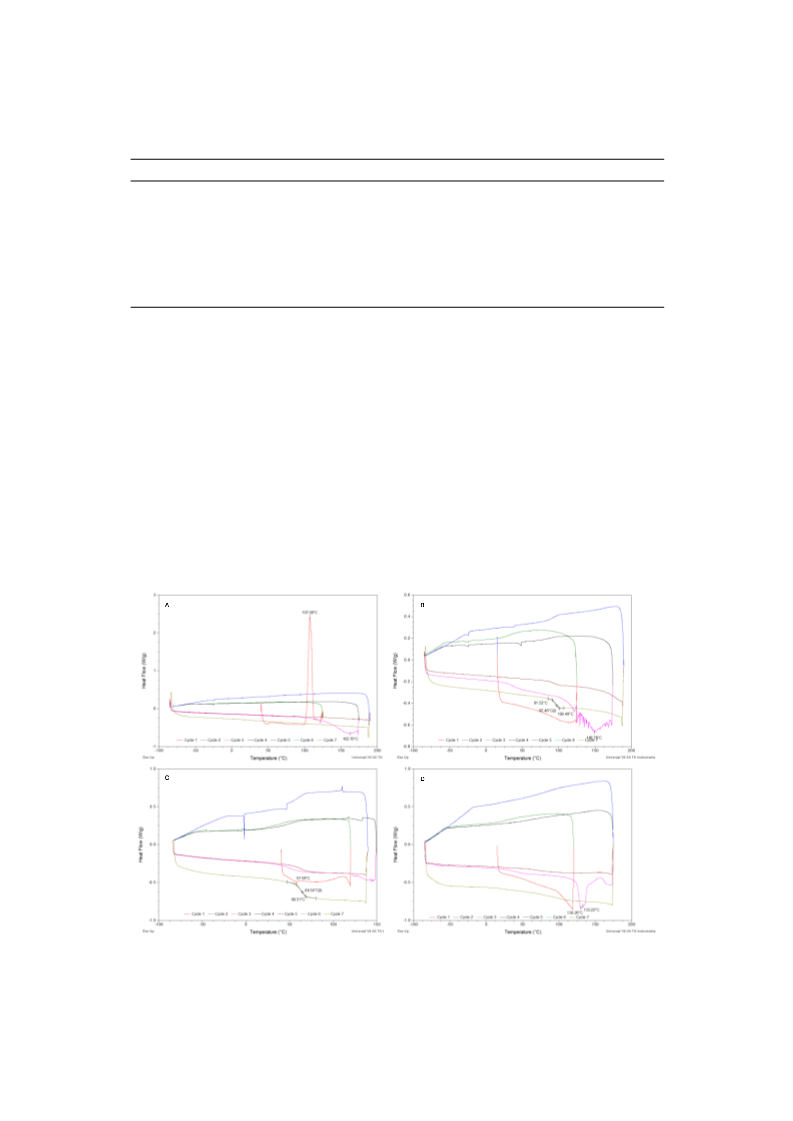

All prepared OSILs from alendronic acid were studied by Differential Scanning Calorimetry (DSC)
techniques (see Figures S26–S33). Table 1 contains the obtained data, namely melting, crystallization
and glass transition temperatures, as well as the physical state of the analyzed compounds.
In general, the monoanionic ALN–OSILs are foam-like solids while the dianionic ones were
obtained as thick colorless pastes at room temperature, thus being considered Room Temperature Ionic
Liquids (RTILs). The exceptions to this rule are the compounds with the [C OHMIM] cation, where
2
the mono- and dianionic are, respectively, a paste and a foam. This inversion of the trend is probably
related to specific interactions of ALN with the electron-rich imidazolium ring [25].

Pharmaceutics 2020, 12, 293
5 of 10
m g
Table 1. Physical state, melting (T ), cold crystallization (Tcc) and glass transition (T ) temperatures of
the prepared ALN–OSILs.
◦
◦
◦
Salt
Physical State
Tm/ C
Tcc/ C *
Tg/ C
[
TMGH][ALN]
White solid
Colorless paste
White solid
Colorless paste
Colorless paste
White solid
162.7
-
130.3; 133.2
107.1
-
[TMGH] [ALN]
-
-
-
-
-
-
-
97.5
-
2
[
DBNH][ALN]
[DBNH] [ALN]
-
45.7
64.5
46.3
74.9
63.8
2
[
[
C OHMIM][ALN]
-
153.0 (dec)
141.2
-
2
C OHMIM] [ALN]
2
2
[Ch][ALN]
White solid
Colorless paste
[
Ch] [ALN]
2
*
Cold crystallization.
◦
◦
In comparison with sodium alendronate, which presents a melting temperature of 259.3 C [26],
all solid compounds melt at lower temperatures, more specifically between 130.3 and 162.7 C, for
[
DBNH]- and [TMGH][ALN] OSILs, respectively. These melting temperatures are determined in the
◦
◦
third cycle of the experiment, which consists of heating from
compound) at 10 C/min. The first two cycles typically consist of heating to 125 C and isotherm for
1
3
−
90 C to 150–190 C (depending on the
◦
◦
◦
5–20 min (for the complete removal of residual water) followed by cooling to
−
90 C. From Cycle
◦
onwards, consecutive cooling/heating cycles are performed at 10 or 20 C/min. These cycles show
g
glass transition temperatures (T ) for the majority of the ALN–OSILs, showing that they become
supercooled products, i.e., amorphous after the first melt. The exceptions to this behavior are [TMGH]
and [DNBH][ALN], to which no glass transition nor crystallization (T ) temperatures were observed in
c
the experimental conditions. However, [TMGH][ALN] showed different behavior in comparison with
◦
the remaining ALN–OSILs in the first cycle, in particular a cold crystallization (Tcc) peak at 107.1 C
(Figure 3A).
Figure 3. DSC thermograms of (
D) [DBNH][ALN].
A) [TMGH][ALN], (B) [TMGH] [ALN], (C) [C OHMIM][ALN] and
2 2
(
The DSC thermogram of the RTIL [TMGH] [ALN] (Figure 3B) showed an endothermic signal at
2
◦
ca. 150 C of the third cycle that could be assigned to a melting process. However, it is preceded by a

Pharmaceutics 2020, 12, 293
6 of 10
◦
glass transition at ca. 40 C in the same cycle, meaning that the compound is in an amorphous state. So,
the referred endothermic signal is most likely due to evaporation, consistent with the irregular shape of
the curve caused by the formation of bubbles in the thick pasty compound. A similar observation can
also be observed in [C OHMIM][ALN] (Figure 3C). From the set of eight compounds, [DBNH][ALN]
2
is the only one that possesses a polymorphic structure, given by the two melting temperatures at
◦
1
30.3 and 133.2 C recorded in the DSC thermogram (Figure 3D). The remaining RTILs, more precisely
[
DBNH] [ALN] and [Ch] [ALN] show well-defined glass transitions confirming their amorphous
2 2
nature at room temperature (Figures S29 and S33, respectively).
4
. Solubility Studies
As expected, all OSILs were more soluble in water and saline solution at 37 C than alendronic
acid as well as its sodium salt. Figure 4 contains the data obtained from the solubility studies.
◦
With the exception of the [DBNH]- and [C OHMIM]-containing ILs, the dianionic ALN–OSILs
2
are equally or more soluble than the monoanionic siblings in the tested media. In further detail, it
is noteworthy that [TMGH] [ALN], [DBNH][ALN] and [Ch] [ALN] are completely soluble in both
2
2
water and saline solution in the tested conditions. Moreover, the [C OHMIM]-, [C OHMIM] - and
2
2
2
[
Ch]-based ALN–OSILs are also fully soluble in saline solution while the solubility in water was found
to be between 392 and 918 times higher in comparison with the parent neutral drug, and between
7 and 198 times when compared with Na[ALN]. In addition, [DBNH] [ALN] presents full water
7
2
solubility and a 1682-fold increase in solubility in saline solution. Finally, [TMGH][ALN] shows the
lowest solubility in both media from the set of eight synthesized compounds.
◦
Figure 4. Solubility in water and saline solution at 37 C of ALN, Na[ALN] and corresponding
ALN–OSILs (detection limit is 5 g/mL, represented by the upper threshold).
5
. Cytotoxicity on Human Cells
The cytotoxicity of the prepared ALN–OSILs was determined on human cells, by means of IC50
calculation. The analysis was performed on human gingival fibroblasts (GF) and on different cancer
cell lines, namely T47D (breast), A549 (lung) and MG63 (osteosarcoma). The results obtained with the
starting materials of the synthesis, as well as the prepared ALN–OSILs upon incubation for 24 h are
presented in Table 2. The cytotoxic effect of the ALN-OSILs on the cancer cell lines was also evaluated
after 72h of exposure, and the data is presented in Table 3. A comparison with the standard anticancer
drug paclitaxel is presented for both exposure times.

Pharmaceutics 2020, 12, 293
7 of 10
Table 2. Cytotoxicity of the ALN–OSILs on GF cells and T47D, A549 and MG63 cell lines after 24 h.
IC50/mM
IL
GF
T47D
A549
MG63
−
5
−6
−6
−6
1
0
.91 × 10
±
6.46 × 10
±
4.08 × 10
±
8.19 × 10
±
Paclitaxel
−
5
−6
−6
−6
.34 × 10
0.57 × 10
0.60 × 10
1.03 × 10
−
2
−3
−3
−4
3
0
.17 × 10
±
4.09 × 10
±
8.10 × 10
±
5.55 × 10
±
ALN
−
2
−3
−3
−4
.12 × 10
0.12 × 10 (*)
0.88 × 10 (*)
0.79 × 10 (*)
−
3
−4
−4
−4
1
0
.47 × 10
±
1.94 × 10
±
4.98 × 10
±
2.46 × 10
±
[
TMGH]Cl
DBNH]Cl
Ch]Cl
TMGH][ALN]
TMGH] [ALN]
−
3
−4
−4
−4
.40 × 10
0.35 × 10
0.55 × 10
0.81 × 10
−
5
−4
−3
−8
3
0
.80 × 10
±
2.78 × 10
0.19 × 10
±
9.13 × 10
±
±
9.79 × 10
±
[
−
5
−4
−3
−8
.53 × 10
1.03 × 10
1.76 × 10
−
3
−4
5
0
.99 × 10
3.47 × 10
±
[
(a)
(a)
−
3
−4
.72 × 10
0.52 × 10
−
3
−3
−3
−3
[
7.19 × 10
±
8.23 × 10
±
2.54 × 10
±
9.23 × 10
±
−
3
−3
−3
−3
0
.97 × 10
0.99 × 10
0.32 × 10
1.12 × 10
−
3
−5
−4
−5
[
1.11 × 10
±
3.16 × 10
±
5.14 × 10
±
7.11 × 10
±
2
−
3
−5
−4
−5
0
.22 × 10
0.25 × 10
0.71 × 10
0.85 × 10
−
2
[
DBNH][ALN]
7.20 × 10
±
2
(a)
(a)
6.14 ± 0.87
(a)
−
0
.55 × 10
−
5
−2
[
DBNH] [ALN]
6.01 × 10
±
3.12 × 10
±
1.02 ± 0.18
2
−
5
−2
0
.94 × 10
0.45 × 10
3
−6
−5
5
0
.92 × 10−
±
2.10 × 10
±
5.16 × 10
±
[
[
C OHMIM][ALN]
2.19 ± 0.32
2
−3
−6
−5
.69 × 10 (*)
0.37 × 10 (*)
0.67 × 10 (*)
−
4
−6
−5
4
0
.07 × 10
±
3.28 × 10
±
7.84 × 10
±
C OHMIM] [ALN]
(a)
2
2
−4
−6
−5
.47 × 10
0.40 × 10 (*)
0.98 × 10 (*)
−
1
−2
−1
1
0
.87 × 10
±
6.66 × 10
±
4.10 × 10
±
[Ch][ALN]
3.14 ± 0.43
−
1
−2
−1
.32 × 10
0.89 × 10 (*)
0.62 × 10
−
3
−3
−3
−2
4
0
.92 × 10
±
2.64 × 10
±
5.41 × 10
±
1.01 × 10
±
[
Ch] [ALN]
2
−3
−3
−3
−2
.58 × 10
0.38 × 10
0.61 × 10
0.14 × 10
(
a) Not determined in the tested concentration range. (*) Significantly lower than GF; p < 0.05.
Table 3. Cytotoxicity of the ALN–OSILs on GF cells and T47D, A549 and MG63 cell lines after 72 h.
IC50/mM
IL
GF
T47D
A549
MG63
5
−6
−6
−6
5
0
.66 × 10−
±
9.28 × 10
±
7.83 × 10
±
1.10 × 10
±
Paclitaxel
−
5
−6
−6
−6
.94 × 10
1.02 × 10
0.85 × 10
1.25 × 10
−
2
−3
−2
−3
9
0
.26 × 10
±
8.93 × 10
±
1.46 × 10
±
1.07 × 10
±
ALN
−
2
−3
−2
−3
.99 × 10
1.53 × 10 (*)
0.43 × 10 (*)
0.26 × 10 (*)
−
2
−2
−3
−2
1
0
.33 × 10
±
1.84 × 10
±
6.16 × 10
±
1.64 × 10
±
[
TMGH][ALN]
−
2
−2
−3
−2
.51 × 10
0.24 × 10
0.94 × 10
0.82 × 10
1.67 × 10
0.25 × 10
−
3
−5
−4
−4
1
0
.68 × 10
±
1.87 × 10
±
9.84 × 10
0.67 × 10
±
±
[
TMGH] [ALN]
2
−3
−5
−4
−4
.27 × 10
0.43 × 10 (*)
−
1
2
0
.55 × 10
±
1
[
DBNH][ALN]
(a)
0.99 ± 0.07
(a)
−
.34 × 10
−
4
−2
1
0
.65 × 10
±
9.33 × 10
±
[
DBNH] [ALN]
(a)
1.14 ± 0.21
2
−5
−2
.25 × 10
1.00 × 10
.14 × 10−
2
±
5.65 × 10
−6
±
9.57 × 10
−5
±
1
0
[
C OHMIM][ALN]
4.54 ± 0.66
2
−2
−6
−5
.25 × 10 (*)
0.46 × 10 (*)
0.91 × 10 (*)
4
−6
−4
6
0
.21 × 10−
±
8.83 × 10
±
1.65 × 10
±
[
C OHMIM] [ALN]
(a)
2
2
−4
−6
−4
.67 × 10
0.94 × 10 (*)
0.26 × 10 (*)
−
1
−2
−1
7
0
.33 × 10
±
7.84 × 10
±
6.85 × 10
±
[Ch][ALN]
4.86 ± 0.55
−
1
−2
−1
.63 × 10
0.83 × 10 (*)
0.85 × 10
−
3
−3
−3
−2
8
0
.57 × 10
±
4.87 × 10
±
8.94 × 10
±
8.33 × 10
±
[
Ch] [ALN]
2
−3
−3
−3
−2
.87 × 10
0.65 × 10
1.34 × 10
0.93 × 10
(
a) Not determined in the tested concentration range. (*) Significantly lower than GF, p < 0.05.

Pharmaceutics 2020, 12, 293
8 of 10
Globally, it was observed that the IC50 values determined at 72 h of incubation were higher than
those obtained with a culture period of 24 h. The IC50 values obtained for paclitaxel in the tumor
cell lines were the lowest ones, which is in line with its well-known cytotoxic potential. However, it
showed no selectivity between healthy and cancer cells.
In the case of the ALN–OSILs, the obtained data clearly shows that the monoanionic OSILs elicited
lower cytotoxicity than the corresponding dianionic versions for all cell types. Regarding gingival
fibroblast cell cultures, the OSILs containing one unit of [DBNH], [C OHMIM] and [Ch] appeared to
2
be less deleterious than alendronic acid. Comparatively, OSILs containing [TMGH] , [C OHMIM] and
2
2
[
C OHMIM] seemed to be more cytotoxic to breast cancer T47D cells. In the case of lung cancer A549
2 2
cell line, high cytotoxic activity was observed in cell cultures supplemented with the OSILs containing
TMGH] , [C OHMIM] and [Ch]. Finally, osteosarcoma MG63 cell line seemed to be particularly
[
2
2
sensitive to the OSILs containing [TMGH] , [C OHMIM] and [C OHMIM] .
2
2
2
2
Breast and lung cancers are often associated with bone osteolytic metastases [27
osteosarcoma, which are usually caused by disturbances in bone metabolism and increases in bone
turnover rates [ 30 31]. Thus, the development of OSILs with high cytotoxicity towards the tested
–29] and also
6, ,
cancer cell types and containing an anti-resorbing molecule (alendronate) may represent a promising
strategy for the development of new pharmacological tools to be used in those pathological conditions.
Overall, [C OHMIM][ALN] was found to be particularly active against lung cancer and
2
osteosarcoma cell lines while retaining very low toxicity towards healthy cells. These enhanced
biological properties, in addition to the absence of polymorphism in this monoanionic compound,
suggest that this room temperature ionic liquid could be a very promising alendronic acid formulation.
6
. Experimental Section
6
.1. General Procedure (A) for the Synthesis of ALN–OSILs with Organic Superbases as Cations
To a dispersion of alendronic acid (400 mg, 1.61 mmol) in MeOH/H O (15 mL, 1:1) a methanolic
2
solution of 1 or 2 molar equivalents of organic superbase (15 mg/mL) was added dropwise at room
temperature under magnetic stirring. After reacting for 1 h, the solvent was evaporated and the desired
product was dried under vacuo for 24 h.
6
.2. General Procedure (B) for the Preparation of ALN–OSILs with Ammonium and Methylmidazolium Cations
The halide salts of the selected ammonium and methylimidazolium cations were dissolved in
methanol and passed slowly through an anion-exchange column A-26(OH) (3 equivalents). The
freshly formed methanolic solutions of the corresponding hydroxide salts (1 or 2 equivalents) were
consequently added dropwise to alendronic acid (400 mg, 1.61 mmol) dispersed in H O under magnetic
2
stirring at room temperature. After 1 h, the solvent of the clear solution was evaporated, and the
desired product was dried under vacuo for 24 h.
Toxicity studies are described as supporting information.
Supplementary Materials: The following are available online at http://www.mdpi.com/1999-4923/12/3/293/s1,
Materials, experimental procedures, compound characterization data. Figures S1–S16: NMR spectra of ALN-OSILs;
Figures S17–S25: FTIR spectra of ALN and ALN-OSILs; Figures S26–S33: DSC thermograms of ALN-OSILs.
Author Contributions: Conceptualization, L.C.B. and J.C.-R.; methodology and investigation, S.T. and M.M.S.;
validation, M.M.S., J.C.-R. and L.C.B; writing—Original draft preparation, M.M.S. and S.T.; writing—review and
editing, M.M.S., J.C.-R. and L.C.B.; supervision, M.H.F., J.C.-R. and L.C.B.; funding acquisition, M.H.F., J.C.-R. and
L.C.B. All authors have read and agree to the published version of the manuscript.
Funding: This work was supported by the Associate Laboratory for Green Chemistry LAQV which is financed by
national funds from FCT/MCTES (UIDB/50006/2020). The authors also thank Fundação para a Ciência e Tecnologia
for the projects PTDC/QUI-QOR/32406/2017, PEst-C/LA0006/2013 and RECI/BBBBQB/0230/2012), as well as one
contract under Investigador FCT (L. C. Branco). The authors also acknowledge the Solchemar company.
Acknowledgments: The authors also thank Madalena Dionísio for their support with the DSC analysis.
Conflicts of Interest: The authors declare no conflict of interest.

Pharmaceutics 2020, 12, 293
9 of 10
Abbreviations
IL
ionic liquid
ALN
alendronic acid
ALN–OSILs
RTILs
API–OSILs
TMG
alendronic acid-based ionic liquids and organic salts
Room Temperature Ionic Liquids
Active Pharmaceutical Ingredient Ionic Liquids and Organic Salts
1,1,3,3-tetramethylguanidine
DBN
Ch
1,5-diazabicyclo(4.3.0)non-5-ene
choline
C OHMIM
2
1-(2-hydroxyethyl)-3-methylimidazolium
References
1
2
3
.
.
.
Shinkai, I.; Ohta, Y. New drugs—Reports of new drugs recently approved by the FDA: Alendronate. Bioorg.
Med. Chem. 1996, 4, 3–4. [CrossRef]
Han, H.K.; Shin, H.J.; Ha, D.H. Improved oral bioavailability of alendronate via the mucoadhesive liposomal
delivery system. Eur. J. Pharm. Sci. 2012, 46, 500–507. [CrossRef] [PubMed]
Iwamoto, J.; Takeda, T.; Sato, Y. Efficacy and safety of alendronate and risedronate for postmenopausal
osteoporosis. Curr. Med. Res. Opin. 2006, 22, 919–928. [CrossRef] [PubMed]
4
5
.
.
Brufsky, A.M. Bisphosphonates, bone, and breast cancer recurrence. Lancet 2015, 386, 2. [CrossRef]
Mathew, A.; Brufsky, A.M. The Use of Adjuvant Bisphosphonates in the Treatment of Early-Stage Breast
Cancer. Clin. Adv. Hematol. Oncol. 2014, 12, 8.
6
7
.
.
Avnet, S.; Longhi, A.; Salerno, M.; Halleen, J.M.; Perut, F.; Granchi, D.; Ferrari, S.; Bertoni, F.; Giunti, A.;
Baldini, N. Increased osteoclast activity is associated with aggressiveness of osteosarcoma. Int. J. Oncol. 2008
,
3
3, 1231–1238. [CrossRef]
Hough, W.L.; Smiglak, M.; Rodriguez, H.; Swatloski, R.P.; Spear, S.K.; Daly, D.T.; Pernak, J.; Grisel, J.E.;
Carliss, R.D.; Soutullo, M.D.; et al. The third evolution of ionic liquids: Active pharmaceutical ingredients.
New J. Chem. 2007, 31, 1429–1436. [CrossRef]
8
9
1
1
1
1
.
Egorova, K.S.; Gordeev, E.G.; Ananikov, V.P. Biological Activity of Ionic Liquids and Their Application in
Pharmaceutics and Medicine. Chem. Rev. 2017, 117, 7132–7189. [CrossRef]
Ferraz, R.; Branco, L.C.; Prudencio, C.; Noronha, J.P.; Petrovski, Z. Ionic Liquids as Active Pharmaceutical
Ingredients. ChemMedChem 2011, 6, 975–985. [CrossRef]
.
0. Marrucho, I.M.; Branco, L.C.; Rebelo, L.P.N. Ionic Liquids in Pharmaceutical Applications. Annu. Rev. Chem.
Biomol. Eng. 2014, 5, 527–546. [CrossRef]
1. Smiglak, M.; Pringle, J.M.; Lu, X.; Han, L.; Zhang, S.; Gao, H.; MacFarlane, D.R.; Rogers, R.D. Ionic liquids
for energy, materials, and medicine. Chem. Comm. 2014, 50, 9228–9250. [CrossRef] [PubMed]
2. Shamshina, J.L.; Kelley, S.P.; Gurau, G.; Rogers, R.D. Chemistry: Develop ionic liquid drugs. Nature 2015
28, 188–189. [CrossRef] [PubMed]
3. Cojocaru, O.A.; Bica, K.; Gurau, G.; Narita, A.; McCrary, P.D.; Shamshina, J.L.; Barber, P.S.; Rogers, R.D.
Prodrug ionic liquids: Functionalizing neutral active pharmaceutical ingredients to take advantage of the
ionic liquid form. MedChemComm 2013, 4, 559–563. [CrossRef]
,
5
1
4. Cherukuvada, S.; Nangia, A. Polymorphism in an API ionic liquid: Ethambutol dibenzoate trimorphs.
CrystEngComm 2012, 14, 7840–7843. [CrossRef]
1
5. Santos, M.M.; Raposo, L.R.; Carrera, G.V.S.M.; Costa, A.; Dionísio, M.; Baptista, P.V.; Fernandes, A.R.;
Branco, L.C. Ionic Liquids and Salts from Ibuprofen as Promising Innovative Formulations of an Old Drug.
ChemMedChem 2019, 14, 907–910. [CrossRef]
1
6. Carrera, G.V.S.M.; Santos, M.M.; Costa, A.; Rebelo, L.P.N.; Marrucho, I.M.; Ponte, M.N.; Branco, L.C. Highly
water soluble room temperature superionic liquids of APIs. New J. Chem. 2017, 41, 6986–6990.
1
7. Ferraz, R.; Branco, L.C.; Marrucho, I.; Ara
Development of Novel Ionic Liquids-APIs based on Ampicillin derivatives. Med. Chem. Comm. 2012, 3,
94–497. [CrossRef]
újo, J.; da Ponte, M.N.; Prudêncio, C.; Noronha, J.P.; Petrovski, Z.
4

Pharmaceutics 2020, 12, 293
10 of 10
1
1
2
2
2
2
8. Florindo, C.; Araujo, J.M.M.; Alves, F.; Matos, C.; Ferraz, R.; Prudencio, C.; Noronha, J.P.; Petrovski, Z.;
Branco, L.; Rebelo, L.P.N.; et al. Evaluation of solubility and partition properties of ampicillin-based ionic
liquids. Int. J. Pharm. 2013, 456, 553–559. [CrossRef]
9. Ferraz, R.; Teixeira, V.; Rodrigues, D.; Fernandes, R.; Prudencio, C.; Noronha, J.P.; Petrovski, Z.; Branco, L.C.
Antibacterial activity of Ionic Liquids based on ampicillin against resistant bacteria. RSC Adv. 2014, 4,
4
301–4307. [CrossRef]
0. Ferraz, R.; Silva, D.; Dias, A.R.; Dias, V.; Santos, M.M.; Pinheiro, L.; Prud
ê
ncio, C.; Noronha, J.P.; Petrovski, Z.;
Branco, L.C. Synthesis and Antibacterial Activity of Ionic Liquids and Organic Salts based on Penicillin G
and Amoxicillin hydrolysate derivatives against Resistant Bacteria. Pharmaceutics 2020, 12, 221. [CrossRef]
1. Florindo, C.; Costa, A.; Matos, C.; Nunes, S.L.; Matias, A.N.; Duarte, C.M.M.; Rebelo, L.P.N.; Branco, L.C.;
Marrucho, I.M. Novel organic salts based on fluoroquinolone drugs: Synthesis, bioavailability and
toxicological profiles. Int. J. Pharm. 2014, 469, 179–189. [CrossRef] [PubMed]
2. Teixeira, S.; Santos, M.M.; Ferraz, R.; Prud
Novel Approach for Bisphosphonates: Ionic Liquids and Organic Salts from Zoledronic Acid. ChemMedChem
019, 14, 1767–1770. [CrossRef] [PubMed]
êncio, C.; Fernandes, M.H.; Costa-Rodrigues, J.; Branco, L.C. A
2
3. Frade, R.; Rosatella, A.A.; Marques, C.S.; Branco, L.C.; Kulkarni, P.S.; Mateus, N.M.M.; Afonso, C.A.M.;
Duarte, C.M.M. Toxicological evaluation on human colon carcinoma cell line (CaCo-2) of ionic liquids based
on imidazolium, guanidinium, ammonium, phosphonium, pyridinium and pyrrolidinium cations. Green
Chem. 2009, 11, 1660–1665. [CrossRef]
2
2
4. NIST Chemistry Web Book. Available online: http://webbook.nist.gov (accessed on 5 January 2020).
5. Mezzetta, A.; Łuczak, J.; Woch, J.; Chiappe, C.; Nowicki, J.; Guazzelli, L. Surface active fatty acid ILs:
Influence of the hydrophobic tail and/or the imidazolium hydroxyl functionalization on aggregates formation.
J. Mol. Liq. 2019, 289, 111155. [CrossRef]
2
6. Afergan, E.; Najajreh, Y.; Gutman, D.; Epstein, H.; Elmalak, O.; Golomb, G. 31P-NMR and Differential
Scanning Calorimetry Studies for Determining Vesicle’s Drug Physical State and Fraction in Alendronate
Liposomes. J. Bioanal. Biomed. 2010, 2, 125–131. [CrossRef]
2
7. Kan, C.; Vargas, G.; Pape, F.L.; Cl
ézardin, P. Cancer Cell Colonisation in the Bone Microenvironment. Int. J.
Mol. Sci. 2016, 17, 1674. [CrossRef]
2
2
8. Shemanko, C.S.; Cong, Y.; Forsyth, A. What Is Breast in the Bone? Int. J. Mol. Sci. 2016, 17, 1764. [CrossRef]
9. Costa-Rodrigues, J.; Moniz, K.A.; Teixeira, M.R.; Fernandes, M.H. Variability of the paracrine-induced
osteoclastogenesis by human breast cancer cell lines. J. Cell. Biochem. 2012, 113, 1069–1079. [CrossRef]
0. Costa-Rodrigues, J.; Fernandes, A.; Fernandes, M.H. Reciprocal osteoblastic and osteoclastic modulation
in co-cultured MG63 osteosar-coma cells and human osteoclast precursors. J. Cell. Biochem. 2011, 112,
3
3
704–3713. [CrossRef]
3
1. Costa-Rodrigues, J.; Teixeira, C.A.; Fernandes, M.H. Paracrine-mediated osteoclastogenesis by the
osteosarcoma MG63 cell line: Is RANKL/RANK signaling really important? Clin. Exp. Metastas. 2011, 28,
5
05–514. [CrossRef]
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
CC BY) license (http://creativecommons.org/licenses/by/4.0/).
(
