Pd Nanoparticles as Efficient Catalysts for Suzuki and Stille
Coupling Reactions of Aryl Halides in Ionic Liquids
Vincenzo Calo`,†,‡ Angelo Nacci,*,‡ Antonio Monopoli,§ and Floriana Montingelli‡
CNR-ICCOM and Department of Chemistry, University of Bari, via Orabona, 4-70126 Bari, Italy, and
Istituto Centrale Repressione Frodi Alimentari-Lab. di Modena, Via J. Cavedone, 29-41100 Modena, Italy
nacci@chimica.uniba.it
Received April 20, 2005

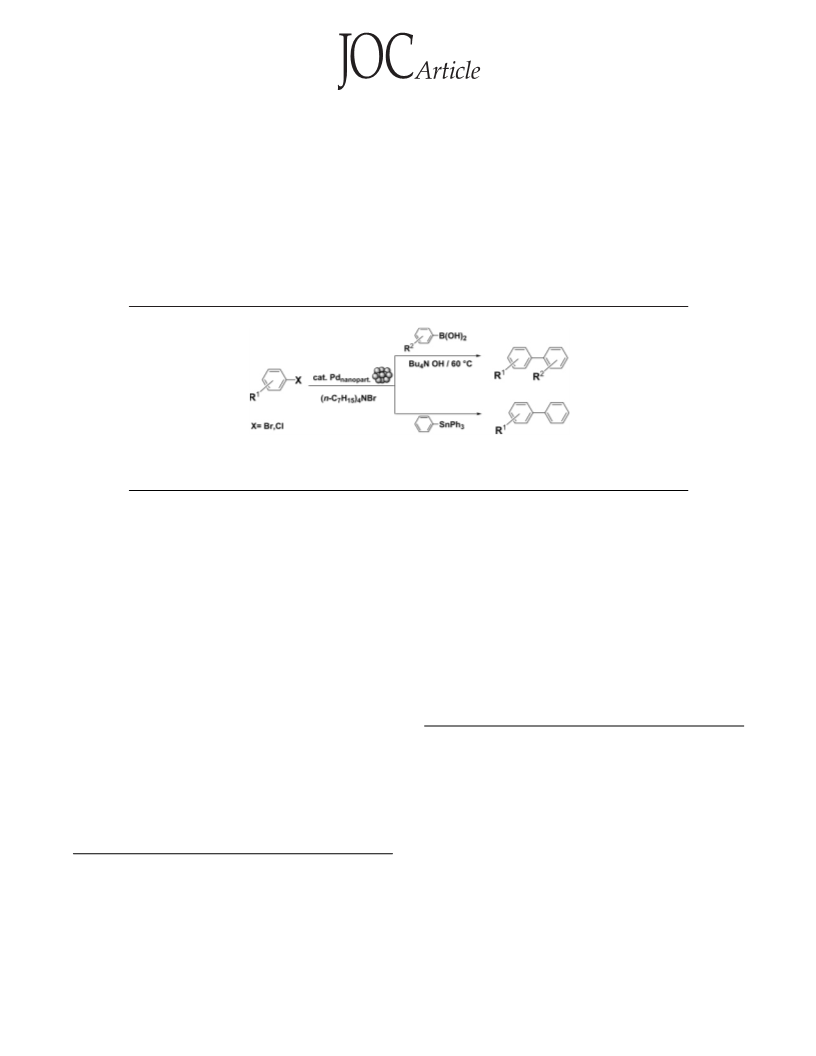

Pd-catalyzed Suzuki and Stille cross-couplings of aryl bromides and chlorides were carried out in
quaternary ammonium salts as solvents under mild conditions and with the recycling of the catalyst.
Introduction
this methodology allows us to achieve simultaneously the
advantages of the elimination of highly toxic solvents,
the ease of workup, and the possibility of recycling the
catalyst.3 In addition, it has been widely demonstrated
that ILs can play a greater role than merely solubilizing
the reagents, as their ability to affect the nature of the
catalytically active species was shown to be dependent
on the structure of both cation and anion.4
In this context, during the past few years we reported
a series of highly efficient Pd-catalyzed Heck arylations
of mono- and disubstituted olefins by using a tetraalky-
lammonium salt as the solvent and phosphanes-free
catalysts in both homogeneous5 and heterogeneous condi-
tions.6 In particular, while searching for a Pd-catalyzed
In the past three decades, palladium chemistry has
emerged as one of the most powerful tools for the
formation of carbon-carbon and carbon-heteroatom
bonds. Special interest has been devoted to the pal-
ladium-catalyzed cross-couplings of aryl and vinyl halides
with either olefins (Mizoroki-Heck reactions) or orga-
nometallic reagents (Suzuki, Stille, Sonogashira, Negishi,
Kumada, Hiyama, etc. reactions), due to their tolerance
toward a wide range of functional groups, which permits
them to synthesize highly complex molecules.1
Despite the synthetic elegance, these processes suffer
from two serious limitations that have precluded a wide
use in industry: (i) the need for the use of toxic and/or
expensive phosphine ligands, which are necessary to
stabilize the catalytically active Pd(0) species, and (ii) the
very low reactivity of aryl chlorides, which are arguably
the most useful class of substrates, because of their lower
cost and the wider variety of available compounds in
comparison with the more reactive iodides and bromides.2
More recently, palladium-centered catalysis in ionic
liquids (ILs) has gained considerable importance, since
(2) For reviews and articles dealing with the activation of aryl
chlorides in palladium-catalyzed cross-coupling reactions, see: (a) Fu,
G. C.; Littke, A. F. Angew. Chem., Int. Ed. 2002, 41, 4176-4211. (b)
Barder, T. E.; Walker, S. D.; Martinelli, J. R.; Buchwald, S. L. J. Am.
Chem. Soc. 2005, 127, 4685-4696. (c) Kataoka, N.; Shelby, Q.;
Stambuli, J. P.; Hartwig, J. F. J. Org. Chem. 2002, 67, 5553-5566.
(3) For reviews on ionic liquids, see: (a) Wilkes, J. S. J. Mol. Catal.
A: Chem. 2004, 214, 11-17. (b) Welton, T. Coord. Chem. Rev. 2004,
248, 2459-2477. (c) Ionic Liquids in Synthesis; Wasserscheid, P.,
Welton, T., Eds.; Wiley-VCH: Weinheim, Germany, 2003. (d) Dupont,
J.; de Souza, R. F.; Suarez, P. A. Z. Chem. Rev. 2002, 102, 3667-3692.
(e) Olivier-Bourbigou, H.; Magna, L. J. Mol. Catal. A: Chem. 2002,
182-183, 419-437. (f) Zhao, D.; Wu, M.; Kou, Y.; Min, E. Catal. Today
2002, 74, 157-189. (g) Tzschucke, C. C.; Markert, C.; Bannwarth, M.;
Roller, S.; Hebel, A.; Haag, R. Angew. Chem., Int. Ed. 2002, 41, 3964-
4000. (h) Zhao, H.; Malhotra, S. V. Aldrichimica Acta 2002, 35, 75-
83. (i) Gordon, C. M. Appl. Catal., A 2001, 222, 101-117. (j) Wasser-
scheid, P.; Keim, W. Angew. Chem., Int. Ed. 2000, 39, 3772-3789. (k)
Welton, T. Chem. Rev. 1999, 99, 2071-2084.
† CNR-ICCOM, Department of Chemistry, University of Bari.
‡ Department of Chemistry, University of Bari.
§ Istituto Centrale Repressione Frodi Alimentari-Lab. di Modena.
(1) (a) Blaser, H.-U.; Indolese, A.; Naud, F.; Nettekoven, U.; Schny-
der, A. Adv. Synth. Catal. 2004, 346, 1583-1598. (b) Herrmann, W.
A.; O¨ fele, K.; Preysing, D. v.; Schneider, S. K. J. Organomet. Chem.
2003, 687, 229-248. (c) de Vries, J. G. In Encyclopedia of Catalysis;
Horvat, I. T., Ed.; Wiley & Sons: New York, 2003; Vol. 3, p 295. (d)
Beller, M.; Zapf, A. In Handbook of Organopalladium Chemistry for
Organic Synthesis; Negishi, E., de Meijere, A., Eds.; Wiley & Sons:
Hoboken, NJ, 2002; Vol. 1, p 1209.
(4) See, for example: (a) Gu, Y.; Shi, F.; Deng, Y. J. Org. Chem.
2004, 69, 391-394. (b) Dupont, J.; Spencer, J. Angew. Chem., Int. Ed.
2004, 43, 5296-5297. (c) Calo`, V.; Nacci, A.; Monopoli, A.; Lopez, L.;
di Cosmo, A. Tetrahedron 2001, 57, 6071-6077.
10.1021/jo050801q CCC: $30.25 © 2005 American Chemical Society
Published on Web 06/24/2005
6040
J. Org. Chem. 2005, 70, 6040-6044

Pd NPs as Efficient Catalysts for Coupling Reactions
but tetraalkylammonium salts were generally added as
phase transfer agents.15
Pd nanoparticles were also used as a catalyst for the
Suzuki reaction, but they were generally stabilized by
incorporation into polymers, dendrimers, or inorganic
supports.16 In most of these applications, iodo- and
bromoarenes reacted, but only at elevated temperature,
while aryl chlorides were almost unreactive. On the
contrary, only a few articles reported the activation of
bromides and chlorides by Pd NPs under mild condi-
tions.17
With this aim, we tested the activity of the free
monodisperse Pd nanoparticles in a biphasic medium
consisting of an ionic liquid, generally a melt tetraalkyl-
ammonium bromide containing both reagents and cata-
lyst, and an aqueous solution of a source of hydroxide
anions (OH-), which are necessary to activate the boronic
acid. Under these conditions, although the IL is water-
soluble, it forms a biphasic system as already found by
other groups.18
FIGURE 1. (a) TEM characterization of a palladium colloidal
dispersion synthesized as described in the text. (b) Histogram
representing size distribution of the palladium nanoparticle
core. (c) Core-shell structure representation of a nanoparticle.
regio- and stereoselective Heck arylation of cinnamates7
and methacrylates8 in ILs, we found that by dissolving
palladium acetate in melt tetrabutylammonium bromide
(TBAB) and using tetrabutylammonium acetate (TBAA)
as base, the rapidly formed dark suspension of Pd
nanoparticles (Pd NPs) efficiently catalyzed the reaction
of aryl bromides and chlorides.
Of particular importance was the modality of prepara-
tion of Pd nanocolloids, carried out by adding to Pd(OAc)2,
dissolved in the IL, an excess of tetrabutylammonium
acetate and heating the reaction mixture at 90 °C until
a homogeneous dark red mixture was obtained (see
Supporting Information).
The first experiments were devoted to investigating the
efficiency of the catalytic system composed by Pd NPs,
TBAB, and aqueous Na2CO3 on halobenzenes. At high
temperatures, bromobenzene was rapidly converted into
diphenyl (Table 1, entry 1), but the catalyst activity
dropped fast when either the reaction temperature was
lowered or the less reactive chlorobenzene was used as
the substrate (entries 2 and 3). Ascribing this scarce
Reactions occurred at the surface of the monodisperse
nanoparticles, formed by chemical reduction of Pd(OAc)2
by TBAA,9 whose structure, defined “core-shell”, is
composed of a metallic core (∼3.3 nm in size) surrounded
by a stabilizing shell containing tetrabutylammonium
cations and Br- and [PdBr4]2- species (Figure 1).
Although the effectiveness of these nanosized catalysts
has been widely demonstrated in the Heck couplings, the
use of ILs as reaction media for other Pd NP-catalyzed
coupling reactions is a relatively unexplored area.
We report here the applications of free Pd nanopar-
ticles as catalyst for the Suzuki and Stille cross-coupling
reactions of aryl bromides and chlorides carried out in
ILs under mild conditions, with the recycling of the
catalyst for aryl bromides.
