I. Nath et al. / Journal of Catalysis 385 (2020) 120–128
121
too, to ease the following olefin hydrogenation process, while the
VB of the polymer can activate the H2 molecules. Furthermore,
the presence of Pd(II) was anticipated to benefit the reactions in
a cooperative manner by stimulating the substrates through
water could serve as gentle reducing agent gradually converting
strongly polymer-coordinated Pd(II) to Pd(0), and by simply
adjusting the boiling time, different Pd(0)/Pd(II) ratio can be
obtained.
in situ
With this idea, we herein report the synthesis of a novel
azobenzene-based POP, B3-Azo2, and series of its post-
synthetically Pd-incorporated analogs. Owing to the near UV-
active absorption band of azobenzene, its successful incorporation
g
-coordination.
Accordingly, fixing the boiling time to 45 min lead to the for-
mation of Pd-B3-Azo2 [Pd(II):Pd(0) = 85:15]. XPS analysis, per-
formed to validate our postulate, confirmed the existence of
both Pd(0) to Pd(II) species (Fig. 1b). The Pd3d5/2 peaks for Pd
(0) and Pd(II) appeared at 335.5 and 337.1 eV respectively, while
that for Pd3d3/2 emerged at 340.9 and 342.5 eV (Fig. 1b). A 15:85
distribution ratio of Pd(0) and Pd(II) was calculated from peak
integrations. Moreover, a noticeable 1.3 eV negative shift of the
Pd(II)3d5/2 binding energy peak compared to free Pd(OAc)2
(338.4 eV) indicated strong coordination of Pd(II) with the poly-
mer, making it more electron-rich [25]. The N1s spectrum of
the materials before and after Pd-incorporation exhibiting ca.
30% decrease in the N-C peak area further endorsed this Pd-
polymer coordination. The existence of acetate counter anion
for Pd(II) cations originating from Pd(OAc)2 can also be observed
from the O-C-O peak at 288.7 eV in C1s spectral region, while
peaks for conjugated C = C and C-N appeared at 284.8 and
286.4 eV respectively.
With these results in hand, consequent adjustments of boiling
time for B3-Azo2 À Pd(OAc)2 mixture in water to 1.5 h and 4 h
resulted in Pd-B3-Azo2 [Pd(II):Pd(0) = 80:20] and Pd-B3-Azo2 [Pd(
II):Pd(0) = 50:50] respectively, both possessing Pd(0) and Pd(II)
mix-distributions (Fig. 1b). Pd(0)/Pd(II) ratios of 20:80 and 50:50
were found for the second and third materials respectively from
similar XPS peak area calculations. Boiling the mixture for 8 h
led to the synthesis of Pd-B3-Azo2 [Pd(II):Pd(0) = 25:75] with
75:25 Pd(0)/Pd(II) ratio. On the other hand, Pd-B3-Azo2 [Pd(II):Pd
(0) = 0:100] featuring completely reduced Pd-species was obtained
after 12 h boiling of B3-Azo2 À Pd(OAc)2 mixture, whereas Pd-B3-
Azo2 [Pd(II):Pd(0) = 100:0] containing only Pd(II) cations was syn-
thesized by stirring the polymer À Pd(OAc)2 mixture at room tem-
perature without boiling. The Pd-oxidation states of each of these
materials were confirmed from the peak positions of respective
XPS analysis (Table S1, Fig. 1b, Figs. S2–S7). Similar to Pd-B3-Azo2
[Pd(II):Pd(0) = 85:15], strong coordination of Pd with polymeric
backbone can be confirmed from Pd3d peak positions of Pd-B3-
Azo2 [Pd(II):Pd(0) = 80:20], -[Pd(II):Pd(0) = 50:50], -[Pd(II):Pd(0) =
25:75], and -[Pd(II):Pd(0) = 100:0] relative to free Pd(OAc)2
(Table S1). Moreover, a comparative diagram of N1s peaks for the
pristine polymer and its Pd-incorporated analogs demonstrates
that with a gradual decrease in Pd(II) content of the materials,
the N-C peak area gradually intensified, suggesting increased elec-
tron density on N centers (Fig. 1c). This observation is in accor-
dance with our expectation, as more Pd(II) are converted to Pd
(0), the azo-N atoms shifts back to their original ‘‘non-
coordinated” form reinstating the pristine N1s spectral pattern.
Similarly, the existence of O-C-O units for every Pd(II)-containing
composites can also be seen in the comparative C1s spectral region
of the XPS (Fig. 1d). These observations all together confirmed that
by simply adjusting reaction time, we were able to selectively
reduce polymer-coordinated Pd(II) to Pd(0).
a
into conjugated POP skeleton was anticipated to increase overall p-
conjugation affording a higher visible light absorption cross-
section of the material. Moreover, we have shown recently that
the electronic state potentials of POPs can be manipulated for bet-
ter photo-catalysis by incorporating azobenzene units in the skele-
ton [23,37]. Keeping the total amount of metal same, different ratio
of Pd(0) and Pd(II) were immobilized on B3-Azo2 surface to assess
the impact of metal oxidation state variations on physical, photo-
electrochemical and overall catalytic properties of the materials.
Interestingly, despite having similar physical properties, compos-
ites bearing different Pd(0)/Pd(II) ratio exhibited significantly

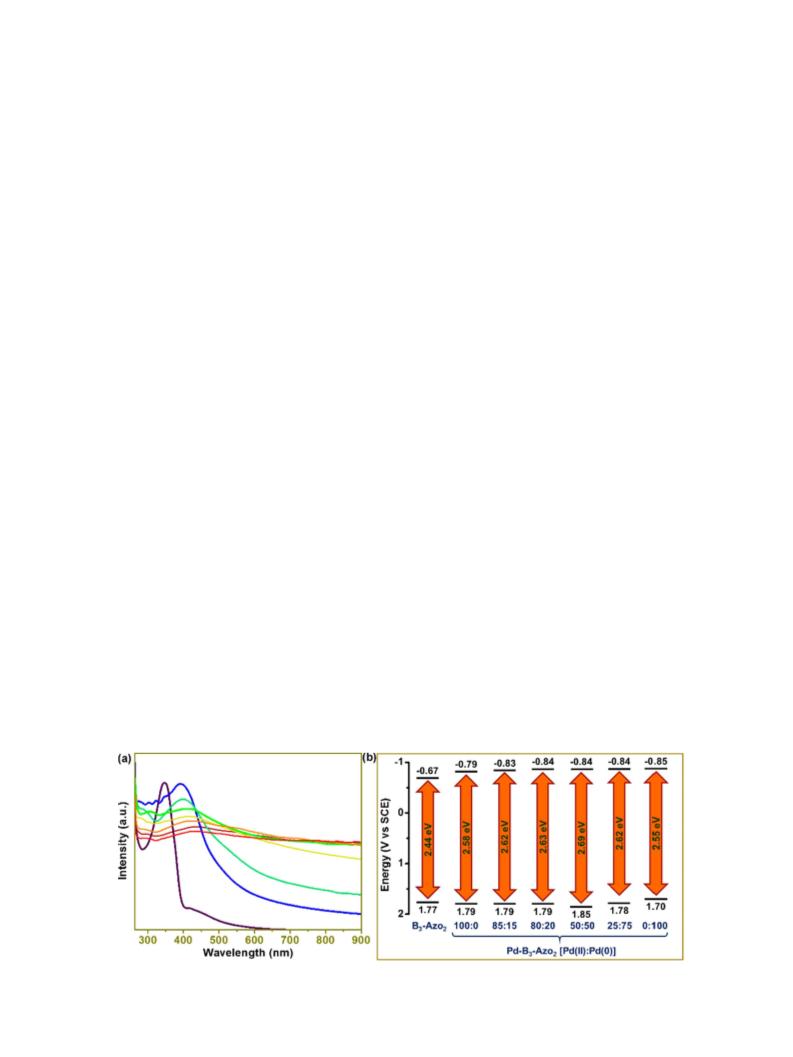

altered photo-absorption and HOMO-LUMO potentials. This, quite
evidently, resulted in considerably discrete photocatalytic activity
and apparent quantum efficiency (AQE) of these materials. Among
these composites, 50:50 Pd(0)/Pd(II) loading on B3-Azo2 showed
the optimum activity for exceptionally rapid, selective and cooper-
ative visible-light-mediated hydrogenation of unsaturated organic
functionalities. Conventional thermal methods were tested with
our catalyst as well, for providing
overview.
a thorough comparative
2. Result and discussion
2.1. Synthesis of B3-Azo2
The polymeric network B3-Azo2 (Fig. 1a) was synthesized by
Sonogashira-Hagihara cross-coupling of 1,3,5-triethynyl benzene
and (E)-1,2-bis(4-iodophenyl)diazene (Scheme S1) following a
classic high dilution technique. We have previously confirmed that
adaptation of such synthetic protocol could lead to a less interpen-
etrated, low-density network by minimizing the chances of kinet-
ically controlled prompt coupling of macromolecular polymeric
intermediates [23]. Accordingly, the desired polymer was obtained
as dark brown powder insoluble in common solvents. Successful
generation of B3-Azo2 skeleton was confirmed by solid-state 13C
CP-MAS NMR spectra demonstrating typical chemical shifts at
153.79 and 93.01 ppm, corresponding to the carbon bound to the
azo-nitrogens and the ethynyl carbons, respectively (Fig. S1). Exis-
tence of other aromatic carbon atoms can also be seen from the fig-
ure. The disappearance of residual peaks at 80–82 ppm region
supports the absence of unreacted ethynyl ends, i.e. a high degree
of cross-coupling.
2.2. Synthesis of Pd-incorporated B3-Azo2
Pd was loaded in B3-Azo2 following an aptly modified earlier-
known water-acetone dual solvent technique using Pd(OAc)2 as
the metal source [24]. The dual solvent approach was found bene-
ficial for better diffusion of metal ions throughout the organic
skeleton of polymers. Given the well-established transition metal
ion complexation ability of azo-benzenes, we envisioned that sim-
ple stirring of B3-Azo2 À Pd(OAc)2 mixture in said solvent for cer-
As an additional proof to our claim of generating B3-Azo2 net-
works bearing different Pd(0)/Pd(II) ratio, XRD analysis of all mate-
rials were performed. Despite the amorphous nature of the
polymeric skeleton, presence of Pd(0) can be clearly confirmed
from the appearance of two characteristic peaks at 2h = 40° and
46° originating from the x-ray diffraction by 111 and 200 planes
of Pd(0) nano-crystals [26,27]. No such peaks were observed for
pure B3-Azo2 and Pd-B3-Azo2 [Pd(II):Pd(0) = 100:0] verifying the
non-existence of reduced Pd-species in those materials, while
those peak intensities steadily increase with increasing Pd(0) con-
tent for other four materials (Figs. 2a and S57).
tain time would result in Pd(II)-loaded B3-Azo2 network.
A
follow-up heating to ~95 °C at N2-atmosphere with constant gas
flow could force the acetone present in the solvent mixture to leave
while bringing the water to boil. It was proposed that the boiling
