Thiols make for better catalysts: Au nanoparticles supported on functional SBA-15 for catalysis of Ullmann-type homocouplings

Article abstract of DOI:10.1039/c7cc06146c

A strategy for arraying small gold nanoparticles on a mesoporous support modified with single-component or mixed self-assembled monolayers is described. The use of mixed surface modifiers allows easy access to a range of surface chemistries and modalities of interaction between nanoparticles and supports. A combination of thiol groups and linear semifluorinated chains effectively stabilized the nanoparticles against aggregation, while preserving their catalytic activity. The thiol-fluorous-supported catalyst was found active in Ullmann-type homocoupling of aryl halides and showed exceptional selectivity in this reaction.

Full text of DOI:10.1039/c7cc06146c

View Article Online
View Journal
ChemComm
Accepted Manuscript
This article can be cited before page numbers have been issued, to do this please use: T. Chen, B. Chen,
K. Bukhryakov and V. Rodionov, Chem. Commun., 2017, DOI: 10.1039/C7CC06146C.
Volume 52 Number
1
4
January 2016 Pages 1–216
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
ChemComm
Chemical Communications
www.rsc.org/chemcomm
Accepted Manuscripts are published online shortly after
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. We will replace this Accepted Manuscript with the edited
and formatted Advance Article as soon as it is available.
You can find more information about Accepted Manuscripts in the
author guidelines.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the ethical guidelines, outlined
in our author and reviewer resource centre, still apply. In no
event shall the Royal Society of Chemistry be held responsible
for any errors or omissions in this Accepted Manuscript or any
consequences arising from the use of any information it contains.
ISSN 1359-7345
COMMUNICATION
Marilyn M. Olmstead, Alan L. Balch, Josep M. Poblet, Luis Echegoyenet al.
Reactivity differences of Sc
first methanofullerene derivatives of Sc
3
N@C2n (2n
=
68 and 80). Synthesis of the
3
N@D5h-C80
rsc.li/chemcomm

Page 1 of 5
Please d Co hn eomt Ca do j mu s mt margins
View Article Online
DOI: 10.1039/C7CC06146C
ChemComm
COMMUNICATION
Thiols Make for Better Catalysts: Au Nanoparticles Supported on
Functional SBA-15 for Catalysis of Ullmann-type Homocouplings
a
a
a†
*a
Tianyou Chen, Ba-Tian Chen, Konstantin V. Bukhryakov, and Valentin O. Rodionov
Received 00th January 20xx,
Accepted 00th January 20xx
DOI: 10.1039/x0xx00000x
www.rsc.org/
A strategy for arraying small gold nanoparticles on a mesoporous controlled through the formidable arsenal of synthetic organic
support modified with single-component or mixed self-assembled chemistry. Synthesizing a variety of organic SAMs on a given surface
monolayers is described. The use of mixed surface modifiers allows is easier than synthesizing an equivalent number of chemically or
easy access to a range of surface chemistries and modalities of morphologically distinct nanomaterials. Thus, the strategy relying on
interaction between nanoparticles and supports. A combination of the variation of surface adsorbates could enable sampling large
thiol groups and linear semifluorinated chains effectively stabilized combinatorial spaces of NP-catalytic systems.
the nanoparticles against aggregation, while preserving their
Here, we extend the concept of reactivity-modulating functional
catalytic activity. The thiol-fluorous-supported catalyst was found SAMs to solid mesoporous supports. We reasoned that NPs could be
active in Ullmann-type homocoupling of aryl halides and showed covalently immobilized on a support through a SAM containing
exceptional selectivity in this reaction.
“sticky” functional groups with a high affinity for the NPs. Due to the
effectively two-dimensional nature of such a “Scotch tape” SAM, the
NPs could get tethered to the surface with only one side, leaving the
other accessible and catalytically active (Figure 1A). If the receiving
surface is highly curved, such as inside a mesopore channel, a variety
of non-covalent interactions between the SAM and the supported
particle become possible (Figure 1B). The use of mixed SAMs should
allow for easy access to a range of surface chemistries and modalities
of interaction between NPs and supports, and provide a better
understanding of the NP-support interactions through establishing
structure-activity relationships.
The activity and selectivity of heterogeneous catalysts is profoundly
influenced by their state of dispersion, as well as the accessibility and
the specific chemistry of their surfaces. Small nanoclusters and
1
nanoparticles (NPs) with clean/pristine surfaces are some of the
most catalytically-active materials due to their high fraction of
exposed atoms and active sites. As unprotected metal colloids are
prone to aggregation in solution, many practical NP-catalytic systems
rely on solid supports to improve the stability and recyclability of the
2
, 3
catalyst.
NPs protected by surface adsorbates, such as polymers,
surfactants, or self-assembled monolayers (SAMs) of small
4
molecules, can be as stable to aggregation as solid-supported NPs.
Many stabilizing adsorbates, most notably thiols, are quintessential
catalytic poisons, as they block access to the metal surface and
5
interact with the active sites. However, adsorbate-surface
interactions have also been exploited to improve or change the
6
-8
chemoselectivity of NP catalysts,
transformations.
and to effect chiral
Recently, we described a system where the
presence of a perfluorinated adsorbate improves both the activity
9
-11
1
2
and selectivity of a NP catalyst. The effects of adsorbates can be

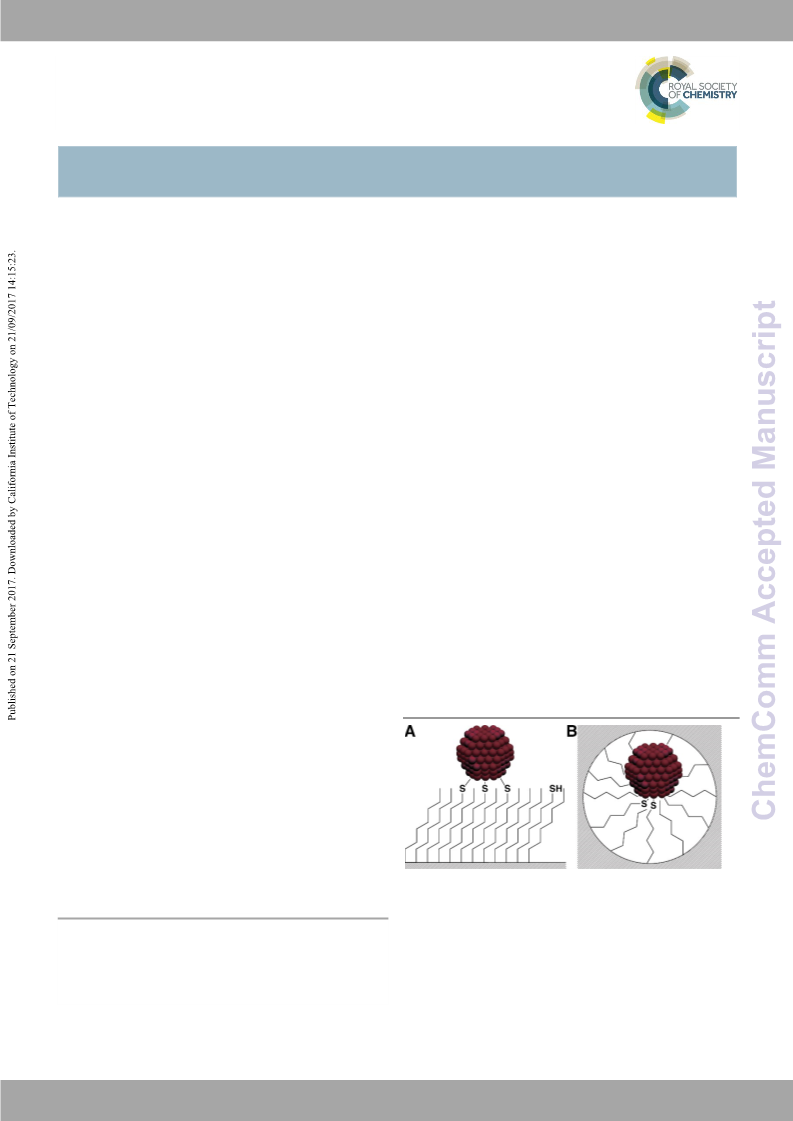

Figure. 1 Au NPs immobilized on “Scotch tape” supports. (A) Flat receiving surface. The
top face of the NP is clean and exposed. (B) Highly-curved surface (mesopore channel).
The local solvent environment around the NP is defined by the nature of the SAM
a.
Division of Physical Sciences and Engineering and KAUST Catalysis Center, King
Our initial design target was a selective catalyst for Ullmann-type
Abdullah University of Science and Technology (KAUST), Thuwal, 23955-6900,
Kingdom of Saudi Arabia. Email: valentin.rodionov@kaust.edu.sa
Electronic Supplementary Information (ESI) available: [details of any supplementary
information available should be included here]. See DOI: 10.1039/x0xx00000x
Present addresses: Department of Chemistry, Massachusetts Institute of
1
3, 14
homocoupling (UHC) of aryl halides.
reactions are conducted in the presence of Cu, Ni and Pd catalysts.
Conventionally, UHC
15-
1
7
A major competing reaction that occurs with all these catalytic
†
Technology, 77 Massachusetts Ave., Cambridge, MA 02139-4307
This journal is © The Royal Society of Chemistry 2017
Chem. Comm., 2017, 00, 1-3 | 1
Please do not adjust margins

Please d Co hn eomt Ca do j mu s mt margins
Page 2 of 5
COMMUNICATION
ChemComm
Table 1 Synthesis and fundamental characterization data of functional mesoporous supports.a
View Article Online
DOI: 10.1039/C7CC06146C
Molar feed ratio, %a
Pore diameter,
BET surface
area, m /g
Pore volume,
S loading,
mmol/gd
-
Entry
Material
nmc
6.1
6.1
6.1
6.1
6.1
6.1
6.1
5.6
2
c
cm /g
3
c
H10
-
H2F8
H11SH
-
1
2
3
4
5
6
7
8
SBA-15 SiO
SBA-FC
2
-
100
99
97.6
95.2
-
685
642
593
594
641
604
639
575
0.69
0.66
0.60
0.61
0.65
0.60
0.64
0.61
-
-
-
SBA-FC-S1
-
1
0.017
0.027
0.061
0.030
0.032
0.182
SBA-FC-S2.5
SBA-FC-S5
SBA-HC-S5
SBA-S5
-
-
2.4
4.8
4.8
100b
100
95.2
-
-
-
-
SBA-S100
aConditions for functionalization: 60 mg of activated SBA-15 SiO
for a final concentration of 2 mM (except Entry 7), and the suspensions were stirred for 24h under Ar. 0.1 mM of H11SH used for functionalization. N
physisorption data. Results reported based on the adsorption branch. Determined by ICP-OES.
was dispersed in 300 mL of dry toluene at 80°C. Mixtures of silanes were then introduced
2
b
c
2
d
systems is hydrodehalogenation. While the conditions have been mechanistic steps in the formation of silane monolayers happen in
2
7, 28
optimized in many cases to improve the conversion of substrate, solution rather than directly on the receiving surface.
As
perfect selectivity for the homocoupling product and mechanistic perfluorinated molecules tend to aggregate readily, both the kinetics
understanding of the process remain elusive. Recent studies of the deposition and the structural features formed on the surfaces
18-20
21, 22
29
highlighted the utility of Au
and AuPd
NPs for UHC. These by fluorous silanes are determined by their state of agglomeration.
catalysts can operate at lower temperatures, thus providing an The mechanism of deposition and the fundamental structure of the
opportunity for achieving improved selectivity. The catalytic resulting monolayer can be different in the presence and in the
3
0
competence of Au NPs in UHCs is strongly dependent on the nature absence of a nucleophilic catalyst. Furthermore, deposition of
1
9, 23, 24
as well as Au particle size and silanes bearing nucleophilic functional groups can be autocatalytic.31
of the supporting material,
2
0, 24, 25
morphology.
We synthesized SBA-15-type mesoporous SiO
activated by calcining at 500°C, and subsequently modified by aggregates in solution, where nucleophilic thiol groups catalyze
functional silanes. We chose hydrocarbon silane (n- alkoxysilane condensation more efficiently than they could do in a
decyltriethoxysilane, H10), fluorous silane (1H,1H,2H,2H- truly homogeneous system.
perfluorodecyltriethoxysilane, H2F8), and a thiol silane (11- Small AuNPs protected with PPh
triethoxysilyl)undecane-1-thiol, H11SH) with similar main-chain following the method of Hutchinson.32, 33 Triphenylphosphine is a
lengths for this modification, as we expected this will provide SAMs labile ligand in this context, and can be easily replaced by a variety of
with -SH groups exposed on their outer boundaries. The silanes were thiols. The Au101∙PPh NPs were suspended together with different
Thus, the anomalous kinetics of the incorporation of H11SH into
,26 which was fluorous monolayers could be explained by the formation of mixed
2
a
a
3
3
(Au101∙PPh ) were synthesized
(
3
used either in pure form, or combined to yield mixed monolayers. SBA supports in dichloromethane. After 24 h of stirring, the resulting
The modification reactions were performed in dry toluene at 80°C SBA-Au materials were collected and thermally activated in vacuum
over 24 h. Successful modification was confirmed by the appearance at 200°C over 2 h. The Au loading achieved in this way was similar for
of characteristic absorption bands in the Raman spectra of materials all the supports, although thiolated materials retained slightly more
modified with fluorocarbons (Figure S2, ESI), and by Au than the parent SBA-15 SiO
thermogravimetric analysis (TGA, Figure S3, ESI). For convenience,

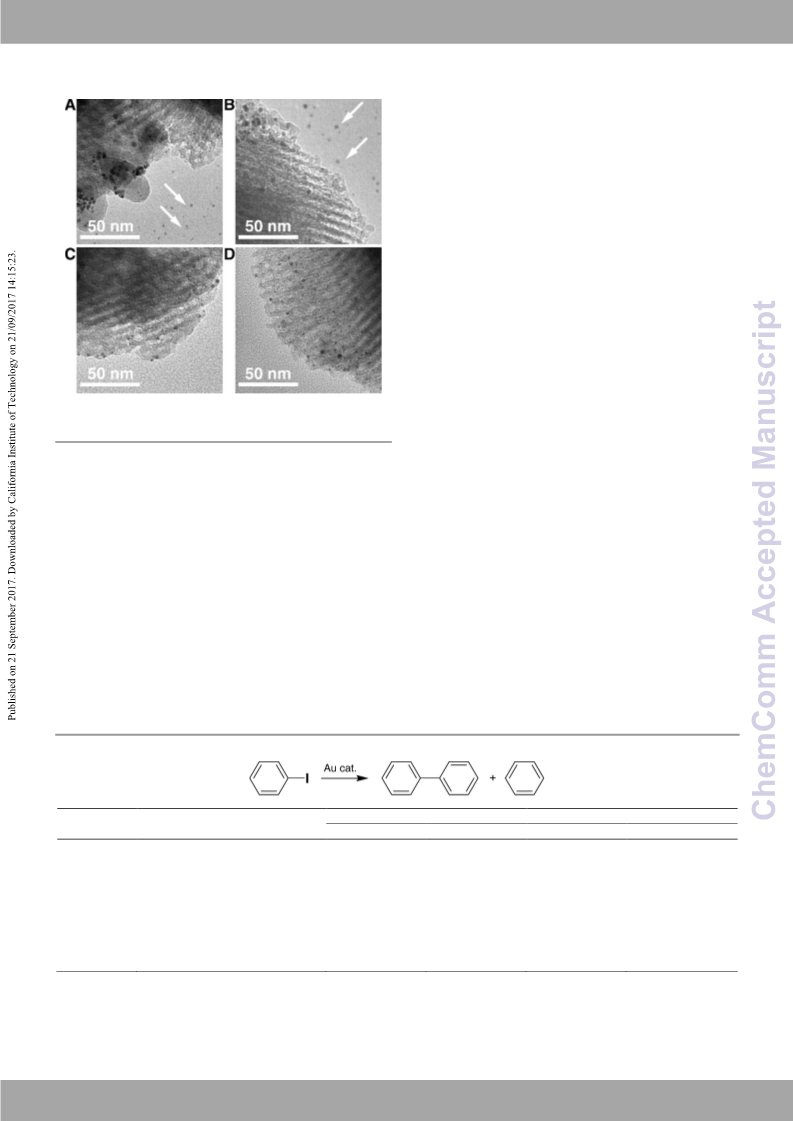

Transmission electron microscopy (TEM) imaging of the SBA-Au
the modified SBA-15 SiO
supports will be referred to as SBA-FC(HC)- catalysts indicated that the NPs readily leached and aggregated on
2
or SBA-FC (Table S2, ESI).
2
SX, where FC and HC designate fluorous and hydrocarbon chains supports lacking thiol groups due to weak particle-support
respectively; S designates thiol-terminated chains; and X refers interactions (Figures 2A-B, and Figures S6-S7, ESI). Free NPs were
either to the molar feed ratio of H11SH silane in the mixture, or the clearly visible on the carbon film supporting the samples. The
concentration of pure H11SH used in the modification (Table 1).
average particle size and polydispersity underwent a marked change
TGA of the modified SBA materials revealed that all of them after thermal activation (Figures S6-S7, ESI). In contrast, all the SBA-
exhibited two weight-loss regions: 50 to 150°C, attributable to the SX materials proved to be “sticky” for AuNPs. Few if any stray
desorption of H
decomposition of organic SAM. Supports modified with Au materials, even the low-sulfur SBA-FC-S1-Au (Figures 2C-D, and
semifluorinated silanes exhibited higher
decomposition Figures S8-S13, ESI). The changes in particle size and distribution
temperatures (>500°C) than the supports bearing only hydrocarbon upon thermal activation were smaller for all the SBA-SX-Au materials
chains (<250°C).
than they were for SBA-Au and SBA-FC-Au. Support materials with
2
O; and 200 to 650°C, attributable to the unsupported particles could be seen in the TEM images of SBA-SX-
The sulfur content in the modified SBA-SX materials was higher sulfur content fared better: while the average particle size and
determined by inductively-coupled plasma optical emission polydispersity remained virtually unchanged for SBA-FC-S5-Au and
spectrometry (ICP-OES, Table 1). SBA-S100 was found to have the SBA-S5-Au (Figures S8 and S12, ESI), some aggregation was
highest S content, and SBA-FC-S1 the lowest. Interestingly, the S immediately apparent in other samples. The degree of this thermally
content in SBA-FC-S5 was approximately twice as high as it was in induced aggregation could be loosely correlated with the S content
SBA-HC-S5 or SBA-S5, even though all three materials were of the corresponding supports. It is important to note that
synthesized using the same concentration of H11SH. The key unsupported thiol-protected AuNPs undergo rapid increase in size
2
| Chem. Comm., 2017, 00, 1-3
This journal is © The Royal Society of Chemistry 2017
Please do not adjust margins

Page 3 of 5
Please d Co hn eomt Ca do j mu s mt margins
ChemComm
COMMUNICATION
low degree of conversion, at the cost of a considerable reduction in
View Article Online
DOI: 10.1039/C7CC06146C
reaction rate (Table 2, Entry 4). This selectivity advantage was lost
after a longer reaction time/at a higher degree of conversion.
The activity of SBA-FC-Au was similar to that of SBA-Au, although
the fluorous catalyst was more selective for the UHC product at low
conversion (Table 2, Entry 5). Interestingly, combining fluorous and
thiol-terminated chains on the catalyst support resulted in a
significant synergistic effect. The SBA-FC-SX-Au catalysts were
remarkably selective for the UHC product (Table 2, Entries 6-8), even
after prolonged reaction times. SBA-FC-S5-Au in particular retained
almost quantitative preference for the homocoupling product after
9
6 hours at 120°C in toluene (Table 2, Entry 8).
The observed differences in selectivity cannot be explained solely
by the quantitative variation in sulfur content between the supports.
SBA-S5, SBA-HC-S5, and SBA-FC-S2.5 have similar sulfur loadings
(Table 1, Entries 4, 6 and 7), yet only SBA-FC-S2.5-Au exhibits a near-
exclusive selectivity for the desired UHC product. Thus, it is likely the
selectivity is defined by the differences in spatial distribution and
accessibility of the -SH groups on the support. Depending on the
specific structure of the SAM, the proportion of the thiols bound to
Figure. 2 Transmission electron microscopy (TEM) images of SBA-Au materials before
and after thermal activation at 200°C in vacuum. (A) SBA-Au. (B) SBA-Au after activation. Au, the specific attachment points, and accessibility of the supported
(
C) SBA-FC-S5-Au. (D) SBA-FC-S5-Au after activation.
NPs can vary. Due to the immiscibility of CF and CH chains, mixed
fluorous-hydrocarbon SAMs can self-sort into patches even on
surfaces with high curvature. Thus, compact, thiol-rich patches
under similar conditions.34
36
The Au NP catalysts thus prepared were evaluated for their
activity and selectivity in the Ullmann-type homocoupling of
iodobenzene (Table 2). A modest yield of biphenyl was obtained
using unsupported Au101∙PPh NPs, along with a significant amount
3
of hydrodehalogenation product, benzene (Table 2, Entry 1). This
result was broadly in line with the previously reported AuNP catalytic
systems for UHC,
selectivity explicitly. The Au NP catalyst was readily poisoned by
metallic mercury (ESI, Section 6), supporting the assumption of the
could provide perfectly-sized multivalent tethering points for AuNPs.
The particles in SBA-FC-SX-Au catalysts could be tethered upon a sea
of fluorous chains, which is very likely to strongly affect both the local
solvent environment and the orientation of the particles relative to
the support surface. In contrast, thiol groups in SBA-S5 and SBA-HC-
S5 could be too broadly distributed, providing fewer effective
tethering interactions per AuNP. While SBA-S100 has the highest
content of sulfur among the materials surveyed, it is apparent that
this higher amount of thiolates is sufficient to poison the catalyst. It
is also possible that the H11SH chains have a lower degree of
organization and looser packing in the SBA-S100 material than they
have in the SBA-FC-SX series, which allows for additional non-
productive thiol-gold interactions, and a weaker AuNP-support
association. Efforts towards improved characterization of the NP-
surface thiol interactions using X-Ray photoelectron spectroscopy
1
8, 20
though not all the works address the issue of
3
5
2
0, 25
heterogeneous nature of the operational species.
The conversion improved markedly for the supported SBA-Au
catalyst (Table 2, Entry 2), although selectivity for biphenyl remained
poor. The low-sulfur SBA-S5-Au catalyst was somewhat less active
than SBA-Au, without any improvement in selectivity (Table 2, Entry
3
). The catalyst with the highest sulfur content, SBA-S100-Au, was
substantially more selective than either SBA-Au or SBA-S5-Au at a
(XPS) are underway in our laboratories.
Table 2 Performance of SBA-Au catalysts in Ullmann-type homocoupling of iodobenzene.a
4
8h
96h
Entry
Catalyst
Conversion, %
Selectivity, %
Conversion, %
Selectivity, %
1
2
3
4
5
6
7
8
9
Au101*PPh
SBA-Au
3
41
68
63
49
60
52
56
56
53
76
72
76
90
82
94
98
98
87
56
93
76
65
79
78
84
74
75
79
78
72
71
78
91
87
99
80
SBA-S5-Au
SBA-S100-Au
SBA-FC-Au
SBA-FC-S1-Au
SBA-FC-S2.5-Au
SBA-FC-S5-Au
SBA-HC-S5-Au
a
b
Reaction conditions: iodobenzene (50 μmol), dimethylformamide (DMF, 0.5 mL), catalyst (2 mol% Au), K
Determined by GC-MS. Selectivity for biphenyl.
3
PO
4
(2 equiv), and n-decane as internal standard, 120°C in air.
c
This journal is © The Royal Society of Chemistry 2017
Chem. Comm., 2017, 00, 1-3 | 3
Please do not adjust margins

Please d Co hn eomt Ca do j mu s mt margins
Page 4 of 5
COMMUNICATION
ChemComm
5
6
Z. Niu and Y. Li, Chem. Mater., 2014, 26, 72-83V. iew Article Online
C. A. Schoenbaum, D. K. Schwartz and J. W. Medlin, Acc.
DOI: 10.1039/C7CC06146C
Chem. Res., 2014, 47, 1438-1445.
T. Chen and V. O. Rodionov, ACS Catal., 2016, 6, 4025-4033.
7
8
P. Liu, R. Qin, G. Fu and N. Zheng, J. Am. Chem. Soc., 2017,
39, 2122-2131.
F. Zaera, Acc. Chem. Res., 2009, 42, 1152-1160.
1
9
1
1
1
0 A. J. Gellman, ACS Nano, 2010, 4, 5-10.
1 A. Baiker, Chem. Soc. Rev., 2015, 44, 7449-7464.
2 K. B. Vu, K. V. Bukhryakov, D. H. Anjum and V. O. Rodionov,
ACS Catal., 2015, 5, 2529-2533.
1
1
3 J. Hassan, M. Sévignon, C. Gozzi, E. Schulz and M. Lemaire,
Chem. Rev., 2002, 102, 1359-1469.
4 H. Lin and D. Sun, Org. Prep. Proced. Int., 2013, 45
.

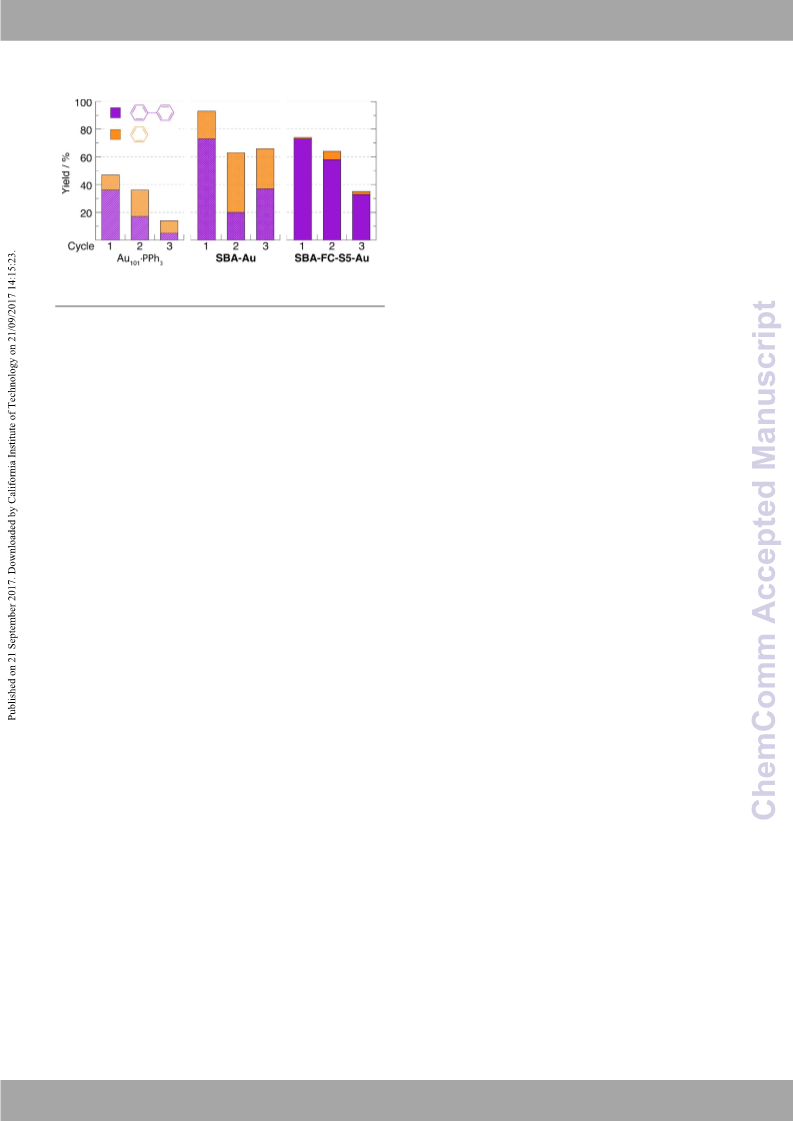

Figure 3 Recycling of SBA-Au catalysts in UHC reaction of iodobenzene (120°C, 96 h in
air).
15 T. D. Nelson and R. D. Crouch, in Organic Reactions, John
Wiley & Sons, Inc., New York, 2004, vol. 63, pp. 265-555.
1
1
6 L. Yin and J. Liebscher, Chem. Rev., 2007, 107, 133-173.
7 C. Sambiagio, S. P. Marsden, A. J. Blacker and P. C.
McGowan, Chem. Soc. Rev., 2014, 43, 3525-3550.
We examined the recyclability of some of the representative
AuNP catalysts from our library (Figure 3). For these experiments,
the catalysts were separated by centrifugation after each run, and
reused without any re-activation steps. The activity and selectivity
1
8 B. Karimi and F. Kabiri Esfahani, Chem. Commun., 2011, 47,
1
0452-10454.
19 K. Layek, H. Maheswaran and M. L. Kantam, Catal. Sci.
Technol., 2013, , 1147-1150.
3
of the unsupported Au101∙PPh
3
NPs, already unexceptional,
2
2
2
2
0 A. Monopoli, P. Cotugno, G. Palazzo, N. Ditaranto, B.
Mariano, N. Cioffi, F. Ciminale and A. Nacci, Adv. Synth.
Catal., 2012, 354, 2777-2788.
diminished dramatically after the first cycle. The supported SBA-Au
catalyst also lost the selectivity for the UHC product after just one
cycle, likely due to the leaching and aggregation of AuNPs. In
contrast, SBA-FC-S5-Au retained its selectivity for the
homocoupling product even after three 96-hour, 120°C reaction
cycles under oxidative conditions. While the activity of this catalyst
degraded due to aggregation of NPs (Figure S17, ESI), unsupported
thiolate-protected AuNPs undergo oxidation, loss of thiol ligands,
and aggregation on the timescale of hours at ambient conditions in
1 R. N. Dhital, C. Kamonsatikul, E. Somsook, K. Bobuatong, M.
Ehara, S. Karanjit and H. Sakurai, J. Am. Chem. Soc., 2012,
1
34, 20250-20253.
2 L. Zhang, A. Wang, J. T. Miller, X. Liu, X. Yang, W. Wang, L.
Li, Y. Huang, C.-Y. Mou and T. Zhang, ACS Catal., 2014,
546-1553.
3 S. K. Movahed, M. Fakharian, M. Dabiri and A. Bazgir, RSC
Adv., 2014, , 5243-5247.
24 G. Li, C. Liu, Y. Lei and R. Jin, Chem. Commun., 2012, 48
2005-12007.
4
,
1
4
3
7
,
air in the presence of halide anions.
1
In conclusion, we synthesized a set of AuNP catalysts supported
on SBA-type mesoporous supports modified with single-
component or mixed self-assembled monolayers. Some of these
monolayers featured “sticky” thiolate groups. AuNPs supported on
thiolated supports exhibited thermal stability well beyond that of
unsupported, thiol-protected AuNPs of similar size. The catalysts
supported by mixed thiol/fluorous monolayers exhibited
exceptional selectivity in Ullmann-type homocoupling of
iodobenzene, and remarkable stability under harsh reaction
conditions. Our approach provides an easy pathway for controlled
variation of particle-support interactions in libraries of supported
nanoparticle catalysts. Efforts to extend this strategy to other
supported NP catalysts, as well as to gain additional mechanistic
insights are currently underway in our laboratories.
2
2
2
2
2
5 W. Yao, W.-J. Gong, H.-X. Li, F.-L. Li, J. Gao and J.-P. Lang,
Dalton Trans., 2014, 43, 15752-15759.
6 D. Zhao, J. Feng, Q. Huo, N. Melosh, G. H. Fredrickson, B. F.
Chmelka and G. D. Stucky, Science, 1998, 279, 548-552.
7 S. Onclin, B. J. Ravoo and D. N. Reinhoudt, Angew. Chem.
Int. Ed., 2005, 44, 6282-6304.
8 M. E. McGovern, K. M. R. Kallury and M. Thompson,
Langmuir, 1994, 10, 3607-3614.
9 B. C. Bunker, R. W. Carpick, R. A. Assink, M. L. Thomas, M.
G. Hankins, J. A. Voigt, D. Sipola, M. P. de Boer and G. L.
Gulley, Langmuir, 2000, 16, 7742-7751.
3
3
0 A. Y. Fadeev and T. J. McCarthy, Langmuir, 2000, 16, 7268-
7
274.
1 X. Bulliard, A. Benayad, S.-G. Ihn, S. Yun, J.-H. Park, W. Choi,
Y. S. Choi and Y. Kim, RSC Adv., 2013, 3, 1112-1118.
32 W. W. Weare, S. M. Reed, M. G. Warner and J. E.
Hutchison, J. Am. Chem. Soc., 2000, 122, 12890-12891.
3
3
3 G. H. Woehrle, L. O. Brown and J. E. Hutchison, J. Am.
Chem. Soc., 2005, 127, 2172-2183.
4 T. Shimizu, T. Teranishi, S. Hasegawa and M. Miyake, J.
Phys. Chem. B, 2003, 107, 2719-2724.
Acknowledgements
This research was supported by King Abdullah University of
Science and Technology (KAUST).
3
3
5 R. H. Crabtree, Chem. Rev., 2012, 112, 1536-1554.
6 M. Şologan, D. Marson, S. Polizzi, P. Pengo, S. Boccardo, S.
Notes and References
Pricl, P. Posocco and L. Pasquato, ACS Nano, 2016, 10,
9
316-9325.
1
2
3
4
C. Burda, X. Chen, R. Narayanan and M. A. El-Sayed, Chem.
Rev., 2005, 105, 1025-1102.
3
7 M. Dasog and R. W. Scott, Langmuir, 2007, 23, 3381-3387.
P. Munnik, P. E. de Jongh and K. P. de Jong, Chem. Rev.,
2
015, 115, 6687-6718.
D. Astruc, F. Lu and J. R. Aranzaes, Angew. Chem. Int. Ed.,
005, 44, 7852–7872.
2
F. Gambinossi, S. E. Mylon and J. K. Ferri, Adv. Colloid
Interface Sci., 2015, 222, 332-349.
4
| Chem. Comm., 2017, 00, 1-3
This journal is © The Royal Society of Chemistry 2017
Please do not adjust margins

Page 5 of 5
Please d Co hn eomt Ca do j mu s mt margins
ChemComm
COMMUNICATION
View Article Online
DOI: 10.1039/C7CC06146C
This journal is © The Royal Society of Chemistry 2017
Chem. Comm., 2017, 00, 1-3 | 5
Please do not adjust margins
