C.H. Lin et al. / Polymer 51 (2010) 414–421
421
in Table 2. The cutoff wavelength of these polyamides falls in
Acknowledgements
the range of 345–366 nm, showing a very light color characteristic.
The bulky biphenylene phosphinate pendant, which separated the
chromophoric groups and interrupted the intramolecular conju-
gation, provided a highly irregular structure for the resulting
polyamides, and might be responsible for the light color charac-
teristic [40–42].
The authors thank the National Science Council of the Republic
of China for financial support. Partially sponsorship by the Green
Chemistry Project (NCHU), as funded by the Ministry of Education
is also gratefully acknowledged.
References
3.7. Oxygen resistance
[1] Liaw DJ, Hsu PN, Chen WH, Lin SL. Macromolecules 2002;35:4669.
[2] Hsiao SH, Yang CP, Huang SC. J Polym Sci Part A Polym Chem 2004;42:2377.
[3] Ge Z, Yang S, Tao Z, Liu J, Fan L. Polymer 2004;45:3627.
[4] Yang CP, Chen YP, Woo EM. J Polym Sci Part A Polym Chem 2004;42:3116.
[5] Wu SC, Shu CF. J Polym Sci Part A Polym Chem 2003;41:1160.
[6] Ehrenstein M, Smith P, Weder C. Macromol Chem Phys 2003;204:1599.
[7] Kim YJ, Chung IS, In I, Kim SY. Polymer 2005;46:3992.
[8] Mallakpour S, Kolahdoozan M. J Appl Polym Sci 2008;108:1356.
[9] Kricheldorf HR, Fna SC, Vakhtangishvili L, Schwarz G, Fritsch D. J Polym Sci
Part A Polym Chem 2005;43:6272.
The results of atomic oxygen resistance of polyamides 5 are
shown in Fig. 8. The weight loss of polyamides 5 under oxygen
plasma was compared with that of polyimide Kapton and poly-
amide 6. To distinguish the effect between thermal-induced and
oxygen plasma-induced decomposition, the plasma chamber was
initially operated under a pure argon atmosphere at a flow rate of
20 sccm. Less than 1 wt% loss was observed for all polymers after
6 min exposure, indicating that the thermal-induced decomposi-
tion is negligible. When oxygen at a flow rate of 5 sccm was
introduced, Kapton and polyamides 6 decomposed rapidly and
[10] Wu S, Hayakawa T, Kikuchi R, Grunzinger SJ, Kakimoto M. Macromolecules
2007;40:5698.
[11] Wu S, Hayakawa T, Kakimoto M, Oikawa H. Macromolecules 2008;41:3481.
[12] Kim YH, Anh SK, Kim HS, Kwon SK.
2002;40:4288.
J Polym Sci Part A Polym Chem
severely within
6 min, indicating an atom oxygen-induced
[13] Liaw DJ, Liaw BY. Macromolecules 1999;32:7248.
[14] Watson KA, Palmieri FL, Connell JW. Macromolecules 2002;35:4968.
[15] Kwak SM, Yeon JH, Yoon TH. J Polym Sci Part A Polym Chem 2006;44:2567.
decomposition occurred. In contrast, polyamides 5 displayed lower
weight loss, and thus much better oxygen plasma resistance than
Kapton and polyamide 6. Besides, the low-color characteristic of
polyamide 5 resulted in low solar absorptivity in the low Earth
orbital. The preliminary results demonstrate that polyamides 5 are
promising materials for potential space applications.
[16] Liu YL, Hsiue GH, Lan CW, Kuo JK, Jeng RJ, Chiu YS.
1997;63:875.
J Appl Polym Sci
[17] Jeong KU, Kim JJ, Yoon TH. Polymer 2001;42:6019.
[18] Banerjee S, Palit SK, Maiti S. J Polym Sci Part A Polym Chem 1994;32:219.
[19] Liu YL, Hsiu GH, Lee RH, Chiu YS. J Appl Polym Sci 1997;63:895.
[20] Liou GS, Hsiao SH. J Polym Sci Part A Polym Chem 2001;39:1786.
[21] Liu YL, Hsu CY, Wu CS. J Appl Polym Sci 2003;89:791.
[22] Lin CH, Lin CH. J Polym Sci Part A Polym Chem 2007;45:2897.
[23] Lin CH, Wang CS. Polymer 2001;42:1869.

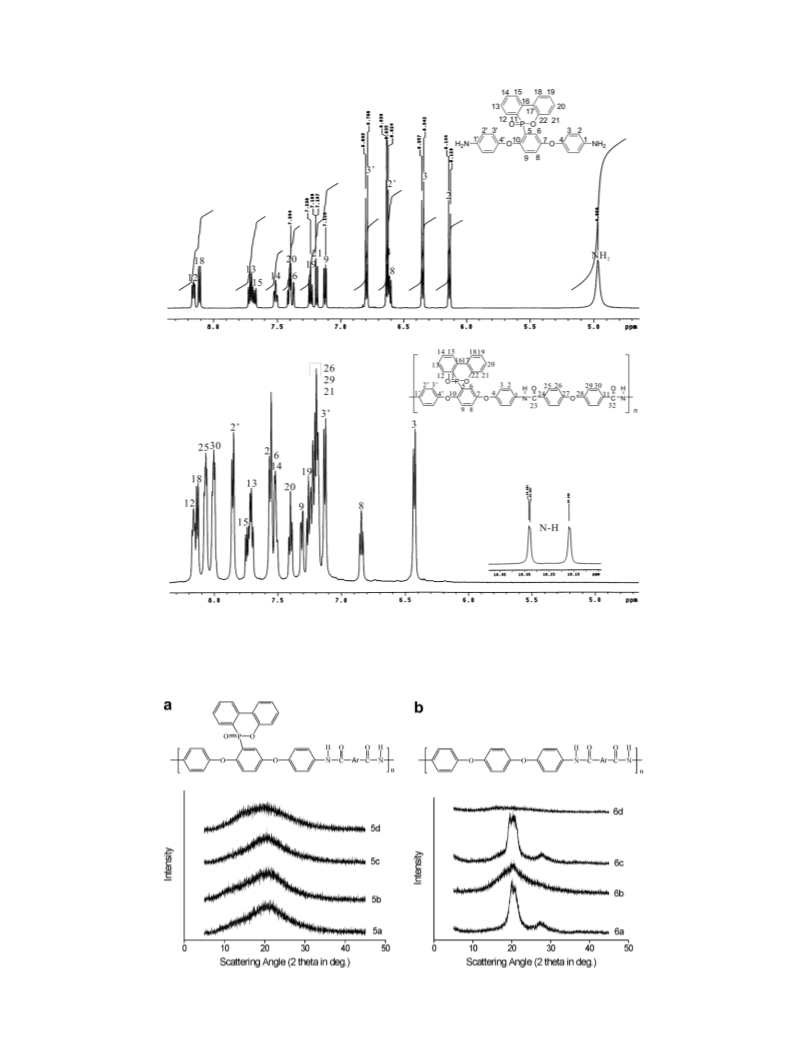

4. Conclusions

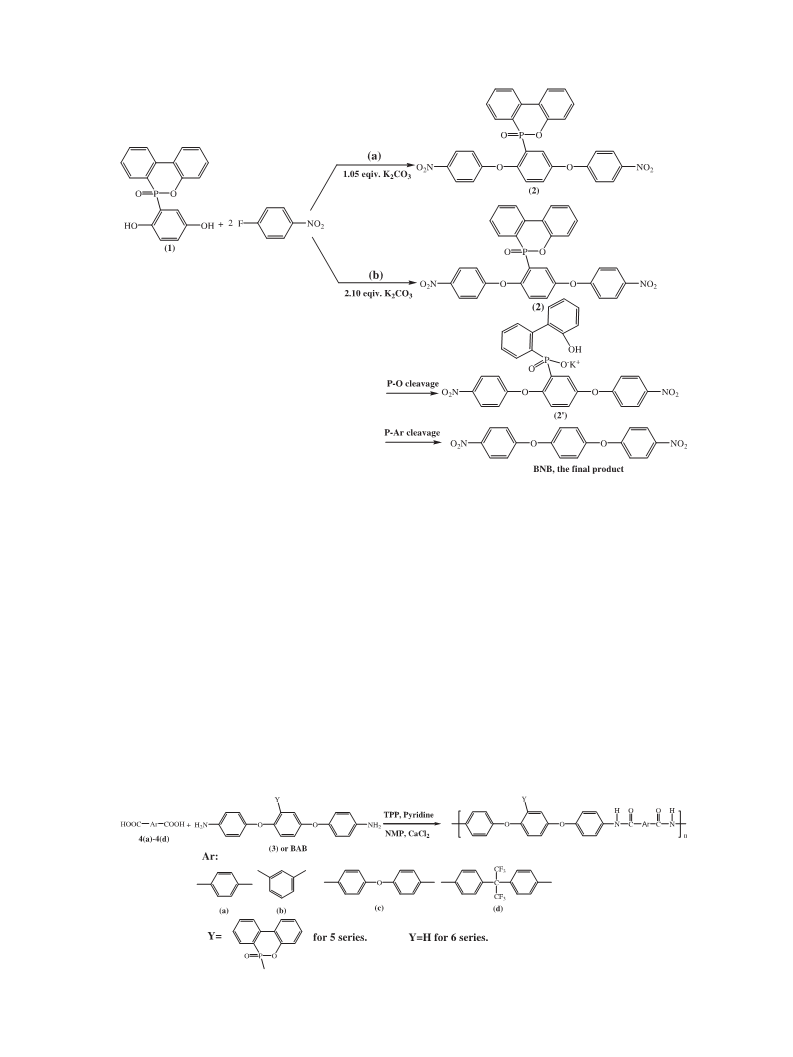

An inexpensive route to prepare (1)-derivative via nucleophilic
substitution was revealed. It is found that the molar ratio of
potassium carbonate-to-(1) is crucial to the product of the nucleo-

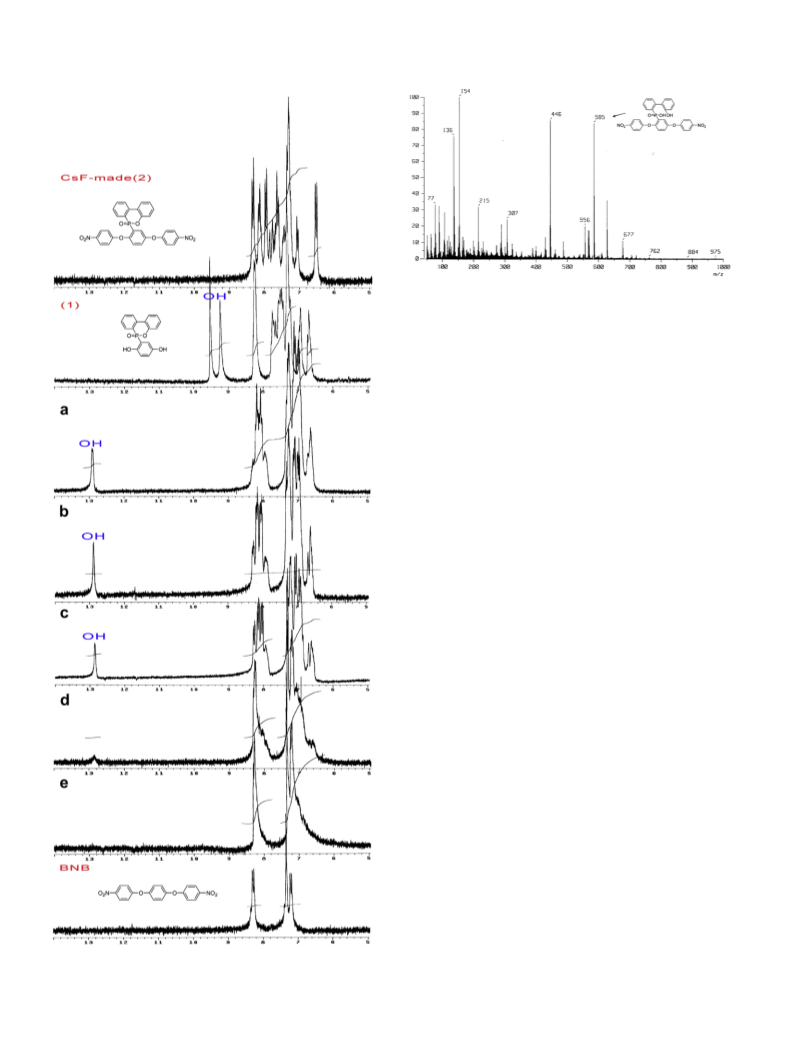

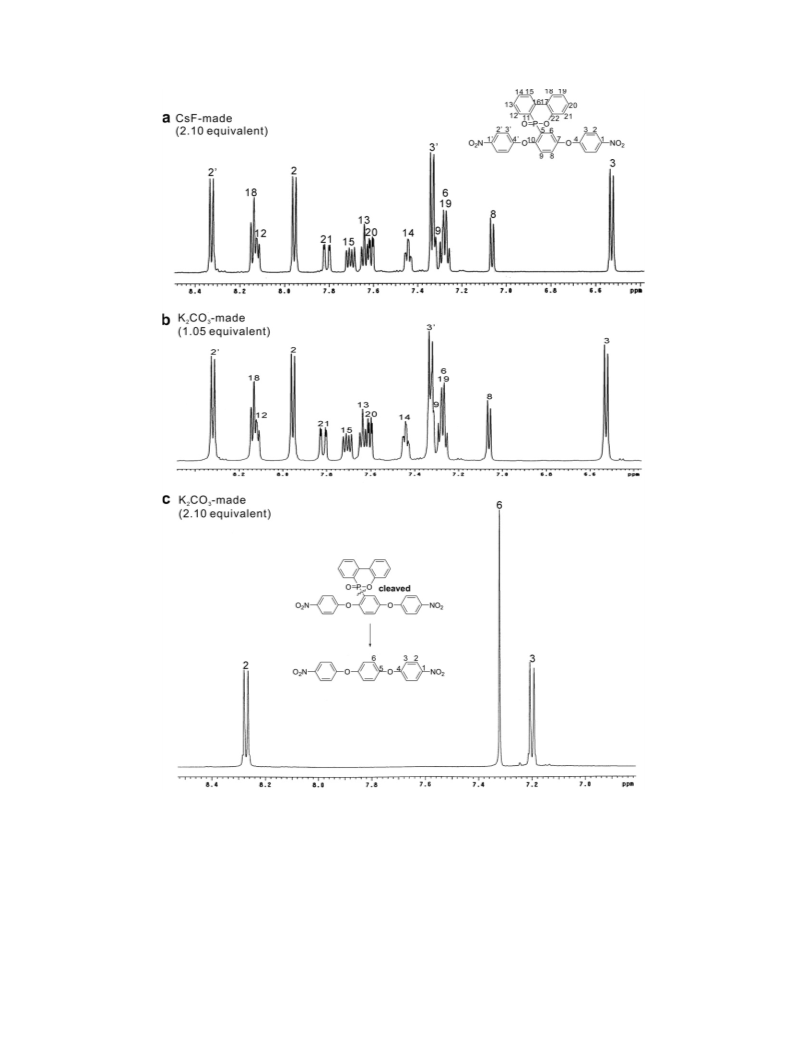

philic substitution. When the molar ratio of is 2.10 (typical value of
nucleophilic substitution), according to 1H and Mass spectra, a two-
stage cleavage of (2) was observed, and the 1,4-bis(4-nitrophenoxy)
benzene is the final product. When the molar ratio was reduced to
1.05, the nucleophilic substitution can be carried out successfully
without alkaline hydrolysis. This finding will provide an economic
route for a successful synthesis of (1)-derivatives via nucleophilic
substitution. The bulky biphenylene phosphinate pendant in
polyamide 5 is responsible not only for the improved solubility, the
low-color characteristic, but also for the good oxygen plasma
resistance. The combination of light color, flexibility, high molecular
weight, high glass transition temperature, high thermal stability,
improved organo-solubility, and good oxygen plasma resistance
makes polyamides 5 promising polymers.
[24] Liu YL. J Polym Sci Part A Polym Chem 2002;40:359.
[25] Liu YL, Tsai SH. Polymer 2002;43:5757.
[26] Shieh JY, Wang CS. J Polym Sci Part A Polym Chem 2002;40:369.
[27] Connell JW. High Perform Polym 2000;12:43.
[28] Connell JW, Smith- Jr JG, Hedrick JL. Polymer 1995;36:13.
[29] Smith- Jr JG, Thompson CM, Watson KA, Connell JW. High Perform Polym
2002;14:225.
[30] Connell JW, Smith- Jr JG, Hergenrother PM. Polymer 1995;36:5.
[31] Connell JW, Watson KA. High Perform Polym 2001;13:23.
[32] Thompson CM, Smith- Jr JG, Connell JW. High Perform Polym 2003;15:181.
[33] Connell JW, Smith- Jr JG, Kalil CG, Siochi EJ. Polym Adv Tech 1998;9:11.
[34] Jin J, Smith- Jr DW, Topping CM, Suresh S, Chen S, Foulger SH, et al. Macro-
molecules 2003;36:9000.
[35] Yamazaki N, Matsumoto M, Higashi F.
13:1373.
J Polym Sci Polym Chem 1975;
[36] Wang CS, Lin CH. Polymer 1999;40:4387.
[37] Liou GS, Hsiao SH. J Polym Sci Part A Polym Chem 2002;40:459.
[38] Liou GS, Hsiao SH. High Perform Polym 2001;13:137.
[39] Liu YL, Wei WL, Chen WY. Polym Int 2003;52:1275.
[40] Liaw DJ, Huang CC, Chen WH. Polymer 2006;47:2337.
[41] Liaw DJ, Chen WH, Hu CK, Lee KR, Lai JY. Polymer 2007;48:6571.
[42] Yang CP, Chen RS, Hung KS. Polymer 2001;42:4569.
