pharmaceuticals
Article
A Triphenylphosphonium-Functionalized
Mitochondriotropic Nanocarrier for Efficient
Co-Delivery of Doxorubicin and Chloroquine and
Enhanced Antineoplastic Activity
1
1
2
ID
Katerina N. Panagiotaki , Zili Sideratou , Spiros A. Vlahopoulos
,
3
4
5
5
Maria Paravatou-Petsotas , Michael Zachariadis , Nikolas Khoury , Vassilis Zoumpourlis
1
,
and Dimitris Tsiourvas *
1
Institute of Nanoscience and Nanotechnology, NCSR “Demokritos”, 15310 Aghia Paraskevi, Greece;
knpanagiotaki@gmail.com (K.N.P.); z.sideratou@inn.demokritos.gr (Z.S.)
Horemeio Research Laboratory, First Department of Paediatrics, National and Kapodistrian University of
Athens, 11527 Athens, Greece; sblachop@med.uoa.gr
2
3
4
5
Institute of Nuclear and Radiological Sciences and Technology Energy and Safety, NCSR “Demokritos”,
1
5310 Aghia Paraskevi, Greece; mparavatou@rrp.demokritos.gr
Institute of Biosciences and Applications, NCSR “Demokritos”, 15310 Aghia Paraskevi, Greece;
mizachar@bio.demokritos.gr
Institute of Biology, Medicinal Chemistry and Biotechnology, National Hellenic Research Foundation,
1
1635 Athens, Greece; nikos_kh1@hotmail.com (N.K.); vzub@eie.gr (V.Z.)
*
Correspondence: d.tsiourvas@inn.demokritos.gr; Tel.: +30-210-650-3616
Received: 24 October 2017; Accepted: 18 November 2017; Published: 21 November 2017
Abstract: Drug delivery systems that target subcellular organelles and, in particular, mitochondria
are considered to have great potential in treating disorders that are associated with mitochondrial
dysfunction, including cancer or neurodegenerative diseases. To this end, a novel hyperbranched
mitochondriotropic nanocarrier was developed for the efficient co-delivery of two different (both in
chemical and pharmacological terms) bioactive compounds. The carrier is based on hyperbranched
poly(ethyleneimine) functionalized with triphenylphosphonium groups that forms ~100 nm diameter
nanoparticles in aqueous media and can encapsulate doxorubicin (DOX), a well-known anti-cancer
drug, and chloroquine (CQ), a known chemosensitizer with arising potential in anticancer medication.
The anticancer activity of this system against two aggressive DOX-resistant human prostate
adenocarcinoma cell lines and in in vivo animal studies was assessed. The co-administration of
encapsulated DOX and CQ leads to improved cell proliferation inhibition at extremely low DOX
concentrations (0.25 µM). In vivo experiments against DU145 human prostate cancer cells grafted
on immunodeficient mice resulted in tumor growth arrest during the three-week administration
period and no pervasive side effects. The findings put forward the potential of such targeted low
dose combination treatments as a therapeutic scheme with minimal adverse effects.
Keywords: drug delivery systems; mitochondrial targeting; drug combinations; poly(ethyleneimine);
triphenylphosphonium cation; old drugs; chloroquine; doxorubicin
1
. Introduction
One common theme in several types of antineoplastic drugs is their capacity to induce detectable
levels of cell stress, which results in the stimulation of systems that degrade biomolecules [
1]. Increased
proteolysis of apoptosis mediators enables neoplastic cells to survive in spite of targeted biological
therapy and treatment with established antineoplastic drugs [1,2]. It is often noted that cell lines
Pharmaceuticals 2017, 10, 91; doi:10.3390/ph10040091
www.mdpi.com/journal/pharmaceuticals

Pharmaceuticals 2017, 10, 91
2 of 16
established from cancer patients derive from tumors exposed to chemotherapy and show increased
viability upon exposure to conditions that induce cell stress [ ]. As a result, disruption of systems for
material turnover can sensitize cancer cells to chemotherapy and biological therapy [ ]. Analysis of
1,3
1,4
intracellular signal transduction pathways operating in cancer leads to the conclusion that interactions
between transcription factors, which mediate coordination between innate and adaptive immunity,
are compromised in neoplastic tissue [
in parallel with changes in organelle homeostasis that encompass both cancer cells, as well as their
microenvironment [ ]. Hence, agents interfering with organelle homeostasis would be expected to
5]. This aberrant function of transcription regulators occurs
1,5,6
affect tissue levels of cytokines, as well as subsets of malignant cells themselves. A drug that interferes
potently with the response of cancer cells to cell stress is chloroquine.
Chloroquine (CQ), a drug used for decades against malaria, is increasingly assayed as
a radiosensitizing and chemosensitizing substance for the treatment of cancer [
most clinical trials have failed to demonstrate a substantial antineoplastic effect for CQ [8,9
7
]. Until now, however,
]. Completed
clinical trials have not given results that would allow CQ to become incorporated in everyday practice.
One of several potential explanations is an insufficient penetration of CQ into tumor cells, due to
the acidic microenvironment of the tumor tissue [10]. It has been recently shown that CQ entry into
cancer cells can be inhibited in an acidic environment commonly encountered in densely-grown
cancerous tissues [11,12]. The acidic microenvironment of tumor tissue plays an important role
in the behavior of cancer cells and in their resistance to antineoplastic treatment [13]. Therefore,
diverse analogues (hybrid molecules) of chloroquine are currently being developed [14]. While CQ
has shown some potential to enhance antineoplastic effects of nanocarrier-based drugs [7,15], only
recently have studies on nanocarriers co-encapsulating CQ, either as an autophagy inhibitor or to
circumvent multidrug resistance, with known antineoplastic drugs, such as docetaxel or doxorubicin,
been published [16,17].
A critical aspect for CQ impact is the targeted organelle: this would enable identification
of modulators for selective antineoplastic activity. Targeting of organelles is very important for
antineoplastic drugs as a means to enhance their efficacy [18]. The best example is the frontline
drug doxorubicin (DOX), a DNA intercalator and damaging agent, that was one of the most
effective therapies for prostate cancer [19], but due to its dose-limiting cardiotoxicity [20] and
the chemo-resistance observed in prostate cancer, its use was diminished [21]. To overcome this
drawback, several combination strategies have been proposed [22,23]. However, in vitro data show
that mitochondria-targeted doxorubicin lacks any direct nuclear effects in cultured rat cardiomyocytes
and that these cells are able to undergo mitochondrial biogenesis [20].
Recently, much attention has been directed towards targeting bioactive compounds to cell
mitochondria, in order to remediate mitochondrial dysfunctions that are the cause of a number of
diseases, including cancer [24
is to conjugate the bioactive molecule of choice directly to mitochondriotropic ligands such as
the triphenylphosphonium group (TPP) [26 27]. This, however, limits the application to one type of drug
,25]. One approach typically employed to target drugs to mitochondria
,
in each case and, furthermore, raises concerns on the biological activity of the chemically-conjugated
drugs. Alternatively, mitochondriotropic drug delivery systems could be proven more efficient since
they can encapsulate and transport a number of diverse bioactive molecules without chemically
modifying them [25–29].
We previously demonstrated the capacity of a nanocarrier based on an oligolysine scaffold by
addition of two triphenylphosphonium cations per oligomer to target mitochondria [30]. We were
subsequently able to show efficient delivery of doxorubicin into mitochondria of cultured cells by
triphenylphosphonium-functionalized poly(ethyleneimine) hyperbranched nanocarrier P-TPP-DOX,
resulting in rapid cytotoxicity, mainly evident as necrosis [31]. Necrosis is known to increase by
agents that interfere with acidification of mitochondria [32], and as CQ is a weak base, it could be
expected to enhance necrosis, if targeted to mitochondria. The aim of the present study is to use
this novel hyperbranched polymer-based mitochondriotropic nanocarrier for efficient co-delivery

Pharmaceuticals 2017, 10, 91
3 of 16
to cell mitochondria of doxorubicin, a known anticancer drug, and chloroquine, a drug that
interferes potently with the response of cancer cells to cell stress, and further assay the activity
of this system against adenocarcinoma cell lines. To this end, the introduction of the lipophilic
decyltriphenylphosphonium (decylTPP) group to a hyperbranched poly(ethyleneimine) (PEI), having
an average molecular weight of 1300, was accomplished through amide bond formation. The resulting
decyltriphenylphosphonium-functionalized poly(ethyleneimine), P-TPP, being water insoluble, had
the tendency to form colloidal particles in water. It was, however, possible to control the hydrophobic
assembly of TPP-functionalized PEI molecules into ~100 nm mean diameter nanoparticles (P-TPP) and
proceed with the encapsulation of DOX and CQ, affording P-TPP-DOX and P-TPP-CQ, respectively.
The cellular uptake of DOX and the intracellular localization of DOX were confirmed by flow cytometry
and confocal laser scanning microscopy (CLSM), respectively. Their impact on the viability of human
prostate adenocarcinoma DU145 and PC3 cell lines was assessed. Finally, we assayed the antineoplastic
activity of combined administration of P-TPP-DOX and P-TPP-CQ on prostate adenocarcinoma DU145
xenografts on SCID mice [33], in comparison to the administration of either free DOX or P-TPP-DOX.
2
. Results
The conjugation of decyltriphenylphosphonium groups to PEI was achieved through the reaction of
primary amines with the carboxylic group of (10-carboxydecyl)triphenylphosphonium bromide [30,31]
.
By precisely selecting the molar ratio of the interacting moieties and the synthetic conditions, it is
possible to fine-tune the number of decylTPP groups attached in each poly(ethyleneimine) scaffold.
As determined by IG 13C-NMR spectroscopy [31
attributed to the
carbons relative to the remaining primary amino groups (NH CH ) and the peak at 35.8 ppm attributed
,34], by integrating the peaks at 36.6–39.6 ppm
α
carbons of PEI relative to the newly-formed amide moieties (CH NHCO), the
α
2
2
2
to the
α carbons of the alkyl spacer relative to the newly-formed amide moieties (NHCOCH ), it was
2
found that 2.8
±
0.3 decylTPP groups were attached to each PEI scaffold. This number is optimum for
achieving the hydrophilic/lipophilic balance needed to render the resulting compound water-insoluble,
but able to produce nanoparticles in buffered media such as PBS or Opti-MEM. It should be noted that
lower substitutions result in water-soluble materials, while higher ones lead to compounds that are
completely water insoluble, forming coarse-grained particles on the level of micrometers in water.
Through the addition in Opti-MEM of 100
µL of a DMSO solution of P-TPP having a concentration
of 90 g/mL, aqueous dispersions of nanoparticles having a radius of 30–35 nm, as determined by
µ
DLS, can be prepared. Similar hydrodynamic radii were observed in the case of DOX-loaded P-TPP
nanoparticles (Supplementary Materials, Figure S1). The amount of encapsulated DOX into P-TPP
nanoparticles, determined after the removal of the non-encapsulated DOX by ultracentrifugation, was
50 µM in a dispersion containing 1 mg/mL P-TPP nanoparticles (loading capacity 3% w/w). CQ-loaded
nanoparticles that were prepared in a similar manner, as detailed in the Experimental Section, had
a hydrodynamic radius of 50–55 nm (Supplementary Materials, Figure S2) and a final concentration of
3
00 µM in a dispersion containing 1 mg/mL P-TPP nanoparticles (loading capacity 9%).
2
.1. In Vitro Intracellular Uptake
The intracellular live-cell uptake of DOX was followed by fluorescence-activated cell sorting flow
cytometry experiments since DOX can intercalate into mitochondrial DNA. The fluorescence emission
profiles obtained from DU-145 cells treated with DOX or DOX encapsulated in P-TPP, with or without
the co-addition of encapsulated CQ, are shown in Figure 1. It should be noted that in all cases, low
DOX and CQ concentrations were used to avoid substantial cell death during the 2-h incubation period.
Based on the obtained histograms, the addition of P-TPP-DOX at a DOX concentration of 0.25
exhibited a cellular uptake comparable to that of free DOX of twice the concentration (0.5 M), while
administration of P-TPP-DOX at 0.5 M DOX concentration leads clearly to substantially higher cell
uptake compared to free DOX also at 0.5 M. The profile obtained following co-administration of
P-TPP-CQ with P-TPP-DOX signifies that the presence of CQ encapsulated in P-TPP does not reduce
µM
µ
µ
µ

Pharmaceuticals 2017, 10, 91
4 of 16
P-TPP-DOX uptake due to possible interference, but instead appears to increase, to a small extent,
DOX uptake. The respective controls (i.e., non-treated cells or cells treated with P-TPP-CQ) are also
included for comparison purposes showing, as expected, minor self-fluorescence profiles of the cells.
Consequently, intracellular uptake of DOX is enhanced when encapsulated in P-TPP, and the presence
of P-TPP-CQ does not reduce this uptake.
Figure 1.
fluorescence intensity within DU145 human prostate cancer cells incubated with free DOX (0.5
with P-TPP nanocarrier encapsulating DOX (P-TPP-DOX, DOX concentrations 0.25 M and 0.5
or chloroquine (P-TPP-CQ, CQ concentration 2.5 M) and with both P-TPP-DOX and P-TPP-CQ
P-TPP-DOX 0.25 µM/P-TPP-CQ 1.25 µM).
(
A
) Flow cytometry profiles of DOX fluorescence and (
B
) quantitative analysis of mean
M),
M)
µ
µ
µ
µ
(
2
.2. Confocal Microscopy Studies
The mitochondriotropic characteristic of the P-TPP nanocarrier, as previously established [31],
has been utilized for targeting DOX in mitochondria by administering P-TPP-DOX to human prostate
carcinoma DU145 cells. In this study, further laser scanning confocal microscopy (CLSM) studies
have been employed on live DU145 cells, utilizing the intrinsic fluorescence of DOX and its ability to
intercalate into DNA, in order to verify its intracellular localization after administering P-TPP-DOX
either alone or together with P-TPP-CQ. It is well established that DOX encapsulated in P-TPP
is localized in mitochondria [31] in contrast to free DOX, which is specifically localized in cell
nuclei [31,35], and our confocal microscopy studies further corroborate this notion. Indeed, from
the corresponding CLSM images (Supplementary Materials, Figure S3), DOX is predominantly located
®
in the nucleus or its membrane, while no co-localization is observed with MitoTracker Green FM (Cell
Signaling Technology, Inc., Beverly, MA, USA). On the contrary, as shown in the obtained confocal
indicative images of cells treated with P-TPP-DOX at a 0.5
it is evident that DOX is not located in the cell nuclei, but it is efficiently co-localized with MitoTracker
Green FM in cell mitochondria (green + red = yellow). This result corroborates the already established
µ
M DOX concentration (Figures 2A and S4A),
®
mitochondrial affinity of P-TPP-DOX. At even lower DOX concentrations (0.25 µM DOX encapsulated
in P-TPP), the corresponding CLSM images (Supplementary Materials, Figures S5 and S6) still show,
although in less detail, that DOX is localized outside the cell nuclei. Live cell images obtained following
co-administration of P-TPP-CQ with P-TPP-DOX (Figures 2B and S4B) also exhibit the same distinct
fluorescence pattern suggesting DOX mitochondrial localization even in the presence of P-TPP-CQ
at various concentrations. The findings support the fluorescence emission profiles obtained from
flow cytometry experiments and ascertain that administration of CQ encapsulated in P-TPP does not
negatively compete with DOX internalization.

Pharmaceuticals 2017, 10, 91
5 of 16

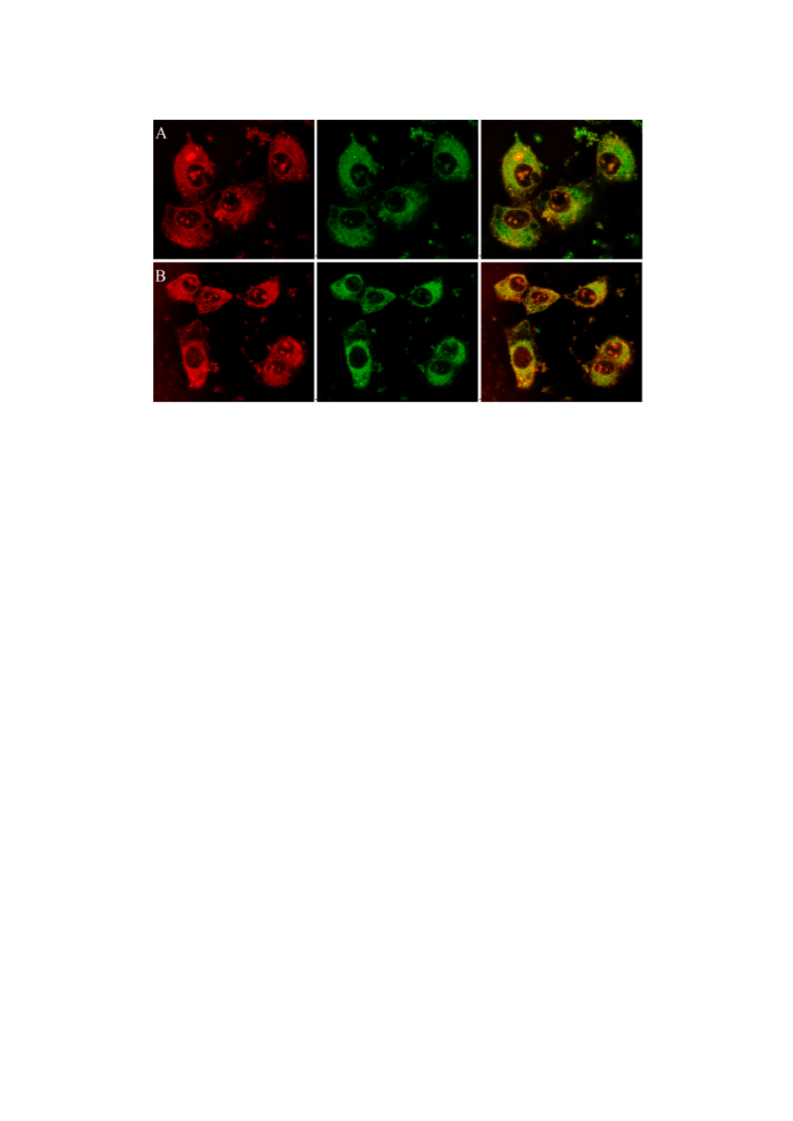

Figure 2. Confocal fluorescence microscopy on live DU145 cells incubated (
A
) with P-TPP-DOX (0.5
µM
DOX concentration) or (B) with P-TPP-DOX/P-TPP-CQ (0.5 µM DOX, 1.25 µM CQ) for 1 h and 100 nM
MitoTracker® Green FM for 15 min: (left) DOX (red channel, λex = 561 nm, λem = 570–650 nm); (middle)
MitoTracker® Green FM (green channel, λex = 488 nm, λem = 500–550 nm); and (right) overlay image
showing co-localization of green and red fluorescence in yellow.
2
.3. Cell Viability Studies
Cell cytotoxicity studies were performed on PC3 and DU145 cell lines that are known to exhibit
chemo-resistance against DOX and similar anti-cancer compounds [36–39]. Cell survival of both cell
lines is shown in Figure 3. It becomes evident that under the experimental conditions employed (3-h
incubation period, MTT assay 24 h following incubation), both cell lines exhibit noteworthy DOX
resistance since a cell viability of ~70% is observed at the highest tested DOX concentrations of 10
On the other hand CQ cytotoxicity is negligible even at high concentrations (100 M) in line with
the general knowledge that CQ is not cytotoxic vs. cancer cell lines [ ]. Co-administration of free
µM.
µ
8,9
DOX and CQ results in a minor, non-statistically-significant, increase of cytotoxicity compared to that
of free DOX. In line with our previously-published report [31], DOX encapsulated in P-TPP exhibits
significant cytotoxicity at very low DOX concentrations with an IC50 below 0.5 µM against both cell
lines. It is of interest to note that CQ encapsulated in P-TPP, in direct contrast to the non-encapsulated
CQ, has a prominent effect on cell viability, as well, albeit at a much higher dose compared to DOX
(IC50 ca 5 µM). Finally co-administration of P-TPP-DOX and P-TPP-CQ further reduces cell viability.
Employing P-TPP-DOX at the lowest tested DOX concentration of 0.25 µM and P-TPP-CQ at various
concentrations, the resulting effect on cell viability is further enhanced. This increase in cytotoxicity is
statistically significant (p < 0.0001) when the CQ concentration is above 2
that by using an appropriate delivery system, severe cytotoxicity can be obtained at an extremely
low DOX concentration (0.25 M) by co-administering CQ also at a low concentration (2.5 M).
The toxicity of the P-TPP carrier was tested employing concentrations in the range of 5–20 g/mL
equivalent to 1.75–7.0 M of P-TPP) that correspond to the amounts of the carrier present in the above
cell experiments employing P-TPP-DOX and P-TPP-CQ. It was found that the carrier exhibits some
cytotoxicity (cell viability of ca. 80%) towards both cell lines, but only at high concentrations (20 g/mL
or 7.0 M P-TPP). Cell viability studies were also performed on normal (non-cancerous) 3T3 mouse
µM (Figure 3), signifying
µ
µ
µ
(
µ
µ
µ
fibroblast cells under the same experimental conditions as above. The obtained results (Supplementary
Material, Figure S7) show that the carrier and the free (non-encapsulated) CQ have the same negligible
cytotoxicity as registered for PC3 and DU145 cell lines, while both free DOX and free DOX/CQ are

Pharmaceuticals 2017, 10, 91
6 of 16
considerably more cytotoxic for 3T3 than for PC3 and DU145. This is anticipated since the malignant
cell lines are DOX resistant. On the other hand, P-TPP encapsulated DOX, CQ or DOX/CQ shows no
statistically-significant different cytotoxicity profiles between the fibroblast cell line and the cancerous
cell lines, suggesting that their formulations are equally cytotoxic for all three cell lines. Apparently,
the carrier can equally target the mitochondria of both DOX-resistant or non-DOX-resistant cells.
Figure 3. Comparative toxicities of P-TPP (carrier), free DOX, CQ and their combination, as well as of
P-TPP-DOX, P-TPP-CQ or their combination on PC3 (
various concentrations for 3 h as determined by MTT assays 24 h following incubation. In all P-TPP-DOX
experiments, the encapsulated DOX concentration was 0.25, 0.5 or 1 M, and the corresponding carrier
concentration was 5, 10 and 20 g/mL (corresponding to 1.75, 3.5 and 7.0 M of P-TPP). The statistical
significance, resulting from Student’s paired two-tailed t-tests, follows the assignment: * p < 0.05,
* p < 0.01, *** p < 0.001 and **** p < 0.0001, while no annotation implies no statistical significance,
A) and DU145 cells (B) following incubation at
µ
µ
µ
*
p > 0.05.
2
.4. In Vivo Animal Studies
To investigate with in vivo studies the activity of P-TPP encapsulated DOX and CQ, we grafted
the cell line DU145 into SCID mice, since DU145 cells are refractory to androgens and do not
express the AR or ER 40]. To this end, we administered free DOX, P-TPP encapsulated DOX and
the combination of P-TPP-DOX with P-TPP-CQ once a week and for a total period of three weeks and
α
α [

Pharmaceuticals 2017, 10, 91
7 of 16
compared the results with the control group (medium only) and the group administered the nanocarrier
at an equivalent concentration. Co-administration of P-TPP encapsulated CQ and DOX had the greatest
−
6
impact on tumor growth, being significantly more potent than DOX (p < 5.1
(
×
10 ) and P-TPP-DOX
p < 0.001), as well (Figure 4). Specifically, tumors in the control and in vehicle-treated animals
reached exponential growth kinetics (Figure 4, upper diagram). In comparison, tumor growth in
DOX-treated animals was attenuated, and the P-TPP-DOX- and P-TPP-DOX/P-TPP-CQ-treated
animals manifested the most significant growth attenuation. Especially during the three-week
administration period (marked with arrows in Figure 4), complete tumor growth arrest was observed
for mice administered with P-TPP-DOX/P-TPP-CQ. In addition, both animal groups treated with
P-TPP-DOX and P-TPP-DOX/P-TPP-CQ exhibited normal movement capability, and normal, expected
overall behavior. Finally, no pervasive side effects could be noted during the observation period for
these groups.
Figure 4. CQ and DOX encapsulation in P-TPP reduces DU145 tumor growth in SCID mice in
comparison to treatment with free or nanocarrier-encapsulated DOX. (Upper part): Growth rates of
tumor xenografts in SCID mice. Formulations were administered intraperitoneally on Weeks 3, 4 and
5
(arrows). Group 1 mice were treated with medium (Opti-MEM); Group 2 with nanocarrier P-TPP
(75 mg/kg); Group 3 with DOX (2 mg DOX/kg); Group 4 with P-TPP-DOX (0.75 mg/kg); Group 5 with
P-TPP-DOX (0.75 mg/kg)/P-TPP-CQ (4.5 mg/kg). (Lower part): Representative images of tumors
excised after nine weeks (experimental endpoints).
3
. Discussion
In this study, first, it is noted that both free and encapsulated DOX kill significant scores of DU145
and PC3 cells both in vitro and in vivo. It is also clear that a synergistic cytotoxicity on both cell lines
upon co-treatment with CQ and DOX, both encapsulated in the triphenylphosphonium-functionalized
nanocarrier, was observed, and this cytotoxic impact is substantially increased upon addition of
increasing quantities of encapsulated CQ. This increase of cytotoxicity has an added value, because
the two drugs act with complementary mechanisms to yield oncosuppressive effects.

Pharmaceuticals 2017, 10, 91
8 of 16
Currently, CQ is mainly assayed as a substance that could sensitize some types of tumor cells
to antineoplastic treatment [10 12]. However, its effects vary depending on complex aspects of
the cancer phenotype, which relate to the metabolic state of multiple cohorts of cells within the cancer
microenvironment [ ]. The mechanism whereby this carrier exerts its impact on these cell lines,
leading to the principal difference between free CQ and P-TPP-CQ, is possibly related to changes in
the capacity of CQ to enter the cells. Even though CQ has complex effects on cells [ 12], its main
,
1,5
7,
target that relates to cellular turnover is the lysosome, and consequentially, CQ inhibits the formation
of the autophagosome in cells undergoing autophagy. Thereby, CQ inhibits late stage autophagy:
a recent study with isoquinoline alkaloid liensinine has suggested that breast cancer cells can be killed
by inhibiting late stage autophagy and specifically the fusion of autophagosome with lysosome; and
not by blocking the early stage, i.e., the formation of autophagosome [41]. In previous studies, breast
cancer cells resistant to chemotherapy were killed by inducing endoplasmic reticulum (En.R) stress [42].
The combination of En.R stress induction with CQ has indicated a potential for synergistic cytotoxicity.
As an example, CQ has shown a remarkable potential to shrink xenografts of triple-negative breast
cancer cells upon combination treatment aiming to cause endoplasmic reticulum stress [43].
In a previously-published article, we demonstrated that P-TPP encapsulated doxorubicin targeted
mitochondria [31]. Similar studies have shown that TPP-conjugated dendrimers enable targeting
mitochondria as gene transfection vectors [44
,45] and, more generally, that TPP functionalized
nanoparticles also exhibit mitochondriotropic properties [26
,
27,46]. In the present study, a cooperative
effect was observed upon co-administration of DOX and CQ that are both encapsulated in P-TPP.
By targeting mitochondria, P-TPP could be anticipated to modulate the effects of CQ on cells: recently,
scanning electron microscopy and tomography were used to identify membrane contact sites between
cellular organelles and the En.R concluding that multiple organelles, including lysosomes and late
endosomes, form contact sites with mitochondria and En.R [47]. Therefore, tumor cells that degrade
tumor suppressor proteins at the membranes forming the interface between mitochondria and En.R [48
]
could be eradicated by agents that reach this interface and simultaneously block organelle acidification.
Indeed, doxorubicin resistance is associated with delivery of damaged mitochondria to
autophagosomes, a process that is inhibited by CQ [49]. As doxorubicin mainly damages DNA,
it is relevant to emphasize that CQ, acting as an autophagy inhibitor, interferes with the repair of
damaged DNA and induces mitochondrial cristae damage. This leads to mitochondrial membrane
depolarization with a significant reduction in the activity of cytochrome c oxidase and accumulation
of superoxide and double-stranded DNA breaks [50
,51]. As a result, CQ and DOX co-administration
shows a substantial oncosuppressive activity on aggressive tumor xenografts (Figure 4). In vitro
,
however, the synergy of TPP-encapsulated CQ and DOX was modest (Figure 3). In the mammalian
organism, CQ has multiple targets that influence diverse aspects of tissue physiology and immunity.
CQ has the potential to affect cancer cell invasion, chemotaxis, transdifferentiation and clonogenicity,
through several mechanisms [12]. In mice, CQ shows a significant potential to decrease inflammatory
macrophage activity and oxidant stress, normalizing the signaling pathways that regulate the function
of cells of the monocyte/macrophage lineage and permitting the activity of cytotoxic T-cells [52–54].
CQ prolonged the survival of mice bearing breast cancer xenografts, showing an impact on both
macrophages and T-cells [54]. The cooperation of macrophages and T-cells is critical in suppression
of carcinogenesis [55]. Nevertheless, the presence of basic elements of innate immunity in the SCID
mouse can explain at least part of the in vivo CQ-DOX synergy. Natural killer cells can mediate potent
oncosuppression through tumor necrosis factor-related apoptosis-inducing ligand (TRAIL) [56,57].
In SCID mice bearing tumor xenografts, DOX could augment oncosuppression by NK cells,
an effect that in vitro was reproduced with DU145 cells. This was shown by using the SCID/beige
mice that are NK cell-deficient, which then received either NK cells, or T-cells, or both, to ascertain
the role of each cell type separately [56]. It is interesting to note that DU145 cells evade TRAIL-induced
cell death by inducing autophagic flux, which is inhibited by CQ [58]. CQ therefore has the capacity to
potentiate the DOX-induced oncosuppression by NK cells. Therefore, at least one potential explanation

Pharmaceuticals 2017, 10, 91
9 of 16
for the synergy of encapsulated DOX and CQ in vivo could be the enhancement of innate immunity
against the SCID-mouse xenografted DU145 tumors. This aspect of drug synergy can have a significant
impact on translational models of adoptive therapy.
4
. Materials and Methods
4
.1. Chemicals and Reagents.
Opti-MEM without phenol red (Gibco) was purchased from ThermoFisher Scientific (San Jose,
CA, USA). DMEM low glucose, with phenol red, fetal bovine serum (FBS), penicillin/streptomycin,
L-glutamine, phosphate buffer saline (PBS) and trypsin/versene were all purchased from Biochrom (Berlin,
Germany). Thiazolyl blue tetrazolium bromide (MTT), dimethyl sulfoxide (DMSO) and isopropanol were
®
purchased from Merck KGaA (Calbiochem , Darmstadt, Germany). N-hydroxybenzotriazole (HOBt) and
2-(1H-benzotriazole-1-yl)-1,1,3,3-tetramethyluronium (HBTU) were purchased from Anaspec (San Jose,
CA USA). N,N-diisopropylethylamine (DIPEA) and chloroquine diphosphate were purchased from
®
Sigma-Aldrich Ltd. (Poole, UK). MitoTracker Green (Cell Signaling Techology Inc., Beverly, MA, USA)
FM was purchased from Cell Signaling Technology, Inc. (Beverly, MA, USA). Doxorubicin hydrochloride
®
and hyperbranched poly(ethyleneimine) (PEI) of 1300 molecular weight (Lupasol G20, water-free, 98%)
were kindly donated by Regulon SA (Athens, Greece) and BASF (Ludwigshafen, Germany), respectively.
4
.2. Synthesis of P-TPP
The introduction of decyltriphenylphosphonium (decylTPP) groups to PEI, having on
average 10 primary amine groups as determined by inverse-gate decoupling 13C-NMR, was
realized in two steps as detailed in a previous publication [31]. In brief, in the first step,
(
1
10-carboxydecyl)triphenylphosphonium bromide was obtained by reacting triphenylphosphine with
1-bromoundecanoic acid in anhydrous acetonitrile at a 1:1.1 molar ratio [30]. Subsequently, in
the second step, (10-carboxydecyl)triphenylphosphonium bromide dissolved in anhydrous DMF was
allowed to react overnight, under inert atmosphere, with the primary amino groups of PEI at a 1:4
molar ratio, in the presence of HBTU, HOBt (1.6 mmol) and DIPEA (1.6 mmol). The product was
1
13
twice precipitated with diethyl ether, and the structure of P-TPP was established by H- and C-NMR
spectroscopy (Supplementary Materials, Figures S8 and S9). It was found that, on average, 2.8 0.3
±
decylTPP groups were conjugated to PEI (schematically depicted in Scheme 1 with 3 decylTPP groups)
as determined by inverse gated 13C-NMR, which corresponds to a mean molecular weight of 2830.
1H-NMR (500 MHz, MeOD-d4):
δ
= 1.10–1.40 (m, aliphatic CH ), 1.45–1.75 (m, CH2CH P Ph ,
+
2
2
3
NHCOCH CH2), 2.05–2.25 (t, NHCOCH2), 2.40–3.05 (m, CH of PEI skeleton, CH2NHCO), 3.35–3.55
2
2
+
(
m, CH P Ph ), 7.55–7.90 (m, aromatic H).
2 3
1
3
+
C-NMR (125.1 MHz, MeOD-d4):
δ = 175.15 (C=O), 134.85 (P Ph para), 133.50 (d, J = 11.5 Hz,
3
+
+
+
P Ph ortho/meta), 130.25 (d, J = 14.57 Hz, P Ph ortho/meta), 124.15 (d, J = 13.56 Hz, P Ph ipso),
3
3
3
5
3
3.00–49.30 and 46.40–43.90 (N
C
H2
C
H N), 39.60–36.60 (NH2CH2,
C
C
H NHCO), 35.80 (CONH
C
H2),
2
+
2
+
0.30 (d, J = 18.23 Hz,
C
H CH CH P Ph ), 29.50–28.10 (aliphatic
2
+
H ), 22.20 (CH P Ph ), 21.50
2
2
3
2
2
3
(d, J = 31.50 Hz, CH CH P Ph ).
2 2 3

Pharmaceuticals 2017, 10, 91
10 of 16
Scheme 1. Schematic representation of P-TPP.
4
.3. Preparation and Characterization of P-TPP Nanoparticles and of DOX- or CQ-Loaded Nanoparticles
P-TPP nanoparticles were prepared by the drop-wise addition in Opti-MEM (cell growth medium
free of serum or phenol red) of a DMSO solution of P-TPP. These nanoparticles are able to encapsulate in
their interior DOX [31], due to the intrinsic property of the hyperbranched polymeric architecture to form
nanocavities in their interior, the environment of which determines their solubilizing, or encapsulating,
properties towards a variety of labile or poorly-soluble drugs [59,60]. Drug encapsulation within
the dendrimeric interior typically involves non-covalent bonding interactions between specific groups
of the dendrimer and the drug. In this particular case, it is envisaged that DOX is residing in the interior
of PEI due to hydrophobic interactions and/or charge-transfer interactions between the lone electron
pair of tertiary nitrogens of PEI and the aromatic part of DOX [61,62].
For the preparation of drug-loaded P-TPP nanoparticles, the same procedure was followed with
the drugs dissolved either in the DMSO solution (in the case of CQ) or in Opti-MEM (in the case
of DOX). In a typical experiment, 100
drop-wise under vigorous stirring to 1 mL of Opti-MEM affording spontaneously-formed nanoparticles
of ca. 100 nm hydrodynamic radii. For the preparation of DOX-loaded nanoparticles, 100 L of
a 90-mg/mL P-TPP solution in DMSO were added to a 1-mg/mL DOX solution in Opti-MEM. For
the preparation of CQ-loaded nanoparticles, 100 L of a 50 mg/mL CQ solution in DMSO also containing
0 mg/mL P-TPP were added as above to 1 mL of Opti-MEM. In order to remove non-encapsulated
µL of a 90 mg/mL P-TPP solution in DMSO were added
µ
µ
9
TM
CQ or DOX, the obtained nanoparticles were centrifuged at 90,000 rpm for 45 min in an Optima
Max Ultracentrifuge Beckman Coulter, Inc. (Fullerton, CA, USA) coupled with the MLA-130 rotor.
The obtained pellets were washed with Opti-MEM and centrifuged 3 times, to ensure complete removal
of non-encapsulated CQ or DOX. The pellets were finally resuspended in 1 mL of Opti-MEM, and the
suspensions were sonicated for 1 min using a standard sonotrode (3 mm tip-diameter) in a Hielscher
UP200S high intensity ultrasonic processor (Hielscher-Ultrasound Technology, Teltow, Germany) at
50% amplitude and 0.5 cycles to finely disperse the nanoparticles. The resulting dispersions were
syringe-filtered through sterile nylon membrane filters of a 0.20-µm pore size.
The size distributions of P-TPP and DOX- or CQ-loaded P-TPP nanoparticles were determined by
dynamic light scattering (DLS) employing an AXIOS-150/EX (Triton Hellas) apparatus with a 30-mW
◦
laser source and an Avalanche photodiode detector at an angle of 90 . For these experiments, 200-
µL
dispersions of P-TPP or drug-loaded P-TPP nanoparticles were used. For each dispersion, at least
ten light scattering measurements were collected, and the results were averaged.
For the determination of DOX encapsulated in P-TPP nanoparticles, for every batch prepared,
a known amount of P-TPP-DOX nanoparticle dispersion (typically 100
µL) was dissolved in

Pharmaceuticals 2017, 10, 91
11 of 16
1000 µL ethanol, and its absorbance at 500 nm was registered using a Cary 100 Conc UV-Visible
spectrophotometer (Varian Inc., Mulgrave, Australia). The spectra of free DOX, P-TPP and
P-TPP-loaded DOX are shown in the Supplementary Materials, Figure S10. Subsequently, DOX
concentration was determined employing a calibration curve separately constructed from DOX
standards (10–100
µM). Similarly, the CQ concentration was spectrofluorometrically determined
by dissolving a known amount of P-TPP-CQ nanoparticles dispersion (typically 10
µL) in 1000 µL
ethanol, registering the fluorescence intensity at 375 nm (excitation: 320 nm) in a Cary Eclipse
fluorometer (Varian Inc.) and calculating the concentration employing a calibration curve constructed
from CQ standards (2–15
µM). The fluorescence spectra of free and P-TPP-loaded CQ are shown in
the Supplementary Materials, Figure S11.
4
.4. Cell Culture
Cells used in this study were the human prostate carcinoma cell lines DU145, PC3 and 3T3 mouse
fibroblasts obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA). The cells
were grown in DMEM with phenol red supplemented with 10% FBS, 1% penicillin/streptomycin and
◦
1
% L-glutamine at 37 C in a 5% CO humidified atmosphere.
2
4
.5. Confocal Microscopy
DU145 cells (10
5
×
10 ) were inoculated on Nunc™ glass base dishes (ThermoFisher Scientific,
Rochester, NY, USA) and left to grow overnight in 2 mL of DMEM complete media in the same
conditions as elaborated earlier in the cell culture section. Cells were subsequently incubated with DOX,
P-TPP-DOX and a combination of P-TPP-DOX with P-TPP-CQ for 1 h or 2 h in Opti-MEM. Specimens
were examined on a multiphoton confocal microscope Leica TCS SP8 MP (Wetzlar, Germany) equipped
with an Argon laser (excitation lines at 458, 476, 488, 496 and 514 nm), a DPSS 561 laser (excitation line
at 561 nm) and an IR MaiTai DeepSee Ti:Sapphire laser (Spectra-Physics, Santa Clara, CA, USA) for
multiphoton applications. Images were acquired with the spectral detector of the microscope using
appropriate emission wavelength ranges; DOX (red) was excited at 561 nm with the DPSS laser, and
®
emission was recorded between 570 and 650 nm, while MitoTracker Green FM was excited at 488 nm
with the argon laser, and emission was recorded between 500 and 550 nm. Images were acquired with
the LAS X software (Leica Microsystems CMS GmbH, Wetzlar, Germany) and are presented without
any post-processing.
4
.6. Flow Cytometry
The in vitro cellular uptake of free DOX and nanocarrier-encapsulated DOX or CQ was
4
determined by flow cytometry. DU145 were grown overnight at a density of 25
6
×
10 cells per well in
-well plates. Subsequently, cells were exposed to free DOX, CQ or nanoparticle dispersions of P-TPP,
P-TPP-DOX, P-TPP-CQ and their combination P-TPP-DOX/P-TPP-CQ for 2 h. The wells were then
washed twice with phosphate-buffered saline and trypsinized, and the resulting cell suspensions were
centrifuged for 5 min at 1000 rpm. Finally, the collected cells were resuspended in PBS, and the uptake
of DOX was analyzed using a FACSCalibur flow cytometer (Becton Dickinson, Heidelberg, Germany).
4
.7. MTT Viability Assay
3
DU145 or PC3 human prostate cancer cells were inoculated (10
×
10 ) into 96-well plates and left
to incubate in 100
µ
L DMEM containing 10% FBS, 1% penicillin/streptomycin and 1% L-glutamine for
4 h at 37 C in a 5% CO humidified atmosphere. Cells were then treated with 100
◦
2
µL nanoparticle
2
dispersions of P-TPP, P-TPP-DOX, P-TPP-CQ and their combination P-TPP-DOX/P-TPP-CQ, at various
concentrations, for 3 h in Opti-MEM. After this period, the nanoparticle-containing media were replaced
with complete media as above and further incubated for 24 h. For comparison, cells were also treated with
free (non-encapsulated) DOX or CQ solutions of corresponding concentrations as well as of DOX/CQ
combinations. The mitochondrial redox function, translated as cell viability, was assessed by the MTT

Pharmaceuticals 2017, 10, 91
12 of 16
assay 24 h later. Cell medium in each well was replaced with 100
µ
L MTT solution (1 mg/mL in DMEM),
◦
and cells were incubated at 37 C in a 5% CO humidified atmosphere for 4 h. MTT media were then
2
removed from all cells, and the produced formazan crystals were solubilized with 100 µL 2-isopropyl
ethanol per well. The plates were subsequently shaken for 10 min at 100 rpm in a Stuart SI500 orbital
shaker, and the absorbance at 540 nm was measured using an Infinite M200 microplate reader (Tecan
group Ltd., Männedorf, Switzerland). Blank values measured in wells with 2-isopropyl ethanol without
cells were in all cases subtracted. The relative cell viability was determined as cell survival percentage
compared to cells that were treated with complete media, which were used as the control.
4
.8. Statistical Analysis
All experiments were repeated independently at least three times. MTT data are shown as means of
six independent values with error bars representing one standard deviation. Student’s paired two-tailed
t-test was performed on the MTT cytotoxicity data obtained to determine the statistical significance of
a difference between means. The statistical significance follows the assignment: * p < 0.05, ** p < 0.01,
*** p < 0.001 and **** p < 0.0001; while no annotation implies no statistical significance: p > 0.05.
4
.9. Tumor Xenografts
DU145 cells (1
6
×
10 ) were resuspended in 100 µL PBS and injected subcutaneously into the left
and right flanks of 6-week old female SCID mice (The Jackson Laboratory, Bar Harbor, ME, USA).
This strain shows a severe combined immunodeficiency affecting both B and T lymphocytes; however,
the mouse strain has normal natural killer (NK) cells (phenotype: severe combined immunodeficiency,
autosomal recessive, T-cell-negative, B-cell-negative, NK cell-positive) [63]. SCID mice are routinely
used in oncogenicity protocols to avoid bias due to immunological responses of mice to injected
cells [33]. Mice were divided into five (5) groups of three. Tumors were allowed to grow for 2 weeks.
At the end of the third week, each group of mice was treated once a week for a period of three weeks,
with an intraperitoneal injection. Specifically, mice of Group 1 were treated with an injection of
3
00
corresponding to 75 mg/kg; Group 3 with 300
Group 4 with 300 L P-TPP-DOX corresponding to a dose of 0.75 mg/kg with respect to DOX and to
5 mg/kg with respect to P-TPP; while Group 5 received in total 300 L of P-TPP-DOX/P-TPP-CQ,
µ
L Opti-MEM medium each; those of Group 2 were treated with 300
µL of the nanocarrier P-TPP
µL of DOX corresponding to a dose of 2 mg DOX/kg;
µ
2
µ
corresponding to a dose of 0.75 mg/kg with respect to DOX, 4.5 mg/kg with respect to chloroquine and
to 75 mg/kg with respect to the nanocarrier P-TPP. During this period, tumor volumes were measured
using a caliper and calculated using the formula 1
lasted until tumors in control mice reached a volume of 1500 mm . At the end of the observation
period, mice were sacrificed, and tumors were excised and photographed.
×
height
×
width
×
length. The observation period
2
3
4
.10. Ethics Statement
All experiments with mice were performed in the authorized animal house of the National
Hellenic Research Foundation. Experiments complied with the Protocol on the Protection and Welfare
of Animals, as obliged by the rules of the National Hellenic Research Foundation, the regulations
of the National Bioethics Committee and Article 3 of Presidential Decree 160/1991 (in line with
the 86/609/EEC directive) regarding the protection of experimental animals.
5
. Conclusions
Triphenylphosphonium-functionalized poly(ethyleneimine) nanoparticles can efficiently target
mitochondria and can effectively encapsulate two different bioactive compounds. The administration
of encapsulated DOX and/or CQ against two aggressive DOX-resistant human prostate
adenocarcinoma cell lines DU145 and PC3 results in significantly reduced cell viability: although
free CQ did not cause inhibition even at a dose of 100
µM, it was found that P-TPP-CQ strongly
inhibited cell proliferation (IC50 2.5–5.0 M, depending on the cell line), while administration
µ

Pharmaceuticals 2017, 10, 91
13 of 16
of DOX (up to 10
µM) caused minor cell death in direct contrast to P-TPP-DOX (IC50 0.5
µM).
Co-administration of P-TPP-DOX (0.25
µ
M) with P-TPP-CQ (2.5 M) further enhanced cytotoxicity,
µ
indicating that this administration scheme is potent and could significantly reduce DOX side
effects. Indeed, in vivo experiments with immunodeficient mice designate no pervasive side
effects and tumor growth arrest during the three-week administration period. The observed
synergy can be rationalized by the fact that chloroquine, a known autophagy inhibitor, can be
effective in restoring doxorubicin action in doxorubicin-resistant tumors, which, however, is not
sufficiently attained when non-encapsulated drugs were co-administered. Overall, the developed
triphenylphosphonium-functionalized poly(ethyleneimine) nanoparticles can encapsulate DOX and
CQ, efficiently target mitochondria and enhance the antineoplastic activity of both medications.
Supplementary Materials: The following are available online at www.mdpi.com/1424-8247/10/4/91/s1:
Figure S1: Intensity-weighted hydrodynamic radii size distribution of DOX-loaded P-TPP nanoparticles; Figure S2:
Intensity-weighted hydrodynamic radii size distribution of CQ-loaded P-TPP nanoparticles; Figure S3: Confocal
®
fluorescence microscopy on live DU145 cells incubated with 5 µM DOX for 2 h and 100 nM MitoTracker Green
FM for 15 min; Figure S4: Confocal fluorescence microscopy on live DU145 cells incubated with P-TPP-DOX
(
0.5 µM DOX concentration) or with P-TPP-DOX/P-TPP-CQ (0.5 µM DOX, 1.25 µM CQ) for 2 h; Figure S5:
Confocal fluorescence microscopy on live DU145 cells incubated with P-TPP-DOX/P-TPP-CQ (0.25
µM DOX,
®
1
.25
µ
M CQ) for 2 h and 100 nM MitoTracker Green FM for 15 min and the overlay image; Figure S6: Confocal
fluorescence microscopy on DU145 cells incubated for 2 h with PEI-TPP-DOX at a 0.25 µM DOX concentration;
Figure S7: Comparative toxicities of P-TPP, free DOX, CQ and their combination, as well as of P-TPP-DOX,
P-TPP-CQ or their combination on 3T3 cells following incubation at various concentrations for 3 h as determined
1
by MTT assays 24 h following incubation; Figure S8: H-NMR (500 MHz, MeOD-d ) spectrum of P-TPP; Figure S9:
4
1
3
C-NMR (125.1 MHz, MeOD-d ) spectrum of P-TPP; Figure S10: UV-Vis spectra of the carrier P-TPP, free DOX
4
and P-TPP-DOX (DOX concentration 9.3
µM) in ethanol; Figure S11: Fluorescence spectra of CQ or P-TPP-CQ
(CQ concentration 3.5 µM) in ethanol.
Acknowledgments: This work was partially supported by the project MIS 5002567 implemented under
the “Action for the Strategic Development on the Research and Technological Sector”, funded by the Operational
Programme “Competitiveness, Entrepreneurship and Innovation” (NSRF 2014-2020) and co-financed by Greece
and the European Union (European Regional Development Fund). K.N.P. acknowledges financial support from
the Greek State Scholarships Foundation from the program “Enhancement of human scientific resources through
implementation of PhD research” with resources of the European program “Development of human resources,
Education and lifelong learning”, 2014–2020, co-funded by the European Social Fund and Greek State.
Author Contributions: K.N.P., Z.S. and D.T. performed the synthesis and physicochemical characterization
experiments. K.N.P., Z.S., S.A.V., M.P.-P., N.K. and D.T. performed and evaluated the in vitro experiments. N.K.
and V.Z. designed and performed the in vivo experiments. Z.S., S.A.V. and D.T. conceived of and designed
the study and wrote the manuscript. Z.S., S.A.V., M.Z., D.T. and V.Z. revised the manuscript. D.T. coordinated
the studies and data analysis and reviewed and revised the manuscript.
Conflicts of Interest: The authors declare no conflict of interest.
References
1
.
Moschovi, M.; Critselis, E.; Cen, O.; Adamaki, M.; Lambrou, G.I.; Chrousos, G.P.; Vlahopoulos, S. Drugs
acting on homeostasis: Challenging cancer cell adaptation. Expert Rev. Anticancer Ther. 2015, 15, 1405–1417.
[
CrossRef] [PubMed]
Sionov, R.V.; Vlahopoulos, S.A.; Granot, Z. Regulation of Bim in Health and Disease. Oncotarget 2015, 6,
3058–23134. [CrossRef] [PubMed]
2
3
4
.
.
.
2
Zhang, W.; Meng, Y.; Liu, N.; Wen, X.-F.; Yang, T. Insights into chemoresistance of prostate cancer. Int. J.
Biol. Sci. 2015, 11, 1160–1170. [CrossRef] [PubMed]
Iliopoulos, D.; Hirsch, H.A.; Struhl, K. Metformin decreases the dose of chemotherapy for prolonging
tumor remission in mouse xenografts involving multiple cancer cell types. Cancer Res. 2011, 71, 3196–3201.
[
CrossRef] [PubMed]
Vlahopoulos, S.A.; Cen, O.; Hengen, N.; Agan, J.; Moschovi, M.; Critselis, E.; Adamaki, M.; Bacopoulou, F.;
Copland, J.A.; Boldogh, I.; et al. Dynamic aberrant NF- B spurs tumorigenesis: A new model encompassing
5
.
.
κ
the microenvironment. Cytokine Growth Factor Rev. 2015, 26, 389–403. [CrossRef] [PubMed]
Senft, D.; Ronai, Z.A. UPR, autophagy, and mitochondria crosstalk underlies the ER stress response.
Trends Biochem. Sci. 2015, 40, 141–148. [CrossRef] [PubMed]
6

Pharmaceuticals 2017, 10, 91
14 of 16
7
.
.
Yu, F.; Li, J.; Xie, Y.; Sleightholm, R.L.; Oupický, D. Polymeric chloroquine as an inhibitor of cancer cell
migration and experimental lung metastasis. J. Control. Release 2016, 244, 347–356. [CrossRef] [PubMed]
Rosenfeld, M.R.; Ye, X.; Supko, J.G.; Desideri, S.; Grossman, S.A.; Brem, S.; Mikkelson, T.; Wang, D.;
Chang, Y.C.; Hu, J.; et al. A phase I/II trial of hydroxychloroquine in conjunction with radiation therapy
and concurrent and adjuvant temozolomide in patients with newly diagnosed glioblastoma multiforme.
Autophagy 2014, 10, 1359–1368. [CrossRef] [PubMed]
8
9
1
1
.
Ozpolat, B.; Benbrook, D.M. Targeting autophagy in cancer management—Strategies and developments.
Cancer Manag. Res. 2015, 7, 291–299. [CrossRef] [PubMed]
0. Solomon, V.R.; Lee, H. Chloroquine and its analogs: A new promise of an old drug for effective and safe
cancer therapies. Eur. J. Pharmacol. 2009, 625, 220–233. [CrossRef] [PubMed]
1. Pellegrini, P.; Strambi, A.; Zipoli, C.; Hägg-Olofsson, M.; Buoncervello, M.; Linder, S.; De Milito, A. Acidic
extracellular pH neutralizes the autophagy-inhibiting activity of chloroquine. Autophagy 2014, 10, 562–571.
[CrossRef] [PubMed]
1
2. Vlahopoulos, S.; Critselis, E.; Voutsas, I.F.; Perez, S.A.; Moschovi, M.; Baxevanis, C.N.; Chrousos, G.P. New
use for old drugs? Prospective targets of chloroquines in cancer therapy. Curr. Drug Targets 2014, 15, 843–851.
[CrossRef] [PubMed]
1
1
1
3. Kato, Y.; Ozawa, S.; Miyamoto, C.; Maehata, Y.; Suzuki, A.; Maeda, T.; Baba, Y. Acidic extracellular
microenvironment and cancer. Cancer Cell Int. 2013, 13, 89. [CrossRef] [PubMed]
4. Srivastava, V.; Lee, H. Chloroquine-based hybrid molecules as promising novel chemotherapeutic agents.
Eur. J. Pharmacol. 2015, 762, 472–486. [CrossRef] [PubMed]
5. Wang, T.; Yang, S.; Petrenko, V.A.; Torchilin, V.P. Cytoplasmic delivery of liposomes into MCF-7 breast
cancer cells mediated by cell-specific phage fusion coat protein. Mol. Pharm. 2010, 7, 1149–1158. [CrossRef]
[PubMed]
1
6. Zhang, X.; Zeng, X.; Liang, X.; Yang, Y.; Li, X.; Chen, H.; Huang, L.; Mei, L.; Feng, S.-S. The chemotherapeutic
potential of PEG-b-PLGA copolymer micelles that combine chloroquine as autophagy inhibitor and docetaxel
as an anti-cancer drug. Biomaterials 2014, 35, 9144–9154. [CrossRef] [PubMed]
17. Qiu, L.; Yao, M.; Gao, M.; Zhao, Q. Doxorubicin and chloroquine coencapsulated liposomes: Preparation and
improved cytotoxicity on human breast cancer cells. J. Liposome Res. 2012, 22, 245–253. [CrossRef] [PubMed]
18. Maity, A.R.; Stepensky, D. Limited Efficiency of Drug Delivery to Specific Intracellular Organelles Using
Subcellularly “Targeted” Drug Delivery Systems. Mol. Pharm. 2016, 13, 1–7. [CrossRef] [PubMed]
19. Torti, F.M.; Aston, D.; Lum, B.L.; Kohler, M.; Williams, R.; Spaulding, J.T.; Shortliffe, L.; Freiha, F.S. Weekly
doxorubicin in endocrine-refractory carcinoma of the prostate. J. Clin. Oncol. 1983, 1, 477–482. [CrossRef]
[PubMed]
2
2
0. Jean, S.R.; Tulumello, D.V.; Riganti, C.; Liyanage, S.U.; Schimmer, A.D.; Kelley, S.O. Mitochondrial Targeting
of Doxorubicin Eliminates Nuclear Effects Associated with Cardiotoxicity. ACS Chem. Biol. 2015, 10,
2
007–2015. [CrossRef] [PubMed]
1. Sella, A.; Kilbourn, R.; Amato, R.; Bui, C.; Zukiwski, A.A.; Ellerhorst, J.; Logothetis, C.J. Phase II study of
ketoconazole combined with weekly doxorubicin in patients with androgen-independent prostate cancer.
J. Clin. Oncol. 1994, 12, 683–688. [CrossRef] [PubMed]
2
2
2. Collins, L.; Zhu, T.; Guo, J.; Xiao, Z.; Chen, C. Phellinus linteus sensitises apoptosis induced by doxorubicin
in prostate cancer. Br. J. Cancer 2006, 95, 282–288. [CrossRef] [PubMed]
3. Das, A.; Durrant, D.; Mitchell, C.; Mayton, E.; Hoke, N.N.; Salloum, F.N.; Park, M.A.; Qureshi, I.; Lee, R.;
Dent, P.; et al. Sildenafil increases chemotherapeutic efficacy of doxorubicin in prostate cancer and
ameliorates cardiac dysfunction. Proc. Natl. Acad. Sci. USA 2010, 107, 18202–18207. [CrossRef] [PubMed]
4. DiMauro, S. Mitochondrial diseases. Biochim. Biophys. Acta 2004, 1658, 80–88. [CrossRef] [PubMed]
5. Grabacka, M.M.; Gawin, M.; Pierzchalska, M. Phytochemical Modulators of Mitochondria: The Search
for Chemopreventive Agents and Supportive Therapeutics. Pharmaceuticals 2014, 7, 913–942. [CrossRef]
2
2
[PubMed]
2
2
6. Lu, P.; Bruno, B.J.; Rabenau, M.; Lim, C.S. Delivery of drugs and macromolecules to the mitochondria for
cancer therapy. J. Control. Release 2016, 240, 38–51. [CrossRef] [PubMed]
7. Cui, H.; Huan, M.; Ye, W.; Liu, D.; Teng, Z.; Mei, Q.-B.; Zhou, S. Mitochondria and Nucleus Dual Delivery
System to Overcome DOX Resistance. Mol. Pharm. 2017, 14, 746–756. [CrossRef] [PubMed]

Pharmaceuticals 2017, 10, 91
15 of 16
2
8. Paleos, C.M.; Tsiourvas, D.; Sideratou, Z. Triphenylphosphonium Decorated Liposomes and Dendritic
Polymers: Prospective Second Generation Drug Delivery Systems for Targeting Mitochondria. Mol. Pharm.
016, 13, 2233–2241. [CrossRef] [PubMed]
9. Mukhopadhyay, A.; Weiner, H. Delivery of drugs and macromolecules to mitochondria. Adv. Drug. Deliv. Rev.
007, 59, 729–738. [CrossRef] [PubMed]
2
2
3
2
0. Theodossiou, T.A.; Sideratou, Z.; Tsiourvas, D.; Paleos, C.M. A novel mitotropic oligolysine nanocarrier:
Targeted delivery of covalently bound D-Luciferin to cell mitochondria. Mitochondrion 2011, 11, 982–986.
[CrossRef] [PubMed]
3
1. Theodossiou, T.A.; Sideratou, Z.; Katsarou, M.E.; Tsiourvas, D. Mitochondrial Delivery of Doxorubicin
by Triphenylphosphonium-Functionalized Hyperbranched Nanocarriers Results in Rapid and Severe
Cytotoxicity. Pharm. Res. 2013, 30, 2832–2842. [CrossRef] [PubMed]
3
3
2. Halestrap, A.P. A pore way to die: The role of mitochondria in reperfusion injury and cardioprotection.
Biochem. Soc. Trans. 2010, 38, 841–860. [CrossRef] [PubMed]
3. Skourti, E.; Logotheti, S.; Kontos, C.K.; Pavlopoulou, A.; Dimoragka, P.T.; Trougakos, I.P.; Gorgoulis, V.;
Scorilas, A.; Michalopoulos, I.; Zoumpourlis, V. Progression of mouse skin carcinogenesis is associated with
the orchestrated deregulation of mir-200 family members, mir-205 and their common targets. Mol. Carcinog.
2
016, 55, 1229–1242. [CrossRef] [PubMed]
4. Cao, X.; Li, Z.; Song, X.; Cui, X.; Cao, P.; Liu, H.; Cheng, F.; Chen, Y. Core-shell type multiarm star
poly( -caprolactone) with high molecular weight hyperbranched polyethylenimine as core: Synthesis,
3
ε
characterization and encapsulation properties. Eur. Polym. J. 2008, 44, 1060–1070. [CrossRef]
5. Misra, R.; Sahoo, S.K. Intracellular trafficking of nuclear localization signal conjugated nanoparticles for
cancer therapy. Eur. J. Pharm. Sci. 2010, 39, 152–163. [CrossRef] [PubMed]
6. Fale, P.L.; Altharawi, A.; Chan, K.L.A. In situ Fourier transform infrared analysis of live cells’ response to
doxorubicin. Biochim. Biophys. Acta Mol. Cell Res. 2015, 1853, 2640–2648. [CrossRef] [PubMed]
7. Mahon, K.L.; Henshall, S.M.; Sutherland, R.L.; Horvath, L.G. Pathways of chemotherapy resistance in
castration-resistant prostate cancer. Endocr. Relat. Cancer 2011, 18, R103–R123. [CrossRef] [PubMed]
8. Theyer, G.; Schirmböck, M.; Thalhammer, T.; Sherwood, E.R.; Baumgartner, G.; Hamilton, G. Role of
the MDR-1-encoded multiple drug resistance phenotype in prostate cancer cell lines. J. Urol. 1993, 150, 1544–1547.
3
3
3
3
[CrossRef]
3
9. David-Beabes, G.L.; Overman, M.J.; Petrofski, J.A.; Campbell, P.A.; De Marzo, A.M.; Nelson, W.G.
Doxorubicin-resistant variants of human prostate cancer cell lines DU 145, PC-3, PPC-1, and TSU-PR1:
Characterization of biochemical determinants of antineoplastic drug sensitivity. Int. J. Oncol. 2000, 17,
1
077–1086. [CrossRef] [PubMed]
4
0. Sharma, V.; Kumar, L.; Mohanty, S.K.; Maikhuri, J.P.; Rajender, S.; Gupta, G. Sensitization of androgen
refractory prostate cancer cells to anti-androgens through re-expression of epigenetically repressed androgen
receptor—Synergistic action of quercetin and curcumin. Mol. Cell. Endocrinol. 2016, 431, 12–23. [CrossRef]
[PubMed]
4
4
4
1. Zhou, J.; Li, G.; Zheng, Y.; Shen, H.-M.; Hu, X.; Ming, Q.-L.; Huang, C.; Li, P.; Gao, N. A novel
autophagy/mitophagy inhibitor liensinine sensitizes breast cancer cells to chemotherapy through
DNM1L-mediated mitochondrial fission. Autophagy 2015, 11, 1259–1279. [CrossRef] [PubMed]
2. Cho, H.-Y.; Thomas, S.; Golden, E.B.; Gaffney, K.J.; Hofman, F.M.; Chen, T.C.; Louie, S.G.; Petasis, N.A.;
Schönthal, A.H. Enhanced killing of chemo-resistant breast cancer cells via controlled aggravation of ER
stress. Cancer Lett. 2009, 282, 87–97. [CrossRef] [PubMed]
3. Thomas, S.; Sharma, N.; Golden, E.B.; Cho, H.; Agarwal, P.; Gaffney, K.J.; Petasis, N.A.; Chen, T.C.;
Hofman, F.M.; Louie, S.G.; et al. Preferential killing of triple-negative breast cancer cells in vitro and
in vivo when pharmacological aggravators of endoplasmic reticulum stress are combined with autophagy
inhibitors. Cancer Lett. 2012, 325, 63–71. [CrossRef] [PubMed]
4
4. Wang, X.; Shao, N.; Zhang, Q.; Cheng, Y. Mitochondrial targeting dendrimer allows efficient and safe gene
delivery. J. Mater. Chem. B 2014, 2, 2546–2553. [CrossRef]
4
5. Bielski, E.R.; Zhong, Q.; Brown, M.; da Rocha, S.R.P. Effect of the Conjugation Density of
Triphenylphosphonium Cation on the Mitochondrial Targeting of Poly(amidoamine) Dendrimers.
Mol. Pharm. 2015, 12, 3043–3053. [CrossRef] [PubMed]

Pharmaceuticals 2017, 10, 91
16 of 16
4
6. Biswas, S.; Dodwadkar, N.S.; Deshpande, P.P.; Torchilin, V.P. Liposomes loaded with paclitaxel and
modified with novel triphenylphosphonium-PEG-PE conjugate possess low toxicity, target mitochondria
and demonstrate enhanced antitumor effects in vitro and in vivo. J. Control. Release 2012, 159, 393–402.
[CrossRef] [PubMed]
4
4
7. Biazik, J.; Ylä-Anttila, P.; Vihinen, H.; Jokitalo, E.; Eskelinen, E.-L. Ultrastructural relationship of
the phagophore with surrounding organelles. Autophagy 2015, 11, 439–451. [CrossRef] [PubMed]
8. Patergnani, S.; Missiroli, S.; Marchi, S.; Giorgi, C. Mitochondria-associated endoplasmic reticulum
membranes microenvironment: Targeting autophagic and apoptotic pathways in cancer therapy. Front. Oncol.
2
015, 5. [CrossRef] [PubMed]
4
9. Guo, B.; Tam, A.; Santi, S.A.; Parissenti, A.M. Role of autophagy and lysosomal drug sequestration in
acquired resistance to doxorubicin in MCF-7 cells. BMC Cancer 2016, 16. [CrossRef] [PubMed]
0. Forrest, R.A.; Swift, L.P.; Rephaeli, A.; Nudelman, A.; Kimura, K.-I.; Phillips, D.R.; Cutts, S.M.
Activation of DNA damage response pathways as a consequence of anthracycline-DNA adduct formation.
Biochem. Pharmacol. 2012, 83, 1602–1612. [CrossRef] [PubMed]
5
5
1. Liang, D.H.; Choi, D.S.; Ensor, J.E.; Kaipparettu, B.A.; Bass, B.L.; Chang, J.C. The autophagy inhibitor
chloroquine targets cancer stem cells in triple negative breast cancer by inducing mitochondrial damage and
impairing DNA break repair. Cancer Lett. 2016, 376, 249–258. [CrossRef] [PubMed]
5
2. Ouyang, Q.; Huang, Z.; Wang, Z.; Chen, X.; Ni, J.; Lin, L. Effects of pristane alone or combined with
chloroquine on macrophage activation, oxidative stress, and TH1/TH2 skewness. J. Immunol. Res. 2014, 2014.
[CrossRef] [PubMed]
5
5
3. Dey, S.; Bishayi, B. Killing of Staphylococcus aureus in murine macrophages by chloroquine used alone and
in combination with ciprofloxacin or azithromycin. J. Inflamm. Res. 2015, 8, 29–47. [CrossRef] [PubMed]
4. Zhang, Y.; Cao, Y.; Sun, X.; Feng, Y.; Du, Y.; Liu, F.; Yu, C.; Jin, F. Chloroquine (CQ) exerts anti-breast cancer
through modulating microenvironment and inducing apoptosis. Int. Immunopharmacol. 2017, 42, 100–107.
[
CrossRef] [PubMed]
5. Vlahopoulos, S.A. Aberrant control of NF-
to curtail dependence on host tissue: Molecular mode. Cancer Biol. Med. 2017, 14, 254–270. [CrossRef]
PubMed]
6. Wennerberg, E.; Sarhan, D.; Carlsten, M.; Kaminskyy, V.O.; D’Arcy, P.; Zhivotovsky, B.; Childs, R.;
Lundqvist, A. Doxorubicin sensitizes human tumor cells to NK cell-and T-cell-mediated killing by augmented
TRAIL receptor signaling. Int. J. Cancer 2013, 133, 1643–1652. [CrossRef] [PubMed]
5
5
κB in cancer permits transcriptional and phenotypic plasticity,
[
5
7. Wang, S.; El-Deiry, W.S. TRAIL and apoptosis induction by TNF-family death receptors. Oncogene 2003, 22,
8
628–8633. [CrossRef] [PubMed]
5
8. Singh, K.; Sharma, A.; Mir, M.C.; Drazba, J.A.; Heston, W.D.; Magi-Galluzzi, C.; Hansel, D.; Rubin, B.P.;
Klein, E.A.; Almasan, A. Autophagic flux determines cell death and survival in response to Apo2L/TRAIL
(
dulanermin). Mol. Cancer 2014, 13, 70. [CrossRef] [PubMed]
9. D’Emanuele, A.; Attwood, D. Dendrimer-drug interactions. Adv. Drug Deliv. Rev. 2005, 57, 2147–2162.
CrossRef] [PubMed]
5
6
[
0. Paleos, C.M.; Tsiourvas, D.; Sideratou, Z.; Tziveleka, L.-A. Multifunctional dendritic drug delivery systems:
Design, synthesis, controlled and triggered release. Curr. Top. Med. Chem. 2008, 8, 1204–1224. [CrossRef]
[PubMed]
6
1. Jansen, J.F.; de Brabander-van den Berg, E.M.; Meijer, E.W. Encapsulation of guest molecules into a dendritic
box. Science 1994, 266, 1226–1229. [CrossRef] [PubMed]
6
2. Paleos, C.M.; Tsiourvas, D.; Sideratou, Z.; Tziveleka, L.-A. Acid- and Salt-Triggered Multifunctional
Poly(propylene imine) Dendrimer as a Prospective Drug Delivery System. Biomacromolecules 2004, 5, 524–529.
[
CrossRef] [PubMed]
3. Mouse Genome Informatics. Available online: http://www.informatics.jax.org/disease/DOID:0090013
accessed on 8 November 2017).
6
(
©
2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
