Organometallics
Communication
OLEDs increased in proportion to the thickness of the ETL;
the most efficient device was obtained using a 60 nm thick layer
of B3T (device C). At a display-relevant luminescence of 100
cd/m2, device C displays a high current efficiency of 68.9 cd/A,
with an impressive external quantum efficiency of 19.4%, as
shown in Figure 4. These devices do, however, show turn-on
voltages notably higher than those demonstrated in previous
reports using triazine-based electron transport materials,4a likely
due to inefficient charge injection from the LiF/Al cathode.

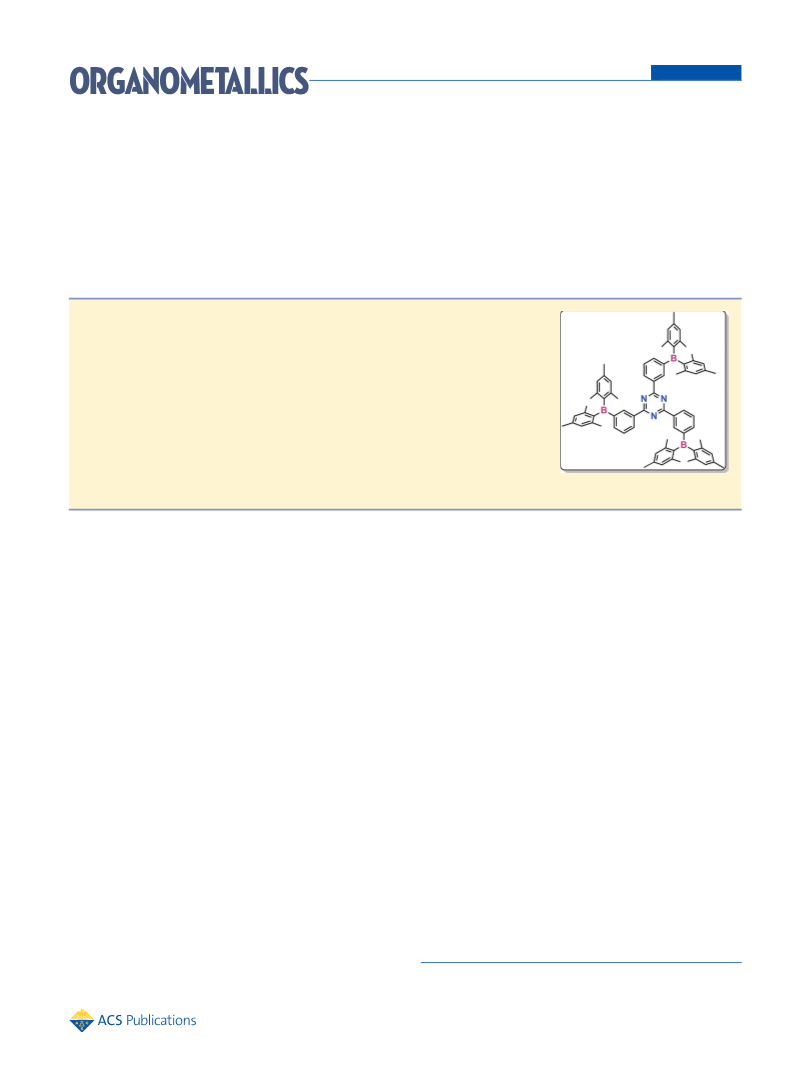

In conclusion, a new triarylboron-based electron transport
material with a triazine core has been achieved. This compound
exhibits a remarkably high triplet energy level with low-lying
HOMO and LUMO energy levels due to the presence of three
electron-accepting boron centers. Preliminary experiments
incorporating this material into phosphorescent OLEDs as an
electron transport layer gave devices with high current and
external quantum efficiencies at brightness levels appropriate
for display applications. Future work will focus on optimizing
the device structure and the use of this material as an electron-
transporting host material for high triplet energy blue
electrophosphorescent devices.
ASSOCIATED CONTENT
■
S
* Supporting Information
Text, figures, and a table giving synthesis and characterization
details for B3T, TD-DFT calculation data, and details of OLED
fabrication and performance data. This material is available free
Figure 4. Diagrams of current efficiency (top) and L−J−V
characteristics (bottom) for devices A−C.
AUTHOR INFORMATION
■
orbitals of the triazine. These assignments are supported by
TD-DFT calculations7 carried out at the B3LYP level of theory
with 6-31G* as the basis set. The top three occupied orbitals
have contributions almost entirely on the mesityl groups, and
the LUMO and LUMO+1 have contributions mainly from the
empty p orbitals on boron and the electron-deficient core
(Figure 2).
Corresponding Author
ACKNOWLEDGMENTS
■
We thank the Natural Science and Engineering Research
Council of Canada for financial support. C.S. and Z.M.H. thank
the NSERC for Canada Graduate Scholarships.
At room temperature, B3T shows a purple fluorescent
emission at 395 nm (Φ = 0.13 in CH2Cl2). The compound has
a remarkably high triplet energy level (ET) of 3.07 eV
determined from its low-temperature phosphorescence spec-
trum at 77 K (Figure 1), which is considerably higher than
those of common green phosphorescent emitters (e.g.,
REFERENCES
■
(1) (a) Noda, T.; Shirota, Y. J. Am. Chem. Soc. 1998, 120, 9714.
(b) Shirota, Y. J. Chem. Mater. 2005, 15, 75−93. (c) Tanaka, D.;
Takeda, T.; Chiba, T.; Watanabe, S.; Kido, J. Chem. Lett. 2007, 36,
262−263. (d) Tanaka, D.; Agata, Y.; Takeda, T.; Watanabe, S.; Kido, J.
Jpn. J. Appl. Phys. 2007, 46, L117. (e) Hudson, Z. M.; Wang, S. Acc.
8
Ir(ppy)3 and Ir(ppy)2(acac)9) and blue phosphorescent
emitters (e.g., FIrpic10). As such, this material also shows
promise as an electron-transporting host material for triplet
emitters, as triplet excitons should be readily transferred from
the host to phosphorescent dopants.5
Chem. Res. 2009, 42, 1584. (f) Jakle, F. Coord. Chem. Rev. 2006, 250,
̈
1107. (g) Jakle, F. Chem. Rev. 2010, 110, 3985. (h) Entwistle, C. D.;
̈
Marder, T. B. Angew. Chem., Int. Ed. 2002, 41, 2927. (i) Entwistle, C.
D.; Marder, T. B. Chem. Mater. 2004, 16, 4574. (j) Kinoshita, M.;
Shirota, Y. Chem. Lett. 2001, 30, 614. (k) Zhou, Y.; Kim, J. W.; Kim,
M. J.; Son, W.-J.; Han, S. J.; Kim, H. N.; Han, S.; Kim, Y.; Lee, C.;
Kim, S.-J.; Kim, D. H.; Kim, J.-J.; Yoon, J. Org. Lett. 2010, 12, 1272.
(l) Zhou, Y.; Kim, J. W.; Nandhakumar, R.; Kim, M. J.; Cho, E.; Kim,
Y. S.; Jang, Y. H.; Lee, C.; Han, S.; Kim, K. M.; Kim, J.-J.; Yoon, J.
Chem. Commun. 2010, 46, 6512. (m) Hudson, Z. M.; Sun, C;
Helander, M. G; Amarne, H.; Lu, Z. H.; Wang, S. Adv. Funct. Mater.
2010, 20, 3426.
To evaluate the potential use of B3T in OLEDs, green
phosphorescent OLEDs were fabricated using Ir(ppy)2(acac) as
the emitter and B3T as the undoped electron transport layer.
The device structure is shown in Figure 3, and the performance
data are given in Table 1. The use of the MoO3 layer
sufficiently raises the anodic work function to allow direct
charge injection into the host material, thus permitting the use
of CBP (4,4′-N,N′-dicarbazolylbiphenyl) as a hole transport and
hosting layer and eliminating the need for a discrete HTL.11
Three devices with varied thicknesses of the B3T layer were
fabricated to examine the performance of B3T as an electron
transport material.
(2) (a) Kulkarni, A. P.; Tonzola, C. J.; Babel, A.; Jenekhe, S. A. Chem.
Mater. 2004, 16, 4556. (b) Hughes, G.; Bryce, M. R. J. Mater. Chem.
2005, 15, 94. (c) Sasabe, H.; Kido, J. Chem. Mater. 2011, 23, 621.
(3) (a) Shirota, Y.; Kageyama, H. Chem. Rev. 2007, 107, 953.
(b) Walzer, K.; Maennig, B.; Pfeiffer, M.; Leo, K. Chem. Rev. 2007,
107, 1233. (c) Sasabe, H.; Gonmori, E.; Chiba, T.; Li, Y. -J.; Tanaka,
D.; Su, S. -J.; Takeda, T.; Pu, Y.-J.; Nakayama, K.; Kido. J. Chem. Mater.
2008, 20, 5951.
All devices produced a characteristic green emission of
Ir(ppy)2(acac) (see the Supporting Information). The data are
summarized in Table 1. It was found that the efficiency of the
5554
