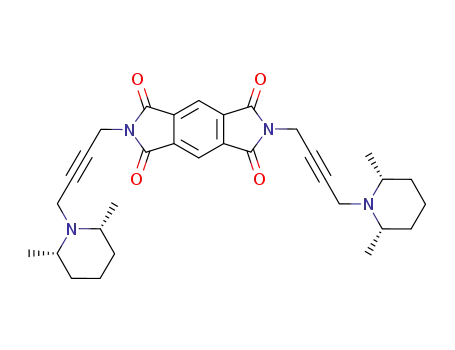

1,2,4,5-Benzenetetracarboxylic 1,2:4,5-diimide, N-N'-bis(4-(2-equatorial,6-equatorial-dimethylpiperidino)but-2-ynyl)-

Base Information

• Chemical Name: 1,2,4,5-Benzenetetracarboxylic 1,2:4,5-diimide, N-N'-bis(4-(2-equatorial,6-equatorial-dimethylpiperidino)but-2-ynyl)-
• CAS No.: 77763-01-0
• Molecular Formula: C₃₂H₃₈N₄O₄
• Molecular Weight: 542.678
• DSSTox Substance ID: DTXSID00998958
• Mol file: 77763-01-0.mol

Synonyms:BRN 5679981;1,2,4,5-Benzenetetracarboxylic 1,2:4,5-diimide, N-N'-bis(4-(2-equatorial,6-equatorial-dimethylpiperidino)but-2-ynyl)-;77763-01-0;DTXSID00998958;LS-32169;2,6-Bis[4-(2,6-dimethylpiperidin-1-yl)but-2-yn-1-yl]pyrrolo[3,4-f]isoindole-1,3,5,7(2H,6H)-tetrone

Chemical Property of 1,2,4,5-Benzenetetracarboxylic 1,2:4,5-diimide, N-N'-bis(4-(2-equatorial,6-equatorial-dimethylpiperidino)but-2-ynyl)-

Chemical Property:

• Vapor Pressure: 9.71E-19mmHg at 25°C
• Boiling Point: 687.2°Cat760mmHg
• Flash Point: 279.1°C
• Density: 1.204g/cm³
• XLogP3: 3.5
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 6
• Rotatable Bond Count: 4
• Exact Mass: 542.28930571
• Heavy Atom Count: 40
• Complexity: 1030

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

• Canonical SMILES: CC1CCCC(N1CC#CCN2C(=O)C3=CC4=C(C=C3C2=O)C(=O)N(C4=O)CC#CCN5C(CCCC5C)C)C

Technology Process of 1,2,4,5-Benzenetetracarboxylic 1,2:4,5-diimide, N-N'-bis(4-(2-equatorial,6-equatorial-dimethylpiperidino)but-2-ynyl)-

There total 2 articles about 1,2,4,5-Benzenetetracarboxylic 1,2:4,5-diimide, N-N'-bis(4-(2-equatorial,6-equatorial-dimethylpiperidino)but-2-ynyl)- which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 40.0%

formaldehyd (50-00-0,30525-89-4,61233-19-0) + 2,6-di-prop-2-ynyl-pyrrolo[3,4-f]isoindole-1,3,5,7-tetraone (18158-82-2) + (2R,6S)-2,6-dimethylpiperidine (766-17-6,1218906-26-3) → 2,6-Bis-[4-((2S,6R)-2,6-dimethyl-piperidin-1-yl)-but-2-ynyl]-pyrrolo[3,4-f]isoindole-1,3,5,7-tetraone (77763-01-0,83150-80-5)

Guidance literature:

With copper(l) chloride; In 1,4-dioxane; for 3h; Heating;

Reference yield:

pyrrolo[3,4-f]isoindole-1,3,5,7-tetraone (2550-73-4) → 2,6-Bis-[4-((2S,6R)-2,6-dimethyl-piperidin-1-yl)-but-2-ynyl]-pyrrolo[3,4-f]isoindole-1,3,5,7-tetraone (77763-01-0,83150-80-5)

Guidance literature:

Multi-step reaction with 2 steps

1: 1.) potassium hydroxide, 65 percent alcohol / 1.) DMF, 1 h, r.t.; 2.) DMF, 70-80 deg C, 16 h

2: 40 percent / cuprous chloride / dioxane / 3 h / Heating

With potassium hydroxide; ethanol; copper(l) chloride; In 1,4-dioxane;

upstream raw materials:

formaldehyd

2,6-di-prop-2-ynyl-pyrrolo[3,4-f]isoindole-1,3,5,7-tetraone

(2R,6S)-2,6-dimethylpiperidine

pyrrolo[3,4-f]isoindole-1,3,5,7-tetraone
