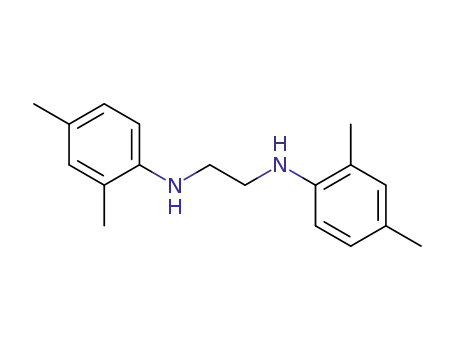

1,2-Ethanediamine, N,N'-bis(2,4-dimethylphenyl)-

Base Information

• Chemical Name: 1,2-Ethanediamine, N,N'-bis(2,4-dimethylphenyl)-
• CAS No.: 13534-84-4
• Molecular Formula: C18H24N2
• Molecular Weight: 268.402
• DSSTox Substance ID: DTXSID00366693
• Wikidata: Q82152048
• Mol file: 13534-84-4.mol

Synonyms:DANFIN;N,N'-bis-(2,4-dimethyl-phenyl)-ethane-1,2-diamine

Chemical Property of 1,2-Ethanediamine, N,N'-bis(2,4-dimethylphenyl)-

Chemical Property:

• XLogP3: 5
• Hydrogen Bond Donor Count: 2
• Hydrogen Bond Acceptor Count: 2
• Rotatable Bond Count: 5
• Exact Mass: 268.193948774
• Heavy Atom Count: 20
• Complexity: 251

Purity/Quality:

99.90% ^*data from raw suppliers

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

• Canonical SMILES: CC1=CC(=C(C=C1)NCCNC2=C(C=C(C=C2)C)C)C

Technology Process of 1,2-Ethanediamine, N,N'-bis(2,4-dimethylphenyl)-

There total 7 articles about 1,2-Ethanediamine, N,N'-bis(2,4-dimethylphenyl)- which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 85.0%

N,N'-bis(2,4-dimethylbenzene)ethylenediimine → N,N'-bis(2,4-dimethylphenyl)-1,2-ethanediamine (13534-84-4)

Guidance literature:

With sodium tetrahydroborate; In tetrahydrofuran; for 2h; Heating;

DOI:10.1016/j.jorganchem.2006.05.020

Reference yield: 23.0%

ethylene glycol (107-21-1) + 2,4-Xylidine (95-68-1) → 7-methyl-5-methyl-1H-indole (54020-53-0) + 2-(2,4-dimethylphenylamino)ethanol (2933-62-2) + 1,4-bis(2,4-dimethylphenyl)piperazine (3367-57-5) + N,N'-bis(2,4-dimethylphenyl)-1,2-ethanediamine (13534-84-4)

Guidance literature:

With palladium on activated charcoal; zinc(II) oxide; In water; at 150 ℃; for 24h; Sealed tube;

DOI:10.1016/j.tet.2017.08.006

Reference yield:

2,4-Xylidine (95-68-1) → N,N'-bis(2,4-dimethylphenyl)-1,2-ethanediamine (13534-84-4)

Guidance literature:

Multi-step reaction with 2 steps

1: 86 percent / ethanol; H₂O / 16 h / 25 °C

2: 85 percent / NaBH₄ / tetrahydrofuran / 2 h / Heating

With sodium tetrahydroborate; In tetrahydrofuran; ethanol; water;

DOI:10.1016/j.jorganchem.2006.05.020

upstream raw materials:

ethylene dibromide

2,4-Xylidine

ethylene glycol

Downstream raw materials:

1,3-bis(2,4-dimethylphenyl)imidazolinium chloride

1,3-bis(2,4-dimethylphenyl)-2-(trichloromethyl)imidazolidine
