GLYCINE, N-(m-NITROPHENYL)-

Base Information

• Chemical Name: GLYCINE, N-(m-NITROPHENYL)-
• CAS No.: 10242-06-5
• Molecular Formula: C8H8 N2 O4
• Molecular Weight: 196.163
• NSC Number: 154513
• DSSTox Substance ID: DTXSID40145065
• Nikkaji Number: J127.639E
• Wikidata: Q83009427
• Mol file: 10242-06-5.mol

Synonyms:GLYCINE, N-(m-NITROPHENYL)-;10242-06-5;2-(3-nitroanilino)acetic acid;N-(m-Nitrophenyl)glycine;3-nitrophenylglycine;Glycine, N-(3-nitrophenyl)-;NSC 154513;BRN 2808393;0-12-00-00709 (Beilstein Handbook Reference);(3-nitroanilino)acetic acid;m-nitrophenylglycine;NSC154513;(3-Nitrophenyl)glycine;N-(3-Nitrophenyl)glycine;Oprea1_781329;SCHEMBL1797099;DTXSID40145065;YWWRLAPJIGCYRN-UHFFFAOYSA-N;NSC-154513;LS-72772

Chemical Property of GLYCINE, N-(m-NITROPHENYL)-

Chemical Property:

• Vapor Pressure: 9.97E-09mmHg at 25°C
• Boiling Point: 445.7°Cat760mmHg
• Flash Point: 223.4°C
• Density: 1.487g/cm³
• XLogP3: 0.4
• Hydrogen Bond Donor Count: 2
• Hydrogen Bond Acceptor Count: 5
• Rotatable Bond Count: 3
• Exact Mass: 196.04840674
• Heavy Atom Count: 14
• Complexity: 226

Purity/Quality:

95% ^*data from raw suppliers

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

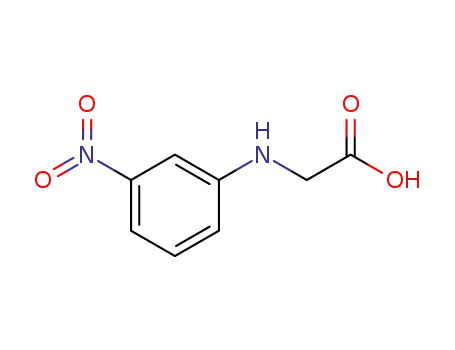

• Canonical SMILES: C1=CC(=CC(=C1)[N+](=O)[O-])NCC(=O)O

Technology Process of GLYCINE, N-(m-NITROPHENYL)-

There total 5 articles about GLYCINE, N-(m-NITROPHENYL)- which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

chloroacetic acid (79-11-8) + 3-nitro-aniline (99-09-2) → (R/S)-(3-nitrophenyl)glycine (10242-06-5) + N-(3-nitro-phenyl)-glycine-(3-nitro-anilide)

Guidance literature:

With sodium acetate; at 150 ℃;

Reference yield:

chloroacetic acid (79-11-8) + 3-nitro-aniline (99-09-2) → (R/S)-(3-nitrophenyl)glycine (10242-06-5)

Guidance literature:

With sodium acetate; sodium carbonate;

Reference yield:

sodium acetate (127-09-3) + chloroacetic acid (79-11-8) + 3-nitro-aniline (99-09-2) → (R/S)-(3-nitrophenyl)glycine (10242-06-5) + N-(3-nitro-phenyl)-glycine-(3-nitro-anilide)

Guidance literature:

at 150 ℃;

upstream raw materials:

sodium acetate

chloroacetic acid

3-nitro-aniline

water

Downstream raw materials:

N-(3-nitro-phenyl)-glycine ethyl ester

2-((3-aminophenyl)amino)acetic acid

D-2-tert-butoxycarbonylamino-2-(3-nitrophenyl)-acetic acid
