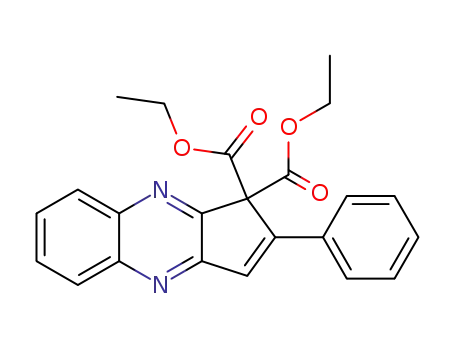

diethyl 2-phenyl-1H-cyclopenta[b]quinoxaline-1,1-dicarboxylate

Base Information

• Chemical Name: diethyl 2-phenyl-1H-cyclopenta[b]quinoxaline-1,1-dicarboxylate
• CAS No.: 1352810-06-0
• Molecular Formula: C₂₃H₂₀N₂O₄
• Molecular Weight: 388.423
• Mol file: 1352810-06-0.mol

Synonyms:diethyl 2-phenyl-1H-cyclopenta[b]quinoxaline-1,1-dicarboxylate

Chemical Property of diethyl 2-phenyl-1H-cyclopenta[b]quinoxaline-1,1-dicarboxylate

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of diethyl 2-phenyl-1H-cyclopenta[b]quinoxaline-1,1-dicarboxylate

There total 3 articles about diethyl 2-phenyl-1H-cyclopenta[b]quinoxaline-1,1-dicarboxylate which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 59.0%

3-(phenylethynyl)quinoxaline-2-carbonitrile + diethyl malonate (105-53-3) → diethyl 2-phenyl-1H-cyclopenta[b]quinoxaline-1,1-dicarboxylate (1352810-06-0)

Guidance literature:

diethyl malonate; With potassium tert-butylate; In tetrahydrofuran; at 20 ℃; for 0.5h;

3-(phenylethynyl)quinoxaline-2-carbonitrile; In tetrahydrofuran; at 65 ℃; for 48h;

DOI:10.1016/j.tet.2014.05.023

Reference yield: 52.0%

2-chloro-3-(phenylethynyl)quinoxaline (75163-15-4) + diethyl malonate (105-53-3) → diethyl 2-phenyl-1H-cyclopenta[b]quinoxaline-1,1-dicarboxylate (1352810-06-0)

Guidance literature:

diethyl malonate; With potassium tert-butylate; In tetrahydrofuran; for 0.166667h;

3-chloro-2-(phenylethynyl)quinoxaline; In tetrahydrofuran; for 4h; Reflux;

DOI:10.1016/j.tet.2011.11.018

Reference yield: 23.0%

3-(phenylethynyl)quinoxaline-2-carbonitrile + diethyl malonate (105-53-3) → diethyl 2-phenyl-1H-cyclopenta[b]quinoxaline-1,1-dicarboxylate (1352810-06-0) + ethyl 1-amino-3-phenylphenazine-2-carboxylate (1614219-99-6) + ethyl 6-cyano-10-oxo-8-phenyl-10H-pyrido[1,2-a]quinoxaline-9-carboxylate (1614220-09-5)

Guidance literature:

diethyl malonate; With potassium tert-butylate; In tetrahydrofuran; at 20 ℃; for 0.5h;

3-(phenylethynyl)quinoxaline-2-carbonitrile; In tetrahydrofuran; at 20 ℃; for 24h; Time;

DOI:10.1016/j.tet.2014.05.023

upstream raw materials:

2-chloro-3-(phenylethynyl)quinoxaline

diethyl malonate
