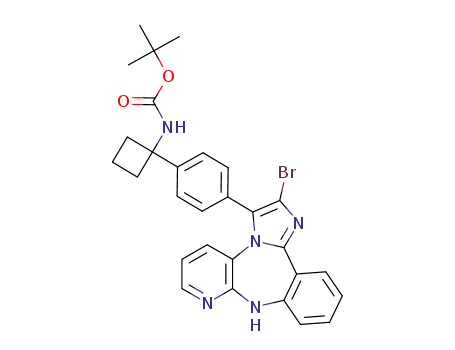

tert-butyl {1-[4-(2-bromo-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate

Base Information

• Chemical Name: tert-butyl {1-[4-(2-bromo-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate
• CAS No.: 1374260-87-3
• Molecular Formula: C₂₉H₂₈BrN₅O₂
• Molecular Weight: 558.478
• Mol file: 1374260-87-3.mol

Synonyms:tert-butyl {1-[4-(2-bromo-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate

Chemical Property of tert-butyl {1-[4-(2-bromo-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of tert-butyl {1-[4-(2-bromo-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate

There total 6 articles about tert-butyl {1-[4-(2-bromo-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 59.0%

tert-butyl {1-[4-(9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate (1374260-84-0) → tert-butyl {1-[4-(2-bromo-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate (1374260-87-3)

Guidance literature:

With pyridinium perbromide hydrobromide; In tetrahydrofuran; at -78 - 20 ℃;

Reference yield:

5H-benzo[e]pyrido[3,2-b][1,4]diazepin-6(11H)-one (885-70-1) → tert-butyl {1-[4-(2-bromo-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate (1374260-87-3)

Guidance literature:

Multi-step reaction with 6 steps

1: Lawessons reagent; pyridine / 18 h / 100 °C

2: 1 h / 95 °C

3: acetic acid / 13 h / 105 °C

4: N-Bromosuccinimide / tetrahydrofuran / 2 h / 0 - 20 °C

5: tetrakis(triphenylphosphine) palladium⁽⁰⁾; sodium hydrogencarbonate / ethanol; water; toluene / 15 h / Reflux

6: pyridinium perbromide hydrobromide / tetrahydrofuran / -78 - 20 °C

With Lawessons reagent; pyridine; N-Bromosuccinimide; tetrakis(triphenylphosphine) palladium⁽⁰⁾; pyridinium perbromide hydrobromide; sodium hydrogencarbonate; acetic acid; In tetrahydrofuran; ethanol; water; toluene;

Reference yield:

5,11-dihydro-6H-pyrido[2,3-b][1,4]benzo diazepine-6-thione (1204296-84-3) → tert-butyl {1-[4-(2-bromo-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate (1374260-87-3)

Guidance literature:

Multi-step reaction with 5 steps

1: 1 h / 95 °C

2: acetic acid / 13 h / 105 °C

3: N-Bromosuccinimide / tetrahydrofuran / 2 h / 0 - 20 °C

4: tetrakis(triphenylphosphine) palladium⁽⁰⁾; sodium hydrogencarbonate / ethanol; water; toluene / 15 h / Reflux

5: pyridinium perbromide hydrobromide / tetrahydrofuran / -78 - 20 °C

With N-Bromosuccinimide; tetrakis(triphenylphosphine) palladium⁽⁰⁾; pyridinium perbromide hydrobromide; sodium hydrogencarbonate; acetic acid; In tetrahydrofuran; ethanol; water; toluene;

upstream raw materials:

tert-butyl {1-[4-(9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl)phenyl]cyclobutyl}carbamate

5H-benzo[e]pyrido[3,2-b][1,4]diazepin-6(11H)-one

5,11-dihydro-6H-pyrido[2,3-b][1,4]benzo diazepine-6-thione

9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzo diazepine

Downstream raw materials:

3-[4-(1-aminocyclobutyl)phenyl]-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepine-2-carbonitrile

1-{4-[2-(1,3-thiazol-2-yl)-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl]phenyl}cyclobutanamine

1-{4-[2-(1H-pyrazol-4-yl)-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-3-yl]phenyl}cyclobutanamine

methyl (4-{3-[4-(1-aminocyclobutyl)phenyl]-9H-imidazo[1,2-d]pyrido[2,3-b][1,4]benzodiazepin-2-yl}phenyl)acetate
