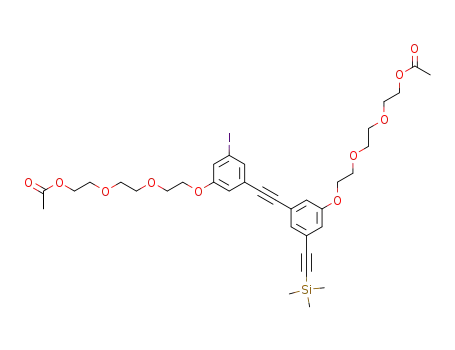

acetic acid 2-(2-{2-[3-(3-{2-[2-(2-acetoxy-ethoxy)-ethoxy]-ethoxy}-5-iodo-phenylethynyl)-5-trimethylsilanylethynyl-phenoxy]-ethoxy}-ethoxy)-ethyl ester

Base Information

• Chemical Name: acetic acid 2-(2-{2-[3-(3-{2-[2-(2-acetoxy-ethoxy)-ethoxy]-ethoxy}-5-iodo-phenylethynyl)-5-trimethylsilanylethynyl-phenoxy]-ethoxy}-ethoxy)-ethyl ester
• CAS No.: 318262-14-5
• Molecular Formula: C₃₅H₄₅IO₁₀Si
• Molecular Weight: 780.726
• Mol file: 318262-14-5.mol

Synonyms:acetic acid 2-(2-{2-[3-(3-{2-[2-(2-acetoxy-ethoxy)-ethoxy]-ethoxy}-5-iodo-phenylethynyl)-5-trimethylsilanylethynyl-phenoxy]-ethoxy}-ethoxy)-ethyl ester

Chemical Property of acetic acid 2-(2-{2-[3-(3-{2-[2-(2-acetoxy-ethoxy)-ethoxy]-ethoxy}-5-iodo-phenylethynyl)-5-trimethylsilanylethynyl-phenoxy]-ethoxy}-ethoxy)-ethyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of acetic acid 2-(2-{2-[3-(3-{2-[2-(2-acetoxy-ethoxy)-ethoxy]-ethoxy}-5-iodo-phenylethynyl)-5-trimethylsilanylethynyl-phenoxy]-ethoxy}-ethoxy)-ethyl ester

There total 10 articles about acetic acid 2-(2-{2-[3-(3-{2-[2-(2-acetoxy-ethoxy)-ethoxy]-ethoxy}-5-iodo-phenylethynyl)-5-trimethylsilanylethynyl-phenoxy]-ethoxy}-ethoxy)-ethyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 80.0%

C39H55N3O10Si → acetic acid 2-(2-{2-[3-(3-{2-[2-(2-acetoxy-ethoxy)-ethoxy]-ethoxy}-5-iodo-phenylethynyl)-5-trimethylsilanylethynyl-phenoxy]-ethoxy}-ethoxy)-ethyl ester (318262-14-5)

Guidance literature:

With methyl iodide; at 110 ℃; for 12h;

DOI:10.1021/ja002129e

Reference yield:

C16H26BrN3O4 → acetic acid 2-(2-{2-[3-(3-{2-[2-(2-acetoxy-ethoxy)-ethoxy]-ethoxy}-5-iodo-phenylethynyl)-5-trimethylsilanylethynyl-phenoxy]-ethoxy}-ethoxy)-ethyl ester (318262-14-5)

Guidance literature:

Multi-step reaction with 5 steps

1: 72 percent / CuI; PPh₃; NEt₃ / Pd₂(dba)3 / 18 h / 80 °C

2: 95 percent / pyridine / 7 h / 20 °C

3: 94 percent / CH₃I / 12 h / 110 °C

4: 95 percent / CuI; PPh₃; NEt₃ / Pd₂(dba)3 / 70 °C

5: 80 percent / CH₃I / 12 h / 110 °C

With pyridine; copper(l) iodide; triethylamine; triphenylphosphine; methyl iodide; tris(dibenzylideneacetone)dipalladium ⁽⁰⁾;

DOI:10.1021/ja002129e

Reference yield:

2-{2-[2-(3-amino-5-bromo-phenoxy)-ethoxy]-ethoxy}-ethanol (318262-07-6) → acetic acid 2-(2-{2-[3-(3-{2-[2-(2-acetoxy-ethoxy)-ethoxy]-ethoxy}-5-iodo-phenylethynyl)-5-trimethylsilanylethynyl-phenoxy]-ethoxy}-ethoxy)-ethyl ester (318262-14-5)

Guidance literature:

Multi-step reaction with 6 steps

1.1: aq. sodium nitrite; conc. HCl / acetonitrile / 0.5 h / 0 °C

1.2: aq. K₂CO₃ / acetonitrile / 0.17 h / 20 °C

2.1: 72 percent / CuI; PPh₃; NEt₃ / Pd₂(dba)3 / 18 h / 80 °C

3.1: 95 percent / pyridine / 7 h / 20 °C

4.1: 94 percent / CH₃I / 12 h / 110 °C

5.1: 95 percent / CuI; PPh₃; NEt₃ / Pd₂(dba)3 / 70 °C

6.1: 80 percent / CH₃I / 12 h / 110 °C

With pyridine; hydrogenchloride; copper(l) iodide; triethylamine; triphenylphosphine; sodium nitrite; methyl iodide; tris(dibenzylideneacetone)dipalladium ⁽⁰⁾; In acetonitrile;

DOI:10.1021/ja002129e

upstream raw materials:

2-{2-[2-(3-amino-5-bromo-phenoxy)-ethoxy]-ethoxy}-ethanol

2-{2-[2-(3-bromo-5-nitro-phenoxy)-ethoxy]-ethoxy}-ethanol

acetic acid 2-{2-[2-(3-iodo-5-trimethylsilanylethynyl-phenoxy)-ethoxy]-ethoxy}-ethyl ester

3-bromo-5-nitro-phenol
