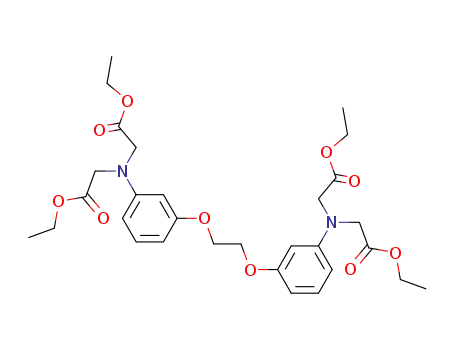

[(3-{2-[3-(Bis-ethoxycarbonylmethyl-amino)-phenoxy]-ethoxy}-phenyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester

Base Information

• Chemical Name: [(3-{2-[3-(Bis-ethoxycarbonylmethyl-amino)-phenoxy]-ethoxy}-phenyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester
• CAS No.: 161554-92-3
• Molecular Formula: C₃₀H₄₀N₂O₁₀
• Molecular Weight: 588.655
• Mol file: 161554-92-3.mol

Synonyms:

Chemical Property of [(3-{2-[3-(Bis-ethoxycarbonylmethyl-amino)-phenoxy]-ethoxy}-phenyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of [(3-{2-[3-(Bis-ethoxycarbonylmethyl-amino)-phenoxy]-ethoxy}-phenyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester

There total 4 articles about [(3-{2-[3-(Bis-ethoxycarbonylmethyl-amino)-phenoxy]-ethoxy}-phenyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 80.0%

1,2-bis(m-aminophenoxy)ethane (25940-46-9) + ethyl bromoacetate (105-36-2) → [(3-{2-[3-(Bis-ethoxycarbonylmethyl-amino)-phenoxy]-ethoxy}-phenyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester (161554-92-3)

Guidance literature:

With sodium iodide; In acetonitrile; for 20h; Heating;

Reference yield:

meta-nitrophenol (554-84-7) → [(3-{2-[3-(Bis-ethoxycarbonylmethyl-amino)-phenoxy]-ethoxy}-phenyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester (161554-92-3)

Guidance literature:

Multi-step reaction with 4 steps

1: NaOH / ethanol

2: 30 percent / dimethylformamide / 2 h / Heating

3: 80 percent / 10percent Pd/C / ethanol

4: 80 percent / base, NaI / acetonitrile / 20 h / Heating

With sodium hydroxide; sodium iodide; palladium on activated charcoal; In ethanol; N,N-dimethyl-formamide; acetonitrile;

Reference yield:

1,2-bis-(3-nitro-phenoxy)-ethane (25986-11-2) → [(3-{2-[3-(Bis-ethoxycarbonylmethyl-amino)-phenoxy]-ethoxy}-phenyl)-ethoxycarbonylmethyl-amino]-acetic acid ethyl ester (161554-92-3)

Guidance literature:

Multi-step reaction with 2 steps

1: 80 percent / 10percent Pd/C / ethanol

2: 80 percent / base, NaI / acetonitrile / 20 h / Heating

With sodium iodide; palladium on activated charcoal; In ethanol; acetonitrile;

upstream raw materials:

1,2-bis(m-aminophenoxy)ethane

ethyl bromoacetate

meta-nitrophenol

1,2-bis-(3-nitro-phenoxy)-ethane
