A planar carboxylate-rich tetrairon(II) complex and its conversion to linear triiron(II) and paddlewheel diiron(II) complexes

Inorg. Chem. 2007, 46, 10754−10770

A Planar Carboxylate-Rich Tetrairon(II) Complex and Its Conversion to

Linear Triiron(II) and Paddlewheel Diiron(II) Complexes

Erwin Reisner,^†Joshua Telser,^‡and Stephen J. Lippard*^,†

Department of Chemistry, Massachusetts Institute of Technology, Cambridge, Massachusetts

02139, and Department of Biological, Chemical, and Physical Sciences, RooseVelt UniVersity, 430

S. Michigan AVenue, Chicago, Illinois 60605

Received August 23, 2007

We report a series of oligonuclear carboxylate-rich high-spin iron(II) complexes with three different [Fe^II

O₂Cbiph)_2n(L)_m] (n 4; m

2 or 4) structural motifs, where ^-O₂Cbiph is 2-biphenylcarboxylate and L is an

exogenous ligand bound to terminal iron atoms. Solid compounds were isolated and their structural, spectroscopic,

and magnetic properties thoroughly investigated. The discrete tetranuclear complexes [Fe₄( -O₂Cbiph)₈(L)₂] crystallize

in a planar tetrairon(II) motif in which two diiron paddlewheel units are linked in an unprecedented manner involving

₃-1,1,3-bridging mode. X-ray crystallography reveals average Fe O_antibond lengths of 2.081[2] Å at the dimer

_n(µ-

)

2−

)

µ

a

µ

−

dimer interface. Terminal axial positions are capped by ligands L, where L is tetrahydrofuran (THF) (1), indazole

(2), pyrazole (3), 3,5-dimethylpyrazole (4), or acetamide (5). Reaction of 1 with an excess of acetonitrile affords the

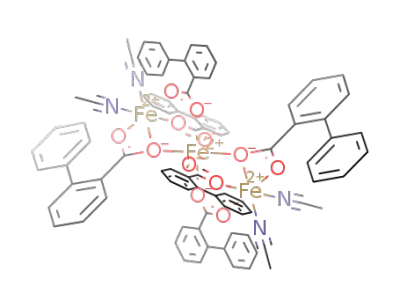

linear compound [Fe₃(µ-O₂Cbiph)₆(MeCN)₄] (6). The acetonitrile ligands in 6 can be replaced by THF or

dimethoxyethane at elevated temperatures with retention of the structure to afford 7 and 8, respectively. Reaction

of 1 or 6 with pyridine or 1-methylimidazole results in the isolation of paddlewheel dimers 9 and 10, respectively,

with [Fe₂(µ-O₂Cbiph)₄(L)₂] composition. Mo¨ssbauer spectroscopy confirms the presence of high-spin ferrous ions

and indicates that the two iron sites of the dimer are geometrically indistinguishable. For the tri- and tetrairon

compounds, two quadrupole doublets are observed, suggesting that the iron centers do not have identical geometries.

Plots of magnetic susceptibility versus temperature reveal intramolecular antiferromagnetic exchange coupling for

all complexes under study. The magnetic data were fit to a theoretical model incorporating exchange coupling,

single-ion zero-field splitting, and g-tensor anisotropy. The resulting magnetic parameters reveal in most cases

weak antiferromagnetic exchange coupling (J typically <3 cm^-¹) and dominant zero-field-splitting parameters.

Introduction

site of the hydroxylase component of this enzyme (MMOH)

features a non-heme diiron center coordinated by four

glutamate and two histidine residues. The reduced di-

iron(II) form (MMOH_red; Chart 1) reacts directly with

dioxygen, activating it for methane hydroxylation.³

Metalloproteins with redox-active diiron cores coordinated

to bridging carboxylate ligands are relatively common in

biological systems. These diiron proteins perform multifac-

eted chemically and biologically intriguing functions includ-

ing hydrocarbon oxidation and desaturation in bacterial

multicomponent monooxygenases and stearoyl-acyl carrier

protein ∆⁹desaturase, respectively, radical generation in a

class I ribonucleotide reductase R2 subunit, dioxygen

transport in hemerythrin, and iron storage in ferritin.¹There

is much current interest in C-H bond activation,²stimulated

in part by detailed investigations of methane hydroxylation

by soluble methane monooxygenase (sMMO). The active

Recently, a variety of carboxylate-rich diiron(II) complexes

have been prepared to mimic the active sites of non-heme
