Novel Neuroprotective Lead Compound Ligustrazine
Derivative Mass Spectrometry Fragmentation Rule
and Metabolites in Rats by LC/LTQ-Orbitrap MS
Xinyu Zhang, Rui Zhao, Meng Chen, Tao Ma, Gaorong Wu, Nannan Xue, Guoliang Li, Hui Wang,
ID
Kang Fang, Wenxi Zhang, Penglong Wang * and Haimin Lei *
School of Chinese Pharmacy, Beijing University of Chinese Medicine, Beijing 100102, China;
20160931837@bucm.edu.cn (X.Z.); zr1012zr@126.com (R.Z.); chenmeng_0809@163.com (M.C.);
mosesmatao@163.com (T.M.); gaorongwu09@163.com (G.W.); 18810612758@163.com (N.X.);
liguoliangsx@163.com (G.L.); 15652387323@163.com (H.W.); 18364166994@163.com (K.F.);
zhangwxnn@126.com (W.Z.)
* Correspondence: wpl581@126.com (P.W.); hm_lei@126.com (H.L.)
Academic Editor: Marcello Iriti
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 15 April 2018; Accepted: 8 May 2018; Published: 11 May 2018
Abstract: The neuroprotective evaluation of ligustrazine derivatives has become a research
focus all over the world. A novel ligustrazine derivative, (3,5,6-Trimethylpyrazin-2-yl)methyl(E)-
3-(4-((3,5,6-trimethylpyrazin-2-l)methoxy)phenyl)acrylate (T-CA), has shown protective effects
against CoCl2-induced neurotoxicity in a differentiated PC12 cell model and middle cerebral artery
occlusion (MCAO) model in our previous studies. However, nearly none of the parent drugs existed
after rapid metabolism due to uncertain reasons. Thus, the fragmentation regularities of mass
spectra, and metabolites, of T-CA in rats were examined using liquid chromatography-electrospray
ionizationion trap mass spectrometry (LC/LTQ-Orbitrap MS) in this research. The main fragment
ion, mass spectrum characteristics, and the structural information were elucidated. When compared
with a blank sample, we identified five kinds of T-CA metabolites, including three phase I metabolites
and two phase II metabolites. The results showed that the metabolic pathways of T-CA in rats via
oral administration were hydrolysis (ether bond rupture, ester bond rupture), oxidation, reduction,
glucose aldehyde acidification, etc. In addition, three main metabolites were synthesized and
their structures were identified by superconducting high-resolution NMR and high-resolution mass
spectroscopy (HR-MS). The neuroprotective activity of these metabolites was validated in a PC12
cell model. One of the metabolites (M2) showed significant activity (EC50 = 9.67
comparable to the prototype drug T-CA (EC50 = 7.97 M). The current study provides important
information for ligustrazine derivatives, pertaining to the biological conversion process in vivo.
µM), which was
µ
Keywords:
liquid chromatography-electrospray ionizationion trap mass spectrometry
(LC/LTQ-Orbitrap MS); fragmentation regularities; ligustrazine derivative metabolites;
neuroprotective activity
1. Introduction
It is important to evaluate the effects and toxicity of new drugs from metabolites,
such as desloratadine, which showed a better anti-allergic activity than its parent drug loratadine [
amoxapine and its metabolites have the potential to alleviate irinotecan-induced diarrhea; and many
microbial metabolites have the possibility to become therapeutic agents [ ]. Tetramethylpyrazine is
1];
2,3
an alkaloid monomer extracted from the rhizome of Ligusticum chuanxiong, which can transport well
across the blood–brain barrier, block the calcium channel, scavenge oxygen free radicals, affect the
Molecules 2018, 23, 1154; doi:10.3390/molecules23051154
www.mdpi.com/journal/molecules

Molecules 2018, 23, 1154
2 of 12
endothelium, and the synthesis process of nitric oxide [
4–8
]. In previous studies, tetramethylpyrazine
was combined with small molecules of phenolic compounds, based on the traditional Chinese
medicine combination principles [ 15]. According to different conjunctive positions and numbers
of hydroxyls, over 100 novel ligustrazine-phenolic acid derivatives were synthesized and were
proved to possess neuroprotective effects, both in vivo and in vitro 13]. The ligustrazine derivative
9–
[9–
(3,5,6-Trimethylpyrazin-2-yl)methyl(E)-3-(4-((3,5,6-trimethylpyrazin-2-l)methoxy)phenyl)acrylate
(T-CA) was the best one among these tetramethylpyrazine derivatives because it showed an excellent
neuroprotective activity. T-CA was evaluated in CoCl2-induced neurotoxic PC12 cell model,
differentiated by NGF (nerve growth factor) in vitro, and MCAO (middle cerebral artery occlusion)
rats model in vivo [11,14,16]. The internal absorption experiment indicated that the prototype
compound was metabolized rapidly and few of it remained in plasma.
Numerous research on ligustrazine-phenolic acid derivatives, structural modification about their
neuroprotective effect, inhibition of platelet aggregation, and vascular endothelial injury had been
carried out [4,16,17]. Most of these conjugates were formed by ester bonds and amide bonds; however,
there was little prior knowledge of stabilities and metabolism in vivo for such structures.
In this research, we intended to study the metabolic products of T-CA in vivo using high resolution
mass spectrometry. The LC/LTQ-Oribitrap MS can obtain accurate mass without the standard
substance by using high resolution in full-scan mode and a linear ion trap-electrostatic field, which is as
high as 2
×
10−6
[18,19]. Its ability of rapid screening and structural confirmation of unknowns is
a huge advantage to analyze compound composition in a complex system. Based on this, we identified
five kinds of T-CA metabolites, including three phase I metabolites and two phase II metabolites.
Three of these metabolites were synthesized and their structures were confirmed by HR-MS and NMR
spectroscopy. Their neuroprotective activity was validated by cobalt chloride-induced neurotoxicity
in differentiated PC12 cells. The results showed that metabolite M2 had significant activity, almost
as same as the prototype drug (T-CA), which proved that drug action could be contributed from the
metabolites. Thus, this analysis method provided an important direction for the evaluation of the
ligustrazine derivative.
2. Results
2.1. The Mass Spectrometry and Lysis of T-CA
The results in Figure 1 show that the T-CA excimer ion peak was m/z 433.22318 [M + H]+, and the
fragments of the compound were m/z 281.12839 and 176.11832, respectively. The main characteristic of
secondary mass spectrometry debris of m/z 433.22305 was m/z 281.06293, with the loss of a molecule
(C8H12N2O). The fragment ion m/z 146.91417 and m/z 135.00056 were further crackate of fragment
ion m/z 281.08398.
2.2. Identification of Plasma Metabolites of T-CA
Compared with blank plasma, there were three significant strong ion peaks (Figure 2) after T-CA
was metabolized in vivo. The retention time peaks were 19.92, 21.85, and 22.44 min, respectively,
which indicated that the compound T-CA could be rapidly absorbed through the intestinal tract into
the blood. In addition, we achieved more metabolites through the extraction, which was verified via
mass spectrometry (Figures 3 and 4).

Molecules 2018, 23, 1154
3 of 12
Figure 1.
trimethylpyrazin-2-l)methoxy)phenyl)acrylate (T-CA); (
of T-CA; ( ) secondary cleavage mass spectrometry of m/z 433.22318; (
spectrometry of m/z 281.06293.
(
A
) Ion current chromatogram of (3,5,6-Trimethylpyrazin-2-yl)methyl(E)-3-(4-((3,5,6-
) first-order full-scan mass spectrometry
) secondary cleavage mass
B
C
D
Figure 2.
(A) The ion current chromatogram of control group; (B) the ion current chromatogram of
administration group.
Five metabolites (M1–M5), as well as the prototype drug (M0), were detected in the plasma of the
sample group residues. In the first-order full-scan mass spectrometry, the quasi-molecular ion of M0
was m/z 433.22418 [M + H]+, and the cleavage fragments were m/z 281.12912, 176.11862, 150.12801,
and 136.09975. The chromatographic retention time was 30.40 min. As compared to the compound
T-CA sample, the chromatographic retention time and the excimer ion were almost the same, therefore,
M0 was determined as the parent drug.

Molecules 2018, 23, 1154
4 of 12
Figure 3. The ion flux and structure prediction of metabolites.
Figure 4. (A) Accurate mass spectrum of M1–M5; (B) the secondary cleavage of M1–M5.

Molecules 2018, 23, 1154
5 of 12
2.2.1. Identification of Plasma Metabolites M1
M1 showed a [M + H]+ at m/z 299.13895 (C17H19N2O3), which was 136 Da less than T-CA,
indicating that there was probably a loss of one molecule of ligustrazine. The chromatographic
retention time of M1 was 22.44 min and its secondary debris ions were m/z 136.02116, 146.89818,
and 282.10333. Based on the analysis of the information in Figure 4, we inferred that the structure for
M1 was (E)-3-(4-((3,5,6-trimethylpyrazin-2-yl)methoxy)phenyl)acrylic acid and the possible cleavage
method was showed in Figure 5 [20,21].
2.2.2. Identification of Plasma Metabolites M2
M2 showed a [M + H]+ at m/z 313.15506 (C18H20N2O3), which is 14 Da more than M1
excimer ion (m/z 299.13895). We inferred that M2 was the methylation result of M1 carboxyl
site and the structure is shown in Figure 4 [22,23]. The retention time of M2 was 29.35 min,
and the main secondary mass fragments were m/z 136.01239 and m/z 281.10687. A possible
method of cracking is shown in Figure 5. In addition, we synthesized the predicted structure
M2 using the idea of drug design. Its structure was confirmed through data from mass
spectrometry and the nuclear magnetic spectrum. Therefore, we concluded that M2 was methyl
(E)-3-(4-((3,5,6-trimethylpyrazin-2-yl)methoxy)phenyl)acrylate. At the same time, the results provided
the basis for the accuracy of M1 and M30s structures.
2.2.3. Identification of Plasma Metabolites M3
M3 showed a [M + H]+ at m/z 301.15445(C17H20N2O3), which was 2 Da more than the compound
M1 excimer ion (m/z 299.13895), suggesting that M3 was probably the hydrogen reduction result
of M1 in vivo (Figure 5). The chromatographic retention time of M3 was 21.85 min, which was one
of the major metabolites produced in plasma. In addition, we could further confirm structure of
M3 through its secondary debris ion: m/z 134.96573, 241.04566, 283.11206, the possible cleavage
pathway is shown in Figure 4. Based on these data, the structure for M3 was identified as
3-(4-((3,5,6-trimethylpyrazin-2-yl)methoxy)phenyl)propanoic acid [24].
2.2.4. Identification of Plasma Metabolites M4
M4 showed a [M + H]+ at m/z 273.12344 (C17H20N2O3), the retention time was 19.92 min,
which was one of the definite metabolites. It was 26 Da less than M1 excimer ion (m/z 299.13895).
Thus, we inferred that the double bond of M1 had broken before the occurrence of in vivo
oxidation [25]. The possible structure of M4 was showed in Figure 4. In addition, we gave the
cleavage pathway of M4 from its secondary cleavage fragment, which is shown in Figure 5. Therefore,

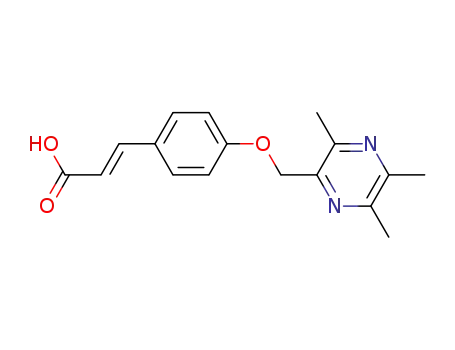

4-((3,5,6-trimethylpyrazin-2-yl) methoxy)benzoic acid was proposed as the structure for M4.
2.2.5. Identification of Plasma Metabolites M5
M5 ([M + H+] m/z 475.17038, C23H27O9N2) was 176 Da (C6H8O6) heavier than M1, suggesting
that M5 was a glucuronide conjugate. The diagnostic fragment ion at m/z 299.11676 (C17H18N2O3)
was formed by the loss of glucuronide moiety from the protonated parent ion. As shown in
Figure 4, other fragment ions at m/z 281.07025 and 146.94588 were consistent with the product
ions of M1, indicating that the conjugation site was the C5 hydroxyl group [26,27]. M5 was confirmed as
(2R,3R,4R,5S,6S)-3,4,5-trihyd-roxy-6-(((E)-3-(4-((3,5,6-trimethylpyrazin-2-yl)methoxy)phenyl)acryloyl)
oxy)tetrahydro-2H-pyran-2-carboxylic acid And the retention time, accurate mass, elementary
composition, and precision of metabolites are showed in Table 1.
According to these data, we inferred that five metabolites (M1–M5) were metabolized mainly
by addition reaction, methyl esterification, and glucuronication. We synthesized three of them by
chemical method and evaluated their biological activity. The results showed that all of them had
neuroprotective activity especially metabolite M2; because its activity could reach the same level

Molecules 2018, 23, 1154
6 of 12
as T-CA, which provided an important direction for the discovery of novel compounds and the
exploration of the T-CA onset pathways. Also, the amount of compound was recorded and collected
for subsequent experimental exploration. The explicit structures and activity data are represented in
the following schemes (Schemes 1–3).
Table 1. Retention time, accurate mass, elementary composition, and precision of metabolites.
Compound tR/min
Species
Elemental Composition
m/z
RSD
Delta mmu
M0
M1
M2
M3
M4
M5
30.40
22.44
29.35
21.85
19.92
16.98
[M + H]+
[M + H]+
[M + H]+
[M + H]+
[M + H]+
[M + H]+
C25H29O3N4
C17H19O3N2
C18H21O3N2
C17H21O3N2
C15H17O3N2
C23H27O9N2
433.22418
299.13895
313.15506
301.15445
273.12344
475.17038
13.5
9.5
9.5
8.5
8.5
0.213
−0.199
0.481
−0.039
−0.109
0.063
11.5
Figure 5. Proposed metabolic pathways of T-CA in rats.
◦
◦
Scheme 1. Reagents and conditions: (
a
) K2CO3, DMF, 85 C, reflux, 2 h, (
b
) KOH, MeOH, 60 C,
reflux, 0.5 h.

Molecules 2018, 23, 1154
7 of 12
◦
Scheme 2. Reagents and conditions: (
a
) SOCl2, Methanol, r.t., 1 h. (
b
) K2CO3, DMF, 65 C, reflux, 3 h.
◦
◦
Scheme 3. Reagents and conditions: (
a
) K2CO3, DMF, 85 C, reflux, 2 h, (
b
) KOH, MeOH, 60 C, reflux,
0.5 h.
2.3. Neuroprotective Activity Test of Metabolites M1, M2, M4
As shown in Table 2, both T-CA and its metabolites had a neuroprotective effect under different
concentrations, especially M2 presented a significant neuroprotective ability (EC50 = 9.67 M),
µ
which was comparable to the prototype drug T-CA. Further, as shown in Figure 6, neuroprotective
effects of M2 in PC12 cell model differentiated by NGF in morphology was observed through an
optical microscope. Compared to PC12 cells injured by CoCl2 (Figure 6C), pretreatment of PC12 cells
with M2 led to an alleviated morphological lesion (Figure 6D). Based on all the above results, we could
conclude that the parent drug T-CA and its metabolites had neuroprotective activity both in vitro
and in vivo.
Table 2. Neuroprotective activity of metabolites M1, M2, and M4.
Cell Proliferation Rate%
Compound
EC50
60
30
15
7.5
3.75
T-CA
M1
M2
102.94
77.77
89.95
42.37
89.83
45.80
82.06
39.62
71.09
45.64
75.97
14.67
27.89
16.46
42.04
9.48
39.02
2.90
20.69
8.98
7.97
40.68
9.67
M4
39.42

Molecules 2018, 23, 1154
8 of 12
Figure 6. Effects of M2 on differentiated PC12 cell injury in morphology (
×
200); (A) undifferentiated
PC12 cell; ( ) PC12 cell differentiated by NGF; ( ) CoCl2-induced differentiated PC12 cell;
B
C
(D) CoCl2-induced neurotoxicity with M2 (60 µM).
3. Materials and Methods
3.1. Reagents, Chemicals and Animals
PC-12 cells (Peking Union Medical College Cell Resource Center, Beijing, China), RPMI 1640
medium, fetal bovine serum, horse serum, and nerve growth factor (Thermo Fisher company
products, USA), Tetramethyl azo thiazole blue: MTT (China-Mainland, Sigma Aldrich, Beijing, China),
Paraformaldehyde (Beijing Chemical Reagent Company, Beijing, China), and 5 mL of heparin lithium
tube (GD050LH).
Compound T-CA, p-toluene sulfonyl chloride, ligustrazine, sulfoxide chloride, potassium
carbonate, N, N-dimethyl formamide (DMF), tetrahydrofuran (THF), and anhydrous methanol
(analytically pure or chemically pure), K2CO3, KOH, and Thionyl chloride (SOCl2).
Male SD rats (Beijing Viton Lihua Experimental Animal Technology Co., Ltd., Beijing, China)
3.2. Instrumentations
A series of main instrumentations were used in this study, such as tissue scissors, hemostatic
clamps (Shanghai surgical instrument factory), an AEG-220 type electronic analytical balance
(Shimadzu, Japan), vortex mixing apparatus Haimen Qilin Bell Instrument Manufacturing Co., Ltd.
Model XW-80A), water bath nitrogen blowing instrument (Beijing Cheng Meng Albert Technology
Co., Ltd., model CW-12) and KQ-500DE CNC ultrasonic cleaner (Kunshan City ultrasound Instrument
Co., Ltd.). HPLC-HR-MS system was consists of several units: Thermo Accela Ultra-High Performance
Liquid Chromatograph (Accela 600 Pump with Accela Open Autosampler and Quaternary Solvent
Controller), Thermo LQT Orbitrap XL Mass Spectrometer, Xcalibur Workstation, ultra-pure helium as
collision gas and high purity nitrogen for atomization. Structures were confirmed by AM-500 nuclear
magnetic resonance instrument (Switzerland Bruker Company). In addition, Forma 3111 CO2 incubator,
Multiskan GO full-wavelength microplate reader (Thermo Fisher, American), inverted microscope
(OlympusIX71), and biological safety cabinet (HF) were used to finish the active test experiment.
3.3. Sample Preparation
Nine healthy male SD rats, weighing 280–300 g, were supplied by Beijing Vital River Laboratory
Animal Technology Co., Ltd, Beijing, China. Rats were fasted for 12 h before receiving an oral

Molecules 2018, 23, 1154
9 of 12
administration of T-CA (dissolved in 0.5% CMC-Na) at a dose of 120 mg/kg body weight. The animals
had access to water. The experiment was divided into two groups: Three males (control group) and six
males (administration group: G1-G6). The control group was given intragastric administration
of 0.5% CMC-Na. After 3 h, the rats were intraperitoneally injected with 10% chloral hydrate
anesthesia (0.35 mL/100 g) before the blood sample was obtained from the heart region. Then the
blood was injected into the heparin lithium centrifuge tube and centrifuged at 3000 rpm for 10 min.
The supernatant was then transferred to 15 mL centrifuge tube, with three times the amount of
acetonitrile, vortexed for complete mixing, and then was centrifuged at 10,000 rpm for 15 min.
The supernatant was collected, with nitrogen blowing on a small amount of liquid. After being
refolded with methanol, the samples were filtered with a 0.22
following analyses.
µm filter, and then stored at
−
20 ◦C for
3.4. Liquid Chromatographic and Mass Spectrometer Conditions
A TC-C18 (4.6 mm
×
250 mm, 5 µm, Agilent) column was used for analysis. The column
temperature was kept at 30 ◦C. The mobile phases consisted of water containing 0.1% formic acid
water (A) and acetonitrile (B). The gradient elution was done as follows: 90–40% A (0–28 min);
40–20% A (28–32 min); 20% A (32–37 min). The sample injection volume was 10
rate was 1 mL/min.
µL. The eluent flow
For metabolite analysis, a full scan was run in the positive mode with a mass range from m/z
100 to 800 amu. The capillary pressure with the ESI ion source was +4 kV. The tapered voltage was
◦
◦
+110 V and the ion source temperature and capillary temperature were, respectively, 300 C and 350 C.
The collision gas was helium, the collision energy was 35 V and the sheath air flow and auxiliary air
flow were 35 L/min and 10 L/min, respectively.
3.5. Experimental Procedure
3.5.1. Preparation of M1 ((E)-3-(4-((3,5,6-trimethylpyrazin-2-yl)methoxy)phenyl)acrylic acid)
To verify the accuracy of the proposed structure, we synthesized metabolite M1 by esterification
and hydrolysis. Compound 2-(bromome-thyl)-3, 5, 6-trimethylpyrazine (10.14 mmol), cumaric acid
(5.07 mmol), and K2CO3 (5.0 mmol) were all added into DMF (30 mL), and then the mixture was stirred
◦
at 85 C for 2 h. The crude product was extracted using ethylacetate and distilled under reduced
pressure. The esterification product (1.85 mmol) and KOH (8 mL) were added to ethyl alcohol (20 mL),
and then the mixture was stirred at 60 ◦C for 0.5 h. The pH value was adjusted to 3~4 and after being
evaporated, the residue was eluted with silica gel, and the metabolite M1 was obtained. Compound
M1 has been synthesized and reported by our laboratory [28]. M1: m.p.: 155.8–156.5 ◦C. 1H-NMR
(500 MHz, CDCl3)
δ: 7.52 (d, J = 16.5 Hz, 1H, -CH=), 7.28 (d, J = 8.5 Hz, 2H, Ar-H), 6.81 (d, J = 9.0 Hz,
2H, Ar-H), 6.08 (d, J = 16.0 Hz, 1H, =CH-), 5.33 (s, 2H, -CH2), 2.65 (s, 3H, -CH3), 2.58 (brs, 6H, -CH3).
13C-NMR (150 MHz, CDCl3)
δ: 167.0, 159.1, 151.9, 149.5, 149.2, 145.5, 145.4, 145.0, 130.0, 126.2, 116.2,
113.9, 64.1 (-CH2), 21.5 (-CH3), 20.9 (-CH3), 20.4 (-CH3). HR-MS (ESI) m/z: 299.13885 [M + H]+, calcd.
for C17H18N2O3 298.13174.
3.5.2. Preparation of M2 (methyl (E)-3-(4-((3,5,6-trimethylpyrazin-2-yl)methoxy)phenyl)acrylate))
To verify the accuracy of the proposed structure, we synthesized one of the metabolites,
M2. Hydroxycinnamic acid (10.14 mmol) was added to anhydrous methanol (30 mL). After complete
dissolution, thionyl chloride was slowly added dropwise under ice-cooling, while being stirred at
0 ◦C for 0.5 h, and then the temperature was slowly raised to room temperature. Then, the reaction
solution was evaporated under reduced pressure. The reaction product was placed in a one-necked
flask with potassium carbonate and N, N-dimethylformamide was added; the mixture was stirred
◦
at 65 C for 3 h under nitrogen. Water was added to the reaction solution for dispersion before
extraction with methylene chloride. After being evaporated, the residue was eluted with silica gel,

Molecules 2018, 23, 1154
10 of 12
and metabolite M2 was obtained. M2: m.p.: 124.0–124.4 ◦C. 1H-NMR (500 MHz, CDCl3)
δ
7.64~7.61
(d, J = 7.6Hz, 1H, Ar-H), 7.46~7.44 (d, J = 7.4 Hz, 1H, Ar-H), 7.01~6.99 (d, J = 7.3 Hz, 1H, Ar-H), 6.31~6.28
(d, J = 6.3 Hz, 1H, Ar-H), 5.16 (s, 2H, -CH2), 3.78, 2.63 (s, 3H, -CH3), 2.57 (s, 3H, -CH3), 2.51 (s, 3H, -CH3)
13C-NMR (150 MHz, CDCl3)
δ 167.92, 160.58, 151.73, 150.20, 148.92, 145.45, 144.61, 129.93, 127.80,
115.78, 115.64, 115.43, 70.22 (-CH2), 51.81 (-OCH3), 21.94 (-CH3), 21.65 (-CH3), 20.85 (-CH3), HR-MS
(ESI) m/z: 313.16403 [M + H]+, calcd. for C18H20N2O3.
3.5.3. Preparation of M4 (4-((3,5,6-trimethylpyrazin-2-yl)methoxy)benzoic acid)
To verify the accuracy of the proposed structure, we synthesized one of the metabolites,
M4. Compound 2-(bromome-thyl)-3,5,6-trimethy-lpyrazine (10.14 mmol), p-Hydroxybenzoic acid
(5.07 mmol), and K2CO3 (5.0 mmol) were all added into DMF (30 mL), and then the mixture was stirred
◦
at 85 C for 2 h. The crude product was extracted using ethylacetate and distilled under reduced
pressure. The esterification product (1.97 mmol) and KOH (8 mL) were added into ethyl alcohol
(20 mL), and then the mixture was stirred at 60 ◦C for 0.5 h. The pH value was adjusted to 3~4 and
after being evaporated, the residue was eluted with silica gel, and the metabolite M4 was obtained.
◦
Compound M4 has been synthesized and reported by our laboratory [28]. M4: 160.7–161.4 C. 1H-NMR
(500 MHz, CDCl3)
δ
: 8.07 (d, J = 8.5 Hz, 2H, Ar-H), 7.07 (d, J = 8.5 Hz, 2H, Ar-H), 5.26 (s, 2H, -CH2),
2.63 (s, 3H, -CH3), 2.56 (s, 3H, -CH3), 2.56 (s, 3H, -CH3). 13C-NMR (150 MHz, CDCl3)
δ: 171.2, 162.9,
151.6, 150.0, 148.9, 145.1, 132.3, 122.4, 114.6, 69.9 (-CH2), 21.7 (-CH3), 21.4 (-CH3), 20.5 (-CH3). HR-MS
(ESI) m/z: 273.12234 [M + H]+, calcd. For C15H17N2O3 273.11609.
3.6. Protective Effect on Injured PC12 Cells
PC12 cells were cultured in RPMI 1640 medium supplemented with horse serum (10% v/v),
fetal bovine serum (5%, v/v), and penicillin-streptomycin (100
µ/mL) (Thermo Technologies,
New York, NY, USA) at 37 ◦C when humidified with CO2 (5%). When the cells achieved the density
of 80%, the original medium was removed and cells were cultured with the serum-free medium for
14 h. Then the cells were suspended in 1640 medium supplemented with 10% (v/v) fetal bovine
serum, and seeded into poly-L-lysine-coated 96-well culture plates at 7
and treated with 50 ng/mL nerve growth factor (NGF) for 48 h. Followed by these treatments,
the differentiated PC12 cells were pretreated with various doses (60, 30, 15, 7.5, and 3.75 g/mL)
for 36 h. All measurements were performed after the cells were induced by CoCl2 (final concentration,
300 M) for 12 h. The control-differentiated cells were not treated. CoCl2 was dissolved in RPMI 1640
medium. After MTT solution (20
×
103 cells/well, differentiated,
µ
µ
µ
L, 5 mg/mL) was added to each well, the plate was incubated
for a further 4 h at 37 ◦C. The optical density (OD) was measured at a wavelength of 490 nm using
a BIORAD 550 spectrophotometer (Bio-Rad, Berkeley, CA, USA). The proliferation rates of damaged
PC12 cells were calculated by the formula [OD490 (Sample)
(CoCl2)] × 100%.
−
OD490 (CoCl2)]/[OD490 (NGF)
−
OD490
4. Conclusions
In this study, the LC-MSn detection method was established by analyzing T-CA and its metabolites
in vivo. The results showed the main fragment ion peaks, mass spectral characteristics, and structural
information of T-CA. There were five main metabolites of T-CA in rats: M1-M5. Three of these
metabolites M1, M2, M4, were synthesized by a chemical method. The metabolites were validated
according to the characteristics of the mass spectrometry. The PC12 cells model was used to verify
that the metabolites had a certain neuroprotective activity; especially, metabolite M2 showed a strong
activity (EC50 = 9.67 µM), which provided important information for further study of the T-CA
biotransformation process and pre-modification. Studying the lead compounds as well as their
metabolites at the same time is an important direction for drug discovery. Moreover, this research
provided a reference for the study of ligustrazine derivative metabolism.

Molecules 2018, 23, 1154
11 of 12
Author Contributions: X.Z., P.W. and H.L. designed research; X.Z., R.Z. and M.C. performed the
LC/LTQ-Orbitrap MS experiment; G.W. and N.X. performed animal experiment; G.L. and H.W. performed
the synthesized assay; K.F. and W.Z. analyzed pharmacological data; T.M. and X.Z. performed the analysis the
data; X.Z. and P.W. wrote this paper. H.L. was principle investigator of the project and provided the research
funding. All authors read and approved the final manuscript.
Acknowledgments: This study was financially supported by the National Natural Science Foundation of China
(No.81173519), project of “acid-base complexation” and “structure combination” principle to discover lead
compounds form Chinese traditional Chinese medicine (BUCM, 2018-2019), Beijing Key Laboratory for Basic
and Development Research on Chinese Medicine (Beijing, 100102), the Innovation Team Project Foundation of
Beijing University of Chinese Medicine (Lead Compounds Discovering and Developing Innovation Team Project
Foundation, No. 2011-CXTD-15), and the Graduate Independent Topics of Beijing University of Chinese Medicine
(2018-JYBZZ-XS063).
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
Henz, B.M. The pharmacologic profile of desloratadine: A review. Allergy 2001, 56, 7–13. [CrossRef]
[PubMed]
2.
Kong, R.; Liu, T.; Zhu, X.; Ahmad, S.; Williams, A.L.; Phan, A.T. Old drug new use—Amoxapine and its
metabolites as potent bacterial β-glucuronidase inhibitors for alleviating cancer drug toxicity. Clin. Cancer Res.
2014, 20, 3521–3530. [CrossRef] [PubMed]
3.
4.
Saha, S.; Rajpal, D.K.; Brown, J.R. Human microbial metabolites as a source of new drugs. Drug Discov. Today
2016, 21, 692–698. [CrossRef] [PubMed]
Xu, K.; Wang, P.; Xu, X.; Chu, F.; Lin, J.; Zhang, Y.; Lei, H. An overview on structural modifications of
ligustrazine and biological evaluation of its synthetic derivatives. Res. Chem. Intermed. 2015, 41, 1385–1411.
[CrossRef]
5.
6.
7.
Zeng, Z.; Zhu, W.; Zhou, X.; Jin, Z.; Liu, H.; Chen, X. Tetramethylpyrazine, a Chinese drug, blocks
coronary vasoconstriction by endothelin-1 and decreases plasma endothelin-1 levels in experimental animals.
J. Cardiovasc. Pharmacol. 1998, 31, 313–316. [CrossRef]
Zhang, Z.; Wei, T.; Hou, J.; Li, G.; Yu, S.; Xin, W. Tetramethylpyrazine scavenges superoxide anion and
decreases nitric oxide production in human polymorphonuclear leukocytes. Life Sci. 2003, 72, 2465–2472.
[CrossRef]
Wong, K.L.; Chan, P.; Huang, W.C.; Yang, T.L.; Liu, I.M.; Lai, T.Y. Effect of tetramethylpyrazine on potassium
channels to lower calcium concentration in cultured aortic smooth muscle cells. Clin. Exp. Pharmacol. Physiol.
2003, 30, 793–798. [CrossRef] [PubMed]
8.
9.
Zhao, T.; Fu, Y.; Sun, H.; Liu, X. Ligustrazine suppresses neuron apoptosis via the Bax/Bcl-2 and caspase-3
pathway in PC12 cells and in rats with vascular dementia. IUBMB Life 2018, 70, 60–70. [CrossRef] [PubMed]
Li, G.; Xu, X.; Xu, K.; Chu, F.; Song, J.; Zhou, S. Ligustrazinyl amides: A novel class of ligustrazine-phenolic
acid derivatives with neuroprotective effects. Chem. Cent. J. 2015, 9, 9. [CrossRef] [PubMed]
10. Xu, B.; Gong, Y.; Xu, X.; Zhang, C.; Zhang, Y.; Chu, F.; Liu, H.; Wang, P.; Lei, H. Synthesis and protective
effect of new ligustrazine derivatives against CoCl2-induced neurotoxicity in differentiated PC12 cells. Part 2.
MedChemComm 2015, 6, 806–809. [CrossRef]
11. Wang, P.; Zhao, R.; Yan, W.; Zhang, X.; Zhang, H.; Xu, B. Neuroprotection by new ligustrazine-cinnamon
acid derivatives on CoCl2-induced apoptosis in differentiated PC12 cells. Bioorg. Chem. 2018, 77, 360–369.
[CrossRef] [PubMed]
12. Li, G.; Wang, P.; Xu, X.; Lin, J.; Chu, F.; Song, J.; Zhou, S.; Wang, M.; Zhang, Y.; Lei, H. Synthesis and
protective effect of ligustrazine intermediates against CoCl2-induced neurotoxicity in differentiated PC12
cell. Zhongguo Zhong Yao Za Zhi 2014, 39, 2679–2683. [PubMed]
13. Xu, B.; Xu, X.; Zhang, C.; Zhang, Y.; Wu, G.; Yan, M. Synthesis and protective effect of new
ligustrazine-vanillic acid derivatives against CoCl2-induced neurotoxicity in differentiated PC12 cells.
Chem. Cent. J. 2017, 11, 20. [CrossRef] [PubMed]
14. Li, G.; Tian, Y.; Zhang, Y.; Hong, Y.; Hao, Y.; Chen, C. A Novel Ligustrazine Derivative T-VA Prevents
Neurotoxicity in Differentiated PC12 Cells and Protects the Brain against Ischemia Injury in MCAO Rats.
Int. J. Mol. Sci. 2015, 16, 21759–21774. [CrossRef] [PubMed]

Molecules 2018, 23, 1154
12 of 12
15. Zhang, C.; Yan, W.; Zhao, R.; Xu, B.; Fang, X.; Yan, M. Design, synthesis and evaluation of new ligustrazine
derivatives as potential plasma-stable neuroprotective agents. MedChemComm 2017, 8, 652–656. [CrossRef]
16. Li, G. Design, synthesis and activity characterization of series tetramethylpyrazine compounds. Part 3.
Master’s Thesis, Beijing University of Chinese Medicine, Beijing, China, June 2015.
17. Zou, J.; Gao, P.; Hao, X.; Xu, H.; Zhan, P.; Liu, X. Recent progress in the structural modification and
pharmacological activities of ligustrazine derivatives. Eur. J. Med. Chem. 2018, 147, 150–162. [CrossRef]
[PubMed]
18. Labat, L.; Goncalves, A.; Marques, A.R.; Duretz, B.; Granger, B.; Declèves, X. Liquid chromatography high
resolution mass spectrometry for the determination of baclofen and its metabolites in plasma: Application to
therapeutic drug monitoring. Biomed. Chromatogr. 2017, 31. [CrossRef] [PubMed]
19. Hogenboom, A.C.; Van Leerdam, J.A.; De Voogt, P. Accurate mass screening and identification of emerging
contaminants in environmental samples by liquid chromatography–hybrid linear ion trap Orbitrap mass
spectrometry. J. Chromatogr. A 2009, 1216, 510–519. [CrossRef] [PubMed]
20. Bar-Am, O.; Amit, T.; Youdim, M.B.H. Aminoindan and hydroxyaminoindan, metabolites of rasagiline and
ladostigil, respectively, exert neuroprotective properties in vitro. J. Neurochem. 2007, 103, 500–508. [CrossRef]
[PubMed]
21. Li, W.; Liu, H.; Wei, C.; Wei, X.; Tang, M.; Kong, X. Pharmacokinetics and metabolism of Chf197, a ligustrazine
derivative, in rats. Fundam. Clin. Pharmacol. 2015, 29, 478–487. [CrossRef] [PubMed]
22. Zeng, Z.; Xie, R.Q.; Zhang, T.; Tan, L.X.; Xiu-Ying, Y.U. The regular patterns of mass spectrometry of lac-tones
from Ligusticum chuanxiong Hort. J. Chin. Mass Spectrom. Soc. 2011, 32, 293–300.
23. Thibert, V.; Legeay, P.; Chapuishugon, F.; Pichon, V. Molecularly imprinted polymer for the selective
extraction of cocaine and its metabolites, benzoylecgonine and ecgonine methyl ester, from biological fluids
before LC–MS analysis. J. Chromatogr. B 2014, 949, 16–23. [CrossRef] [PubMed]
24. Wu, J.Y.; Gao, F.Y.; Ye, X.L.; Liu, H.; Fan, G.R.; He, G.W. Chuan’agelei and its flatten structure ferulic acid
and ligustrazine: Mass fragmentation pathway. Acad. J. Second Mil. Med. Univ. 2012, 33, 755–758. [CrossRef]
25. Kaever, V.; Martin, M.; Fauler, J.; Marx, K.H.; Resch, K. A novel metabolic pathway for leukotriene B4 in
different cell types: Primary reduction of a double bond. Biochim. Biophys. Acta (BBA)-Lipids Lipid Metab.
1987, 922, 337–344. [CrossRef]
26. Shi, Y.; Xia, Y.; Wang, J.; He, J.; Feng, F.; Liu, W. Metabolic profile of 5-hydroxy-4-methoxycanthin-6-one,
a typical canthinone alkaloid, in rats determined by liquid chromatography-quadrupole time-of-flight
tandem mass spectrometry together with multiple data processing techniques. J. Pharm. Biomed. Anal. 2016
129, 60–69. [CrossRef] [PubMed]
,
27. Zhao, X.; Jiang, J.; Yang, G.; Huang, J.; Yang, G.; He, G. Profiling and Preparation of Metabolites from Pyragrel
in Human Urine by Online Solid-Phase Extraction Coupled with High Performance Liquid Chromatography
Tandem Mass Spectrometry Followed by a Macroporous Resin-Based Purification Approach. Molecules 2017
22, 494. [CrossRef] [PubMed]
,
28. Wang, P.; Zhang, H.; Chu, F.; Xu, X.; Lin, J.; Chen, C. Synthesis and protective effect of new
ligustrazine-benzoic acid derivatives against CoCl2-induced neurotoxicity in differentiated PC12 cells.
Molecules 2014, 18, 13027–13042. [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.
©
2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
