SYNTHESIS
December 1998
1775

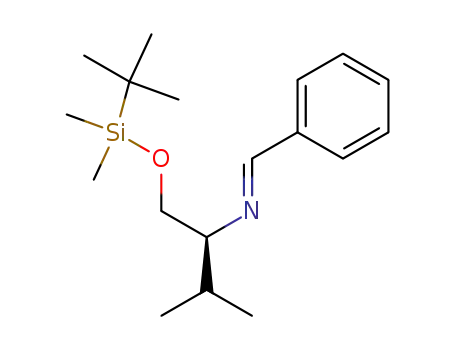

(S)-N-Benzylidenevalinol tert-Butyldimethylsilyl Ether (16):
The imine 15 was prepared in quantitative yield by the same proce-
dure previously described for the imine 1. The crude imine 15 was
dissolved in anhyd CH2Cl2 (10 mL) and imidazole (0.752 g,
11 mmol) and t-BuMe2SiCl (1.65 g, 11 mmol) were added to the
magnetically stirred solution. After stirring for 3 h, the solid was fil-
tered off and the solution was concentrated in vacuo. The residue was
taken with anhyd Et2O/cyclohexane (1:1, 50 mL) and the solid phase
filtered off. The organic solution was concentrated in vacuo to leave
the imine 16, which was used in subsequent reactions without purifi-
cation; yield: 2.89 g (95%); [α]D20 +36.7 (c = 1.2, CHCl3).
It should be also stressed that the use of the tert-butyldi-
methylsilyl protection for the hydroxy group of the imine
is necessary for the successful reaction with 2-furyllithi-
um. In fact, we preliminarily observed that the addition of
2-furyllithium to the O-trimethylsilyl derivative of 15 ex-
clusively gave desilylation to 15. Moreover, 2-furyllithi-
um (5 equiv) added very slowly to the unprotected imine
15 (25°C, 2 d) gave the β-amino alcohol 10 with 66% iso-
lated yield, but low stereocontrol (d.r. 80:20).
1H NMR (CDCl3, 200 MHz): δ = 8.22 (s, 1 H, CH=N), 7.73 (m, 2 H,
Ph), 7.42 (m, 3 H, Ph), 3.90 (dd, J = 4.1 and 10.0 Hz, 1 H, CH2O),
3.68 (dd, J = 8.2 and 10.0 Hz, 1 H, CH2O), 3.0 (m, 1 H, CHN), 1.95
(m, 1 H, CHMe2), 0.95 (d, J = 7.4 Hz, 6 H, CHMe2), 0.85 (s, 9 H,
SiBu-t), 0.03 and –0.04 (2 s, 6 H, SiMe2).
A comparison of this procedure with other methods for
the preparation of optically pure α-furylamines and α-
amino acids is opportune. Homochiral 1-(2-furyl)alkyl-
amines have been prepared by resolution of racemic com-
pounds or by asymmetric synthesis. N-Benzoyl-1-(2-fur-
yl)ethylamine was resolved by crystallization of the dias-
tereomeric tartrates, and the (–)-N-benzoyl derivative was
oxidized to (–)-(R)-N-benzoylalanine by treatment with
potassium permanganate.4a Moreover, 1-(2-furyl)-N-(to-
syl)alkylamines were obtained with 90–100% ee by kinet-
ic resolution using a modified Sharpless asymmetric ep-
oxidation reagent, and the subsequent oxidation of the fu-
ran ring using ozone4d,f or NaIO4/RuCl3 (cat.)4f gave the
N-tosyl-α-amino acids with moderate to good optical pu-
rity. The synthesis of (R)-furfurylamines has been recent-
ly accomplished by the reaction of 2-furylboronic acid
with iminium intermediates derived from (S)-phenylmor-
pholinone.10 The enantioselective reduction of oxime
benzyl ethers of 2-furyl ketones with reagents derived
MS: m/z (%) = 160 (100, M+ – CH2OSiMe2Bu-t), 248 (68, M+ – Bu-t),
73 (24), 162 (16), 59 (14), 161 (14), 249 (14), 75 (13), 91 (11), 93 (11).
Addition of Allylzinc Bromide to the Imine 2. Preparation of (S)-
N-[(S)-1-(2-Furyl)but-3-enyl]valinol (3):
Allylzinc bromide was prepared by stirring allyl bromide (1.31 mL,
15 mmol) and zinc powder (1.63 g, 25 mmol) in anhyd THF (20 mL)
for 3 h, then the mixture was cooled to –78°C and the imine 2 (2.53 g,
10 mmol) dissolved in THF (5 mL) was added while the mixture was
stirred magnetically. After 2 h, 4 N HCl (10 mL) was added and the
mixture was stirred overnight at rt. Et2O (20 mL) was added and the
aqueous phase was separated and washed with Et2O (20 mL). NaOH
pellets were added to the aqueous phase until pH 11, and the amine
was extracted with Et2O (3 × 20 mL). The Et2O layers were collected,
dried (Na2SO4) and concentrated to leave the crude amine 3 in pure
state; yield: 2.22 g (99.5%); [α]D25 –47.8 (c = 2.2, CHCl3).
1H NMR (CDCl3, 300 MHz): δ = 7.38, 6.32 and 6.15 (3 m, 3 H, Ar),
5.84–5.68 (m, 1 H, CH=CH2), 5.17–5.03 (m, 2 H, CH=CH2), 3.78 (t,
1 H, ArCH), 3.59 (dd, J = 4.0 and 10.9 Hz, 1 H, CH2O), 3.43 (dd, J =
4.7 and 10.9 Hz, 1 H, CH2O), 2.55 (m, 2 H, ArCHCH2), 1.68 (m, 1 H,
CHMe2), 1.43 (s, 1 H, NH), 0.85 (d, J = 6.8 Hz, 6 H, CHMe2).
MS: m/z (%) = 182 (100, M+ – CH2OH), 96 (60, ArCHNH2), 121 (52,
ArCHC3H5), 103 (32), 91 (29), 77 (24), 93 (24), 81 (17), 72 (12).
•
from BH3 THF and (–)-norephedrine was also described,
then N-benzoyl (S)- or (R)-α-amino acids were prepared
through the ozonolysis of the furan ring (28–55% overall
yield, five steps, ee 87–96%).4k Another route involves
alkylation of the 2-azaallyl anions of the N-(2-furylmeth-
yl)imines prepared from (+)- or (–)-2-hydroxy-3-pi-
nanone (44–67% overall yield, 91–>98% ee) and (–)-3-
hydroxy-2-caranone (36% yield, 81% ee).11
Addition of Organolithium Reagents to the Imine 2. Preparation
of the Amines (S,S)-9 and (S,S)-10:
1 M MeLi in THF/cumene (12 mL, 12 mmol) or 2 M PhLi in benzene/
Et2O (6 mL, 12 mmol) was slowly added to the solution of the imine
2 (2.53 g, 10 mmol) in anhyd THF (15 mL) cooled at –15°C under N2.
The mixture was stirred for 30 min at –10°C, then quenched by addi-
tion of 4 N HCl (20 mL) and stirred overnight at rt. Et2O (20 mL) was
added and the aqueous phase was separated and washed with Et2O
(20 mL). NaOH pellets were added to the aqueous phase until pH 11,
and the amine was extracted with Et2O (3 × 20 mL). The Et2O layers
were collected, dried (Na2SO4) and concentrated to leave the crude β-
amino alcohol, which was purified by column chromatography (silica
gel, 10 g, cyclohexane/Et2O 80:20).
General methods and instrumentation were as previously described.1
(S)-N-[(2-Furyl)methylene]valinol Trimethylsilyl Ether (2):
Anhyd MgSO4 (5 g) and 2-furaldehyde (0.96 g, 10 mmol) were added
to a solution of (S)-valinol (1.03 g, 10 mmol) in CH2Cl2 (10 mL) at
0°C, and the mixture was stirred magnetically for 2 h. The solid phase
was filtered off and the organic solvent was evaporated under reduced
pressure to leave the crude (E)-imine 15 in almost quantitative yield.12
The imine 1 was dissolved in anhyd CH2Cl2 (10 mL) and Et3N
(1.12 g, 11 mmol) and Me3SiCl (1.16 g, 11 mmol) were added to the
magnetically stirred solution. The mixture was stirred for 3 h, the sol-
id was filtered off and the solution was concentrated in vacuo. The
residue was taken up in anhyd Et2O/cyclohexane (1:1, 50 mL) and the
solid phase filtered off. The organic solution was concentrated in vac-
uo to leave the imine 2, which was used in subsequent reactions with-
out purification; yield: 2.40 g (95%); [α]D20 +1.7 (c = 2.1, CHCl3).
1H NMR (CDCl3, 300 MHz): δ = 7.99 (s, 1 H, CH=N), 7.49, 6.71 and
6.45 (3 m, 3 H, Ar), 3.88 (dd, J = 4.0 and 10.3 Hz, 1 H, CH2O), 3.61
(dd, J = 8.1 and 10.3 Hz, 1 H, CH2O), 2.86 (m, 1 H, CHN), 1.95 (m,
1 H, CHMe2), 0.93 and 0.89 (2 d, 6 H, J = 7.4 Hz, CHMe2), 0.03 (s, 9
H, SiMe3).
(S)-N-[(S)-1-(2-Furyl)ethyl]valinol [(S,S)-9]: yield: 87%.
1H NMR (CDCl3, 200 MHz): δ = 7.34 (m, 1 H, Ar), 6.30 (m, 1 H, Ar),
6.12 (m, 1 H, Ar), 3.70 (q, 1 H, CHMe), 3.58 (dd, J = 4.2 and 10.8 Hz,
1 H, CH2O), 3.37 (dd, J = 5.2 and 10.8 Hz, 1 H, CH2O), 2.33 (m, 1 H,
CHN), 2.20 (broad, 2 H, NH and OH), 1.42 (d, J = 7.4 Hz, 3 H,
CHMe), 0.87 and 0.85 (2 d, J = 4.7 Hz, 6 H, CHMe2).
(S)-N-[(S)-α-(2-Furyl)benzyl]valinol [(S,S)-10]: yield: 77%.
1H NMR (CDCl3, 200 MHz): δ = 7.47–7.24 (m, 6 H, Ar), 6.31 (m, 1
H, Ar), 6.10 (m, 1 H, Ar), 4.98 (s, 1 H, CHAr2), 3.54 (dd, J = 6.6 and
16.2 Hz, 1 H, CH2O), 3.39 (dd, J = 9.2 and 16.2 Hz, 1 H, CH2O), 2.42
(m, 1 H, CHCH2), 2.20–1.50 (broad, 2 H, NH and OH), 1.90 (m, 1 H,
CHMe2), 0.96 and 0.92 (2 d, J = 4.7 Hz, 6 H, CHMe2).
MS: m/z (%) = 253 (5, M+), 150 (100, M+ – CH2OSiMe3), 73 (29), 55
(11), 238 (6, M+ – Me).
