Med Chem Res (2012) 21:3876–3884
3879
substance with a 20:1 ethanol–water mixture. The yield
amounted to 0.027 g (25%). Rf 0.5 (1). Electron spectrum
(methanol), kmax, nm (e 9 10-3, M-1 cm-1): 393.4. (65.8),
474.8 (8.7), 578.0 (3.61), 607.2 (3.19); IR (KBr, cm-1):
1728 (COOH), 1659 (C=O amide I), 1546 (C=O amide II);
MALDI-MS (m/z): 1605 [M]? (calculated 1603.5).
and Arg), 4.37 (t, 1H, a-CH of Glu), 4.31–4.28 (m, 2H,
a-H of Arg), 3.65 (s, 6H 2 9 OCH3), 3.17 (t, 4H, d-CH2 of
Arg), 2.42–2.28 (m, 4H, –CH2–CH2– of Glu), 1.98–1.91
(m, 4H, b-CH2 of Arg), 1.78–1.66 (m, 4H, c-CH2 of Arg),
1.36 (s, 9H, (CH3)3C of Boc group); MALDI-MS (m/z):
[M]? 588.3 (calculated 588.6).

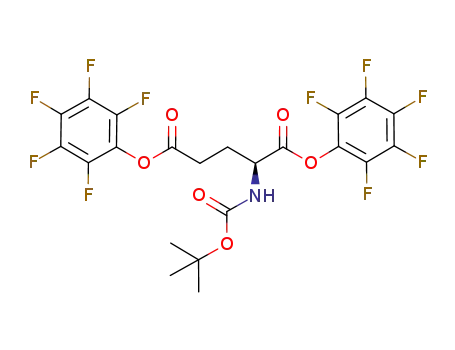

Di-pentafluorophenyl ester of Boc-L-Glutamic Acid (4)
Di-(methyl ester N-a-arginyl)-L-Glutamic Acid (6)
A solution of 1.500 g (6.73 mmol) of Boc-L-glutamic acid
in 9 ml of acetonitrile was supplemented with 2.235 g
(12.145 mmol) of pentafluorophenol. The reaction mixture
was cooled to -10ꢁC and supplemented dropwise for
10 min with 2.505 g (12.145 mmol) of DCC in 4 ml of
acetonitrile. The reaction mixture was agitated for 20 min
at 0ꢁC and kept for 24 h at 4–5ꢁC. The reaction was
monitored by means of TLC under conditions (10). The
DCU sediment was filtered, and the solvent was removed
by vacuum. The oil-like residue was twice crystallized
from ethyl acetate with hexane. The solid residue was
vacuum-dried over anhydrous CaCl2. The yield was
3.410 g (84%), Rf 0.70 (10). m. p. 127–132ꢁC. IR (KBr,
cm-1): 1737 (CO ester), 1697 (OCONH), 991, 1113 (C–F),
To 0.073 g (0.0946 mmol) of compound 5, 6 ml of
approximately 3 N HCl/MeOH was poured. The obtained
suspension was agitated for 2 h at room temperature. The
process was monitored by TLC under the conditions
(6).Once complete cleavage of the Boc protection of the
compound was attained, the solvent was removed in vacuo.
The oil-like residue was crystallized over anhydrous die-
thyl ether, with the solvent removed by decanting, and the
residue was dried. The yield was 0.056 g (85 %), Rf 0.2
(2). IR (KBr, cm-1): 1734 (CO ester), 1656 (amide I), 1532
1
(amide II); H NMR (400 MHz, DMSO-d6): d 7.23–7.08
(m, 4H, a-NH2 of Glu, a-NH of Arg), 4.35 (t, 1H, a-CH of
Glu), 4.28–4.20 (m, 2H, a-H of Arg), 3.65 (s, 6H
2 9 OCH3), 3.17 (t, 4H, d-CH2 of Arg), 2.38–2.22 (m, 4H,
–CH2–CH2– of Glu), 1.96–1.89 (m, 4H, b-CH2 of Arg),
1.76–1.66 (m, 4H, c-CH2 of Arg); MALDI-MS (m/z): [M]?
488.9 (calculated 488.3).
1
1521 (aromatic). H NMR (400 MHz, DMSO-d6): d 7.18
(s, 1H, –NH), 4.37 (t, 1H, a-CH of Glu), 1.97–2.33 (m, 4H,
–CH2–CH2–), 1.43 (s, 9H, (CH3)3C of Boc group); Anal.
calcd. for C22H15NO6F10 C, 45.60; H, 2.59; N, 2.42 Found:
C, 45.24; H, 2.60; N, 2.47. Ref. (Khrushchev et al., 2007):
m. p. 128–132.
6,7-Bis-[di-methyl ether of N-a-L-arginyl)-L-glutamyl]-
Protohemin IX (7)
Di-(methyl ester N-a-arginyl)-L-Glutamic Acid (5)
To 0.082 g (0.167 mmol) of compound 6 in 1.5 ml of
DMF, 0.047 ml (0.335 mmol) of Et3N was added. Reac-
tion mixture was stirred at room temperature for 2 min.
The obtained suspension was supplemented with a solution
of 0.047 g (0.0558 mmol) of 6,7,-bis-N-oxy succinimide
ether of protohemin IX (I) in 2 ml of DMF and agitated for
22 h at room temperature. The reaction was monitored by
means of TLC under the conditions (6). The solution was
concentrated to 1 ml and supplemented with 10 ml of
diethyl ether. In order to insert a counterion of Cl-, the
sediment was dissolved in 4 ml of MeOH and supple-
mented with 0.150 ml of *3 N HCl/MeOH to adjust the
pH to 4.0. The solvent was removed under vacuum at 30ꢁC.
The substance was purified by column chromatography on
a Sephadex LH-20 column (13 9 1 cm), eluting with
MeOH. The fractions containing the substance with Rf 0.1
(3) were combined. The solvent was removed under vac-
uum. The yield was 0.034 g (40 %), Rf 0.2 (2). Electron
spectrum, kmax, nm, chloroform:MeOH (8:2), (e 9 10-3):
400 (92.2), 508 (6.31), 636 (2.39); IR (KBr, cm-1): 1737
(CO ester), 1649 (amide I), 1528 (amide II); MALDI-MS
(m/z): [M]? 1554.9 (calculated 1555.2).
A suspension containing 0.069 g (0.266 mmol) of H-Arg-
OMe•2HCl in 2 ml of DMF was supplemented with
0.074 ml (0.531 mmol) of Et3N and agitated at room
temperature for 5 min. The obtained solution was supple-
mented with 0.077 g (0.133 mmol) of di-pentafluorophenyl
ester of Boc-glutamic acid obtained previously and stirred
for 4 h at ambient temperature. The reaction was moni-
tored by means of TLC under the conditions (5). The
solution was concentrated in vacuum to 1 ml and supple-
mented with 10 ml of diethyl ether. The oil-like sediment
was separated from the solvent by decanting, and the
residual solvent was removed under vacuum. The sub-
stance was purified by column chromatography on Kie-
selgel 60 F254 silica gel (Merck, Germany) (23 9 1 cm)
and eluted with an ethanol–acetic acid–water mixture
(4:0.5:0.5). The fractions containing the substance with Rf
0.67 (5) were collected, and then the solvent was removed
under vacuum and the residue was dried. The yield was
0.073 g (77%), Rf 0.67 (3). IR (KBr, cm-1): 1735 (CO
ester), 1653 (amide I), 1542 (amide II). 1H NMR
(400 MHz, DMSO-d6): d 7.23–7.08 (m, 3H, a-NH of Glu
