molecules
Article
Nanocellulose Derivative/Silica Hybrid Core-Shell
Chiral Stationary Phase: Preparation and
Enantioseparation Performance
Xiaoli Zhang 1,2, Litao Wang 1, Shuqing Dong 1, Xia Zhang 1, Qi Wu 1,2, Liang Zhao 1,* and
Yanping Shi 1,
*
1
Key Laboratory of Chemistry of Northwestern Plant Resources and Key Laboratory for Natural Medicine
of Gansu Province, Lanzhou Institute of Chemical Physics, Chinese Academy of Science,
Lanzhou 730000, China; lzuzxl@163.com (X.Z.); wlt@licp.cas.cn (L.W.); sqdong@licp.cas.cn (S.D.);
xiazhang@licp.cas.cn (X.Z.); wuqi@licp.cas.cn (Q.W.)
2
University of Chinese Academy of Science, Beijing 100039, China
*
Correspondence: zhaol@licp.cas.cn (L.Z.); shiyp@licp.cas.cn (Y.S.); Tel.: +86-931-496-8261 (L.Z.)
Academic Editor: Yoshio Okamoto
Received: 24 March 2016; Accepted: 25 April 2016; Published: 4 May 2016
Abstract: Core-shell silica microspheres with a nanocellulose derivative in the hybrid shell were
successfully prepared as a chiral stationary phase by a layer-by-layer self-assembly method.
The hybrid shell assembled on the silica core was formed using a surfactant as template by
the copolymerization reaction of tetraethyl orthosilicate and the nanocellulose derivative bearing
triethoxysilyl and 3,5-dimethylphenyl groups. The resulting nanocellulose hybrid core-shell chiral
packing materials (CPMs) were characterized and packed into columns, and their enantioseparation
performance was evaluated by high performance liquid chromatography. The results showed
that CPMs exhibited uniform surface morphology and core-shell structures. Various types of chiral
compounds were efficiently separated under normal and reversed phase mode. Moreover, chloroform
and tetrahydrofuran as mobile phase additives could obviously improve the resolution during the
chiral separation processes. CPMs still have good chiral separation property when eluted with
solvent systems with a high content of tetrahydrofuran and chloroform, which proved the high
solvent resistance of this new material.
Keywords: nanocrystalline cellulose; chiral stationary phase; core-shell material; enantioseparation;
high performance liquid chromatography
1. Introduction
Nowadays, the separation of enantiomers plays an increasingly important role in the fields of
biology and pharmacology [
stationary phases (CSPs) is considered one of the most effective methods to separate enantiomers
because of the high separation efficiency and the general applicability [ ]. Thus, new types of CSPs
have been developed for enantioseparation by HPLC. Chiral metal-organic frameworks have been
prepared as a new chiral packing material [ ]. Barium-doped cyclofructan-based CSPs have been
synthesized to separate chiral phosphoric and sulfonic acids [10]. Besides, a series of clicked type CSPs
were prepared by thiol-ene reactions [11 14]. Thus far, the exploitation of new types of CSPs is still a
1–3]. High-performance liquid chromatography (HPLC) using chiral
4,5
6–9
–
research hotspot in the field of enantioseparation.
Cellulose is one of the most commonly used chiral materials to realize chiral resolution of
enantiomers due to its helical structure [15
exhibited excellent separation performance have been developed for HPLC chiral separation by
Okamoto’s group [19 20]. Nanocrystalline cellulose (NCC), generated by hydrolysis of microcrystalline
–18]. Several types of CSPs based on cellulose which
,
Molecules 2016, 21, 561; doi:10.3390/molecules21050561
www.mdpi.com/journal/molecules

Molecules 2016, 21, 561
2 of 14
cellulose (MCC), is a promising kind of nanomaterial. NCC not only retains the major properties
of cellulose, including hydrophilicity and broad chemical modification capacity, but it also has
some unique characteristics, such as a high degree of crystallinity, high surface area, nanometer
dimensions and optical properties [21–23]. These properties extend the range of applications of NCC
from sustainable materials and nanocomposites to medicine and life science. In particular, NCC
suspensions can form a chiral nematic liquid-crystalline phase that thus can be utilized as a template
to prepare chiral ordered materials, which have been applied as a new kind of chiral separation
material [24,25]. In our previous work, a CSP was prepared by coating NCC derivatives on silica
gel. Compared with MCC-based CSP, NCC-based CSP showed better peak shape and higher column
efficiency, which indicated that NCC is an attractive material for chiral separation [26].
In recent years, organic-inorganic hybrid silica materials combining the advantages of organic
and inorganic materials have attracted significant attention in the fields of separation, adsorption and
catalysis [27–29]. These materials are suitable for use as HPLC packing materials mainly due to their
large specific surface areas, ordered porosity, good mechanical and chemical stabilities, and tunable
organic groups uniformly distributed in the framework [30–34]. To date, hybrid organosilica spheres
with small molecules, like trans-(1R,2R)-diaminocyclohexane,
β-cyclodextrin and binaphthyl groups
in the framework/pore channels, have been synthesized and applied as CSPs in HPLC [35
–
39].
However, almost all reported hybrid CSPs were synthesized only introduce small molecules in
inorganic materials. Polysaccharide derivatives, the most commonly used chiral selector for CSPs,
are hard to apply in hybrid materials because of the difficulty of obtaining polysaccharide-silica hybrid
materials with uniform spherical morphology, narrow pore size distribution, and high mechanical
and chemical stabilities. Ikai and coworkers reported an efficient immobilization of polysaccharide
derivatives onto silica gel via intermolecular polycondensation of triethoxysilyl groups, which used
the 3-(triethoxysilyl)propyl group as a cross-linkable group [40]. On this basis, the group reported the
synthesis of organic–inorganic hybrid materials using cellulose 3,5-dimethylphenylcarbamate bearing
a small amount of 3-(triethoxysilyl)propyl residues and tetraethyl orthosilicate as CSP for HPLC [41].
This hybrid material exhibited high loading capacity, but eluents with high contents of chloroform
(CHCl3) and tetrahydrofuran (THF) could not be used because of the swelling and partially solubility
issues of these hybrid beads. These disadvantages hinder the application of polysaccharide-silica
hybrid materials as packing materials for liquid chromatography.
These shortcomings could be overcome by making core-shell silica particles with a silica core and
an organic-inorganic hybrid porous shell, which combine the high loading capacity of organic-inorganic
hybrid shell and the high chemical stability of the silica core [42]. Most core-shell particles for HPLC
packing materials are now prepared by a layer-by-layer self-assembly process [43,44]. This process
was based on the electrostatic interaction between a charged core and and oppositely charged species
to assemble single or multilayer coatings on the silica supports. After several layer-by-layer assemble
steps, silica-core-porous-shell particles were obtained. However, there are few reports about the
use of core-shell silica particles for the preparation of CSPs for chiral separations by HPLC [43,45].
In 2013, chiral core-shell silica microspheres with a trans-(1R,2R)-diaminocyclohexane bridged moiety
in the mesoporous shell were reported [43]. Compared to porous silica packing materials, core-shell
type stationary phases exhibit higher column efficiency and shorter retention times owing to the
decrease of mass transfer resistance. Whereas, the preparation of polysaccharide silica hybrid
shell-silica core particles has still been a challenging task up to now, it is envisaged that formation of a
nanocellulose-silica hybrid shell on a silica support could combine the advantages of the core-shell
materials, the high separation performance and give hybrid materials with a wide application range.
In this work, a novel nanocellulose hybrid core-shell CSP for HPLC was designed to further study
the applications of nanocellulose in chiral separation. By using of layer-by-layer and sol-gel methods,
a nanocellulose derivative was introduced into the hybrid porous shell by the copolymerization
reaction of organosilica precursors, thus, nanocellulose derivative hybrid core-shell microspheres were
successfully prepared. The prepared materials were characterized by scanning electron microscopy

Molecules 2016, 21, 561
3 of 14
(SEM), transmission electron microscopy (TEM) and so on. Then the enantioseparation properties of
this CSP were evaluated by separating various chiral compounds under normal and reversed phase
mode. In addition, the effects of different mobile phases on the chiral separations were investigated
in detail.
2. Results and Discussion
2.1. Morphology of the Core-Shell Particles
The core-shell CPMs were prepared by a layer-by-layer self-assembly method. A surfactant
monolayer was formed by electrostatic interactions on the negatively charged surface of silica particles,
and the NCC derivative hybrid mesoporous layer was formed by the condensation of tetraethoxysilane
(TEOS) and a NCC derivative bearing triethoxysilyl groups. The hydrolyzed silane precursor species
were assembled on the surface of the silica core through S+I´ (S: surfactant; I: hydrolyzed silane
precursor species) interactions under acid catalysis conditions. In this work, the effect of the content
of NCC derivative on the obtained CPMs was investigated. Two CPMs with different contents of
nanocellulose derivative (0.05 and 0.15 g) in the hybrid shell were prepared. These two NCC hybrid
core-shell packing materials were named CPM1 and CPM2, respectively. The preparation route of the
NCC hybrid core-shell particles is shown in Scheme 1.
(1)(2)Multiple
assembly
CTAB
Hybrid sol
Silica gel
Silica core
Silica core
Silica core
(2)
(1)
Silica
Nonocellulose derivative
Hybrid shell
Scheme 1. The preparation route of the core-shell particles with NCC derivatives in the hybrid shell.
(1) and (2) are the assembling process of CTAB and hybrid sol, respectively.
The morphologies of the two core-shell CPMs with different NCC derivative content were
investigated by SEM. The SEM images are shown in Figure 1. Obviously, the surface of the silica
particles became rougher after the layer-by-layer self-assembly process. With the increase of the
NCC derivative content in the silica-nanocellulose sol assembly process, the surface roughness of
the particles and the thickness of hybrid shell increased as well. Meanwhile, when the amount of
NCC derivative in each step of the hybrid sol self-assembly process was 0.15 g (Figure 1c), the shell
surface was more uniform than in CPM1. This means that under the same preparation conditions,
higher amounts of NCC derivative benefit the formation of hybrid shells with uniform morphology.
The possible reason is that higher content of NCC derivative enhances the steric hindrance between
hydrolyzed silane precursors, the self-condensation speed was slowed down and a uniform shell
surface was formed. In addition, as can be seen in the TEM micrographs of CPM2 core-shell particles
(Figure 1d), the shell thickness of CPM2 was about 300–400 nm.

Molecules 2016, 21, 561
4 of 14
(a)
(b)
(c)
(d)
) original silica particles; (b) CPM1; (c) CPM2 and
Figure 1. SEM images of the silica particles: (
(d) TEM images of CPM2.
a
2.2. Pore Structure and Compositional Characterizations of the Core-Shell Particles
The results of nitrogen adsorption/desorption measurements are listed in Table S1. As the amount
of NCC derivative increased from 0.05 to 0.15 g, specific surface area of the mesoporous particles
was decreased from 330 to 327 m2/g, and the pore volume was reduced from 0.69 to 0.58 cm3/g.
This indicated that the hybrid shell not only coated the silica gel surface, but also the pore walls of the
original silica core.
Moreover, typical N2 adsorption/desorption isotherms and the plot of the corresponding BJH
pore size distributions of NCC hybrid core-shell particles are shown in Figure S1. The isotherms for
CPM2 (Figure S1a) possessed a type IV isotherm with a hysteresis loop, which demonstrated that this
material maintained a periodic mesoporous structure and a relatively narrow pore size distribution
(Figure S1b).
In order to prove the presence of the NCC functional groups in the NCC hybrid core-shell
materials, CPMs were characterized by XPS and elemental analysis measurements. Significantly,
distinct O, N, C element signals are observed in the XPS spectra of CPM2 (Figure 2), which indicate that
NCC derivative has been successfully introduced in the hybrid shell framework around the silica core.
Meanwhile, the elemental analysis results of the two CPMs are listed in Table 1. As the amounts
of NCC derivative increased, the organic content in the hybrid core-shell material was increased.
Moreover, the organic content of the core-shell CPMs were evaluated by thermogravimetric analysis
˝
˝
and the results are shown in Figure S2. The weight loss observed at 50 C–150 C is due to the
˝
evaporation of water. Over 200 C, the organic groups of CPMs start to decompose. When the amount
of NCC derivative in the reaction gel increased from 0.05 to 0.15 g, the organic content of the core-shell
CPM1 and CPM2 were 6.2% and 9.4%, respectively. This further indicated that a higher amount of
NCC derivative was beneficial for increasing the organic content of the NCC hybrid core-shell CPMs.

Molecules 2016, 21, 561
5 of 14
1.2x105
1.0x105
8.0x104
6.0x104
4.0x104
O1s
N1s
600
550
500
450
400
410 408 406 404 402 400 398 396 394 392
C1s
Si2p
2.0x104
0.0
N1s
1200
1000
800
600
400
200
0
Binding Energy (ev)
Figure 2. The XPS spectrum of CPM2.
Table 1. Elemental analysis data for two core-shell CPMs.
Element Content (wt %)
Sample
N
C
H
CPM1
CPM2
0.12
0.21
2.95
3.58
0.76
0.90
2.3. Chiral Separation Performance
To investigate the chromatographic performance of HPLC columns packed with the CPMs,
their chiral separation abilities were evaluated under normal phase and reversed phase mode
with several racemates, including alcohol, ether, carboxylic acid compounds, and so on.
The chromatography tests results revealed that CPM2 exhibited better recognition performance for
the separation of enantiomers compared with CPM1. All of these test enantiomers were separated on
CPM2 because of the high load loading of nanocellulose derivative on the hybrid shell, while only one
enantiomer was partial separated on CPM1 (Figure S3). Accordingly, CPM2 was chosen to evaluate in
more detail the chromatographic performance of the nanocellulose hybrid core-shell material.
2.3.1. Racemic Resolutions under Normal Phase Mode
Firstly, the chromatographic performance of CPM2 was evaluated under normal phase mode.
The retention factors (k), selectivity factors (α) and resolution factors (Rs) of the tested racemates are
presented in Table 2.
Table 2. Separation of racemates under normal phase mode.
CPM2 Column
Chiralpak IB Column
No.
Racemates
k1
k2
α
Rs
k1
k2
α
Rs
1
2
3
4
5
6
1-(1-Naphthyl) ethanol
Benzoin methyl ether
Diclofop
3.78
2.22
0.73
1.79
0.27
1.42
4.65
2.66
1.49
3.17
0.61
1.97
1.23
1.20
2.05
1.76
2.29
1.39
1.40
1.11
3.17
1.28
1.88
1.68
1.49
2.09
0.87
2.21
2.84
1.90
1.48
1.36
2.19
3.39
3.38
7.48
4.99
8.64
0.24
Ranolazine
Metalaxyl
1-Phenylethanol
4.07 11.12 2.73
3.83 10.86 2.83
0.65
0.72
1.11
Chromatographic conditions: (A) chromatographic column: CPM2. Mobile phase, (1–3) hexane/IPA
(99.5/0.5, v/v), (4) hexane/IPA/ chloroform (70/15/15), (5) hexane/ethanol (97/3, v/v), (6) hexane/IPA
(97/3, v/v). Flow rate, 0.8 mL/min. Detection wavelength, 254 nm. Temperature, 25 ˝C; (B) chromatographic
column: Chiralpak IB. Mobile phase (1, 2, 3, 5, 6) hexane/IPA (90/10, v/v), (4) hexane/IPA (60/40, v/v). Flow
rate, 1.0 mL/min. Detection wavelength, 254 nm. Temperature, 25 ˝C.

Molecules 2016, 21, 561
6 of 14
All chromatograms for the resolution of the six racemates were depicted in Figure 3. All racemates
were well enatioseparated on the CPM2 column. Among them, racemates of diclofop, metalaxyl,
and 1-phenylethanol were completely separated with the Rs values of 3.17, 1.88 and 1.68. The results
indirectly demonstrated that the CPM2 column has favorable chiral separation properties under
normal phase mode. In addition, these racemates were separated on a commercial Chiralpak IB
column under normal phase mode. The related separation parameters are also shown in Table 2. The
and Rs values of compound on CPM2 column were higher than on the commercial column. The
values of compounds and
α
6
α
1,
2
3
on CPM2 were close to those of the commercial column. Meanwhile,
most Rs values of the test racemates on the commercial column were higher than on the CPM2 column.
15
(2)
(1)
80
60
40
20
0
10
5
HO
O
O
0
0
20
40
60
80
0
10
20
30
Time(min)
40
50
Time(min)
12
(3)
(4)
4
2
0
O
OH
8
4
0
O
OH
N
Cl
Cl
O
O
O
O
N
N
H
0
5
10
Time(min)
15
20
0
5
10
15
20
25
30
35
40
Time (min)
25
20
15
10
5
12
(6)
(5)
O
O
O
O
OH
N
8
4
0
0
0
4
8
12
16
20
24
0
2
4
6
8
10
12
14
Time(min)
Time(min)
Figure 3. Chiral separation chromatograms of racemates on CPM2 column under normal phase
mode. ( ) 1-(1-naphthyl) ethanol; ( ) benzoin methyl ether; ( ) diclofop; ( ) ranolazine; ( ) metalaxyl;
) 1-phenylethanol. Chromatographic conditions: mobile phase; ( ) hexane/IPA (99.5/0.5, v/v);
) hexane/IPA/chloroform (70/15/15).
1
2
3
4
5
(
6
4
1–3
(
) hexane/IPA (97/3, v/v); (5) hexane/ethanol (97/3, v/v); (6
Flow rate, 0.8 mL/min. Detection wavelength, 254 nm. Temperature, 25 ˝C.
The effect of alcohol content on enantiomer separation was investigated by using different
contents of isopropanol (IPA) in the separation of 1-(1-naphthyl)ethanol on a column packed with
CPM2. As shown in Table S2, the k and Rs of 1-(1-naphthyl) ethanol decreased when the concentration
of IPA in the mobile phase was increased. The probable reason is that, as the content of IPA increased,
the eluent intensity of the mobile phase was enhanced, then the hydrogen bonding interactions between
1-(1-naphthyl)ethanol and chiral recognition sites on the CSP were weakened. Besides, the influence of

Molecules 2016, 21, 561
7 of 14
hydrogen bonding interactions in the chiral separation on the CPM2 column was further studied by
separating 1-(1-naphthyl)ethanol with different types of alcohols as mobile phase modifiers. As can
be seen from Table S3, IPA was the optimum alcohol modifier for 1-(1-naphthyl)ethanol. Apparently,
the various structures and diverse polarities of different alcohols lead to a variation in the interaction
force between the alcohols and the chiral recognition sites on the CPM2 column. The above results
illustrated that hydrogen bonding interactions are a significant factor in the chiral separation on a
NCC derivative hybrid core-shell column.
High chemical stability is one of the most essential advantages of nanocellulose derivative hybrid
core-shell stationary phases. High contents of mobile phase additives such as THF and CHCl3 could
be used in the enantioseparation to improve peak shape and separation performance of analytes.

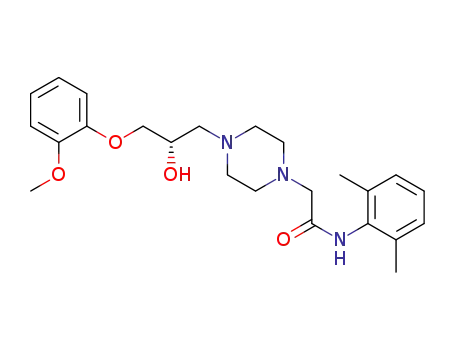

In this work, THF and CHCl3 were used to improve the separation of ranolazine on the CPM2 column.
The result revealed that THF had little effect on the separation of ranolazine, while CHCl3 is an
effective additive for the resolution of ranolazine. Therefore, the effect of different contents of CHCl3
on enantiomer resolution has been investigated and the results are listed in Table S4. Obviously,
ranolazine was not separated when using a mobile phase without additives, while it was separated
after adding 15% CHCl3 as mobile phase additive. Hence, CHCl3 can be used as an effective mobile
phase additive for enantioseparation on nanocellulose derivative hybrid core-shell columns.
2.3.2. Racemic Resolutions under Reversed Phase Mode
The chromatograms for the enantioseparation of various kinds of racemates using the CPM2
column under reversed phase mode are presented in Figure 4, and the k,
α and Rs of the racemates
are presented in Table 3. Six racemates can be effectively separated. Among them, metalaxyl and
benzoin were nearly separated by baseline, and the metalaxyl has the biggest Rs at 1.62. Moreover,
the enantioseparation of these racemates were obtained on the commercial Chiralpak IB column under
reversed phase mode, and the results were summarized in Table 3.
Table 3. Separation of racemates under reversed phase mode.
CPM2 Column
k2
26.68 31.91 1.20
Chiralpak IB Column
No.
Racemates
k1
α
Rs
k1
k2
α
Rs
2
5
7
8
9
Benzoin methyl ether
Metalaxyl
trans-Stilbene oxide
Benzoin
Octahydrobinaphthol
Benzoin ethyl ether
1.13
1.62
4.25
1.68
4.69
2.28
1.10
1.36
1.36
2.61
0.61
1.58
1.38
0.76
3.99
6.09
5.38
7.30
1.37
1.20
1.13 22.41 23.06 1.03
13.50 16.64 1.23
1.36
1.42
0.73
2.92
3.25
3.69
3.32
3.64
3.90
1.14
1.12
1.06
8.07
8.33
9.63
9.17
1.19
1.10
10
Chromatographic conditions: (A) chromatographic column: CPM2. Mobile phase, (2, 8, 10) acetonitrile/water
(15/85, v/v), (5, 7) acetonitrile/water (20/80, v/v), (9) acetonitrile/water (30/70, v/v). Flow rate, 0.6 mL/min.
Detection wavelength, 254 nm. Temperature, 25 ˝C; (B) Chromatographic column: Chiralpak IB. Mobile phase,
(2, 5, 7, 8, 10) acetonitrile/water (30/70, v/v), (9) acetonitrile/water (40/60, v/v). Flow rate, 1.0 mL/min.
Detection wavelength, 254 nm. Temperature, 25 ˝C.
The
column. The Rs values of compounds
which were higher than that on commercial column. The Rs values of compounds
CPM2 were close to those on the commercial column, and compound was better separated on the
α
values of these racemates on the CPM2 column were all higher than on the commercial
and on CPM2 column were 1.13 and 1.42, respectively,
and 10 on
7
9
2, 8
5
commercial column. The results indicated that the CPM2 column have certain advantages for the
separation of several compounds, and CPM2 support was stable and suitable for both normal phase
and reversed phase chromatographic conditions with good chiral separation performance, which
further confirms that the NCC derivative has been successfully introduced in the hybrid shell of CPM2
as the chiral reorganization functional group. Therefore, NCC hybrid core-shell CPMs can be used as
promising packing materials for the separation of racemates.

Molecules 2016, 21, 561
8 of 14
(2)
8
6
4
2
0
(5)
10
O
N
O
O
O
O
5
O
0
0
20
40
60
80
0
2
4
6
8
10 12 14 16 18 20
Time(min)
Time(min)
(7)
(8)
30
30
20
10
0
25
20
15
10
5
O
O
OH
0
0
5
10 15 20 25 30 35 40 45 50
Time(min)
0
5
10
15
20
25
30
Time(min)
10
(10)
(9)
15
10
5
HO
O
5
0
O
OH
0
0
5
10
15
20
25
30
0
5
10
15
20
25
30
Time(min)
Time(min)
Figure 4. Chiral separation chromatograms of racemates on CPM2 column under reversed phase mode.
(
(
2
) benzoin methyl ether; (
10) benzoin ethyl ether. Chromatographic conditions: mobile phase; (
) acetonitrile/water (20/80, v/v); (9) acetonitrile/water (30/70, v/v). Flow rate,
5
) metalaxyl; (
7
) trans-stilbene oxide; (
8
) benzoin; (
9
,
) octahydro binaphthol;
10) acetonitrile/water
2,
8
(15/85, v/v); (
5,
7
0.6 mL/min. Detection wavelength, 254 nm. Temperature, 25 ˝C.
2.3.3. Solvent Resistance of CPM2 Columns
As the result in the data presented in Section 2.3.1, mobile phase additives (such as THF, CHCl3
and ethyl acetate) could effectively improve the resolution of racemates during the enantioseparation.
However, excessive polar solvents can damage column efficiency and separations by dissolving and
swelling the polysaccharide derivatives in traditional CSPs. As reported by Okamoto, cellulose hybrid
bead-type CPMs are not tolerant to mobile phases containing high concentrations of CHCl3 or THF.
The high organic content of cellulose hybrid CPM might result in swelling or partial dissolution,
which limits its application in enantioseparation tasks [35]. Hence, solvent resistance is a significant
factor to evaluate the performance of CSPs. Herein, the solvent resistance of the CPM2 column was
evaluated by eluting with different contents of CHCl3 and THF for 8 h, respectively. During this process,
the column pressure was nearly constant, which indicated the column had good swelling resistance
ability. After eluting with different contents of CHCl3 and THF, the chiral separation properties of the
CPM2 column were assessed under the previous chromatographic conditions. The results, summarized
in Table 4, indicated that the Rs of 1-(1-naphthyl)ethanol remained unchanged accompanied by
a slight reduction in the value of
α after the CHCl3 elution process. That is, the resolution of

Molecules 2016, 21, 561
9 of 14
1-(1-naphthyl)- ethanol can be basically considered to remain invariable after eluting with 100%
CHCl3. Moreover, the values of and Rs of 1-(1-naphthyl)ethanol were reduced slightly after the THF
α
elution process. The results demonstrated that the nanocellulose derivative/silica hybrid core-shell
material has good solvent resistance.
Table 4. Separation of 1-(1-naphthyl) ethanol on CPM2 column after eluting with different contents of
mobile phase additives.
Elution with CHCl3
Elution with THF
CHCl3 or THF /hexane(v/v)
α
Rs
α
Rs
0%
25%
50%
100%
1.22
1.18
1.17
1.18
1.39
1.37
1.37
1.39
1.22
1.18
1.17
1.16
1.39
1.16
1.20
0.99
Chromatographic conditions: mobile phase, hexane/IPA (99.5/0.5, v/v). Flow rate, 0.8 mL/min. Detection
wavelength, 254 nm. Temperature, 25 ˝C.
3. Experimental Section
3.1. Reagents and Materials
Microcrystalline cellulose (MCC), sodium hypochlorite solution, pyridine, triphenylchloromethane,
methanol, HCl, anhydrous lithium chloride (LiCl), ammonia water, cetyltrimethylammonium
bromide (CTAB), ethanol and hydrofluoric acid solution were purchased from Sinopharm Chemical
Reagent Co., Ltd. (Shanghai, China). 3,5-Dimethylphenyl isocyanate, 3-(triethoxysilyl)propyl
isocyanate and tetraethoxysilane (TEOS) were purchased from Gelest, Inc. (Morrisville, PA, USA).
Racemic 1-(1-naphthyl)ethanol, benzoin methyl ether, diclofop, ranolazine, metalaxyl, 1-phenylethanol,
trans-stilbene oxide, benzoin, octahydro binaphthol and benzoin ethyl ether were acquired from
Sigma-Aldrich (Beijing, China). All of above reagents were of analytical grade. Beside, all solvents
used in the HPLC experiment were HPLC grade and were obtained from Sinopharm Chemical Reagent
Co., Ltd. Silica gel (particle size 5.0–5.5
surface area 300–340 m2/g) was purchased from Fuji Silysia Chemical Ltd. (Kasugai, Japan),
while stainless steel columns (150 mm 4.6 mm) were purchased from Hanbo Technologies
µm, average pore diameter 10 nm, pore volumn 0.7–0.9 mL/g,
ˆ
(Hongkong, China). The commercial Chiralpak IB column was purchased from Daicel Chiral
Technologies Co., Ltd. (Shanghai, China).
3.2. Instrumentations
Chromatographic separation was performed on a Waters HPLC system (Waters, Milford,
MA, USA), consisting of a Waters 515 HPLC pump, a Rheodyne 7725i injector equipped with
20 µL sample loop and a Waters 2487 double λ absorbance UV detector. The separation process
˝
was carried out at 25 C. The columns were packed by an Alltech 95551U HPLC slurry packing
apparatus (Alltech, Nicholasville, KY, USA). SEM images were obtained using JSM-5600LV scanning
electron microscope (JEOL, Akishima, Japan). TEM images were performed on a Tecnai G2-F30S-Twin
at an accelerating voltage of 300 kV (FEI, Hillsboro, OR, USA). X-ray photoelectron spectroscopy
(XPS) measurement was performed on a VG ESCALAB 210 instrument provided with a dual Mg/Mg
anode X-ray source (Thermo, Waltham, MA, USA). Elemental analysis was performed on a Vario EL
instrument (Elementar, Hanau, Germany). Thermogravimetric analysis was perfomed on a 449F3
simultaneous thermal analyzer (Netzsch, Selb, Germany).
3.3. Synthesis of NCC Derivatives
NCC was prepared according to a previously reported method [24]. NCC (1.0 g) was dispersed
and stirred in the dry pyridine (60 mL) for 24 h at 90 ˝C, and then triphenylchloromethane (3.5 g)

Molecules 2016, 21, 561
10 of 14
was added to the solution and reacted for 12 h. Then 3,5-dimethylphenyl isocyanate (4 mL) was
added to the mixture which was heated for 24 h at 80 ˝C. The obtained product was isolated as a
methanol-insoluble fraction. The white solid was filtered and washed thoroughly with dry methanol.
Then the white solid was dispersed in 2% HCl solution of methanol for 24 h. After washing and
drying, the obtained derivative (1.5 g) was dissolved in a mixture of anhydrous lithium chloride (1.5 g)
and dry pyridine (60 mL) and stirred for 2 h. Then, 3-(triethoxysilyl)propyl isocyanate (1.2 mL) was
˝
added to reacted with the 6-hydroxyl function, and the mixture was stirred for 16 h at 80 C. The final
product was obtained by methanol precipitation. The NCC derivative was filtered and washed with
methanol and then dried under vacuum, to give the final regioselectively substituted NCC derivative.
The reaction is shown in Scheme 2.
OH
O
O
OH
O
n
O
O
a. tritylchloride/pyridine
O
O
O
NH
HO
b. 3,5-dimethylphenyl isocyanate
c. concentrated HCl/methnol
HN
n
OH
H3C
CH3
NCC
CH3
H3C
Si(OEt)3
H
N
O
O
O
O
O
O
3-(triethoxysilyl)propyl isocyanate
LiCl/Pyridine
n
O
O
NH
HN
H3C
CH3
CH3
H3C
NCC derivative
Scheme 2. Synthetic procedure of NCC derivatives bearing a triethoxysilyl group at the 6-position and
3,5-dimethylphenyl ones at the 2- and 3-positions.
3.4. Preparation of the Core-Shell Particles
The hybrid core-shell particles were prepared using a layer-by-layer self-assembly method for
preparing the chiral packing materials (CPMs). Before the assembly process, silica particles were
activated in ammonia water and concentrated hydrochloric acid, respectively. The assembly process
had two major steps. First, activated silica particles (3 g) were dispersed in 0.025 M CTAB aqueous
solution (100 mL) and sonicated for 30 min and then left standing for 1 h to form a CTAB monolayer
film (named CTAB-silica). This was then washed carefully with deionized water and dried under
vacuum for 12 h at 60 ˝C. Second, CTAB-silica particles were dispersed in silica-nanocellulose sol
to form a nanocellulose hybrid film. The silica-nanocellulose sol was synthesized as follows: the
regioselectively substituted NCC derivative was dissolved in dry pyridine (25 mL), and then a mixture
of TEOS (3 mL) and ethanol (2 mL) was added (named solution A). In another flask, CTAB (0.1 g)
was dissoloved in 0.037 g/mL aqueous hydrofluoric acid solution (1.0 mL), and then concentrated
hydrochloric acid (0.5 mL) was added. After CTAB was completely dissolved, this mixture was added
to the solution A under vigorous stirring at 15 ˝C. The mixture was reacted for 4 h with stirring to
form stable hybrid silica sol. Then CTAB-silica was added into the hybrid silica sol for 1.5 h. After
that, the silica particles were separated by centrifugation and washed thoroughly with ethanol and

Molecules 2016, 21, 561
11 of 14
˝
deionized water and dried under vacuum for 12 h at 60 C. The whole assembly procedure was
repeated eight times. Finally, the surfactant was extracted by Soxhlet extraction using 50% ethanol as
extractant. To optimize the preparation condition of the nanocellulose hybrid core-shell material, two
CPMs with different contents of nanocellulose derivative (0.05, 0.15 g) in the hybrid shell were prepared.
These two NCC hybrid core-shell packing materials were named CPM1 and CPM2, respectively.
3.5. Column Packing
The prepared CPMs were slurry-packed into stainless steel columns (150 mm
a constant packing pressure of 50 MPa with dioxane-tetrachloromethane (1:1) as slurry solvent and
ˆ
4.6 mm) under
n-hexane as displacement solvent.
4. Conclusions
A novel chiral core-shell silica CSP with NCC derivative functional groups in the hybrid shell
was successfully prepared by a layer-by-layer self-assembly method through electrostatic interactions.
It was found that the amount of NCC derivative in the self-assembly procedure played a significant
role in the morphology control of the resulting NCC hybrid core-shell CPMs. The chiral separation
performance showed that various kinds of racemates can be separated on the NCC hybrid core-shell
CSPs under both normal and reversed phase mode. Particularly, high contents of mobile phase
additives could be used to improve the chiral separation performance. Moreover, CPM has high
solvent resistance by eluting with a high content of THF and CHCl3. The results demonstrate that
NCC derivative hybrid CPMs are a promising packing material for chiral separations in HPLC.
Supplementary Materials: Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/
21/5/561/s1.
Acknowledgments: This research was supported by the National Natural Science Foundation (Nos. 21405162,
21405161 and 20675085) and the Key Projects of Urumqi Science and Technology Bureau (Y141320007).
Author Contributions: Xiaoli Zhang, Litao Wang and Shuqing Dong: designing the experiments for core-shell
CPMs, preparation and characterized of the core-shell particles, drafting the manuscript; Xia Zhang and Qi Wu:
synthesis of NCC derivatives and evaluation of the CPMs by HPLC; Liang Zhao and Yanping Shi: Conception of
the research and revising the manuscript.
Conflicts of Interest: The authors have declared no conflict of interest.
Abbreviations
The following abbreviations are used in this manuscript:
CPMs
CSPs
chiral packing materials
chiral stationary phases
HPLC
MCC
NCC
high performance liquid chromatography
microcrystalline cellulose
nanocrystalline cellulose
CTAB
cetyl trimethyl ammonium bromide
References
1.
Al-Othman, Z.A.; Al-Warthan, A.; Ali, I. Advances in enantiomeric resolution on monolithic chiral stationary
phases in liquid chromatography and electrochromatography. J. Sep. Sci. 2014, 37, 1033–1057. [CrossRef]
[PubMed]
2.
3.
Lorenz, H.; Seidel-Morgenstern, A. Processes to separate enantiomers. Angew. Chem. Int. Ed. 2014,
53, 1218–1250.
Lee, G.; Hyun, M. Liquid chromatographic resolution of fendiline and its analogues on a chiral stationary
phase based on (+)-(18-crown-6)-2,3,11,12-tetracarboxylic acid. Molecules 2014, 19, 21386–21397. [CrossRef]
[PubMed]

Molecules 2016, 21, 561
12 of 14
4.
5.
6.
Okamoto, Y.; Ikai, T. Chiral HPLC for efficient resolution of enantiomers. Chem. Soc. Rev. 2008, 37, 2593–2608.
[CrossRef] [PubMed]
Guo, H.-X.; Wu, S.; Sun, J. Influence of temperature on the enantioselectivity of koga tetraamines on amylose
chiral stationary phases. Molecules 2014, 19, 9–21. [CrossRef] [PubMed]
Kong, J.; Zhang, M.; Duan, A.-H.; Zhang, J.-H.; Yang, R.; Yuan, L.-M. Homochiral metal-organic framework
used as a stationary phase for high-performance liquid chromatography. J. Sep. Sci. 2015, 38, 556–561.
[CrossRef] [PubMed]
7.
8.
9.
Zhang, M.; Zhang, J.-H.; Zhang, Y.; Wang, B.-J.; Xie, S.-M.; Yuan, L.-M. Chromatographic study on the high
performance separation ability of a homochiral [Cu2(d-Cam)2(4,41-bpy)]n based-column by using racemates
and positional isomers as test probes. J. Chromatogr. A 2014, 1325, 163–170. [CrossRef] [PubMed]
Kuang, X.; Ma, Y.; Su, H.; Zhang, J.; Dong, Y.-B.; Tang, B. High-performance liquid chromatographic
enantioseparation of racemic drugs based on homochiral metal–organic framework. Anal. Chem. 2014
86, 1277–1281. [CrossRef] [PubMed]
,
Li, X.; Chang, C.; Wang, X.; Bai, Y.; Liu, H. Applications of homochiral metal-organic frameworks in
enantioselective adsorption and chromatography separation. Electrophoresis 2014, 35, 2733–2743. [CrossRef]
[PubMed]
10. Smuts, J.P.; Hao, X.-Q.; Han, Z.; Parpia, C.; Krische, M.J.; Armstrong, D.W. Enantiomeric separations of chiral
sulfonic and phosphoric acids with barium-doped cyclofructan selectors via an ion interaction mechanism.
Anal. Chem. 2014, 86, 1282–1290. [CrossRef] [PubMed]
11. Zhao, J.; Lu, X.; Wang, Y.; Lv, J. “Click” preparation of a novel “native-phenylcarbamoylated” bilayer
cyclodextrin stationary phase for enhanced chiral differentiation. J. Chromatogr. A 2015, 1381, 253–259.
[CrossRef] [PubMed]
12. Pang, L.; Zhou, J.; Tang, J.; Ng, S.-C.; Tang, W. Evaluation of perphenylcarbamated cyclodextrin clicked
chiral stationary phase for enantioseparations in reversed phase high performance liquid chromatography.
J. Chromatogr. A 2014, 1363, 119–127. [CrossRef] [PubMed]
13. Yao, X.; Tan, T.T.Y.; Wang, Y. Thiol–ene click chemistry derived cationic cyclodextrin chiral stationary phase
and its enhanced separation performance in liquid chromatography. J. Chromatogr. A 2014, 1326, 80–88.
[CrossRef] [PubMed]
14. Tang, J.; Zhang, S.; Lin, Y.; Zhou, J.; Pang, L.; Nie, X.; Zhou, B.; Tang, W. Engineering cyclodextrin clicked
chiral stationary phase for high-efficiency enantiomer separation. Sci. Rep. 2015, 5, 11523. [CrossRef]
[PubMed]
15. Chankvetadze, B. Recent developments on polysaccharide-based chiral stationary phases for liquid-phase
separation of enantiomers. J. Chromatogr. A 2012, 1269, 26–51. [CrossRef] [PubMed]
16. Ikai, T.; Yamamoto, C.; Kamigaito, M.; Okamotoc, Y. Immobilized-type chiral packing materials for HPLC
based on polysaccharide derivatives. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2008, 875, 2–11.
[CrossRef] [PubMed]
17. Cirilli, R.; Orlando, V.; Ferretti, R.; Turchetto, L.; Silvestri, R.; De Martino, G.; la Torre, F. Direct HPLC
enantioseparation of chiral aptazepine derivatives on coated and immobilized polysaccharide-based chiral
stationary phases. Chirality 2006, 18, 621–632. [CrossRef] [PubMed]
18. Loukotková, L.; Rambousková, M.; Bosáková, Z.; Tesarˇová, E. Cellulose tris(3,5-dimethylphenylcarbamate)
-based chiral stationary phases as effective tools for enantioselective HPLC separation of structurally different
disubstituted binaphthyls. Chirality 2008, 20, 900–909. [CrossRef] [PubMed]
19. Ikai, T.; Yamamoto, C.; Kamigaito, M.; Okamotoc, Y. Immobilized polysaccharide derivatives: Chiral packing
materials for efficient HPLC resolution. Chem. Rec. 2007, 7, 91–103. [CrossRef] [PubMed]
20. Shen, J.; Okamoto, Y. Efficient separation of enantiomers using stereoregular chiral polymers. Chem. Rev.
2016, 116, 1094–1138. [CrossRef] [PubMed]
21. Klemm, D.; Kramer, F.; Moritz, S.; Lindstrom, T.; Ankerfors, M.; Gray, D.; Dorris, A. Nanocelluloses: A new
family of nature-based materials. Angew. Chem. 2011, 50, 5438–5466. [CrossRef] [PubMed]
22. Moon, R.J.; Martini, A.; Nairn, J.; Simonsen, J.; Youngblood, J. Cellulose nanomaterials review: Structure,
properties and nanocomposites. Chem. Soc. Rev. 2011, 40, 3941–3994. [CrossRef] [PubMed]
23. Kelly, J.A.; Giese, M.; Shopsowitz, K.E.; Hamad, W.Y.; MacLachlan, M.J. The development of chiral nematic
mesoporous materials. Acc. Chem. Res. 2014, 47, 1088–1096. [CrossRef] [PubMed]

Molecules 2016, 21, 561
13 of 14
24. Zhang, J.-H.; Xie, S.-M.; Zhang, M.; Zi, M.; He, P.-G.; Yuan, L.-M. Novel inorganic mesoporous material with
chiral nematic structure derived from nanocrystalline cellulose for high-resolution gas chromatographic
separations. Anal. Chem. 2014, 86, 9595–9602. [CrossRef] [PubMed]
25. Zhang, J.H.; Zhang, M.; Xie, S.M.; He, P.G.; Yuan, L.M. A novel inorganic mesoporous material with a
nematic structure derived from nanocrystalline cellulose as the stationary phase for high-performance liquid
chromatography. Anal. Methods 2015, 7, 3448–3453. [CrossRef]
26. Zhang, X.L.; Wang, L.T.; Dong, S.Q.; Zhang, X.; Wu, Q.; Zhao, L.; Shi, Y.P. Nonocellulose
3,5-dimethylphenylcarbamate derivative coated chiral stationary phase: Preparation and enantioseparation
performance. Chirality 2016. [CrossRef] [PubMed]
27. Li, C.; Di, B.; Hao, W.; Yan, F.; Su, M. Aminopropyl-functionalized ethane-bridged periodic mesoporous
organosilica spheres: Preparation and application in liquid chromatography. J. Chromatogr.
1218, 408–415. [CrossRef] [PubMed]
A 2011,
28. Nicole, L.; Laberty-Robert, C.; Rozes, L.; Sanchez, C. Hybrid materials science: A promised land for the
integrative design of multifunctional materials. Nanoscale 2014, 6, 6267–6292. [CrossRef] [PubMed]
29. Zhang, L.; Liu, J.; Yang, J.; Yang, Q.; Li, C. Direct synthesis of highly ordered amine-functionalized
mesoporous ethane-silicas. Microporous Mesoporous Mater. 2008, 109, 172–183. [CrossRef]
30. Wyndham, K.D.; O’Gara, J.E.; Walter, T.H.; Glose, K.H.; Lawrence, N.L.; Alden, B.A.; Izzo, G.S.; Hudalla, C.J.;
Iraneta, P.C. Characterization and evaluation of C18 HPLC stationary phases based on ethyl-bridged hybrid
organic/inorganic particles. Anal. Chem. 2003, 75, 6781–6788. [CrossRef] [PubMed]
31. Zhu, G.; Yang, Q.; Jiang, D.; Yang, J.; Zhang, L.; Li, Y.; Li, C. Synthesis of bifunctionalized mesoporous
organosilica spheres for high-performance liquid chromatography. J. Chromatogr. A 2006, 1103, 257–264.
[CrossRef] [PubMed]
32. Wang, L.; Dong, S.; Han, F.; Zhao, Y.; Zhang, X.; Zhang, X.; Qiu, H.; Zhao, L. Spherical beta-cyclodextrin-silica
hybrid materials for multifunctional chiral stationary phases. J. Chromatogr. A 2015, 1383, 70–78. [CrossRef]
[PubMed]
33. Weng, X.; Bao, Z.; Zhang, Z.; Su, B.; Xing, H.; Yang, Q.; Yang, Y.; Ren, Q. Preparation of porous
cellulose 3,5-dimethylphenylcarbamate hybrid organosilica particles for chromatographic applications.
J. Mater. Chem. B 2015, 3, 620–628. [CrossRef]
34. Rocchi, S.; Rocco, A.; Pesek, J.J.; Matyska, M.T.; Capitani, D.; Fanali, S. Enantiomers separation by nano-liquid
chromatography: Use of a novel sub-2 µm vancomycin silica hydride stationary phase. J. Chromatogr. A 2015,
1381, 149–159. [CrossRef] [PubMed]
35. Zhu, G.; Jiang, D.; Yang, Q.; Yang, J.; Li, C. Trans-(1R,2R)-diaminocyclohexane-functionalized mesoporous
organosilica spheres as chiral stationary phase. J. Chromatogr. A 2007, 1149, 219–227. [CrossRef] [PubMed]
36. Ran, R.; You, L.; Di, B.; Hao, W.; Su, M.; Yan, F.; Huang, L. A novel chiral mesoporous binaphthyl-silicas:
Preparation, characterization, and application in HPLC. J. Sep. Sci. 2012, 35, 1854–1862. [CrossRef] [PubMed]
37. Sinibaldi, M.; Carunchio, V.; Corradini, C.; Girelli, A. High-performance liquid chromatographic resolution
of enantiomers on chiral amine-bonded silica gel. Chromatographia 1984, 18, 459–461. [CrossRef]
38. Gasparrini, F.; Misiti, D.; Pierini, M.; Villani, C. Enantioselective chromatography on brush-type chiral
stationary phases containing totally synthetic selectors theoretical aspects and practical applications.
J. Chromatogr. A 1996, 724, 79–90. [CrossRef]
39. Cancelliere, G.; Ciogli, A.; D’Acquarica, I.; Gasparrini, F.; Kocergin, J.; Misiti, D.; Pierini, M.; Ritchie, H.;
Simone, P.; Villani, C. Transition from enantioselective high performance to ultra-high performance liquid
chromatography: A case study of a brush-type chiral stationary phase based on sub-5-micron to sub-2-micron
silica particles. J. Chromatogr. A 2010, 1217, 990–999. [CrossRef] [PubMed]
40. Ikai, T.; Yamamoto, C.; Kamigaito, M.; Okamoto, Y. Immobilization of polysaccharide derivatives onto
silica gel: Facile synthesis of chiral packing materials by means of intermolecular polycondensation of
triethoxysilyl groups. J. Chromatogr. A 2007, 1157, 151–158. [CrossRef] [PubMed]
41. Ikai, T.; Yamamoto, C.; Kamigaito, M.; Okamoto, Y. Organic-inorganic hybrid materials for efficient
enantioseparation using cellulose 3,5-dimethylphenylcarbamate and tetraethyl orthosilicate. Chem. Asian J.
2008, 3, 1494–1499. [CrossRef] [PubMed]
42. Gritti, F.; Guiochon, G. Possible resolution gain in enantioseparations afforded by core-shell particle
technology. J. Chromatogr. A 2014, 1348, 87–96. [CrossRef] [PubMed]

Molecules 2016, 21, 561
14 of 14
43. Wu, X.; You, L.; Di, B.; Hao, W.; Su, M.; Gu, Y.; Shen, L. Novel chiral core-shell silica microspheres
with trans-(1R,2R)-diaminocyclohexane bridged in the mesoporous shell: Synthesis, characterization and
application in high performance liquid chromatography. J. Chromatogr. A 2013, 1299, 78–84. [CrossRef]
[PubMed]
44. Hayes, R.; Ahmed, A.; Edge, T.; Zhang, H. Core-shell particles: Preparation, fundamentals and applications
in high performance liquid chromatography. J. Chromatogr. A 2014, 1357, 36–52. [CrossRef] [PubMed]
45. Lomsadze, K.; Jibuti, G.; Farkas, T.; Chankvetadze, B. Comparative high-performance liquid chromatography
enantioseparations on polysaccharide based chiral stationary phases prepared by coating totally porous and
core–shell silica particles. J. Chromatogr. A 2012, 1234, 50–55. [CrossRef] [PubMed]
Sample Availability: Samples are available from the authors.
©
2016 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC-BY) license (http://creativecommons.org/licenses/by/4.0/).
